VariablesToNtupleModule Class Reference

Module to calculate variables specified by the user for a given ParticleList and save them into a ROOT TTree. More...

#include <VariablesToNtupleModule.h>

Inheritance diagram for VariablesToNtupleModule:

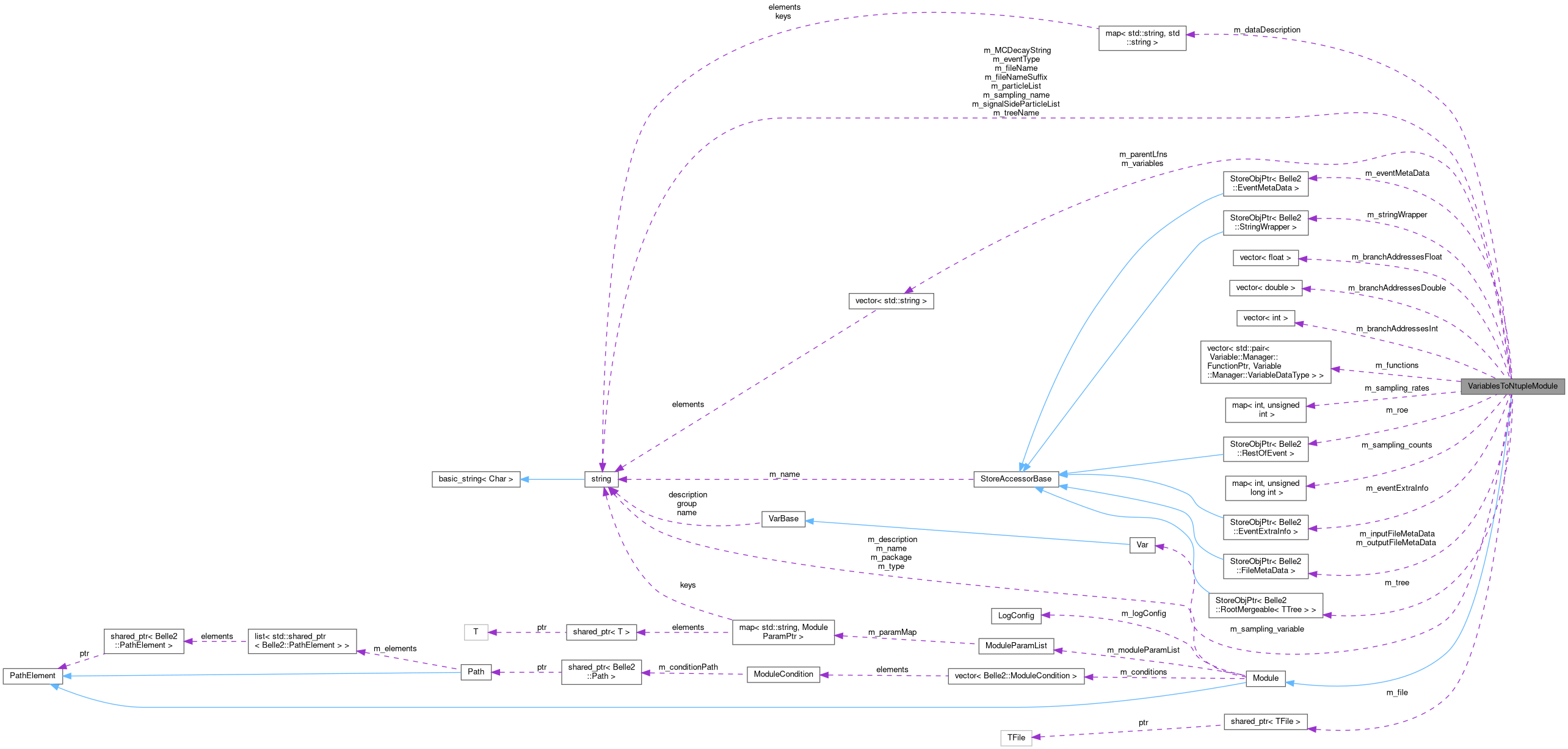

Collaboration diagram for VariablesToNtupleModule:

Public Types
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	VariablesToNtupleModule ()
	Constructor.
virtual void	initialize () override
	Initialises the module.
virtual void	event () override
	Method called for each event.
virtual void	terminate () override
	Write TTree to file, and close file if necessary.
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.
virtual void	beginRun ()
	Called when entering a new run.
virtual void	endRun ()
	This method is called if the current run ends.
const std::string &	getName () const
	Returns the name of the module.
const std::string &	getType () const
	Returns the type of the module (i.e.
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module.
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module.
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module.
void	setType (const std::string &type)
	Set the module type.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.
void	setReturnValue (int value)
	Sets the return value for this module as integer.
void	setReturnValue (bool value)
	Sets the return value for this module as bool.
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Private Member Functions
float	getInverseSamplingRateWeight (const Particle *particle)
	Calculate inverse sampling rate weight.
void	fillFileMetaData ()
	Create and fill FileMetaData object.
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
std::string	m_particleList
	Name of particle list with reconstructed particles.
std::vector< std::string >	m_variables
	List of variables to save.
std::string	m_fileName
	Name of ROOT file for output.
std::string	m_treeName
	Name of the TTree.
std::string	m_fileNameSuffix
	Suffix to be appended to the output file name.
bool	m_useFloat
	Use float type for floating-point numbers.
int	m_basketsize
	Size of TBaskets in the output ROOT file in bytes.
std::shared_ptr< TFile >	m_file {nullptr}
	ROOT file for output.
StoreObjPtr< RootMergeable< TTree > >	m_tree
	The ROOT TNtuple for output.
int	m_event { -1}
	event number
int	m_run { -1}
	run number
int	m_experiment { -1}
	experiment number
int	m_production { -1}
	production ID (to distinguish MC samples)
int	m_candidate { -1}
	candidate counter
unsigned int	m_ncandidates {0}
	total n candidates
unsigned int	m_eventCount {0}
	event counter
int	m_experimentLow {1}
	lowest experiment number
int	m_experimentHigh {0}
	highest experiment number
int	m_runLow {0}
	lowest run number
int	m_runHigh {0}
	highest run number
int	m_eventLow {0}
	lowest event number
int	m_eventHigh {0}
	highest event number
std::vector< float >	m_branchAddressesFloat
	Branch addresses of variables of type float.
std::vector< double >	m_branchAddressesDouble
	Branch addresses of variables of type double.
std::vector< int >	m_branchAddressesInt
	Branch addresses of variables of type int (or bool)
std::vector< std::pair< Variable::Manager::FunctionPtr, Variable::Manager::VariableDataType > >	m_functions
	List of pairs of function pointers and respective data type corresponding to given variables.
std::tuple< std::string, std::map< int, unsigned int > >	m_sampling
	Tuple of variable name and a map of integer values and inverse sampling rate.
std::string	m_sampling_name
	Variable name of sampling variable.
std::map< int, unsigned int >	m_sampling_rates
	Inverse sampling rates.
const Variable::Manager::Var *	m_sampling_variable {nullptr}
	Variable Pointer to target variable.
std::map< int, unsigned long int >	m_sampling_counts
	Current number of samples with this value.
StoreObjPtr< EventMetaData >	m_eventMetaData
	the event information
std::string	m_MCDecayString
	MC decay string to be filled.
StoreObjPtr< StringWrapper >	m_stringWrapper
	string wrapper storing the MCDecayString
std::string	m_signalSideParticleList
	Name of signal-side particle list
int	m_signalSideCandidate {-1}
	signal-side candidate counter
unsigned int	m_nSignalSideCandidates {0}
	total n signal-side candidates
StoreObjPtr< RestOfEvent >	m_roe
	ROE object.
bool	m_storeEventType
	If true, the branch eventType is added.
StoreObjPtr< EventExtraInfo >	m_eventExtraInfo
	pointer to EventExtraInfo
std::string	m_eventType
	EventType to be filled.
std::map< std::string, std::string >	m_dataDescription
	Additional metadata description.
std::vector< std::string >	m_parentLfns
	Vector of parent file LFNs.
StoreObjPtr< FileMetaData >	m_inputFileMetaData {"", DataStore::c_Persistent}
	Pointer to the input file meta data.
StoreObjPtr< FileMetaData >	m_outputFileMetaData
	File meta data to be stored in the output ntuple file.
bool	m_ignoreCommandLineOverride
	if true, ignore override of filename
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

Module to calculate variables specified by the user for a given ParticleList and save them into a ROOT TTree.

The ntuple is candidate-based, meaning the variables of each candidate are saved in a separate row of the ntuple

Definition at line 42 of file VariablesToNtupleModule.h.

Member Typedef Documentation

EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

VariablesToNtupleModule()

VariablesToNtupleModule

(

)

Constructor.

Definition at line 43 of file VariablesToNtupleModule.cc.

                                                 :
  Module(), m_tree("", DataStore::c_Persistent), m_outputFileMetaData("", DataStore::c_Persistent)
{
  //Set module properties
  setDescription("Calculate variables specified by the user for a given ParticleList and save them into a TNtuple. The TNtuple is candidate-based, meaning that the variables of each candidate are saved into separate rows.");
  setPropertyFlags(c_ParallelProcessingCertified | c_TerminateInAllProcesses);

  vector<string> emptylist;
  addParam("particleList", m_particleList,
           "Name of particle list with reconstructed particles. If no list is provided the variables are saved once per event (only possible for event-type variables)",
           std::string(""));
  addParam("variables", m_variables,
           "List of variables (or collections) to save. Variables are taken from Variable::Manager, and are identical to those available to e.g. ParticleSelector.",
           emptylist);

  addParam("fileName", m_fileName, "Name of ROOT file for output. Can be overridden using the -o argument of basf2.",
           string("VariablesToNtuple.root"));
  addParam("treeName", m_treeName, "Name of the NTuple in the saved file.", string("ntuple"));
  addParam("basketSize", m_basketsize, "Size of baskets in Output NTuple in bytes.", 1600);

  std::tuple<std::string, std::map<int, unsigned int>> default_sampling{"", {}};
  addParam("sampling", m_sampling,
           "Tuple of variable name and a map of integer values and inverse sampling rate. E.g. (signal, {1: 0, 0:10}) selects all signal candidates and every 10th background candidate.",
           default_sampling);

  addParam("signalSideParticleList", m_signalSideParticleList,
           "Name of signal-side particle list to store the index of the signal-side particle when one calls the module in a for_each loop over the RestOfEvent",
           std::string(""));

  addParam("fileNameSuffix", m_fileNameSuffix, "The suffix of the output ROOT file to be appended before ``.root``.",
           string(""));

  addParam("useFloat", m_useFloat,
           "Use float type for floating-point numbers.", false);

  addParam("storeEventType", m_storeEventType,
           "If true, the branch __eventType__ is added. The eventType information is available from MC16 on.", true);

  addParam("dataDescription", m_dataDescription,
           "Additional dictionary of "
           "name->value pairs to be added to the file metadata to describe the data",
           m_dataDescription);

  addParam("ignoreCommandLineOverride", m_ignoreCommandLineOverride,
           "Ignore override of file name via command line argument -o. Useful if you have multiple output modules in one path.", false);

}

Member Function Documentation

beginRun()

virtual void beginRun ( )

inlinevirtualinherited

Called when entering a new run.

Called at the beginning of each run, the method gives you the chance to change run dependent constants like alignment parameters, etc.

This method can be implemented by subclasses.

Reimplemented in EnergyBiasCorrectionModule, ChargedPidMVAModule, ChargedPidMVAMulticlassModule, CurlTaggerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, ParticleVertexFitterModule, PhotonEfficiencySystematicsModule, TagVertexModule, TreeFitterModule, B2BIIMCParticlesMonitorModule, B2BIIConvertBeamParamsModule, B2BIIConvertMdstModule, B2BIIFixMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, HistoModule, SubEventModule, SwitchDataStoreModule, EventInfoPrinterModule, EventLimiterModule, IoVDependentConditionModule, ProgressModule, RandomBarrierModule, GearboxModule, HistoManagerModule, StatisticsSummaryModule, SeqRootInputModule, SeqRootOutputModule, RxModule, TxModule, CreateFieldMapModule, ExportGeometryModule, MVAExpertModule, MVAMultipleExpertsModule, MVAPrototypeModule, AWESOMEBasicModule, and PyModule.

Definition at line 147 of file Module.h.

{};

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 426 of file Module.h.

{ beginRun(); }

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

{ endRun(); }

def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 432 of file Module.h.

{ event(); }

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

{ initialize(); }

def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 445 of file Module.h.

{ terminate(); }

endRun()

virtual void endRun ( )

inlinevirtualinherited

This method is called if the current run ends.

Use this method to store information, which should be aggregated over one run.

This method can be implemented by subclasses.

Reimplemented in CurlTaggerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, B2BIIMCParticlesMonitorModule, B2BIIConvertMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, HistoModule, SubEventModule, SwitchDataStoreModule, EventInfoPrinterModule, RandomBarrierModule, HistoManagerModule, StatisticsSummaryModule, SeqRootInputModule, SeqRootOutputModule, RxModule, TxModule, ZMQTxInputModule, ZMQTxWorkerModule, AWESOMEBasicModule, and PyModule.

Definition at line 166 of file Module.h.

{};

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

event()

void event ( )

overridevirtual

Method called for each event.

Reimplemented from Module.

Definition at line 286 of file VariablesToNtupleModule.cc.

{
  m_event = m_eventMetaData->getEvent();
  m_run = m_eventMetaData->getRun();
  m_experiment = m_eventMetaData->getExperiment();
  m_production = m_eventMetaData->getProduction();

  if (m_experimentLow > m_experimentHigh) { //starting condition
    m_experimentLow = m_experimentHigh = m_experiment;
    m_runLow = m_runHigh = m_run;
    m_eventLow = m_eventHigh = m_event;
  } else {
    if ((m_experiment < m_experimentLow) ||
        ((m_experiment == m_experimentLow) && ((m_run < m_runLow) || ((m_run == m_runLow) && (m_event < m_eventLow))))) {
      m_experimentLow = m_experiment;
      m_runLow = m_run;
      m_eventLow = m_event;
    }
    if ((m_experiment > m_experimentHigh) ||
        ((m_experiment == m_experimentHigh) && ((m_run > m_runHigh) || ((m_run == m_runHigh) && (m_event > m_eventHigh))))) {
      m_experimentHigh = m_experiment;
      m_runHigh = m_run;
      m_eventHigh = m_event;
    }
  }

  if (m_inputFileMetaData.isValid()) {
    std::string lfn = m_inputFileMetaData->getLfn();
    if (not lfn.empty() and (m_parentLfns.empty() or (m_parentLfns.back() != lfn))) {
      m_parentLfns.push_back(lfn);
    }
  }

  // check if the event is a full event or not: if yes, increase the counter
  if (m_eventMetaData->getErrorFlag() == 0) // no error flag -> this is a full event
    m_eventCount++;

  if (m_stringWrapper.isValid())
    m_MCDecayString = m_stringWrapper->getString();
  else
    m_MCDecayString = "";

  if (m_storeEventType and m_eventExtraInfo.isValid())
    m_eventType = m_eventExtraInfo->getEventType();
  else
    m_eventType = "";

  if (not m_signalSideParticleList.empty()) {
    if (m_roe.isValid()) {
      StoreObjPtr<ParticleList> signaSideParticleList(m_signalSideParticleList);
      auto signal = m_roe->getRelatedFrom<Particle>();
      m_signalSideCandidate = signaSideParticleList->getIndex(signal);
      m_nSignalSideCandidates = signaSideParticleList->getListSize();
    } else {
      m_signalSideCandidate = -1;
      m_nSignalSideCandidates = 0;
    }
  }

  if (m_particleList.empty()) {
    double weight = getInverseSamplingRateWeight(nullptr);
    if (m_useFloat) {
      m_branchAddressesFloat[0] = weight;
    } else {
      m_branchAddressesDouble[0] = weight;
    }
    if (weight > 0) {
      for (unsigned int iVar = 0; iVar < m_variables.size(); iVar++) {
        auto var_result = std::get<0>(m_functions[iVar])(nullptr);
        auto var_type = std::get<1>(m_functions[iVar]);
        if (std::holds_alternative<double>(var_result)) {
          if (var_type != Variable::Manager::VariableDataType::c_double)
            B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                      "'. Expected Variable::Manager::VariableDataType::c_double. Exported data for this variable might be incorrect.");
          if (m_useFloat) {
            m_branchAddressesFloat[iVar + 1] = std::get<double>(var_result);
          } else {
            m_branchAddressesDouble[iVar + 1] = std::get<double>(var_result);
          }
        } else if (std::holds_alternative<int>(var_result)) {
          if (var_type != Variable::Manager::VariableDataType::c_int)
            B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                      "'. Expected Variable::Manager::VariableDataType::c_int. Exported data for this variable might be incorrect.");
          m_branchAddressesInt[iVar + 1] = std::get<int>(var_result);
        } else if (std::holds_alternative<bool>(var_result)) {
          if (var_type != Variable::Manager::VariableDataType::c_bool)
            B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                      "'. Expected Variable::Manager::VariableDataType::c_bool. Exported data for this variable might be incorrect.");
          m_branchAddressesInt[iVar + 1] = std::get<bool>(var_result);
        }
      }
      m_tree->get().Fill();
    }

  } else {
    StoreObjPtr<ParticleList> particlelist(m_particleList);
    m_ncandidates = particlelist->getListSize();
    for (unsigned int iPart = 0; iPart < m_ncandidates; iPart++) {
      m_candidate = iPart;
      const Particle* particle = particlelist->getParticle(iPart);
      double weight = getInverseSamplingRateWeight(particle);
      if (m_useFloat) {
        m_branchAddressesFloat[0] = weight;
      } else {
        m_branchAddressesDouble[0] = weight;
      }
      if (weight > 0) {
        for (unsigned int iVar = 0; iVar < m_variables.size(); iVar++) {
          auto var_result = std::get<0>(m_functions[iVar])(particle);
          auto var_type = std::get<1>(m_functions[iVar]);
          if (std::holds_alternative<double>(var_result)) {
            if (var_type != Variable::Manager::VariableDataType::c_double)
              B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                        "'. Expected Variable::Manager::VariableDataType::c_double. Exported data for this variable might be incorrect.");
            if (m_useFloat) {
              m_branchAddressesFloat[iVar + 1] = std::get<double>(var_result);
            } else {
              m_branchAddressesDouble[iVar + 1] = std::get<double>(var_result);
            }
          } else if (std::holds_alternative<int>(var_result)) {
            if (var_type != Variable::Manager::VariableDataType::c_int)
              B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                        "'. Expected Variable::Manager::VariableDataType::c_int. Exported data for this variable might be incorrect.");
            m_branchAddressesInt[iVar + 1] = std::get<int>(var_result);
          } else if (std::holds_alternative<bool>(var_result)) {
            if (var_type != Variable::Manager::VariableDataType::c_bool)
              B2WARNING("Wrong registered data type for variable '" + m_variables[iVar] +
                        "'. Expected Variable::Manager::VariableDataType::c_bool. Exported data for this variable might be incorrect.");
            m_branchAddressesInt[iVar + 1] = std::get<bool>(var_result);
          }
        }
        m_tree->get().Fill();
      }
    }
  }
}

exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional pathes */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

fillFileMetaData()

void fillFileMetaData ( )

private

Create and fill FileMetaData object.

Definition at line 423 of file VariablesToNtupleModule.cc.

{

  FileMetaData outputFileMetaData;
  bool isMC = (m_inputFileMetaData) ? m_inputFileMetaData->isMC() : true;
  if (!isMC) outputFileMetaData.declareRealData();

  outputFileMetaData.setLow(m_experimentLow, m_runLow, m_eventLow);
  outputFileMetaData.setHigh(m_experimentHigh, m_runHigh, m_eventHigh);
  outputFileMetaData.setNEvents(m_tree->get().GetEntries());
  outputFileMetaData.setNFullEvents(m_eventCount);

  //fill more file level metadata
  RootIOUtilities::setCreationData(outputFileMetaData);
  outputFileMetaData.setRandomSeed(RandomNumbers::getSeed());
  outputFileMetaData.setSteering(Environment::Instance().getSteering());
  auto mcEvents = Environment::Instance().getNumberOfMCEvents();
  outputFileMetaData.setMcEvents(mcEvents);
  outputFileMetaData.setDatabaseGlobalTag(Database::Instance().getGlobalTags());
  for (const auto& item : m_dataDescription) {
    m_outputFileMetaData->setDataDescription(item.first, item.second);
  }
  for (const auto& item : m_outputFileMetaData->getDataDescription()) {
    outputFileMetaData.setDataDescription(item.first, item.second);
  }
  outputFileMetaData.setDataDescription("isNtupleMetaData", "True");
  std::sort(m_parentLfns.begin(), m_parentLfns.end());
  m_parentLfns.erase(std::unique(m_parentLfns.begin(), m_parentLfns.end()), m_parentLfns.end());
  outputFileMetaData.setParents(m_parentLfns);
  outputFileMetaData.setLfn(m_file->GetName());

  TTree* persistent = new TTree(c_treeNames[DataStore::c_Persistent].c_str(), c_treeNames[DataStore::c_Persistent].c_str());
  persistent->Branch("FileMetaData", &outputFileMetaData);
  persistent->Fill();
  persistent->Write("persistent", TObject::kWriteDelete);
}

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 324 of file Module.h.

    {
      return m_conditions;
    }

getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 314 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 202 of file Module.h.

{return m_description;}

getFileNames()

virtual std::vector< std::string > getFileNames ( bool  outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, and RootOutputModule.

Definition at line 134 of file Module.h.

    {
      return std::vector<std::string>();
    }

getInverseSamplingRateWeight()

float getInverseSamplingRateWeight ( const Particle *  particle )

private

Calculate inverse sampling rate weight.

Event is skipped if returned weight is 0.

Definition at line 261 of file VariablesToNtupleModule.cc.

{
  if (m_sampling_variable == nullptr)
    return 1.0;

  long target = 0;
  if (m_sampling_variable->variabletype == Variable::Manager::VariableDataType::c_double) {
    target = std::lround(std::get<double>(m_sampling_variable->function(particle)));
  } else if (m_sampling_variable->variabletype == Variable::Manager::VariableDataType::c_int) {
    target = std::lround(std::get<int>(m_sampling_variable->function(particle)));
  } else if (m_sampling_variable->variabletype == Variable::Manager::VariableDataType::c_bool) {
    target = std::lround(std::get<bool>(m_sampling_variable->function(particle)));
  }
  if (m_sampling_rates.find(target) != m_sampling_rates.end() and m_sampling_rates[target] > 0) {
    m_sampling_counts[target]++;
    if (m_sampling_counts[target] % m_sampling_rates[target] != 0)
      return 0;
    else {
      m_sampling_counts[target] = 0;
      return m_sampling_rates[target];
    }
  }
  return 1.0;
}

getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 225 of file Module.h.

{return m_logConfig;}

getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 506 of file Module.h.

{ return std::list<ModulePtr>(); }

getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

{return m_name;}

getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 197 of file Module.h.

{return m_package;}

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 363 of file Module.h.

{ return m_moduleParamList; }

getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

{ return m_returnValue; }

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 311 of file Module.h.

{ return not m_conditions.empty(); };

hasProperties()

bool hasProperties ( unsigned int  propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 378 of file Module.h.

{ return m_hasReturnValue; }

hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

if_false()

void if_false ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

if_true()

void if_true ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

if_value()

void if_value ( const std::string &  expression, const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

initialize()

void initialize ( )

overridevirtual

Initialises the module.

Prepares variables and sets up ntuple columns.

Reimplemented from Module.

Definition at line 91 of file VariablesToNtupleModule.cc.

{
  m_eventMetaData.isRequired();
  if (not m_particleList.empty())
    StoreObjPtr<ParticleList>().isRequired(m_particleList);

  // Initializing the output root file

  // override the output file name with what's been provided with the -o option
  if (!m_ignoreCommandLineOverride) {
    const std::string& outputFileArgument = Environment::Instance().getOutputFileOverride();
    if (!outputFileArgument.empty())
      m_fileName = outputFileArgument;
  }

  if (!m_fileNameSuffix.empty())
    m_fileName = m_fileName.insert(m_fileName.rfind(".root"), m_fileNameSuffix);

  if (m_fileName.empty()) {
    B2FATAL("Output root file name is not set. Please set a valid root output file name (\"fileName\" module parameter).");
  }
  // See if there is already a file in which case add a new tree to it ...
  // otherwise create a new file (all handled by framework)
  m_file =  RootFileCreationManager::getInstance().getFile(m_fileName);
  if (!m_file) {
    B2ERROR("Could not create file \"" << m_fileName <<
            "\". Please set a valid root output file name (\"fileName\" module parameter).");
    return;
  }

  TDirectory::TContext directoryGuard(m_file.get());

  // check if TTree with that name already exists
  if (m_file->Get(m_treeName.c_str()) || m_treeName == "persistent") {
    B2FATAL("Tree with the name \"" << m_treeName
            << "\" already exists in the file \"" << m_fileName << "\"\n"
            << "or is reserved for FileMetaData.\n"
            << "\nYou probably want to either set the output fileName or the treeName to something else:\n\n"
            << "   from modularAnalysis import variablesToNtuple\n"
            << "   variablesToNtuple('pi+:all', ['p'], treename='pions', filename='variablesToNtuple.root')\n"
            << "   variablesToNtuple('gamma:all', ['p'], treename='photons', filename='variablesToNtuple.root') # two trees, same file\n"
            << "\n == Or ==\n"
            << "   from modularAnalysis import variablesToNtuple\n"
            << "   variablesToNtuple('pi+:all', ['p'], filename='pions.root')\n"
            << "   variablesToNtuple('gamma:all', ['p'], filename='photons.root') # two files\n"
           );
    return;
  }

  // set up tree and register it in the datastore
  m_tree.registerInDataStore(m_fileName + m_treeName, DataStore::c_DontWriteOut);
  m_tree.construct(m_treeName.c_str(), "");
  m_tree->get().SetCacheSize(100000);

  if (!StoreObjPtr<FileMetaData>(m_fileName + c_treeNames[DataStore::c_Persistent].c_str(), DataStore::c_Persistent).isValid()) {
    m_outputFileMetaData.registerInDataStore(m_fileName + c_treeNames[DataStore::c_Persistent].c_str(), DataStore::c_DontWriteOut);
    m_outputFileMetaData.create();
  }
  m_outputFileMetaData.isRequired(m_fileName + c_treeNames[DataStore::c_Persistent].c_str());

  // declare counter branches - pass through variable list, remove counters added by user
  m_tree->get().Branch("__experiment__", &m_experiment, "__experiment__/I");
  m_tree->get().Branch("__run__", &m_run, "__run__/I");
  m_tree->get().Branch("__event__", &m_event, "__event__/i");
  m_tree->get().Branch("__production__", &m_production, "__production__/I");
  if (not m_particleList.empty()) {
    m_tree->get().Branch("__candidate__", &m_candidate, "__candidate__/I");
    m_tree->get().Branch("__ncandidates__", &m_ncandidates, "__ncandidates__/I");
  }

  if (not m_signalSideParticleList.empty()) {
    StoreObjPtr<ParticleList>().isRequired(m_signalSideParticleList);
    m_tree->get().Branch("__signalSideCandidate__", &m_signalSideCandidate, "__signalSideCandidate__/I");
    m_tree->get().Branch("__nSignalSideCandidates__", &m_nSignalSideCandidates, "__nSignalSideCandidates__/I");
    if (not m_roe.isOptional("RestOfEvent")) {
      B2WARNING("The signalSideParticleList is set outside of a for_each loop over the RestOfEvent. "
                << "__signalSideCandidates__ and __nSignalSideCandidate__ will be always -1 and 0, respectively.");
    }
  }

  if (m_stringWrapper.isOptional("MCDecayString"))
    m_tree->get().Branch("__MCDecayString__", &m_MCDecayString);

  if (m_storeEventType) {
    m_tree->get().Branch("__eventType__", &m_eventType);
    if (not m_eventExtraInfo.isOptional())
      B2INFO("EventExtraInfo is not registered. __eventType__ will be empty. The eventType is available from MC16 on.");
  }

  for (const auto& variable : m_variables)
    if (Variable::isCounterVariable(variable)) {
      B2WARNING("The counter '" << variable
                << "' is handled automatically by VariablesToNtuple, you don't need to add it.");
    }

  // declare branches and get the variable strings
  m_variables = Variable::Manager::Instance().resolveCollections(m_variables);
  // remove duplicates from list of variables but keep the previous order
  unordered_set<string> seen;
  auto newEnd = remove_if(m_variables.begin(), m_variables.end(), [&seen](const string & varStr) {
    if (seen.find(varStr) != std::end(seen)) return true;
    seen.insert(varStr);
    return false;
  });
  m_variables.erase(newEnd, m_variables.end());

  if (m_useFloat)
    m_branchAddressesFloat.resize(m_variables.size() + 1);
  else
    m_branchAddressesDouble.resize(m_variables.size() + 1);
  m_branchAddressesInt.resize(m_variables.size() + 1);
  if (m_useFloat) {
    m_tree->get().Branch("__weight__", &m_branchAddressesFloat[0], "__weight__/F");
  } else {
    m_tree->get().Branch("__weight__", &m_branchAddressesDouble[0], "__weight__/D");
  }
  size_t enumerate = 1;
  for (const string& varStr : m_variables) {
    string branchName = MakeROOTCompatible::makeROOTCompatible(varStr);

    // Check for deprecated variables
    Variable::Manager::Instance().checkDeprecatedVariable(varStr);

    // also collection function pointers
    const Variable::Manager::Var* var = Variable::Manager::Instance().getVariable(varStr);
    if (!var) {
      B2ERROR("Variable '" << varStr << "' is not available in Variable::Manager!");
    } else {
      if (m_particleList.empty() && var->description.find("[Eventbased]") == string::npos) {
        B2ERROR("Variable '" << varStr << "' is not an event-based variable, "
                "but you are using VariablesToNtuple without a decay string, i.e. in the event-wise mode.\n"
                "If you have created an event-based alias you can wrap your alias with `eventCached` to "
                "declare it as event based, which avoids this error.\n\n"
                "vm.addAlias('myAliasName', 'eventCached(myAlias)')");
        continue;
      }
      if (var->variabletype == Variable::Manager::VariableDataType::c_double) {
        if (m_useFloat) {
          m_tree->get().Branch(branchName.c_str(), &m_branchAddressesFloat[enumerate], (branchName + "/F").c_str());
        } else {
          m_tree->get().Branch(branchName.c_str(), &m_branchAddressesDouble[enumerate], (branchName + "/D").c_str());
        }
      } else if (var->variabletype == Variable::Manager::VariableDataType::c_int) {
        m_tree->get().Branch(branchName.c_str(), &m_branchAddressesInt[enumerate], (branchName + "/I").c_str());
      } else if (var->variabletype == Variable::Manager::VariableDataType::c_bool) {
        m_tree->get().Branch(branchName.c_str(), &m_branchAddressesInt[enumerate], (branchName + "/O").c_str());
      }
      m_functions.push_back(std::make_pair(var->function, var->variabletype));
    }
    enumerate++;
  }
  m_tree->get().SetBasketSize("*", m_basketsize);

  m_sampling_name = std::get<0>(m_sampling);
  m_sampling_rates = std::get<1>(m_sampling);

  if (m_sampling_name != "") {
    m_sampling_variable = Variable::Manager::Instance().getVariable(m_sampling_name);
    if (m_sampling_variable == nullptr) {
      B2FATAL("Couldn't find sample variable " << m_sampling_name << " via the Variable::Manager. Check the name!");
    }
    for (const auto& pair : m_sampling_rates)
      m_sampling_counts[pair.first] = 0;
  } else {
    m_sampling_variable = nullptr;
  }

}

setAbortLevel()

void setAbortLevel ( int  abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

setDebugLevel()

void setDebugLevel ( int  debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

setDescription()

void setDescription ( const std::string &  description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

setLogConfig()

void setLogConfig ( const LogConfig &  logConfig )

inlineinherited

Set the log system configuration.

Definition at line 230 of file Module.h.

{m_logConfig = logConfig;}

setLogInfo()

void setLogInfo ( int  logLevel, unsigned int  logInfo  )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

setLogLevel()

void setLogLevel ( int  logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

setName()

void setName ( const std::string &  name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

{ m_name = name; };

setParamList()

void setParamList ( const ModuleParamList &  params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 501 of file Module.h.

{ m_moduleParamList = params; }

setParamPython()

void setParamPython ( const std::string &  name, const boost::python::object &  pyObj  )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

setReturnValue() [1/2]

void setReturnValue ( bool  value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setReturnValue() [2/2]

void setReturnValue ( int  value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setType()

void setType ( const std::string &  type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

terminate()

void terminate ( )

overridevirtual

Write TTree to file, and close file if necessary.

Reimplemented from Module.

Definition at line 460 of file VariablesToNtupleModule.cc.

{
  if (!ProcHandler::parallelProcessingUsed() or ProcHandler::isOutputProcess()) {

    TDirectory::TContext directoryGuard(m_file.get());
    fillFileMetaData();

    B2INFO("Writing NTuple " << m_treeName);
    m_tree->write(m_file.get());

    const bool writeError = m_file->TestBit(TFile::kWriteError);
    m_file.reset();
    if (writeError) {
      B2FATAL("A write error occurred while saving '" << m_fileName  << "', please check if enough disk space is available.");
    }
  }
}

Member Data Documentation

m_basketsize

int m_basketsize

private

Size of TBaskets in the output ROOT file in bytes.

Definition at line 79 of file VariablesToNtupleModule.h.

m_branchAddressesDouble

std::vector<double> m_branchAddressesDouble

private

Branch addresses of variables of type double.

Definition at line 104 of file VariablesToNtupleModule.h.

m_branchAddressesFloat

std::vector<float> m_branchAddressesFloat

private

Branch addresses of variables of type float.

Definition at line 101 of file VariablesToNtupleModule.h.

m_branchAddressesInt

std::vector<int> m_branchAddressesInt

private

Branch addresses of variables of type int (or bool)

Definition at line 107 of file VariablesToNtupleModule.h.

m_candidate

int m_candidate { -1}

private

candidate counter

Definition at line 90 of file VariablesToNtupleModule.h.

m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 521 of file Module.h.

m_dataDescription

std::map<std::string, std::string> m_dataDescription

private

Additional metadata description.

Definition at line 134 of file VariablesToNtupleModule.h.

m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 511 of file Module.h.

m_event

int m_event { -1}

private

event number

Definition at line 86 of file VariablesToNtupleModule.h.

m_eventCount

unsigned int m_eventCount {0}

private

event counter

Definition at line 92 of file VariablesToNtupleModule.h.

m_eventExtraInfo

StoreObjPtr<EventExtraInfo> m_eventExtraInfo

private

pointer to EventExtraInfo

Definition at line 131 of file VariablesToNtupleModule.h.

m_eventHigh

int m_eventHigh {0}

private

highest event number

Definition at line 98 of file VariablesToNtupleModule.h.

m_eventLow

int m_eventLow {0}

private

lowest event number

Definition at line 97 of file VariablesToNtupleModule.h.

m_eventMetaData

StoreObjPtr<EventMetaData> m_eventMetaData

private

the event information

Definition at line 120 of file VariablesToNtupleModule.h.

m_eventType

std::string m_eventType

private

EventType to be filled.

Definition at line 132 of file VariablesToNtupleModule.h.

m_experiment

int m_experiment { -1}

private

experiment number

Definition at line 88 of file VariablesToNtupleModule.h.

m_experimentHigh

int m_experimentHigh {0}

private

highest experiment number

Definition at line 94 of file VariablesToNtupleModule.h.

m_experimentLow

int m_experimentLow {1}

private

lowest experiment number

Definition at line 93 of file VariablesToNtupleModule.h.

m_file

std::shared_ptr<TFile> m_file {nullptr}

private

ROOT file for output.

Definition at line 82 of file VariablesToNtupleModule.h.

m_fileName

std::string m_fileName

private

Name of ROOT file for output.

Definition at line 71 of file VariablesToNtupleModule.h.

m_fileNameSuffix

std::string m_fileNameSuffix

private

Suffix to be appended to the output file name.

Definition at line 75 of file VariablesToNtupleModule.h.

m_functions

std::vector<std::pair<Variable::Manager::FunctionPtr, Variable::Manager::VariableDataType> > m_functions

private

List of pairs of function pointers and respective data type corresponding to given variables.

Definition at line 109 of file VariablesToNtupleModule.h.

m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 518 of file Module.h.

m_ignoreCommandLineOverride

bool m_ignoreCommandLineOverride

private

if true, ignore override of filename

Definition at line 142 of file VariablesToNtupleModule.h.

m_inputFileMetaData

StoreObjPtr<FileMetaData> m_inputFileMetaData {"", DataStore::c_Persistent}

private

Pointer to the input file meta data.

Definition at line 138 of file VariablesToNtupleModule.h.

m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 514 of file Module.h.

m_MCDecayString

std::string m_MCDecayString

private

MC decay string to be filled.

Definition at line 122 of file VariablesToNtupleModule.h.

m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 516 of file Module.h.

m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 508 of file Module.h.

m_ncandidates

unsigned int m_ncandidates {0}

private

total n candidates

Definition at line 91 of file VariablesToNtupleModule.h.

m_nSignalSideCandidates

unsigned int m_nSignalSideCandidates {0}

private

total n signal-side candidates

Definition at line 127 of file VariablesToNtupleModule.h.

m_outputFileMetaData

StoreObjPtr<FileMetaData> m_outputFileMetaData

private

File meta data to be stored in the output ntuple file.

Definition at line 140 of file VariablesToNtupleModule.h.

m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 510 of file Module.h.

m_parentLfns

std::vector<std::string> m_parentLfns

private

Vector of parent file LFNs.

Definition at line 136 of file VariablesToNtupleModule.h.

m_particleList

std::string m_particleList

private

Name of particle list with reconstructed particles.

Definition at line 67 of file VariablesToNtupleModule.h.

m_production

int m_production { -1}

private

production ID (to distinguish MC samples)

Definition at line 89 of file VariablesToNtupleModule.h.

m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 512 of file Module.h.

m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 519 of file Module.h.

m_roe

StoreObjPtr<RestOfEvent> m_roe

private

ROE object.

Definition at line 128 of file VariablesToNtupleModule.h.

m_run

int m_run { -1}

private

run number

Definition at line 87 of file VariablesToNtupleModule.h.

m_runHigh

int m_runHigh {0}

private

highest run number

Definition at line 96 of file VariablesToNtupleModule.h.

m_runLow

int m_runLow {0}

private

lowest run number

Definition at line 95 of file VariablesToNtupleModule.h.

m_sampling

std::tuple<std::string, std::map<int, unsigned int> > m_sampling

private

Tuple of variable name and a map of integer values and inverse sampling rate.

E.g. (signal, {1: 0, 0:10}) selects all signal candidates and every 10th background candidate.

Definition at line 112 of file VariablesToNtupleModule.h.

m_sampling_counts

std::map<int, unsigned long int> m_sampling_counts

private

Current number of samples with this value.

Definition at line 119 of file VariablesToNtupleModule.h.

m_sampling_name

std::string m_sampling_name

private

Variable name of sampling variable.

Definition at line 114 of file VariablesToNtupleModule.h.

m_sampling_rates

std::map<int, unsigned int> m_sampling_rates

private

Inverse sampling rates.

Definition at line 116 of file VariablesToNtupleModule.h.

m_sampling_variable

const Variable::Manager::Var* m_sampling_variable {nullptr}

private

Variable Pointer to target variable.

Definition at line 118 of file VariablesToNtupleModule.h.

m_signalSideCandidate

int m_signalSideCandidate {-1}

private

signal-side candidate counter

Definition at line 126 of file VariablesToNtupleModule.h.

m_signalSideParticleList

std::string m_signalSideParticleList

private

Name of signal-side particle list

Definition at line 125 of file VariablesToNtupleModule.h.

m_storeEventType

bool m_storeEventType

private

If true, the branch eventType is added.

Definition at line 130 of file VariablesToNtupleModule.h.

m_stringWrapper

StoreObjPtr<StringWrapper> m_stringWrapper

private

string wrapper storing the MCDecayString

Definition at line 123 of file VariablesToNtupleModule.h.

m_tree

StoreObjPtr<RootMergeable<TTree> > m_tree

private

The ROOT TNtuple for output.

Definition at line 84 of file VariablesToNtupleModule.h.

m_treeName

std::string m_treeName

private

Name of the TTree.

Definition at line 73 of file VariablesToNtupleModule.h.

m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 509 of file Module.h.

m_useFloat

bool m_useFloat

private

Use float type for floating-point numbers.

Definition at line 77 of file VariablesToNtupleModule.h.

m_variables

std::vector<std::string> m_variables

private

List of variables to save.

Variables are taken from Variable::Manager, and are identical to those available to e.g. ParticleSelector.

Definition at line 69 of file VariablesToNtupleModule.h.

---

The documentation for this class was generated from the following files:

• analysis/modules/VariablesToNtuple/include/VariablesToNtupleModule.h
• analysis/modules/VariablesToNtuple/src/VariablesToNtupleModule.cc
