DisplayData Class Reference

Add custom information to the display. More...

#include <DisplayData.h>

Inheritance diagram for DisplayData:

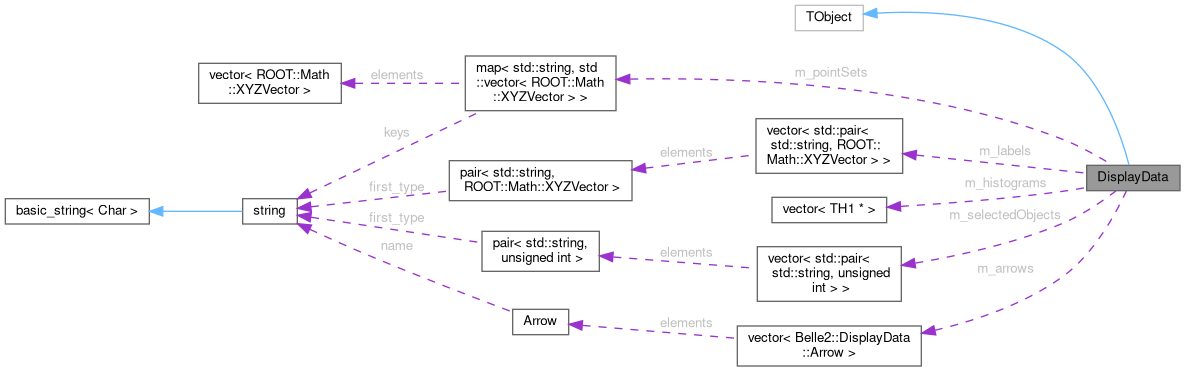

Collaboration diagram for DisplayData:

Classes
struct	Arrow
	Stores data associated with an arrow. More...

Public Member Functions
	DisplayData ()
	Constructor.
	~DisplayData ()
	Destructor.
void	addArrow (const std::string &name, const ROOT::Math::XYZVector &start, const ROOT::Math::XYZVector &end, int color=-1)
	Add an arrow in the display (for axes, to point out some specific location).
void	addHistogram (const std::string &name, const TH1 *hist)
	Add histogram with the given name.
void	addLabel (const std::string &text, const ROOT::Math::XYZVector &pos)
	Add a text label at the given position.
void	addPoint (const std::string &name, const ROOT::Math::XYZVector &pos)
	Add a point at the given position, as part of a collection specified by name.
void	select (const TObject *object)
	Select the given object in the display.

Private Member Functions
	ClassDef (DisplayData, 5)
	Add custom information to the display.

Private Attributes
std::map< std::string, std::vector< ROOT::Math::XYZVector > >	m_pointSets
	name -> points map
std::vector< std::pair< std::string, ROOT::Math::XYZVector > >	m_labels
	text labels (to be shown at a given position).
std::vector< TH1 * >	m_histograms
	Histograms to be shown in Eve.
std::vector< std::pair< std::string, unsigned int > >	m_selectedObjects
	List of selected objects (array name, index).
std::vector< Arrow >	m_arrows
	List of arrows.

Friends
class	DisplayUI
class	EVEVisualization

Detailed Description

Add custom information to the display.

To use it, simply create a DisplayData object using StoreObjPtr and call the functions to add custom data. For example:

StoreObjPtr<DisplayData> displayData;
displayData.create();

//let's label the interaction point
displayData.addLabel("IP", ROOT::Math::XYZVector(0, 0, 0));

//add some dots along the x axis
for (int i = 0; i < 20; i++) {
  displayData.addPoint("pointset", ROOT::Math::XYZVector(i*10.0, 0, 0));
}

//add an arrow to point to (0, 0, -2m)
displayData.addArrow("z=-2m", ROOT::Math::XYZVector(100, 100, -200),
        ROOT::Math::XYZVector(0, 0, -200), kGray);

You can then save the output of your module to a file and view it with 'b2display', or look at it directly after execution by adding the Display module in your steering file.

See also

Check display/examples/displaydata.py to see how to use most features from a python steering file.

See display/examples/histogram_monitor.py for an example that generates and adds histograms in Python.

Definition at line 55 of file DisplayData.h.

Constructor & Destructor Documentation

DisplayData()

DisplayData ( )

inline

Constructor.

Definition at line 59 of file DisplayData.h.

{}

~DisplayData()

~DisplayData

(

)

Destructor.

Definition at line 15 of file DisplayData.cc.

{
  m_pointSets.clear();
  m_labels.clear();
  for (auto hist : m_histograms)
    delete hist;
  m_histograms.clear();
}

Member Function Documentation

addArrow()

void addArrow	(	const std::string &	name,
		const ROOT::Math::XYZVector &	start,
		const ROOT::Math::XYZVector &	end,
		int	color = -1 )

Add an arrow in the display (for axes, to point out some specific location).

Parameters

name	Text to be shown beside arrow.
start	The arrow will start here.
end	The pointy end ends up here.
color	Color_t to use for this object, default: random color.

Definition at line 24 of file DisplayData.cc.

{
  m_arrows.push_back(Arrow {name, start, end, color});
}

addHistogram()

void addHistogram	(	const std::string &	name,
		const TH1 *	hist )

Add histogram with the given name.

The histogram will show up in the 'Histograms' tab and can be drawn on the active canvas by double-clicking it.

Definition at line 39 of file DisplayData.cc.

{
  auto* newhist = static_cast<TH1*>(hist->Clone(name.c_str()));
  newhist->SetDirectory(nullptr);
  m_histograms.push_back(newhist);
}

addLabel()

void addLabel	(	const std::string &	text,
		const ROOT::Math::XYZVector &	pos )

Add a text label at the given position.

Definition at line 34 of file DisplayData.cc.

{
  m_labels.emplace_back(text, pos);
}

addPoint()

void addPoint	(	const std::string &	name,
		const ROOT::Math::XYZVector &	pos )

Add a point at the given position, as part of a collection specified by name.

All points with the same name will be highlighted when clicked etc.

Definition at line 29 of file DisplayData.cc.

{
  m_pointSets[name].push_back(pos);
}

select()

void select

(

const TObject *

object

)

Select the given object in the display.

Only has an effect if the object actually has a visualisation. Can be called multiple times to select more than one object.

Parameters

object

object to select, must be inside a StoreArray

Definition at line 46 of file DisplayData.cc.

{
  //where is this thing stored?
  DataStore::StoreEntry* storeEntry = nullptr;
  int index = -1;
  DataStore::Instance().findStoreEntry(object, storeEntry, index);

  if (storeEntry) {
    m_selectedObjects.emplace_back(storeEntry->name, index);
  } else {
    B2WARNING("DisplayData::select(): object must be part of a StoreArray!");
  }
}

Friends And Related Symbol Documentation

DisplayUI

friend class DisplayUI

friend

Definition at line 118 of file DisplayData.h.

EVEVisualization

friend class EVEVisualization

friend

Definition at line 119 of file DisplayData.h.

Member Data Documentation

m_arrows

std::vector<Arrow> m_arrows

private

List of arrows.

Definition at line 114 of file DisplayData.h.

m_histograms

std::vector<TH1*> m_histograms

private

Histograms to be shown in Eve.

Definition at line 111 of file DisplayData.h.

m_labels

std::vector<std::pair<std::string, ROOT::Math::XYZVector> > m_labels

private

text labels (to be shown at a given position).

Definition at line 109 of file DisplayData.h.

m_pointSets

std::map<std::string, std::vector<ROOT::Math::XYZVector> > m_pointSets

private

name -> points map

Definition at line 108 of file DisplayData.h.

m_selectedObjects

std::vector<std::pair<std::string, unsigned int> > m_selectedObjects

private

List of selected objects (array name, index).

Definition at line 113 of file DisplayData.h.

---

The documentation for this class was generated from the following files:

• framework/dataobjects/include/DisplayData.h
• framework/dataobjects/src/DisplayData.cc
