Represent an optical finish of a surface. More...

#include <GeoOpticalSurface.h>

Inheritance diagram for GeoOpticalSurface:

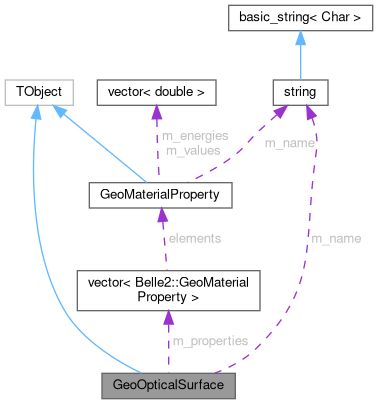

Collaboration diagram for GeoOpticalSurface:

[legend]

Public Member Functions
	GeoOpticalSurface ()=default
	empty constructor for ROOT

	GeoOpticalSurface (const std::string &name, int model, int finish, int type, double value)
	real constructor

void	setName (const std::string &name)
	set name of the optical surface

void	setModel (int model)
	set model for the surface

void	setFinish (int finish)
	set finish of the surface

void	setType (int type)
	set type of the surface

void	setValue (double value)
	set value for the surface condition

void	addProperty (const GeoMaterialProperty &property)
	add a property to the material

const std::string &	getName () const
	get name of the optical surface

int	getModel () const
	get model for the surface

int	getFinish () const
	get finish of the surface

int	getType () const
	get type of the surface

double	getValue () const
	get value for the surface condition

const std::vector< GeoMaterialProperty > &	getProperties () const
	get all properties

bool	hasProperties () const
	check if the material has at least one property

Private Member Functions
	ClassDef (GeoOpticalSurface, 1)
	Add ROOT reflection info.

Private Attributes
std::string	m_name
	name of the optical surface

int	m_model
	model for the surface

int	m_finish
	finish of the surface

int	m_type
	type of the surface

double	m_value
	value for the surface condition

std::vector< GeoMaterialProperty >	m_properties
	properties of this material

Detailed Description

Represent an optical finish of a surface.

Definition at line 21 of file GeoOpticalSurface.h.

Constructor & Destructor Documentation

◆ GeoOpticalSurface()

GeoOpticalSurface	(	const std::string &	name,
		int	model,
		int	finish,
		int	type,
		double	value )

inline

real constructor

Definition at line 26 of file GeoOpticalSurface.h.

26 : TObject(), m_name(name), m_model(model),

27 m_finish(finish), m_type(type), m_value(value) {}

Member Function Documentation

◆ addProperty()

void addProperty ( const GeoMaterialProperty & property )

inline

add a property to the material

Definition at line 39 of file GeoOpticalSurface.h.

39{ m_properties.emplace_back(property); }

◆ getFinish()

int getFinish ( ) const

inline

get finish of the surface

Definition at line 45 of file GeoOpticalSurface.h.

45{ return m_finish; }

◆ getModel()

int getModel ( ) const

inline

get model for the surface

Definition at line 43 of file GeoOpticalSurface.h.

43{ return m_model; }

◆ getName()

const std::string & getName ( ) const

inline

get name of the optical surface

Definition at line 41 of file GeoOpticalSurface.h.

41{ return m_name; }

◆ getProperties()

const std::vector< GeoMaterialProperty > & getProperties ( ) const

inline

get all properties

Definition at line 51 of file GeoOpticalSurface.h.

51{ return m_properties; }

◆ getType()

int getType ( ) const

inline

get type of the surface

Definition at line 47 of file GeoOpticalSurface.h.

47{ return m_type; }

◆ getValue()

double getValue ( ) const

inline

get value for the surface condition

Definition at line 49 of file GeoOpticalSurface.h.

49{ return m_value; }

◆ hasProperties()

bool hasProperties ( ) const

inline

check if the material has at least one property

Returns: true if there is at least one property

Definition at line 54 of file GeoOpticalSurface.h.

54{ return m_properties.size() > 0; }

◆ setFinish()

void setFinish ( int finish )

inline

set finish of the surface

Definition at line 33 of file GeoOpticalSurface.h.

33{ m_finish = finish; }

◆ setModel()

void setModel ( int model )

inline

set model for the surface

Definition at line 31 of file GeoOpticalSurface.h.

31{ m_model = model; }

◆ setName()

void setName ( const std::string & name )

inline

set name of the optical surface

Definition at line 29 of file GeoOpticalSurface.h.

29{ m_name = name; }

◆ setType()

void setType ( int type )

inline

set type of the surface

Definition at line 35 of file GeoOpticalSurface.h.

35{ m_type = type; }

◆ setValue()

void setValue ( double value )

inline

set value for the surface condition

Definition at line 37 of file GeoOpticalSurface.h.

37{ m_value = value; }

Member Data Documentation

◆ m_finish

int m_finish

private

finish of the surface

Definition at line 61 of file GeoOpticalSurface.h.

◆ m_model

int m_model

private

model for the surface

Definition at line 59 of file GeoOpticalSurface.h.

◆ m_name

std::string m_name

private

name of the optical surface

Definition at line 57 of file GeoOpticalSurface.h.

◆ m_properties

std::vector<GeoMaterialProperty> m_properties

private

properties of this material

Definition at line 67 of file GeoOpticalSurface.h.

◆ m_type

int m_type

private

type of the surface

Definition at line 63 of file GeoOpticalSurface.h.

◆ m_value

double m_value

private

value for the surface condition

Definition at line 65 of file GeoOpticalSurface.h.

The documentation for this class was generated from the following file:

geometry/dbobjects/include/GeoOpticalSurface.h
