MagneticFieldComponent3D Class Reference

Describe one component of the Geometry. More...

#include <MagneticFieldComponent3D.h>

Inheritance diagram for MagneticFieldComponent3D:

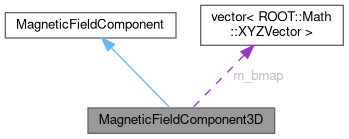

Collaboration diagram for MagneticFieldComponent3D:

Public Member Functions
	MagneticFieldComponent3D ()
	empty constructor for ROOT
	MagneticFieldComponent3D (double minR, double maxR, double minZ, double maxZ, int nR, int nPhi, int nZ, std::vector< ROOT::Math::XYZVector > &&fieldmap)
	Full constructor to create an object from data.
bool	inside (const ROOT::Math::XYZVector &pos) const override
	return whether we are inside the active region for this component
ROOT::Math::XYZVector	getField (const ROOT::Math::XYZVector &pos) const override
	return the field assuming we are inside the active region as returned by inside()
void	setExclusive (bool exclusive)
	set the state of the exclusive flag
bool	isExclusive () const
	returns whether the field is set to exclusive mode
	ClassDef (MagneticFieldComponent, 1)
	ROOT Dictionary.

Private Member Functions
ROOT::Math::XYZVector	interpolate (unsigned int ir, unsigned int iphi, unsigned int iz, double wr, double wphi, double wz) const
	Linear interpolate the magnetic field inside a bin.
	ClassDefOverride (MagneticFieldComponent3D, 2)
	ROOT dictionary.

Private Attributes
float	m_minR {0}
	minimal R=sqrt(x^2+y^2) for which this field is present
float	m_maxR {0}
	maximal R=sqrt(x^2+y^2) for which this field is present
float	m_minZ {0}
	minimal Z for which this field is present
float	m_maxZ {0}
	maximal Z for which this field is present
int	m_mapSize [3] {0}
	number of bins in r, phi and z
float	m_gridPitch [3] {0}
	grid pitch in r, phi and z
float	m_invgridPitch [3] {0}
	inverted grid pitch in r, phi and z
std::vector< ROOT::Math::XYZVector >	m_bmap
	magnetic field strength
bool	m_exclusive {false}
	whether or not the component is exclusive

Detailed Description

Describe one component of the Geometry.

Definition at line 22 of file MagneticFieldComponent3D.h.

Constructor & Destructor Documentation

MagneticFieldComponent3D() [1/2]

MagneticFieldComponent3D ( )

inline

empty constructor for ROOT

Definition at line 25 of file MagneticFieldComponent3D.h.

: MagneticFieldComponent(false) {};

MagneticFieldComponent3D() [2/2]

MagneticFieldComponent3D ( double minR, double maxR, double minZ, double maxZ, int nR, int nPhi, int nZ, std::vector< ROOT::Math::XYZVector > && fieldmap )

inline

Full constructor to create an object from data.

Definition at line 27 of file MagneticFieldComponent3D.h.

                                                                     :
      MagneticFieldComponent(true), m_minR(minR), m_maxR(maxR), m_minZ(minZ), m_maxZ(maxZ), m_mapSize{nR, nPhi, nZ},
      m_gridPitch{static_cast<float>((maxR - minR) / (nR - 1)), static_cast<float>(M_PI / (nPhi - 1)), static_cast<float>((maxZ - minZ) / (nZ - 1))},
      m_invgridPitch{static_cast<float>(1. / m_gridPitch[0]), static_cast<float>(1. / m_gridPitch[1]), static_cast<float>(1. / m_gridPitch[2])},
      m_bmap(fieldmap)
    {}

Member Function Documentation

inside()

bool inside ( const ROOT::Math::XYZVector & pos ) const

inlineoverridevirtual

return whether we are inside the active region for this component

Implements MagneticFieldComponent.

Definition at line 37 of file MagneticFieldComponent3D.h.

    {
      const float z = pos.Z();
      if (z < m_minZ || z > m_maxZ) return false;
      const float r = pos.Rho();
      return (r >= m_minR && r <= m_maxR);
    }

isExclusive()

bool isExclusive ( ) const

inlineinherited

returns whether the field is set to exclusive mode

Definition at line 39 of file MagneticFieldComponent.h.

{ return m_exclusive; }

setExclusive()

void setExclusive ( bool exclusive )

inlineinherited

set the state of the exclusive flag

Definition at line 37 of file MagneticFieldComponent.h.

{ m_exclusive = exclusive; }

Member Data Documentation

m_bmap

std::vector<ROOT::Math::XYZVector> m_bmap

private

magnetic field strength

Definition at line 71 of file MagneticFieldComponent3D.h.

m_exclusive

bool m_exclusive {false}

privateinherited

whether or not the component is exclusive

Definition at line 51 of file MagneticFieldComponent.h.

{false};

m_gridPitch

float m_gridPitch[3] {0}

private

grid pitch in r, phi and z

Definition at line 67 of file MagneticFieldComponent3D.h.

{0};

m_invgridPitch

float m_invgridPitch[3] {0}

private

inverted grid pitch in r, phi and z

Definition at line 69 of file MagneticFieldComponent3D.h.

{0};

m_mapSize

int m_mapSize[3] {0}

private

number of bins in r, phi and z

Definition at line 65 of file MagneticFieldComponent3D.h.

{0};

m_maxR

float m_maxR {0}

private

maximal R=sqrt(x^2+y^2) for which this field is present

Definition at line 59 of file MagneticFieldComponent3D.h.

{0};

m_maxZ

float m_maxZ {0}

private

maximal Z for which this field is present

Definition at line 63 of file MagneticFieldComponent3D.h.

{0};

m_minR

float m_minR {0}

private

minimal R=sqrt(x^2+y^2) for which this field is present

Definition at line 57 of file MagneticFieldComponent3D.h.

{0};

m_minZ

float m_minZ {0}

private

minimal Z for which this field is present

Definition at line 61 of file MagneticFieldComponent3D.h.

{0};

---

The documentation for this class was generated from the following files:

• geometry/dbobjects/include/MagneticFieldComponent3D.h
• geometry/dbobjects/src/MagneticFieldComponent3D.cc
