The BFieldComponentRadial class. More...

#include <BFieldComponentRadial.h>

Inheritance diagram for BFieldComponentRadial:

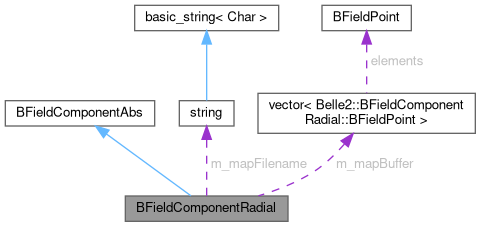

Collaboration diagram for BFieldComponentRadial:

[legend]

Classes
struct	BFieldPoint
	Magnetic field data structure. More...

Public Member Functions
	BFieldComponentRadial ()=default
	The BFieldComponentRadial constructor.

virtual	~BFieldComponentRadial () override=default
	The BFieldComponentRadial destructor.

virtual void	initialize () override
	Initializes the magnetic field component.

virtual ROOT::Math::XYZVector	calculate (const ROOT::Math::XYZVector &point) const override
	Calculates the magnetic field vector at the specified space point.

void	setMapFilename (const std::string &filename)
	Sets the filename of the magnetic field map.

void	setMapSize (int sizeR, int sizeZ)
	Sets the size of the magnetic field map.

void	setMapRegionZ (double minZ, double maxZ, double offset)
	Sets the size of the magnetic field map.

void	setMapRegionR (double minR, double maxR)
	Sets the size of the magnetic field map.

void	setGridPitch (double pitchR, double pitchZ)
	Sets the grid pitch of the magnetic field map.

void	setKlmParameters (double srmin, double zyoke, double gaph, double iront)
	Sets parameter for EKLM.

virtual void	terminate ()
	Terminates the magnetic field component.

Private Attributes
std::string	m_mapFilename {""}
	The filename of the magnetic field map.

std::vector< BFieldPoint >	m_mapBuffer
	The memory buffer for the magnetic field map.

int	m_mapSize [2] {0}
	The size of the map in r and z.

double	m_mapRegionZ [2] {0}
	The min and max boundaries of the map region in z.

double	m_mapOffset {0}
	Offset required because the accelerator group defines the Belle center as zero.

double	m_mapRegionR [2] {0}
	The min and max boundaries of the map region in r.

double	m_gridPitchR {0}
	The grid pitch in r.

double	m_gridPitchZ {0}
	The grid pitch in z.

double	m_igridPitchR {0}
	The reciprocal of grid pitch in r.

double	m_igridPitchZ {0}
	The reciprocal of grid pitch in z.

double	m_slotRMin {0}
	minimum radius for the gap in endyoke

double	m_endyokeZMin {0}
	minimum Z of endyoke

double	m_gapHeight {0}
	height of the gap in endyoke

double	m_ironPlateThickness {0}
	thickness of iron plate in endyoke

double	m_Layer {0}
	height of the layer (gap + iron plate) in endyoke

double	m_iLayer {0}
	reciprocal of height of the layer (gap + iron plate) in endyoke

Detailed Description

The BFieldComponentRadial class.

This class represents a radial magnetic field map. The magnetic field map is stored as a grid in cylindrical coordinates. It is defined by a minimum radius and a maximum radius, a minimum z and a maximum z value, a pitch size in both, r and z, and the number of grid points. The ZOffset is used to account for the fact that the acceleration group defines 0 to be in the center of the detector, while the detector group defines the IP to be the center. The filename points to the zip file containing the magnetic field map.

Definition at line 34 of file BFieldComponentRadial.h.

Member Function Documentation

◆ calculate()

ROOT::Math::XYZVector calculate ( const ROOT::Math::XYZVector & point ) const

overridevirtual

Calculates the magnetic field vector at the specified space point.

Parameters

point The space point in Cartesian coordinates (x,y,z) in [cm] at which the magnetic field vector should be calculated.

Returns: The magnetic field vector at the given space point in [T]. Returns a zero vector XYZVector(0,0,0) if the space point lies outside the region described by the component.

Implements BFieldComponentAbs.

Definition at line 86 of file BFieldComponentRadial.cc.

{
  ROOT::Math::XYZVector B;
  // If both 'Radial' and 'Beamline' components are defined in xml file,
  // '3d' component returns zero field where 'Beamline' component is defined.
  // If no 'Beamline' component is defined in xml file, the following function will never be called.
  if (BFieldComponentBeamline::Instance().isInRange(point)) return B;

  //Get the z component
  double z = point.Z();
  //Check if the point lies inside the magnetic field boundaries
  if ((z < m_mapRegionZ[0]) || (z > m_mapRegionZ[1])) return B;

  //Get the r component
  double r2 = point.Perp2();
  //Check if the point lies inside the magnetic field boundaries
  if ((r2 < m_mapRegionR[0]*m_mapRegionR[0]) || (r2 > m_mapRegionR[1]*m_mapRegionR[1])) return B;

  double r = sqrt(r2);
  //Calculate the distance to the lower grid point
  double wr = (r - m_mapRegionR[0]) * m_igridPitchR;
  double wz = (z - m_mapRegionZ[0]) * m_igridPitchZ;
  //Calculate the lower index of the point in the grid
  int ir = static_cast<int>(wr);
  int iz = static_cast<int>(wz);

  double za = z - m_mapOffset;
  double dz_eklm = abs(za) - (m_endyokeZMin - m_gapHeight);
  if (dz_eklm > 0 && r > m_slotRMin) {
    double wl = dz_eklm * m_iLayer;
    int il = static_cast<int>(wl);
    if (il <= 16) {
      double L = m_Layer * il;
      double l = dz_eklm - L;
      bool ingap = l < m_gapHeight;
      ir += ingap && (r < m_slotRMin + m_gridPitchR);

      double zlg = L + m_endyokeZMin, zl0 = zlg - m_gapHeight, zl1 = zlg + m_ironPlateThickness;
      if (za < 0) {
        zl0 = -zl0;
        zlg = -zlg;
        zl1 = -zl1;
      }
      double zoff = m_mapOffset - m_mapRegionZ[0];
      int izl0 = static_cast<int>((zl0 + zoff) * m_igridPitchZ);
      int izlg = static_cast<int>((zlg + zoff) * m_igridPitchZ);
      int izl1 = static_cast<int>((zl1 + zoff) * m_igridPitchZ);
      int ig = izlg == iz;
      int idz = (izl0 == iz) - (izl1 == iz) + (ingap ? -ig : ig);
      iz += (za > 0) ? idz : -idz;
    }
  }

  //Bring the index values within the range
  ir = min(m_mapSize[0] - 2, ir);
  iz = min(m_mapSize[1] - 2, iz);

  wr -= ir;
  wz -= iz;

  double wz0 = 1 - wz, wr0 = 1 - wr;
  //Calculate the linear approx. of the magnetic field vector
  const unsigned int strideZ = m_mapSize[1];
  const unsigned int i00 = ir * strideZ + iz, i01 = i00 + 1, i10 = i00 + strideZ, i11 = i01 + strideZ;
  const BFieldPoint* H = m_mapBuffer.data();
  double w00 = wz0 * wr0, w01 = wz * wr0, w10 = wz0 * wr, w11 = wz * wr;
  BFieldPoint Brz = H[i00] * w00 + H[i01] * w01 + H[i10] * w10 + H[i11] * w11;

  if (r > 0.0) {
    double norm = Brz.r / r;
    B.SetXYZ(point.X()*norm, point.Y()*norm, Brz.z);
  } else {
    B.SetZ(Brz.z);
  }

  return B;
}

◆ initialize()

void initialize ( )

overridevirtual

Initializes the magnetic field component.

This method opens the magnetic field map file.

Reimplemented from BFieldComponentAbs.

Definition at line 25 of file BFieldComponentRadial.cc.

{
  if (m_mapFilename.empty()) {
    B2ERROR("The filename for the radial magnetic field component is empty !");
    return;
  }

  string fullPath = FileSystem::findFile("/data/" + m_mapFilename);

  if (!FileSystem::fileExists(fullPath)) {
    B2ERROR("The radial magnetic field map file '" << m_mapFilename << "' could not be found !");
    return;
  }

  //Load the map file
  io::filtering_istream fieldMapFile;
  fieldMapFile.push(io::gzip_decompressor());
  fieldMapFile.push(io::file_source(fullPath));

  //Create the magnetic field map [r,z] and read the data from the file
  B2DEBUG(10, "Loading the radial magnetic field from file '" << m_mapFilename << "' in to the memory...");
  m_mapBuffer.clear();
  m_mapBuffer.reserve(m_mapSize[0]*m_mapSize[1]);

  double r, z, Br, Bz;
  for (int i = 0; i < m_mapSize[0]; ++i) {
    for (int j = 0; j < m_mapSize[1]; j++) {
      fieldMapFile >> r >> z >> Br >> Bz;
      //Store the values
      m_mapBuffer.push_back({Br, Bz});
    }
  }

  m_igridPitchR = 1 / m_gridPitchR;
  m_igridPitchZ = 1 / m_gridPitchZ;
  m_Layer = m_gapHeight + m_ironPlateThickness;
  m_iLayer = 1 / m_Layer;

  B2DEBUG(10, "... loaded " << m_mapSize[0] << "x" << m_mapSize[1] << " (r,z) elements.");
}

◆ setGridPitch()

void setGridPitch	(	double	pitchR,
		double	pitchZ )

inline

Sets the grid pitch of the magnetic field map.

Parameters

pitchR	The pitch of the grid in r [cm].
pitchZ	The pitch of the grid in z [cm].

Definition at line 96 of file BFieldComponentRadial.h.

96{ m_gridPitchR = pitchR; m_gridPitchZ = pitchZ; }

◆ setKlmParameters()

void setKlmParameters	(	double	srmin,
		double	zyoke,
		double	gaph,
		double	iront )

inline

Sets parameter for EKLM.

Parameters

srmin	minimum radius for the gap in endyoke [cm].
zyoke	minimum Z of endyoke [cm].
gaph	height of the gap in endyoke [cm].
iront	thickness of iron plate in endyoke [cm].

Definition at line 106 of file BFieldComponentRadial.h.

    {
      m_slotRMin = srmin, m_endyokeZMin = zyoke; m_gapHeight = gaph; m_ironPlateThickness = iront;
    }

◆ setMapFilename()

void setMapFilename ( const std::string & filename )

inline

Sets the filename of the magnetic field map.

Parameters

filename The filename of the magnetic field map.

Definition at line 67 of file BFieldComponentRadial.h.

67{ m_mapFilename = filename; };

◆ setMapRegionR()

void setMapRegionR	(	double	minR,
		double	maxR )

inline

Sets the size of the magnetic field map.

Parameters

minR	The left (min) border of the magnetic field map region in r [cm].
maxR	The right (max) border of the magnetic field map region in r [cm].

Definition at line 89 of file BFieldComponentRadial.h.

89{ m_mapRegionR[0] = minR; m_mapRegionR[1] = maxR; }

◆ setMapRegionZ()

void setMapRegionZ	(	double	minZ,
		double	maxZ,
		double	offset )

inline

Sets the size of the magnetic field map.

Parameters

minZ	The left (min) border of the magnetic field map region in z [cm].
maxZ	The right (max) border of the magnetic field map region in z [cm].
offset	The offset in z [cm] which is required because the accelerator group defines the Belle center as zero.

Definition at line 82 of file BFieldComponentRadial.h.

82{ m_mapRegionZ[0] = minZ; m_mapRegionZ[1] = maxZ; m_mapOffset = offset; }

◆ setMapSize()

void setMapSize	(	int	sizeR,
		int	sizeZ )

inline

Sets the size of the magnetic field map.

Parameters

sizeR	The number of points in the r direction.
sizeZ	The number of points in the z direction.

Definition at line 74 of file BFieldComponentRadial.h.

74{ m_mapSize[0] = sizeR; m_mapSize[1] = sizeZ; }

◆ terminate()

virtual void terminate ( )

inlinevirtualinherited

Terminates the magnetic field component.

This method should be used to close files that have been opened in the initialize() method.

Definition at line 66 of file BFieldComponentAbs.h.

66{};

Member Data Documentation

◆ m_endyokeZMin

double m_endyokeZMin {0}

private

minimum Z of endyoke

Definition at line 127 of file BFieldComponentRadial.h.

127{0};

◆ m_gapHeight

double m_gapHeight {0}

private

height of the gap in endyoke

Definition at line 128 of file BFieldComponentRadial.h.

128{0};

◆ m_gridPitchR

double m_gridPitchR {0}

private

The grid pitch in r.

Definition at line 121 of file BFieldComponentRadial.h.

121{0};

◆ m_gridPitchZ

double m_gridPitchZ {0}

private

The grid pitch in z.

Definition at line 122 of file BFieldComponentRadial.h.

122{0};

◆ m_igridPitchR

double m_igridPitchR {0}

private

The reciprocal of grid pitch in r.

Definition at line 123 of file BFieldComponentRadial.h.

123{0};

◆ m_igridPitchZ

double m_igridPitchZ {0}

private

The reciprocal of grid pitch in z.

Definition at line 124 of file BFieldComponentRadial.h.

124{0};

◆ m_iLayer

double m_iLayer {0}

private

reciprocal of height of the layer (gap + iron plate) in endyoke

Definition at line 131 of file BFieldComponentRadial.h.

131{0};

◆ m_ironPlateThickness

double m_ironPlateThickness {0}

private

thickness of iron plate in endyoke

Definition at line 129 of file BFieldComponentRadial.h.

129{0};

◆ m_Layer

double m_Layer {0}

private

height of the layer (gap + iron plate) in endyoke

Definition at line 130 of file BFieldComponentRadial.h.

130{0};

◆ m_mapBuffer

std::vector<BFieldPoint> m_mapBuffer

private

The memory buffer for the magnetic field map.

Definition at line 116 of file BFieldComponentRadial.h.

◆ m_mapFilename

std::string m_mapFilename {""}

private

The filename of the magnetic field map.

Definition at line 115 of file BFieldComponentRadial.h.

115{""};

◆ m_mapOffset

double m_mapOffset {0}

private

Offset required because the accelerator group defines the Belle center as zero.

Definition at line 119 of file BFieldComponentRadial.h.

119{0};

◆ m_mapRegionR

double m_mapRegionR[2] {0}

private

The min and max boundaries of the map region in r.

Definition at line 120 of file BFieldComponentRadial.h.

120{0};

◆ m_mapRegionZ

double m_mapRegionZ[2] {0}

private

The min and max boundaries of the map region in z.

Definition at line 118 of file BFieldComponentRadial.h.

118{0};

◆ m_mapSize

int m_mapSize[2] {0}

private

The size of the map in r and z.

Definition at line 117 of file BFieldComponentRadial.h.

117{0};

◆ m_slotRMin

double m_slotRMin {0}

private

minimum radius for the gap in endyoke

Definition at line 126 of file BFieldComponentRadial.h.

126{0};

The documentation for this class was generated from the following files:

geometry/bfieldmap/include/BFieldComponentRadial.h
geometry/bfieldmap/src/BFieldComponentRadial.cc

Classes

Public Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ calculate()

◆ initialize()

◆ setGridPitch()

◆ setKlmParameters()

◆ setMapFilename()

◆ setMapRegionR()

◆ setMapRegionZ()

◆ setMapSize()

◆ terminate()

Member Data Documentation

◆ m_endyokeZMin

◆ m_gapHeight

◆ m_gridPitchR

◆ m_gridPitchZ

◆ m_igridPitchR

◆ m_igridPitchZ

◆ m_iLayer

◆ m_ironPlateThickness

◆ m_Layer

◆ m_mapBuffer

◆ m_mapFilename

◆ m_mapOffset

◆ m_mapRegionR

◆ m_mapRegionZ

◆ m_mapSize

◆ m_slotRMin
