CDCGeometryPar Class Reference

The Class for CDC Geometry Parameters. More...

#include <CDCGeometryPar.h>

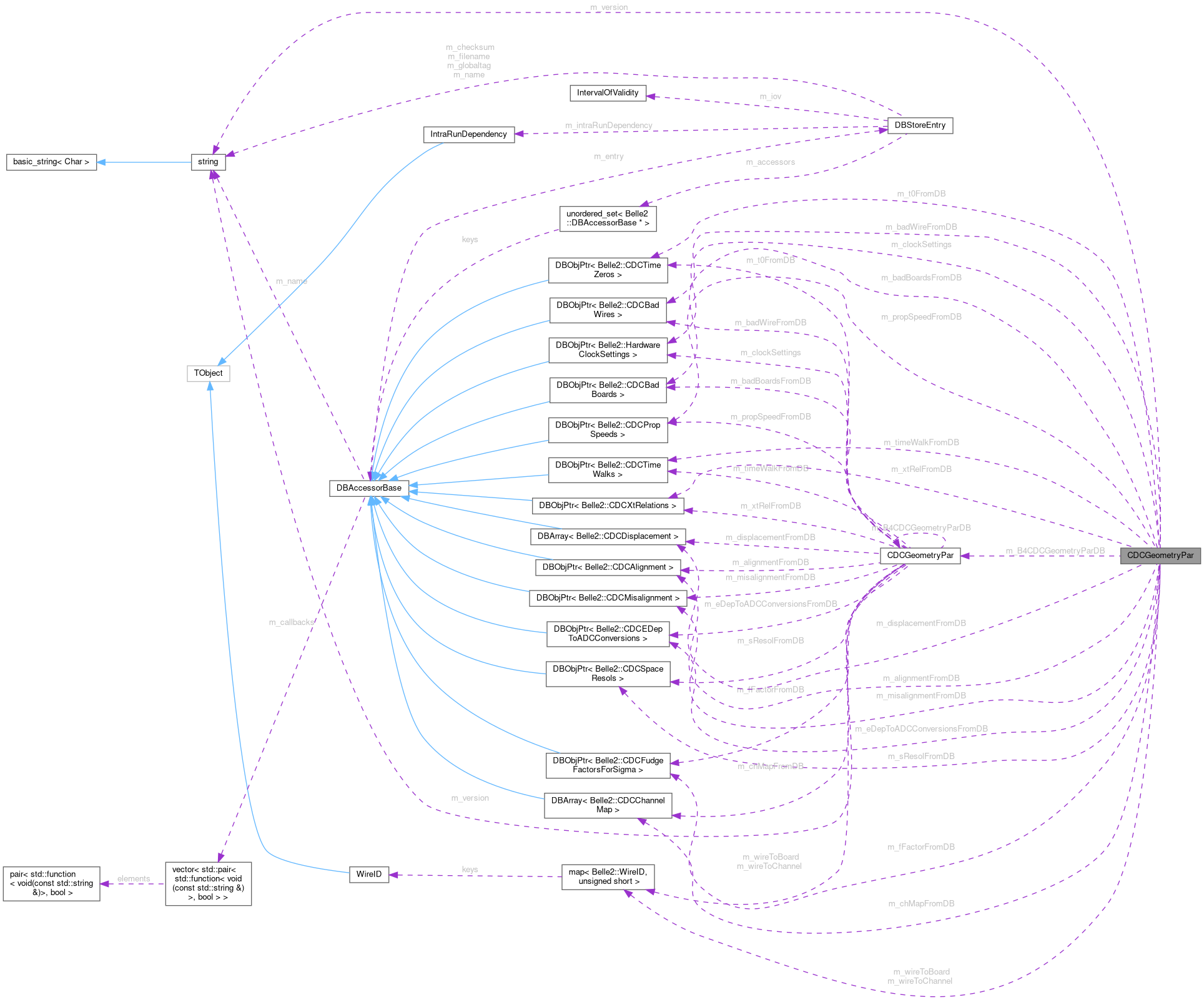

Collaboration diagram for CDCGeometryPar:
Collaboration graph
[legend]

Public Types

enum  EWirePosition {
  c_Base = 0 ,
  c_Misaligned ,
  c_Aligned
}
 Wire position set. More...


Public Member Functions

virtual ~CDCGeometryPar ()
 Destructor.

void clear ()
 Clears.

void Print () const
 Print some debug information.

void readFromDB (const CDCGeometry &)
 Gets geometry parameters from database.

void readWirePositionParams (EWirePosition set, const CDCGeometry *geom)
 Read displacement or (mis)alignment params from text file.

void setWirPosAlignParams ()
 Set wire alignment params.

void setWirPosMisalignParams ()
 Set wire misalignment params.

void readXT (const GearDir &gbxParams, int mode=0)
 Read XT-relation table.

void newReadXT (const GearDir &gbxParams, int mode=0)
 Read XT-relation table in new format.

void setXT ()
 Set XT-relation table (from DB).

void setXtRel ()
 Set XT-relation table (from DB) (new).

void readSigma (const GearDir &gbxParams, int mode=0)
 Read spatial resolution table.

void newReadSigma (const GearDir &gbxParams, int mode=0)
 Read spatial resolution table in new format.

void readFFactor (const GearDir &gbxParams, int mode=0)
 Read fudge factors.

void setSResol ()
 Set spatial resolution (from DB).

void setFFactor ()
 Set fudge factors (from DB).

void readPropSpeed (const GearDir &gbxParams, int mode=0)
 Read the propagation speed along the sense wire.

void setPropSpeed ()
 Set prop.

void readT0 (const GearDir &gbxParams, int mode=0)
 Read t0 parameters (from a file).

void setT0 ()
 Set t0 parameters (from DB)

void calcMeanT0 (double minT0=3800, double maxT0=5800, int maxIt=10, double nStdv=3, double epsi=0.1)
 Calculate mean t0 in ns (over all good wires)

void setBadWire ()
 Set bad-wires (from DB)

void setBadBoard ()
 Set bad-boards (from DB)

void readChMap ()
 Read channel map between wire-id and electronics-id.

void setChMap ()
 Set channel map (from DB)

void readTW (const GearDir &gbxParams, int mode=0)
 Read time-walk parameter.

void readEDepToADC (const GearDir &gbxParams, int mode=0)
 Read spatial edep-to-adc conv.

void setTW ()
 Set time-walk parameters.

void setEDepToADCConversions ()
 Set edep-to-ADC conversion params.

double getEDepToADCConvFactor (unsigned short layer, unsigned short cell, double edep, double dx, double costh)
 Return edep-to-ADC conversion factor.

double getEDepToADCMainFactor (unsigned short layer, unsigned short cell, double costh=0)
 Return edep-to-ADC conversion main factor (in count/keV)

double getEDepToADCSigma (unsigned short layer, unsigned short cell)
 Return sigma for extra smearing of edep to ADC conversion.

void generateXML (const std::string &of)
 Generate an xml file used in gearbox.

std::string version () const
 Returns the version of cdc geometry parameters.

double motherInnerR () const
 The method to get cdc mother volume inner R.

double motherOuterR () const
 The method to get cdc mother volume outer R.

double motherLength () const
 The method to get cdc mother volume length.

int momBound () const
 to get the number of boundary position of the CDC mother volume

double momZ (int iBound) const
 Returns boundary position in Z axis of the CDC mother volume.

double momRmin (int iBound) const
 Returns inner radius of the CDC mother volume.

unsigned cellId (unsigned layerId, const B2Vector3D &position) const
 The method to get cell id based on given layer id and the position.

double innerRadiusOuterWall () const
 Returns the inner radius of the outer wall.

double outerRadiusOuterWall () const
 Returns the outer radius of the outer wall.

double zOuterWall () const
 Returns the length of the outer wall in Z.

double zOffsetOuterWall () const
 Returns the offset of the outer wall in z direction.

double innerRadiusInnerWall () const
 Returns the inner radius of the inner wall.

double outerRadiusInnerWall () const
 Returns the outer radius of the inner wall.

double zInnerWall () const
 Returns the length of the inner wall in Z.

double zOffsetInnerWall () const
 Returns the offset of the outer wall in z direction.

double senseWireDiameter () const
 Returns diameter of the sense wire.

double fieldWireDiameter () const
 Returns diameter of the field wire.

unsigned nWireLayers () const
 Returns a number of wire layers.

unsigned nWiresInLayer (int layerId) const
 Returns wire numbers in a layer.

const double * innerRadiusWireLayer () const
 Returns an array of inner radius of wire layers.

const double * outerRadiusWireLayer () const
 Returns an array of outer radius of wire layers.

const double * zForwardWireLayer () const
 Returns an array of forward z of wire layers.

const double * zBackwardWireLayer () const
 Returns an array of backward z of wire layers.

double zOffsetWireLayer (unsigned i) const
 Returns the offset of z of the wire layer i.

double getMeanT0 () const
 Returns the mean t0 over all wires.

const B2Vector3D wireForwardPosition (uint layerId, int cellId, EWirePosition set=c_Base) const
 Returns the forward position of the input sense wire.

const B2Vector3D wireForwardPosition (const WireID &wireID, EWirePosition set=c_Base) const
 The same function but in a different input format.

const B2Vector3D wireForwardPosition (uint layerId, int cellId, double z, EWirePosition set=c_Base) const
 Returns a virtual forward position corresp. to a tangent to the wire at the input z-position.

const B2Vector3D wireForwardPosition (const WireID &wireID, double z, EWirePosition set=c_Base) const
 The same function but in a different input format.

const B2Vector3D wireBackwardPosition (uint layerId, int cellId, EWirePosition set=c_Base) const
 Returns the backward position of the input sense wire.

const B2Vector3D wireBackwardPosition (const WireID &wireID, EWirePosition set=c_Base) const
 The same function but in a different input format.

const B2Vector3D wireBackwardPosition (uint layerId, int cellId, double z, EWirePosition set=c_Base) const
 Returns a virtual backward position corresp. to a tangent to the wire at the input z-position.

const B2Vector3D wireBackwardPosition (const WireID &wireID, double z, EWirePosition set=c_Base) const
 The same function but in a different input format.

double getWireSagCoef (EWirePosition set, uint layerId, int cellId) const
 Returns coefficient for the sense wire sag.

double getThresholdEnerguDeposit () const
 Returns threshold for energy deposit in one G4 step.

double getMinTrackLength () const
 Returns the minimum track length required in one G4 step (only secondary particles which pass this criterion are to be saved in MCParticle)

bool isWireSagOn () const
 Returns on/off for sense wire sag in FullSim.

bool isModifiedLeftRightFlagOn () const
 Returns on/off for modified left/right calculation in FullSim.

float getT0 (const WireID &wireID) const
 Returns t0 parameter of the specified sense wire.

unsigned short getBoardID (const WireID &wID) const
 Returns frontend board id. corresponding to the wire id.

unsigned short getChannelID (const WireID &wID) const
 Returns frontend channel id. corresponding to the wire id.

const WireID getWireID (unsigned short bd, unsigned short ch) const
 Returns wire id. corresponding to the board-and-cannel ids.

double getTimeWalk (const WireID &wID, unsigned short adcCount) const
 Returns time-walk.

void setShiftInSuperLayer ()
 Calculates and saves shifts in super-layers (to be used in searching hits in neighboring cells)

signed short getShiftInSuperLayer (unsigned short iSuperLayer, unsigned short iLayer) const
 Returns shift in the super-layer.

double senseWireR (int layerId) const
 Returns radius of sense wire in each layer.

double senseWireFZ (int layerId) const
 Returns forward z position of sense wire in each layer.

double senseWireBZ (int layerId) const
 Returns backward z position of sense wire in each layer.

double fieldWireR (int layerId) const
 Returns radius of field wire in each layer.

double fieldWireFZ (int layerId) const
 Returns forward z position of field wire in each layer.

double fieldWireBZ (int layerId) const
 Returns backward z position of field wire in each layer.

int nShifts (int layerId) const
 Returns number shift.

double offset (int layerID) const
 Return wire offset in phi direction at endplate.

void setSenseWireR (int layerId, double r)
 Set radius of sense wire in each layer.

void setSenseWireFZ (int layerId, double fz)
 Set forward z position of sense wires.

void setSenseWireBZ (int layerId, double bz)
 set backward z position of sense wires.

unsigned short getTdcOffset () const
 Return TDC offset value (default = 0 ch).

double getTdcBinWidth () const
 Return TDC bin width (nsec).

double getNominalDriftV () const
 Return the nominal drift velocity of He-ethane gas (default: 4.0x10^-3 cm/nsec).

double getNominalPropSpeed () const
 Return the nominal propagation speed of the sense wire (default: 27.25 cm/nsec).

double getNominalSpaceResol () const
 Return the nominal spatial resolution.

int getMaterialDefinitionMode () const
 Return mode for material definition.

int getSenseWireZposMode () const
 Return mode for sense wire z position.

double getBwdDeltaZ (unsigned short layerID) const
 Return backward 'deltaZ'.

double getFwdDeltaZ (unsigned short layerID) const
 Return forward 'deltaZ'.

void setNominalSpaceResol (double resol)
 Set the nominal spatial resolution in the unit of um.

double getPropSpeedInv (const unsigned int layerID) const
 Get the inversel of propagation speed in the sense wire.

bool isBadWire (const WireID &wid)
 Inquire if the wire is totally-dead.

bool isDeadWire (const WireID &wid, double &eff)
 Inquire if the wire is dead.

bool isHotWire (const WireID &wid)
 Inquire if the wire is hot.

void getWireSagEffect (EWirePosition set, unsigned layerID, unsigned cellID, double zw, double &ywb_sag, double &ywf_sag) const
 Compute effects of the sense wire sag.

double getDriftV (double dt, unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI) const
 Get the realistic drift velocity.

double getDriftLength (double dt, unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI, bool calculateMinTime=true, double minTime=0.) const
 Return the drift dength to the sense wire.

double getDriftLength0 (double dt, unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI) const
 Return the drift dength to the sense wire; tentative ver.

double getMinDriftTime (unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI) const
 Return the min.

double getDriftTime (double dist, unsigned short layer, unsigned short lr, double alpha, double theta) const
 Return the drift time to the sense wire.

double getSigma (double dist, unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI) const
 Return the basic resolution of drift length (cm).

double getFudgeFactorForSigma (unsigned short target) const
 Return the fuge factor for space resol.

unsigned short getOldLeftRight (const B2Vector3D &posOnWire, const B2Vector3D &posOnTrack, const B2Vector3D &momentum) const
 Returns old left/right.

unsigned short getNewLeftRightRaw (const B2Vector3D &posOnWire, const B2Vector3D &posOnTrack, const B2Vector3D &momentum) const
 Returns new left/right_raw.

double getAlpha (const B2Vector3D &posOnWire, const B2Vector3D &momentum) const
 Returns track incident angle in rphi plane (alpha in rad.).

double getTheta (const B2Vector3D &momentum) const
 Returns track incident angle (theta in rad.).

unsigned short getOutgoingLR (const unsigned short lr, const double alpha) const
 Converts incoming-lr to outgoing-lr.

double getOutgoingAlpha (const double alpha) const
 Converts incoming- to outgoing-alpha.

double getOutgoingTheta (const double alpha, const double theta) const
 Converts incoming- to outgoing-theta.

void getClosestAlphaPoints (const double alpha, double &wal, unsigned short points[2], unsigned short lrs[2]) const
 Returns the two closest alpha points for the input track incident angle (alpha).

void getClosestAlphaPoints4Sgm (const double alpha, double &wal, unsigned short points[2], unsigned short lrs[2]) const
 Returns the two closest alpha points for sigma for the input track incident angle (alpha).

void getClosestThetaPoints (const double alpha, const double theta, double &wth, unsigned short points[2]) const
 Returns the two closest theta points for the input track incident angle (theta).

void getClosestThetaPoints4Sgm (const double alpha, const double theta, double &wth, unsigned short points[2]) const
 Returns the two closest theta points for sigma for the input track incident angle (theta).

void setDesignWirParam (unsigned layerID, unsigned cellID)
 Set the desizend wire parameters.

void outputDesignWirParam (unsigned layerID, unsigned cellID) const
 Write the designed wire parameters to the alignment.dat (default).

void setDisplacement ()
 Set displacement of sense wire.

ushort getNumberOfSenseWires () const
 Get the number of sense wires.

ushort getNumberOfFieldWires () const
 Get the number of field wires.

ushort getNumberOfSenseLayers () const
 Get the number of sense layers.

ushort getNumberOfFieldLayers () const
 Get the number of field layers.

ushort getMaxNumberOfSuperLayers () const
 Get the maximum number of super layers.

ushort getOffsetOfFirstLayer () const
 Get the offset of the first layer.

ushort getOffsetOfFirstSuperLayer () const
 Get the offset of the first super layer.

ushort getMaxNumberOfCellsPerLayer () const
 Get the maximum number of cells in one layer.


Static Public Member Functions

static CDCGeometryPar & Instance (const CDCGeometry *=nullptr)
 Static method to get a reference to the CDCGeometryPar instance.


Private Member Functions

 CDCGeometryPar (const CDCGeometry *=nullptr)
 Singleton class.

 CDCGeometryPar (const CDCGeometryPar &)
 Singleton class.

CDCGeometryPar & operator= (const CDCGeometryPar &)
 Singleton class.


Private Attributes

bool m_debug
 Switch for debug printing.

bool m_linearInterpolationOfXT
 Switch for linear interpolation of xt.

bool m_linearInterpolationOfSgm
 Switch for linear interpolation of sigma.

bool m_XTetc
 Switch for reading x-t etc.

bool m_displacement
 Switch for displacement.

bool m_misalignment
 Switch for misalignment.

bool m_alignment
 Switch for alignment.

bool m_XTetc4Recon
 Switch for selecting xt etc.

bool m_wireSag
 Switch for sense wire sag.

bool m_modLeftRightFlag
 Switch for modified left/right flag.

std::string m_version
 The version of geometry parameters.

int m_materialDefinitionMode
 Control switch for gas and wire material definition.

int m_senseWireZposMode
 Mode for sense wire z position corr.

int m_xtFileFormat
 Format of xt input file.

int m_xtParamMode
 Mode for xt parameterization.

int m_sigmaFileFormat
 Format of sigma input file.

int m_sigmaParamMode
 Mode for sigma parameterization.

int m_twParamMode
 Mode for tw parameterization.

int m_nSLayer
 The number of sense wire layer.

int m_nFLayer
 The number of field wire layer.

unsigned short m_nAlphaPoints
 No.

unsigned short m_nThetaPoints
 No.

unsigned short m_nAlphaPoints4Sgm
 No.

unsigned short m_nThetaPoints4Sgm
 No.

signed short m_shiftInSuperLayer [c_nSuperLayers][8]
 shift in phi-direction wrt the 1st layer in each super layer

double m_rWall [4]
 The array to store radius of inner wall and outer wall.

double m_zWall [4][2]
 The array to store z position of inner wall and outer wall.

double m_rSLayer [c_maxNSenseLayers]
 The array to store radius of sense wire layers.

double m_zSForwardLayer [c_maxNSenseLayers]
 The array to store forward z position of sense wire layers.

double m_dzSForwardLayer [c_maxNSenseLayers]
 Corrections for forward z position of sense wire layers.

double m_zSBackwardLayer [c_maxNSenseLayers]
 The array to store backward z position of sense wire layers.

double m_dzSBackwardLayer [c_maxNSenseLayers]
 Corrections for backward z position of sense wire layers.

double m_rFLayer [c_maxNFieldLayers]
 The array to store radius of field wire layers.

double m_zFForwardLayer [c_maxNFieldLayers]
 The array to store forward z position of field wire layers.

double m_zFBackwardLayer [c_maxNFieldLayers]
 The array to store backward z position of field wire layers.

double m_offSet [c_maxNSenseLayers]
 The array to store z offset of sense wire layers.

double m_cellSize [c_maxNSenseLayers]
 The array to store cell size in each sense wire layer.

int m_nShifts [c_maxNSenseLayers]
 The array to store shifted cell number in each sense wire layer.

unsigned m_nWires [c_maxNSenseLayers]
 The array to store the wire number in each sense wire layre.

double m_senseWireDiameter
 The diameter of sense wires.

double m_senseWireTension
 The tension of sense wires.

double m_senseWireDensity
 The density of sense wires.

double m_fieldWireDiameter
 The diameter of field wires.

double m_globalPhiRotation
 Global ratation in phi (rad.); only for sense wires now.

double m_momZ [7]
 Z-cordinates of the cdc mother volume (7 segments).

double m_momRmin [7]
 R_min of the cdc mother volume (7 segments).

double m_thresholdEnergyDeposit
 Energy thresh.

double m_minTrackLength
 Minimum track length for G4 step.

float m_FWirPos [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_BWirPos [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_WireSagCoef [c_maxNSenseLayers][c_maxNDriftCells]
 Wire sag coefficient for each cell; ibid.

float m_FWirPosMisalign [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_BWirPosMisalign [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_WireSagCoefMisalign [c_maxNSenseLayers][c_maxNDriftCells]
 Wire sag coefficient incl.

float m_FWirPosAlign [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_BWirPosAlign [c_maxNSenseLayers][c_maxNDriftCells][3]
 Wire position incl.

float m_WireSagCoefAlign [c_maxNSenseLayers][c_maxNDriftCells]
 Wire sag coefficient incl.

float m_eDepToADCParams [c_maxNSenseLayers][c_maxNDriftCells][7] = {}
 edep-to-ADC conv.

float m_alphaPoints [c_maxNAlphaPoints]
 alpha sampling points for xt (rad)

float m_thetaPoints [c_maxNThetaPoints]
 theta sampling points for xt (rad)

float m_alphaPoints4Sgm [c_maxNAlphaPoints]
 alpha sampling points for sigma (rad)

float m_thetaPoints4Sgm [c_maxNThetaPoints]
 theta sampling points for sigma (rad)

float m_XT [c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nXTParams]
 XT-relation coefficients for each layer, Left/Right, entrance angle and polar angle.

float m_Sigma [c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nSigmaParams]
 position resolution for each layer.

float m_propSpeedInv [c_maxNSenseLayers]
 Inverse of propagation speed of the sense wire.

float m_t0 [c_maxNSenseLayers][c_maxNDriftCells] = {}
 t0 for each sense-wire (in nsec).

float m_timeWalkCoef [c_nBoards][2]
 coefficients for time walk.

double m_meanT0
 mean t0 over all wires; should be double.

std::map< WireID, unsigned short > m_wireToBoard
 map relating wire-id and board-id.

std::map< WireID, unsigned short > m_wireToChannel
 map relating wire-id and channel-id.

unsigned short m_boardAndChannelToWire [c_nBoards][48]
 array relating board-channel-id and wire-id.

unsigned short m_tdcOffset
 Not used; to be removed later.

double m_clockFreq4TDC
 Clock frequency used for TDC (GHz).

double m_tdcBinWidth
 TDC bin width (nsec/bin).

double m_nominalDriftV
 Nominal drift velocity (4.0x10^-3 cm/nsec).

double m_nominalDriftVInv
 Inverse of the nominal drift velocity.

double m_nominalPropSpeed
 Nominal propagation speed of the sense wire (27.25 cm/nsec).

double m_nominalSpaceResol
 Nominal spatial resolution (0.0130 cm).

double m_maxSpaceResol
 max space resolution allowed (cm).

double m_fudgeFactorForSigma [3]
 Fuge factor for space resol.

DBObjPtr< CDCTimeZeros > * m_t0FromDB
 t0s retrieved from DB.

DBObjPtr< CDCBadWires > * m_badWireFromDB
 bad-wires retrieved from DB.

DBObjPtr< CDCBadBoards > * m_badBoardsFromDB
 bad-boards retrieved from DB.

DBObjPtr< CDCPropSpeeds > * m_propSpeedFromDB
 prop.

DBObjPtr< CDCTimeWalks > * m_timeWalkFromDB
 time-walk coeffs.

DBObjPtr< CDCXtRelations > * m_xtRelFromDB
 xt params.

DBObjPtr< CDCSpaceResols > * m_sResolFromDB
 sigma params.

DBObjPtr< CDCFudgeFactorsForSigma > * m_fFactorFromDB
 fudge factors retrieved from DB.

DBArray< CDCChannelMap > * m_chMapFromDB
 channel map retrieved from DB.

DBArray< CDCDisplacement > * m_displacementFromDB
 displacement params.

DBObjPtr< CDCAlignment > * m_alignmentFromDB
 alignment params.

DBObjPtr< CDCMisalignment > * m_misalignmentFromDB
 misalignment params.

DBObjPtr< CDCEDepToADCConversions > * m_eDepToADCConversionsFromDB
 Pointer to edep-to-ADC conv.

DBObjPtr< HardwareClockSettings > m_clockSettings
 hardware clock settings

ushort m_nSenseWires = c_nSenseWires
 Maximum number of Sense Wires.

ushort m_nFieldWires = c_nFieldWires
 Maximum number of Field Wires.

ushort m_maxNSenseLayers = c_maxNSenseLayers
 Maximum number of Sense Wire Layers.

ushort m_maxNFieldLayers = c_maxNFieldLayers
 Maximum number of Field Wire Layers.

ushort m_maxNSuperLayers = c_nSuperLayers
 Maximum number of Super Layers.

ushort m_firstLayerOffset = 0
 Offset of the first layer (for reduced CDC studies)

ushort m_firstSuperLayerOffset = 0
 Offset of the first super layer (for reduced CDC studies)

ushort m_maxNCellsPerLayer = c_maxNDriftCells
 Maximum number wires within a layer.


Static Private Attributes

static CDCGeometryPar * m_B4CDCGeometryParDB = 0
 Pointer that saves the instance of this class.


Detailed Description

The Class for CDC Geometry Parameters.

This class provides CDC geometry parameters for simulation, reconstruction and so on. These parameters are gotten from gearbox.

Definition at line 52 of file CDCGeometryPar.h.

Member Enumeration Documentation

◆ EWirePosition

enum EWirePosition

Wire position set.

Definition at line 57 of file CDCGeometryPar.h.

57{c_Base = 0, c_Misaligned, c_Aligned};

Constructor & Destructor Documentation

◆ ~CDCGeometryPar()

~CDCGeometryPar ( )
virtual

Destructor.

Definition at line 147 of file CDCGeometryPar.cc.

148{
149 // B2INFO("CDCGeometryPar: destructor called");
150 // if (m_t0FromDB) delete m_t0FromDB;
151 // if (m_badWireFromDB) delete m_badWireFromDB;
152 // if (m_propSpeedFromDB) delete m_propSpeedFromDB;
153 // if (m_timeWalkFromDB) delete m_timeWalkFromDB;
154 // if (m_xtRelFromDB) delete m_xtRelFromDB;
155 // if (m_sResolFromDB) delete m_sResolFromDB;
156 // if (m_chMapFromDB) delete [] m_chMapFromDB;
157 // if (m_displacementFromDB) delete [] m_displacementFromDB;
158 // if (m_chMapFromDB) delete m_chMapFromDB;
159 // if (m_displacementFromDB) delete m_displacementFromDB;
160 // if (m_alignmentFromDB) delete m_alignmentFromDB;
161 // if (m_misalignmentFromDB) delete m_misalignmentFromDB;
162 // B2INFO("CDCGeometryPar: destructor ended");
163}

◆ CDCGeometryPar()

CDCGeometryPar ( const CDCGeometry * geom = nullptr)
private

Singleton class.

Definition at line 38 of file CDCGeometryPar.cc.

39{
40
41 CDCGeoControlPar& gcp = CDCGeoControlPar::getInstance();
42
43 if (gcp.getT0InputType()) {
44 m_t0FromDB = new DBObjPtr<CDCTimeZeros>;
45 if ((*m_t0FromDB).isValid()) {
46 (*m_t0FromDB).addCallback(this, &CDCGeometryPar::setT0);
47 }
48 }
49
50 if (gcp.getBwInputType()) {
51 m_badWireFromDB = new DBObjPtr<CDCBadWires>;
52 if ((*m_badWireFromDB).isValid()) {
53 (*m_badWireFromDB).addCallback(this, &CDCGeometryPar::setBadWire);
54 }
55 }
56 // Bad boards are on DB only:
57 m_badBoardsFromDB = new DBObjPtr<CDCBadBoards>;
58 if ((*m_badBoardsFromDB).isValid()) {
59 (*m_badBoardsFromDB).addCallback(this, &CDCGeometryPar::setBadBoard);
60 }
61
62 if (gcp.getPropSpeedInputType()) {
63 m_propSpeedFromDB = new DBObjPtr<CDCPropSpeeds>;
64 if ((*m_propSpeedFromDB).isValid()) {
65 (*m_propSpeedFromDB).addCallback(this, &CDCGeometryPar::setPropSpeed);
66 }
67 }
68
69 if (gcp.getTwInputType()) {
70 m_timeWalkFromDB = new DBObjPtr<CDCTimeWalks>;
71 if ((*m_timeWalkFromDB).isValid()) {
72 (*m_timeWalkFromDB).addCallback(this, &CDCGeometryPar::setTW);
73 }
74 }
75
76 if (gcp.getXtInputType()) {
77 m_xtRelFromDB = new DBObjPtr<CDCXtRelations>;
78 if ((*m_xtRelFromDB).isValid()) {
79 (*m_xtRelFromDB).addCallback(this, &CDCGeometryPar::setXtRel);
80 }
81 }
82
83 if (gcp.getSigmaInputType()) {
84 m_sResolFromDB = new DBObjPtr<CDCSpaceResols>;
85 if ((*m_sResolFromDB).isValid()) {
86 (*m_sResolFromDB).addCallback(this, &CDCGeometryPar::setSResol);
87 }
88 }
89
90 if (gcp.getFFactorInputType()) {
91 m_fFactorFromDB = new DBObjPtr<CDCFudgeFactorsForSigma>;
92 if ((*m_fFactorFromDB).isValid()) {
93 (*m_fFactorFromDB).addCallback(this, &CDCGeometryPar::setFFactor);
94 }
95 }
96
97 if (gcp.getChMapInputType()) {
98 m_chMapFromDB = new DBArray<CDCChannelMap>;
99 if ((*m_chMapFromDB).isValid()) {
100 (*m_chMapFromDB).addCallback(this, &CDCGeometryPar::setChMap);
101 }
102 }
103
104 if (gcp.getDisplacementInputType()) {
105 m_displacementFromDB = new DBArray<CDCDisplacement>;
106 if ((*m_displacementFromDB).isValid()) {
107 (*m_displacementFromDB).addCallback(this, &CDCGeometryPar::setDisplacement);
108 }
109 }
110
111 if (gcp.getAlignmentInputType()) {
112 m_alignmentFromDB = new DBObjPtr<CDCAlignment>;
113 if ((*m_alignmentFromDB).isValid()) {
114 (*m_alignmentFromDB).addCallback(this, &CDCGeometryPar::setWirPosAlignParams);
115 }
116 }
117
118 if (gcp.getMisalignment()) {
119 if (gcp.getMisalignmentInputType()) {
120 m_misalignmentFromDB = new DBObjPtr<CDCMisalignment>;
121 if ((*m_misalignmentFromDB).isValid()) {
122 (*m_misalignmentFromDB).addCallback(this, &CDCGeometryPar::setWirPosMisalignParams);
123 }
124 }
125 }
126
127 //TODO in future: make a new (singleton?) class and move all EDepToADC things there.
128 if (gcp.getEDepToADCInputType()) {
129 m_eDepToADCConversionsFromDB = new OptionalDBObjPtr<CDCEDepToADCConversions>;
130 if ((*m_eDepToADCConversionsFromDB).isValid()) {
131 (*m_eDepToADCConversionsFromDB).addCallback(this, &CDCGeometryPar::setEDepToADCConversions);
132 }
133 }
134
135 clear();
136 if (geom) {
137 // B2INFO("CDCGeometryPar: Read Geometry object");
138 readFromDB(*geom);
139 } else {
140 // std::cout <<"readcalled" << std::endl;
141 // read();
142 // B2FATAL("CDCGeometryPar: Strange that readFromDB is not called !");
143 B2WARNING("CDCGeometryPar: Strange that readFromDB is not called! Please make sure that CDC is included in Geometry.");
144 }
145}
Belle2::CDC::CDCGeoControlPar::getSigmaInputType
bool getSigmaInputType()
Get input type for sigma.
Definition CDCGeoControlPar.h:407
Belle2::CDC::CDCGeoControlPar::getMisalignmentInputType
bool getMisalignmentInputType()
Get input type for wire misalignment.
Definition CDCGeoControlPar.h:391
Belle2::CDC::CDCGeoControlPar::getDisplacementInputType
bool getDisplacementInputType()
Get input type for wire displacement.
Definition CDCGeoControlPar.h:375
Belle2::CDC::CDCGeoControlPar::getAlignmentInputType
bool getAlignmentInputType()
Get input type for wire alignment.
Definition CDCGeoControlPar.h:383
Belle2::CDC::CDCGeoControlPar::getT0InputType
bool getT0InputType()
Get input type for t0.
Definition CDCGeoControlPar.h:431
Belle2::CDC::CDCGeoControlPar::getEDepToADCInputType
bool getEDepToADCInputType()
Get input type for edeptoadc.
Definition CDCGeoControlPar.h:463
Belle2::CDC::CDCGeoControlPar::getMisalignment
bool getMisalignment() const
Get misalignment switch.
Definition CDCGeoControlPar.h:367
Belle2::CDC::CDCGeoControlPar::getTwInputType
bool getTwInputType()
Get input type for time-walk.
Definition CDCGeoControlPar.h:439
Belle2::CDC::CDCGeoControlPar::getChMapInputType
bool getChMapInputType()
Get input type for channel map.
Definition CDCGeoControlPar.h:455
Belle2::CDC::CDCGeoControlPar::getFFactorInputType
bool getFFactorInputType()
Get input type for fuge factor.
Definition CDCGeoControlPar.h:415
Belle2::CDC::CDCGeoControlPar::getXtInputType
bool getXtInputType()
Get input type for xt.
Definition CDCGeoControlPar.h:399
Belle2::CDC::CDCGeoControlPar::getBwInputType
bool getBwInputType()
Get input type for bad wire.
Definition CDCGeoControlPar.h:447
Belle2::CDC::CDCGeoControlPar::getPropSpeedInputType
bool getPropSpeedInputType()
Get input type for prop.
Definition CDCGeoControlPar.h:423
Belle2::CDC::CDCGeoControlPar::getInstance
static CDCGeoControlPar & getInstance()
Static method to get a reference to the CDCGeoControlPar instance.
Definition CDCGeoControlPar.cc:16
Belle2::CDC::CDCGeometryPar::setWirPosAlignParams
void setWirPosAlignParams()
Set wire alignment params.
Definition CDCGeometryPar.cc:681
Belle2::CDC::CDCGeometryPar::setXtRel
void setXtRel()
Set XT-relation table (from DB) (new).
Definition CDCGeometryPar.cc:1469
Belle2::CDC::CDCGeometryPar::m_badWireFromDB
DBObjPtr< CDCBadWires > * m_badWireFromDB
bad-wires retrieved from DB.
Definition CDCGeometryPar.h:1209
Belle2::CDC::CDCGeometryPar::setT0
void setT0()
Set t0 parameters (from DB)
Definition CDCGeometryPar.cc:1372
Belle2::CDC::CDCGeometryPar::setEDepToADCConversions
void setEDepToADCConversions()
Set edep-to-ADC conversion params.
Definition CDCGeometryPar.cc:1615
Belle2::CDC::CDCGeometryPar::m_displacementFromDB
DBArray< CDCDisplacement > * m_displacementFromDB
displacement params.
Definition CDCGeometryPar.h:1217
Belle2::CDC::CDCGeometryPar::m_misalignmentFromDB
DBObjPtr< CDCMisalignment > * m_misalignmentFromDB
misalignment params.
Definition CDCGeometryPar.h:1219
Belle2::CDC::CDCGeometryPar::m_sResolFromDB
DBObjPtr< CDCSpaceResols > * m_sResolFromDB
sigma params.
Definition CDCGeometryPar.h:1214
Belle2::CDC::CDCGeometryPar::setDisplacement
void setDisplacement()
Set displacement of sense wire.
Definition CDCGeometryPar.cc:2961
Belle2::CDC::CDCGeometryPar::m_timeWalkFromDB
DBObjPtr< CDCTimeWalks > * m_timeWalkFromDB
time-walk coeffs.
Definition CDCGeometryPar.h:1212
Belle2::CDC::CDCGeometryPar::m_badBoardsFromDB
DBObjPtr< CDCBadBoards > * m_badBoardsFromDB
bad-boards retrieved from DB.
Definition CDCGeometryPar.h:1210
Belle2::CDC::CDCGeometryPar::m_t0FromDB
DBObjPtr< CDCTimeZeros > * m_t0FromDB
t0s retrieved from DB.
Definition CDCGeometryPar.h:1208
Belle2::CDC::CDCGeometryPar::setChMap
void setChMap()
Set channel map (from DB)
Definition CDCGeometryPar.cc:1598
Belle2::CDC::CDCGeometryPar::m_fFactorFromDB
DBObjPtr< CDCFudgeFactorsForSigma > * m_fFactorFromDB
fudge factors retrieved from DB.
Definition CDCGeometryPar.h:1215
Belle2::CDC::CDCGeometryPar::m_chMapFromDB
DBArray< CDCChannelMap > * m_chMapFromDB
channel map retrieved from DB.
Definition CDCGeometryPar.h:1216
Belle2::CDC::CDCGeometryPar::readFromDB
void readFromDB(const CDCGeometry &)
Gets geometry parameters from database.
Definition CDCGeometryPar.cc:258
Belle2::CDC::CDCGeometryPar::m_xtRelFromDB
DBObjPtr< CDCXtRelations > * m_xtRelFromDB
xt params.
Definition CDCGeometryPar.h:1213
Belle2::CDC::CDCGeometryPar::m_propSpeedFromDB
DBObjPtr< CDCPropSpeeds > * m_propSpeedFromDB
prop.
Definition CDCGeometryPar.h:1211
Belle2::CDC::CDCGeometryPar::setBadWire
void setBadWire()
Set bad-wires (from DB)
Definition CDCGeometryPar.cc:1432
Belle2::CDC::CDCGeometryPar::setBadBoard
void setBadBoard()
Set bad-boards (from DB)
Definition CDCGeometryPar.cc:1439
Belle2::CDC::CDCGeometryPar::setWirPosMisalignParams
void setWirPosMisalignParams()
Set wire misalignment params.
Definition CDCGeometryPar.cc:765
Belle2::CDC::CDCGeometryPar::setTW
void setTW()
Set time-walk parameters.
Definition CDCGeometryPar.cc:1454
Belle2::CDC::CDCGeometryPar::setSResol
void setSResol()
Set spatial resolution (from DB).
Definition CDCGeometryPar.cc:1527
Belle2::CDC::CDCGeometryPar::m_alignmentFromDB
DBObjPtr< CDCAlignment > * m_alignmentFromDB
alignment params.
Definition CDCGeometryPar.h:1218
Belle2::CDC::CDCGeometryPar::m_eDepToADCConversionsFromDB
DBObjPtr< CDCEDepToADCConversions > * m_eDepToADCConversionsFromDB
Pointer to edep-to-ADC conv.
Definition CDCGeometryPar.h:1220
Belle2::CDC::CDCGeometryPar::setFFactor
void setFFactor()
Set fudge factors (from DB).
Definition CDCGeometryPar.cc:1570

Member Function Documentation

◆ calcMeanT0()

void calcMeanT0 ( double minT0 = 3800,
double maxT0 = 5800,
int maxIt = 10,
double nStdv = 3,
double epsi = 0.1 )

Calculate mean t0 in ns (over all good wires)

Parameters
minT0min. of t0 window (ns)
maxT0max. of t0 window (ns)
maxItmax. no. of iterations
nStdvstandard-deviation cut applied for next iteration
epsicriterion for iteration stop (ns)

Definition at line 1392 of file CDCGeometryPar.cc.

1393{
1394 double oldMeanT0 = 0;
1395 unsigned short it1 = 0;
1396 for (unsigned short it = 0; it < maxIt; ++it) {
1397 it1 = it;
1398 double effiSum = 0.;
1399 m_meanT0 = 0.;
1400 double stdvT0 = 0;
1401 for (unsigned short iCL = 0; iCL < c_maxNSenseLayers; ++iCL) {
1402 for (unsigned short iW = 0; iW < m_nWires[iCL]; ++iW) {
1403 if (m_t0[iCL][iW] < minT0 || m_t0[iCL][iW] > maxT0) continue;
1404 const WireID wid = WireID(iCL, iW);
1405 if (isHotWire(wid)) continue;
1406 if (isBadWire(wid)) continue;
1407 double effi = 1.;
1408 isDeadWire(wid, effi);
1409 effiSum += effi;
1410 m_meanT0 += (iCL < m_firstLayerOffset) ? 0. : effi * m_t0[iCL][iW];
1411 stdvT0 += (iCL < m_firstLayerOffset) ? 0. : effi * m_t0[iCL][iW] * m_t0[iCL][iW];
1412 }
1413 }
1414 if (effiSum > 0.) {
1415 m_meanT0 /= effiSum;
1416 stdvT0 /= effiSum;
1417 stdvT0 = sqrt(fabs(stdvT0 - m_meanT0 * m_meanT0));
1418 B2DEBUG(29, it << " " << effiSum << " " << m_meanT0 << " " << stdvT0);
1419 if (fabs(m_meanT0 - oldMeanT0) < epsi) break;
1420 oldMeanT0 = m_meanT0;
1421 minT0 = m_meanT0 - nStdv * stdvT0;
1422 maxT0 = m_meanT0 + nStdv * stdvT0;
1423 } else {
1424 B2FATAL("Wire efficiency sum <= 0!");
1425 }
1426 }
1427 if (it1 == maxIt - 1) B2WARNING("Max. iterations(=" << maxIt << ") needed to calculate the mean t0. Strange.");
1428}
Belle2::CDC::CDCGeometryPar::isDeadWire
bool isDeadWire(const WireID &wid, double &eff)
Inquire if the wire is dead.
Definition CDCGeometryPar.h:856
Belle2::CDC::CDCGeometryPar::m_nWires
unsigned m_nWires[c_maxNSenseLayers]
The array to store the wire number in each sense wire layre.
Definition CDCGeometryPar.h:1150
Belle2::CDC::CDCGeometryPar::isHotWire
bool isHotWire(const WireID &wid)
Inquire if the wire is hot.
Definition CDCGeometryPar.h:867
Belle2::CDC::CDCGeometryPar::m_meanT0
double m_meanT0
mean t0 over all wires; should be double.
Definition CDCGeometryPar.h:1193
Belle2::CDC::CDCGeometryPar::m_t0
float m_t0[c_maxNSenseLayers][c_maxNDriftCells]
t0 for each sense-wire (in nsec).
Definition CDCGeometryPar.h:1189
Belle2::CDC::CDCGeometryPar::isBadWire
bool isBadWire(const WireID &wid)
Inquire if the wire is totally-dead.
Definition CDCGeometryPar.h:844
Belle2::CDC::CDCGeometryPar::m_firstLayerOffset
ushort m_firstLayerOffset
Offset of the first layer (for reduced CDC studies)
Definition CDCGeometryPar.h:1231
Belle2::sqrt
double sqrt(double a)
sqrt for double
Definition beamHelpers.h:28

◆ cellId()

unsigned cellId ( unsigned layerId,
const B2Vector3D & position ) const

The method to get cell id based on given layer id and the position.

Parameters
layerIdThe given layer id.
positionThe given position to calculate cell id.
Returns
Cell id.

Definition at line 1841 of file CDCGeometryPar.cc.

1842{
1843 if (layerId < m_firstLayerOffset) {
1844 return 0;
1845 }
1846
1847 const unsigned nWires = m_nWires[layerId];
1848
1849 double offset = m_offSet[layerId];
1850 //...Offset modification to be aligned to axial at z=0...
1851 const double phiSize = 2 * M_PI / double(nWires);
1852 /*{
1853 const double phiF = phiSize * offset
1854 + phiSize * 0.5 * double(m_nShifts[layerId]);
1855 const double phiB = phiSize * offset;
1856 const B2Vector3D f(m_rSLayer[layerId] * cos(phiF), m_rSLayer[layerId] * sin(phiF), m_zSForwardLayer[layerId]);
1857 const B2Vector3D b(m_rSLayer[layerId] * cos(phiB), m_rSLayer[layerId] * sin(phiB), m_zSBackwardLayer[layerId]);
1858
1859 const B2Vector3D v = f - b;
1860 const B2Vector3D u = v.Unit();
1861 const double beta = (0 - b.Z()) / u.Z();
1862 const B2Vector3D p = b + beta * u;
1863 double phi0 = - atan2(p.Y(), p.X());
1864 offset += phi0 / (2 * M_PI / double(nWires));
1865 }*/
1866
1867 unsigned j = 0;
1868 for (unsigned i = 0; i < 1; ++i) {
1869 const double phiF = phiSize * (double(i) + offset)
1870 + phiSize * 0.5 * double(m_nShifts[layerId]) + m_globalPhiRotation;
1871 const double phiB = phiSize * (double(i) + offset) + m_globalPhiRotation;
1872 const B2Vector3D f(m_rSLayer[layerId] * cos(phiF), m_rSLayer[layerId] * sin(phiF), m_zSForwardLayer[layerId]);
1873 const B2Vector3D b(m_rSLayer[layerId] * cos(phiB), m_rSLayer[layerId] * sin(phiB), m_zSBackwardLayer[layerId]);
1874 const B2Vector3D v = f - b;
1875 const B2Vector3D u = v.Unit();
1876 const double beta = (position.Z() - b.Z()) / u.Z();
1877 const B2Vector3D p = b + beta * u;
1878 double dPhi = std::atan2(position.Y(), position.X())
1879 - std::atan2(p.Y(), p.X())
1880 + phiSize / 2.;
1881 while (dPhi < 0) dPhi += (2. * M_PI);
1882 j = int(dPhi / phiSize);
1883 while (j >= nWires) j -= nWires;
1884 }
1885
1886 return j;
1887}
Belle2::B2Vector3::Z
DataType Z() const
access variable Z (= .at(2) without boundary check)
Definition B2Vector3.h:435
Belle2::B2Vector3::X
DataType X() const
access variable X (= .at(0) without boundary check)
Definition B2Vector3.h:431
Belle2::B2Vector3::Y
DataType Y() const
access variable Y (= .at(1) without boundary check)
Definition B2Vector3.h:433
Belle2::B2Vector3::Unit
B2Vector3< DataType > Unit() const
Unit vector parallel to this.
Definition B2Vector3.h:269
Belle2::CDC::CDCGeometryPar::m_globalPhiRotation
double m_globalPhiRotation
Global ratation in phi (rad.); only for sense wires now.
Definition CDCGeometryPar.h:1157
Belle2::CDC::CDCGeometryPar::m_nShifts
int m_nShifts[c_maxNSenseLayers]
The array to store shifted cell number in each sense wire layer.
Definition CDCGeometryPar.h:1149
Belle2::CDC::CDCGeometryPar::offset
double offset(int layerID) const
Return wire offset in phi direction at endplate.
Definition CDCGeometryPar.h:1260
Belle2::CDC::CDCGeometryPar::m_zSForwardLayer
double m_zSForwardLayer[c_maxNSenseLayers]
The array to store forward z position of sense wire layers.
Definition CDCGeometryPar.h:1140
Belle2::CDC::CDCGeometryPar::m_rSLayer
double m_rSLayer[c_maxNSenseLayers]
The array to store radius of sense wire layers.
Definition CDCGeometryPar.h:1139
Belle2::CDC::CDCGeometryPar::m_offSet
double m_offSet[c_maxNSenseLayers]
The array to store z offset of sense wire layers.
Definition CDCGeometryPar.h:1147
Belle2::CDC::CDCGeometryPar::m_zSBackwardLayer
double m_zSBackwardLayer[c_maxNSenseLayers]
The array to store backward z position of sense wire layers.
Definition CDCGeometryPar.h:1142
Belle2::B2Vector3D
B2Vector3< double > B2Vector3D
typedef for common usage with double
Definition B2Vector3.h:516

◆ clear()

void clear ( )

Clears.

Definition at line 165 of file CDCGeometryPar.cc.

166{
167 m_version = "unknown";
168 m_nSLayer = 0;
169 m_nFLayer = 0;
170 m_senseWireDiameter = 0.0;
171 m_senseWireTension = 0.0;
172 m_senseWireDensity = 0.0;
173 m_fieldWireDiameter = 0.0;
174
175 m_tdcOffset = 0; //not used; to be removed later
176 m_clockFreq4TDC = 0.0;
177 m_tdcBinWidth = 0.0;
178 m_nominalDriftV = 0.0;
179 m_nominalPropSpeed = 0.0;
180 m_nominalSpaceResol = 0.0;
181
182 for (unsigned i = 0; i < 4; ++i) {
183 m_rWall[i] = 0;
184 for (unsigned j = 0; j < 2; ++j)
185 m_zWall[i][j] = 0;
186 }
187 for (unsigned i = 0; i < c_maxNSenseLayers; ++i) {
188 m_rSLayer[i] = 0;
189 m_zSForwardLayer[i] = 0;
190 m_dzSForwardLayer[i] = 0;
191 m_zSBackwardLayer[i] = 0;
192 m_dzSBackwardLayer[i] = 0;
193 m_cellSize[i] = 0;
194 m_nWires[i] = 0;
195 m_offSet[i] = 0;
196 m_nShifts[i] = 0;
197 m_propSpeedInv[i] = 0.;
198 }
199 for (unsigned i = 0; i < c_maxNFieldLayers; ++i) {
200 m_rFLayer[i] = 0;
201 m_zFForwardLayer[i] = 0;
202 m_zFBackwardLayer[i] = 0;
203 }
204
205 for (unsigned L = 0; L < c_maxNSenseLayers; ++L) {
206 for (unsigned C = 0; C < c_maxNDriftCells; ++C) {
207 for (unsigned i = 0; i < 3; ++i) {
208 m_FWirPos [L][C][i] = 0.;
209 m_BWirPos [L][C][i] = 0.;
210 m_FWirPosMisalign[L][C][i] = 0.;
211 m_BWirPosMisalign[L][C][i] = 0.;
212 m_FWirPosAlign [L][C][i] = 0.;
213 m_BWirPosAlign [L][C][i] = 0.;
214 }
215 for (unsigned i = 0; i < 7; ++i) {
216 m_eDepToADCParams[L][C][i] = 0.;
217 }
218 m_WireSagCoef [L][C] = 0.;
219 m_WireSagCoefMisalign[L][C] = 0.;
220 m_WireSagCoefAlign [L][C] = 0.;
221 m_t0 [L][C] = 0.;
222 }
223 }
224
225 for (unsigned L = 0; L < c_maxNSenseLayers; ++L) {
226 for (unsigned i = 0; i < 2; ++i) {
227 for (unsigned alpha = 0; alpha < c_maxNAlphaPoints; ++alpha) {
228 for (unsigned theta = 0; theta < c_maxNThetaPoints; ++theta) {
229 for (unsigned xtparam = 0; xtparam < c_nXTParams; ++xtparam) {
230 m_XT[L][i][alpha][theta][xtparam] = 0.;
231 }
232
233 for (unsigned sigmaparam = 0; sigmaparam < c_nSigmaParams; ++sigmaparam) {
234 m_Sigma[L][i][alpha][theta][sigmaparam] = 0.;
235 }
236 }
237 }
238 }
239 }
240
241 for (unsigned board = 0; board < c_nBoards; ++board) {
242 for (unsigned i = 0; i < 2; ++i) {
243 m_timeWalkCoef[board][i] = 0.;
244 }
245 for (unsigned channel = 0; channel < 48; ++channel) {
246 m_boardAndChannelToWire[board][channel] = 0.;
247 }
248 }
249
250 for (unsigned superLayer = 0; superLayer < c_nSuperLayers; ++superLayer) {
251 for (unsigned layer = 0; layer < 8; ++layer) {
252 m_shiftInSuperLayer[superLayer][layer] = 0;
253 }
254 }
255
256}
Belle2::CDC::CDCGeometryPar::m_BWirPosMisalign
float m_BWirPosMisalign[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1173
Belle2::CDC::CDCGeometryPar::m_nominalPropSpeed
double m_nominalPropSpeed
Nominal propagation speed of the sense wire (27.25 cm/nsec).
Definition CDCGeometryPar.h:1203
Belle2::CDC::CDCGeometryPar::m_boardAndChannelToWire
unsigned short m_boardAndChannelToWire[c_nBoards][48]
array relating board-channel-id and wire-id.
Definition CDCGeometryPar.h:1197
Belle2::CDC::CDCGeometryPar::m_WireSagCoef
float m_WireSagCoef[c_maxNSenseLayers][c_maxNDriftCells]
Wire sag coefficient for each cell; ibid.
Definition CDCGeometryPar.h:1170
Belle2::CDC::CDCGeometryPar::m_eDepToADCParams
float m_eDepToADCParams[c_maxNSenseLayers][c_maxNDriftCells][7]
edep-to-ADC conv.
Definition CDCGeometryPar.h:1179
Belle2::CDC::CDCGeometryPar::m_FWirPosMisalign
float m_FWirPosMisalign[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1172
Belle2::CDC::CDCGeometryPar::m_clockFreq4TDC
double m_clockFreq4TDC
Clock frequency used for TDC (GHz).
Definition CDCGeometryPar.h:1199
Belle2::CDC::CDCGeometryPar::m_nFLayer
int m_nFLayer
The number of field wire layer.
Definition CDCGeometryPar.h:1129
Belle2::CDC::CDCGeometryPar::m_XT
float m_XT[c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nXTParams]
XT-relation coefficients for each layer, Left/Right, entrance angle and polar angle.
Definition CDCGeometryPar.h:1186
Belle2::CDC::CDCGeometryPar::m_shiftInSuperLayer
signed short m_shiftInSuperLayer[c_nSuperLayers][8]
shift in phi-direction wrt the 1st layer in each super layer
Definition CDCGeometryPar.h:1134
Belle2::CDC::CDCGeometryPar::m_version
std::string m_version
The version of geometry parameters.
Definition CDCGeometryPar.h:1120
Belle2::CDC::CDCGeometryPar::m_tdcOffset
unsigned short m_tdcOffset
Not used; to be removed later.
Definition CDCGeometryPar.h:1198
Belle2::CDC::CDCGeometryPar::m_senseWireDiameter
double m_senseWireDiameter
The diameter of sense wires.
Definition CDCGeometryPar.h:1152
Belle2::CDC::CDCGeometryPar::m_dzSBackwardLayer
double m_dzSBackwardLayer[c_maxNSenseLayers]
Corrections for backward z position of sense wire layers.
Definition CDCGeometryPar.h:1143
Belle2::CDC::CDCGeometryPar::m_nSLayer
int m_nSLayer
The number of sense wire layer.
Definition CDCGeometryPar.h:1128
Belle2::CDC::CDCGeometryPar::m_nominalDriftV
double m_nominalDriftV
Nominal drift velocity (4.0x10^-3 cm/nsec).
Definition CDCGeometryPar.h:1201
Belle2::CDC::CDCGeometryPar::m_FWirPos
float m_FWirPos[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1168
Belle2::CDC::CDCGeometryPar::m_WireSagCoefAlign
float m_WireSagCoefAlign[c_maxNSenseLayers][c_maxNDriftCells]
Wire sag coefficient incl.
Definition CDCGeometryPar.h:1178
Belle2::CDC::CDCGeometryPar::m_FWirPosAlign
float m_FWirPosAlign[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1176
Belle2::CDC::CDCGeometryPar::m_dzSForwardLayer
double m_dzSForwardLayer[c_maxNSenseLayers]
Corrections for forward z position of sense wire layers.
Definition CDCGeometryPar.h:1141
Belle2::CDC::CDCGeometryPar::m_zFForwardLayer
double m_zFForwardLayer[c_maxNFieldLayers]
The array to store forward z position of field wire layers.
Definition CDCGeometryPar.h:1145
Belle2::CDC::CDCGeometryPar::m_fieldWireDiameter
double m_fieldWireDiameter
The diameter of field wires.
Definition CDCGeometryPar.h:1155
Belle2::CDC::CDCGeometryPar::m_zFBackwardLayer
double m_zFBackwardLayer[c_maxNFieldLayers]
The array to store backward z position of field wire layers.
Definition CDCGeometryPar.h:1146
Belle2::CDC::CDCGeometryPar::m_WireSagCoefMisalign
float m_WireSagCoefMisalign[c_maxNSenseLayers][c_maxNDriftCells]
Wire sag coefficient incl.
Definition CDCGeometryPar.h:1174
Belle2::CDC::CDCGeometryPar::m_cellSize
double m_cellSize[c_maxNSenseLayers]
The array to store cell size in each sense wire layer.
Definition CDCGeometryPar.h:1148
Belle2::CDC::CDCGeometryPar::m_BWirPosAlign
float m_BWirPosAlign[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1177
Belle2::CDC::CDCGeometryPar::m_propSpeedInv
float m_propSpeedInv[c_maxNSenseLayers]
Inverse of propagation speed of the sense wire.
Definition CDCGeometryPar.h:1188
Belle2::CDC::CDCGeometryPar::m_zWall
double m_zWall[4][2]
The array to store z position of inner wall and outer wall.
Definition CDCGeometryPar.h:1137
Belle2::CDC::CDCGeometryPar::m_senseWireDensity
double m_senseWireDensity
The density of sense wires.
Definition CDCGeometryPar.h:1154
Belle2::CDC::CDCGeometryPar::m_timeWalkCoef
float m_timeWalkCoef[c_nBoards][2]
coefficients for time walk.
Definition CDCGeometryPar.h:1190
Belle2::CDC::CDCGeometryPar::m_BWirPos
float m_BWirPos[c_maxNSenseLayers][c_maxNDriftCells][3]
Wire position incl.
Definition CDCGeometryPar.h:1169
Belle2::CDC::CDCGeometryPar::m_Sigma
float m_Sigma[c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nSigmaParams]
position resolution for each layer.
Definition CDCGeometryPar.h:1187
Belle2::CDC::CDCGeometryPar::m_rFLayer
double m_rFLayer[c_maxNFieldLayers]
The array to store radius of field wire layers.
Definition CDCGeometryPar.h:1144
Belle2::CDC::CDCGeometryPar::m_nominalSpaceResol
double m_nominalSpaceResol
Nominal spatial resolution (0.0130 cm).
Definition CDCGeometryPar.h:1204
Belle2::CDC::CDCGeometryPar::m_rWall
double m_rWall[4]
The array to store radius of inner wall and outer wall.
Definition CDCGeometryPar.h:1136
Belle2::CDC::CDCGeometryPar::m_tdcBinWidth
double m_tdcBinWidth
TDC bin width (nsec/bin).
Definition CDCGeometryPar.h:1200
Belle2::CDC::CDCGeometryPar::m_senseWireTension
double m_senseWireTension
The tension of sense wires.
Definition CDCGeometryPar.h:1153

◆ fieldWireBZ()

double fieldWireBZ ( int layerId) const
inline

Returns backward z position of field wire in each layer.

Parameters
layerIdThe layer id of field wires.
Returns
The backward z position of field wire in layer layerId.

Definition at line 1310 of file CDCGeometryPar.h.

1311 {
1312 return m_zFBackwardLayer[layerID];
1313 }

◆ fieldWireDiameter()

double fieldWireDiameter ( ) const
inline

Returns diameter of the field wire.

Returns
Diameter of the field wire.

Definition at line 1360 of file CDCGeometryPar.h.

1361 {
1362 return m_fieldWireDiameter;
1363 }

◆ fieldWireFZ()

double fieldWireFZ ( int layerId) const
inline

Returns forward z position of field wire in each layer.

Parameters
layerIdThe layer id of field wires.
Returns
The forward z position of field wire in layer layerId.

Definition at line 1305 of file CDCGeometryPar.h.

1306 {
1307 return m_zFForwardLayer[layerID];
1308 }

◆ fieldWireR()

double fieldWireR ( int layerId) const
inline

Returns radius of field wire in each layer.

Parameters
layerIdThe layer id of field wires.
Returns
The radius of field wire in layer layerId.

Definition at line 1300 of file CDCGeometryPar.h.

1301 {
1302 return m_rFLayer[layerID];
1303 }

◆ generateXML()

void generateXML ( const std::string & of)

Generate an xml file used in gearbox.

Parameters
ofThe file name.

Definition at line 1889 of file CDCGeometryPar.cc.

1890{
1891 //...Open xml file...
1892 std::ofstream ofs(of.c_str(), std::ios::out);
1893 if (! ofs) {
1894 B2ERROR("CDCGeometryPar::read !!! can not open file : "
1895 << of);
1896 }
1897 ofs << "<?xml version=\"1.0\" encoding=\"UTF-8\"?>"
1898 << endl
1899 << "<Subdetector type=\"CDC\">"
1900 << endl
1901 << " <Name>CDC BelleII </Name>"
1902 << endl
1903 << " <Description>CDC geometry parameters</Description>"
1904 << endl
1905 << " <Version>0</Version>"
1906 << endl
1907 << " <GeoCreator>CDCBelleII</GeoCreator>"
1908 << endl
1909 << " <Content>"
1910 << endl
1911 << " <Rotation desc=\"Rotation of the whole cdc detector (should be the same as beampipe)\" unit=\"mrad\">0.0</Rotation>"
1912 << endl
1913 << " <OffsetZ desc=\"The offset of the whole cdc in z with respect to the IP (should be the same as beampipe)\" unit=\"mm\">0.0</OffsetZ>"
1914 << endl
1915 << " <Material>CDCGas</Material>"
1916 << endl
1917 << endl;
1918
1919 ofs << " <SLayers>" << endl;
1920
1921 for (int i = 0; i < m_nSLayer; i++) {
1922 ofs << " <SLayer id=\"" << i << "\">" << endl;
1923 ofs << " <Radius desc=\"Radius of wires in this layer\" unit=\"mm\">" << senseWireR(i) << "</Radius>" << endl;
1924 ofs << " <BackwardZ desc=\"z position of this wire layer at backward endplate\" unit=\"mm\">" << senseWireBZ(
1925 i) << "</BackwardZ>" << endl;
1926 ofs << " <ForwardZ desc=\"z position of this wire layer at forward endplate\" unit=\"mm\">" << senseWireFZ(
1927 i) << "</ForwardZ>" << endl;
1928// ofs << " <BackwardPhi desc=\"azimuth angle of the first wire in this layer at backward endplate\" unit=\"rad\">" << wireBackwardPosition(i).phi() << "</BackwardPhi>" << endl;
1929// ofs << " <ForwardPhi desc=\"azimuth angle of the first wire in this layer at forward endplate\" unit=\"rad\">" << wireForwardPosition(i).phi() << "</ForwardPhi>" << endl;
1930 ofs << " <NHoles desc=\"the number of holes in this layer, 2*(cell number)\">" << nWiresInLayer(
1931 i) * 2 << "</NHoles>" << endl;
1932 ofs << " <NShift desc=\"the shifted hole number of each wire in this layer\">" << nShifts(i) << "</NShift>" << endl;
1933 ofs << " <Offset desc=\"wire offset in phi direction at endplate\">" << m_offSet[i] << "</Offset>" << endl;
1934 ofs << " </SLayer>" << endl;
1935 }
1936
1937 ofs << " </SLayers>" << endl;
1938 ofs << " <FLayers>" << endl;
1939
1940 for (int i = 0; i < m_nFLayer; i++) {
1941 ofs << " <FLayer id=\"" << i << "\">" << endl;
1942 ofs << " <Radius desc=\"Radius of field wires in this layer\" unit=\"mm\">" << fieldWireR(i) << "</Radius>" << endl;
1943 ofs << " <BackwardZ desc=\"z position of this field wire layer at backward endplate\" unit=\"mm\">" << fieldWireBZ(
1944 i) << "</BackwardZ>" << endl;
1945 ofs << " <ForwardZ desc=\"z position of this field wire layer at forward endplate\" unit=\"mm\">" << fieldWireFZ(
1946 i) << "</ForwardZ>" << endl;
1947 ofs << " </FLayer>" << endl;
1948 }
1949
1950 ofs << " </FLayers>" << endl;
1951
1952 ofs << " <InnerWall name=\"InnerWall\">" << endl;
1953 ofs << " <InnerR desc=\"Inner radius\" unit=\"mm\">" << innerRadiusInnerWall() << "</InnerR>" << endl;
1954 ofs << " <OuterR desc=\"Outer radius\" unit=\"mm\">" << outerRadiusInnerWall() << "</OuterR>" << endl;
1955 ofs << " <BackwardZ desc=\"z position at backward endplate\" unit=\"mm\">" << m_zWall[0][0] << "</BackwardZ>" << endl;
1956 ofs << " <ForwardZ desc=\"z position at forward endplate\" unit=\"mm\">" << m_zWall[0][1] << "</ForwardZ>" << endl;
1957 ofs << " </InnerWall>" << endl;
1958
1959 ofs << " <OuterWall name=\"OuterWall\">" << endl;
1960 ofs << " <InnerR desc=\"Inner radius\" unit=\"mm\">" << innerRadiusOuterWall() << "</InnerR>" << endl;
1961 ofs << " <OuterR desc=\"Outer radius\" unit=\"mm\">" << outerRadiusOuterWall() << "</OuterR>" << endl;
1962 ofs << " <BackwardZ desc=\"z position at backward endplate\" unit=\"mm\">" << m_zWall[2][0] << "</BackwardZ>" << endl;
1963 ofs << " <ForwardZ desc=\"z position at forward endplate\" unit=\"mm\">" << m_zWall[2][1] << "</ForwardZ>" << endl;
1964 ofs << " </OuterWall>" << endl;
1965
1966 ofs << " </Content>" << endl
1967 << "</Subdetector>" << endl;
1968}
Belle2::CDC::CDCGeometryPar::outerRadiusInnerWall
double outerRadiusInnerWall() const
Returns the outer radius of the inner wall.
Definition CDCGeometryPar.h:1335
Belle2::CDC::CDCGeometryPar::innerRadiusOuterWall
double innerRadiusOuterWall() const
Returns the inner radius of the outer wall.
Definition CDCGeometryPar.h:1315
Belle2::CDC::CDCGeometryPar::nShifts
int nShifts(int layerId) const
Returns number shift.
Definition CDCGeometryPar.h:1255
Belle2::CDC::CDCGeometryPar::fieldWireR
double fieldWireR(int layerId) const
Returns radius of field wire in each layer.
Definition CDCGeometryPar.h:1300
Belle2::CDC::CDCGeometryPar::senseWireBZ
double senseWireBZ(int layerId) const
Returns backward z position of sense wire in each layer.
Definition CDCGeometryPar.h:1295
Belle2::CDC::CDCGeometryPar::nWiresInLayer
unsigned nWiresInLayer(int layerId) const
Returns wire numbers in a layer.
Definition CDCGeometryPar.h:1265
Belle2::CDC::CDCGeometryPar::fieldWireBZ
double fieldWireBZ(int layerId) const
Returns backward z position of field wire in each layer.
Definition CDCGeometryPar.h:1310
Belle2::CDC::CDCGeometryPar::senseWireFZ
double senseWireFZ(int layerId) const
Returns forward z position of sense wire in each layer.
Definition CDCGeometryPar.h:1290
Belle2::CDC::CDCGeometryPar::innerRadiusInnerWall
double innerRadiusInnerWall() const
Returns the inner radius of the inner wall.
Definition CDCGeometryPar.h:1330
Belle2::CDC::CDCGeometryPar::fieldWireFZ
double fieldWireFZ(int layerId) const
Returns forward z position of field wire in each layer.
Definition CDCGeometryPar.h:1305
Belle2::CDC::CDCGeometryPar::outerRadiusOuterWall
double outerRadiusOuterWall() const
Returns the outer radius of the outer wall.
Definition CDCGeometryPar.h:1320
Belle2::CDC::CDCGeometryPar::senseWireR
double senseWireR(int layerId) const
Returns radius of sense wire in each layer.
Definition CDCGeometryPar.h:1285

◆ getAlpha()

double getAlpha ( const B2Vector3D & posOnWire,
const B2Vector3D & momentum ) const

Returns track incident angle in rphi plane (alpha in rad.).

Parameters
posOnWirePosition on the wire at the closest point.
momentumTrack momentum at the closest point.

Definition at line 2805 of file CDCGeometryPar.cc.

2806{
2807 const double wx = posOnWire.X();
2808 const double wy = posOnWire.Y();
2809 const double px = momentum.X();
2810 const double py = momentum.Y();
2811
2812 const double cross = wx * py - wy * px;
2813 const double dot = wx * px + wy * py;
2814
2815 return atan2(cross, dot);
2816}
Belle2::dot
T dot(GeneralVector< T > a, GeneralVector< T > b)
dot product of two general vectors
Definition beamHelpers.h:163

◆ getBoardID()

unsigned short getBoardID ( const WireID & wID) const
inline

Returns frontend board id. corresponding to the wire id.

Parameters
wIDwire id.
Returns
board id.

Definition at line 580 of file CDCGeometryPar.h.

581 {
582 std::map<WireID, unsigned short>::const_iterator it = m_wireToBoard.find(wID);
583 unsigned short iret = (it != m_wireToBoard.end()) ? it->second : -999;
584 return iret;
585 }

◆ getBwdDeltaZ()

double getBwdDeltaZ ( unsigned short layerID) const
inline

Return backward 'deltaZ'.

Parameters
[in]layerID(0-55)

Definition at line 804 of file CDCGeometryPar.h.

805 {
806 return m_dzSBackwardLayer[layerID];
807 }

◆ getChannelID()

unsigned short getChannelID ( const WireID & wID) const
inline

Returns frontend channel id. corresponding to the wire id.

Parameters
wIDwire id.
Returns
channel id. (0-47)

Definition at line 592 of file CDCGeometryPar.h.

593 {
594 std::map<WireID, unsigned short>::const_iterator it = m_wireToChannel.find(wID);
595 unsigned short iret = (it != m_wireToChannel.end()) ? it->second : -999;
596 return iret;
597 }

◆ getClosestAlphaPoints()

void getClosestAlphaPoints ( const double alpha,
double & wal,
unsigned short points[2],
unsigned short lrs[2] ) const

Returns the two closest alpha points for the input track incident angle (alpha).

Definition at line 2852 of file CDCGeometryPar.cc.

2854{
2855 double alphao = getOutgoingAlpha(alpha);
2856 weight = 1.;
2857
2858 if (alphao < m_alphaPoints[0]) {
2859 points[0] = m_nAlphaPoints - 1;
2860 points[1] = 0;
2861 if (m_nAlphaPoints > 1) {
2862 lrs[0] = abs(lrs[0] - 1); //flip lr
2863 weight = (alphao - (m_alphaPoints[points[0]] - M_PI)) / (m_alphaPoints[points[1]] - (m_alphaPoints[points[0]] - M_PI));
2864 }
2865 } else if (m_alphaPoints[m_nAlphaPoints - 1] <= alphao) {
2866 points[0] = m_nAlphaPoints - 1;
2867 points[1] = 0;
2868 if (m_nAlphaPoints > 1) {
2869 lrs[1] = abs(lrs[1] - 1); //flip lr
2870 weight = (alphao - m_alphaPoints[points[0]]) / (m_alphaPoints[points[1]] + M_PI - m_alphaPoints[points[0]]);
2871 }
2872 } else {
2873 const float* upper = std::upper_bound(m_alphaPoints,
2874 m_alphaPoints + m_nAlphaPoints, alphao);
2875 points[1] = upper - m_alphaPoints;
2876 points[0] = points[1] - 1;
2877 weight = (alphao - m_alphaPoints[points[0]]) / (m_alphaPoints[points[1]] - m_alphaPoints[points[0]]);
2878 }
2879}
Belle2::CDC::CDCGeometryPar::m_alphaPoints
float m_alphaPoints[c_maxNAlphaPoints]
alpha sampling points for xt (rad)
Definition CDCGeometryPar.h:1181
Belle2::CDC::CDCGeometryPar::getOutgoingAlpha
double getOutgoingAlpha(const double alpha) const
Converts incoming- to outgoing-alpha.
Definition CDCGeometryPar.cc:2831
Belle2::CDC::CDCGeometryPar::m_nAlphaPoints
unsigned short m_nAlphaPoints
No.
Definition CDCGeometryPar.h:1130

◆ getClosestAlphaPoints4Sgm()

void getClosestAlphaPoints4Sgm ( const double alpha,
double & wal,
unsigned short points[2],
unsigned short lrs[2] ) const

Returns the two closest alpha points for sigma for the input track incident angle (alpha).

TODO: unify the two getClosestAlphaPoints().

Definition at line 2882 of file CDCGeometryPar.cc.

2884{
2885 double alphao = getOutgoingAlpha(alpha);
2886 weight = 1.;
2887
2888 if (alphao < m_alphaPoints4Sgm[0]) {
2889 points[0] = m_nAlphaPoints4Sgm - 1;
2890 points[1] = 0;
2891 if (m_nAlphaPoints4Sgm > 1) {
2892 lrs[0] = abs(lrs[0] - 1); //flip lr
2893 weight = (alphao - (m_alphaPoints4Sgm[points[0]] - M_PI)) / (m_alphaPoints4Sgm[points[1]] - (m_alphaPoints4Sgm[points[0]] - M_PI));
2894 }
2895 } else if (m_alphaPoints4Sgm[m_nAlphaPoints4Sgm - 1] <= alphao) {
2896 points[0] = m_nAlphaPoints4Sgm - 1;
2897 points[1] = 0;
2898 if (m_nAlphaPoints4Sgm > 1) {
2899 lrs[1] = abs(lrs[1] - 1); //flip lr
2900 weight = (alphao - m_alphaPoints4Sgm[points[0]]) / (m_alphaPoints4Sgm[points[1]] + M_PI - m_alphaPoints4Sgm[points[0]]);
2901 }
2902 } else {
2903 const float* upper = std::upper_bound(m_alphaPoints4Sgm,
2904 m_alphaPoints4Sgm + m_nAlphaPoints4Sgm, alphao);
2905 points[1] = upper - m_alphaPoints4Sgm;
2906 points[0] = points[1] - 1;
2907 weight = (alphao - m_alphaPoints4Sgm[points[0]]) / (m_alphaPoints4Sgm[points[1]] - m_alphaPoints4Sgm[points[0]]);
2908 }
2909}
Belle2::CDC::CDCGeometryPar::m_nAlphaPoints4Sgm
unsigned short m_nAlphaPoints4Sgm
No.
Definition CDCGeometryPar.h:1132
Belle2::CDC::CDCGeometryPar::m_alphaPoints4Sgm
float m_alphaPoints4Sgm[c_maxNAlphaPoints]
alpha sampling points for sigma (rad)
Definition CDCGeometryPar.h:1183

◆ getClosestThetaPoints()

void getClosestThetaPoints ( const double alpha,
const double theta,
double & wth,
unsigned short points[2] ) const

Returns the two closest theta points for the input track incident angle (theta).

Definition at line 2912 of file CDCGeometryPar.cc.

2913{
2914 const double thetao = getOutgoingTheta(alpha, theta);
2915
2916 if (thetao < m_thetaPoints[0]) {
2917 // points[0] = 0;
2918 // points[1] = 1;
2919 points[0] = 0;
2920 points[1] = 0;
2921 weight = 1.;
2922 } else if (m_thetaPoints[m_nThetaPoints - 1] <= thetao) {
2923 // points[0] = m_nThetaPoints - 2;
2924 // points[1] = m_nThetaPoints - 1;
2925 points[0] = m_nThetaPoints - 1;
2926 points[1] = m_nThetaPoints - 1;
2927 weight = 1.;
2928 } else {
2929 const float* upper = std::upper_bound(m_thetaPoints,
2930 m_thetaPoints + m_nThetaPoints, thetao);
2931 points[1] = upper - m_thetaPoints;
2932 points[0] = points[1] - 1;
2933 weight = (thetao - m_thetaPoints[points[0]]) / (m_thetaPoints[points[1]] - m_thetaPoints[points[0]]);
2934 }
2935}
Belle2::CDC::CDCGeometryPar::m_thetaPoints
float m_thetaPoints[c_maxNThetaPoints]
theta sampling points for xt (rad)
Definition CDCGeometryPar.h:1182
Belle2::CDC::CDCGeometryPar::getOutgoingTheta
double getOutgoingTheta(const double alpha, const double theta) const
Converts incoming- to outgoing-theta.
Definition CDCGeometryPar.cc:2844
Belle2::CDC::CDCGeometryPar::m_nThetaPoints
unsigned short m_nThetaPoints
No.
Definition CDCGeometryPar.h:1131

◆ getClosestThetaPoints4Sgm()

void getClosestThetaPoints4Sgm ( const double alpha,
const double theta,
double & wth,
unsigned short points[2] ) const

Returns the two closest theta points for sigma for the input track incident angle (theta).

Definition at line 2938 of file CDCGeometryPar.cc.

2940{
2941 const double thetao = getOutgoingTheta(alpha, theta);
2942
2943 if (thetao < m_thetaPoints4Sgm[0]) {
2944 points[0] = 0;
2945 points[1] = 0;
2946 weight = 1.;
2947 } else if (m_thetaPoints4Sgm[m_nThetaPoints4Sgm - 1] <= thetao) {
2948 points[0] = m_nThetaPoints4Sgm - 1;
2949 points[1] = m_nThetaPoints4Sgm - 1;
2950 weight = 1.;
2951 } else {
2952 const float* upper = std::upper_bound(m_thetaPoints4Sgm,
2953 m_thetaPoints4Sgm + m_nThetaPoints4Sgm, thetao);
2954 points[1] = upper - m_thetaPoints4Sgm;
2955 points[0] = points[1] - 1;
2956 weight = (thetao - m_thetaPoints4Sgm[points[0]]) / (m_thetaPoints4Sgm[points[1]] - m_thetaPoints4Sgm[points[0]]);
2957 }
2958}
Belle2::CDC::CDCGeometryPar::m_nThetaPoints4Sgm
unsigned short m_nThetaPoints4Sgm
No.
Definition CDCGeometryPar.h:1133
Belle2::CDC::CDCGeometryPar::m_thetaPoints4Sgm
float m_thetaPoints4Sgm[c_maxNThetaPoints]
theta sampling points for sigma (rad)
Definition CDCGeometryPar.h:1184

◆ getDriftLength()

double getDriftLength ( double dt,
unsigned short layer,
unsigned short lr,
double alpha = 0.,
double theta = 0.5 * M_PI,
bool calculateMinTime = true,
double minTime = 0. ) const

Return the drift dength to the sense wire.

Parameters
[in]dtDrift time (ns).
[in]layerLayer ID.
[in]lrLeft/Right
[in]alphaincident angle (in rphi plane) w.r.t. the cell (rad).
[in]thetaincident angle (polar angle) (rad).
calculateMinTimecalculate min. drift time inside this function (=true) or feed as input (=false).
minTimeinput min. drift time when calculateMinTime=false.

Definition at line 2296 of file CDCGeometryPar.cc.

2300{
2301 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2302 return 0.;
2303 }
2304
2305 double dist = 0.;
2306
2307 //calculate min. drift time
2308 double minTime = calculateMinTime ? getMinDriftTime(iCLayer, lr, alpha, theta) : inputMinTime;
2309 double delta = time - minTime;
2310
2311 //convert incoming- to outgoing-lr
2312 unsigned short lro = getOutgoingLR(lr, alpha);
2313
2314 // std::cout << m_linearInterpolationOfXT << std::endl;
2315 // exit(-1);
2316 if (!m_linearInterpolationOfXT) {
2317 B2FATAL("linearInterpolationOfXT = false is not allowed now !");
2318 } else {
2319 double wal(0.);
2320 unsigned short ial[2] = {0};
2321 unsigned short ilr[2] = {lro, lro};
2322 getClosestAlphaPoints(alpha, wal, ial, ilr);
2323 double wth(0.);
2324 unsigned short ith[2] = {0};
2325 getClosestThetaPoints(alpha, theta, wth, ith);
2326
2327 unsigned short jal(0), jlr(0), jth(0);
2328 double w = 0.;
2329
2330 //use xt reversed at (x=0,t=tmin) for delta<0 ("negative drifttime")
2331 double timep = delta < 0. ? minTime - delta : time;
2332
2333 // std::cout << "iCLayer,alpha,theta,lro= " << iCLayer <<" "<< (180./M_PI)*alpha <<" "<< (180./M_PI)*theta <<" "<< lro << std::endl;
2334
2335 //compute linear interpolation (=weithed average over 4 points) in (alpha-theta) space
2336 for (unsigned k = 0; k < 4; ++k) {
2337 if (k == 0) {
2338 jal = ial[0];
2339 jlr = ilr[0];
2340 jth = ith[0];
2341 w = (1. - wal) * (1. - wth);
2342 } else if (k == 1) {
2343 jal = ial[0];
2344 jlr = ilr[0];
2345 jth = ith[1];
2346 w = (1. - wal) * wth;
2347 } else if (k == 2) {
2348 jal = ial[1];
2349 jlr = ilr[1];
2350 jth = ith[0];
2351 w = wal * (1. - wth);
2352 } else if (k == 3) {
2353 jal = ial[1];
2354 jlr = ilr[1];
2355 jth = ith[1];
2356 w = wal * wth;
2357 }
2358
2359 // std::cout << "k,w= " << k <<" "<< w << std::endl;
2360 // std::cout << "ial[0],[1],jal,wal= " << ial[0] <<" "<< ial[1] <<" "<< jal <<" "<< wal << std::endl;
2361 // std::cout << "ith[0],[1],jth,wth= " << ith[0] <<" "<< ith[1] <<" "<< jth <<" "<< wth << std::endl;
2362
2363 /*
2364 std::cout <<"iCLayer= " << iCLayer << std::endl;
2365 std::cout <<"lr= " << lr << std::endl;
2366 std::cout <<"jal,jth= " << jal <<" "<< jth << std::endl;
2367 std::cout <<"wal,wth= " << wal <<" "<< wth << std::endl;
2368 for (int i=0; i<9; ++i) {
2369 std::cout <<"a= "<< i <<" "<< m_XT[iCLayer][lro][jal][jth][i] << std::endl;
2370 }
2371 */
2372 double boundary = m_XT[iCLayer][jlr][jal][jth][6];
2373
2374 if (timep < boundary) {
2375 if (m_xtParamMode == 1) {
2376 dist += w * ROOT::Math::Chebyshev5(timep, m_XT[iCLayer][jlr][jal][jth][0], m_XT[iCLayer][jlr][jal][jth][1],
2377 m_XT[iCLayer][jlr][jal][jth][2], m_XT[iCLayer][jlr][jal][jth][3], m_XT[iCLayer][jlr][jal][jth][4], m_XT[iCLayer][jlr][jal][jth][5]);
2378 } else {
2379 dist += w * (m_XT[iCLayer][jlr][jal][jth][0] + timep
2380 * (m_XT[iCLayer][jlr][jal][jth][1] + timep
2381 * (m_XT[iCLayer][jlr][jal][jth][2] + timep
2382 * (m_XT[iCLayer][jlr][jal][jth][3] + timep
2383 * (m_XT[iCLayer][jlr][jal][jth][4] + timep
2384 * (m_XT[iCLayer][jlr][jal][jth][5]))))));
2385 }
2386 } else {
2387 dist += w * (m_XT[iCLayer][jlr][jal][jth][7] * (timep - boundary) + m_XT[iCLayer][jlr][jal][jth][8]);
2388 }
2389 // std::cout <<"k,w,dist= " << k <<" "<< w <<" "<< dist << std::endl;
2390 } //end of weighted mean loop
2391 }
2392
2393 dist = fabs(dist);
2394 if (delta < 0.) dist *= -1.;
2395 return dist;
2396
2397}
Belle2::CDC::CDCGeometryPar::getClosestAlphaPoints
void getClosestAlphaPoints(const double alpha, double &wal, unsigned short points[2], unsigned short lrs[2]) const
Returns the two closest alpha points for the input track incident angle (alpha).
Definition CDCGeometryPar.cc:2852
Belle2::CDC::CDCGeometryPar::m_linearInterpolationOfXT
bool m_linearInterpolationOfXT
Switch for linear interpolation of xt.
Definition CDCGeometryPar.h:1109
Belle2::CDC::CDCGeometryPar::getOutgoingLR
unsigned short getOutgoingLR(const unsigned short lr, const double alpha) const
Converts incoming-lr to outgoing-lr.
Definition CDCGeometryPar.cc:2824
Belle2::CDC::CDCGeometryPar::getMinDriftTime
double getMinDriftTime(unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI) const
Return the min.
Definition CDCGeometryPar.cc:2399
Belle2::CDC::CDCGeometryPar::getClosestThetaPoints
void getClosestThetaPoints(const double alpha, const double theta, double &wth, unsigned short points[2]) const
Returns the two closest theta points for the input track incident angle (theta).
Definition CDCGeometryPar.cc:2912
Belle2::CDC::CDCGeometryPar::m_xtParamMode
int m_xtParamMode
Mode for xt parameterization.
Definition CDCGeometryPar.h:1124

◆ getDriftLength0()

double getDriftLength0 ( double dt,
unsigned short layer,
unsigned short lr,
double alpha = 0.,
double theta = 0.5 * M_PI ) const

Return the drift dength to the sense wire; tentative ver.

Parameters
[in]dtDrift time (ns).
[in]layerLayer ID.
[in]lrLeft/Right
[in]alphaincident angle (in rphi plane) w.r.t. the cell (rad).
[in]thetaincident angle (polar angle) (rad).

Definition at line 2214 of file CDCGeometryPar.cc.

2216{
2217 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2218 return 0.;
2219 }
2220
2221 double dist = 0.;
2222
2223 //convert incoming- to outgoing-lr
2224 unsigned short lro = getOutgoingLR(lr, alpha);
2225
2226 // std::cout << m_linearInterpolationOfXT << std::endl;
2227 // exit(-1);
2228 if (!m_linearInterpolationOfXT) {
2229 B2FATAL("linearInterpolationOfXT = false is not allowed now !");
2230 } else {
2231 double wal(0.);
2232 unsigned short ial[2] = {0};
2233 unsigned short ilr[2] = {lro, lro};
2234 getClosestAlphaPoints(alpha, wal, ial, ilr);
2235 double wth(0.);
2236 unsigned short ith[2] = {0};
2237 getClosestThetaPoints(alpha, theta, wth, ith);
2238
2239 unsigned short jal(0), jlr(0), jth(0);
2240 double w = 0.;
2241
2242 //use xt reversed at (x=0,t=tmin) for delta<0 ("negative drifttime")
2243 double timep = time;
2244 // std::cout << "iCLayer,alpha,theta,lro= " << iCLayer <<" "<< (180./M_PI)*alpha <<" "<< (180./M_PI)*theta <<" "<< lro << std::endl;
2245
2246 //compute linear interpolation (=weithed average over 4 points) in (alpha-theta) space
2247 for (unsigned k = 0; k < 4; ++k) {
2248 if (k == 0) {
2249 jal = ial[0];
2250 jlr = ilr[0];
2251 jth = ith[0];
2252 w = (1. - wal) * (1. - wth);
2253 } else if (k == 1) {
2254 jal = ial[0];
2255 jlr = ilr[0];
2256 jth = ith[1];
2257 w = (1. - wal) * wth;
2258 } else if (k == 2) {
2259 jal = ial[1];
2260 jlr = ilr[1];
2261 jth = ith[0];
2262 w = wal * (1. - wth);
2263 } else if (k == 3) {
2264 jal = ial[1];
2265 jlr = ilr[1];
2266 jth = ith[1];
2267 w = wal * wth;
2268 }
2269
2270 double boundary = m_XT[iCLayer][jlr][jal][jth][6];
2271
2272 if (timep < boundary) {
2273 if (m_xtParamMode == 1) {
2274 dist += w * ROOT::Math::Chebyshev5(timep, m_XT[iCLayer][jlr][jal][jth][0], m_XT[iCLayer][jlr][jal][jth][1],
2275 m_XT[iCLayer][jlr][jal][jth][2], m_XT[iCLayer][jlr][jal][jth][3], m_XT[iCLayer][jlr][jal][jth][4], m_XT[iCLayer][jlr][jal][jth][5]);
2276 } else {
2277 dist += w * (m_XT[iCLayer][jlr][jal][jth][0] + timep
2278 * (m_XT[iCLayer][jlr][jal][jth][1] + timep
2279 * (m_XT[iCLayer][jlr][jal][jth][2] + timep
2280 * (m_XT[iCLayer][jlr][jal][jth][3] + timep
2281 * (m_XT[iCLayer][jlr][jal][jth][4] + timep
2282 * (m_XT[iCLayer][jlr][jal][jth][5]))))));
2283 }
2284 } else {
2285 dist += w * (m_XT[iCLayer][jlr][jal][jth][7] * (timep - boundary) + m_XT[iCLayer][jlr][jal][jth][8]);
2286 }
2287 // std::cout <<"k,w,dist= " << k <<" "<< w <<" "<< dist << std::endl;
2288 } //end of weighted mean loop
2289 }
2290
2291 // dist = fabs(dist);
2292 return dist;
2293
2294}

◆ getDriftTime()

double getDriftTime ( double dist,
unsigned short layer,
unsigned short lr,
double alpha,
double theta ) const

Return the drift time to the sense wire.

Parameters
distDrift length (cm).
layerLayer ID.
lrLeft/Right
alphaincident angle (in rphi plane) w.r.t. the cell (rad).
thetaincident angle (polar angle) (rad).

Definition at line 2593 of file CDCGeometryPar.cc.

2595{
2596 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2597 return 0.;
2598 }
2599
2600 //to be replaced with a smarter algorithm...
2601
2602 const double eps = 2.5e-1;
2603 const double maxTrials = 100;
2604
2605 // int ialpha = getAlphaBin(alpha);
2606 // int itheta = getThetaBin(theta);
2607
2608 //convert incoming- to outgoing-lr
2609 // unsigned short lrp = getOutgoingLR(lr, alpha);
2610
2611 double maxTime = 2000.; //in ns (n.b. further reduction, 2->1us could be ok)
2612 // if (m_XT[iCLayer][lrp][ialpha][itheta][7] == 0.) {
2613 // maxTime = m_XT[iCLayer][lrp][ialpha][itheta][6];
2614 // }
2615
2616 double minTime = getMinDriftTime(iCLayer, lr, alpha, theta);
2617 double t0 = minTime;
2618 // std::cout << "minTime,x= " << t0 <<" "<< getDriftLength(t0, iCLayer, lr, alpha, theta) << std::endl;
2619 const bool calMinTime = false;
2620 // double d0 = getDriftLength(t0, iCLayer, lr, alpha, theta, calMinTime, minTime) - dist;
2621 double d0 = - dist;
2622
2623 unsigned i = 0;
2624 double t1 = maxTime;
2625 double time = dist * m_nominalDriftVInv;
2626 while (((t1 - t0) > eps) && (i < maxTrials)) {
2627 time = 0.5 * (t0 + t1);
2628 double d1 = getDriftLength(time, iCLayer, lr, alpha, theta, calMinTime, minTime) - dist;
2629 // std::cout <<"i,dist,t0,t1,d0,d1= " << i <<" "<< dist <<" "<< t0 <<" "<< t1 <<" "<< d0 <<" "<< d1 << std::endl;
2630 if (d0 * d1 > 0.) {
2631 t0 = time;
2632 } else {
2633 t1 = time;
2634 }
2635 ++i;
2636 }
2637
2638 if (i >= maxTrials - 1 || time > maxTime) {
2639 B2WARNING("CDCGeometryPar::getDriftTime " << dist << " " << iCLayer << " " << alpha << " " << lr << " " << t0 << " " << t1 << " " <<
2640 time << " " << d0);
2641 }
2642
2643 // std::cout <<"dist0,dist1= " << dist <<" "<< getDriftLength(time, iCLayer, lr, alpha, theta) <<" "<< getDriftLength(time, iCLayer, lr, alpha, theta) - dist << std::endl;
2644 // std::cout <<"dist0,dist1= " << dist <<" "<< getDriftLength(time, iCLayer, lr, 0., theta) <<" "<< getDriftLength(time, iCLayer, lr, 0., theta) - dist << std::endl;
2645 return time;
2646
2647}
Belle2::CDC::CDCGeometryPar::m_nominalDriftVInv
double m_nominalDriftVInv
Inverse of the nominal drift velocity.
Definition CDCGeometryPar.h:1202
Belle2::CDC::CDCGeometryPar::getDriftLength
double getDriftLength(double dt, unsigned short layer, unsigned short lr, double alpha=0., double theta=0.5 *M_PI, bool calculateMinTime=true, double minTime=0.) const
Return the drift dength to the sense wire.
Definition CDCGeometryPar.cc:2296

◆ getDriftV()

double getDriftV ( double dt,
unsigned short layer,
unsigned short lr,
double alpha = 0.,
double theta = 0.5 * M_PI ) const

Get the realistic drift velocity.

Parameters
[in]dtDrift time (ns).
[in]layerLayer ID.
[in]lrLeft/Right
[in]alphaincident angle (in rphi plane) w.r.t. the cell (rad).
[in]thetaincident angle (polar angle) (rad).

Definition at line 2126 of file CDCGeometryPar.cc.

2128{
2129 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2130 return 0.;
2131 }
2132
2133 double dDdt = 0.;
2134
2135 //calculate min. drift time
2136 double minTime = getMinDriftTime(iCLayer, lr, alpha, theta);
2137 double delta = time - minTime;
2138
2139 //convert incoming- to outgoing-lr
2140 unsigned short lro = getOutgoingLR(lr, alpha);
2141
2142 if (!m_linearInterpolationOfXT) {
2143 B2FATAL("linearInterpolationOfXT = false is not allowed now !");
2144 } else {
2145 double wal(0.);
2146 unsigned short ial[2] = {0};
2147 unsigned short ilr[2] = {lro, lro};
2148 getClosestAlphaPoints(alpha, wal, ial, ilr);
2149 double wth(0.);
2150 unsigned short ith[2] = {0};
2151 getClosestThetaPoints(alpha, theta, wth, ith);
2152
2153 unsigned short jal(0), jlr(0), jth(0);
2154 double w = 0.;
2155
2156 //use xt reversed at (x=0,t=tmin) for delta<0 ("negative drifttime")
2157 double timep = delta < 0. ? minTime - delta : time;
2158
2159 //compute linear interpolation (=weithed average over 4 points) in (alpha-theta) space
2160 for (unsigned k = 0; k < 4; ++k) {
2161 if (k == 0) {
2162 jal = ial[0];
2163 jlr = ilr[0];
2164 jth = ith[0];
2165 w = (1. - wal) * (1. - wth);
2166 } else if (k == 1) {
2167 jal = ial[0];
2168 jlr = ilr[0];
2169 jth = ith[1];
2170 w = (1. - wal) * wth;
2171 } else if (k == 2) {
2172 jal = ial[1];
2173 jlr = ilr[1];
2174 jth = ith[0];
2175 w = wal * (1. - wth);
2176 } else if (k == 3) {
2177 jal = ial[1];
2178 jlr = ilr[1];
2179 jth = ith[1];
2180 w = wal * wth;
2181 }
2182
2183 double boundary = m_XT[iCLayer][jlr][jal][jth][6];
2184
2185 if (timep < boundary) {
2186 if (m_xtParamMode == 1) {
2187 const double& c1 = m_XT[iCLayer][jlr][jal][jth][1];
2188 const double& c2 = m_XT[iCLayer][jlr][jal][jth][2];
2189 const double& c3 = m_XT[iCLayer][jlr][jal][jth][3];
2190 const double& c4 = m_XT[iCLayer][jlr][jal][jth][4];
2191 const double& c5 = m_XT[iCLayer][jlr][jal][jth][5];
2192 dDdt += w * ROOT::Math::Chebyshev4(timep, c1 + 3.*c3 + 5.*c5, 4.*c2 + 8.*c4, 6.*c3 + 10.*c5, 8.*c4, 10.*c5);
2193 } else {
2194 dDdt += w * (m_XT[iCLayer][jlr][jal][jth][1] + timep
2195 * (2.*m_XT[iCLayer][jlr][jal][jth][2] + timep
2196 * (3.*m_XT[iCLayer][jlr][jal][jth][3] + timep
2197 * (4.*m_XT[iCLayer][jlr][jal][jth][4] + timep
2198 * (5.*m_XT[iCLayer][jlr][jal][jth][5])))));
2199 }
2200 } else {
2201 dDdt += w * m_XT[iCLayer][jlr][jal][jth][7];
2202 }
2203 } //end of weighted mean loop
2204 }
2205
2206 dDdt = fabs(dDdt);
2207 //n.b. following line not needed since dDdt > 0 even for delta < 0
2208 // if (delta < 0.) dDdt *= -1.;
2209 return dDdt;
2210
2211}

◆ getEDepToADCConvFactor()

double getEDepToADCConvFactor ( unsigned short layer,
unsigned short cell,
double edep,
double dx,
double costh )

Return edep-to-ADC conversion factor.

Parameters
layerno. (0-55)
cellno. (0-)
edepenergy-deposit in the cell(keV).
dxpath length (cm) of the track in the cell.
costhcos(theta) of track.

Definition at line 1660 of file CDCGeometryPar.cc.

1661{
1662 // double convF = (100.0 / 3.2); //keV -> count
1663 //Model assumed here is from CLEO-c:
1664 //Igen = Imea * [1 + alf*Imea/cth] / [1 + gam*Imea/cth];
1665 //cth = |costh| + dlt;
1666 //Igen: original dE/dx; Imea: measured dE/dx with space-charge effect
1667 const double mainF = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][0];
1668 const double& alf = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][1];
1669 const double& gam = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][2];
1670 const double& dlt = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][3];
1671 const double& a = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][4];
1672 const double& b = (iCL < m_firstLayerOffset) ? 0. : m_eDepToADCParams[iCL][iW][5];
1673 const double cth = fabs(costh) + dlt;
1674 const double iGen = edep / dx; // keV/cm
1675 const double tmp = cth - gam * iGen;
1676 const double disc = tmp * tmp + 4.*alf * cth * iGen;
1677
1678 double iMea = 0.;
1679 if (alf == 0.) {
1680 iMea = cth * iGen / tmp;
1681 } else if (disc >= 0.) {
1682 iMea = (-tmp + sqrt(disc)) / (2.*alf);
1683 // if (alf < 0.) {
1684 // B2INFO("alf<0:CHECK");
1685 // B2INFO(-tmp + sqrt(disc)) / (2.*alf));
1686 // B2INFO(-tmp - sqrt(disc)) / (2.*alf));
1687 // }
1688 }
1689
1690 double convF = mainF;
1691 if (iMea > 0.) {
1692 convF = mainF * std::min(iMea / iGen, 1.);
1693 // if (iMea > iGen) B2DEBUG(29, "iMea > iGen " << iMea <<" "<< iGen);
1694 } else {
1695 //TODO: check the following issue more
1696 // B2WARNING("CDCGeometryPar: Measured dE/dx <= 0!");
1697 // B2DEBUG(29, "CDCGeometryPar: Measured dE/dx <= 0!");
1698 // B2DEBUG(29, "iGen,iMea= " << std::setw(15) << std::scientific << std::setprecision(8) << iGen <<" "<< iMea);
1699 // B2DEBUG(29, "dx,mainF,alf,gam,dlt,cth,tmp,disc= " << dx <<" "<< mainF <<" "<< alf <<" "<< gam <<" "<< dlt <<" "<<" "<< tmp <<" "<< disc);
1700 }
1701 convF *= 1. + a * (costh - b);
1702 return convF;
1703}

◆ getEDepToADCMainFactor()

double getEDepToADCMainFactor ( unsigned short layer,
unsigned short cell,
double costh = 0 )
inline

Return edep-to-ADC conversion main factor (in count/keV)

Parameters
layerno. (0-55)
cellno. (0-)
costhcosine of incident angle (theta) of particle

Definition at line 272 of file CDCGeometryPar.h.

273 {
274 return m_eDepToADCParams[layer][cell][0] + m_eDepToADCParams[layer][cell][4] * (costh - m_eDepToADCParams[layer][cell][5]);
275 };

◆ getEDepToADCSigma()

double getEDepToADCSigma ( unsigned short layer,
unsigned short cell )
inline

Return sigma for extra smearing of edep to ADC conversion.

Parameters
layerno. (0-55)
cellno. (0-)

Definition at line 281 of file CDCGeometryPar.h.

282 {
283 return m_eDepToADCParams[layer][cell][6];
284 };

◆ getFudgeFactorForSigma()

double getFudgeFactorForSigma ( unsigned short target) const
inline

Return the fuge factor for space resol.

Parameters
targettarget sigma: =0: for sigma in data reconstruction; =1: for sigma in MC recon.; =2: for sigma in digitization in MC

Definition at line 960 of file CDCGeometryPar.h.

961 {
962 return m_fudgeFactorForSigma[target];
963 }

◆ getFwdDeltaZ()

double getFwdDeltaZ ( unsigned short layerID) const
inline

Return forward 'deltaZ'.

Parameters
[in]layerID(0-55)

Definition at line 814 of file CDCGeometryPar.h.

815 {
816 return m_dzSForwardLayer[layerID];
817 }

◆ getMaterialDefinitionMode()

int getMaterialDefinitionMode ( ) const
inline

Return mode for material definition.

Return value = 0: define a mixture of gases and wires in the entire tracking volume; =1: define two different mixtures: one for the inner volume (small cell), and the other for the outer volume (normal cell).

Definition at line 781 of file CDCGeometryPar.h.

782 {
783 return m_materialDefinitionMode;
784 }

◆ getMaxNumberOfCellsPerLayer()

ushort getMaxNumberOfCellsPerLayer ( ) const
inline

Get the maximum number of cells in one layer.

Definition at line 1098 of file CDCGeometryPar.h.

1098{ return m_maxNCellsPerLayer;}

◆ getMaxNumberOfSuperLayers()

ushort getMaxNumberOfSuperLayers ( ) const
inline

Get the maximum number of super layers.

Definition at line 1083 of file CDCGeometryPar.h.

1083{ return m_maxNSuperLayers;}

◆ getMeanT0()

double getMeanT0 ( ) const
inline

Returns the mean t0 over all wires.

Returns
mean t0.

Definition at line 1385 of file CDCGeometryPar.h.

1386 {
1387 return m_meanT0;
1388 }

◆ getMinDriftTime()

double getMinDriftTime ( unsigned short layer,
unsigned short lr,
double alpha = 0.,
double theta = 0.5 * M_PI ) const

Return the min.

drift time (ns).

Parameters
[in]layerLayer ID.
[in]lrLeft/Right
[in]alphaincident angle (in rphi plane) w.r.t. the cell (rad).
[in]thetaincident angle (polar angle) (rad).

Definition at line 2399 of file CDCGeometryPar.cc.

2401{
2402 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2403 return 0.;
2404 }
2405
2406 double minTime = 0.;
2407
2408 //convert incoming- to outgoing-lr
2409 unsigned short lro = getOutgoingLR(lr, alpha);
2410
2411 if (!m_linearInterpolationOfXT) {
2412 B2FATAL("linearInterpolationOfXT = false is not allowed now !");
2413 } else {
2414 double wal(0.);
2415 unsigned short ial[2] = {0};
2416 unsigned short ilr[2] = {lro, lro};
2417 getClosestAlphaPoints(alpha, wal, ial, ilr);
2418 double wth(0.);
2419 unsigned short ith[2] = {0};
2420 getClosestThetaPoints(alpha, theta, wth, ith);
2421
2422 unsigned short jal(0), jlr(0), jth(0);
2423 double w = 0.;
2424
2425 double c[6] = {0.}, a[6] = {0.};
2426 for (unsigned k = 0; k < 4; ++k) {
2427 if (k == 0) {
2428 jal = ial[0];
2429 jlr = ilr[0];
2430 jth = ith[0];
2431 w = (1. - wal) * (1. - wth);
2432 } else if (k == 1) {
2433 jal = ial[0];
2434 jlr = ilr[0];
2435 jth = ith[1];
2436 w = (1. - wal) * wth;
2437 } else if (k == 2) {
2438 jal = ial[1];
2439 jlr = ilr[1];
2440 jth = ith[0];
2441 w = wal * (1. - wth);
2442 } else if (k == 3) {
2443 jal = ial[1];
2444 jlr = ilr[1];
2445 jth = ith[1];
2446 w = wal * wth;
2447 }
2448
2449 for (int i = 0; i < 5; ++i) {
2450 c[i] += w * m_XT[iCLayer][jlr][jal][jth][i];
2451 }
2452 }
2453
2454 if (m_xtParamMode == 1) { //convert c to coeff for normal-poly if Chebyshev
2455 a[0] = c[0] - c[2] + c[4];
2456 a[1] = c[1] - 3.*c[3] + 5.*c[5];
2457 a[2] = 2.*c[2] - 8.*c[4];
2458 a[3] = 4.*c[3] - 20.*c[5];
2459 a[4] = 8.*c[4];
2460 a[5] = 16.*c[5];
2461 } else { //normal-poly
2462 for (int i = 0; i < 5; ++i) a[i] = c[i];
2463 }
2464
2465 //estimate an initial value
2466 // bool check = false;
2467 // bool nointersection = false;
2468 if (a[2] != 0.) { //2nd-order approx. near t=0
2469 const double det = a[1] * a[1] - 4.*a[2] * a[0];
2470 if (det >= 0.) {
2471 //Choose the solution with dx/dt > 0 which gives x=0
2472 minTime = (-a[1] + sqrt(det)) / (2.*a[2]);
2473 } else {
2474 //Choose the solution with smallest x
2475 // nointersection = true;
2476 minTime = -a[1] / (2.*a[2]);
2477 // cout <<"smallest-x solution= " << minTime << endl;
2478 }
2479 } else if (a[1] != 0.) {
2480 minTime = -a[0] / a[1]; //1st-order approx.
2481 } else {
2482 B2WARNING("CDCGeometryPar::getMinDriftTime: minDriftTime not determined; assume zero.\n" << "layer(#0-55),lr,alpha(rad),theta= " <<
2483 iCLayer << " " << lr << " " << alpha << " " << theta);
2484 return minTime;
2485 }
2486
2487 // double minTime0 = minTime;
2488 //higher-order corr. using Newton method; trial to minimize x^2
2489 double edm; // = 10.; //(cm) (SG: fix to avoid cpp-check warning)
2490 // const double epsi4t = 0.01; //(ns)
2491 // const double epsi4x = 1.e-5; //(cm)
2492 const double epsi4x = 5.e-6; //(cm)
2493 // const unsigned short maxIter = 4;
2494 const unsigned short maxIter = 8;
2495 const double maxDt = 20.; //(ns)
2496 unsigned short nIter = 0;
2497 double minXsq = 1.e10; //(cm^2)
2498 double minMinTime = minTime;
2499 // double told = minTime + 1000.*epsi4t;
2500 // while (fabs(minTime - told) > epsi && nIter <= maxIter) {
2501 for (nIter = 0; nIter <= maxIter; ++nIter) {
2502 // told = minTime;
2503 double t = minTime;
2504 double x = a[0] + t * (a[1] + t * (a[2] + t * (a[3] + t * (a[4] + t * a[5]))));
2505 double x2 = x * x;
2506 if (x2 < minXsq) {
2507 minXsq = x2;
2508 minMinTime = t;
2509 }
2510 double xp = a[1] + t * (2 * a[2] + t * (3 * a[3] + t * (4 * a[4] + t * 5 * a[5])));
2511 double xpp = 2 * a[2] + t * (6 * a[3] + t * (12 * a[4] + t * 20 * a[5]));
2512 double den = xp * xp + x * xpp;
2513 if (den <= 0.) {
2514 den = xp * xp;
2515 }
2516
2517 if (den > 0.) {
2518 //estimated distance to min.
2519 edm = fabs(x * xp) / sqrt(den); //not in distance^2 but in distance
2520 if (edm < epsi4x) break; //converged
2521 }
2522
2523 double dt = 1.; //dt for den=0 (ns)
2524 if (den != 0.) {
2525 dt = x * xp / den;
2526 if (dt >= 0.) {
2527 dt = std::min(dt, maxDt);
2528 } else {
2529 dt = std::max(dt, -maxDt);
2530 }
2531 } else {
2532 B2WARNING("CDCGeometryPar::getMinDriftTime: den = 0\n" << "layer(#0-55),lr,alpha(rad),theta= " <<
2533 iCLayer << " "
2534 << lr <<
2535 " " << alpha << " " << theta);
2536 }
2537 minTime -= dt;
2538 } //end of iteration loop
2539
2540 //choose minMinTime for not-converged case
2541 if (nIter == (maxIter + 1)) minTime = minMinTime;
2542
2543 /*
2544 if (fabs(minTime) > 20.) {
2545 B2WARNING("CDCGeometryPar::getMinDriftTime: |minDriftTime| > 20ns. Ok ?\n" << "layer(#0-55),lr,alpha(rad),theta,minTime(ns)= " <<
2546 iCLayer << " "
2547 << lr <<
2548 " " << alpha << " " << theta << " " << minTime);
2549 }
2550 if (nointersection) {
2551 cout <<"final minTime= " << minTime << endl;
2552 cout <<"final minx = " << a[0] + a[1] * minTime + a[2] *pow(minTime,2) + a[3] *pow(minTime,3) + a[4] *pow(minTime,4) + a[5] *pow(minTime,5) << endl;
2553 }
2554 */
2555 /*
2556 if (check) {
2557 double dmin = 999.;
2558 double tmin = 999.;
2559 for (int i = -10000; i < 10000; ++i) {
2560 double ti = 0.01 * i;
2561 double dl = fabs(getDriftLength0(ti, iCLayer, lr, alpha, theta));
2562 if (dl < dmin) {
2563 dmin = dl;
2564 tmin = ti;
2565 }
2566 }
2567
2568 double smartd = getDriftLength0(minTime, iCLayer, lr, alpha, theta);
2569 if (check) {
2570 // if (fabs(smartd) > dmin && minTime < tmin && fabs(minTime - tmin) > 0.1) {
2571 B2WARNING("CDCGeometryPar::getMinDriftTime \n" << "layer(#0-55),lr,alpha(rad),theta= " <<
2572 iCLayer << " "
2573 << lr <<
2574 " " << alpha << " " << theta);
2575 B2INFO("det, minTime0= " << det << " " << minTime0);
2576 B2INFO("direct search n,tmin,dmin= " << nIter << " " << tmin << " " << dmin);
2577 B2INFO(" smart search n,tmin,dmin= " << nIter << " " << minTime << " " << getDriftLength0(minTime, iCLayer, lr, alpha, theta));
2578
2579 for (int i=-200; i < 200; ++i) {
2580 double ti = 0.25*i;
2581 double dl = getDriftLength0(ti, iCLayer, lr, alpha, theta);
2582 std::cout << ti <<" "<< dl << std::endl;
2583 }
2584 exit(-1);
2585 }
2586 }
2587 */
2588 }
2589
2590 return minTime;
2591}

◆ getMinTrackLength()

double getMinTrackLength ( ) const
inline

Returns the minimum track length required in one G4 step (only secondary particles which pass this criterion are to be saved in MCParticle)

Returns
length (cm)

Definition at line 538 of file CDCGeometryPar.h.

539 {
540 return m_minTrackLength;
541 }

◆ getNewLeftRightRaw()

unsigned short getNewLeftRightRaw ( const B2Vector3D & posOnWire,
const B2Vector3D & posOnTrack,
const B2Vector3D & momentum ) const

Returns new left/right_raw.

Parameters
posOnWirePosition on the wire at the closest point.
posOnTrackPosition on the track at the closest point.
momentumTrack 3-momentum.

Definition at line 2796 of file CDCGeometryPar.cc.

2798{
2799 const double distanceCrossP = ((posOnWire - posOnTrack).Cross(momentum)).Z();
2800 unsigned short int lr = (distanceCrossP > 0.) ? 1 : 0;
2801 return lr;
2802}

◆ getNominalDriftV()

double getNominalDriftV ( ) const
inline

Return the nominal drift velocity of He-ethane gas (default: 4.0x10^-3 cm/nsec).

Definition at line 746 of file CDCGeometryPar.h.

747 {
748 return m_nominalDriftV;
749 }

◆ getNominalPropSpeed()

double getNominalPropSpeed ( ) const
inline

Return the nominal propagation speed of the sense wire (default: 27.25 cm/nsec).

Definition at line 756 of file CDCGeometryPar.h.

757 {
758 return m_nominalPropSpeed;
759 }

◆ getNominalSpaceResol()

double getNominalSpaceResol ( ) const
inline

Return the nominal spatial resolution.

(default: 130 um defined in CDC.xml).

Definition at line 766 of file CDCGeometryPar.h.

767 {
768 return m_nominalSpaceResol;
769 }

◆ getNumberOfFieldLayers()

ushort getNumberOfFieldLayers ( ) const
inline

Get the number of field layers.

Definition at line 1078 of file CDCGeometryPar.h.

1078{ return m_maxNFieldLayers;}

◆ getNumberOfFieldWires()

ushort getNumberOfFieldWires ( ) const
inline

Get the number of field wires.

Definition at line 1068 of file CDCGeometryPar.h.

1068{ return m_nFieldWires;}

◆ getNumberOfSenseLayers()

ushort getNumberOfSenseLayers ( ) const
inline

Get the number of sense layers.

Definition at line 1073 of file CDCGeometryPar.h.

1073{ return m_maxNSenseLayers;}

◆ getNumberOfSenseWires()

ushort getNumberOfSenseWires ( ) const
inline

Get the number of sense wires.

Definition at line 1063 of file CDCGeometryPar.h.

1063{ return m_nSenseWires;}

◆ getOffsetOfFirstLayer()

ushort getOffsetOfFirstLayer ( ) const
inline

Get the offset of the first layer.

Definition at line 1088 of file CDCGeometryPar.h.

1088{ return m_firstLayerOffset;}

◆ getOffsetOfFirstSuperLayer()

ushort getOffsetOfFirstSuperLayer ( ) const
inline

Get the offset of the first super layer.

Definition at line 1093 of file CDCGeometryPar.h.

1093{ return m_firstSuperLayerOffset;}

◆ getOldLeftRight()

unsigned short getOldLeftRight ( const B2Vector3D & posOnWire,
const B2Vector3D & posOnTrack,
const B2Vector3D & momentum ) const

Returns old left/right.

Parameters
posOnWirePosition on the wire at the closest point.
posOnTrackPosition on the track at the closest point.
momentumTrack 3-momentum.

Definition at line 2761 of file CDCGeometryPar.cc.

2763{
2764 unsigned short lr = 0;
2765 double wCrossT = (posOnWire.Cross(posOnTrack)).Z();
2766
2767 if (wCrossT < 0.) {
2768 lr = 0;
2769 } else if (wCrossT > 0.) {
2770 lr = 1;
2771 } else {
2772 if ((posOnTrack - posOnWire).Perp() != 0.) {
2773 double wCrossP = (posOnWire.Cross(momentum)).Z();
2774 if (wCrossP > 0.) {
2775 if (posOnTrack.Perp() > posOnWire.Perp()) {
2776 lr = 0;
2777 } else {
2778 lr = 1;
2779 }
2780 } else if (wCrossP < 0.) {
2781 if (posOnTrack.Perp() < posOnWire.Perp()) {
2782 lr = 0;
2783 } else {
2784 lr = 1;
2785 }
2786 } else {
2787 lr = 0;
2788 }
2789 } else {
2790 lr = 0;
2791 }
2792 }
2793 return lr;
2794}
Belle2::B2Vector3::Cross
B2Vector3< DataType > Cross(const B2Vector3< DataType > &p) const
Cross product.
Definition B2Vector3.h:296
Belle2::B2Vector3::Perp
DataType Perp() const
The transverse component (R in cylindrical coordinate system).
Definition B2Vector3.h:200

◆ getOutgoingAlpha()

double getOutgoingAlpha ( const double alpha) const

Converts incoming- to outgoing-alpha.

Parameters
alphain rad.

Definition at line 2831 of file CDCGeometryPar.cc.

2832{
2833 //convert incoming- to outgoing-alpha
2834 double alphao = alpha;
2835 if (alpha > 0.5 * M_PI) {
2836 alphao -= M_PI;
2837 } else if (alpha < -0.5 * M_PI) {
2838 alphao += M_PI;
2839 }
2840
2841 return alphao;
2842}

◆ getOutgoingLR()

unsigned short getOutgoingLR ( const unsigned short lr,
const double alpha ) const

Converts incoming-lr to outgoing-lr.

Parameters
lrLeft/Right flag.
alphaTrack incident angle in rphi-plane (rad).

Definition at line 2824 of file CDCGeometryPar.cc.

2825{
2826 unsigned short lro = (fabs(alpha) <= 0.5 * M_PI) ? lr : abs(lr - 1);
2827 return lro;
2828}

◆ getOutgoingTheta()

double getOutgoingTheta ( const double alpha,
const double theta ) const

Converts incoming- to outgoing-theta.

Parameters
alphain rad.
thetain rad.

Definition at line 2844 of file CDCGeometryPar.cc.

2845{
2846 //convert incoming- to outgoing-theta
2847 double thetao = fabs(alpha) > 0.5 * M_PI ? M_PI - theta : theta;
2848 // std::cout << alpha <<" "<< thetao << std::endl;
2849 return thetao;
2850}

◆ getPropSpeedInv()

double getPropSpeedInv ( const unsigned int layerID) const
inline

Get the inversel of propagation speed in the sense wire.

Parameters
[in]layerIDlayer ID (0-55)

Definition at line 836 of file CDCGeometryPar.h.

837 {
838 return m_propSpeedInv[layerID];
839 }

◆ getSenseWireZposMode()

int getSenseWireZposMode ( ) const
inline

Return mode for sense wire z position.

Return value =0: define at the end-plate (gas side) with old design; =1: define at the bush inside the feedthrough with correction for the diff. betw. final- and old-design.

Definition at line 794 of file CDCGeometryPar.h.

795 {
796 return m_senseWireZposMode;
797 }

◆ getShiftInSuperLayer()

signed short getShiftInSuperLayer ( unsigned short iSuperLayer,
unsigned short iLayer ) const

Returns shift in the super-layer.

Parameters
iSuperLayerThe super-layer id.
iLayerThe layer id. in the super-layer

Definition at line 3020 of file CDCGeometryPar.cc.

3021{
3022 return m_shiftInSuperLayer[iSuperLayer][iLayer];
3023}

◆ getSigma()

double getSigma ( double dist,
unsigned short layer,
unsigned short lr,
double alpha = 0.,
double theta = 0.5 * M_PI ) const

Return the basic resolution of drift length (cm).

N.B. A fudge factor may be multiplied at the place where this is called; be careful.

Parameters
distDrift length (cm); negative dist is treated as |dist|.
layerLayer id.
lrLeft/Right.
alphaincident angle (in rphi plane) w.r.t. the cell (rad).
thetaincident angle (polar angle) (rad).

Definition at line 2649 of file CDCGeometryPar.cc.

2651{
2652 if (iCLayer < m_firstLayerOffset || iCLayer >= c_maxNSenseLayers) {
2653 return 0.;
2654 }
2655
2656
2657 double sigma = 0.;
2658 //DriftL0 < 0 for the hit w/driftTime < 0; use |DriftL0| to avoid sigma=nan
2659 const double driftL = fabs(DriftL0);
2660
2661 //convert incoming- to outgoing-lr
2662 unsigned short lro = getOutgoingLR(lr, alpha);
2663
2664 if (!m_linearInterpolationOfSgm) {
2665 B2FATAL("linearInterpolationOfSgm = false is not allowed now !");
2666 }
2667 if (m_linearInterpolationOfSgm) {
2668 double wal(0.);
2669 unsigned short ial[2] = {0};
2670 unsigned short ilr[2] = {lro, lro};
2671 getClosestAlphaPoints4Sgm(alpha, wal, ial, ilr);
2672 double wth(0.);
2673 unsigned short ith[2] = {0};
2674 getClosestThetaPoints4Sgm(alpha, theta, wth, ith);
2675
2676 //compute linear interpolation (=weithed average over 4 points) in (alpha-theta) space
2677 unsigned short jal(0), jlr(0), jth(0);
2678 double w = 0.;
2679 for (unsigned k = 0; k < 4; ++k) {
2680 if (k == 0) {
2681 jal = ial[0];
2682 jlr = ilr[0];
2683 jth = ith[0];
2684 w = (1. - wal) * (1. - wth);
2685 } else if (k == 1) {
2686 jal = ial[0];
2687 jlr = ilr[0];
2688 jth = ith[1];
2689 w = (1. - wal) * wth;
2690 } else if (k == 2) {
2691 jal = ial[1];
2692 jlr = ilr[1];
2693 jth = ith[0];
2694 w = wal * (1. - wth);
2695 } else if (k == 3) {
2696 jal = ial[1];
2697 jlr = ilr[1];
2698 jth = ith[1];
2699 w = wal * wth;
2700 }
2701 // std::cout << "k,w= " << k <<" "<< w << std::endl;
2702 // std::cout << "ial[0],[1],jal,wal= " << ial[0] <<" "<< ial[1] <<" "<< jal <<" "<< wal << std::endl;
2703 // std::cout << "ith[0],[1],jth,wth= " << ith[0] <<" "<< ith[1] <<" "<< jth <<" "<< wth << std::endl;
2704 /*
2705 std::cout <<"iCLayer= " << iCLayer << std::endl;
2706 std::cout <<"lr= " << lr << std::endl;
2707 std::cout <<"jal,jth= " << jal <<" "<< jth << std::endl;
2708 std::cout <<"wal,wth= " << wal <<" "<< wth << std::endl;
2709 for (int i=0; i<9; ++i) {
2710 std::cout <<"a= "<< i <<" "<< m_XT[iCLayer][lro][jal][jth][i] << std::endl;
2711 }
2712 */
2713 const double& P0 = m_Sigma[iCLayer][jlr][jal][jth][0];
2714 const double& P1 = m_Sigma[iCLayer][jlr][jal][jth][1];
2715 const double& P2 = m_Sigma[iCLayer][jlr][jal][jth][2];
2716 const double& P3 = m_Sigma[iCLayer][jlr][jal][jth][3];
2717 const double& P4 = m_Sigma[iCLayer][jlr][jal][jth][4];
2718 const double& P5 = m_Sigma[iCLayer][jlr][jal][jth][5];
2719 const double& P6 = m_Sigma[iCLayer][jlr][jal][jth][6];
2720
2721#if defined(CDC_DEBUG)
2722 cout << "driftL= " << driftL << endl;
2723 cout << "iCLayer= " << iCLayer << " " << jlr << " " << jal << " " << jth << endl;
2724 cout << "P0= " << P0 << endl;
2725 cout << "P1= " << P1 << endl;
2726 cout << "P2= " << P2 << endl;
2727 cout << "P3= " << P3 << endl;
2728 cout << "P4= " << P4 << endl;
2729 cout << "P5= " << P5 << endl;
2730 cout << "P6= " << P6 << endl;
2731#endif
2732 const double P7 = m_sigmaParamMode == 0 ? DBL_MAX : m_Sigma[iCLayer][jlr][jal][jth][7];
2733
2734 if (driftL < P7) {
2735 sigma += w * sqrt(P0 / (driftL * driftL + P1) + P2 * driftL + P3 +
2736 P4 * exp(P5 * (driftL - P6) * (driftL - P6)));
2737 } else {
2738 double forthTermAtP7 = P4 * exp(P5 * (P7 - P6) * (P7 - P6));
2739 const double& P8 = m_Sigma[iCLayer][jlr][jal][jth][8];
2740 if (m_sigmaParamMode == 1) {
2741 double sigmaAtP7 = sqrt(P0 / (P7 * P7 + P1) + P2 * P7 + P3 + forthTermAtP7);
2742 sigma += w * (P8 * (driftL - P7) + sigmaAtP7);
2743 } else if (m_sigmaParamMode == 2) {
2744 double onePls4AtP7 = sqrt(P0 / (P7 * P7 + P1) + forthTermAtP7);
2745 const double onePls4 = P8 * (driftL - P7) + onePls4AtP7;
2746 sigma += w * sqrt(P2 * driftL + P3 + onePls4 * onePls4);
2747 } else if (m_sigmaParamMode == 3) {
2748 forthTermAtP7 = sqrt(forthTermAtP7);
2749 const double forthTerm = P8 * (driftL - P7) + forthTermAtP7;
2750 sigma += w * sqrt(P0 / (driftL * driftL + P1) + P2 * driftL + P3 +
2751 forthTerm * forthTerm);
2752 } //end of mode
2753 } // end of driftL
2754 } //end of for loop
2755 }
2756
2757 sigma = std::min(sigma, m_maxSpaceResol);
2758 return sigma;
2759}
Belle2::CDC::CDCGeometryPar::m_sigmaParamMode
int m_sigmaParamMode
Mode for sigma parameterization.
Definition CDCGeometryPar.h:1126
Belle2::CDC::CDCGeometryPar::getClosestAlphaPoints4Sgm
void getClosestAlphaPoints4Sgm(const double alpha, double &wal, unsigned short points[2], unsigned short lrs[2]) const
Returns the two closest alpha points for sigma for the input track incident angle (alpha).
Definition CDCGeometryPar.cc:2882
Belle2::CDC::CDCGeometryPar::m_linearInterpolationOfSgm
bool m_linearInterpolationOfSgm
Switch for linear interpolation of sigma.
Definition CDCGeometryPar.h:1110
Belle2::CDC::CDCGeometryPar::m_maxSpaceResol
double m_maxSpaceResol
max space resolution allowed (cm).
Definition CDCGeometryPar.h:1205
Belle2::CDC::CDCGeometryPar::getClosestThetaPoints4Sgm
void getClosestThetaPoints4Sgm(const double alpha, const double theta, double &wth, unsigned short points[2]) const
Returns the two closest theta points for sigma for the input track incident angle (theta).
Definition CDCGeometryPar.cc:2938

◆ getT0()

float getT0 ( const WireID & wireID) const
inline

Returns t0 parameter of the specified sense wire.

Parameters
wireIDWire id.
Returns
t0.

Definition at line 565 of file CDCGeometryPar.h.

566 {
567 // std::cout << wireID.getICLayer() <<" "<< wireID.getIWire() << std::endl;
568 unsigned int iclayer = wireID.getICLayer();
569 unsigned int iwire = wireID.getIWire();
570 if (iclayer >= c_maxNSenseLayers) iclayer = c_maxNSenseLayers - 1;
571 if (iwire >= c_maxNDriftCells) iwire = c_maxNDriftCells - 1;
572 return m_t0[iclayer][iwire];
573 }

◆ getTdcBinWidth()

double getTdcBinWidth ( ) const
inline

Return TDC bin width (nsec).

Definition at line 736 of file CDCGeometryPar.h.

737 {
738 return m_tdcBinWidth;
739 }

◆ getTdcOffset()

unsigned short getTdcOffset ( ) const
inline

Return TDC offset value (default = 0 ch).

Definition at line 727 of file CDCGeometryPar.h.

728 {
729 return m_tdcOffset;
730 }

◆ getTheta()

double getTheta ( const B2Vector3D & momentum) const

Returns track incident angle (theta in rad.).

Parameters
momentumTrack momentum at the closest point.

Definition at line 2818 of file CDCGeometryPar.cc.

2819{
2820 return atan2(momentum.Perp(), momentum.Z());
2821}

◆ getThresholdEnerguDeposit()

double getThresholdEnerguDeposit ( ) const
inline

Returns threshold for energy deposit in one G4 step.

Returns
threshold (GeV)

Definition at line 529 of file CDCGeometryPar.h.

530 {
531 return m_thresholdEnergyDeposit;
532 }

◆ getTimeWalk()

double getTimeWalk ( const WireID & wID,
unsigned short adcCount ) const
inline

Returns time-walk.

Parameters
wIDwire id
adcCountADC count
Returns
time-walk (in ns)

Definition at line 616 of file CDCGeometryPar.h.

617 {
618 std::map<WireID, unsigned short>::const_iterator it = m_wireToBoard.find(wID);
619 // std::cout <<"SL,L,W, bd#= " << wID.getISuperLayer() <<" "<< wID.getILayer() <<" "<< wID.getIWire() <<" "<< it->second << std::endl;
620 double tw = 0.;
621 if (it != m_wireToBoard.end() && adcCount > 0) {
622 if (m_twParamMode == 0) {
623 tw = m_timeWalkCoef[it->second][0] / sqrt(adcCount);
624 } else if (m_twParamMode == 1) {
625 double p0 = m_timeWalkCoef[it->second][0];
626 double p1 = m_timeWalkCoef[it->second][1];
627 tw = p0 * exp(-p1 * adcCount);
628 }
629 }
630 // std::cout <<"bd#,coef,adc,tw= " << it->second <<" "<< m_timeWalkCoef[it->second] <<" "<< adcCount <<" "<< tw << std::endl;
631 return tw;
632 }

◆ getWireID()

const WireID getWireID ( unsigned short bd,
unsigned short ch ) const
inline

Returns wire id. corresponding to the board-and-cannel ids.

Parameters
bdboard id. (1-300)
chchannel id. (0-47)
Returns
wire id.

Definition at line 605 of file CDCGeometryPar.h.

606 {
607 return WireID(m_boardAndChannelToWire[bd][ch]);
608 }

◆ getWireSagCoef()

double getWireSagCoef ( EWirePosition set,
uint layerId,
int cellId ) const

Returns coefficient for the sense wire sag.

Parameters
setWire position set; =c_Base, c_Misaligned or c_Aligned
layerIdThe layer id.
cellIdThe cell id.
Returns
Coefficient for the sense wire sag.

Definition at line 1806 of file CDCGeometryPar.cc.

1807{
1808 double coef = m_WireSagCoef[layerID][cellID];
1809 if (set == c_Misaligned) {
1810 coef = m_WireSagCoefMisalign[layerID][cellID];
1811 } else if (set == c_Aligned) {
1812 coef = m_WireSagCoefAlign [layerID][cellID];
1813 }
1814 return coef;
1815}

◆ getWireSagEffect()

void getWireSagEffect ( EWirePosition set,
unsigned layerID,
unsigned cellID,
double zw,
double & ywb_sag,
double & ywf_sag ) const

Compute effects of the sense wire sag.

Parameters
[in]setWire position set; =c_Base, c_Misaligned or c_Aligned
[in]layerIDLayer ID
[in]cellIDCell ID in the layer
[in]zwZ-coord. (cm) at which the sense wire sag is computed
[out]ywb_sagY-corrd. (cm) of intersection between a tangent and the backward endplate.
[out]ywf_sagY-corrd. (cm) of intersection between a tangent and the forward endplate.
Attention
The tangent is computed from the first derivative of a paraboric wire (due to gravity) defined at Z.

Definition at line 1970 of file CDCGeometryPar.cc.

1972{
1973 //Input
1974 // set : c_Base, c_Misaligned or c_Aligned
1975 // layerID: layer id (0 - 55);
1976 // cellID: cell id in the layer;
1977 // Z: Z-coord. (cm) at which sense wire sag is computed.
1978 //
1979 //Output Yb_sag: Y-corrd. (cm) of intersection of a tangent and the backward endplate.
1980 // Here the tangent is computed from the 1'st derivative of
1981 // a paraboric wire (due to gravity) defined at Z.
1982 // Yf_sag: ibid. but for forward.
1983 //
1984 //N.B.- Maybe replaced with a bit more accurate formula.
1985 // - The electrostatic force effect is not included.
1986
1987 // return early in case of empty layer, i.e. layerID < m_firstLayerOffset
1988 if (layerID < m_firstLayerOffset) {
1989 Yb_sag = 0.;
1990 Yf_sag = 0.;
1991 return;
1992 }
1993
1994 double Xb = 0.;
1995 double Xf = 0.;
1996 double Yb = 0.;
1997 double Yf = 0.;
1998 double Zb = 0.;
1999 double Zf = 0.;
2000 double Coef = 0.;
2001
2002 if (set == c_Aligned) {
2003 Coef = m_WireSagCoefAlign[layerID][cellID];
2004 Yb = m_BWirPosAlign[layerID][cellID][1];
2005 Yf = m_FWirPosAlign[layerID][cellID][1];
2006 if (Coef == 0.) {
2007 Yb_sag = Yb;
2008 Yf_sag = Yf;
2009 return;
2010 }
2011 Xb = m_BWirPosAlign[layerID][cellID][0];
2012 Xf = m_FWirPosAlign[layerID][cellID][0];
2013 Zb = m_BWirPosAlign[layerID][cellID][2];
2014 Zf = m_FWirPosAlign[layerID][cellID][2];
2015
2016 } else if (set == c_Misaligned) {
2017 Coef = m_WireSagCoefMisalign[layerID][cellID];
2018 Yb = m_BWirPosMisalign[layerID][cellID][1];
2019 Yf = m_FWirPosMisalign[layerID][cellID][1];
2020 if (Coef == 0.) {
2021 Yb_sag = Yb;
2022 Yf_sag = Yf;
2023 return;
2024 }
2025 Xb = m_BWirPosMisalign[layerID][cellID][0];
2026 Xf = m_FWirPosMisalign[layerID][cellID][0];
2027 Zb = m_BWirPosMisalign[layerID][cellID][2];
2028 Zf = m_FWirPosMisalign[layerID][cellID][2];
2029
2030 } else if (set == c_Base) {
2031 Coef = m_WireSagCoef[layerID][cellID];
2032 Yb = m_BWirPos[layerID][cellID][1];
2033 Yf = m_FWirPos[layerID][cellID][1];
2034 if (Coef == 0.) {
2035 Yb_sag = Yb;
2036 Yf_sag = Yf;
2037 return;
2038 }
2039 Xb = m_BWirPos[layerID][cellID][0];
2040 Xf = m_FWirPos[layerID][cellID][0];
2041 Zb = m_BWirPos[layerID][cellID][2];
2042 Zf = m_FWirPos[layerID][cellID][2];
2043
2044 } else {
2045 B2FATAL("CDCGeometryPar::getWireSagEffect: called with an invalid set: " << " " << set);
2046 }
2047
2048 const double dx = Xf - Xb;
2049 const double dy = Yf - Yb;
2050 const double dz = Zf - Zb;
2051
2052 const double Zfp = sqrt(dz * dz + dx * dx); // Wire length in z-x plane since Zbp==0
2053 const double Zp = (Z - Zb) * Zfp / dz;
2054
2055 const double Y_sag = (Coef * (Zp - Zfp) + dy / Zfp) * Zp + Yb;
2056 const double dydz = (Coef * (2.*Zp - Zfp) * Zfp + dy) / dz;
2057
2058 Yb_sag = Y_sag + dydz * (Zb - Z);
2059 Yf_sag = Y_sag + dydz * (Zf - Z);
2060
2061}

◆ innerRadiusInnerWall()

double innerRadiusInnerWall ( ) const
inline

Returns the inner radius of the inner wall.

Returns
The inner radius of the inner wall.

Definition at line 1330 of file CDCGeometryPar.h.

1331 {
1332 return m_rWall[0];
1333 }

◆ innerRadiusOuterWall()

double innerRadiusOuterWall ( ) const
inline

Returns the inner radius of the outer wall.

Returns
The inner radius of the outer wall.

Definition at line 1315 of file CDCGeometryPar.h.

1316 {
1317 return m_rWall[2];
1318 }

◆ innerRadiusWireLayer()

const double * innerRadiusWireLayer ( ) const

Returns an array of inner radius of wire layers.

Returns
An array of inner radius of wire layers.

Definition at line 1817 of file CDCGeometryPar.cc.

1818{
1819 static double IRWL[c_maxNSenseLayers] = {0};
1820
1821 IRWL[0] = outerRadiusInnerWall();
1822 for (unsigned i = 1; i < nWireLayers(); i++)
1823 //IRWL[i] = (m_rSLayer[i - 1] + m_rSLayer[i]) / 2.;
1824 IRWL[i] = (i == m_firstLayerOffset) ? outerRadiusInnerWall() : m_rFLayer[i - 1];
1825
1826 return IRWL;
1827}
Belle2::CDC::CDCGeometryPar::nWireLayers
unsigned nWireLayers() const
Returns a number of wire layers.
Definition CDCGeometryPar.h:1365

◆ Instance()

CDCGeometryPar & Instance ( const CDCGeometry * geom = nullptr)
static

Static method to get a reference to the CDCGeometryPar instance.

Returns
A reference to an instance of this class.

Definition at line 32 of file CDCGeometryPar.cc.

33{
34 if (!m_B4CDCGeometryParDB) m_B4CDCGeometryParDB = new CDCGeometryPar(geom);
35 return *m_B4CDCGeometryParDB;
36}
Belle2::CDC::CDCGeometryPar::m_B4CDCGeometryParDB
static CDCGeometryPar * m_B4CDCGeometryParDB
Pointer that saves the instance of this class.
Definition CDCGeometryPar.h:1224
Belle2::CDC::CDCGeometryPar::CDCGeometryPar
CDCGeometryPar(const CDCGeometry *=nullptr)
Singleton class.
Definition CDCGeometryPar.cc:38

◆ isBadWire()

bool isBadWire ( const WireID & wid)
inline

Inquire if the wire is totally-dead.

Definition at line 844 of file CDCGeometryPar.h.

845 {
846 double eff = 0;
847 bool badBoard = *m_badBoardsFromDB ? (*m_badBoardsFromDB)->isDeadBoard(getBoardID(wid), eff) : false;
848 if (badBoard) return badBoard;
849 bool torf = *m_badWireFromDB ? (*m_badWireFromDB)->isBadWire(wid) : false;
850 return torf;
851 }

◆ isDeadWire()

bool isDeadWire ( const WireID & wid,
double & eff )
inline

Inquire if the wire is dead.

Definition at line 856 of file CDCGeometryPar.h.

857 {
858 bool badBoard = *m_badBoardsFromDB ? (*m_badBoardsFromDB)->isDeadBoard(getBoardID(wid), eff) : false;
859 if (badBoard) return badBoard;
860 bool torf = *m_badWireFromDB ? (*m_badWireFromDB)->isDeadWire(wid, eff) : false;
861 return torf;
862 }

◆ isHotWire()

bool isHotWire ( const WireID & wid)
inline

Inquire if the wire is hot.

Definition at line 867 of file CDCGeometryPar.h.

868 {
869 bool hotBoard = *m_badBoardsFromDB ? (*m_badBoardsFromDB)->isHotBoard(getBoardID(wid)) : false;
870 if (hotBoard) return hotBoard;
871 bool torf = *m_badWireFromDB ? (*m_badWireFromDB)->isHotWire(wid) : false;
872 return torf;
873 }

◆ isModifiedLeftRightFlagOn()

bool isModifiedLeftRightFlagOn ( ) const
inline

Returns on/off for modified left/right calculation in FullSim.

Definition at line 554 of file CDCGeometryPar.h.

555 {
556 return m_modLeftRightFlag;
557 }

◆ isWireSagOn()

bool isWireSagOn ( ) const
inline

Returns on/off for sense wire sag in FullSim.

Definition at line 546 of file CDCGeometryPar.h.

547 {
548 return m_wireSag;
549 }

◆ momBound()

int momBound ( ) const

to get the number of boundary position of the CDC mother volume

Returns
The number of boundary position of the CDC mother volume.

◆ momRmin()

double momRmin ( int iBound) const
inline

Returns inner radius of the CDC mother volume.

Parameters
iBound: The boundary id.
Returns
The inner radius of the specified baoundary position in the CDC mother volume

Definition at line 1250 of file CDCGeometryPar.h.

1251 {
1252 return m_momRmin[iBound];
1253 }

◆ momZ()

double momZ ( int iBound) const
inline

Returns boundary position in Z axis of the CDC mother volume.

Parameters
iBound: The boundary id.
Returns
The z component of the specified baoundary position in the CDC mother volume

Definition at line 1245 of file CDCGeometryPar.h.

1246 {
1247 return m_momZ[iBound];
1248 }

◆ motherInnerR()

double motherInnerR ( ) const

The method to get cdc mother volume inner R.

Returns
The inner radius of the cdc mother volume.

◆ motherLength()

double motherLength ( ) const

The method to get cdc mother volume length.

Returns
The length of the cdc mother volume.

◆ motherOuterR()

double motherOuterR ( ) const

The method to get cdc mother volume outer R.

Returns
The outer radius of the cdc mother volume.

◆ newReadSigma()

void newReadSigma ( const GearDir & gbxParams,
int mode = 0 )

Read spatial resolution table in new format.

Parameters
gbxParamsGear Dir.
mode0: read simulation file, 1: read reconstruction file.

Definition at line 962 of file CDCGeometryPar.cc.

963{
964 m_linearInterpolationOfSgm = true; //must be true now
965
966 std::string fileName0 = CDCGeoControlPar::getInstance().getSigmaFile();
967 if (mode == 1) {
968 fileName0 = gbxParams.getString("sigma4ReconFileName");
969 }
970
971 ifstream ifs;
972 // openFile(ifs, fileName0);
973 openFileA(ifs, fileName0);
974
975 //read alpha bin info.
976 unsigned short nAlphaBins = 0;
977 if (ifs >> nAlphaBins) {
978 if (nAlphaBins == 0 || nAlphaBins > c_maxNAlphaPoints) B2FATAL("Fail to read alpha bins !");
979 } else {
980 B2FATAL("Fail to read alpha bins !");
981 }
982 m_nAlphaPoints4Sgm = nAlphaBins;
983 // std:: cout << nAlphaBins << std::endl;
984 double alpha0, alpha1, alpha2;
985 for (unsigned short i = 0; i < nAlphaBins; ++i) {
986 ifs >> alpha0 >> alpha1 >> alpha2;
987 m_alphaPoints4Sgm[i] = alpha2;
988 // std:: cout << alpha2 << std::endl;
989 }
990
991 //read theta bin info.
992 unsigned short nThetaBins = 0;
993 if (ifs >> nThetaBins) {
994 if (nThetaBins == 0 || nThetaBins > c_maxNThetaPoints) B2FATAL("CDCGeometryPar: fail to read theta bins !");
995 } else {
996 B2FATAL("CDCGeometryPar: fail to read theta bins !");
997 }
998 m_nThetaPoints4Sgm = nThetaBins;
999 // std:: cout << nThetaBins << std::endl;
1000 double theta0, theta1, theta2;
1001
1002 for (unsigned short i = 0; i < nThetaBins; ++i) {
1003 ifs >> theta0 >> theta1 >> theta2;
1004 m_thetaPoints4Sgm[i] = theta2;
1005 // std:: cout << theta2 << std::endl;
1006 }
1007
1008 unsigned short np = 0;
1009 unsigned short iCL, iLR;
1010 double sigma[c_nSigmaParams]; // cppcheck-suppress constVariable
1011 double theta, alpha;
1012
1013 ifs >> m_sigmaParamMode >> np;
1014 // std:: cout << m_sigmaParamMode <<" "<< np << std::endl;
1015 if (m_sigmaParamMode < 0 || m_sigmaParamMode > 4) B2FATAL("CDCGeometryPar: invalid sigma-parameterization mode read !");
1016
1017 if (np > c_nSigmaParams) B2FATAL("CDCGeometryPar: no. of sigma-params. outside limits !");
1018
1019 ifs >> m_maxSpaceResol;
1020
1021 const double epsi = 0.1;
1022
1023 while (ifs >> iCL) {
1024
1025 if (iCL < m_firstLayerOffset) {
1026 continue;
1027 }
1028
1029 ifs >> theta >> alpha >> iLR;
1030 // std::cout << iCL <<" "<< theta <<" "<< alpha <<" "<< iLR << std::endl;
1031 for (int i = 0; i < np; ++i) {
1032 ifs >> sigma[i];
1033 }
1034
1035 int itheta = -99;
1036 for (unsigned short i = 0; i < nThetaBins; ++i) {
1037 if (fabs(theta - m_thetaPoints4Sgm[i]) < epsi) {
1038 itheta = i;
1039 break;
1040 }
1041 }
1042 if (itheta < 0) B2FATAL("CDCGeometryPar: thetas in sigma.dat are inconsistent !");
1043
1044 int ialpha = -99;
1045 for (unsigned short i = 0; i < nAlphaBins; ++i) {
1046 if (fabs(alpha - m_alphaPoints4Sgm[i]) < epsi) {
1047 ialpha = i;
1048 break;
1049 }
1050 }
1051 if (ialpha < 0) B2FATAL("CDCGeometryPar: alphas in sigma.dat are inconsistent !");
1052
1053 for (int i = 0; i < np; ++i) {
1054 m_Sigma[iCL][iLR][ialpha][itheta][i] = sigma[i];
1055 }
1056 } //end of while loop
1057
1058 ifs.close();
1059
1060 //convert unit
1061 const double degrad = M_PI / 180.;
1062 for (unsigned i = 0; i < nAlphaBins; ++i) {
1063 m_alphaPoints4Sgm[i] *= degrad;
1064 }
1065 for (unsigned i = 0; i < nThetaBins; ++i) {
1066 m_thetaPoints4Sgm[i] *= degrad;
1067 }
1068
1069 // std::cout << "end of newreadsigma " << std::endl;
1070}
Belle2::CDC::CDCGeoControlPar::getSigmaFile
std::string getSigmaFile() const
Get input file name for sigma.
Definition CDCGeoControlPar.h:503
Belle2::GearDir::getString
virtual std::string getString(const std::string &path="") const noexcept(false) override
Get the parameter path as a string.
Definition GearDir.h:69
Belle2::CDC::openFileA
void openFileA(std::ifstream &ifs, const std::string &fileName0)
Open a file.
Definition OpenFile.cc:25

◆ newReadXT()

void newReadXT ( const GearDir & gbxParams,
int mode = 0 )

Read XT-relation table in new format.

Parameters
[in]gbxParamsGear Dir.
[in]mode0: read simulation file, 1: read reconstruction file.

Definition at line 816 of file CDCGeometryPar.cc.

817{
818 m_linearInterpolationOfXT = true; //must be true now
819
820 std::string fileName0 = CDCGeoControlPar::getInstance().getXtFile();
821 if (mode == 1) {
822 fileName0 = gbxParams.getString("xt4ReconFileName");
823 }
824
825 boost::iostreams::filtering_istream ifs;
826 openFileB(ifs, fileName0);
827 //TODO: use openFile() in cdc/utilities instead of the following 18 lines <- done
828 /*
829 std::string fileName1 = "/data/cdc/" + fileName0;
830 std::string fileName = FileSystem::findFile(fileName1);
831
832 if (fileName == "") {
833 fileName = FileSystem::findFile(fileName0);
834 }
835
836 if (fileName == "") {
837 B2FATAL("CDCGeometryPar: " << fileName1 << " not exist!");
838 } else {
839 B2INFO("CDCGeometryPar: open " << fileName1);
840 if ((fileName.rfind(".gz") != string::npos) && (fileName.length() - fileName.rfind(".gz") == 3)) {
841 ifs.push(boost::iostreams::gzip_decompressor());
842 }
843 ifs.push(boost::iostreams::file_source(fileName));
844 if (!ifs) B2FATAL("CDCGeometryPar: cannot open " << fileName1 << " !");
845 }
846 */
847
848 //read alpha bin info.
849 unsigned short nAlphaBins = 0;
850 if (ifs >> nAlphaBins) {
851 if (nAlphaBins == 0 || nAlphaBins > c_maxNAlphaPoints) B2FATAL("Fail to read alpha bins !");
852 } else {
853 B2FATAL("Fail to read alpha bins !");
854 }
855 m_nAlphaPoints = nAlphaBins;
856 double alpha0, alpha1, alpha2;
857 for (unsigned short i = 0; i < nAlphaBins; ++i) {
858 ifs >> alpha0 >> alpha1 >> alpha2;
859 m_alphaPoints[i] = alpha2;
860 }
861
862 //read theta bin info.
863 unsigned short nThetaBins = 0;
864 if (ifs >> nThetaBins) {
865 if (nThetaBins == 0 || nThetaBins > c_maxNThetaPoints) B2FATAL("CDCGeometryPar: fail to read theta bins !");
866 } else {
867 B2FATAL("CDCGeometryPar: fail to read theta bins !");
868 }
869 m_nThetaPoints = nThetaBins;
870 double theta0, theta1, theta2;
871
872 for (unsigned short i = 0; i < nThetaBins; ++i) {
873 ifs >> theta0 >> theta1 >> theta2;
874 m_thetaPoints[i] = theta2;
875 }
876
877 short np = 0;
878 unsigned short iCL, iLR;
879 const unsigned short npx = c_nXTParams - 1;
880 double xtc[npx];
881 double theta, alpha, dummy1;
882
883 ifs >> m_xtParamMode >> np;
884 if (m_xtParamMode < 0 || m_xtParamMode > 3) B2FATAL("CDCGeometryPar: invalid xt-parameterization mode read !");
885
886 if (np <= 0 || np > npx) B2FATAL("CDCGeometryPar: no. of xt-params. outside limits !");
887
888 const double epsi = 0.1;
889
890 while (ifs >> iCL) {
891
892 if (iCL < m_firstLayerOffset) {
893 continue;
894 }
895
896 ifs >> theta >> alpha >> dummy1 >> iLR;
897 for (int i = 0; i < np; ++i) {
898 ifs >> xtc[i];
899 }
900
901 int itheta = -99;
902 for (unsigned short i = 0; i < nThetaBins; ++i) {
903 if (fabs(theta - m_thetaPoints[i]) < epsi) {
904 itheta = i;
905 break;
906 }
907 }
908 if (itheta < 0) B2FATAL("CDCGeometryPar: thetas in xt.dat are inconsistent !");
909
910 int ialpha = -99;
911 for (unsigned short i = 0; i < nAlphaBins; ++i) {
912 if (fabs(alpha - m_alphaPoints[i]) < epsi) {
913 ialpha = i;
914 break;
915 }
916 }
917 if (ialpha < 0) B2FATAL("CDCGeometryPar: alphas in xt.dat are inconsistent !");
918
919 for (int i = 0; i < np; ++i) {
920 m_XT[iCL][iLR][ialpha][itheta][i] = xtc[i];
921 }
922
923 double boundT = xtc[6];
924 if (m_xtParamMode == 1) {
925 m_XT[iCL][iLR][ialpha][itheta][np] = ROOT::Math::Chebyshev5(boundT, xtc[0], xtc[1], xtc[2], xtc[3], xtc[4], xtc[5]);
926 } else {
927 m_XT[iCL][iLR][ialpha][itheta][np] =
928 xtc[0] + boundT
929 * (xtc[1] + boundT
930 * (xtc[2] + boundT
931 * (xtc[3] + boundT
932 * (xtc[4] + boundT
933 * (xtc[5])))));
934 }
935 } //end of while loop
936
937 // ifs.close();
938 boost::iostreams::close(ifs);
939
940 //convert unit
941 const double degrad = M_PI / 180.;
942 for (unsigned i = 0; i < nAlphaBins; ++i) {
943 m_alphaPoints[i] *= degrad;
944 }
945 for (unsigned i = 0; i < nThetaBins; ++i) {
946 m_thetaPoints[i] *= degrad;
947 }
948
949}
Belle2::CDC::CDCGeoControlPar::getXtFile
std::string getXtFile() const
Get input file name for xt-relation.
Definition CDCGeoControlPar.h:495
Belle2::CDC::openFileB
void openFileB(boost::iostreams::filtering_istream &ifs, const std::string &fileName0)
Open a file using boost (to be able to read a gzipped file)
Definition OpenFile.cc:44

◆ nShifts()

int nShifts ( int layerId) const
inline

Returns number shift.

Parameters
layerIdThe layer id of sense wires.
Returns
The shifted cell number in layer layerId.

Definition at line 1255 of file CDCGeometryPar.h.

1256 {
1257 return m_nShifts[layerID];
1258 }

◆ nWireLayers()

unsigned nWireLayers ( ) const
inline

Returns a number of wire layers.

Returns
The number of wire layers.

Definition at line 1365 of file CDCGeometryPar.h.

1366 {
1367 return c_maxNSenseLayers;
1368 }

◆ nWiresInLayer()

unsigned nWiresInLayer ( int layerId) const
inline

Returns wire numbers in a layer.

Parameters
layerIdThe layer id.
Returns
Wire number in layer layerId.

Definition at line 1265 of file CDCGeometryPar.h.

1266 {
1267 return m_nWires[layerID];
1268 }

◆ offset()

double offset ( int layerID) const
inline

Return wire offset in phi direction at endplate.

Parameters
layerIDlayerID(0-55).
Returns
offset value.

Definition at line 1260 of file CDCGeometryPar.h.

1261 {
1262 return m_offSet[layerID];
1263 }

◆ outerRadiusInnerWall()

double outerRadiusInnerWall ( ) const
inline

Returns the outer radius of the inner wall.

Returns
The outer radius of the inner wall.

Definition at line 1335 of file CDCGeometryPar.h.

1336 {
1337 return m_rWall[1];
1338 }

◆ outerRadiusOuterWall()

double outerRadiusOuterWall ( ) const
inline

Returns the outer radius of the outer wall.

Returns
The outer radius of the outer wall.

Definition at line 1320 of file CDCGeometryPar.h.

1321 {
1322 return m_rWall[3];
1323 }

◆ outerRadiusWireLayer()

const double * outerRadiusWireLayer ( ) const

Returns an array of outer radius of wire layers.

Returns
A array of outer radius of wire layers.

Definition at line 1829 of file CDCGeometryPar.cc.

1830{
1831 static double ORWL[c_maxNSenseLayers] = {0};
1832
1833 ORWL[nWireLayers() - 1] = innerRadiusOuterWall();
1834 for (unsigned i = 0; i < nWireLayers() - 1; i++)
1835 //ORWL[i] = (m_rSLayer[i] + m_rSLayer[i + 1]) / 2.;
1836 ORWL[i] = m_rFLayer[i];
1837
1838 return ORWL;
1839}

◆ outputDesignWirParam()

void outputDesignWirParam ( unsigned layerID,
unsigned cellID ) const

Write the designed wire parameters to the alignment.dat (default).

Parameters
[in]layerIDLayer ID
[in]cellIDCell ID

Definition at line 2100 of file CDCGeometryPar.cc.

2101{
2102
2103 const unsigned L = layerID;
2104 const unsigned C = cellID;
2105
2106 static bool first = true;
2107 static ofstream ofs;
2108 if (first) {
2109 first = false;
2110 ofs.open("alignment.dat");
2111 }
2112
2113 ofs << L << " " << C;
2114
2115 ofs << setiosflags(ios::showpoint | ios::uppercase);
2116
2117 for (int i = 0; i < 3; ++i) ofs << " " << setw(15) << setprecision(8) << m_BWirPos[L][C][i];
2118
2119 for (int i = 0; i < 3; ++i) ofs << " " << setw(15) << setprecision(8) << m_FWirPos[L][C][i];
2120 ofs << setiosflags(ios::fixed);
2121 ofs << " " << setw(4) << setprecision(1) << m_senseWireTension;
2122
2123 ofs << endl;
2124}

◆ Print()

void Print ( ) const

Print some debug information.

Definition at line 1706 of file CDCGeometryPar.cc.

1707{}

◆ readChMap()

void readChMap ( )

Read channel map between wire-id and electronics-id.

Definition at line 1275 of file CDCGeometryPar.cc.

1276{
1277 std::string fileName0 = CDCGeoControlPar::getInstance().getChMapFile();
1278
1279 ifstream ifs;
1280 // openFile(ifs, fileName0);
1281 openFileA(ifs, fileName0);
1282
1283 unsigned short iSL, iL, iW, iB, iC;
1284 unsigned nRead = 0;
1285
1286 while (true) {
1287 // Read a relation
1288 ifs >> iSL >> iL >> iW >> iB >> iC;
1289 if (ifs.eof()) break;
1290 if (iSL >= c_nSuperLayers or iSL < m_firstSuperLayerOffset) continue;
1291
1292 ++nRead;
1293 WireID wID(iSL, iL, iW);
1294 m_wireToBoard.insert(pair<WireID, unsigned short>(wID, iB));
1295 }
1296
1297 if (nRead != m_nSenseWires) B2FATAL("CDCGeometryPar::readChMap: #lines read-in (=" << nRead <<
1298 ") is inconsistent with #sense-wires (="
1299 << m_nSenseWires << ") !");
1300
1301 ifs.close();
1302}
Belle2::CDC::CDCGeoControlPar::getChMapFile
std::string getChMapFile() const
Get input file name for channel map.
Definition CDCGeoControlPar.h:551
Belle2::CDC::CDCGeometryPar::m_nSenseWires
ushort m_nSenseWires
Maximum number of Sense Wires.
Definition CDCGeometryPar.h:1226
Belle2::CDC::CDCGeometryPar::m_wireToBoard
std::map< WireID, unsigned short > m_wireToBoard
map relating wire-id and board-id.
Definition CDCGeometryPar.h:1195
Belle2::CDC::CDCGeometryPar::m_firstSuperLayerOffset
ushort m_firstSuperLayerOffset
Offset of the first super layer (for reduced CDC studies)
Definition CDCGeometryPar.h:1232

◆ readEDepToADC()

void readEDepToADC ( const GearDir & gbxParams,
int mode = 0 )

Read spatial edep-to-adc conv.

factors.

Parameters
gbxParamsGear Dir.
modedummy now..

Definition at line 1306 of file CDCGeometryPar.cc.

1307{
1308 // B2WARNING("CDCGeometryPar: readEDepToADC is not ready!");
1309 std::string fileName0 = CDCGeoControlPar::getInstance().getEDepToADCFile();
1310 if (mode == 1) {
1311 fileName0 = gbxParams.getString("fudgeFactorFileName");
1312 }
1313
1314 ifstream ifs;
1315 // openFileA(ifs, fileName0);
1316 std::string fileName1 = "/data/cdc/" + fileName0;
1317 std::string fileName = FileSystem::findFile(fileName1, true);
1318
1319 if (fileName == "") {
1320 fileName = FileSystem::findFile(fileName0, true);
1321 }
1322
1323 if (fileName == "") {
1324 B2FATAL("CDC::openFile: " << fileName0 << " not exist!");
1325 } else {
1326 // B2INFO("CDC::openFile: open " << fileName);
1327 B2DEBUG(29, "CDC::openFile: open " << fileName);
1328 ifs.open(fileName.c_str());
1329 if (!ifs) B2FATAL("CDC::openFile: cannot open " << fileName << " !");
1330 }
1331
1332 unsigned short paramMode(0), nParams(0);
1333 ifs >> paramMode >> nParams;
1334 if (paramMode > 1) B2FATAL("Param mode > 1!");
1335 if (nParams > 7) B2FATAL("No. of params. > 7!");
1336 unsigned short groupId(0);
1337 ifs >> groupId;
1338 B2DEBUG(29, paramMode << " " << nParams << " " << groupId);
1339 if (groupId > 0) B2FATAL("GgroupId > 0!");
1340
1341
1342 unsigned short cLMin[c_nSuperLayers], cLMax[c_nSuperLayers]; //min and max clayer per super-layer
1343 cLMin[0] = 0;
1344 cLMax[0] = 7;
1345 for (unsigned int sl = 1; sl < c_nSuperLayers; ++sl) {
1346 cLMin[sl] = cLMax[0] + 6 * sl - 5;
1347 cLMax[sl] = cLMax[0] + 6 * sl;
1348 }
1349
1350 unsigned short id = 0;
1351 double coef = 0.;
1352 unsigned short nRead = 0;
1353 while (ifs >> id) {
1354 for (unsigned short i = 0; i < nParams; ++i) {
1355 ifs >> coef;
1356 for (unsigned short cL = cLMin[id]; cL <= cLMax[id]; ++cL) { //clayer loop
1357 for (unsigned short cell = 0; cell < m_nWires[cL]; ++cell) { //cell loop
1358 m_eDepToADCParams[cL][cell][i] = (cL < m_firstLayerOffset) ? 0 : coef;
1359 // B2DEBUG(29, "cL,cell,i,coef= "<< cL <<" "<< cell <<" "<< i <<" "<< coef);
1360 }
1361 }
1362 }
1363 ++nRead;
1364 if (nRead > c_nSuperLayers) B2FATAL("No. of read in lines > " << c_nSuperLayers << " !");
1365 }
1366
1367 ifs.close();
1368}
Belle2::CDC::CDCGeoControlPar::getEDepToADCFile
std::string getEDepToADCFile() const
Get input file name for edeptoadc.
Definition CDCGeoControlPar.h:559
Belle2::FileSystem::findFile
static std::string findFile(const std::string &path, bool silent=false)
Search for given file or directory in local or central release directory, and return absolute path if...
Definition FileSystem.cc:151

◆ readFFactor()

void readFFactor ( const GearDir & gbxParams,
int mode = 0 )

Read fudge factors.

Parameters
gbxParamsGear Dir.
modedummy now.

Definition at line 1074 of file CDCGeometryPar.cc.

1075{
1076 std::string fileName0 = CDCGeoControlPar::getInstance().getFFactorFile();
1077 if (mode == 1) {
1078 fileName0 = gbxParams.getString("fudgeFactorFileName");
1079 }
1080 B2WARNING("readFFactor is not ready! " << fileName0);
1081 //TODO; implement the following part.
1082}
Belle2::CDC::CDCGeoControlPar::getFFactorFile
std::string getFFactorFile() const
Get input file name for fudge factor.
Definition CDCGeoControlPar.h:511

◆ readFromDB()

void readFromDB ( const CDCGeometry & geom)

Gets geometry parameters from database.

Definition at line 258 of file CDCGeometryPar.cc.

259{
260 m_globalPhiRotation = geom.getGlobalPhiRotation();
261 // m_globalPhiRotation = geom.getGlobalOffsetC();
262
263 // Get inner wall parameters
264 m_rWall[0] = geom.getInnerWall(2).getRmin();
265 m_zWall[0][0] = geom.getInnerWall(0).getZbwd();
266 m_zWall[0][1] = geom.getInnerWall(0).getZfwd();
267
268 m_rWall[1] = geom.getInnerWall(0).getRmax();
269 m_zWall[1][0] = geom.getInnerWall(0).getZbwd();
270 m_zWall[1][1] = geom.getInnerWall(0).getZbwd();
271
272 // Get outer wall parameters
273 m_rWall[2] = geom.getOuterWall(0).getRmin();
274 m_zWall[2][0] = geom.getOuterWall(0).getZbwd();
275 m_zWall[2][1] = geom.getOuterWall(0).getZfwd();
276
277 m_rWall[3] = geom.getOuterWall(1).getRmax();
278 m_zWall[3][0] = geom.getOuterWall(0).getZbwd();
279 m_zWall[3][1] = geom.getOuterWall(0).getZfwd();
280
281 // Get sense layers parameters
282 m_debug = CDCGeoControlPar::getInstance().getDebug();
283 m_nSLayer = geom.getNSenseLayers();
284
285 m_materialDefinitionMode = CDCGeoControlPar::getInstance().getMaterialDefinitionMode();
286 // std::cout << m_materialDefinitionMode << std::endl;
287 if (m_materialDefinitionMode == 0) {
288 B2DEBUG(100, "CDCGeometryPar: Define a mixture of gases and wires in the tracking volume.");
289 } else if (m_materialDefinitionMode == 2) {
290 // B2INFO("CDCGeometryPar: Define all sense and field wires explicitly in the tracking volume.");
291 B2FATAL("CDCGeometryPar: Materialdefinition=2 is disabled for now.");
292 } else {
293 B2FATAL("CDCGeometryPar: Materialdefinition mode you specify is invalid.");
294 }
295
296 // Get mode for wire z-position
297 m_senseWireZposMode = CDCGeoControlPar::getInstance().getSenseWireZposMode();
298 //Set z corrections (from input data)
299 B2DEBUG(100, "CDCGeometryPar: Sense wire z mode:" << m_senseWireZposMode);
300
301 //
302 // The DB version should be implemented ASAP.
303 //
304 GearDir content = GearDir("/Detector/DetectorComponent[@name=\"CDC\"]/Content/");
305 GearDir gbxParams(content);
306 // if (m_senseWireZposMode == 1) readDeltaz(gbxParams);
307
308
309 //
310 // Sense wires.
311 //
312 for (const auto& sense : geom.getSenseLayers()) {
313 uint layerId = sense.getId();
314
315 m_rSLayer[layerId] = sense.getR();
316 m_zSBackwardLayer[layerId] = sense.getZbwd();
317 m_zSForwardLayer[layerId] = sense.getZfwd();
318 m_nWires[layerId] = sense.getNWires();
319 m_nShifts[layerId] = sense.getNShifts();
320 m_offSet[layerId] = sense.getOffset();
321 m_cellSize[layerId] = 2 * M_PI * m_rSLayer[layerId] / (double) m_nWires[layerId];
322 m_dzSBackwardLayer[layerId] = sense.getDZbwd();
323 m_dzSForwardLayer[layerId] = sense.getDZfwd();
324
325 //correction to z-position
326 if (m_senseWireZposMode == 0) {
327 } else if (m_senseWireZposMode == 1) {
328 // m_zSBackwardLayer[layerId] += m_bwdDz[layerId];
329 // m_zSForwardLayer [layerId] += m_fwdDz[layerId];
330 m_zSBackwardLayer[layerId] += m_dzSBackwardLayer[layerId];
331 m_zSForwardLayer [layerId] -= m_dzSForwardLayer [layerId];
332 } else {
333 B2FATAL("CDCGeometryPar: invalid wire z definition mode specified");
334 }
335
336 //Set design sense-wire related params.
337 const int nWires = m_nWires[layerId];
338 for (int iCell = 0; iCell < nWires; ++iCell) {
339 setDesignWirParam(layerId, iCell);
340 }
341
342 }
343
344 // Get field layers parameters
345 for (const auto& field : geom.getFieldLayers()) {
346 uint layerId = field.getId();
347
348 m_rFLayer[layerId] = field.getR();
349 m_zFBackwardLayer[layerId] = field.getZbwd();
350 m_zFForwardLayer[layerId] = field.getZfwd();
351 }
352
353 // Get sense wire diameter
354 m_senseWireDiameter = geom.getSenseDiameter();
355
356 // Get sense wire tension
357 m_senseWireTension = geom.getSenseTension();
358
359 // // Get sense wire density
360 m_senseWireDensity = 19.3; // g/cm3 <- tentatively hard-coded here
361
362 // Get field wire diameter
363 m_fieldWireDiameter = geom.getFieldDiameter();
364
365 // Get information on the number of (super) layers etc.
366 m_nSenseWires = geom.getNSenseWires();
367 m_nFieldWires = geom.getNFieldWires();
368 m_maxNSenseLayers = geom.getNumberOfSenseLayers();
369 m_maxNFieldLayers = geom.getNumberOfFieldLayers();
370 m_maxNSuperLayers = geom.getMaxNumberOfSuperLayers();
371 m_firstLayerOffset = geom.getOffsetOfFirstLayer();
372 m_firstSuperLayerOffset = geom.getOffsetOfFirstSuperLayer();
373 m_maxNCellsPerLayer = geom.getMaxNumberOfCellsPerLayer();
374
375 //Set various quantities (should be moved to CDC.xml later...)
376 m_clockFreq4TDC = geom.getClockFrequency();
377 if (not m_clockSettings.isValid())
378 B2FATAL("HardwareClockSettings payloads are not valid.");
379 const double officialClockFreq4TDC = 2 * m_clockSettings->getAcceleratorRF(); // in GHz
380 if (abs(m_clockFreq4TDC - officialClockFreq4TDC) / m_clockFreq4TDC > 1.e-4) {
381 B2WARNING("ClockFreq4TDC changed from cdclocal " << scientific << setprecision(6) << m_clockFreq4TDC << " to official " <<
382 officialClockFreq4TDC << " (GHz) (difference larger than 0.01%)");
383 m_clockFreq4TDC = officialClockFreq4TDC;
384 }
385 B2DEBUG(100, "CDCGeometryPar: Clock freq. for TDC= " << m_clockFreq4TDC << " (GHz).");
386 m_tdcBinWidth = 1. / m_clockFreq4TDC; //in ns
387 B2DEBUG(100, "CDCGeometryPar: TDC bin width= " << m_tdcBinWidth << " (ns).");
388
389 m_nominalDriftV = 4.e-3; //in cm/ns
390 m_nominalDriftVInv = 1. / m_nominalDriftV; //in ns/cm
391 m_nominalPropSpeed = 27.25; //in cm/nsec (Belle's result, provided by iwasaki san)
392
393 m_nominalSpaceResol = geom.getNominalSpaceResolution();
394 CDCGeoControlPar& gcp = CDCGeoControlPar::getInstance();
395
396 //Set displacement params. (from input data)
397 m_displacement = CDCGeoControlPar::getInstance().getDisplacement();
398 B2DEBUG(100, "CDCGeometryPar: Load displacement params. (=1); not load (=0):" << m_displacement);
399 if (m_displacement) {
400 if (gcp.getDisplacementInputType()) {
401 B2DEBUG(100, "CDCGeometryPar: Read displacement from DB");
402 setDisplacement();
403 } else {
404 readWirePositionParams(c_Base, &geom);
405 }
406 }
407
408 //Set alignment params. (from input data)
409 m_alignment = CDCGeoControlPar::getInstance().getAlignment();
410 B2DEBUG(100, "CDCGeometryPar: Load alignment params. (=1); not load (=0):" <<
411 m_alignment);
412 if (m_alignment) {
413 if (gcp.getAlignmentInputType()) {
414 B2DEBUG(100, "CDCGeometryPar: Read alignment from DB");
415 setWirPosAlignParams();
416 } else {
417 readWirePositionParams(c_Aligned, &geom);
418 }
419 }
420
421 //Set misalignment params. (from input data)
422 m_misalignment = CDCGeoControlPar::getInstance().getMisalignment();
423 B2DEBUG(100, "CDCGeometryPar: Load misalignment params. (=1); not load (=0):" <<
424 m_misalignment);
425 if (m_misalignment) {
426 if (gcp.getMisalignmentInputType()) {
427 B2DEBUG(100, "CDCGeometryPar: Read misalignment from DB");
428 setWirPosMisalignParams();
429 } else {
430 readWirePositionParams(c_Misaligned, &geom);
431 }
432 }
433
434 // Get control params. for CDC FullSim
435 m_thresholdEnergyDeposit = CDCSimControlPar::getInstance().getThresholdEnergyDeposit();
436 m_minTrackLength = CDCSimControlPar::getInstance().getMinTrackLength();
437 m_wireSag = CDCSimControlPar::getInstance().getWireSag();
438 m_modLeftRightFlag = CDCSimControlPar::getInstance().getModLeftRightFlag();
439 if (m_modLeftRightFlag) {
440 B2FATAL("ModifiedLeftRightFlag = true is disabled for now; need to update a G4-related code in framework...");
441 }
442 //N.B. The following two lines are hard-coded since only =1 are used now.
443 m_xtFileFormat = 1;
444 m_sigmaFileFormat = 1;
445
446 m_XTetc = true;
447 if (m_XTetc) {
448 if (gcp.getXtInputType()) {
449 B2DEBUG(100, "CDCGeometryPar: Read xt from DB");
450 setXtRel(); //Set xt param. (from DB)
451 } else {
452 readXT(gbxParams); //Read xt params. (from file)
453 }
454
455 if (gcp.getSigmaInputType()) {
456 B2DEBUG(100, "CDCGeometryPar: Read sigma from DB");
457 setSResol(); //Set sigma param. (from DB)
458 } else {
459 readSigma(gbxParams); //Read sigma params. (from file)
460 }
461
462 if (gcp.getFFactorInputType()) {
463 B2DEBUG(100, "CDCGeometryPar: Read fudge factors from DB");
464 setFFactor(); //Set fudge factors (from DB)
465 } else {
466 readFFactor(gbxParams); //Read fudge factors (from file)
467 }
468
469 if (gcp.getPropSpeedInputType()) {
470 B2DEBUG(100, "CDCGeometryPar: Read prop-speed from DB");
471 setPropSpeed(); //Set prop-speed (from DB)
472 } else {
473 readPropSpeed(gbxParams); //Read propagation speed
474 }
475
476 if (gcp.getT0InputType()) {
477 B2DEBUG(100, "CDCGeometryPar: Read t0 from DB");
478 setT0(); //Set t0 (from DB)
479 } else {
480 readT0(gbxParams); //Read t0 (from file)
481 }
482
483 if (gcp.getBwInputType()) {
484 B2DEBUG(100, "CDCGeometryPar: Read badwire from DB");
485 setBadWire(); //Set bad-wire (from DB)
486 } else {
487 // readBadWire(gbxParams); //Read bad-wire (from file)
488 B2FATAL("Text file input mode for bdwires is disabled now!");
489 }
490
491 if (gcp.getChMapInputType()) {
492 B2DEBUG(100, "CDCGeometryPar: Read ch-map from DB");
493 setChMap(); //Set ch-map (from DB)
494 } else {
495 readChMap(); //Read ch-map
496 }
497
498 if (gcp.getTwInputType()) {
499 B2DEBUG(100, "CDCGeometryPar: Read time-walk from DB");
500 setTW(); //Set time-walk coeffs. (from DB)
501 } else {
502 readTW(gbxParams); //Read time-walk coeffs. (from file)
503 }
504 B2DEBUG(100, "CDCGeometryPar: Time-walk param. mode= " << m_twParamMode);
505
506 if (gcp.getEDepToADCInputType()) {
507 B2DEBUG(29, "CDCGeometryPar: Read EDepToADC from DB");
508 if ((*m_eDepToADCConversionsFromDB).isValid()) {
509 setEDepToADCConversions(); //Set edep-to-adc (from DB)
510 }
511 } else {
512 readEDepToADC(gbxParams); //Read edep-to-adc params. (from file)
513 }
514 }
515
516 m_XTetc4Recon = 0;
517 // B2INFO("CDCGeometryPar: Load x-t etc. params. for reconstruction (=1); not load and use the same ones for digitization (=0):" <<
518 // B2INFO("CDCGeometryPar: Use the same x-t etc. for reconstruction as those used for digitization");
519 if (m_XTetc4Recon) {
520 readXT(gbxParams, 1);
521 readSigma(gbxParams, 1);
522 readPropSpeed(gbxParams, 1);
523 readT0(gbxParams, 1);
524 readTW(gbxParams, 1);
525 }
526
527 //calculate and save shifts in super-layers
528 setShiftInSuperLayer();
529
530}
Belle2::CDC::CDCGeoControlPar::getDebug
bool getDebug() const
Get debug flag.
Definition CDCGeoControlPar.h:319
Belle2::CDC::CDCGeoControlPar::getMaterialDefinitionMode
double getMaterialDefinitionMode() const
Get material definition mode.
Definition CDCGeoControlPar.h:335
Belle2::CDC::CDCGeoControlPar::getAlignment
bool getAlignment() const
Get alignment switch.
Definition CDCGeoControlPar.h:359
Belle2::CDC::CDCGeoControlPar::getDisplacement
bool getDisplacement() const
Get displacement switch.
Definition CDCGeoControlPar.h:351
Belle2::CDC::CDCGeoControlPar::getSenseWireZposMode
int getSenseWireZposMode() const
Get sense wire z position mode.
Definition CDCGeoControlPar.h:343
Belle2::CDC::CDCGeometryPar::m_materialDefinitionMode
int m_materialDefinitionMode
Control switch for gas and wire material definition.
Definition CDCGeometryPar.h:1121
Belle2::CDC::CDCGeometryPar::readSigma
void readSigma(const GearDir &gbxParams, int mode=0)
Read spatial resolution table.
Definition CDCGeometryPar.cc:953
Belle2::CDC::CDCGeometryPar::readTW
void readTW(const GearDir &gbxParams, int mode=0)
Read time-walk parameter.
Definition CDCGeometryPar.cc:1235
Belle2::CDC::CDCGeometryPar::readT0
void readT0(const GearDir &gbxParams, int mode=0)
Read t0 parameters (from a file).
Definition CDCGeometryPar.cc:1154
Belle2::CDC::CDCGeometryPar::m_maxNSuperLayers
ushort m_maxNSuperLayers
Maximum number of Super Layers.
Definition CDCGeometryPar.h:1230
Belle2::CDC::CDCGeometryPar::m_alignment
bool m_alignment
Switch for alignment.
Definition CDCGeometryPar.h:1114
Belle2::CDC::CDCGeometryPar::readEDepToADC
void readEDepToADC(const GearDir &gbxParams, int mode=0)
Read spatial edep-to-adc conv.
Definition CDCGeometryPar.cc:1306
Belle2::CDC::CDCGeometryPar::setDesignWirParam
void setDesignWirParam(unsigned layerID, unsigned cellID)
Set the desizend wire parameters.
Definition CDCGeometryPar.cc:2063
Belle2::CDC::CDCGeometryPar::m_XTetc
bool m_XTetc
Switch for reading x-t etc.
Definition CDCGeometryPar.h:1111
Belle2::CDC::CDCGeometryPar::setShiftInSuperLayer
void setShiftInSuperLayer()
Calculates and saves shifts in super-layers (to be used in searching hits in neighboring cells)
Definition CDCGeometryPar.cc:2985
Belle2::CDC::CDCGeometryPar::m_wireSag
bool m_wireSag
Switch for sense wire sag.
Definition CDCGeometryPar.h:1117
Belle2::CDC::CDCGeometryPar::m_XTetc4Recon
bool m_XTetc4Recon
Switch for selecting xt etc.
Definition CDCGeometryPar.h:1115
Belle2::CDC::CDCGeometryPar::m_clockSettings
DBObjPtr< HardwareClockSettings > m_clockSettings
hardware clock settings
Definition CDCGeometryPar.h:1222
Belle2::CDC::CDCGeometryPar::m_minTrackLength
double m_minTrackLength
Minimum track length for G4 step.
Definition CDCGeometryPar.h:1166
Belle2::CDC::CDCGeometryPar::m_debug
bool m_debug
Switch for debug printing.
Definition CDCGeometryPar.h:1108
Belle2::CDC::CDCGeometryPar::m_maxNSenseLayers
ushort m_maxNSenseLayers
Maximum number of Sense Wire Layers.
Definition CDCGeometryPar.h:1228
Belle2::CDC::CDCGeometryPar::readWirePositionParams
void readWirePositionParams(EWirePosition set, const CDCGeometry *geom)
Read displacement or (mis)alignment params from text file.
Definition CDCGeometryPar.cc:577
Belle2::CDC::CDCGeometryPar::m_displacement
bool m_displacement
Switch for displacement.
Definition CDCGeometryPar.h:1112
Belle2::CDC::CDCGeometryPar::m_twParamMode
int m_twParamMode
Mode for tw parameterization.
Definition CDCGeometryPar.h:1127
Belle2::CDC::CDCGeometryPar::readPropSpeed
void readPropSpeed(const GearDir &gbxParams, int mode=0)
Read the propagation speed along the sense wire.
Definition CDCGeometryPar.cc:1086
Belle2::CDC::CDCGeometryPar::m_xtFileFormat
int m_xtFileFormat
Format of xt input file.
Definition CDCGeometryPar.h:1123
Belle2::CDC::CDCGeometryPar::m_sigmaFileFormat
int m_sigmaFileFormat
Format of sigma input file.
Definition CDCGeometryPar.h:1125
Belle2::CDC::CDCGeometryPar::readChMap
void readChMap()
Read channel map between wire-id and electronics-id.
Definition CDCGeometryPar.cc:1275
Belle2::CDC::CDCGeometryPar::m_nFieldWires
ushort m_nFieldWires
Maximum number of Field Wires.
Definition CDCGeometryPar.h:1227
Belle2::CDC::CDCGeometryPar::m_maxNCellsPerLayer
ushort m_maxNCellsPerLayer
Maximum number wires within a layer.
Definition CDCGeometryPar.h:1233
Belle2::CDC::CDCGeometryPar::m_maxNFieldLayers
ushort m_maxNFieldLayers
Maximum number of Field Wire Layers.
Definition CDCGeometryPar.h:1229
Belle2::CDC::CDCGeometryPar::m_misalignment
bool m_misalignment
Switch for misalignment.
Definition CDCGeometryPar.h:1113
Belle2::CDC::CDCGeometryPar::readFFactor
void readFFactor(const GearDir &gbxParams, int mode=0)
Read fudge factors.
Definition CDCGeometryPar.cc:1074
Belle2::CDC::CDCGeometryPar::m_thresholdEnergyDeposit
double m_thresholdEnergyDeposit
Energy thresh.
Definition CDCGeometryPar.h:1165
Belle2::CDC::CDCGeometryPar::readXT
void readXT(const GearDir &gbxParams, int mode=0)
Read XT-relation table.
Definition CDCGeometryPar.cc:805
Belle2::CDC::CDCGeometryPar::m_senseWireZposMode
int m_senseWireZposMode
Mode for sense wire z position corr.
Definition CDCGeometryPar.h:1122
Belle2::CDC::CDCGeometryPar::m_modLeftRightFlag
bool m_modLeftRightFlag
Switch for modified left/right flag.
Definition CDCGeometryPar.h:1118
Belle2::CDC::CDCSimControlPar::getModLeftRightFlag
bool getModLeftRightFlag() const
Get modified left/right flag.
Definition CDCSimControlPar.h:100
Belle2::CDC::CDCSimControlPar::getMinTrackLength
double getMinTrackLength() const
Get minimum track length.
Definition CDCSimControlPar.h:124
Belle2::CDC::CDCSimControlPar::getThresholdEnergyDeposit
double getThresholdEnergyDeposit() const
Get threshold for Energy Deposit;.
Definition CDCSimControlPar.h:116
Belle2::CDC::CDCSimControlPar::getInstance
static CDCSimControlPar & getInstance()
Static method to get a reference to the CDCSimControlPar instance.
Definition CDCSimControlPar.cc:16
Belle2::CDC::CDCSimControlPar::getWireSag
bool getWireSag() const
Get wiresag flag.
Definition CDCSimControlPar.h:92

◆ readPropSpeed()

void readPropSpeed ( const GearDir & gbxParams,
int mode = 0 )

Read the propagation speed along the sense wire.

Parameters
gbxParamsGear Dir.
mode0: read simulation file, 1: read reconstruction file.

Definition at line 1086 of file CDCGeometryPar.cc.

1087{
1088 std::string fileName0 = CDCGeoControlPar::getInstance().getPropSpeedFile();
1089 if (mode == 1) {
1090 fileName0 = gbxParams.getString("propSpeed4ReconFileName");
1091 }
1092
1093 ifstream ifs;
1094 // openFile(ifs, fileName0);
1095 openFileA(ifs, fileName0);
1096
1097 uint iL;
1098 double speed;
1099 unsigned nRead = 0;
1100
1101 while (true) {
1102 ifs >> iL >> speed;
1103 if (ifs.eof()) break;
1104
1105 ++nRead;
1106
1107 m_propSpeedInv[iL] = (iL < m_firstLayerOffset) ? 0 : 1. / speed;
1108
1109 if (m_debug) B2DEBUG(150, iL << " " << speed);
1110 }
1111
1112 if (nRead != c_maxNSenseLayers) B2FATAL("CDCGeometryPar::readPropSpeed: #lines read-in (=" << nRead <<
1113 ") is inconsistent with total #layers (=" << c_maxNSenseLayers << ") !");
1114
1115 ifs.close();
1116}
Belle2::CDC::CDCGeoControlPar::getPropSpeedFile
std::string getPropSpeedFile() const
Get input file name for prop-speed.
Definition CDCGeoControlPar.h:519

◆ readSigma()

void readSigma ( const GearDir & gbxParams,
int mode = 0 )

Read spatial resolution table.

Parameters
gbxParamsGear Dir.
mode0: read simulation file, 1: read reconstruction file.

Definition at line 953 of file CDCGeometryPar.cc.

954{
955 if (m_sigmaFileFormat == 0) {
956 // oldReadSigma(gbxParams, mode);
957 } else {
958 newReadSigma(gbxParams, mode);
959 }
960}
Belle2::CDC::CDCGeometryPar::newReadSigma
void newReadSigma(const GearDir &gbxParams, int mode=0)
Read spatial resolution table in new format.
Definition CDCGeometryPar.cc:962

◆ readT0()

void readT0 ( const GearDir & gbxParams,
int mode = 0 )

Read t0 parameters (from a file).

Parameters
gbxParamsGear Dir.
mode0: read simulation file, 1: read reconstruction file.

Definition at line 1154 of file CDCGeometryPar.cc.

1155{
1156 std::string fileName0 = CDCGeoControlPar::getInstance().getT0File();
1157 if (mode == 1) {
1158 fileName0 = gbxParams.getString("t04ReconFileName");
1159 }
1160
1161 ifstream ifs;
1162 // openFile(ifs, fileName0);
1163 openFileA(ifs, fileName0);
1164
1165 uint iL(0), iC(0);
1166 float t0(0);
1167 unsigned nRead = 0;
1168
1169 while (true) {
1170 ifs >> iL >> iC >> t0;
1171
1172 if (iL < m_firstLayerOffset) {
1173 continue;
1174 }
1175
1176 if (ifs.eof()) break;
1177
1178 ++nRead;
1179
1180 m_t0[iL][iC] = (iL < m_firstLayerOffset) ? 0. : t0;
1181
1182 if (m_debug) {
1183 B2DEBUG(150, iL << " " << iC << " " << t0);
1184 }
1185 }
1186
1187 if (nRead != m_nSenseWires) B2FATAL("CDCGeometryPar::readT0: #lines read-in (=" << nRead <<
1188 ") is inconsistent with total #sense wires (=" << m_nSenseWires << ") !");
1189
1190 ifs.close();
1191
1192 calcMeanT0();
1193}
Belle2::CDC::CDCGeoControlPar::getT0File
std::string getT0File() const
Get input file name for t0.
Definition CDCGeoControlPar.h:527
Belle2::CDC::CDCGeometryPar::calcMeanT0
void calcMeanT0(double minT0=3800, double maxT0=5800, int maxIt=10, double nStdv=3, double epsi=0.1)
Calculate mean t0 in ns (over all good wires)
Definition CDCGeometryPar.cc:1392

◆ readTW()

void readTW ( const GearDir & gbxParams,
int mode = 0 )

Read time-walk parameter.

Parameters
gbxParamsGear Dir.
mode0: read simulation file, 1: read reconstruction file.

Definition at line 1235 of file CDCGeometryPar.cc.

1236{
1237 std::string fileName0 = CDCGeoControlPar::getInstance().getTwFile();
1238 if (mode == 1) {
1239 fileName0 = gbxParams.getString("tw4ReconFileName");
1240 }
1241
1242 ifstream ifs;
1243 // openFile(ifs, fileName0);
1244 openFileA(ifs, fileName0);
1245
1246 unsigned short nPars(0);
1247 ifs >> m_twParamMode >> nPars;
1248 if (m_twParamMode > 1) {
1249 B2FATAL("CDCGeometryPar::readTW: invalid mode specified!");
1250 }
1251 if (nPars > 2) {
1252 B2FATAL("CDCGeometryPar::readTW: invalid #params specified!");
1253 }
1254
1255 unsigned iBoard = 0;
1256 unsigned nRead = 0;
1257 // Read board id and coefficients
1258 while (ifs >> iBoard) {
1259 for (unsigned short i = 0; i < nPars; ++i) {
1260 ifs >> m_timeWalkCoef[iBoard][i];
1261 }
1262 ++nRead;
1263 }
1264
1265 if (nRead != c_nBoards) B2FATAL("CDCGeometryPar::readTW: #lines read-in (=" << nRead << ") is inconsistent with #boards (=" <<
1266 c_nBoards
1267 << ") !");
1268
1269 ifs.close();
1270}
Belle2::CDC::CDCGeoControlPar::getTwFile
std::string getTwFile() const
Get input file name for time-walk.
Definition CDCGeoControlPar.h:535

◆ readWirePositionParams()

void readWirePositionParams ( EWirePosition set,
const CDCGeometry * geom )

Read displacement or (mis)alignment params from text file.

Parameters
[in]setWire position set, i.e. c_Base, c_Misaliged or c_Aligned.
[in]geomPointer to DB CDCGeometry db object.

Definition at line 577 of file CDCGeometryPar.cc.

578{
579
580 std::string fileName0;
581 CDCGeoControlPar& gcp = CDCGeoControlPar::getInstance();
582 if (geom) {
583 if (set == c_Base) {
584 fileName0 = gcp.getDisplacementFile();
585 } else if (set == c_Misaligned) {
586 fileName0 = gcp.getMisalignmentFile();
587 } else if (set == c_Aligned) {
588 fileName0 = gcp.getAlignmentFile();
589 }
590 } else {
591 if (set == c_Base) {
592 fileName0 = gcp.getDisplacementFile();
593 } else if (set == c_Misaligned) {
594 fileName0 = gcp.getMisalignmentFile();
595 } else if (set == c_Aligned) {
596 fileName0 = gcp.getAlignmentFile();
597 }
598 }
599
600 // ifstream ifs;
601 // openFile(ifs, fileName0);
602 boost::iostreams::filtering_istream ifs;
603 openFileB(ifs, fileName0);
604
605 uint iL(0), iC(0);
606 const int np = 3;
607 double back[np], fwrd[np], tension;
608 unsigned nRead = 0;
609
610 while (true) {
611 ifs >> iL >> iC;
612 for (int i = 0; i < np; ++i) {
613 ifs >> back[i];
614 }
615 for (int i = 0; i < np; ++i) {
616 ifs >> fwrd[i];
617 }
618 // if (set != c_Base) ifs >> tension;
619 ifs >> tension;
620
621 if (ifs.eof()) break;
622
623 if (iL < m_firstLayerOffset) {
624 continue;
625 }
626
627 ++nRead;
628
629 for (int i = 0; i < np; ++i) {
630 if (set == c_Base) {
631 m_BWirPos[iL][iC][i] += (iL < m_firstLayerOffset) ? 0 : back[i];
632 m_FWirPos[iL][iC][i] += (iL < m_firstLayerOffset) ? 0 : fwrd[i];
633 } else if (set == c_Misaligned) {
634 m_BWirPosMisalign[iL][iC][i] = m_BWirPos[iL][iC][i] + ((iL < m_firstLayerOffset) ? 0 : back[i]);
635 m_FWirPosMisalign[iL][iC][i] = m_FWirPos[iL][iC][i] + ((iL < m_firstLayerOffset) ? 0 : fwrd[i]);
636 } else if (set == c_Aligned) {
637 m_BWirPosAlign[iL][iC][i] = m_BWirPos[iL][iC][i] + ((iL < m_firstLayerOffset) ? 0 : back[i]);
638 m_FWirPosAlign[iL][iC][i] = m_FWirPos[iL][iC][i] + ((iL < m_firstLayerOffset) ? 0 : fwrd[i]);
639 }
640 }
641
642 // double baseTension = 0.;
643
644 if (set == c_Base) {
645 m_WireSagCoef[iL][iC] = (iL < m_firstLayerOffset) ? 0 : M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter /
646 (8.*(m_senseWireTension + tension));
647 // std::cout <<"base iL, iC, m_senseWireTension, tension= " << iL <<" " << iC <<" "<< m_senseWireTension <<" "<< tension << std::endl;
648 } else if (set == c_Misaligned) {
649 double baseTension = M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter / (8.* m_WireSagCoef[iL][iC]);
650 m_WireSagCoefMisalign[iL][iC] = (iL < m_firstLayerOffset) ? 0 : M_PI * m_senseWireDensity * m_senseWireDiameter *
651 m_senseWireDiameter / (8.* (baseTension + tension));
652 // std::cout <<"misa iL, iC,basetension, tension= " << iL <<" " << iC <<" "<< baseTension <<" "<< tension << std::endl;
653 } else if (set == c_Aligned) {
654 double baseTension = M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter / (8.* m_WireSagCoef[iL][iC]);
655 m_WireSagCoefAlign[iL][iC] = (iL < m_firstLayerOffset) ? 0 : M_PI * m_senseWireDensity * m_senseWireDiameter *
656 m_senseWireDiameter / (8.*(baseTension + tension));
657 // std::cout <<"algn iL, iC,basetension, tension= " << iL <<" " << iC <<" "<< baseTension <<" "<< tension << std::endl;
658 }
659 // std::cout << "baseTension,tension= " << baseTension <<" "<< tension << std::endl;
660
661 /*
662 if (m_debug) {
663 std::cout << iL << " " << iC;
664 for (int i = 0; i < np; ++i) cout << " " << back[i];
665 for (int i = 0; i < np; ++i) cout << " " << fwrd[i];
666 std::cout << " " << tension << std::endl;
667 }
668 */
669
670 }
671
672 if (nRead != m_nSenseWires) B2FATAL("CDCGeometryPar::readWirePositionParams: #lines read-in (=" << nRead <<
673 ") is inconsistent with total #sense wires (=" << m_nSenseWires << ") !");
674
675 // ifs.close();
676 boost::iostreams::close(ifs);
677}
Belle2::CDC::CDCGeoControlPar::getDisplacementFile
std::string getDisplacementFile() const
Get input file name for wire displacement.
Definition CDCGeoControlPar.h:471
Belle2::CDC::CDCGeoControlPar::getMisalignmentFile
std::string getMisalignmentFile() const
Get input file name for wire misalignment.
Definition CDCGeoControlPar.h:487
Belle2::CDC::CDCGeoControlPar::getAlignmentFile
std::string getAlignmentFile() const
Get input file name for wire alignment.
Definition CDCGeoControlPar.h:479

◆ readXT()

void readXT ( const GearDir & gbxParams,
int mode = 0 )

Read XT-relation table.

Parameters
[in]gbxParamsGear Dir.
[in]mode0: read simulation file, 1: read reconstruction file.

Definition at line 805 of file CDCGeometryPar.cc.

806{
807 if (m_xtFileFormat == 0) {
808 // oldReadXT(gbxParams, mode);
809 } else {
810 newReadXT(gbxParams, mode);
811 }
812}
Belle2::CDC::CDCGeometryPar::newReadXT
void newReadXT(const GearDir &gbxParams, int mode=0)
Read XT-relation table in new format.
Definition CDCGeometryPar.cc:816

◆ senseWireBZ()

double senseWireBZ ( int layerId) const
inline

Returns backward z position of sense wire in each layer.

Parameters
layerIdThe layer id.
Returns
The backward z position of sense wire in layer layerId.

Definition at line 1295 of file CDCGeometryPar.h.

1296 {
1297 return m_zSBackwardLayer[layerID];
1298 }

◆ senseWireDiameter()

double senseWireDiameter ( ) const
inline

Returns diameter of the sense wire.

Returns
Diameter of the sense wire.

Definition at line 1355 of file CDCGeometryPar.h.

1356 {
1357 return m_senseWireDiameter;
1358 }

◆ senseWireFZ()

double senseWireFZ ( int layerId) const
inline

Returns forward z position of sense wire in each layer.

Parameters
layerIdThe layer id.
Returns
The forward z position of sense wire in layer layerId.

Definition at line 1290 of file CDCGeometryPar.h.

1291 {
1292 return m_zSForwardLayer[layerID];
1293 }

◆ senseWireR()

double senseWireR ( int layerId) const
inline

Returns radius of sense wire in each layer.

Parameters
layerIdThe layer id.
Returns
The radius of sense wire in layer layerId.

Definition at line 1285 of file CDCGeometryPar.h.

1286 {
1287 return m_rSLayer[layerID];
1288 }

◆ setBadBoard()

void setBadBoard ( )

Set bad-boards (from DB)

Definition at line 1439 of file CDCGeometryPar.cc.

1440{
1441 calcMeanT0();
1442}

◆ setBadWire()

void setBadWire ( )

Set bad-wires (from DB)

Definition at line 1432 of file CDCGeometryPar.cc.

1433{
1434 // m_badWire = (*m_badWireFromDB)->getWires();
1435 calcMeanT0();
1436}

◆ setChMap()

void setChMap ( )

Set channel map (from DB)

Definition at line 1598 of file CDCGeometryPar.cc.

1599{
1600 for (const auto& cm : (*m_chMapFromDB)) {
1601 const unsigned short isl = cm.getISuperLayer();
1602 if (isl >= c_nSuperLayers or isl < m_firstSuperLayerOffset) continue;
1603 const uint il = cm.getILayer();
1604 const int iw = cm.getIWire();
1605 const int iBd = cm.getBoardID();
1606 const WireID wID(isl, il, iw);
1607 m_wireToBoard.insert(pair<WireID, unsigned short>(wID, iBd));
1608 const int iCh = cm.getBoardChannel();
1609 m_wireToChannel.insert(pair<WireID, unsigned short>(wID, iCh));
1610 m_boardAndChannelToWire[iBd][iCh] = wID.getEWire();
1611 }
1612}
Belle2::CDC::CDCGeometryPar::m_wireToChannel
std::map< WireID, unsigned short > m_wireToChannel
map relating wire-id and channel-id.
Definition CDCGeometryPar.h:1196

◆ setDesignWirParam()

void setDesignWirParam ( unsigned layerID,
unsigned cellID )

Set the desizend wire parameters.

Parameters
[in]layerIDLayer ID
[in]cellIDCell ID

Definition at line 2063 of file CDCGeometryPar.cc.

2064{
2065 const unsigned L = layerID;
2066 const unsigned C = cellID;
2067
2068 const double offset = m_offSet[L];
2069 //...Offset modification to be aligned to axial at z=0...
2070 const double phiSize = 2 * M_PI / double(m_nWires[L]);
2071
2072 const double phiF = phiSize * (double(C) + offset)
2073 + phiSize * 0.5 * double(m_nShifts[L]) + m_globalPhiRotation;
2074
2075 m_FWirPos[L][C][0] = (L < m_firstLayerOffset) ? 0. : m_rSLayer[L] * cos(phiF);
2076 m_FWirPos[L][C][1] = (L < m_firstLayerOffset) ? 0. : m_rSLayer[L] * sin(phiF);
2077 m_FWirPos[L][C][2] = (L < m_firstLayerOffset) ? 0. : m_zSForwardLayer[L];
2078
2079 const double phiB = phiSize * (double(C) + offset) + m_globalPhiRotation;
2080
2081 m_BWirPos[L][C][0] = (L < m_firstLayerOffset) ? 0. : m_rSLayer[L] * cos(phiB);
2082 m_BWirPos[L][C][1] = (L < m_firstLayerOffset) ? 0. : m_rSLayer[L] * sin(phiB);
2083 m_BWirPos[L][C][2] = (L < m_firstLayerOffset) ? 0. : m_zSBackwardLayer[L];
2084
2085 for (int i = 0; i < 3; ++i) {
2086 m_FWirPosMisalign[L][C][i] = (L < m_firstLayerOffset) ? 0. : m_FWirPos[L][C][i];
2087 m_BWirPosMisalign[L][C][i] = (L < m_firstLayerOffset) ? 0. : m_BWirPos[L][C][i];
2088 m_FWirPosAlign [L][C][i] = (L < m_firstLayerOffset) ? 0. : m_FWirPos[L][C][i];
2089 m_BWirPosAlign [L][C][i] = (L < m_firstLayerOffset) ? 0. : m_BWirPos[L][C][i];
2090 }
2091
2092 m_WireSagCoef[L][C] = (L < m_firstLayerOffset) ? 0. : M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter /
2093 (8. * m_senseWireTension);
2094 // m_WireSagCoef [L][C] = 0.;
2095 m_WireSagCoefMisalign[L][C] = (L < m_firstLayerOffset) ? 0. : m_WireSagCoef[L][C];
2096 m_WireSagCoefAlign [L][C] = (L < m_firstLayerOffset) ? 0. : m_WireSagCoef[L][C];
2097
2098}

◆ setDisplacement()

void setDisplacement ( )

Set displacement of sense wire.

Definition at line 2961 of file CDCGeometryPar.cc.

2962{
2963 // std::cout <<"setDisplacement called" << std::endl;
2964 for (const auto& disp : (*m_displacementFromDB)) {
2965 // const int iLayer0 = disp.getICLayer();
2966 // const int iWire0 = disp.getIWire();
2967 const int iLayer = WireID(disp.getEWire()).getICLayer();
2968 const int iWire = WireID(disp.getEWire()).getIWire();
2969 // if (iLayer0 != iLayer) B2FATAL("Layer0 != Layer");
2970 // if (iWire0 != iWire) B2FATAL("Wire0 != Wire");
2971 m_FWirPos[iLayer][iWire][0] += (iLayer < m_firstLayerOffset) ? 0. : disp.getXFwd();
2972 m_FWirPos[iLayer][iWire][1] += (iLayer < m_firstLayerOffset) ? 0. : disp.getYFwd();
2973 m_FWirPos[iLayer][iWire][2] += (iLayer < m_firstLayerOffset) ? 0. : disp.getZFwd();
2974 m_BWirPos[iLayer][iWire][0] += (iLayer < m_firstLayerOffset) ? 0. : disp.getXBwd();
2975 m_BWirPos[iLayer][iWire][1] += (iLayer < m_firstLayerOffset) ? 0. : disp.getYBwd();
2976 m_BWirPos[iLayer][iWire][2] += (iLayer < m_firstLayerOffset) ? 0. : disp.getZBwd();
2977 m_WireSagCoef[iLayer][iWire] = (iLayer < m_firstLayerOffset) ? 0. : M_PI * m_senseWireDensity * m_senseWireDiameter *
2978 m_senseWireDiameter / (8.*
2979 (m_senseWireTension + disp.getTension()));
2980 // std::cout <<"setdisp iL, iC, nominaltension, tension= " << iLayer <<" " << iWire <<" "<< m_senseWireTension <<" "<< disp.getTension() << std::endl;
2981 }
2982}

◆ setEDepToADCConversions()

void setEDepToADCConversions ( )

Set edep-to-ADC conversion params.

(from DB)

Definition at line 1615 of file CDCGeometryPar.cc.

1616{
1617 unsigned short groupId = (*m_eDepToADCConversionsFromDB)->getGroupID();
1618 unsigned short nEnt = (*m_eDepToADCConversionsFromDB)->getEntries();
1619 if (groupId == 0) { //per super-layer mode
1620 if (nEnt > c_nSuperLayers) B2FATAL("CDCGeometryPar:: group-id " << groupId << " and #entries " << nEnt << " are inconsistent!");
1621 } else if (groupId == 1) { //per layer mode
1622 if (nEnt > c_maxNSenseLayers) B2FATAL("CDCGeometryPar:: group-id " << groupId << " and #entries " << nEnt << " are inconsistent!");
1623 } else {
1624 B2FATAL("CDCGeometryPar:: Invalid group-id " << groupId << " specified !");
1625 }
1626
1627 unsigned short cLMin[c_nSuperLayers], cLMax[c_nSuperLayers]; //min and max clayer per super-layer
1628 cLMin[0] = 0;
1629 cLMax[0] = 7;
1630 for (unsigned int sl = 1; sl < c_nSuperLayers; ++sl) {
1631 cLMin[sl] = cLMax[0] + 6 * sl - 5;
1632 cLMax[sl] = cLMax[0] + 6 * sl;
1633 }
1634
1635 for (unsigned short id = 0; id < nEnt; ++id) {
1636 unsigned short np = ((*m_eDepToADCConversionsFromDB)->getParams(id)).size();
1637 if (np > 7) B2FATAL("CDCGeometryPar:: No. of edep-to-ADC conversion params. > 7");
1638 if (groupId == 0) { //per super-layer; id=super-layer
1639 for (unsigned short cL = cLMin[id]; cL <= cLMax[id]; ++cL) { //clayer loop
1640 for (unsigned short cell = 0; cell < m_nWires[cL]; ++cell) { //cell loop
1641 for (unsigned short i = 0; i < np; ++i) {
1642 m_eDepToADCParams[cL][cell][i] = (cL < m_firstLayerOffset) ? 0. : ((*m_eDepToADCConversionsFromDB)->getParams(id))[i];
1643 }
1644 }
1645 }
1646 } else if (groupId == 1) { //per clayer; id=clayer
1647 for (unsigned short cell = 0; cell < m_nWires[id]; ++cell) { //cell loop
1648 for (unsigned short i = 0; i < np; ++i) {
1649 m_eDepToADCParams[id][cell][i] = (id < m_firstLayerOffset) ? 0. : ((*m_eDepToADCConversionsFromDB)->getParams(id))[i];
1650 }
1651 }
1652 } else if (groupId == 2) { //per wire
1653 //not ready
1654 B2FATAL("CDCGeometryPar::setEDepToADCConversions(): groupId=2 not ready!");
1655 }
1656 }
1657}

◆ setFFactor()

void setFFactor ( )

Set fudge factors (from DB).

Definition at line 1570 of file CDCGeometryPar.cc.

1571{
1572 unsigned short groupId = (*m_fFactorFromDB)->getGroupID();
1573 unsigned short nEnt = (*m_fFactorFromDB)->getEntries();
1574 B2DEBUG(29, "setFFactor called: groupId,nEnt= " << groupId << " " << nEnt);
1575
1576 if (groupId == 0) { //per all-layers mode
1577 } else {
1578 B2FATAL("CDCGeometryPar:: Invalid group-id " << groupId << " specified!");
1579 }
1580
1581 for (unsigned short id = 0; id < nEnt; ++id) {
1582 unsigned short np = ((*m_fFactorFromDB)->getFactors(id)).size();
1583 if (np != 3) B2FATAL("CDCGeometryPar:: No. of fudge factors != 3!");
1584 for (unsigned short i = 0; i < np; ++i) {
1585 m_fudgeFactorForSigma[i] = ((*m_fFactorFromDB)->getFactors(id))[i];
1586 B2DEBUG(29, i << " " << m_fudgeFactorForSigma[i]);
1587 }
1588 }
1589
1590 CDCGeoControlPar& gcp = CDCGeoControlPar::getInstance();
1591 m_fudgeFactorForSigma[0] *= gcp.getAddFudgeFactorForSigmaForData();
1592 m_fudgeFactorForSigma[1] *= gcp.getAddFudgeFactorForSigmaForMC();
1593 B2DEBUG(29, "fudge factors= " << m_fudgeFactorForSigma[0] << " " << m_fudgeFactorForSigma[1] << " " << m_fudgeFactorForSigma[2]);
1594}
Belle2::CDC::CDCGeoControlPar::getAddFudgeFactorForSigmaForMC
double getAddFudgeFactorForSigmaForMC() const
Get additional fudge factor for space resol for MC.
Definition CDCGeoControlPar.h:575
Belle2::CDC::CDCGeoControlPar::getAddFudgeFactorForSigmaForData
double getAddFudgeFactorForSigmaForData() const
Get additional fudge factor for space resol for data.
Definition CDCGeoControlPar.h:567
Belle2::CDC::CDCGeometryPar::m_fudgeFactorForSigma
double m_fudgeFactorForSigma[3]
Fuge factor for space resol.
Definition CDCGeometryPar.h:1206

◆ setNominalSpaceResol()

void setNominalSpaceResol ( double resol)
inline

Set the nominal spatial resolution in the unit of um.

Parameters
[in]resolspatial resolution (um)

Definition at line 825 of file CDCGeometryPar.h.

826 {
827 m_nominalSpaceResol = resol;
828 }

◆ setPropSpeed()

void setPropSpeed ( )

Set prop.

-speeds (from DB).

Definition at line 1445 of file CDCGeometryPar.cc.

1446{
1447 for (unsigned short iCL = 0; iCL < (*m_propSpeedFromDB)->getEntries(); ++iCL) {
1448 m_propSpeedInv[iCL] = (iCL < m_firstLayerOffset) ? 0. : 1. / (*m_propSpeedFromDB)->getSpeed(iCL);
1449 }
1450}

◆ setSenseWireBZ()

void setSenseWireBZ ( int layerId,
double bz )
inline

set backward z position of sense wires.

Parameters
layerIdThe layer id of sense wire.
bzThe backward position of sense wires in layer layerId.

Definition at line 1280 of file CDCGeometryPar.h.

1281 {
1282 m_zSBackwardLayer[layerId] = bz;
1283 }

◆ setSenseWireFZ()

void setSenseWireFZ ( int layerId,
double fz )
inline

Set forward z position of sense wires.

Parameters
layerIdThe layer id of sense wire.
fzThe forward position of sense wires in layer layerId.

Definition at line 1275 of file CDCGeometryPar.h.

1276 {
1277 m_zSForwardLayer[layerId] = fz;
1278 }

◆ setSenseWireR()

void setSenseWireR ( int layerId,
double r )
inline

Set radius of sense wire in each layer.

Parameters
layerIdThe layer id of sense wires.
rThe radius of sense wires in layer layerId.

Definition at line 1270 of file CDCGeometryPar.h.

1271 {
1272 m_rSLayer[layerId] = r;
1273 }

◆ setShiftInSuperLayer()

void setShiftInSuperLayer ( )

Calculates and saves shifts in super-layers (to be used in searching hits in neighboring cells)

Definition at line 2985 of file CDCGeometryPar.cc.

2986{
2987 const unsigned short nLayers[c_nSuperLayers] = {8, 6, 6, 6, 6, 6, 6, 6, 6}; //tentative
2988
2989 for (unsigned short SLayer = 0; SLayer < c_nSuperLayers; ++SLayer) {
2990 unsigned short firstCLayer = 0;
2991 for (unsigned short i = 0; i < SLayer; ++i) {
2992 firstCLayer += nLayers[i];
2993 }
2994 // std::cout <<"SLayer,firstCLayer= " << SLayer <<" "<< firstCLayer << std::endl;
2995
2996 B2Vector3D firstBPos = wireBackwardPosition(firstCLayer, 0);
2997 for (unsigned short Layer = 0; Layer < nLayers[SLayer]; ++Layer) {
2998 unsigned short CLayer = firstCLayer + Layer;
2999
3000 if (CLayer == firstCLayer) {
3001 m_shiftInSuperLayer[SLayer][Layer] = 0;
3002
3003 } else if (CLayer == firstCLayer + 1) {
3004 B2Vector3D BPos = wireBackwardPosition(CLayer, 0);
3005 m_shiftInSuperLayer[SLayer][Layer] = (BPos.Cross(firstBPos)).Z() > 0. ? -1 : 1;
3006 // std::cout <<"CLayer,Layer,shift= " << CLayer <<" "<< Layer <<" "<< m_shiftInSuperLayer[SLayer][Layer] <<" "<< (BPos.Cross(firstBPos)).Z() << std::endl;
3007
3008 } else {
3009 if (Layer % 2 == 0) {
3010 m_shiftInSuperLayer[SLayer][Layer] = 0;
3011 } else {
3012 m_shiftInSuperLayer[SLayer][Layer] = m_shiftInSuperLayer[SLayer][1];
3013 }
3014 }
3015 // std::cout <<"CLayer,Layer,shift= " << CLayer <<" "<< Layer <<" "<< m_shiftInSuperLayer[SLayer][Layer] << std::endl;
3016 }
3017 }
3018}
Belle2::CDC::CDCGeometryPar::wireBackwardPosition
const B2Vector3D wireBackwardPosition(uint layerId, int cellId, EWirePosition set=c_Base) const
Returns the backward position of the input sense wire.
Definition CDCGeometryPar.cc:1758

◆ setSResol()

void setSResol ( )

Set spatial resolution (from DB).

Definition at line 1527 of file CDCGeometryPar.cc.

1528{
1529 m_linearInterpolationOfSgm = true; //must be true now
1530
1531 // std::cout <<"setSResol called" << std::endl;
1532 m_nAlphaPoints4Sgm = (*m_sResolFromDB)->getNoOfAlphaBins();
1533 for (unsigned short i = 0; i < m_nAlphaPoints4Sgm; ++i) {
1534 m_alphaPoints4Sgm[i] = (*m_sResolFromDB)->getAlphaPoint(i);
1535 // std::cout << m_alphaPoints4Sgm[i]*180./M_PI << std::endl;
1536 }
1537
1538 m_nThetaPoints4Sgm = (*m_sResolFromDB)->getNoOfThetaBins();
1539 for (unsigned short i = 0; i < m_nThetaPoints4Sgm; ++i) {
1540 m_thetaPoints4Sgm[i] = (*m_sResolFromDB)->getThetaPoint(i);
1541 // std::cout << m_thetaPoints4Sgm[i]*180./M_PI << std::endl;
1542 }
1543
1544 // std::cout << "m_nAlphaPoints4Sgm= " << m_nAlphaPoints4Sgm << std::endl;
1545 // std::cout << "m_nThetaPoints4Sgm= " << m_nThetaPoints4Sgm << std::endl;
1546
1547 m_sigmaParamMode = (*m_sResolFromDB)->getSigmaParamMode();
1548
1549 m_maxSpaceResol = (*m_sResolFromDB)->getMaxSpaceResol();
1550
1551 for (unsigned short iCL = 0; iCL < c_maxNSenseLayers; ++iCL) {
1552 for (unsigned short iLR = 0; iLR < 2; ++iLR) {
1553 for (unsigned short iA = 0; iA < m_nAlphaPoints4Sgm; ++iA) {
1554 for (unsigned short iT = 0; iT < m_nThetaPoints4Sgm; ++iT) {
1555 const std::vector<float> params = (*m_sResolFromDB)->getSigmaParams(iCL, iLR, iA, iT);
1556 unsigned short np = params.size();
1557 // std::cout <<"np4sigma= " << np << std::endl;
1558 for (unsigned short i = 0; i < np; ++i) {
1559 m_Sigma[iCL][iLR][iA][iT][i] = (iCL < m_firstLayerOffset) ? 0. : params[i];
1560 }
1561 }
1562 }
1563 }
1564 }
1565
1566}

◆ setT0()

void setT0 ( )

Set t0 parameters (from DB)

Definition at line 1372 of file CDCGeometryPar.cc.

1373{
1374 for (unsigned short iCL = 0; iCL < c_maxNSenseLayers; ++iCL) {
1375 for (unsigned short iW = 0; iW < c_maxNDriftCells; ++iW) {
1376 m_t0[iCL][iW] = 0.;
1377 }
1378 }
1379
1380 for (auto const& ent : (*m_t0FromDB)->getT0s()) {
1381 const WireID wid = WireID(ent.first);
1382 const unsigned short iCL = wid.getICLayer();
1383 const unsigned short iW = wid.getIWire();
1384 m_t0[iCL][iW] = (iCL < m_firstLayerOffset) ? 0. : ent.second;
1385 }
1386
1387 calcMeanT0();
1388}
Belle2::WireID::getICLayer
unsigned short getICLayer() const
Getter for continuous layer numbering.
Definition WireID.cc:24
Belle2::WireID::getIWire
unsigned short getIWire() const
Getter for wire within the layer.
Definition WireID.h:145

◆ setTW()

void setTW ( )

Set time-walk parameters.

Definition at line 1454 of file CDCGeometryPar.cc.

1455{
1456 // (*m_timeWalkFromDB)->dump();
1457 m_twParamMode = (*m_timeWalkFromDB)->getTwParamMode();
1458
1459 for (unsigned short iBd = 0; iBd < (*m_timeWalkFromDB)->getEntries(); ++iBd) {
1460 int np = ((*m_timeWalkFromDB)->getTimeWalkParams(iBd)).size();
1461 for (int i = 0; i < np; ++i) {
1462 m_timeWalkCoef[iBd][i] = ((*m_timeWalkFromDB)->getTimeWalkParams(iBd))[i];
1463 }
1464 }
1465}

◆ setWirPosAlignParams()

void setWirPosAlignParams ( )

Set wire alignment params.

from DB.

Definition at line 681 of file CDCGeometryPar.cc.

682{
683 // Layer alignment
684 for (unsigned iL = 0; iL < c_maxNSenseLayers; ++iL) {
685
686 if (iL < m_firstLayerOffset) {
687 continue;
688 }
689
690 // wire number 511 = no wire
691 auto layerID = WireID(iL, 511);
692
693 // Alignment parameters for layer iL
694 double d_layerXbwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerX);
695 double d_layerYbwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerY);
696 double d_layerPhiBwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerPhi);
697
698 double d_layerXfwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerDx) + d_layerXbwd;
699 double d_layerYfwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerDy) + d_layerYbwd;
700 double d_layerPhiFwd = (*m_alignmentFromDB)->get(layerID, CDCAlignment::layerDPhi) + d_layerPhiBwd;
701
702 for (unsigned iC = 0; iC < m_nWires[iL]; ++iC) {
703 // Positions (nominal+displacement) of wire-ends of wire iC in layer iL
704 double wireXbwd = m_BWirPos[iL][iC][0];
705 double wireYbwd = m_BWirPos[iL][iC][1];
706 double wireZbwd = m_BWirPos[iL][iC][2];
707
708 double wireXfwd = m_FWirPos[iL][iC][0];
709 double wireYfwd = m_FWirPos[iL][iC][1];
710 double wireZfwd = m_FWirPos[iL][iC][2];
711
712 // Aligned positions of wire-ends are obtained by rotating "nominal+displacement" positions and shifting them using
713 // common parameters for layer rotation and shifts (at corresponding end-caps)
714 m_BWirPosAlign[iL][iC][0] = d_layerXbwd + cos(d_layerPhiBwd) * wireXbwd + sin(d_layerPhiBwd) * wireYbwd;
715 m_BWirPosAlign[iL][iC][1] = d_layerYbwd - sin(d_layerPhiBwd) * wireXbwd + cos(d_layerPhiBwd) * wireYbwd;
716 m_BWirPosAlign[iL][iC][2] = wireZbwd;
717
718 m_FWirPosAlign[iL][iC][0] = d_layerXfwd + cos(d_layerPhiFwd) * wireXfwd + sin(d_layerPhiFwd) * wireYfwd;
719 m_FWirPosAlign[iL][iC][1] = d_layerYfwd - sin(d_layerPhiFwd) * wireXfwd + cos(d_layerPhiFwd) * wireYfwd;
720 m_FWirPosAlign[iL][iC][2] = wireZfwd;
721 } //end of cell loop
722 } //end of layer loop
723
724 const int np = 3;
725 double back[np], fwrd[np];
726
727 for (unsigned iL = 0; iL < c_maxNSenseLayers; ++iL) {
728
729 if (iL < m_firstLayerOffset) {
730 continue;
731 }
732
733 for (unsigned iC = 0; iC < m_nWires[iL]; ++iC) {
734 // std::cout << "iLiC= " << iL <<" "<< iC << std::endl;
735 WireID wire(iL, iC);
736 back[0] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireBwdX);
737 back[1] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireBwdY);
738 back[2] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireBwdZ);
739
740 fwrd[0] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireFwdX);
741 fwrd[1] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireFwdY);
742 fwrd[2] = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireFwdZ);
743
744 for (int i = 0; i < np; ++i) {
745 // On top of the wire-end positions corrected for layer alignment, we apply possible
746 // fine corrections per wire
747 m_BWirPosAlign[iL][iC][i] += back[i];
748 m_FWirPosAlign[iL][iC][i] += fwrd[i];
749 }
750
751 // double baseTension = 0.;
752 double baseTension = M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter / (8.* m_WireSagCoef[iL][iC]);
753 double tension = (*m_alignmentFromDB)->get(wire, CDCAlignment::wireTension);
754 // std::cout << back[0] <<" "<< back[1] <<" "<< back[2] <<" "<< fwrd[0] <<" "<< fwrd[1] <<" "<< fwrd[2] <<" "<< tension << std::endl;
755 m_WireSagCoefAlign[iL][iC] = M_PI * m_senseWireDensity *
756 m_senseWireDiameter * m_senseWireDiameter / (8.*(baseTension + tension));
757 // std::cout << "baseTension,tension= " << baseTension <<" "<< tension << std::endl;
758 } //end of layer loop
759 } //end of cell loop
760}
Belle2::CDCAlignment::layerDPhi
static const baseType layerDPhi
Layer rotation in global X-Y plane (gamma) dPhi = forward - backward endplate.
Definition CDCAlignment.h:61
Belle2::CDCAlignment::layerDy
static const baseType layerDy
Layer shift in global Y dY = forward - backward endplate.
Definition CDCAlignment.h:59
Belle2::CDCAlignment::wireBwdZ
static const baseType wireBwdZ
Wire Z position w.r.t. nominal on backward endplate.
Definition CDCAlignment.h:33
Belle2::CDCAlignment::layerDx
static const baseType layerDx
Layer shift in global X dX = forward - backward endplate.
Definition CDCAlignment.h:57
Belle2::CDCAlignment::wireBwdY
static const baseType wireBwdY
Wire Y position w.r.t. nominal on backward endplate.
Definition CDCAlignment.h:31
Belle2::CDCAlignment::wireFwdZ
static const baseType wireFwdZ
Wire Z position w.r.t. nominal on forward endplate.
Definition CDCAlignment.h:39
Belle2::CDCAlignment::wireFwdY
static const baseType wireFwdY
Wire Y position w.r.t. nominal on forward endplate.
Definition CDCAlignment.h:37
Belle2::CDCAlignment::wireFwdX
static const baseType wireFwdX
Wire X position w.r.t. nominal on forward endplate.
Definition CDCAlignment.h:35
Belle2::CDCAlignment::wireBwdX
static const baseType wireBwdX
Wire X position w.r.t. nominal on backward endplate.
Definition CDCAlignment.h:29
Belle2::CDCAlignment::layerY
static const baseType layerY
Layer shift in global Y at backward endplate.
Definition CDCAlignment.h:52
Belle2::CDCAlignment::layerX
static const baseType layerX
Layer shift in global X at backward endplate.
Definition CDCAlignment.h:50
Belle2::CDCAlignment::layerPhi
static const baseType layerPhi
Layer rotation in global X-Y plane (gamma) at backward endplate.
Definition CDCAlignment.h:54
Belle2::CDCAlignment::wireTension
static const baseType wireTension
Wire tension w.r.t. nominal (=50. ?)
Definition CDCAlignment.h:43

◆ setWirPosMisalignParams()

void setWirPosMisalignParams ( )

Set wire misalignment params.

from DB.

Definition at line 765 of file CDCGeometryPar.cc.

766{
767 const int np = 3;
768 double back[np], fwrd[np];
769
770 for (unsigned iL = 0; iL < c_maxNSenseLayers; ++iL) {
771
772 if (iL < m_firstLayerOffset) {
773 continue;
774 }
775
776 for (unsigned iC = 0; iC < m_nWires[iL]; ++iC) {
777 // std::cout << "iLiC= " << iL <<" "<< iC << std::endl;
778 WireID wire(iL, iC);
779 back[0] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireBwdX);
780 back[1] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireBwdY);
781 back[2] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireBwdZ);
782
783 fwrd[0] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireFwdX);
784 fwrd[1] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireFwdY);
785 fwrd[2] = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireFwdZ);
786
787 for (int i = 0; i < np; ++i) {
788 m_BWirPosMisalign[iL][iC][i] = m_BWirPos[iL][iC][i] + back[i];
789 m_FWirPosMisalign[iL][iC][i] = m_FWirPos[iL][iC][i] + fwrd[i];
790 }
791
792 // double baseTension = 0.;
793 double baseTension = M_PI * m_senseWireDensity * m_senseWireDiameter * m_senseWireDiameter / (8.* m_WireSagCoef[iL][iC]);
794 double tension = (*m_misalignmentFromDB)->get(wire, CDCMisalignment::wireTension);
795 // std::cout << back[0] <<" "<< back[1] <<" "<< back[2] <<" "<< fwrd[0] <<" "<< fwrd[1] <<" "<< fwrd[2] <<" "<< tension << std::endl;
796 m_WireSagCoefMisalign[iL][iC] = M_PI * m_senseWireDensity *
797 m_senseWireDiameter * m_senseWireDiameter / (8.*(baseTension + tension));
798 // std::cout << "baseTension,tension= " << baseTension <<" "<< tension << std::endl;
799 } //end of layer loop
800 } //end of cell loop
801}
Belle2::CDCMisalignment::wireBwdZ
static const baseType wireBwdZ
Wire Z position w.r.t. nominal on backward endplate.
Definition CDCMisalignment.h:50
Belle2::CDCMisalignment::wireBwdY
static const baseType wireBwdY
Wire Y position w.r.t. nominal on backward endplate.
Definition CDCMisalignment.h:48
Belle2::CDCMisalignment::wireFwdZ
static const baseType wireFwdZ
Wire Z position w.r.t. nominal on forward endplate.
Definition CDCMisalignment.h:56
Belle2::CDCMisalignment::wireFwdY
static const baseType wireFwdY
Wire Y position w.r.t. nominal on forward endplate.
Definition CDCMisalignment.h:54
Belle2::CDCMisalignment::wireFwdX
static const baseType wireFwdX
Wire X position w.r.t. nominal on forward endplate.
Definition CDCMisalignment.h:52
Belle2::CDCMisalignment::wireBwdX
static const baseType wireBwdX
Wire X position w.r.t. nominal on backward endplate.
Definition CDCMisalignment.h:46
Belle2::CDCMisalignment::wireTension
static const baseType wireTension
Wire tension w.r.t. nominal (=50. ?)
Definition CDCMisalignment.h:66

◆ setXtRel()

void setXtRel ( )

Set XT-relation table (from DB) (new).

Definition at line 1469 of file CDCGeometryPar.cc.

1470{
1471 m_linearInterpolationOfXT = true; //must be true now
1472
1473 // std::cout <<"setXtRelation called" << std::endl;
1474 m_nAlphaPoints = (*m_xtRelFromDB)->getNoOfAlphaBins();
1475 for (unsigned short i = 0; i < m_nAlphaPoints; ++i) {
1476 m_alphaPoints[i] = (*m_xtRelFromDB)->getAlphaPoint(i);
1477 // std::cout << m_alphaPoints[i]*180./M_PI << std::endl;
1478 }
1479
1480 m_nThetaPoints = (*m_xtRelFromDB)->getNoOfThetaBins();
1481 for (unsigned short i = 0; i < m_nThetaPoints; ++i) {
1482 m_thetaPoints[i] = (*m_xtRelFromDB)->getThetaPoint(i);
1483 // std::cout << m_thetaPoints[i]*180./M_PI << std::endl;
1484 }
1485
1486 m_xtParamMode = (*m_xtRelFromDB)->getXtParamMode();
1487
1488 for (unsigned short iCL = 0; iCL < c_maxNSenseLayers; ++iCL) {
1489 if (iCL < m_firstLayerOffset) {
1490 // m_XT is initialized to 0, but reading
1491 // (*m_xtRelFromDB)->getXtParams(iCL, iLR, iA, iT)
1492 // could fail if iCL < m_firstLayerOffset, thus continue as m_XT would be set to 0 in this case anyway
1493 continue;
1494 }
1495 for (unsigned short iLR = 0; iLR < 2; ++iLR) {
1496 for (unsigned short iA = 0; iA < m_nAlphaPoints; ++iA) {
1497 for (unsigned short iT = 0; iT < m_nThetaPoints; ++iT) {
1498 const std::vector<float> params = (*m_xtRelFromDB)->getXtParams(iCL, iLR, iA, iT);
1499 unsigned short np = params.size();
1500 // std::cout <<"np4xt= " << np << std::endl;
1501 for (unsigned short i = 0; i < np; ++i) {
1502 m_XT[iCL][iLR][iA][iT][i] = params[i];
1503 }
1504
1505 double boundT = m_XT[iCL][iLR][iA][iT][6];
1506 if (m_xtParamMode == 1) {
1507 m_XT[iCL][iLR][iA][iT][np] = ROOT::Math::Chebyshev5(boundT, m_XT[iCL][iLR][iA][iT][0], m_XT[iCL][iLR][iA][iT][1],
1508 m_XT[iCL][iLR][iA][iT][2], m_XT[iCL][iLR][iA][iT][3], m_XT[iCL][iLR][iA][iT][4], m_XT[iCL][iLR][iA][iT][5]);
1509 } else {
1510 m_XT[iCL][iLR][iA][iT][np] =
1511 m_XT[iCL][iLR][iA][iT][0] + boundT
1512 * (m_XT[iCL][iLR][iA][iT][1] + boundT
1513 * (m_XT[iCL][iLR][iA][iT][2] + boundT
1514 * (m_XT[iCL][iLR][iA][iT][3] + boundT
1515 * (m_XT[iCL][iLR][iA][iT][4] + boundT
1516 * (m_XT[iCL][iLR][iA][iT][5])))));
1517 }
1518 }
1519 }
1520 }
1521 }
1522
1523}

◆ version()

std::string version ( ) const
inline

Returns the version of cdc geometry parameters.

Returns
The version of the cdc geometry parameters.

Definition at line 1240 of file CDCGeometryPar.h.

1241 {
1242 return m_version;
1243 }

◆ wireBackwardPosition() [1/4]

const B2Vector3D wireBackwardPosition ( const WireID & wireID,
double z,
EWirePosition set = c_Base ) const
inline

The same function but in a different input format.

Definition at line 510 of file CDCGeometryPar.h.

511 {
512 return wireBackwardPosition(wireID.getICLayer(), wireID.getIWire(), z, set);
513 }

◆ wireBackwardPosition() [2/4]

const B2Vector3D wireBackwardPosition ( const WireID & wireID,
EWirePosition set = c_Base ) const
inline

The same function but in a different input format.

Definition at line 495 of file CDCGeometryPar.h.

496 {
497 return wireBackwardPosition(wireID.getICLayer(), wireID.getIWire(), set);
498 }

◆ wireBackwardPosition() [3/4]

const B2Vector3D wireBackwardPosition ( uint layerId,
int cellId,
double z,
EWirePosition set = c_Base ) const

Returns a virtual backward position corresp. to a tangent to the wire at the input z-position.

Parameters
layerIdThe layer id. of the wire
cellIdThe wire id. of the wire
zz-position
setWire position set; =c_Base, c_Misaligned or c_Aligned
Returns
The virtual backward position of the wire.

Definition at line 1782 of file CDCGeometryPar.cc.

1783{
1784 // return early in case of empty layer, i.e. layerID < m_firstLayerOffset
1785 if (layerID < m_firstLayerOffset) {
1786 return B2Vector3D(0, 0, 0);
1787 }
1788
1789 double yb_sag = 0.;
1790 double yf_sag = 0.;
1791 getWireSagEffect(set, layerID, cellID, z, yb_sag, yf_sag);
1792
1793 B2Vector3D wPos(m_BWirPosAlign[layerID][cellID][0], yb_sag,
1794 m_BWirPosAlign[layerID][cellID][2]);
1795 if (set == c_Misaligned) {
1796 wPos.SetX(m_BWirPosMisalign[layerID][cellID][0]);
1797 wPos.SetZ(m_BWirPosMisalign[layerID][cellID][2]);
1798 } else if (set == c_Base) {
1799 wPos.SetX(m_BWirPos [layerID][cellID][0]);
1800 wPos.SetZ(m_BWirPos [layerID][cellID][2]);
1801 }
1802
1803 return wPos;
1804}
Belle2::CDC::CDCGeometryPar::getWireSagEffect
void getWireSagEffect(EWirePosition set, unsigned layerID, unsigned cellID, double zw, double &ywb_sag, double &ywf_sag) const
Compute effects of the sense wire sag.
Definition CDCGeometryPar.cc:1970

◆ wireBackwardPosition() [4/4]

const B2Vector3D wireBackwardPosition ( uint layerId,
int cellId,
EWirePosition set = c_Base ) const

Returns the backward position of the input sense wire.

Parameters
layerIdThe layer id. of the wire
cellIdThe wire id. of the wire
setWire position set; =c_Base, c_Misaligned or c_Aligned
Returns
The backward position of the wire.

Definition at line 1758 of file CDCGeometryPar.cc.

1759{
1760 // return early in case of empty layer, i.e. layerID < m_firstLayerOffset
1761 if (layerID < m_firstLayerOffset) {
1762 return B2Vector3D(0, 0, 0);
1763 }
1764
1765 B2Vector3D wPos(m_BWirPosAlign[layerID][cellID][0],
1766 m_BWirPosAlign[layerID][cellID][1],
1767 m_BWirPosAlign[layerID][cellID][2]);
1768
1769 if (set == c_Misaligned) {
1770 wPos.SetX(m_BWirPosMisalign[layerID][cellID][0]);
1771 wPos.SetY(m_BWirPosMisalign[layerID][cellID][1]);
1772 wPos.SetZ(m_BWirPosMisalign[layerID][cellID][2]);
1773 } else if (set == c_Base) {
1774 wPos.SetX(m_BWirPos [layerID][cellID][0]);
1775 wPos.SetY(m_BWirPos [layerID][cellID][1]);
1776 wPos.SetZ(m_BWirPos [layerID][cellID][2]);
1777 }
1778
1779 return wPos;
1780}

◆ wireForwardPosition() [1/4]

const B2Vector3D wireForwardPosition ( const WireID & wireID,
double z,
EWirePosition set = c_Base ) const
inline

The same function but in a different input format.

Definition at line 479 of file CDCGeometryPar.h.

481 {
482 return wireForwardPosition(wireID.getICLayer(), wireID.getIWire(), z, set);
483 }

◆ wireForwardPosition() [2/4]

const B2Vector3D wireForwardPosition ( const WireID & wireID,
EWirePosition set = c_Base ) const
inline

The same function but in a different input format.

Definition at line 464 of file CDCGeometryPar.h.

465 {
466 return wireForwardPosition(wireID.getICLayer(), wireID.getIWire(), set);
467 }

◆ wireForwardPosition() [3/4]

const B2Vector3D wireForwardPosition ( uint layerId,
int cellId,
double z,
EWirePosition set = c_Base ) const

Returns a virtual forward position corresp. to a tangent to the wire at the input z-position.

Parameters
layerIdThe layer id. of the wire
cellIdThe wire id. of the wire
zz-position
setWire position set; =c_Base, c_Misaligned or c_Aligned
Returns
The virtual forward position of the wire.

Definition at line 1734 of file CDCGeometryPar.cc.

1735{
1736 // return early in case of empty layer, i.e. layerID < m_firstLayerOffset
1737 if (layerID < m_firstLayerOffset) {
1738 return B2Vector3D(0, 0, 0);
1739 }
1740
1741 double yb_sag = 0.;
1742 double yf_sag = 0.;
1743 getWireSagEffect(set, layerID, cellID, z, yb_sag, yf_sag);
1744
1745 B2Vector3D wPos(m_FWirPosAlign[layerID][cellID][0], yf_sag,
1746 m_FWirPosAlign[layerID][cellID][2]);
1747 if (set == c_Misaligned) {
1748 wPos.SetX(m_FWirPosMisalign[layerID][cellID][0]);
1749 wPos.SetZ(m_FWirPosMisalign[layerID][cellID][2]);
1750 } else if (set == c_Base) {
1751 wPos.SetX(m_FWirPos [layerID][cellID][0]);
1752 wPos.SetZ(m_FWirPos [layerID][cellID][2]);
1753 }
1754
1755 return wPos;
1756}

◆ wireForwardPosition() [4/4]

const B2Vector3D wireForwardPosition ( uint layerId,
int cellId,
EWirePosition set = c_Base ) const

Returns the forward position of the input sense wire.

Parameters
layerIdThe layer id. of the wire
cellIdThe wire id. of the wire
setWire position set; =c_Base, c_Misaligned or c_Aligned
Returns
The forward position of the wire.

Definition at line 1709 of file CDCGeometryPar.cc.

1710{
1711 // return early in case of empty layer, i.e. layerID < m_firstLayerOffset
1712 if (layerID < m_firstLayerOffset) {
1713 return B2Vector3D(0, 0, 0);
1714 }
1715
1716 // std::cout <<"cdcgeopar::fwdpos set= " << set << std::endl;
1717 B2Vector3D wPos(m_FWirPosAlign[layerID][cellID][0],
1718 m_FWirPosAlign[layerID][cellID][1],
1719 m_FWirPosAlign[layerID][cellID][2]);
1720
1721 if (set == c_Misaligned) {
1722 wPos.SetX(m_FWirPosMisalign[layerID][cellID][0]);
1723 wPos.SetY(m_FWirPosMisalign[layerID][cellID][1]);
1724 wPos.SetZ(m_FWirPosMisalign[layerID][cellID][2]);
1725 } else if (set == c_Base) {
1726 wPos.SetX(m_FWirPos [layerID][cellID][0]);
1727 wPos.SetY(m_FWirPos [layerID][cellID][1]);
1728 wPos.SetZ(m_FWirPos [layerID][cellID][2]);
1729 }
1730
1731 return wPos;
1732}

◆ zBackwardWireLayer()

const double * zBackwardWireLayer ( ) const
inline

Returns an array of backward z of wire layers.

Returns
An array of backward z.

Definition at line 1375 of file CDCGeometryPar.h.

1376 {
1377 return m_zSBackwardLayer;
1378 }

◆ zForwardWireLayer()

const double * zForwardWireLayer ( ) const
inline

Returns an array of forward z of wire layers.

Returns
An array of forward z.

Definition at line 1370 of file CDCGeometryPar.h.

1371 {
1372 return m_zSForwardLayer;
1373 }

◆ zInnerWall()

double zInnerWall ( ) const
inline

Returns the length of the inner wall in Z.

Returns
The length of the inner wall.

Definition at line 1340 of file CDCGeometryPar.h.

1341 {
1342 return (m_zWall[0][1] - m_zWall[0][0]);
1343 }

◆ zOffsetInnerWall()

double zOffsetInnerWall ( ) const
inline

Returns the offset of the outer wall in z direction.

Returns
The z offset of the outer wall.

Definition at line 1350 of file CDCGeometryPar.h.

1351 {
1352 return (m_zWall[0][0] + zInnerWall() / 2);
1353 }

◆ zOffsetOuterWall()

double zOffsetOuterWall ( ) const
inline

Returns the offset of the outer wall in z direction.

Returns
The z offset of the outer wall.

Definition at line 1345 of file CDCGeometryPar.h.

1346 {
1347 return (m_zWall[2][0] + zOuterWall() / 2);
1348 }

◆ zOffsetWireLayer()

double zOffsetWireLayer ( unsigned i) const
inline

Returns the offset of z of the wire layer i.

Parameters
iThe layer id.
Returns
The z offset of wire layer i.

Definition at line 1380 of file CDCGeometryPar.h.

1381 {
1382 return (m_zSBackwardLayer[i] + (m_zSForwardLayer[i] - m_zSBackwardLayer[i]) / 2);
1383 }

◆ zOuterWall()

double zOuterWall ( ) const
inline

Returns the length of the outer wall in Z.

Returns
The length of the outer wall.

Definition at line 1325 of file CDCGeometryPar.h.

1326 {
1327 return (m_zWall[2][1] - m_zWall[2][0]);
1328 }

Member Data Documentation

◆ m_alignment

bool m_alignment
private

Switch for alignment.

Definition at line 1114 of file CDCGeometryPar.h.

◆ m_alignmentFromDB

DBObjPtr<CDCAlignment>* m_alignmentFromDB
private

alignment params.

retrieved from DB.

Definition at line 1218 of file CDCGeometryPar.h.

◆ m_alphaPoints

float m_alphaPoints[c_maxNAlphaPoints]
private

alpha sampling points for xt (rad)

Definition at line 1181 of file CDCGeometryPar.h.

◆ m_alphaPoints4Sgm

float m_alphaPoints4Sgm[c_maxNAlphaPoints]
private

alpha sampling points for sigma (rad)

Definition at line 1183 of file CDCGeometryPar.h.

◆ m_B4CDCGeometryParDB

CDCGeometryPar * m_B4CDCGeometryParDB = 0
staticprivate

Pointer that saves the instance of this class.

Definition at line 1224 of file CDCGeometryPar.h.

◆ m_badBoardsFromDB

DBObjPtr<CDCBadBoards>* m_badBoardsFromDB
private

bad-boards retrieved from DB.

Definition at line 1210 of file CDCGeometryPar.h.

◆ m_badWireFromDB

DBObjPtr<CDCBadWires>* m_badWireFromDB
private

bad-wires retrieved from DB.

Definition at line 1209 of file CDCGeometryPar.h.

◆ m_boardAndChannelToWire

unsigned short m_boardAndChannelToWire[c_nBoards][48]
private

array relating board-channel-id and wire-id.

Definition at line 1197 of file CDCGeometryPar.h.

◆ m_BWirPos

float m_BWirPos[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

displacement at the backward endplate for each cell; ibid.

Definition at line 1169 of file CDCGeometryPar.h.

◆ m_BWirPosAlign

float m_BWirPosAlign[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

alignment at the backward endplate for each cell; ibid.

Definition at line 1177 of file CDCGeometryPar.h.

◆ m_BWirPosMisalign

float m_BWirPosMisalign[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

misalignment at the backward endplate for each cell; ibid.

Definition at line 1173 of file CDCGeometryPar.h.

◆ m_cellSize

double m_cellSize[c_maxNSenseLayers]
private

The array to store cell size in each sense wire layer.

Definition at line 1148 of file CDCGeometryPar.h.

◆ m_chMapFromDB

DBArray<CDCChannelMap>* m_chMapFromDB
private

channel map retrieved from DB.

Definition at line 1216 of file CDCGeometryPar.h.

◆ m_clockFreq4TDC

double m_clockFreq4TDC
private

Clock frequency used for TDC (GHz).

Definition at line 1199 of file CDCGeometryPar.h.

◆ m_clockSettings

DBObjPtr<HardwareClockSettings> m_clockSettings
private

hardware clock settings

Definition at line 1222 of file CDCGeometryPar.h.

◆ m_debug

bool m_debug
private

Switch for debug printing.

Definition at line 1108 of file CDCGeometryPar.h.

◆ m_displacement

bool m_displacement
private

Switch for displacement.

Definition at line 1112 of file CDCGeometryPar.h.

◆ m_displacementFromDB

DBArray<CDCDisplacement>* m_displacementFromDB
private

displacement params.

retrieved from DB.

Definition at line 1217 of file CDCGeometryPar.h.

◆ m_dzSBackwardLayer

double m_dzSBackwardLayer[c_maxNSenseLayers]
private

Corrections for backward z position of sense wire layers.

Definition at line 1143 of file CDCGeometryPar.h.

◆ m_dzSForwardLayer

double m_dzSForwardLayer[c_maxNSenseLayers]
private

Corrections for forward z position of sense wire layers.

Definition at line 1141 of file CDCGeometryPar.h.

◆ m_eDepToADCConversionsFromDB

DBObjPtr<CDCEDepToADCConversions>* m_eDepToADCConversionsFromDB
private

Pointer to edep-to-ADC conv.

params. from DB.

Definition at line 1220 of file CDCGeometryPar.h.

◆ m_eDepToADCParams

float m_eDepToADCParams[c_maxNSenseLayers][c_maxNDriftCells][7] = {}
private

edep-to-ADC conv.

params.

Definition at line 1179 of file CDCGeometryPar.h.

1179{};

◆ m_fFactorFromDB

DBObjPtr<CDCFudgeFactorsForSigma>* m_fFactorFromDB
private

fudge factors retrieved from DB.

Definition at line 1215 of file CDCGeometryPar.h.

◆ m_fieldWireDiameter

double m_fieldWireDiameter
private

The diameter of field wires.

Definition at line 1155 of file CDCGeometryPar.h.

◆ m_firstLayerOffset

ushort m_firstLayerOffset = 0
private

Offset of the first layer (for reduced CDC studies)

Definition at line 1231 of file CDCGeometryPar.h.

◆ m_firstSuperLayerOffset

ushort m_firstSuperLayerOffset = 0
private

Offset of the first super layer (for reduced CDC studies)

Definition at line 1232 of file CDCGeometryPar.h.

◆ m_fudgeFactorForSigma

double m_fudgeFactorForSigma[3]
private

Fuge factor for space resol.

Definition at line 1206 of file CDCGeometryPar.h.

◆ m_FWirPos

float m_FWirPos[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

displacement at the forward endplate for each cell; to be implemented in a smarter way.

Definition at line 1168 of file CDCGeometryPar.h.

◆ m_FWirPosAlign

float m_FWirPosAlign[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

alignment at the forward endplate for each cell; ibid.

Definition at line 1176 of file CDCGeometryPar.h.

◆ m_FWirPosMisalign

float m_FWirPosMisalign[c_maxNSenseLayers][c_maxNDriftCells][3]
private

Wire position incl.

misalignment at the forward endplate for each cell; ibid.

Definition at line 1172 of file CDCGeometryPar.h.

◆ m_globalPhiRotation

double m_globalPhiRotation
private

Global ratation in phi (rad.); only for sense wires now.

Definition at line 1157 of file CDCGeometryPar.h.

◆ m_linearInterpolationOfSgm

bool m_linearInterpolationOfSgm
private

Switch for linear interpolation of sigma.

Definition at line 1110 of file CDCGeometryPar.h.

◆ m_linearInterpolationOfXT

bool m_linearInterpolationOfXT
private

Switch for linear interpolation of xt.

Definition at line 1109 of file CDCGeometryPar.h.

◆ m_materialDefinitionMode

int m_materialDefinitionMode
private

Control switch for gas and wire material definition.

Definition at line 1121 of file CDCGeometryPar.h.

◆ m_maxNCellsPerLayer

ushort m_maxNCellsPerLayer = c_maxNDriftCells
private

Maximum number wires within a layer.

Definition at line 1233 of file CDCGeometryPar.h.

◆ m_maxNFieldLayers

ushort m_maxNFieldLayers = c_maxNFieldLayers
private

Maximum number of Field Wire Layers.

Definition at line 1229 of file CDCGeometryPar.h.

◆ m_maxNSenseLayers

ushort m_maxNSenseLayers = c_maxNSenseLayers
private

Maximum number of Sense Wire Layers.

Definition at line 1228 of file CDCGeometryPar.h.

◆ m_maxNSuperLayers

ushort m_maxNSuperLayers = c_nSuperLayers
private

Maximum number of Super Layers.

Definition at line 1230 of file CDCGeometryPar.h.

◆ m_maxSpaceResol

double m_maxSpaceResol
private

max space resolution allowed (cm).

Definition at line 1205 of file CDCGeometryPar.h.

◆ m_meanT0

double m_meanT0
private

mean t0 over all wires; should be double.

Definition at line 1193 of file CDCGeometryPar.h.

◆ m_minTrackLength

double m_minTrackLength
private

Minimum track length for G4 step.

Definition at line 1166 of file CDCGeometryPar.h.

◆ m_misalignment

bool m_misalignment
private

Switch for misalignment.

Definition at line 1113 of file CDCGeometryPar.h.

◆ m_misalignmentFromDB

DBObjPtr<CDCMisalignment>* m_misalignmentFromDB
private

misalignment params.

retrieved from DB.

Definition at line 1219 of file CDCGeometryPar.h.

◆ m_modLeftRightFlag

bool m_modLeftRightFlag
private

Switch for modified left/right flag.

Definition at line 1118 of file CDCGeometryPar.h.

◆ m_momRmin

double m_momRmin[7]
private

R_min of the cdc mother volume (7 segments).

Definition at line 1160 of file CDCGeometryPar.h.

◆ m_momZ

double m_momZ[7]
private

Z-cordinates of the cdc mother volume (7 segments).

Definition at line 1159 of file CDCGeometryPar.h.

◆ m_nAlphaPoints

unsigned short m_nAlphaPoints
private

No.

of alpha points for xt.

Definition at line 1130 of file CDCGeometryPar.h.

◆ m_nAlphaPoints4Sgm

unsigned short m_nAlphaPoints4Sgm
private

No.

of alpha points for sigma.

Definition at line 1132 of file CDCGeometryPar.h.

◆ m_nFieldWires

ushort m_nFieldWires = c_nFieldWires
private

Maximum number of Field Wires.

Definition at line 1227 of file CDCGeometryPar.h.

◆ m_nFLayer

int m_nFLayer
private

The number of field wire layer.

Definition at line 1129 of file CDCGeometryPar.h.

◆ m_nominalDriftV

double m_nominalDriftV
private

Nominal drift velocity (4.0x10^-3 cm/nsec).

Definition at line 1201 of file CDCGeometryPar.h.

◆ m_nominalDriftVInv

double m_nominalDriftVInv
private

Inverse of the nominal drift velocity.

Definition at line 1202 of file CDCGeometryPar.h.

◆ m_nominalPropSpeed

double m_nominalPropSpeed
private

Nominal propagation speed of the sense wire (27.25 cm/nsec).

Definition at line 1203 of file CDCGeometryPar.h.

◆ m_nominalSpaceResol

double m_nominalSpaceResol
private

Nominal spatial resolution (0.0130 cm).

Definition at line 1204 of file CDCGeometryPar.h.

◆ m_nSenseWires

ushort m_nSenseWires = c_nSenseWires
private

Maximum number of Sense Wires.

Definition at line 1226 of file CDCGeometryPar.h.

◆ m_nShifts

int m_nShifts[c_maxNSenseLayers]
private

The array to store shifted cell number in each sense wire layer.

Definition at line 1149 of file CDCGeometryPar.h.

◆ m_nSLayer

int m_nSLayer
private

The number of sense wire layer.

Definition at line 1128 of file CDCGeometryPar.h.

◆ m_nThetaPoints

unsigned short m_nThetaPoints
private

No.

of theta points for xt.

Definition at line 1131 of file CDCGeometryPar.h.

◆ m_nThetaPoints4Sgm

unsigned short m_nThetaPoints4Sgm
private

No.

of theta points for sigma.

Definition at line 1133 of file CDCGeometryPar.h.

◆ m_nWires

unsigned m_nWires[c_maxNSenseLayers]
private

The array to store the wire number in each sense wire layre.

Definition at line 1150 of file CDCGeometryPar.h.

◆ m_offSet

double m_offSet[c_maxNSenseLayers]
private

The array to store z offset of sense wire layers.

Definition at line 1147 of file CDCGeometryPar.h.

◆ m_propSpeedFromDB

DBObjPtr<CDCPropSpeeds>* m_propSpeedFromDB
private

prop.

-speeds retrieved from DB.

Definition at line 1211 of file CDCGeometryPar.h.

◆ m_propSpeedInv

float m_propSpeedInv[c_maxNSenseLayers]
private

Inverse of propagation speed of the sense wire.

Definition at line 1188 of file CDCGeometryPar.h.

◆ m_rFLayer

double m_rFLayer[c_maxNFieldLayers]
private

The array to store radius of field wire layers.

Definition at line 1144 of file CDCGeometryPar.h.

◆ m_rSLayer

double m_rSLayer[c_maxNSenseLayers]
private

The array to store radius of sense wire layers.

Definition at line 1139 of file CDCGeometryPar.h.

◆ m_rWall

double m_rWall[4]
private

The array to store radius of inner wall and outer wall.

Definition at line 1136 of file CDCGeometryPar.h.

◆ m_senseWireDensity

double m_senseWireDensity
private

The density of sense wires.

Definition at line 1154 of file CDCGeometryPar.h.

◆ m_senseWireDiameter

double m_senseWireDiameter
private

The diameter of sense wires.

Definition at line 1152 of file CDCGeometryPar.h.

◆ m_senseWireTension

double m_senseWireTension
private

The tension of sense wires.

Definition at line 1153 of file CDCGeometryPar.h.

◆ m_senseWireZposMode

int m_senseWireZposMode
private

Mode for sense wire z position corr.

Definition at line 1122 of file CDCGeometryPar.h.

◆ m_shiftInSuperLayer

signed short m_shiftInSuperLayer[c_nSuperLayers][8]
private

shift in phi-direction wrt the 1st layer in each super layer

Definition at line 1134 of file CDCGeometryPar.h.

◆ m_Sigma

float m_Sigma[c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nSigmaParams]
private

position resolution for each layer.

Definition at line 1187 of file CDCGeometryPar.h.

◆ m_sigmaFileFormat

int m_sigmaFileFormat
private

Format of sigma input file.

Definition at line 1125 of file CDCGeometryPar.h.

◆ m_sigmaParamMode

int m_sigmaParamMode
private

Mode for sigma parameterization.

Definition at line 1126 of file CDCGeometryPar.h.

◆ m_sResolFromDB

DBObjPtr<CDCSpaceResols>* m_sResolFromDB
private

sigma params.

retrieved from DB.

Definition at line 1214 of file CDCGeometryPar.h.

◆ m_t0

float m_t0[c_maxNSenseLayers][c_maxNDriftCells] = {}
private

t0 for each sense-wire (in nsec).

Definition at line 1189 of file CDCGeometryPar.h.

1189{};

◆ m_t0FromDB

DBObjPtr<CDCTimeZeros>* m_t0FromDB
private

t0s retrieved from DB.

Definition at line 1208 of file CDCGeometryPar.h.

◆ m_tdcBinWidth

double m_tdcBinWidth
private

TDC bin width (nsec/bin).

Definition at line 1200 of file CDCGeometryPar.h.

◆ m_tdcOffset

unsigned short m_tdcOffset
private

Not used; to be removed later.

Definition at line 1198 of file CDCGeometryPar.h.

◆ m_thetaPoints

float m_thetaPoints[c_maxNThetaPoints]
private

theta sampling points for xt (rad)

Definition at line 1182 of file CDCGeometryPar.h.

◆ m_thetaPoints4Sgm

float m_thetaPoints4Sgm[c_maxNThetaPoints]
private

theta sampling points for sigma (rad)

Definition at line 1184 of file CDCGeometryPar.h.

◆ m_thresholdEnergyDeposit

double m_thresholdEnergyDeposit
private

Energy thresh.

for G4 step

Definition at line 1165 of file CDCGeometryPar.h.

◆ m_timeWalkCoef

float m_timeWalkCoef[c_nBoards][2]
private

coefficients for time walk.

Definition at line 1190 of file CDCGeometryPar.h.

◆ m_timeWalkFromDB

DBObjPtr<CDCTimeWalks>* m_timeWalkFromDB
private

time-walk coeffs.

retrieved from DB.

Definition at line 1212 of file CDCGeometryPar.h.

◆ m_twParamMode

int m_twParamMode
private

Mode for tw parameterization.

Definition at line 1127 of file CDCGeometryPar.h.

◆ m_version

std::string m_version
private

The version of geometry parameters.

Definition at line 1120 of file CDCGeometryPar.h.

◆ m_wireSag

bool m_wireSag
private

Switch for sense wire sag.

Definition at line 1117 of file CDCGeometryPar.h.

◆ m_WireSagCoef

float m_WireSagCoef[c_maxNSenseLayers][c_maxNDriftCells]
private

Wire sag coefficient for each cell; ibid.

Definition at line 1170 of file CDCGeometryPar.h.

◆ m_WireSagCoefAlign

float m_WireSagCoefAlign[c_maxNSenseLayers][c_maxNDriftCells]
private

Wire sag coefficient incl.

alignment for each cell; ibid.

Definition at line 1178 of file CDCGeometryPar.h.

◆ m_WireSagCoefMisalign

float m_WireSagCoefMisalign[c_maxNSenseLayers][c_maxNDriftCells]
private

Wire sag coefficient incl.

misalignment for each cell; ibid.

Definition at line 1174 of file CDCGeometryPar.h.

◆ m_wireToBoard

std::map<WireID, unsigned short> m_wireToBoard
private

map relating wire-id and board-id.

Definition at line 1195 of file CDCGeometryPar.h.

◆ m_wireToChannel

std::map<WireID, unsigned short> m_wireToChannel
private

map relating wire-id and channel-id.

Definition at line 1196 of file CDCGeometryPar.h.

◆ m_XT

float m_XT[c_maxNSenseLayers][2][c_maxNAlphaPoints][c_maxNThetaPoints][c_nXTParams]
private

XT-relation coefficients for each layer, Left/Right, entrance angle and polar angle.

Definition at line 1186 of file CDCGeometryPar.h.

◆ m_XTetc

bool m_XTetc
private

Switch for reading x-t etc.

params..

Definition at line 1111 of file CDCGeometryPar.h.

◆ m_XTetc4Recon

bool m_XTetc4Recon
private

Switch for selecting xt etc.

Definition at line 1115 of file CDCGeometryPar.h.

◆ m_xtFileFormat

int m_xtFileFormat
private

Format of xt input file.

Definition at line 1123 of file CDCGeometryPar.h.

◆ m_xtParamMode

int m_xtParamMode
private

Mode for xt parameterization.

Definition at line 1124 of file CDCGeometryPar.h.

◆ m_xtRelFromDB

DBObjPtr<CDCXtRelations>* m_xtRelFromDB
private

xt params.

retrieved from DB (new).

Definition at line 1213 of file CDCGeometryPar.h.

◆ m_zFBackwardLayer

double m_zFBackwardLayer[c_maxNFieldLayers]
private

The array to store backward z position of field wire layers.

Definition at line 1146 of file CDCGeometryPar.h.

◆ m_zFForwardLayer

double m_zFForwardLayer[c_maxNFieldLayers]
private

The array to store forward z position of field wire layers.

Definition at line 1145 of file CDCGeometryPar.h.

◆ m_zSBackwardLayer

double m_zSBackwardLayer[c_maxNSenseLayers]
private

The array to store backward z position of sense wire layers.

Definition at line 1142 of file CDCGeometryPar.h.

◆ m_zSForwardLayer

double m_zSForwardLayer[c_maxNSenseLayers]
private

The array to store forward z position of sense wire layers.

Definition at line 1140 of file CDCGeometryPar.h.

◆ m_zWall

double m_zWall[4][2]
private

The array to store z position of inner wall and outer wall.

Definition at line 1137 of file CDCGeometryPar.h.

The documentation for this class was generated from the following files:
