DAFConfiguration Class Reference

The payload containing all the DAFParameters configuration, one for each different track fit option. More...

#include <DAFConfiguration.h>

Inheritance diagram for DAFConfiguration:

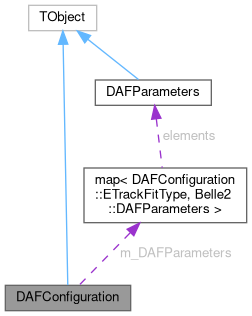

Collaboration diagram for DAFConfiguration:

Public Types
enum	ETrackFitType : short {   c_Default = 0 ,   c_Cosmics = 1 ,   c_CDConly = 2 }
	Enum for identifying the type of track fit algorythm ( or cosmic) More...

Public Member Functions
	DAFConfiguration ()
	Default constructor.
	~DAFConfiguration ()
	Destructor.
const DAFParameters *	getDAFParameters (DAFConfiguration::ETrackFitType trackFitType) const
	Get the DAFParameters for the specific track fit type.
void	setDAFParameters (DAFConfiguration::ETrackFitType trackFitType, const DAFParameters *DAFParam)
	Set the DAFParameters for the specific track fit type.

Private Member Functions
	ClassDef (DAFConfiguration, 1)
	ClassDef, necessary for ROOT.

Private Attributes
std::map< DAFConfiguration::ETrackFitType, DAFParameters >	m_DAFParameters
	The minimum allowed pValue for the convergence criterion.

Detailed Description

The payload containing all the DAFParameters configuration, one for each different track fit option.

Definition at line 25 of file DAFConfiguration.h.

Member Enumeration Documentation

ETrackFitType

enum ETrackFitType : short

Enum for identifying the type of track fit algorythm ( or cosmic)

Enumerator
c_Default	default configuration
c_Cosmics	configuration for cosmics data reconstruction
c_CDConly	configuration for the CDC-only track fitting

Definition at line 33 of file DAFConfiguration.h.

                       : short {
      c_Default = 0,
      c_Cosmics = 1,
      c_CDConly = 2
    };

Constructor & Destructor Documentation

DAFConfiguration()

DAFConfiguration ( )

inline

Default constructor.

Definition at line 40 of file DAFConfiguration.h.

{}

~DAFConfiguration()

~DAFConfiguration ( )

inline

Destructor.

Definition at line 42 of file DAFConfiguration.h.

{}

Member Function Documentation

getDAFParameters()

const DAFParameters * getDAFParameters ( DAFConfiguration::ETrackFitType trackFitType ) const

inline

Get the DAFParameters for the specific track fit type.

Definition at line 46 of file DAFConfiguration.h.

    {
      std::map<DAFConfiguration::ETrackFitType, DAFParameters>::const_iterator it = m_DAFParameters.find(trackFitType);
      if (it != m_DAFParameters.end()) {
        return &it->second;
      } else {
        B2FATAL("Track Fit option " << trackFitType << " not found");
      }
    }

setDAFParameters()

void setDAFParameters ( DAFConfiguration::ETrackFitType trackFitType, const DAFParameters * DAFParam )

inline

Set the DAFParameters for the specific track fit type.

Definition at line 58 of file DAFConfiguration.h.

    {
      if (DAFParam == nullptr) {
        B2FATAL("Cannot set DAFParameters since the parameter is nullptr");
      }

      std::map<DAFConfiguration::ETrackFitType, DAFParameters>::const_iterator it = m_DAFParameters.find(trackFitType);

      if (it != m_DAFParameters.end()) {
        // if it does already exist
        B2INFO("DAFParameters for track Fit option " << trackFitType << " already exists. Overwriting.");
      }

      // Setting the corresponding DAFParameter
      m_DAFParameters[trackFitType] = *DAFParam;
    }

Member Data Documentation

m_DAFParameters

std::map<DAFConfiguration::ETrackFitType, DAFParameters> m_DAFParameters

private

The minimum allowed pValue for the convergence criterion.

Definition at line 77 of file DAFConfiguration.h.

---

The documentation for this class was generated from the following file:

• tracking/dbobjects/include/DAFConfiguration.h
