SimpleCluster Class Reference

Type for found clusters. More...

#include <Clusterizend.h>

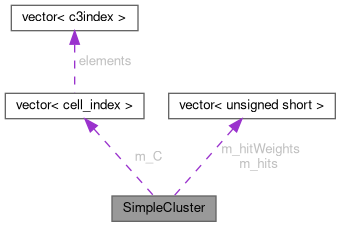

Collaboration diagram for SimpleCluster:

Public Member Functions
	SimpleCluster (cell_index entry)
void	initClCellsNew ()
void	setParams (unsigned short dim)
std::vector< cell_index >	getEntries ()
	Get member cells in the cluster.
void	append (cell_index nextEntry)
	Add a track-space cell to the cluster.
void	addHit (unsigned short hit, unsigned short weight, unsigned short orient)
	Relate a hit to the cluster.
unsigned long	getNAxial ()
	Get number related axial hits.
unsigned long	getNStereo ()
	Get number related stereo hits.
std::vector< unsigned short >	getHits ()
	Get ids of related hits (indices of the TS StoreArray)
std::vector< unsigned short >	getWeights ()
	Get weight contribution of each related hit to the cluster.

Private Attributes
std::vector< cell_index >	m_C
	SimpleCluster.
unsigned short	m_dim
	Dimension of the track space (3 for omega, phi, theta)
std::vector< unsigned short >	m_hits
	Cluster related hits ids.
std::vector< unsigned short >	m_hitWeights
	Cluster related hits weights.
unsigned short	m_orientSum
	Sum of related hit orientations (== number of related axials)

Detailed Description

Type for found clusters.

Definition at line 45 of file Clusterizend.h.

Constructor & Destructor Documentation

SimpleCluster() [1/2]

SimpleCluster ( )

inline

Definition at line 47 of file Clusterizend.h.

    {
      setParams(3);
      initClCellsNew();
    }

SimpleCluster() [2/2]

SimpleCluster ( cell_index entry )

inlineexplicit

Definition at line 52 of file Clusterizend.h.

    {
      setParams(3);
      initClCellsNew();
      append(entry);
    }

~SimpleCluster()

virtual ~SimpleCluster ( )

inlinevirtual

Definition at line 58 of file Clusterizend.h.

{}

Member Function Documentation

addHit()

void addHit ( unsigned short hit, unsigned short weight, unsigned short orient )

inline

Relate a hit to the cluster.

orient == 1: axial, orient == 0: stereo

Definition at line 83 of file Clusterizend.h.

    {
      m_hits.push_back(hit);
      m_hitWeights.push_back(weight);
      m_orientSum += orient;
    }

append()

void append ( cell_index nextEntry )

inline

Add a track-space cell to the cluster.

Definition at line 78 of file Clusterizend.h.

    {
      m_C.push_back(nextEntry);
    }

getEntries()

std::vector< cell_index > getEntries ( )

inline

Get member cells in the cluster.

Definition at line 73 of file Clusterizend.h.

    {
      return m_C;
    }

getHits()

std::vector< unsigned short > getHits ( )

inline

Get ids of related hits (indices of the TS StoreArray)

Definition at line 100 of file Clusterizend.h.

    {
      return m_hits;
    }

getNAxial()

unsigned long getNAxial ( )

inline

Get number related axial hits.

Definition at line 90 of file Clusterizend.h.

    {
      return m_orientSum;
    }

getNStereo()

unsigned long getNStereo ( )

inline

Get number related stereo hits.

Definition at line 95 of file Clusterizend.h.

    {
      return m_hits.size() - m_orientSum;
    }

getWeights()

std::vector< unsigned short > getWeights ( )

inline

Get weight contribution of each related hit to the cluster.

Definition at line 105 of file Clusterizend.h.

    {
      return m_hitWeights;
    }

initClCellsNew()

void initClCellsNew ( )

inline

Definition at line 59 of file Clusterizend.h.

    {
      unsigned short init_ClSize = 0;
      unsigned short defaultValue = 0;
      cell_index cell(m_dim, defaultValue);
      std::vector<cell_index> C(init_ClSize, cell);
      m_C = C;
    }

setParams()

void setParams ( unsigned short dim )

inline

Definition at line 67 of file Clusterizend.h.

    {
      m_dim = dim;
      m_orientSum = 0;
    }

Member Data Documentation

m_C

std::vector<cell_index> m_C

private

SimpleCluster.

Cluster member cells

Definition at line 112 of file Clusterizend.h.

m_dim

unsigned short m_dim

private

Dimension of the track space (3 for omega, phi, theta)

Definition at line 114 of file Clusterizend.h.

m_hits

std::vector<unsigned short> m_hits

private

Cluster related hits ids.

Definition at line 116 of file Clusterizend.h.

m_hitWeights

std::vector<unsigned short> m_hitWeights

private

Cluster related hits weights.

Definition at line 118 of file Clusterizend.h.

m_orientSum

unsigned short m_orientSum

private

Sum of related hit orientations (== number of related axials)

Definition at line 120 of file Clusterizend.h.

---

The documentation for this class was generated from the following file:

• trg/cdc/include/Clusterizend.h
