TRGGRLProjectsModule Class Reference

A module to simulate the Global Decision Logic. More...

#include <TRGGRLProjectsModule.h>

Inheritance diagram for TRGGRLProjectsModule:

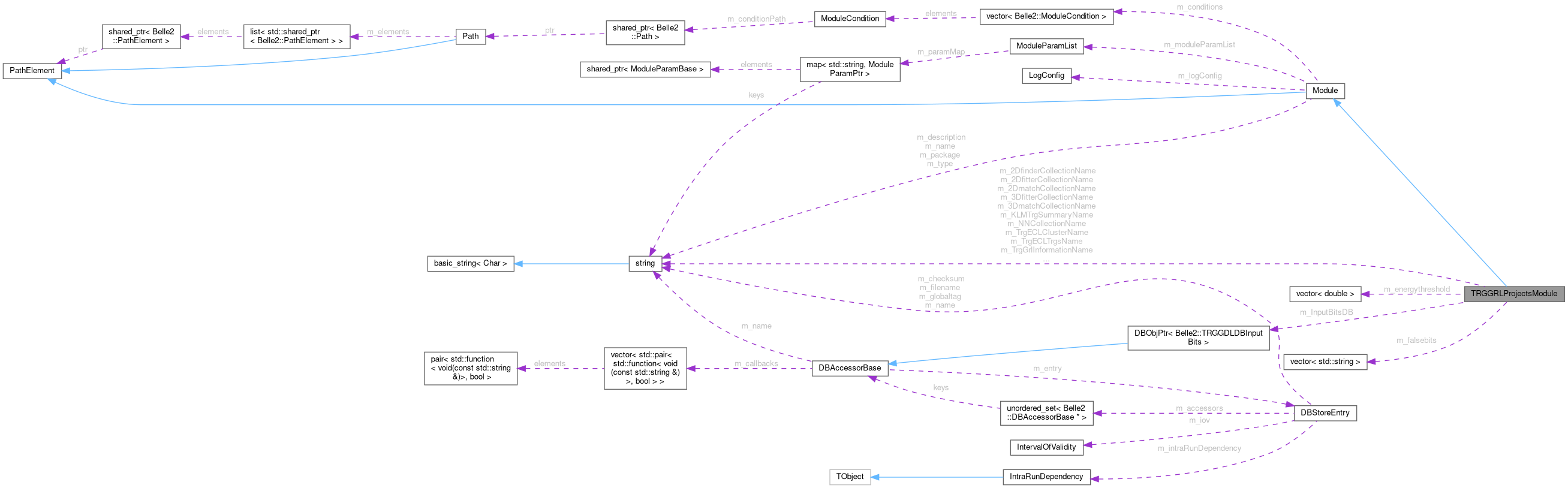

Collaboration diagram for TRGGRLProjectsModule:

Public Types
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	TRGGRLProjectsModule ()
	Constructor.
virtual	~TRGGRLProjectsModule ()
	Destructor.
virtual void	initialize () override
	Initializes TRGGRLProjectsModule.
virtual void	beginRun () override
	Called when new run started.
virtual void	event () override
	Called event by event.
virtual void	endRun () override
	Called when run ended.
virtual void	terminate () override
	Called when processing ended.
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.
const std::string &	getName () const
	Returns the name of the module.
const std::string &	getType () const
	Returns the type of the module (i.e.
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module.
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T>
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module.
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module.
void	setType (const std::string &type)
	Set the module type.
template<typename T>
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.
template<typename T>
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.
void	setReturnValue (int value)
	Sets the return value for this module as integer.
void	setReturnValue (bool value)
	Sets the return value for this module as bool.
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
int	_debugLevel
	returns version of TRGGRLProjectsModule.
std::string	m_belle2phase
	choose the corresponding trigger menu of Belle2 phase
std::string	m_configFilename
	Config. file name.
int	m_simulationMode
	Mode for TRGGRL simulation.
int	m_fastSimulationMode
	Switch for the fast simulation.
int	m_firmwareSimulationMode
	Switch for the firmware simulation. 0:do nothing, 1:do everything.
std::string	m_2DmatchCollectionName
	Name of the StoreArray holding the matched 2D tracks.
std::string	m_phimatch_tracklist
	the matched 2d track list by phi matching
std::string	m_3DmatchCollectionName
	Name of the StoreArray holding the matched 3D tracks.
std::string	m_klmmatch_tracklist
	the matched 2d track list by KLM matching
std::string	m_2DfinderCollectionName
	Name of the StoreArray holding the tracks made by the 2D finder.
std::string	m_2DfitterCollectionName
	Name of the StoreArray holding the tracks made by the 2D fitter.
std::string	m_3DfitterCollectionName
	Name of the StoreArray holding the tracks made by the 3D fitter.
std::string	m_TrgGrlInformationName
	Name of the StoreArray holding projects information from grl.
std::string	m_grlphotonlist
	Name of the StoreArray holding projects information from grlphoton.
std::string	m_NNCollectionName
	Name of the StoreArray holding the tracks made by NN.
std::string	m_TrgECLClusterName
	Name of the StoreArray holding the eclclusters.
std::string	m_TrgECLTrgsName
	Name of the StoreArray holding the ecl trg result.
std::string	m_KLMTrgSummaryName
	Name of the collection of KLM TRG.
std::vector< double >	m_energythreshold
	the collection of energy threshold used in the projects
double	m_eclClusterTimeWindow
	ecl cluster time window to suppress beam induced background
DBObjPtr< TRGGDLDBInputBits >	m_InputBitsDB
	Data base of GDL input bits.
std::vector< std::string >	m_falsebits
	convert the unit of angle from rad to degree
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

A module to simulate the Global Decision Logic.

This module requires sub-trigger simulation data (CDC, ECL, TOP, and KLM). The output is GRL response.

Definition at line 28 of file TRGGRLProjectsModule.h.

Member Typedef Documentation

EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

TRGGRLProjectsModule()

TRGGRLProjectsModule

(

)

Constructor.

Definition at line 73 of file TRGGRLProjectsModule.cc.

                                           : Module()
{
  // Set module properties

  // string desc = "TRGGRLProjectsModule(" + version() + ")";
  setDescription("TRGGRLProjectsModule");
  setPropertyFlags(c_ParallelProcessingCertified);

  addParam("DebugLevel", _debugLevel, "TRGGRL debug level", _debugLevel);
  addParam("ConfigFile",
           m_configFilename,
           "The filename of CDC trigger config file",
           m_configFilename);
  addParam("SimulationMode",
           m_simulationMode,
           "TRGGRL simulation switch",
           1);
  addParam("FastSimulationMode",
           m_fastSimulationMode,
           "TRGGRL fast simulation mode",
           m_fastSimulationMode);
  addParam("FirmwareSimulationMode",
           m_firmwareSimulationMode,
           "TRGGRL firmware simulation mode",
           m_firmwareSimulationMode);
  addParam("2DfinderCollection", m_2DfinderCollectionName,
           "Name of the StoreArray holding the tracks made by the 2D finder to be used as input.",
           string("TRGCDC2DFinderTracks"));
  addParam("3DfitterCollection", m_3DfitterCollectionName,
           "Name of the StoreArray holding the tracks made by the 3D fitter to be used as input.",
           string("TRGCDC3DFitterTracks"));
  addParam("NNCollection", m_NNCollectionName,
           "Name of the StoreArray holding the tracks made by the neural network (NN).",
           string("TRGCDCNeuroTracks"));
  addParam("2DmatchCollection", m_2DmatchCollectionName,
           "Name of the StoreArray holding the matched tracks and clusters made by the 2D fitter.",
           string("TRG2DMatchTracks"));
  addParam("PhimatchCollection", m_phimatch_tracklist, "the 2d tracklist with associated cluster", std::string("TRGPhiMatchTracks"));
  addParam("KLMmatchCollection", m_klmmatch_tracklist, "the 2d tracklist with KLM", std::string("TRGKLMMatchTracks"));
  addParam("KLMTrgSummaryCollection", m_KLMTrgSummaryName, "Name of the StoreObjPtr holding the information of KLM trigger",
           std::string("KLMTrgSummary"));
  addParam("3DmatchCollection", m_3DmatchCollectionName,
           "Name of the StoreArray holding the matched 3D NN tracks and clusters made",
           string("TRG3DMatchTracks"));
  addParam("TrgGrlInformation", m_TrgGrlInformationName,
           "Name of the StoreArray holding the information of tracks and clusters from cdc ecl klm.",
           string("TRGGRLObjects"));
  addParam("TRGECLClusters", m_TrgECLClusterName,
           "Name of the StoreArray holding the information of trigger ecl clusters ",
           string("TRGECLClusters"));
  addParam("TRGECLTrgs", m_TrgECLTrgsName,
           "Name of the StoreArray holding the information of ecl trigger",
           string("TRGECLTrgs"));
  addParam("GRLphotonCollection", m_grlphotonlist, "the isolated cluster list", std::string("TRGGRLPhotons"));
  addParam("ECLClusterTimeWindow", m_eclClusterTimeWindow,
           "The time window of the signal eclclusters",
           100.0);
  addParam("ClusEngThreshold", m_energythreshold, "The energy threshold of clusters", {0.1, 0.3, 1.0, 2.0});
}

~TRGGRLProjectsModule()

virtual ~TRGGRLProjectsModule ( )

inlinevirtual

Destructor.

Definition at line 37 of file TRGGRLProjectsModule.h.

{};

Member Function Documentation

beginRun()

void beginRun ( void )

overridevirtual

Called when new run started.

Reimplemented from Module.

Definition at line 176 of file TRGGRLProjectsModule.cc.

{
  B2DEBUG(20, "TRGGDLModule ... beginRun called ");
  m_falsebits.clear();
  //...GDL config. name...
}

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 425 of file Module.h.

{ beginRun(); }

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 438 of file Module.h.

{ endRun(); }

def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 431 of file Module.h.

{ event(); }

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 419 of file Module.h.

{ initialize(); }

def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 444 of file Module.h.

{ terminate(); }

endRun()

void endRun ( void )

overridevirtual

Called when run ended.

Reimplemented from Module.

Definition at line 999 of file TRGGRLProjectsModule.cc.

{
  B2DEBUG(20, "TRGGRLProjectsModule ... endRun called ");
  if (m_falsebits.size() > 0) {
    for (const std::string& bitname : m_falsebits) {
      B2WARNING("Unknown bitname" << LogVar("bitname", bitname));
    }
  }
}

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

event()

void event ( void )

overridevirtual

Called event by event.

Reimplemented from Module.

Definition at line 184 of file TRGGRLProjectsModule.cc.

{
  //cout << "TRGGRLProjects event " << iEvent << endl;
  //iEvent++;

  //---------------------------------------------------------------------
  //..Read in the necessary arrays
  StoreArray<TRGECLTrg> trgArray;
  //StoreArray<MCParticle> MCParticleArray;
  StoreArray<CDCTriggerTrack> cdc2DTrkArray(m_2DfinderCollectionName);
  StoreArray<CDCTriggerTrack> cdc3DTrkArray(m_3DfitterCollectionName);
  StoreArray<CDCTriggerTrack> cdcNNTrkArray(m_NNCollectionName);
  StoreArray<TRGECLCluster> eclTrgClusterArray(m_TrgECLClusterName);
  StoreArray<TRGGRLMATCH> trackphimatch(m_phimatch_tracklist);
  StoreArray<TRGGRLMATCHKLM> trackKLMmatch(m_klmmatch_tracklist);
  StoreObjPtr<KLMTrgSummary> klmtrgsummary(m_KLMTrgSummaryName);
  StoreArray<TRGGRLPHOTON> grlphoton(m_grlphotonlist);
  StoreObjPtr<BinnedEventT0> m_eventTime;
  StoreObjPtr<TRGGRLInfo> trgInfo(m_TrgGrlInformationName);
  //trgInfo.create();
  //---------------------------------------------------------------------
  //..Use only clusters within 100 ns of event timing (from ECL).
  int ntrgArray = trgArray.getEntries();
  double EventTiming = -9999.;
  if (ntrgArray > 0) {EventTiming = trgArray[0]->getEventTiming();}
  std::vector<int> selTC;
  std::vector<int> selTheta;
  std::vector<float> selE;
  for (int ic = 0; ic < eclTrgClusterArray.getEntries(); ic++) {
    double tcT = abs(eclTrgClusterArray[ic]->getTimeAve() - EventTiming);
    if (tcT < 100.) {
      int TC = eclTrgClusterArray[ic]->getMaxTCId();
      selTC.push_back(TC);
      selTheta.push_back(TCThetaID[TC - 1]);
      selE.push_back(eclTrgClusterArray[ic]->getEnergyDep());
    }
  }

  //---------------------------------------------------------------------
  //..Trigger objects from CDC alone
  //  nTrk3D  nTrkZ10  nTrkZ25
  int nTrk2D = cdc2DTrkArray.getEntries();
  int nTrk3D = cdc3DTrkArray.getEntries();
  int nTrkZ10 = 0;
  int nTrkZ25 = 0;
  int nTrkZ35 = 0;
  for (int itrk = 0; itrk < nTrk3D; itrk++) {
    double z0 = cdc3DTrkArray[itrk]->getZ0();
    if (abs(z0) < 10.) {nTrkZ10++;}
    if (abs(z0) < 25.) {nTrkZ25++;}
    if (abs(z0) < 35.) {nTrkZ35++;}
  }
  int nTrkNN = cdcNNTrkArray.getEntries();
  int nTrkNNSTT = 0;
  int nTrkNNSTT6 = 0;
  int nTrkNNSTT5 = 0;
  int nTrkNNSTT4 = 0;
  int nTrkNN20 = 0;
  int nTrkNN40 = 0;
  for (int itrk = 0; itrk < nTrkNN; itrk++) {
    double z0 = cdcNNTrkArray[itrk]->getZ0();

    double omega = 100 * cdcNNTrkArray[itrk]->getOmega();
    int omega_bin = omega / 0.044;
    omega = omega_bin * 0.044;

    double cottheta = cdcNNTrkArray[itrk]->getCotTheta();
    double theta = 0;
    if (cottheta != 0)theta = atan(1. / cottheta);
    int theta_bin = theta / 0.098125;
    theta = theta_bin * 0.098125;
    int p = abs(10 * 0.3 * 1.5 / omega / sin(theta)); //0.1GeV unit

    double pt    = cdcNNTrkArray[itrk]->getPt();
    double p_abs = cdcNNTrkArray[itrk]->getPt() / sin(theta);
    B2DEBUG(20, "NN momentum " << omega << " " << theta * 180 / 3.14 << " " << p * 0.1 << " " << p_abs << " " << pt);

    if (abs(z0) < 15. && p > 7) {nTrkNNSTT++;}
    if (abs(z0) < 15. && p > 6) {nTrkNNSTT6++;}
    if (abs(z0) < 15. && p > 5) {nTrkNNSTT5++;}
    if (abs(z0) < 15. && p > 4) {nTrkNNSTT4++;}
    if (abs(z0) < 20.) {nTrkNN20++;}
    if (abs(z0) < 40.) {nTrkNN40++;}
  }

  trgInfo->setN3Dfittertrk(nTrk3D);
  trgInfo->setN3DfittertrkZ10(nTrkZ10);
  trgInfo->setN3DfittertrkZ25(nTrkZ25);
  trgInfo->setN3DfittertrkZ35(nTrkZ35);
  trgInfo->setNNNtrk(nTrkNN);
  trgInfo->setNNNtrkZ20(nTrkNN20);
  trgInfo->setNNNtrkZ40(nTrkNN40);
  trgInfo->setNNNtrkSTT(nTrkNNSTT);
  //---------------------------------------------------------------------
  //..Trigger objects using single ECL clusters
  // nClust n300MeV n2GeV n2GeV414 n2GeV231516 n2GeV117 n1GeV415 n1GeV2316 n1GeV117
  int nClust = selTC.size();
  int n300MeV = 0;
  int n2GeV = 0;
  int n2GeV414 = 0;
  int n2GeV231516 = 0;
  int n2GeV117 = 0;
  int n1GeV415 = 0;
  int n1GeV2316 = 0;
  int n1GeV117 = 0;
  for (int ic = 0; ic < nClust; ic++) {
    if (selE[ic] > 0.3) {n300MeV++;}
    float thresh = TC1GeV[selTC[ic] - 1];
    if (selE[ic] > (thresh + thresh)) {
      n2GeV++;
      if (selTheta[ic] >= 4 && selTheta[ic] <= 14) {n2GeV414++;}
      if (selTheta[ic] == 2 || selTheta[ic] == 3 || selTheta[ic] == 15 || selTheta[ic] == 16) {n2GeV231516++;}
      if (selTheta[ic] == 1 || selTheta[ic] == 17) {n2GeV117++;}
    }
    if (selE[ic] > thresh) {
      if (selTheta[ic] >= 4 && selTheta[ic] <= 15) {n1GeV415++;}
      if (selTheta[ic] == 2 || selTheta[ic] == 3 || selTheta[ic] == 16) {n1GeV2316++;}
      if (selTheta[ic] == 1 || selTheta[ic] == 17) {n1GeV117++;}
    }
  }
  trgInfo->setNcluster(nClust);
  trgInfo->setNhigh300cluster(n300MeV);
  trgInfo->setNhigh1GeVcluster415(n1GeV415);
  trgInfo->setNhigh1GeVcluster2316(n1GeV2316);
  trgInfo->setNhigh1GeVcluster117(n1GeV117);
  trgInfo->setNhigh2GeVcluster(n2GeV);
  trgInfo->setNhigh2GeVcluster414(n2GeV414);
  trgInfo->setNhigh2GeVcluster231516(n2GeV231516);
  trgInfo->setNhigh2GeVcluster117(n2GeV117);

  //---------------------------------------------------------------------
  //..Trigger objects using back-to-back ECL clusters, plus Bhabha vetoes
  //  nPhiPairHigh nPhiPairLow n3DPair nECLBhabha nTrkBhabha
  int nPhiPairHigh = 0;
  int nPhiPairLow = 0;
  int n3DPair = 0;
  int nECLBhabha = 0;
  int nTrkBhabha = 0;
  for (int i0 = 0; i0 < nClust - 1; i0++) {
    for (int i1 = i0 + 1; i1 < nClust; i1++) {

      //..back to back in phi
      float dphi = abs(TCPhiCOM[selTC[i1] - 1] - TCPhiCOM[selTC[i0] - 1]);
      if (dphi > 180.) {dphi = 360 - dphi;}
      if (dphi > 170. && selE[i0] > 0.25 && selE[i1] > 0.25) {nPhiPairHigh++;}
      if (dphi > 170. && (selE[i0] < 0.25 || selE[i1] < 0.25)) {nPhiPairLow++;}

      //..3D
      float thetaSum = TCThetaCOM[selTC[i0] - 1] + TCThetaCOM[selTC[i1] - 1];
      if (dphi > 160. && thetaSum > 160. && thetaSum < 200.) {n3DPair++;}

      //..ecl Bhabha
      if (dphi > 160. && thetaSum > 165. && thetaSum < 190. && selE[i0] > 3.*TC1GeV[selTC[i0] - 1] && selE[i1] > 3.*TC1GeV[selTC[i1] - 1]
          && (selE[i0] > 4.5 * TC1GeV[selTC[i0] - 1] ||  selE[i1] > 4.5 * TC1GeV[selTC[i1] - 1])) {
        nECLBhabha++;

        //..Bhabha also using the CDC
        bool c0matched = false;
        bool c1matched = false;
        for (int itrk = 0; itrk < nTrk3D; itrk++) {
          double phiTrk = cdc3DTrkArray[itrk]->getPhi0() * radtodeg;
          double ptTrk = cdc3DTrkArray[itrk]->getTransverseMomentum(1.5);
          float dphi0 = abs(phiTrk - TCPhiLab[selTC[i0] - 1]);
          if (dphi0 > 180.) {dphi0 = 360. - dphi0;}
          float dphi1 = abs(phiTrk - TCPhiLab[selTC[i1] - 1]);
          if (dphi1 > 180.) {dphi1 = 360. - dphi1;}
          if (ptTrk > 1. && dphi0 < 15.) {c0matched = true;}
          if (ptTrk > 1. && dphi1 < 15.) {c1matched = true;}
        }
        if (c0matched && c1matched) {nTrkBhabha++;}
      }
    }
  }

  trgInfo->setBhabhaVeto(nTrkBhabha);
  trgInfo->seteclBhabhaVeto(nECLBhabha);
  trgInfo->setPairHigh(nPhiPairHigh);
  trgInfo->setPairLow(nPhiPairLow);
  trgInfo->set3DPair(n3DPair);


  //---------------------------------------------------------------------
  //..Trigger objects using 1 track and at least 1 cluster
  // nSameHem1Trk nOppHem1Trk
  int nSameHem1Trk = 0;
  int nOppHem1Trk = 0;
  if (nTrk3D == 1) {
    double phiTrk = cdc3DTrkArray[0]->getPhi0() * radtodeg;
    double cotTrk = cdc3DTrkArray[0]->getCotTheta();
    for (int i0 = 0; i0 < nClust; i0++) {
      float dphi = abs(phiTrk - TCPhiLab[selTC[i0] - 1]);
      if (dphi > 180.) {dphi = 360. - dphi;}
      float dCot = cotTrk - TCcotThetaLab[selTC[i0] - 1];
      if (dphi > 80.) {nOppHem1Trk++;}
      if (dphi < 80. && (dCot < -0.8 || dCot > 0.6)) {nSameHem1Trk++;}
    }
  }

  trgInfo->setNSameHem1Trk(nSameHem1Trk);
  trgInfo->setNOppHem1Trk(nOppHem1Trk);

  //---------------------------------------------------------------------
  //..Trk b2b
  int Trk_b2b_1to3 = 0;
  int Trk_b2b_1to5 = 0;
  int Trk_b2b_1to7 = 0;
  int Trk_b2b_1to9 = 0;
  int Trk_open90 = 0;
  int Trk_open30 = 0;
  for (int itrk = 0; itrk < cdc2DTrkArray.getEntries(); itrk++) {

    int phi_i_itrk = (int)((cdc2DTrkArray[itrk]->getPhi0()) * (180 / M_PI) / 10);

    for (int jtrk = 0; jtrk < cdc2DTrkArray.getEntries(); jtrk++) {
      if (itrk <= jtrk) continue;

      int phi_i_jtrk = (int)((cdc2DTrkArray[jtrk]->getPhi0()) * (180 / M_PI) / 10);
      if (abs(phi_i_itrk - phi_i_jtrk) >= 17 && abs(phi_i_itrk - phi_i_jtrk) <= 19) {Trk_b2b_1to3 = 1;}
      if (abs(phi_i_itrk - phi_i_jtrk) >= 16 && abs(phi_i_itrk - phi_i_jtrk) <= 20) {Trk_b2b_1to5 = 1;}
      if (abs(phi_i_itrk - phi_i_jtrk) >= 15 && abs(phi_i_itrk - phi_i_jtrk) <= 21) {Trk_b2b_1to7 = 1;}
      if (abs(phi_i_itrk - phi_i_jtrk) >= 14 && abs(phi_i_itrk - phi_i_jtrk) <= 22) {Trk_b2b_1to9 = 1;}
      if (abs(phi_i_itrk - phi_i_jtrk) >= 9 && abs(phi_i_itrk - phi_i_jtrk) <= 27) {Trk_open90 = 1;}
      if (abs(phi_i_itrk - phi_i_jtrk) >= 3 && abs(phi_i_itrk - phi_i_jtrk) <= 33) {Trk_open30 = 1;}
    }
  }
  trgInfo->setTrk_b2b_1to3(Trk_b2b_1to3);
  trgInfo->setTrk_b2b_1to5(Trk_b2b_1to5);
  trgInfo->setTrk_b2b_1to7(Trk_b2b_1to7);
  trgInfo->setTrk_b2b_1to9(Trk_b2b_1to9);
  trgInfo->setTrk_open90(Trk_open90);
  trgInfo->setTrk_open30(Trk_open30);

  //---------------------------------------------------------------------
  //..cluster b2b
  int cluster_b2b_1to3 = 0;
  int cluster_b2b_1to5 = 0;
  int cluster_b2b_1to7 = 0;
  int cluster_b2b_1to9 = 0;
  for (int iclu = 0; iclu < eclTrgClusterArray.getEntries(); iclu++) {

    double x_iclu = eclTrgClusterArray[iclu]->getPositionX();
    double y_iclu = eclTrgClusterArray[iclu]->getPositionY();

    int phi_iclu = 0;
    if (x_iclu >= 0 && y_iclu >= 0) {phi_iclu = (int)(atan(y_iclu / x_iclu) * (180.0 / M_PI) / 10);}
    else if (x_iclu < 0 && y_iclu >= 0) {phi_iclu = (int)((atan(y_iclu / x_iclu) * (180.0 / M_PI) + 180.0) / 10);}
    else if (x_iclu < 0 && y_iclu < 0) {phi_iclu = (int)((atan(y_iclu / x_iclu) * (180.0 / M_PI) + 180.0) / 10);}
    else if (x_iclu >= 0 && y_iclu < 0) {phi_iclu = (int)((atan(y_iclu / x_iclu) * (180.0 / M_PI) + 360.0) / 10);}

    for (int jclu = 0; jclu < eclTrgClusterArray.getEntries(); jclu++) {
      if (iclu <= jclu) continue;

      double x_jclu = eclTrgClusterArray[jclu]->getPositionX();
      double y_jclu = eclTrgClusterArray[jclu]->getPositionY();

      int phi_jclu = 0;
      if (x_jclu >= 0 && y_jclu >= 0) {phi_jclu = (int)(atan(y_jclu / x_jclu) * (180.0 / M_PI) / 10);}
      else if (x_jclu < 0 && y_jclu >= 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 180.0) / 10);}
      else if (x_jclu < 0 && y_jclu < 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 180.0) / 10);}
      else if (x_jclu >= 0 && y_jclu < 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 360.0) / 10);}

      if (abs(phi_iclu - phi_jclu) >= 17 && abs(phi_iclu - phi_jclu) <= 19) {cluster_b2b_1to3 = 1;}
      if (abs(phi_iclu - phi_jclu) >= 16 && abs(phi_iclu - phi_jclu) <= 20) {cluster_b2b_1to5 = 1;}
      if (abs(phi_iclu - phi_jclu) >= 15 && abs(phi_iclu - phi_jclu) <= 21) {cluster_b2b_1to7 = 1;}
      if (abs(phi_iclu - phi_jclu) >= 14 && abs(phi_iclu - phi_jclu) <= 22) {cluster_b2b_1to9 = 1;}
    }
  }
  trgInfo->setcluster_b2b_1to3(cluster_b2b_1to3);
  trgInfo->setcluster_b2b_1to5(cluster_b2b_1to5);
  trgInfo->setcluster_b2b_1to7(cluster_b2b_1to7);
  trgInfo->setcluster_b2b_1to9(cluster_b2b_1to9);


  //---------------------------------------------------------------------
  //..eed, fed

  int eed = 0, fed = 0;
  if (cdc2DTrkArray.getEntries() == 2 && trackphimatch.getEntries() == 2 && cluster_b2b_1to5 == 1) {eed = 1;}
  if (cdc2DTrkArray.getEntries() == 1 && trackphimatch.getEntries() == 1 && cluster_b2b_1to5 == 1) {fed = 1;}
  trgInfo->seteed(eed);
  trgInfo->setfed(fed);

  //---------------------------------------------------------------------
  //..Track-cluster b2b
  int Trkcluster_b2b_1to3 = 0;
  int Trkcluster_b2b_1to5 = 0;
  int Trkcluster_b2b_1to7 = 0;
  int Trkcluster_b2b_1to9 = 0;
  for (int itrk = 0; itrk < cdc2DTrkArray.getEntries(); itrk++) {
    double    _r = 1.0 / cdc2DTrkArray[itrk]->getOmega() ;
    double    _phi = cdc2DTrkArray[itrk]->getPhi0() ;
    double phi_p = acos(126.0 / (2 * fabs(_r)));
    int charge = 0;
    if (_r > 0) {charge = 1;}
    else if (_r < 0) {charge = -1;}
    else {charge = 0;}

    double phi_CDC = 0.0;
    if (charge == 1) {
      phi_CDC = _phi + phi_p - 0.5 * M_PI;
    } else if (charge == -1) {
      phi_CDC = _phi - phi_p + 0.5 * M_PI;
    } else {
      phi_CDC = _phi;
    }

    if (phi_CDC > 2 * M_PI) {phi_CDC = phi_CDC - 2 * M_PI;}
    else if (phi_CDC < 0) {phi_CDC = phi_CDC + 2 * M_PI;}
    int phi_itrk = (int)(phi_CDC * (180.0 / M_PI) / 10);

    for (int jclu = 0; jclu < eclTrgClusterArray.getEntries(); jclu++) {

      double x_jclu = eclTrgClusterArray[jclu]->getPositionX();
      double y_jclu = eclTrgClusterArray[jclu]->getPositionY();

      int phi_jclu = 0;
      if (x_jclu >= 0 && y_jclu >= 0) {phi_jclu = (int)(atan(y_jclu / x_jclu) * (180.0 / M_PI) / 10);}
      else if (x_jclu < 0 && y_jclu >= 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 180.0) / 10);}
      else if (x_jclu < 0 && y_jclu < 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 180.0) / 10);}
      else if (x_jclu >= 0 && y_jclu < 0) {phi_jclu = (int)((atan(y_jclu / x_jclu) * (180.0 / M_PI) + 360.0) / 10);}

      if (abs(phi_itrk - phi_jclu) >= 17 && abs(phi_itrk - phi_jclu) <= 19) {Trkcluster_b2b_1to3 = 1;}
      if (abs(phi_itrk - phi_jclu) >= 16 && abs(phi_itrk - phi_jclu) <= 20) {Trkcluster_b2b_1to5 = 1;}
      if (abs(phi_itrk - phi_jclu) >= 15 && abs(phi_itrk - phi_jclu) <= 21) {Trkcluster_b2b_1to7 = 1;}
      if (abs(phi_itrk - phi_jclu) >= 14 && abs(phi_itrk - phi_jclu) <= 22) {Trkcluster_b2b_1to9 = 1;}
    }
  }

  trgInfo->setTrkcluster_b2b_1to3(Trkcluster_b2b_1to3);
  trgInfo->setTrkcluster_b2b_1to5(Trkcluster_b2b_1to5);
  trgInfo->setTrkcluster_b2b_1to7(Trkcluster_b2b_1to7);
  trgInfo->setTrkcluster_b2b_1to9(Trkcluster_b2b_1to9);

  //---------------------------------------------------------------------
  //..fp, eeb, fep

  int fp = 0;
  if (cdc2DTrkArray.getEntries() == 1 && Trkcluster_b2b_1to5 == 1) {fp = 1;}
  trgInfo->setfp(fp);

  int eeb = 0;
  if (trackphimatch.getEntries() == 2 && Trk_b2b_1to5 == 1) {eeb = 1;}
  trgInfo->seteeb(eeb);

  int fep = 0;
  if (cdc2DTrkArray.getEntries() == 1 && trackphimatch.getEntries() == 1 && Trkcluster_b2b_1to5 == 1) {fep = 1;}
  trgInfo->setfep(fep);


  //---------------------------------------------------------------------
  //..Get input bits from StoreArray<TRGECLTrg> trgArray
  //..Bit order is hard-coded in trg/ecl/src/TrgEclMaster.cc

  int ECLtoGDL[4] = {0, 0, 0, 0};
  if (ntrgArray > 0) {
    ECLtoGDL[0] = trgArray[0]->getECLtoGDL(0);
    ECLtoGDL[1] = trgArray[0]->getECLtoGDL(1);
    ECLtoGDL[2] = trgArray[0]->getECLtoGDL(2);
    ECLtoGDL[3] = trgArray[0]->getECLtoGDL(3);
  }

  // elow: 47
  bool elow = (ECLtoGDL[1] & (1 << (47 - 32 * 1))) != 0;
  // ehigh: 48
  bool ehigh = (ECLtoGDL[1] & (1 << (48 - 32 * 1))) != 0;
  // elum: 49
  bool elum = (ECLtoGDL[1] & (1 << (49 - 32 * 1))) != 0;
  // ecl_bha: 19
  bool ecl_bha = (ECLtoGDL[0] & (1 << (19 - 32 * 0))) != 0;
  // bha_type0: 20
  bool bha_type0 = (ECLtoGDL[0] & (1 << (20 - 32 * 0))) != 0;
  // bha_type1: 21
  bool bha_type1 = (ECLtoGDL[0] & (1 << (21 - 32 * 0))) != 0;
  // bha_type2: 22
  bool bha_type2 = (ECLtoGDL[0] & (1 << (22 - 32 * 0))) != 0;
  // bha_type3: 23
  bool bha_type3 = (ECLtoGDL[0] & (1 << (23 - 32 * 0))) != 0;
  // bha_type4: 24
  bool bha_type4 = (ECLtoGDL[0] & (1 << (24 - 32 * 0))) != 0;
  // bha_type5: 25
  bool bha_type5 = (ECLtoGDL[0] & (1 << (25 - 32 * 0))) != 0;
  // bha_type6: 26
  bool bha_type6 = (ECLtoGDL[0] & (1 << (26 - 32 * 0))) != 0;
  // bha_type7: 27
  bool bha_type7 = (ECLtoGDL[0] & (1 << (27 - 32 * 0))) != 0;
  // bha_type8: 28
  bool bha_type8 = (ECLtoGDL[0] & (1 << (28 - 32 * 0))) != 0;
  // bha_type9: 29
  bool bha_type9 = (ECLtoGDL[0] & (1 << (29 - 32 * 0))) != 0;
  // bha_type10: 30
  bool bha_type10 = (ECLtoGDL[0] & (1 << (30 - 32 * 0))) != 0;
  // bha_type11: 31
  bool bha_type11 = (ECLtoGDL[0] & (1u << (31 - 32 * 0))) != 0;
  // bha_type12: 32
  bool bha_type12 = (ECLtoGDL[1] & (1 << (32 - 32 * 1))) != 0;
  // bha_type13: 33
  bool bha_type13 = (ECLtoGDL[1] & (1 << (33 - 32 * 1))) != 0;

  unsigned int icn = (ECLtoGDL[1] >> (50 - 32 * 1)) & 0x7F;
  if (icn > 14)
    icn = 15;
  bool nclst_0 = (icn >> 0) & 0x1;
  bool nclst_1 = (icn >> 1) & 0x1;
  bool nclst_2 = (icn >> 2) & 0x1;
  bool nclst_3 = (icn >> 3) & 0x1;

  // ecl_bg_0: 57
  bool ecl_bg_0 = (ECLtoGDL[1] & (1 << (57 - 32 * 1))) != 0;
  // ecl_bg_1: 58
  bool ecl_bg_1 = (ECLtoGDL[1] & (1 << (58 - 32 * 1))) != 0;
  // ecl_bg_2: 59
  bool ecl_bg_2 = (ECLtoGDL[1] & (1 << (59 - 32 * 1))) != 0;

  bool ecl_active = ntrgArray > 0;

  // ecl_timing_fwd: 15
  bool ecl_timing_fwd = (ECLtoGDL[0] & (1 << (15 - 32 * 0))) != 0;
  // ecl_timing_brl: 16
  bool ecl_timing_brl = (ECLtoGDL[0] & (1 << (16 - 32 * 0))) != 0;
  // ecl_timing_bwd: 17
  bool ecl_timing_bwd = (ECLtoGDL[0] & (1 << (17 - 32 * 0))) != 0;
  // ecl_phys: 18
  bool ecl_phys = (ECLtoGDL[0] & (1 << (18 - 32 * 0))) != 0;
  // ecl_oflo: 60
  bool ecl_oflo = (ECLtoGDL[1] & (1 << (60 - 32 * 1))) != 0;
  // ecl_3dbha: 61
  bool ecl_3dbha = (ECLtoGDL[1] & (1 << (61 - 32 * 1))) != 0;
  // ecl_lml_0: 62
  bool ecl_lml_0 = (ECLtoGDL[1] & (1 << (62 - 32 * 1))) != 0;
  // ecl_lml_1: 63
  bool ecl_lml_1 = (ECLtoGDL[1] & (1u << (63 - 32 * 1))) != 0;
  // ecl_lml_2: 64
  bool ecl_lml_2 = (ECLtoGDL[2] & (1 << (64 - 32 * 2))) != 0;
  // ecl_lml_3: 65
  bool ecl_lml_3 = (ECLtoGDL[2] & (1 << (65 - 32 * 2))) != 0;
  // ecl_lml_4: 66
  bool ecl_lml_4 = (ECLtoGDL[2] & (1 << (66 - 32 * 2))) != 0;
  // ecl_lml_5: 67
  bool ecl_lml_5 = (ECLtoGDL[2] & (1 << (67 - 32 * 2))) != 0;
  // ecl_lml_6: 68
  bool ecl_lml_6 = (ECLtoGDL[2] & (1 << (68 - 32 * 2))) != 0;
  // ecl_lml_7: 69
  bool ecl_lml_7 = (ECLtoGDL[2] & (1 << (69 - 32 * 2))) != 0;
  // ecl_lml_8: 70
  bool ecl_lml_8 = (ECLtoGDL[2] & (1 << (70 - 32 * 2))) != 0;
  // ecl_lml_9: 71
  bool ecl_lml_9 = (ECLtoGDL[2] & (1 << (71 - 32 * 2))) != 0;
  // ecl_lml_10: 72
  bool ecl_lml_10 = (ECLtoGDL[2] & (1 << (72 - 32 * 2))) != 0;
  // ecl_lml_11: 73
  bool ecl_lml_11 = (ECLtoGDL[2] & (1 << (73 - 32 * 2))) != 0;
  // ecl_lml_11: 78
  bool ecl_lml_12 = (ECLtoGDL[2] & (1 << (78 - 32 * 2))) != 0;
  // ecl_lml_11: 79
  bool ecl_lml_13 = (ECLtoGDL[2] & (1 << (79 - 32 * 2))) != 0;
  // ecl_mumu: 75
  bool ecl_mumu = (ECLtoGDL[2] & (1 << (75 - 32 * 2))) != 0;
  // ecl_bst: 77
  bool ecl_bst = (ECLtoGDL[2] & (1 << (77 - 32 * 2))) != 0;
  // ecl_pur: 74
  bool ecl_bhapur = (ECLtoGDL[2] & (1 << (74 - 32 * 2))) != 0;
  //3D Bhabha Veto Intrk: 86
  bool bha_intrk = (ECLtoGDL[2] & (1 << (86 - 32 * 2))) != 0;
  //3D Bhabha selection theta flag: 87-88
  bool bha_theta_0 = (ECLtoGDL[2] & (1 << (87 - 32 * 2))) != 0;
  bool bha_theta_1 = (ECLtoGDL[2] & (1 << (88 - 32 * 2))) != 0;
  //ecltaub2b
  bool ecltaub2b = (ECLtoGDL[2] & (1 << (89 - 32 * 2))) != 0;
  bool ecltaub2b2 = (ECLtoGDL[2] & (1 << (93 - 32 * 2))) != 0;
  bool ecltaub2b3 = (ECLtoGDL[2] & (1 << (94 - 32 * 2))) != 0;
  // ehigh1-3
  bool ehigh1 = (ECLtoGDL[2] & (1 << (90 - 32 * 2))) != 0;
  bool ehigh2 = (ECLtoGDL[2] & (1 << (91 - 32 * 2))) != 0;
  bool ehigh3 = (ECLtoGDL[2] & (1 << (92 - 32 * 2))) != 0;
  bool ehigh4 = (ECLtoGDL[2] & (1u << (95 - 32 * 2))) != 0;

  //---------------------------------------------------------------------
  //..Other input bits

  bool cdc_active = false;
  if (m_eventTime->hasBinnedEventT0(Const::CDC)) {
    if (m_eventTime->getBinnedEventT0(Const::CDC) != 0) { cdc_active = true; }
  }

  //KLM alone bits from klmtrg summary----------------------------------
  int n_klm_barrel = klmtrgsummary->getBKLM_n_trg_sectors();
  bool klm_hit = n_klm_barrel > 0;
  bool klm_0 = (n_klm_barrel & (1 << 0)) != 0;
  bool klm_1 = (n_klm_barrel & (1 << 1)) != 0;
  bool klm_2 = (n_klm_barrel & (1 << 2)) != 0;
  int n_eklm_barrel = klmtrgsummary->getEKLM_n_trg_sectors();
  bool eklm_hit = n_eklm_barrel > 0;
  bool eklm_0 = (n_eklm_barrel & (1 << 0)) != 0;
  bool eklm_1 = (n_eklm_barrel & (1 << 1)) != 0;
  bool eklm_2 = (n_eklm_barrel & (1 << 2)) != 0;
  int klmb2b  = klmtrgsummary->getBKLM_back_to_back_flag();
  int eklmb2b = klmtrgsummary->getEKLM_back_to_back_flag();

  //KLM/CDC/ECL matching bits-------------------------------------------
  bool cdcklm_0 = (trackKLMmatch.getEntries() == 1);
  bool cdcklm_1 = (trackKLMmatch.getEntries() > 1);
  bool cdcklm_2 = (trackKLMmatch.getEntries() == 3);
  bool cdcklm_3 = (trackKLMmatch.getEntries() > 3);
  int n_seklm = trgInfo->getNsklm();
  //int n_seklm_fwd = trgInfo->getNsklm_fwd();
  //int n_seklm_bwd = trgInfo->getNsklm_bwd();
  int n_ieklm = trgInfo->getNiklm();
  bool ecleklm  = (trgInfo->getNeecleklm() > 0);

  bool cdcecl_0 = (trackphimatch.getEntries() == 1);
  bool cdcecl_1 = (trackphimatch.getEntries() == 2);
  bool cdcecl_2 = (trackphimatch.getEntries() == 3);
  bool cdcecl_3 = (trackphimatch.getEntries() > 3);
  bool trkbha1  = ecl_3dbha && (trackphimatch.getEntries() == 1);
  bool trkbha2  = ecl_3dbha && (trackphimatch.getEntries() == 2);



  int n_c2gev = 0;
  for (int i = 0; i < trackphimatch.getEntries(); i++) {
    if (trackphimatch[i]->get_e() >= 2.0) {n_c2gev++;}
  }

  bool c2gev_0 = (n_c2gev == 1);
  bool c2gev_1 = (n_c2gev == 2);
  bool c2gev_2 = (n_c2gev == 3);
  bool c2gev_3 = (n_c2gev > 3);

  int N_clst1 = 0, N_clst2 = 0;
  for (int i = 0 ; i < grlphoton.getEntries() ; i++) {
    if (grlphoton[i]->get_e() > 1.0) { N_clst1++; }
    if (grlphoton[i]->get_e() > 2.0) { N_clst2++; }
  }

  bool nclst1_0 = (N_clst1 == 1);
  bool nclst1_1 = (N_clst1 == 2);
  bool nclst1_2 = (N_clst1 == 3);
  bool nclst1_3 = (N_clst1 > 3);

  bool nclst2_0 = (N_clst2 == 1);
  bool nclst2_1 = (N_clst2 == 2);
  bool nclst2_2 = (N_clst2 == 3);
  bool nclst2_3 = (N_clst2 > 3);

  int N_ST = trgInfo->getNshorttrk();
  int N_ST_fwd = trgInfo->getNshorttrk_fwd();
  int N_ST_bwd = trgInfo->getNshorttrk_bwd();
  int s2s3 = trgInfo->gets2s3();
  int s2s5 = trgInfo->gets2s5();
  int s2so = trgInfo->gets2so();
  int s2f3 = trgInfo->gets2f3();
  int s2f5 = trgInfo->gets2f5();
  int s2fo = trgInfo->gets2fo();
  int s2f30 = trgInfo->gets2f30();
  int s2s30 = trgInfo->gets2s30();
  int bwdsb  = trgInfo->getbwdsb();
  int bwdnb  = trgInfo->getbwdnb();
  int fwdsb  = trgInfo->getfwdsb();
  int fwdnb  = trgInfo->getfwdnb();
  int brlfb  = trgInfo->getbrlfb();
  int brlnb  = trgInfo->getbrlnb();
  int N_IT   = trgInfo->getNinnertrk();
  int i2fo   = trgInfo->geti2fo();
  int i2io   = trgInfo->geti2io();
  int n_secl = trgInfo->getNsecl();
  int n_iecl = trgInfo->getNiecl();

  bool ecltaunn = trgInfo->getTauNN();

  //std::cout << "klm    " << klm_hit << " " << klm_0 << " " << klm_1 << " " << klm_2 << " " << klmb2b << std::endl;
  //std::cout << "eklm   " << eklm_hit << " " << eklm_0 << " " << eklm_1 << " " << eklm_2 << " " << eklmb2b << std::endl;
  //std::cout << "2dklm  " << nTrk2D << " " << cdcklm_0 << " " << cdcklm_1 << std::endl;
  //std::cout << "sklm   " << N_ST   << " " << n_seklm << " " << n_seklm_fwd << " " << n_seklm_bwd << std::endl;
  //std::cout << "tiklm  " << N_IT   << " " << n_ieklm << " " << trgInfo->getNiecl() << std::endl;
  //std::cout << "eclklm " << trgInfo->getNeecleklm() << std::endl;


  //---------------------------------------------------------------------
  //..Filling InputBits
  //..Naming is based on trg/gdl/dbobjects/log/


  if (!m_InputBitsDB)B2INFO("no database of gdl input bits");

  int N_InputBits = m_InputBitsDB->getninbit();

  for (int i = 0; i < N_InputBits; i++) {
    std::string bitname(m_InputBitsDB->getinbitname(i));

    bool bit = false;
    if (bitname == "t3_0") {bit = nTrkZ35 == 1;}
    else if (bitname == "t3_1") {bit = nTrkZ35 == 2;}
    else if (bitname == "t3_2") {bit = nTrkZ35 == 3;}
    else if (bitname == "t3_3") {bit = nTrkZ35 > 3;}
    else if (bitname == "ty_0") {bit = nTrkNN20 == 1;}
    else if (bitname == "ty_1") {bit = nTrkNN20 == 2;}
    else if (bitname == "ty_2") {bit = nTrkNN20 == 3;}
    else if (bitname == "ty_3") {bit = nTrkNN20 > 3;}
    else if (bitname == "typ")  {bit = nTrkNNSTT > 0;}
    else if (bitname == "typ6")  {bit = nTrkNNSTT6 > 0;}
    else if (bitname == "typ5")  {bit = nTrkNNSTT5 > 0;}
    else if (bitname == "typ4")  {bit = nTrkNNSTT4 > 0;}
    else if (bitname == "t2_0") {bit = nTrk2D == 1;}
    else if (bitname == "t2_1") {bit = nTrk2D == 2;}
    else if (bitname == "t2_2") {bit = nTrk2D == 3;}
    else if (bitname == "t2_3") {bit = nTrk2D > 3;}
    else if (bitname == "ts_0") {bit = N_ST == 1;}
    else if (bitname == "ts_1") {bit = N_ST == 2;}
    else if (bitname == "ts_2") {bit = N_ST == 3;}
    else if (bitname == "ts_3") {bit = N_ST > 3;}
    else if (bitname == "fwd_s") {bit = N_ST_fwd > 0;}
    else if (bitname == "bwd_s") {bit = N_ST_bwd > 0;}
    else if (bitname == "cdc_open90") {bit = Trk_open90 == 1;}
    else if (bitname == "f2f30") {bit = Trk_open30 == 1;}
    else if (bitname == "cdc_active") {bit = cdc_active;}
    else if (bitname == "cdc_b2b3") {bit = Trk_b2b_1to3;}
    else if (bitname == "cdc_b2b5") {bit = Trk_b2b_1to5;}
    else if (bitname == "cdc_b2b7") {bit = Trk_b2b_1to7;}
    else if (bitname == "cdc_b2b9") {bit = Trk_b2b_1to9;}
    else if (bitname == "s2s3") {bit = s2s3 > 0;}
    else if (bitname == "s2s5") {bit = s2s5 > 0;}
    else if (bitname == "s2so") {bit = s2so > 0;}
    else if (bitname == "s2f3") {bit = s2f3 > 0;}
    else if (bitname == "s2f5") {bit = s2f5 > 0;}
    else if (bitname == "s2fo") {bit = s2fo > 0;}
    else if (bitname == "s2f30") {bit = s2f30;}
    else if (bitname == "s2s30") {bit = s2s30;}
    else if (bitname == "bwdsb") {bit = bwdsb > 0;}
    else if (bitname == "bwdnb") {bit = bwdnb > 0;}
    else if (bitname == "fwdsb") {bit = fwdsb > 0;}
    else if (bitname == "fwdnb") {bit = fwdnb > 0;}
    else if (bitname == "brlfb1") {bit = brlfb == 1;}
    else if (bitname == "brlfb2") {bit = brlfb == 2;}
    else if (bitname == "brlnb1") {bit = brlnb == 1;}
    else if (bitname == "brlnb2") {bit = brlnb == 2;}
    else if (bitname == "seklm_0") {bit = n_seklm == 1;}
    else if (bitname == "seklm_1") {bit = n_seklm > 1;}
    else if (bitname == "ieklm") {bit = n_ieklm > 0;}
    else if (bitname == "secl") {bit = n_secl > 0;}
    else if (bitname == "iecl") {bit = n_iecl > 0;}
    else if (bitname == "iecl_0") {bit = n_iecl == 1;}
    else if (bitname == "iecl_1") {bit = n_iecl > 1;}
    else if (bitname == "ti") {bit = N_IT > 0;}
    else if (bitname == "i2fo") {bit = i2fo > 0;}
    else if (bitname == "i2io") {bit = i2io > 0;}
    else if (bitname == "ehigh") {bit = ehigh;}
    else if (bitname == "elow") {bit = elow;}
    else if (bitname == "elum") {bit = elum;}
    else if (bitname == "ecl_bha") {bit = ecl_bha;}
    else if (bitname == "bha_type_0") {bit = bha_type0;}
    else if (bitname == "bha_type_1") {bit = bha_type1;}
    else if (bitname == "bha_type_2") {bit = bha_type2;}
    else if (bitname == "bha_type_3") {bit = bha_type3;}
    else if (bitname == "bha_type_4") {bit = bha_type4;}
    else if (bitname == "bha_type_5") {bit = bha_type5;}
    else if (bitname == "bha_type_6") {bit = bha_type6;}
    else if (bitname == "bha_type_7") {bit = bha_type7;}
    else if (bitname == "bha_type_8") {bit = bha_type8;}
    else if (bitname == "bha_type_9") {bit = bha_type9;}
    else if (bitname == "bha_type_10") {bit = bha_type10;}
    else if (bitname == "bha_type_11") {bit = bha_type11;}
    else if (bitname == "bha_type_12") {bit = bha_type12;}
    else if (bitname == "bha_type_13") {bit = bha_type13;}
    else if (bitname == "clst_0") {bit = nclst_0;}
    else if (bitname == "clst_1") {bit = nclst_1;}
    else if (bitname == "clst_2") {bit = nclst_2;}
    else if (bitname == "clst_3") {bit = nclst_3;}
    else if (bitname == "ecl_bg_0") {bit = ecl_bg_0;}
    else if (bitname == "ecl_bg_1") {bit = ecl_bg_1;}
    else if (bitname == "ecl_bg_2") {bit = ecl_bg_2;}
    else if (bitname == "ecl_active") {bit = ecl_active;}
    else if (bitname == "ecl_timing_fwd") {bit = ecl_timing_fwd;}
    else if (bitname == "ecl_timing_brl") {bit = ecl_timing_brl;}
    else if (bitname == "ecl_timing_bwd") {bit = ecl_timing_bwd;}
    else if (bitname == "ecl_phys") {bit = ecl_phys;}
    else if (bitname == "ecl_oflo") {bit = ecl_oflo;}
    else if (bitname == "ecl_3dbha") {bit = ecl_3dbha;}
    else if (bitname == "bha_veto") {bit = ecl_3dbha;}
    else if (bitname == "ecl_lml_0") {bit = ecl_lml_0;}
    else if (bitname == "ecl_lml_1") {bit = ecl_lml_1;}
    else if (bitname == "ecl_lml_2") {bit = ecl_lml_2;}
    else if (bitname == "ecl_lml_3") {bit = ecl_lml_3;}
    else if (bitname == "ecl_lml_4") {bit = ecl_lml_4;}
    else if (bitname == "ecl_lml_5") {bit = ecl_lml_5;}
    else if (bitname == "ecl_lml_6") {bit = ecl_lml_6;}
    else if (bitname == "ecl_lml_7") {bit = ecl_lml_7;}
    else if (bitname == "ecl_lml_8") {bit = ecl_lml_8;}
    else if (bitname == "ecl_lml_9") {bit = ecl_lml_9;}
    else if (bitname == "ecl_lml_10") {bit = ecl_lml_10;}
    else if (bitname == "ecl_lml_11") {bit = ecl_lml_11;}
    else if (bitname == "ecl_lml_12") {bit = ecl_lml_12;}
    else if (bitname == "ecl_lml_13") {bit = ecl_lml_13;}
    else if (bitname == "ecl_mumu") {bit = ecl_mumu;}
    else if (bitname == "ecl_bst") {bit = ecl_bst;}
    else if (bitname == "ecl_taub2b") {bit = ecltaub2b;}
    else if (bitname == "ecl_taub2b2") {bit = ecltaub2b2;}
    else if (bitname == "ecl_taub2b3") {bit = ecltaub2b3;}
    else if (bitname == "ehigh1") {bit = ehigh1;}
    else if (bitname == "ehigh2") {bit = ehigh2;}
    else if (bitname == "ehigh3") {bit = ehigh3;}
    else if (bitname == "ehigh4") {bit = ehigh4;}

    else if (bitname == "klm_hit") {bit = klm_hit;}
    else if (bitname == "klm_0") {bit = klm_0;}
    else if (bitname == "klm_1") {bit = klm_1;}
    else if (bitname == "klm_2") {bit = klm_2;}
    else if (bitname == "klmb2b")   {bit = klmb2b;}
    else if (bitname == "eklm_hit") {bit = eklm_hit;}
    else if (bitname == "eklm_0") {bit = eklm_0;}
    else if (bitname == "eklm_1") {bit = eklm_1;}
    else if (bitname == "eklm_2") {bit = eklm_2;}
    else if (bitname == "eklmb2b") {bit = eklmb2b;}
    else if (bitname == "ecleklm") {bit = ecleklm;}
    else if (bitname == "revo") {bit = false;}
    else if (bitname == "her_kick") {bit = false;}
    else if (bitname == "ler_kick") {bit = false;}
    else if (bitname == "bha_delay") {bit = false;}
    else if (bitname == "pseud_rand") {bit = false;}
    else if (bitname == "plsin") {bit = false;}
    else if (bitname == "poissonin") {bit = false;}
    else if (bitname == "periodin") {bit = false;}
    else if (bitname == "veto") {bit = false;}
    else if (bitname == "samhem") {bit = nSameHem1Trk > 0;}
    else if (bitname == "opohem") {bit = nOppHem1Trk > 0;}
    else if (bitname == "n1gev_0") {bit = nclst1_0;}
    else if (bitname == "n1gev_1") {bit = nclst1_1;}
    else if (bitname == "n1gev_2") {bit = nclst1_2;}
    else if (bitname == "n1gev_3") {bit = nclst1_3;}
    else if (bitname == "n2gev_0") {bit = nclst2_0;}
    else if (bitname == "n2gev_1") {bit = nclst2_1;}
    else if (bitname == "n2gev_2") {bit = nclst2_2;}
    else if (bitname == "n2gev_3") {bit = nclst2_3;}
    else if (bitname == "cdcecl_0") {bit = cdcecl_0;}
    else if (bitname == "cdcecl_1") {bit = cdcecl_1;}
    else if (bitname == "cdcecl_2") {bit = cdcecl_2;}
    else if (bitname == "cdcecl_3") {bit = cdcecl_3;}
    else if (bitname == "c2gev_0") {bit = c2gev_0;}
    else if (bitname == "c2gev_1") {bit = c2gev_1;}
    else if (bitname == "c2gev_2") {bit = c2gev_2;}
    else if (bitname == "c2gev_3") {bit = c2gev_3;}
    else if (bitname == "cdcklm_0") {bit = cdcklm_0;}
    else if (bitname == "cdcklm_1") {bit = cdcklm_1;}
    else if (bitname == "cdcklm_2") {bit = cdcklm_2;}
    else if (bitname == "cdcklm_3") {bit = cdcklm_3;}
    else if (bitname == "d3") {bit = cluster_b2b_1to3 > 0;}
    else if (bitname == "d5") {bit = cluster_b2b_1to5 > 0;}
    else if (bitname == "d7") {bit = cluster_b2b_1to7 > 0;}
    else if (bitname == "d9") {bit = cluster_b2b_1to9 > 0;}
    else if (bitname == "p3") {bit = Trkcluster_b2b_1to3 > 0;}
    else if (bitname == "p5") {bit = Trkcluster_b2b_1to5 > 0;}
    else if (bitname == "p7") {bit = Trkcluster_b2b_1to7 > 0;}
    else if (bitname == "p9") {bit = Trkcluster_b2b_1to9 > 0;}
    else if (bitname == "trkfit") {bit = false;}
    else if (bitname == "injv") {bit = false;}
    else if (bitname == "nimin0") {bit = false;}
    else if (bitname == "nimin1") {bit = false;}
    else if (bitname == "track") {bit = nTrk2D > 0;}
    else if (bitname == "bha_intrk") {bit = bha_intrk;}
    else if (bitname == "bha_theta_0") {bit = bha_theta_0;}
    else if (bitname == "bha_theta_1") {bit = bha_theta_1;}
    else if (bitname == "ecl_bhapur") {bit = ecl_bhapur;}

    //GRL related bits, not perfect. To do: judge bhabha cluster or not correctly
    else if (bitname == "trkbha1") {bit = trkbha1;}
    else if (bitname == "trkbha2") {bit = trkbha2;}

    //GRL related bits, not ready
    else if (bitname == "ta_0") {bit = false;}
    else if (bitname == "ta_1") {bit = false;}
    else if (bitname == "ta_2") {bit = false;}
    else if (bitname == "ta_3") {bit = false;}
    else if (bitname == "trkflt") {bit = false;}
    else if (bitname == "tsf0b2b") {bit = false;}
    else if (bitname == "tsf1b2b") {bit = false;}
    else if (bitname == "tsf2b2b") {bit = false;}
    else if (bitname == "grlgg1") {bit = false;}
    else if (bitname == "grlgg2") {bit = false;}

    //KLM TOP ECL not ready
    else if (bitname == "ecl_bhauni") {bit = false;}
    else if (bitname == "cdctop_0") {bit = false;}
    else if (bitname == "cdctop_1") {bit = false;}
    else if (bitname == "cdctop_2") {bit = false;}
    else if (bitname == "cdctop_3") {bit = false;}
    else if (bitname == "top_0") {bit = false;}
    else if (bitname == "top_1") {bit = false;}
    else if (bitname == "top_2") {bit = false;}
    else if (bitname == "top_bb") {bit = false;}
    else if (bitname == "top_active") {bit = false;}

    //other trigger bits
    else if (bitname == "itsfb2b") {bit = false;}
    else if (bitname == "inp156") {bit = false;}
    else if (bitname == "inp157") {bit = false;}
    else if (bitname == "inp158") {bit = false;}
    else if (bitname == "inp159") {bit = false;}

    //new tau bit
    else if (bitname == "ecl_taunn") {bit = ecltaunn;}

    //DITTO: please don't change the WARNING message below.
    //If you change it, please update the test trg_tsim_check_warnings.py accordingly.
    //else B2WARNING("Unknown bitname" << LogVar("bitname", bitname));
    else {
      bit = false;
      bool notcontain = std::find(m_falsebits.begin(), m_falsebits.end(), bitname) == m_falsebits.end();
      if (notcontain) m_falsebits.push_back(bitname);
    }

    trgInfo->setInputBits(i, bit);
  }

}

exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional paths */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 323 of file Module.h.

    {
      return m_conditions;
    }

getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 313 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 201 of file Module.h.

{return m_description;}

getFileNames()

virtual std::vector< std::string > getFileNames ( bool outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, RootOutputModule, and StorageRootOutputModule.

Definition at line 133 of file Module.h.

    {
      return std::vector<std::string>();
    }

getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 224 of file Module.h.

{return m_logConfig;}

getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 505 of file Module.h.

{ return std::list<ModulePtr>(); }

getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 186 of file Module.h.

{return m_name;}

getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 196 of file Module.h.

{return m_package;}

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 362 of file Module.h.

{ return m_moduleParamList; }

getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 380 of file Module.h.

{ return m_returnValue; }

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 310 of file Module.h.

{ return not m_conditions.empty(); };

hasProperties()

bool hasProperties ( unsigned int propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 377 of file Module.h.

{ return m_hasReturnValue; }

hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

if_false()

void if_false ( const std::shared_ptr< Path > & path, EAfterConditionPath afterConditionPath = EAfterConditionPath::c_End )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

if_true()

void if_true ( const std::shared_ptr< Path > & path, EAfterConditionPath afterConditionPath = EAfterConditionPath::c_End )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

if_value()

void if_value ( const std::string & expression, const std::shared_ptr< Path > & path, EAfterConditionPath afterConditionPath = EAfterConditionPath::c_End )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

initialize()

void initialize ( void )

overridevirtual

Initializes TRGGRLProjectsModule.

Reimplemented from Module.

Definition at line 135 of file TRGGRLProjectsModule.cc.

{
  radtodeg = 180. / TMath::Pi();
  //..Trigger ThetaID for each trigger cell. Could be replaced by getMaxThetaId() for newer MC
  TrgEclMapping* eclMapping = new TrgEclMapping();
  for (int tc = 1; tc <= 576; tc++) {
    TCThetaID.push_back(eclMapping->getTCThetaIdFromTCId(tc));
  }

  //-----------------------------------------------------------------------------------------
  //..ECL look up tables
  PCmsLabTransform boostrotate;
  for (int tc = 1; tc <= 576; tc++) {

    //..Four vector of a 1 GeV lab photon at this TC
    ROOT::Math::XYZVector CellPosition = eclMapping->getTCPosition(tc);
    ROOT::Math::PxPyPzEVector CellLab;
    CellLab.SetPx(CellPosition.X() / CellPosition.R());
    CellLab.SetPy(CellPosition.Y() / CellPosition.R());
    CellLab.SetPz(CellPosition.Z() / CellPosition.R());
    CellLab.SetE(1.);

    //..cotan Theta and phi in lab
    TCPhiLab.push_back(CellPosition.Phi()*radtodeg);
    double tantheta = tan(CellPosition.Theta());
    TCcotThetaLab.push_back(1. / tantheta);

    //..Corresponding 4 vector in the COM frame
    ROOT::Math::PxPyPzEVector CellCOM = boostrotate.rotateLabToCms() * CellLab;
    TCThetaCOM.push_back(CellCOM.Theta()*radtodeg);
    TCPhiCOM.push_back(CellCOM.Phi()*radtodeg);

    //..Scale to give 1 GeV in the COM frame
    TC1GeV.push_back(1. / CellCOM.E());
  }

  //m_TRGGRLInfo.registerInDataStore(m_TrgGrlInformationName);
  delete eclMapping;
}

setAbortLevel()

void setAbortLevel ( int abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

setDebugLevel()

void setDebugLevel ( int debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

setDescription()

void setDescription ( const std::string & description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

setLogConfig()

void setLogConfig ( const LogConfig & logConfig )

inlineinherited

Set the log system configuration.

Definition at line 229 of file Module.h.

{m_logConfig = logConfig;}

setLogInfo()

void setLogInfo ( int logLevel, unsigned int logInfo )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

setLogLevel()

void setLogLevel ( int logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

setName()

void setName ( const std::string & name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 213 of file Module.h.

{ m_name = name; };

setParamList()

void setParamList ( const ModuleParamList & params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 500 of file Module.h.

{ m_moduleParamList = params; }

setParamPython()

void setParamPython ( const std::string & name, const boost::python::object & pyObj )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict & dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

setPropertyFlags()

void setPropertyFlags ( unsigned int propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

setReturnValue() [1/2]

void setReturnValue ( bool value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setReturnValue() [2/2]

void setReturnValue ( int value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setType()

void setType ( const std::string & type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

terminate()

void terminate ( void )

overridevirtual

Called when processing ended.

Reimplemented from Module.

Definition at line 1011 of file TRGGRLProjectsModule.cc.

{

}

Member Data Documentation

_debugLevel

int _debugLevel

private

returns version of TRGGRLProjectsModule.

Debug level.

Definition at line 64 of file TRGGRLProjectsModule.h.

m_2DfinderCollectionName

std::string m_2DfinderCollectionName

private

Name of the StoreArray holding the tracks made by the 2D finder.

Definition at line 92 of file TRGGRLProjectsModule.h.

m_2DfitterCollectionName

std::string m_2DfitterCollectionName

private

Name of the StoreArray holding the tracks made by the 2D fitter.

Definition at line 94 of file TRGGRLProjectsModule.h.

m_2DmatchCollectionName

std::string m_2DmatchCollectionName

private

Name of the StoreArray holding the matched 2D tracks.

Definition at line 84 of file TRGGRLProjectsModule.h.

m_3DfitterCollectionName

std::string m_3DfitterCollectionName

private

Name of the StoreArray holding the tracks made by the 3D fitter.

Definition at line 96 of file TRGGRLProjectsModule.h.

m_3DmatchCollectionName

std::string m_3DmatchCollectionName

private

Name of the StoreArray holding the matched 3D tracks.

Definition at line 88 of file TRGGRLProjectsModule.h.

m_belle2phase

std::string m_belle2phase

private

choose the corresponding trigger menu of Belle2 phase

Definition at line 67 of file TRGGRLProjectsModule.h.

m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 520 of file Module.h.

m_configFilename

std::string m_configFilename

private

Config. file name.

Definition at line 70 of file TRGGRLProjectsModule.h.

m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 510 of file Module.h.

m_eclClusterTimeWindow

double m_eclClusterTimeWindow

private

ecl cluster time window to suppress beam induced background

Definition at line 113 of file TRGGRLProjectsModule.h.

m_energythreshold

std::vector<double> m_energythreshold

private

the collection of energy threshold used in the projects

Definition at line 111 of file TRGGRLProjectsModule.h.

m_falsebits

std::vector<std::string> m_falsebits

private

convert the unit of angle from rad to degree

the collection of unknown bits (not ready in TSIM)

Definition at line 121 of file TRGGRLProjectsModule.h.

m_fastSimulationMode

int m_fastSimulationMode

private

Switch for the fast simulation.

0:do everything, 1:stop after the track segment simulation. Default is 0.

Definition at line 78 of file TRGGRLProjectsModule.h.

m_firmwareSimulationMode

int m_firmwareSimulationMode

private

Switch for the firmware simulation. 0:do nothing, 1:do everything.

Definition at line 81 of file TRGGRLProjectsModule.h.

m_grlphotonlist

std::string m_grlphotonlist

private

Name of the StoreArray holding projects information from grlphoton.

Definition at line 100 of file TRGGRLProjectsModule.h.

m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 517 of file Module.h.

m_InputBitsDB

DBObjPtr<TRGGDLDBInputBits> m_InputBitsDB

private

Data base of GDL input bits.

Definition at line 115 of file TRGGRLProjectsModule.h.

m_klmmatch_tracklist

std::string m_klmmatch_tracklist

private

the matched 2d track list by KLM matching

Definition at line 90 of file TRGGRLProjectsModule.h.

m_KLMTrgSummaryName

std::string m_KLMTrgSummaryName

private

Name of the collection of KLM TRG.

Definition at line 109 of file TRGGRLProjectsModule.h.

m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 513 of file Module.h.

m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 515 of file Module.h.

m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 507 of file Module.h.

m_NNCollectionName

std::string m_NNCollectionName

private

Name of the StoreArray holding the tracks made by NN.

Definition at line 103 of file TRGGRLProjectsModule.h.

m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 509 of file Module.h.

m_phimatch_tracklist

std::string m_phimatch_tracklist

private

the matched 2d track list by phi matching

Definition at line 86 of file TRGGRLProjectsModule.h.

m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 511 of file Module.h.

m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 518 of file Module.h.

m_simulationMode

int m_simulationMode

private

Mode for TRGGRL simulation.

0th bit : fast simulation switch, 1st bit : firmware simulation switch.

Definition at line 74 of file TRGGRLProjectsModule.h.

m_TrgECLClusterName

std::string m_TrgECLClusterName

private

Name of the StoreArray holding the eclclusters.

Definition at line 105 of file TRGGRLProjectsModule.h.

m_TrgECLTrgsName

std::string m_TrgECLTrgsName

private

Name of the StoreArray holding the ecl trg result.

Definition at line 107 of file TRGGRLProjectsModule.h.

m_TrgGrlInformationName

std::string m_TrgGrlInformationName

private

Name of the StoreArray holding projects information from grl.

Definition at line 98 of file TRGGRLProjectsModule.h.

m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 508 of file Module.h.

---

The documentation for this class was generated from the following files:

• trg/grl/modules/trggrl/include/TRGGRLProjectsModule.h
• trg/grl/modules/trggrl/src/TRGGRLProjectsModule.cc
