A module of TRGCDCT3DConverter. More...

#include <TRGCDCT3DConverterModule.h>

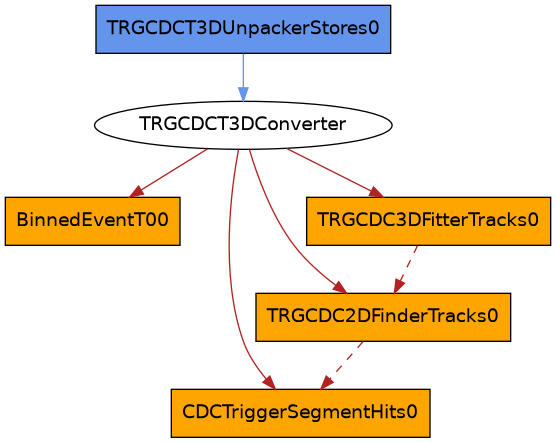

Inheritance diagram for TRGCDCT3DConverterModule:

[legend]

Collaboration diagram for TRGCDCT3DConverterModule:

[legend]

Public Types
enum	EModulePropFlags { c_Input = 1 , c_Output = 2 , c_ParallelProcessingCertified = 4 , c_HistogramManager = 8 , c_InternalSerializer = 16 , c_TerminateInAllProcesses = 32 , c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...

typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	TRGCDCT3DConverterModule ()
	Constructor.

virtual	~TRGCDCT3DConverterModule ()
	Destructor.

virtual void	initialize () override
	Initializes TRGCDCT3DConverterModule.

virtual void	event () override
	Called event by event.

virtual void	terminate () override
	Called when processing ended.

virtual void	beginRun () override
	Called when new run started.

virtual void	endRun () override
	Called when run ended.

void	storeTSFirmwareData (boost::multi_array< double, 4 > &tsfInfo)
	converts firmwareResults of TS to a vector

void	filterTSData (boost::multi_array< double, 4 > &tsfFirmwareInfo, boost::multi_array< double, 3 > &tsfInfo)
	filters tsfFirmwareInfo to tsfInfo

void	addTSDatastore (boost::multi_array< double, 3 > &tsfInfo, int isSt=1)
	adds tsfInfo to TS data store

void	store2DFirmwareData (boost::multi_array< double, 3 > &t2DFirmwareInfo, boost::multi_array< double, 4 > &axTsfFirmwareInfo)
	converts firmwareResults of 2D to a vector

void	filter2DData (boost::multi_array< double, 3 > &t2DFirmwareInfo, boost::multi_array< double, 4 > &t2DTsfFirmwareInfo, boost::multi_array< double, 2 > &t2DInfo, boost::multi_array< double, 3 > &t2DTsfInfo)
	filters t2DFirmwareInfo to t2DInfo*‍/ void filter2DData(boost::multi_array<double, 3> & t2DFirmwareInfo, boost::multi_array<double, 4> & t2DTsfFirmwareInfo, boost::multi_array<double, 2> & t2DInfo, boost::multi_array<double, 3> & t2DTsfInfo, std::vector<int> & t2DClks, std::vector<int> & t2DId);

void	add2DDatastore (boost::multi_array< double, 2 > &t2DInfo, boost::multi_array< double, 3 > &t2DTsfInfo)
	adds t2DInfo to track data store

void	store3DFirmwareData (boost::multi_array< double, 3 > &t3DFirmwareInfo)
	converts firmwareResults of 3D to a vector

void	store3DFastSimData (boost::multi_array< double, 3 > &t3DFirmwareInfo)
	uses fast sim with debug

void	store3DFirmSimData (boost::multi_array< double, 3 > &t3DFirmwareInfo)
	uses firm sim with debug

void	filter3DData (boost::multi_array< double, 3 > &t3DFirmwareInfo, boost::multi_array< double, 2 > &t3DInfo)
	filters t3DFirmwareInfo to t3DInfo

void	add3DDatastore (boost::multi_array< double, 2 > &t3DInfo, bool doConvert=1)
	adds t3DInfo to track data store

void	debug3DFirmware ()
	Used for debugging 3D firmware.

int	toTSID (int iSL, int iWire)
	converts sl, iWire to continuous TS ID [0,2335]

int	toSigned (int value, int nBits)
	converts to signed value

int	t2DPhiTot3DPhi (int phi, int rho)
	converts to 2D rho to 3D rho value, obsolete

virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.

const std::string &	getName () const
	Returns the name of the module.

const std::string &	getType () const
	Returns the type of the module (i.e.

const std::string &	getPackage () const
	Returns the package this module is in.

const std::string &	getDescription () const
	Returns the description of the module.

void	setName (const std::string &name)
	Set the name of the module.

void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.

LogConfig &	getLogConfig ()
	Returns the log system configuration.

void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.

void	setLogLevel (int logLevel)
	Configure the log level.

void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.

void	setAbortLevel (int abortLevel)
	Configure the abort log level.

void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.

void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.

void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.

void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.

bool	hasCondition () const
	Returns true if at least one condition was set for the module.

const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)

const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.

bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.

std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).

bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.

bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

const ModuleParamList &	getParamList () const
	Return module param list.

template<typename T>
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.

bool	hasReturnValue () const
	Return true if this module has a valid return value set.

int	getReturnValue () const
	Return the return value set by this module.

std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.

std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.

virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.

virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

void	setDescription (const std::string &description)
	Sets the description of the module.

void	setType (const std::string &type)
	Set the module type.

template<typename T>
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.

template<typename T>
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.

void	setReturnValue (int value)
	Sets the return value for this module as integer.

void	setReturnValue (bool value)
	Sets the return value for this module as bool.

void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Protected Attributes
std::string	m_firmwareResultCollectionName
	Name of the StoreArray containing the input firmware results.

std::string	m_hitCollectionName
	Name of the StoreArray containing the input track segment hits.

bool	m_addTSToDatastore
	Flag for adding TS to datastore.

std::string	m_inputCollectionName
	Name of the StoreArray containing the input tracks from the 2D fitter.

bool	m_add2DFinderToDatastore
	Flag for adding 2D finder to datastore.

std::string	m_outputCollectionName
	Name of the StoreArray containing the resulting 3D tracks.

bool	m_add3DToDatastore
	Flag for adding 3D to datastore.

unsigned	m_fit3DWithTSIM
	Mode for fitting with TSIM.

std::string	m_EventTimeName
	name of the event time StoreObjPtr

bool	m_addEventTimeToDatastore
	Flag for adding event time to datastore.

unsigned	m_isVerbose
	Switch printing detail information.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list

std::string	getPathString () const override
	return the module name.

void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.

void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
StoreArray< TRGCDCT3DUnpackerStore >	m_firmwareResults
	list of firmware results

StoreArray< CDCTriggerSegmentHit >	m_hits
	list of track segment hits

StoreArray< CDCTriggerTrack >	m_tracks2D
	list of 2D input tracks

StoreArray< CDCTriggerTrack >	m_tracks3D
	list of 3D output tracks

StoreObjPtr< BinnedEventT0 >	m_eventTime
	StoreObjPtr containing the event time.

Belle2::TRGCDCJSignalData *	m_commonData
	TRGCDCJSignalData for VHDL generation (jbkim's class)

std::map< std::string, TRGCDCJSignal >	m_mSignalStorage
	TRGCDCJSignal for VHDL generation (jbkim's class)

std::map< std::string, TRGCDCJLUT * >	m_mLutStorage
	TRGCDCJLUT for VHDL generation (jbkim's class)

std::string	m_name
	The name of the module, saved as a string (user-modifiable)

std::string	m_type
	The type of the module, saved as a string.

std::string	m_package
	Package this module is found in (may be empty).

std::string	m_description
	The description of the module.

unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with \|) of EModulePropFlags.

LogConfig	m_logConfig
	The log system configuration of the module.

ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.

bool	m_hasReturnValue
	True, if the return value is set.

int	m_returnValue
	The return value.

std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

A module of TRGCDCT3DConverter.

Definition at line 52 of file TRGCDCT3DConverterModule.h.

Member Typedef Documentation

◆ EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

Member Enumeration Documentation

◆ EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

◆ TRGCDCT3DConverterModule()

TRGCDCT3DConverterModule ( )

Constructor.

Definition at line 36 of file TRGCDCT3DConverterModule.cc.

  : Module::Module()
{
  setPropertyFlags(c_ParallelProcessingCertified);
  setDescription("TRGCDCT3DConverter module");
  addParam("hitCollectionName", m_hitCollectionName,
           "Name of the input StoreArray of CDCTriggerSegmentHits.",
           string("CDCTriggerSegmentHits0"));
  addParam("addTSToDatastore", m_addTSToDatastore,
           "If true, adds TS to datastore",
           true);
  addParam("EventTimeName", m_EventTimeName,
           "Name of the event time object.",
           string("BinnedEventT00"));
  addParam("addEventTimeToDatastore", m_addEventTimeToDatastore,
           "If true, adds event time to datastore",
           true);
  addParam("inputCollectionName", m_inputCollectionName,
           "Name of the StoreArray holding the input tracks from the 2D finder.",
           string("TRGCDC2DFinderTracks0"));
  addParam("add2DFinderToDatastore", m_add2DFinderToDatastore,
           "If true, adds 2D Finder results to datastore",
           true);
  addParam("outputCollectionName", m_outputCollectionName,
           "Name of the StoreArray holding the 3D output tracks.",
           string("TRGCDC3DFitterTracks0"));
  addParam("add3DToDatastore", m_add3DToDatastore,
           "If true, adds 3D results to datastore",
           true);
  addParam("fit3DWithTSIM", m_fit3DWithTSIM,
           "0: use firmware results. 1: Fits with fast TSIM. 2: Fits with firm TSIM",
           unsigned(0));
  addParam("firmwareResultCollectionName", m_firmwareResultCollectionName,
           "Name of the StoreArray holding the firmware results.",
           string("TRGCDCT3DUnpackerStores0"));
  addParam("isVerbose", m_isVerbose,
           "If not zero, prints detail information.",
           unsigned(0));
}

◆ ~TRGCDCT3DConverterModule()

~TRGCDCT3DConverterModule ( )

virtual

Destructor.

Definition at line 76 of file TRGCDCT3DConverterModule.cc.

77{

78}

Member Function Documentation

◆ add2DDatastore()

void add2DDatastore	(	boost::multi_array< double, 2 > &	t2DInfo,
		boost::multi_array< double, 3 > &	t2DTsfInfo )

adds t2DInfo to track data store

Definition at line 445 of file TRGCDCT3DConverterModule.cc.

{
  // Add 2D track
  for (unsigned iTrack = 0; iTrack < t2DInfo.shape()[0]; ++iTrack) {
    double charge = 0, phi0_i = 0, omega = 0, chi2D = 0;
    //double phi0_c = 0;
    //Convert
    charge = t2DInfo[iTrack][0] == 2 ? -1 : 1;
    //phi0_c = t2DPhiTot3DPhi(t2DInfo[iTrack][2], t2DInfo[iTrack][1]) / (pow(2, 12) - 0.5) * M_PI;
    //phi0_i = phi0_c + charge * M_PI_2;
    //cout<<phi0_i<<" "<<(45 + 90./80 * (1+ t2DInfo[iTrack][2]))/180*M_PI<<endl;
    phi0_i = (45 + 90. / 80 * (1 + t2DInfo[iTrack][2])) / 180 * M_PI;

    //Correct phi0_i.  The zero points of raw phi0_i for four boards are different.
    if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore0") {
      phi0_i = phi0_i + (M_PI / 2.0) * 0;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore1") {
      phi0_i = phi0_i + (M_PI / 2.0) * 1;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore2") {
      phi0_i = phi0_i + (M_PI / 2.0) * 2;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore3") {
      phi0_i = phi0_i + (M_PI / 2.0) * 3;
    }

    // Confine the range of the angle to -pi ~ pi
    while (phi0_i > M_PI) {
      phi0_i -= 2 * M_PI;
    }
    while (phi0_i < -M_PI) {
      phi0_i += 2 * M_PI;
    }

    //omega = charge / t2DRhoTot3DRho(t2DInfo[iTrack][1])/(pow(2,11)-0.5)*2500;
    //cout<<omega<<" "<<toSigned(t2DInfo[iTrack][1],7)*1.5e-4*30/0.3/34<<endl;
    //omega = toSigned(t2DInfo[iTrack][1], 7) * 1.5e-4 * 30 / 0.3 / 34;
    omega = toSigned(t2DInfo[iTrack][1], 7) / 33.0 * 3.2;
    //cout<<"iTrack: "<<iTrack<<" charge:"<<t2DInfo[iTrack][0]<<" "<<charge<<"  rho: "<<t2DInfo[iTrack][1]<<" "<<omega<<" phi0_i: "<<t2DInfo[iTrack][2]<<" "<<phi0_i<<endl;

    CDCTriggerTrack* track = m_tracks2D.appendNew(phi0_i, omega, chi2D, 0, 0, 0);

    if (m_isVerbose) cout << "[2D] iTrack:" << iTrack << " charge:" << charge << " phi0_i:" << phi0_i << " " << phi0_i * 180 / M_PI <<
                            " omega:" << omega << " pt:" << charge / omega * 0.3 * 1.5 * 0.01 << endl;

    for (unsigned iAx = 0; iAx < t2DTsfInfo.shape()[1]; ++iAx) {
      double rawId = t2DTsfInfo[iTrack][iAx][0];
      double id = -1;
      if (iAx != 4) id = rawId;
      else {
        id = rawId - 16;
        if (id < 0) id += 384;
      }
      double rt = t2DTsfInfo[iTrack][iAx][1];
      double lr = t2DTsfInfo[iTrack][iAx][2];
      double pr = t2DTsfInfo[iTrack][iAx][3];
      double ft = t2DTsfInfo[iTrack][iAx][4];
      if (pr == 0) continue;
      CDCHit prHit(rt, 0, iAx * 2, pr == 3 ? 2 : 3, id);
      m_hits.appendNew(prHit, toTSID(int(iAx * 2), id), pr, lr, rt, 0, ft);
      track->addRelationTo(m_hits[m_hits.getEntries() - 1]);
      if (m_isVerbose) cout << "[2D] iTrack: " << iTrack << " iAx:" << iAx << " id:" << id << " rt:" << rt << " lr:" << lr << " pr:" << pr
                              << " ft:" << ft << endl;
    }


  }
}

◆ add3DDatastore()

void add3DDatastore	(	boost::multi_array< double, 2 > &	t3DInfo,
		bool	doConvert = 1 )

adds t3DInfo to track data store

Definition at line 1571 of file TRGCDCT3DConverterModule.cc.

{
  for (unsigned iTrack = 0; iTrack < t3DInfo.shape()[0]; ++iTrack) {
    double charge = 0, phi0_i = 0, omega = 0, chi2D = 0, z0 = 0, cot = 0, zchi2 = 0;
    double phi0_c = 0;
    if (doConvert) {
      charge = t3DInfo[iTrack][1] == 2 ? -1 : 1;
      phi0_c = t2DPhiTot3DPhi(t3DInfo[iTrack][3], t3DInfo[iTrack][2]) / (pow(2, 12) - 0.5) * M_PI;
      //phi0_i = phi0_c + charge * M_PI_2;
      phi0_i = (45 + 90. / 80 * (1 + t3DInfo[iTrack][3])) / 180 * M_PI;
      //omega = charge / t2DRhoTot3DRho(t3DInfo[iTrack][2]) / (pow(2, 11) - 0.5) * 2500;
      omega = toSigned(t3DInfo[iTrack][2], 7) / 33.0 * 3.2;
      z0 = toSigned(t3DInfo[iTrack][4], 11) * 0.0382;
      cot = toSigned(t3DInfo[iTrack][5], 11) * 0.00195;
      zchi2 = t3DInfo[iTrack][6];
    } else {
      charge = t3DInfo[iTrack][1] == 1 ? 1 : -1;
      phi0_c = t2DPhiTot3DPhi((t3DInfo[iTrack][3] - 34 / 90.*80 - 1), t3DInfo[iTrack][2]) / (pow(2, 12) - 0.5) * M_PI;
      phi0_i = t3DInfo[iTrack][3];
      omega = t3DInfo[iTrack][2];
      z0 = t3DInfo[iTrack][4];
      cot = t3DInfo[iTrack][5];
      zchi2 = t3DInfo[iTrack][6];
    }

    //Correct phi0_i.  The zero points of raw phi0_i for four boards are different.
    if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore0") {
      phi0_c = phi0_c + (M_PI / 2.0) * 0;
      phi0_i = phi0_i + (M_PI / 2.0) * 0;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore1") {
      phi0_c = phi0_c + (M_PI / 2.0) * 1;
      phi0_i = phi0_i + (M_PI / 2.0) * 1;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore2") {
      phi0_c = phi0_c + (M_PI / 2.0) * 2;
      phi0_i = phi0_i + (M_PI / 2.0) * 2;
    } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore3") {
      phi0_c = phi0_c + (M_PI / 2.0) * 3;
      phi0_i = phi0_i + (M_PI / 2.0) * 3;
    }
    // Confine the range of the angle to -pi ~ pi
    while (phi0_c > M_PI) {
      phi0_c -= 2 * M_PI;
    }
    while (phi0_i < -M_PI) {
      phi0_c += 2 * M_PI;
    }
    while (phi0_i > M_PI) {
      phi0_i -= 2 * M_PI;
    }
    while (phi0_i < -M_PI) {
      phi0_i += 2 * M_PI;
    }

    //cout<<"iTrack: "<<iTrack<<" eventTime:"<<t3DInfo[iTrack][0]<<" charge:"<<charge<<" omega: "<<omega<<" rho: "<<charge/omega<<" pt: "<<charge/omega*0.3*1.5*0.01<<" phi0_i: "<<phi0_i<<" "<<phi0_i*180/M_PI<<" phi0_c: "<<phi0_c<<" "<<phi0_c*180/M_PI<<" z0:"<<z0<<" cot:"<<cot<<" theta: "<<M_PI/2-atan(cot)<<" zchi:"<<zchi2<<endl;
    if (m_isVerbose) cout << "[3D] iTrack:" << iTrack << " charge: " << charge << " phi0_i:" << phi0_i << " " << phi0_i * 180 / M_PI <<
                            " omega:" << omega << " pt:" << charge / omega * 0.3 * 1.5 * 0.01 << " z0:" << z0 << " cot:" << cot << " zchi2:" << zchi2 << endl;
    m_tracks3D.appendNew(phi0_i, omega, chi2D, z0, cot, zchi2);
  }
}

◆ addTSDatastore()

void addTSDatastore	(	boost::multi_array< double, 3 > &	tsfInfo,
		int	isSt = 1 )

adds tsfInfo to TS data store

Definition at line 513 of file TRGCDCT3DConverterModule.cc.

{
  for (unsigned iSL = 0; iSL < tsfInfo.shape()[0]; iSL++) {
    for (unsigned iTS = 0; iTS < tsfInfo.shape()[1]; iTS++) {
      double id = tsfInfo[iSL][iTS][0];
      double rt = tsfInfo[iSL][iTS][1];
      double lr = tsfInfo[iSL][iTS][2];
      double pr = tsfInfo[iSL][iTS][3];
      double ft = tsfInfo[iSL][iTS][4];
      if (m_isVerbose) cout << "[TSF] iSL:" << iSL << " iTS:" << iTS << " id:" << id << " rt:" << rt << " lr:" << lr << " pr:" << pr <<
                              " ft:" << ft << endl;
      if (pr != 0) {
        CDCHit prHit(rt, 0, iSL * 2 + isSt, pr == 3 ? 2 : 3, id);
        m_hits.appendNew(prHit, toTSID(int(iSL * 2 + isSt), id), pr, lr, rt, 0, ft);
      }
    }
  }
}

◆ beginRun()

void beginRun ( void )

overridevirtual

Called when new run started.

Reimplemented from Module.

Definition at line 98 of file TRGCDCT3DConverterModule.cc.

99{

100}

◆ clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

◆ debug3DFirmware()

void debug3DFirmware ( )

Used for debugging 3D firmware.

Definition at line 1170 of file TRGCDCT3DConverterModule.cc.

{
  bool doPrint = (m_isVerbose > 1);

  for (int iClk = 0; iClk < m_firmwareResults.getEntries(); iClk++) {
    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    //bitset<6> t2d_fnf (int(result->m_t3d_2dfnf));
    //bitset<4> tsf_fnf (int(result->m_t3d_validTS));

    //cout<<"iClk:"<<iClk<<endl;
    //cout<<"  [2D] fnf:"<<result->m_t2d_fnf<<" "<<bitset<6> (result->m_t2d_fnf)<<endl;
    //cout<<"       [0] rho: "<<result->m_t2d0_rho_s<<" "<<toSigned(result->m_t2d0_rho_s, 7)<<" "<<int(0.3*34/30/1.5e-4/abs(toSigned(result->m_t2d0_rho_s, 7))*(pow(2,11)-0.5)/2500)<<" phi0: "<<result->m_t2d0_phi<<endl;
    //cout<<"       [1] rho: "<<result->m_t2d1_rho_s<<" "<<toSigned(result->m_t2d1_rho_s, 7)<<" "<<int(0.3*34/30/1.5e-4/abs(toSigned(result->m_t2d1_rho_s, 7))*(pow(2,11)-0.5)/2500)<<" phi0: "<<result->m_t2d1_phi<<endl;
    //cout<<"       [2] rho: "<<result->m_t2d2_rho_s<<" "<<toSigned(result->m_t2d2_rho_s, 7)<<" "<<int(0.3*34/30/1.5e-4/abs(toSigned(result->m_t2d2_rho_s, 7))*(pow(2,11)-0.5)/2500)<<" phi0: "<<result->m_t2d2_phi<<endl;
    //cout<<"       [3] rho: "<<result->m_t2d3_rho_s<<" "<<toSigned(result->m_t2d3_rho_s, 7)<<" "<<int(0.3*34/30/1.5e-4/abs(toSigned(result->m_t2d3_rho_s, 7))*(pow(2,11)-0.5)/2500)<<" phi0: "<<result->m_t2d3_phi<<endl;
    //cout<<"  [3D] fnf:"<<result->m_t3d_2dfnf<<" "<<t2d_fnf<<" "<<t2d_fnf[5]<<" tsValid: "<<result->m_t3d_validTS<<" "<<tsf_fnf<<endl;;
    //cout<<"       [0] z0: "<<result->m_t3dtrk0_z0_s<<" cot: "<<result->m_t3dtrk0_cot_s<<" chi2: "<<result->m_t3dtrk0_zchisq<<endl;
    //cout<<"       [1] z0: "<<result->m_t3dtrk1_z0_s<<" cot: "<<result->m_t3dtrk1_cot_s<<" chi2: "<<result->m_t3dtrk1_zchisq<<endl;
    //cout<<"       [2] z0: "<<result->m_t3dtrk2_z0_s<<" cot: "<<result->m_t3dtrk2_cot_s<<" chi2: "<<result->m_t3dtrk2_zchisq<<endl;
    //cout<<"       [3] z0: "<<result->m_t3dtrk3_z0_s<<" cot: "<<result->m_t3dtrk3_cot_s<<" chi2: "<<result->m_t3dtrk3_zchisq<<endl;
    //cout<<"       [debug] MSB"<<endl;
    //cout<<"         evtTime: "<<result->m_t3dtrk0_evtTime_delay<<" evtTimeValid: "<<result->m_t3dtrk0_evtTimeValid_delay<<endl;
    //cout<<"         charge: "<<result->m_t3dtrk0_charge<<" rho: "<<result->m_t3dtrk0_rho<<" phi0: "<<result->m_t3dtrk0_phi0<<endl;;
    //cout<<"         ts0 id: "<<result->m_t3dtrk0ts0_id<<" lr: "<<result->m_t3dtrk0ts0_lr<<" rt: "<<result->m_t3dtrk0ts0_rt<<endl;
    //cout<<"         ts1 id: "<<result->m_t3dtrk0ts1_id<<" lr: "<<result->m_t3dtrk0ts1_lr<<" rt: "<<result->m_t3dtrk0ts1_rt<<endl;
    //cout<<"         ts2 id: "<<result->m_t3dtrk0ts2_id<<" lr: "<<result->m_t3dtrk0ts2_lr<<" rt: "<<result->m_t3dtrk0ts2_rt<<endl;
    //cout<<"         ts3 id: "<<result->m_t3dtrk0ts3_id<<" lr: "<<result->m_t3dtrk0ts3_lr<<" rt: "<<result->m_t3dtrk0ts3_rt<<endl;
    //cout<<"       [debug] LSB"<<endl;
    //cout<<"         evtTime: "<<result->m_t3dtrk1_evtTime_delay<<" evtTimeValid: "<<result->m_t3dtrk1_evtTimeValid_delay<<endl;
    //cout<<"         charge: "<<result->m_t3dtrk1_charge<<" rho: "<<result->m_t3dtrk1_rho<<" phi0: "<<result->m_t3dtrk1_phi0<<endl;;
    //cout<<"         ts0 id: "<<result->m_t3dtrk1ts0_id<<" lr: "<<result->m_t3dtrk1ts0_lr<<" rt: "<<result->m_t3dtrk1ts0_rt<<endl;
    //cout<<"         ts1 id: "<<result->m_t3dtrk1ts1_id<<" lr: "<<result->m_t3dtrk1ts1_lr<<" rt: "<<result->m_t3dtrk1ts1_rt<<endl;
    //cout<<"         ts2 id: "<<result->m_t3dtrk1ts2_id<<" lr: "<<result->m_t3dtrk1ts2_lr<<" rt: "<<result->m_t3dtrk1ts2_rt<<endl;
    //cout<<"         ts3 id: "<<result->m_t3dtrk1ts3_id<<" lr: "<<result->m_t3dtrk1ts3_lr<<" rt: "<<result->m_t3dtrk1ts3_rt<<endl;
    //if (result->m_t2d_fnf && iClk < 48-4-1 && bitset<6> (result->m_t2d_fnf)[5])
    //{
    //  TRGCDCT3DUnpackerStore * resultDebug = m_firmwareResults[iClk+4];
    //  if(t2DRhoTot3DRho(result->m_t2d0_rho_s) == resultDebug->m_t3dtrk0_rho)
    //  {
    //    cout<<"Matched 2D0 and debug0"<<endl;
    //  } else {
    //    cout<<"iClk:"<<iClk<<endl;
    //    cout<<"  [2D] fnf:"<<result->m_t2d_fnf<<" "<<bitset<6> (result->m_t2d_fnf)<<endl;
    //    cout<<"       [0] rho: "<<result->m_t2d0_rho_s<<" "<<toSigned(result->m_t2d0_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d0_rho_s)<<" phi0: "<<result->m_t2d0_phi<<endl;
    //    cout<<"       [1] rho: "<<result->m_t2d1_rho_s<<" "<<toSigned(result->m_t2d1_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d1_rho_s)<<" phi0: "<<result->m_t2d1_phi<<endl;
    //    cout<<"       [2] rho: "<<result->m_t2d2_rho_s<<" "<<toSigned(result->m_t2d2_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d2_rho_s)<<" phi0: "<<result->m_t2d2_phi<<endl;
    //    cout<<"       [3] rho: "<<result->m_t2d3_rho_s<<" "<<toSigned(result->m_t2d3_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d3_rho_s)<<" phi0: "<<result->m_t2d3_phi<<endl;
    //    cout<<"  [3DDebug] MSB"<<endl;
    //    cout<<"         charge: "<<resultDebug->m_t3dtrk0_charge<<" rho: "<<resultDebug->m_t3dtrk0_rho<<" phi0: "<<resultDebug->m_t3dtrk0_phi0<<endl;;
    //    cout<<"         ts0 id: "<<resultDebug->m_t3dtrk0ts0_id<<" lr: "<<resultDebug->m_t3dtrk0ts0_lr<<" rt: "<<resultDebug->m_t3dtrk0ts0_rt<<endl;
    //    cout<<"         ts1 id: "<<resultDebug->m_t3dtrk0ts1_id<<" lr: "<<resultDebug->m_t3dtrk0ts1_lr<<" rt: "<<resultDebug->m_t3dtrk0ts1_rt<<endl;
    //    cout<<"         ts2 id: "<<resultDebug->m_t3dtrk0ts2_id<<" lr: "<<resultDebug->m_t3dtrk0ts2_lr<<" rt: "<<resultDebug->m_t3dtrk0ts2_rt<<endl;
    //    cout<<"         ts3 id: "<<resultDebug->m_t3dtrk0ts3_id<<" lr: "<<resultDebug->m_t3dtrk0ts3_lr<<" rt: "<<resultDebug->m_t3dtrk0ts3_rt<<endl;
    //  }
    //}
    //if (iClk < 48-4-1 && bitset<6> (result->m_t2d_fnf)[2])
    //{
    //  TRGCDCT3DUnpackerStore * resultDebug = m_firmwareResults[iClk+4];
    //  if(t2DRhoTot3DRho(result->m_t2d3_rho_s) == resultDebug->m_t3dtrk1_rho)
    //  {
    //    cout<<"Matched 2D3 and debug1"<<endl;
    //  } else {
    //    cout<<"iClk:"<<iClk<<endl;
    //    cout<<"  [2D] fnf:"<<result->m_t2d_fnf<<" "<<bitset<6> (result->m_t2d_fnf)<<endl;
    //    cout<<"       [0] rho: "<<result->m_t2d0_rho_s<<" "<<toSigned(result->m_t2d0_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d0_rho_s)<<" phi0: "<<result->m_t2d0_phi<<endl;
    //    cout<<"       [1] rho: "<<result->m_t2d1_rho_s<<" "<<toSigned(result->m_t2d1_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d1_rho_s)<<" phi0: "<<result->m_t2d1_phi<<endl;
    //    cout<<"       [2] rho: "<<result->m_t2d2_rho_s<<" "<<toSigned(result->m_t2d2_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d2_rho_s)<<" phi0: "<<result->m_t2d2_phi<<endl;
    //    cout<<"       [3] rho: "<<result->m_t2d3_rho_s<<" "<<toSigned(result->m_t2d3_rho_s, 7)<<" "<<t2DRhoTot3DRho(result->m_t2d3_rho_s)<<" phi0: "<<result->m_t2d3_phi<<endl;
    //    cout<<"  [3DDebug] LSB"<<endl;
    //    cout<<"         evtTime: "<<resultDebug->m_t3dtrk1_evtTime_delay<<" evtTimeValid: "<<resultDebug->m_t3dtrk1_evtTimeValid_delay<<endl;
    //    cout<<"         charge: "<<resultDebug->m_t3dtrk1_charge<<" rho: "<<resultDebug->m_t3dtrk1_rho<<" phi0: "<<resultDebug->m_t3dtrk1_phi0<<endl;;
    //    cout<<"         ts0 id: "<<resultDebug->m_t3dtrk1ts0_id<<" lr: "<<resultDebug->m_t3dtrk1ts0_lr<<" rt: "<<resultDebug->m_t3dtrk1ts0_rt<<endl;
    //    cout<<"         ts1 id: "<<resultDebug->m_t3dtrk1ts1_id<<" lr: "<<resultDebug->m_t3dtrk1ts1_lr<<" rt: "<<resultDebug->m_t3dtrk1ts1_rt<<endl;
    //    cout<<"         ts2 id: "<<resultDebug->m_t3dtrk1ts2_id<<" lr: "<<resultDebug->m_t3dtrk1ts2_lr<<" rt: "<<resultDebug->m_t3dtrk1ts2_rt<<endl;
    //    cout<<"         ts3 id: "<<resultDebug->m_t3dtrk1ts3_id<<" lr: "<<resultDebug->m_t3dtrk1ts3_lr<<" rt: "<<resultDebug->m_t3dtrk1ts3_rt<<endl;
    //  }
    //}
    //int countTrk0 = int(result->m_t3dtrk0ts0_lr!=0)+int(result->m_t3dtrk0ts1_lr!=0)+int(result->m_t3dtrk0ts2_lr!=0)+int(result->m_t3dtrk0ts3_lr!=0);
    //if ( iClk < 48 - 7 - 1)
    //{
    //  TRGCDCT3DUnpackerStore * resultDebug = m_firmwareResults[iClk];
    //  TRGCDCT3DUnpackerStore * result = m_firmwareResults[iClk+7];

    //  if (int(countTrk0 > 1) == bitset<4> (int(result->m_t3d_validTS))[3])
    //  {
    //    cout<<"debug TSF matches with TSFValid0"<<endl;
    //  } else {
    //    cout<<"iClk:"<<iClk+7<<endl;
    //    cout<<"  [3D] fnf:"<<result->m_t3d_2dfnf<<" "<<bitset<6> (int(result->m_t3d_2dfnf))<<" tsValid: "<<result->m_t3d_validTS<<" "<<bitset<4> (int(result->m_t3d_validTS))<<endl;;
    //    cout<<"  [3DDebug] MSB"<<endl;
    //    cout<<"         charge: "<<resultDebug->m_t3dtrk0_charge<<" rho: "<<resultDebug->m_t3dtrk0_rho<<" phi0: "<<resultDebug->m_t3dtrk0_phi0<<endl;;
    //    cout<<"         ts0 id: "<<resultDebug->m_t3dtrk0ts0_id<<" lr: "<<resultDebug->m_t3dtrk0ts0_lr<<" rt: "<<resultDebug->m_t3dtrk0ts0_rt<<endl;
    //    cout<<"         ts1 id: "<<resultDebug->m_t3dtrk0ts1_id<<" lr: "<<resultDebug->m_t3dtrk0ts1_lr<<" rt: "<<resultDebug->m_t3dtrk0ts1_rt<<endl;
    //    cout<<"         ts2 id: "<<resultDebug->m_t3dtrk0ts2_id<<" lr: "<<resultDebug->m_t3dtrk0ts2_lr<<" rt: "<<resultDebug->m_t3dtrk0ts2_rt<<endl;
    //    cout<<"         ts3 id: "<<resultDebug->m_t3dtrk0ts3_id<<" lr: "<<resultDebug->m_t3dtrk0ts3_lr<<" rt: "<<resultDebug->m_t3dtrk0ts3_rt<<endl;
    //    cout<<"         count: "<<countTrk0<<endl;
    //  }
    //}
    //int countTrk3 = int(result->m_t3dtrk1ts0_lr!=0)+int(result->m_t3dtrk1ts1_lr!=0)+int(result->m_t3dtrk1ts2_lr!=0)+int(result->m_t3dtrk1ts3_lr!=0);
    //if ( iClk < 48 - 7 - 1)
    //{
    //  TRGCDCT3DUnpackerStore * resultDebug = m_firmwareResults[iClk];
    //  TRGCDCT3DUnpackerStore * result = m_firmwareResults[iClk+7];

    //  if (int(countTrk3 > 1) == bitset<4> (int(result->m_t3d_validTS))[2])
    //  {
    //    cout<<"debug TSF matches with TSFValid3"<<endl;
    //  } else {
    //    cout<<"iClk:"<<iClk+7<<endl;
    //    cout<<"  [3D] fnf:"<<result->m_t3d_2dfnf<<" "<<bitset<6> (int(result->m_t3d_2dfnf))<<" tsValid: "<<result->m_t3d_validTS<<" "<<bitset<4> (int(result->m_t3d_validTS))<<endl;;
    //    cout<<"  [3DDebug] LSB"<<endl;
    //    cout<<"         charge: "<<resultDebug->m_t3dtrk1_charge<<" rho: "<<resultDebug->m_t3dtrk1_rho<<" phi0: "<<resultDebug->m_t3dtrk1_phi0<<endl;;
    //    cout<<"         ts0 id: "<<resultDebug->m_t3dtrk1ts0_id<<" lr: "<<resultDebug->m_t3dtrk1ts0_lr<<" rt: "<<resultDebug->m_t3dtrk1ts0_rt<<endl;
    //    cout<<"         ts1 id: "<<resultDebug->m_t3dtrk1ts1_id<<" lr: "<<resultDebug->m_t3dtrk1ts1_lr<<" rt: "<<resultDebug->m_t3dtrk1ts1_rt<<endl;
    //    cout<<"         ts2 id: "<<resultDebug->m_t3dtrk1ts2_id<<" lr: "<<resultDebug->m_t3dtrk1ts2_lr<<" rt: "<<resultDebug->m_t3dtrk1ts2_rt<<endl;
    //    cout<<"         ts3 id: "<<resultDebug->m_t3dtrk1ts3_id<<" lr: "<<resultDebug->m_t3dtrk1ts3_lr<<" rt: "<<resultDebug->m_t3dtrk1ts3_rt<<endl;
    //    cout<<"         count: "<<countTrk3<<endl;
    //  }
    //}

    // Compare 2D with debug and 3D after 4 clks and 11 clks
    if (result->m_t2d_fnf && iClk < 48 - 17 - 1 && bitset<6> (result->m_t2d_fnf)[5]) {
      TRGCDCT3DUnpackerStore* resultDebug = m_firmwareResults[iClk + 4];
      TRGCDCT3DUnpackerStore* result3D = m_firmwareResults[iClk + 17];

      // Store information(charge, radius(cm), phi_c(rad), eventTime, eventTimeValid, [TS ID, TS LR, TS driftTime])
      // [TODO] Is evtTime clock correct?
      int charge = resultDebug->m_t3dtrk0_charge;
      double radius = resultDebug->m_t3dtrk0_rho * 2500 / (pow(2, 11) - 0.5);
      double phi_c = toSigned(resultDebug->m_t3dtrk0_phi0, 13) * M_PI / (pow(2, 12) - 0.5);
      int eventTime = result3D->m_t3dtrk0_evtTime_delay;
      int eventTimeValid = result3D->m_t3dtrk0_evtTimeValid_delay;
      // rawStTSs[iSt] = [TS ID, TS LR, TS driftTime]
      vector<vector<int> > rawStTSs(4, vector<int> (3));
      rawStTSs[0][0] = resultDebug->m_t3dtrk0ts0_id;
      rawStTSs[0][1] = resultDebug->m_t3dtrk0ts0_lr;
      rawStTSs[0][2] = resultDebug->m_t3dtrk0ts0_rt;
      rawStTSs[1][0] = resultDebug->m_t3dtrk0ts1_id;
      rawStTSs[1][1] = resultDebug->m_t3dtrk0ts1_lr;
      rawStTSs[1][2] = resultDebug->m_t3dtrk0ts1_rt;
      rawStTSs[2][0] = resultDebug->m_t3dtrk0ts2_id;
      rawStTSs[2][1] = resultDebug->m_t3dtrk0ts2_lr;
      rawStTSs[2][2] = resultDebug->m_t3dtrk0ts2_rt;
      rawStTSs[3][0] = resultDebug->m_t3dtrk0ts3_id;
      rawStTSs[3][1] = resultDebug->m_t3dtrk0ts3_lr;
      rawStTSs[3][2] = resultDebug->m_t3dtrk0ts3_rt;

      // Get geometry
      map<string, vector<double> > stGeometry;
      vector<vector<double> > stXts;
      TRGCDCFitter3D::getStereoGeometry(stGeometry);
      TRGCDCFitter3D::getStereoXt(stGeometry["priorityLayer"], stXts);
      //Fitter3DUtility::loadStereoXt("TODOdata/stereoXt",4,stXts);
      //vector<double> stTSs(4);
      //Fitter3DUtility::calPhiFast(stGeometry, stXts, eventTimeValid, eventTime, rawStTSs, stTSs);
      //cout<<"    [calPhi] "<<stTSs[0]<<" "<<stTSs[1]<<" "<<stTSs[2]<<" "<<stTSs[3]<<endl;
      //vector<double> invZError2;
      //Fitter3DUtility::setErrorFast(rawStTSs, eventTimeValid, invZError2);
      //cout<<"    [invZError2] "<<invZError2[0]<<" "<<invZError2[1]<<" "<<invZError2[2]<<" "<<invZError2[3]<<endl;
      //vector<double> zz(4, 0);
      //vector<double> arcS(4, 0);
      //for (unsigned iSt = 0; iSt < 4; iSt++) {
      //  if (rawStTSs[iSt][1] != 0) {
      //    zz[iSt] = Fitter3DUtility::calZ(charge, stGeometry["angleSt"][iSt], stGeometry["zToStraw"][iSt],
      //                                    stGeometry["cdcRadius"][iSt], stTSs[iSt], radius, phi_c);
      //    arcS[iSt] = Fitter3DUtility::calS(radius, stGeometry["cdcRadius"][iSt]);
      //  }
      //}
      //cout<<"    [zz] "<<zz[0]<<" "<<zz[1]<<" "<<zz[2]<<" "<<zz[3]<<endl;
      //cout<<"    [arcS] "<<arcS[0]<<" "<<arcS[1]<<" "<<arcS[2]<<" "<<arcS[3]<<endl;
      //double z0 = 0;
      //double cot = 0;
      //double chi2 = 0;
      //Fitter3DUtility::rSFit(&invZError2[0], &arcS[0], &zz[0], z0, cot, chi2);
      double z0 = 0;
      double cot = 0;
      double chi2 = 0;
      Fitter3DUtility::fitter3D(stGeometry, stXts, eventTimeValid, eventTime, rawStTSs, charge, radius, phi_c, z0, cot, chi2);

      // Prepare complex fit3D
      map<string, vector<double> > mConstV;
      map<string, double> mConstD;
      TRGCDCFitter3D::getConstants(mConstD, mConstV);
      //Belle2::TRGCDCJSignalData commonData;
      //map<string, TRGCDCJSignal> mSignalStorage;
      //map<string, TRGCDCJLUT*> mLutStorage;
      Fitter3DUtility::fitter3DFirm(mConstD, mConstV, eventTimeValid, eventTime, rawStTSs, charge, radius, phi_c, m_commonData,
                                    m_mSignalStorage, m_mLutStorage);
      //vector<tuple<string, double, int, double, double, int> > t_values = {
      //  make_tuple("phi0", phi_c, mConstD["phiBitSize"], mConstD["phiMin"], mConstD["phiMax"], 0),
      //  make_tuple("rho", radius, mConstD["rhoBitSize"], mConstD["rhoMin"], mConstD["rhoMax"], 0),
      //  //make_tuple("charge",(int) (m_mDouble["charge"]==1 ? 1 : 0), 1, 0, 1.5, 0),
      //  make_tuple("charge", (int)(charge == 1 ? 1 : 0), 1, 0, 1.5, 0),
      //  make_tuple("lr_0", rawStTSs[0][1], 2, 0, 3.5, 0),
      //  make_tuple("lr_1", rawStTSs[1][1], 2, 0, 3.5, 0),
      //  make_tuple("lr_2", rawStTSs[2][1], 2, 0, 3.5, 0),
      //  make_tuple("lr_3", rawStTSs[3][1], 2, 0, 3.5, 0),
      //  make_tuple("tsId_0", rawStTSs[0][0], ceil(log(mConstV["nTSs"][1]) / log(2)), 0, pow(2, ceil(log(mConstV["nTSs"][1]) / log(2))) - 0.5, 0),
      //  make_tuple("tsId_1", rawStTSs[1][0], ceil(log(mConstV["nTSs"][3]) / log(2)), 0, pow(2, ceil(log(mConstV["nTSs"][3]) / log(2))) - 0.5, 0),
      //  make_tuple("tsId_2", rawStTSs[2][0], ceil(log(mConstV["nTSs"][5]) / log(2)), 0, pow(2, ceil(log(mConstV["nTSs"][5]) / log(2))) - 0.5, 0),
      //  make_tuple("tsId_3", rawStTSs[3][0], ceil(log(mConstV["nTSs"][7]) / log(2)), 0, pow(2, ceil(log(mConstV["nTSs"][7]) / log(2))) - 0.5, 0),
      //  make_tuple("tdc_0", rawStTSs[0][2], mConstD["tdcBitSize"], 0, pow(2, mConstD["tdcBitSize"]) - 0.5, 0),
      //  make_tuple("tdc_1", rawStTSs[1][2], mConstD["tdcBitSize"], 0, pow(2, mConstD["tdcBitSize"]) - 0.5, 0),
      //  make_tuple("tdc_2", rawStTSs[2][2], mConstD["tdcBitSize"], 0, pow(2, mConstD["tdcBitSize"]) - 0.5, 0),
      //  make_tuple("tdc_3", rawStTSs[3][2], mConstD["tdcBitSize"], 0, pow(2, mConstD["tdcBitSize"]) - 0.5, 0),
      //  make_tuple("eventTime", eventTime, mConstD["tdcBitSize"], 0, pow(2, mConstD["tdcBitSize"]) - 0.5, 0),
      //  make_tuple("eventTimeValid", eventTimeValid, 1, 0, 1.5, 0),
      //};
      //TRGCDCJSignal::valuesToMapSignals(t_values, m_commonData, m_mSignalStorage);
      //Fitter3DUtility::setError(mConstD, mConstV, m_mSignalStorage);
      //Fitter3DUtility::calPhi(mConstD, mConstV, m_mSignalStorage, m_mLutStorage);
      //Fitter3DUtility::constrainRPerStSl(mConstV, m_mSignalStorage);
      //Fitter3DUtility::calZ(mConstD, mConstV, m_mSignalStorage, m_mLutStorage);
      //Fitter3DUtility::calS(mConstD, mConstV, m_mSignalStorage, m_mLutStorage);
      //Fitter3DUtility::rSFit(mConstD, mConstV, m_mSignalStorage, m_mLutStorage);
      //if ((*m_mSignalStorage.begin()).second.getName() == "") {
      //  for (auto it = m_mSignalStorage.begin(); it != m_mSignalStorage.end(); ++it) {
      //    (*it).second.setName((*it).first);
      //  }
      //}

      if (toSigned(result3D->m_t3dtrk0_z0_s, 11) != m_mSignalStorage["z0_r"].getInt()
          || toSigned(result3D->m_t3dtrk0_cot_s, 11) != m_mSignalStorage["cot_r"].getInt()) {
        bitset<6> t2d_oldfnf(int(result->m_t3d_2doldtrk));
        cout << "iClk:" << iClk << endl;
        cout << "  [2D] fnf:" << result->m_t2d_fnf << " " << bitset<6> (result->m_t2d_fnf) << " oldfnf: " << t2d_oldfnf << endl;
//        cout << "    [0] rho: " << result->m_t2d0_rho_s << " " << t2DRhoTot3DRho(result->m_t2d0_rho_s) << " phi0: " << result->m_t2d0_phi <<
//             " " << t2DPhiTot3DPhi(result->m_t2d0_phi, result->m_t2d0_rho_s) << endl;
        cout << "  [debug] MSB" << endl;
        cout << "    charge: " << resultDebug->m_t3dtrk0_charge << " rho: " << resultDebug->m_t3dtrk0_rho << " phi0: " << toSigned(
               resultDebug->m_t3dtrk0_phi0, 13) << endl;;
        cout << "    ts0 id: " << resultDebug->m_t3dtrk0ts0_id << " lr: " << resultDebug->m_t3dtrk0ts0_lr << " rt: " <<
             resultDebug->m_t3dtrk0ts0_rt << endl;
        cout << "    ts1 id: " << resultDebug->m_t3dtrk0ts1_id << " lr: " << resultDebug->m_t3dtrk0ts1_lr << " rt: " <<
             resultDebug->m_t3dtrk0ts1_rt << endl;
        cout << "    ts2 id: " << resultDebug->m_t3dtrk0ts2_id << " lr: " << resultDebug->m_t3dtrk0ts2_lr << " rt: " <<
             resultDebug->m_t3dtrk0ts2_rt << endl;
        cout << "    ts3 id: " << resultDebug->m_t3dtrk0ts3_id << " lr: " << resultDebug->m_t3dtrk0ts3_lr << " rt: " <<
             resultDebug->m_t3dtrk0ts3_rt << endl;
        cout << "  [3D] fnf:" << result3D->m_t3d_2dfnf << " " << bitset<6> (result3D->m_t3d_2dfnf) << " tsValid: " <<
             result3D->m_t3d_validTS << " " << bitset<4> (result3D->m_t3d_validTS) << endl;;
        cout << "    [0] z0: " << result3D->m_t3dtrk0_z0_s << " " << toSigned(result3D->m_t3dtrk0_z0_s,
             11) << " " << toSigned(result3D->m_t3dtrk0_z0_s,
                                    11) * 0.0382 << " cot: " << result3D->m_t3dtrk0_cot_s << " " << toSigned(result3D->m_t3dtrk0_cot_s,
                                        11) << " " << toSigned(result3D->m_t3dtrk0_cot_s, 11) * 0.00195 << " chi2: " << result3D->m_t3dtrk0_zchisq << endl;
        cout << "    [1] z0: " << result3D->m_t3dtrk1_z0_s << " " << toSigned(result3D->m_t3dtrk1_z0_s,
             11) << " " << toSigned(result3D->m_t3dtrk1_z0_s,
                                    11) * 0.0382 << " cot: " << result3D->m_t3dtrk1_cot_s << " " << toSigned(result3D->m_t3dtrk1_cot_s,
                                        11) << " " << toSigned(result3D->m_t3dtrk1_cot_s, 11) * 0.00195 << " chi2: " << result3D->m_t3dtrk1_zchisq << endl;
        cout << "    [2] z0: " << result3D->m_t3dtrk2_z0_s << " " << toSigned(result3D->m_t3dtrk2_z0_s,
             11) << " " << toSigned(result3D->m_t3dtrk2_z0_s,
                                    11) * 0.0382 << " cot: " << result3D->m_t3dtrk2_cot_s << " " << toSigned(result3D->m_t3dtrk2_cot_s,
                                        11) << " " << toSigned(result3D->m_t3dtrk2_cot_s, 11) * 0.00195 << " chi2: " << result3D->m_t3dtrk2_zchisq << endl;
        cout << "    [3] z0: " << result3D->m_t3dtrk3_z0_s << " " << toSigned(result3D->m_t3dtrk3_z0_s,
             11) << " " << toSigned(result3D->m_t3dtrk3_z0_s,
                                    11) * 0.0382 << " cot: " << result3D->m_t3dtrk3_cot_s << " " << toSigned(result3D->m_t3dtrk3_cot_s,
                                        11) << " " << toSigned(result3D->m_t3dtrk3_cot_s, 11) * 0.00195 << " chi2: " << result3D->m_t3dtrk3_zchisq << endl;
        cout << "    evtTime: " << result3D->m_t3dtrk0_evtTime_delay << " evtTimeValid: " << result3D->m_t3dtrk0_evtTimeValid_delay << endl;

        cout << "  [Store information]" << endl;
        cout << "    charge: " << charge << " radius(cm): " << radius << " phi_c(rad): " << phi_c << endl;
        cout << "    eventTime: " << eventTime << " valid: " << eventTimeValid << endl;
        cout << "    rawStTSs[0] id:" << rawStTSs[0][0] << " lr: " << rawStTSs[0][1] << " rt: " << rawStTSs[0][2] << endl;
        cout << "    rawStTSs[1] id:" << rawStTSs[1][0] << " lr: " << rawStTSs[1][1] << " rt: " << rawStTSs[1][2] << endl;
        cout << "    rawStTSs[2] id:" << rawStTSs[2][0] << " lr: " << rawStTSs[2][1] << " rt: " << rawStTSs[2][2] << endl;
        cout << "    rawStTSs[3] id:" << rawStTSs[3][0] << " lr: " << rawStTSs[3][1] << " rt: " << rawStTSs[3][2] << endl;

        cout << "  [Calculate fast]" << endl;
        cout << "    [z0] " << z0 << " [cot] " << cot << " [chi2] " << chi2 << endl;

        cout << "  [Calculate firm]" << endl;
        cout << "    z0: " << m_mSignalStorage["z0_r"].getInt() << " " << m_mSignalStorage["z0_r"].getRealInt() << " " <<
             m_mSignalStorage["z0_r"].getToReal() << " cot: " << m_mSignalStorage["cot_r"].getInt() << " " <<
             m_mSignalStorage["cot_r"].getRealInt() << " " << m_mSignalStorage["cot_r"].getToReal() << " zchi: " <<
             m_mSignalStorage["zChi2_r"].getInt() << " " << m_mSignalStorage["zChi2_r"].getRealInt() << " " <<
             m_mSignalStorage["zChi2_r"].getToReal() << endl;
        //doPrint = 1;
      }
      //else
      //{
      //  cout<<"same"<<endl;
      //}

    }

  }

  if (doPrint) {
    for (int iClk = 0; iClk < m_firmwareResults.getEntries(); iClk++) {
      TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
      bitset<6> t2d_fnf(int(result->m_t3d_2dfnf));
      bitset<4> tsf_fnf(int(result->m_t3d_validTS));
      bitset<6> t2d_oldfnf(int(result->m_t3d_2doldtrk));
      cout << "iClk:" << iClk << endl;
      cout << "  [2D] fnf:" << result->m_t2d_fnf << " " << bitset<6> (result->m_t2d_fnf) << " oldfnf: " << t2d_oldfnf << endl;
      cout << "       [0] rho: " << result->m_t2d0_rho_s << " " << toSigned(result->m_t2d0_rho_s,
           7) << " " << int(0.3 * 34 / 30 / 1.5e-4 / abs(toSigned(result->m_t2d0_rho_s, 7)) * (pow(2,
                            11) - 0.5) / 2500) << " phi0: " << result->m_t2d0_phi << endl;
      cout << "       [1] rho: " << result->m_t2d1_rho_s << " " << toSigned(result->m_t2d1_rho_s,
           7) << " " << int(0.3 * 34 / 30 / 1.5e-4 / abs(toSigned(result->m_t2d1_rho_s, 7)) * (pow(2,
                            11) - 0.5) / 2500) << " phi0: " << result->m_t2d1_phi << endl;
      cout << "       [2] rho: " << result->m_t2d2_rho_s << " " << toSigned(result->m_t2d2_rho_s,
           7) << " " << int(0.3 * 34 / 30 / 1.5e-4 / abs(toSigned(result->m_t2d2_rho_s, 7)) * (pow(2,
                            11) - 0.5) / 2500) << " phi0: " << result->m_t2d2_phi << endl;
      cout << "       [3] rho: " << result->m_t2d3_rho_s << " " << toSigned(result->m_t2d3_rho_s,
           7) << " " << int(0.3 * 34 / 30 / 1.5e-4 / abs(toSigned(result->m_t2d3_rho_s, 7)) * (pow(2,
                            11) - 0.5) / 2500) << " phi0: " << result->m_t2d3_phi << endl;
      cout << "  [3D] fnf:" << result->m_t3d_2dfnf << " " << t2d_fnf << " " << t2d_fnf[5] << " tsValid: " << result->m_t3d_validTS << " "
           << tsf_fnf << endl;;
      cout << "       [0] z0: " << result->m_t3dtrk0_z0_s << " cot: " << result->m_t3dtrk0_cot_s << " chi2: " << result->m_t3dtrk0_zchisq
           << endl;
      cout << "       [1] z0: " << result->m_t3dtrk1_z0_s << " cot: " << result->m_t3dtrk1_cot_s << " chi2: " << result->m_t3dtrk1_zchisq
           << endl;
      cout << "       [2] z0: " << result->m_t3dtrk2_z0_s << " cot: " << result->m_t3dtrk2_cot_s << " chi2: " << result->m_t3dtrk2_zchisq
           << endl;
      cout << "       [3] z0: " << result->m_t3dtrk3_z0_s << " cot: " << result->m_t3dtrk3_cot_s << " chi2: " << result->m_t3dtrk3_zchisq
           << endl;
      cout << "       [debug] MSB" << endl;
      cout << "         evtTime: " << result->m_t3dtrk0_evtTime_delay << " evtTimeValid: " << result->m_t3dtrk0_evtTimeValid_delay <<
           endl;
      cout << "         charge: " << result->m_t3dtrk0_charge << " rho: " << result->m_t3dtrk0_rho << " phi0: " << result->m_t3dtrk0_phi0
           << endl;;
      cout << "         ts0 id: " << result->m_t3dtrk0ts0_id << " lr: " << result->m_t3dtrk0ts0_lr << " rt: " << result->m_t3dtrk0ts0_rt
           << endl;
      cout << "         ts1 id: " << result->m_t3dtrk0ts1_id << " lr: " << result->m_t3dtrk0ts1_lr << " rt: " << result->m_t3dtrk0ts1_rt
           << endl;
      cout << "         ts2 id: " << result->m_t3dtrk0ts2_id << " lr: " << result->m_t3dtrk0ts2_lr << " rt: " << result->m_t3dtrk0ts2_rt
           << endl;
      cout << "         ts3 id: " << result->m_t3dtrk0ts3_id << " lr: " << result->m_t3dtrk0ts3_lr << " rt: " << result->m_t3dtrk0ts3_rt
           << endl;
      cout << "       [debug] LSB" << endl;
      cout << "         evtTime: " << result->m_t3dtrk1_evtTime_delay << " evtTimeValid: " << result->m_t3dtrk1_evtTimeValid_delay <<
           endl;
      cout << "         charge: " << result->m_t3dtrk1_charge << " rho: " << result->m_t3dtrk1_rho << " phi0: " << result->m_t3dtrk1_phi0
           << endl;;
      cout << "         ts0 id: " << result->m_t3dtrk1ts0_id << " lr: " << result->m_t3dtrk1ts0_lr << " rt: " << result->m_t3dtrk1ts0_rt
           << endl;
      cout << "         ts1 id: " << result->m_t3dtrk1ts1_id << " lr: " << result->m_t3dtrk1ts1_lr << " rt: " << result->m_t3dtrk1ts1_rt
           << endl;
      cout << "         ts2 id: " << result->m_t3dtrk1ts2_id << " lr: " << result->m_t3dtrk1ts2_lr << " rt: " << result->m_t3dtrk1ts2_rt
           << endl;
      cout << "         ts3 id: " << result->m_t3dtrk1ts3_id << " lr: " << result->m_t3dtrk1ts3_lr << " rt: " << result->m_t3dtrk1ts3_rt
           << endl;
    }
  }
}

◆ def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 425 of file Module.h.

425{ beginRun(); }

◆ def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 438 of file Module.h.

438{ endRun(); }

◆ def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 431 of file Module.h.

431{ event(); }

◆ def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 419 of file Module.h.

419{ initialize(); }

◆ def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 444 of file Module.h.

444{ terminate(); }

◆ endRun()

void endRun ( void )

overridevirtual

Called when run ended.

Reimplemented from Module.

Definition at line 102 of file TRGCDCT3DConverterModule.cc.

103{

104}

◆ evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns: True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

◆ event()

void event ( void )

overridevirtual

Called event by event.

Reimplemented from Module.

Definition at line 106 of file TRGCDCT3DConverterModule.cc.

{
  //cout<<"Event"<<endl;

  if (m_addTSToDatastore) {
    // Process firmware stereo TS
    // stTsfFirmwareInfo[stSL][tsIndex][iClk][id, rt, lr, pr, foundTime]
    boost::multi_array<double, 4> stTsfFirmwareInfo{boost::extents[4][15][48][5]};
    storeTSFirmwareData(stTsfFirmwareInfo);

    // stTsfInfo[stSL][iTS][id, rt, lr, pr, foundTime]
    boost::multi_array<double, 3> stTsfInfo{boost::extents[4][0][5]};

    filterTSData(stTsfFirmwareInfo, stTsfInfo);
    // Add to TS datastore
    addTSDatastore(stTsfInfo, 1);
  }

  if (m_add2DFinderToDatastore) {
    // Process firmware 2D

    // t2DFirmwareInfo[tIndex][iClk][valid, isOld, charge, rho, phi0]
    boost::multi_array<double, 3> t2DFirmwareInfo{boost::extents[4][48][5]};
    // t2DTsfFirmwareInfo[tIndex][iClk][axSL][id, rt, lr, pr]
    boost::multi_array<double, 4> t2DTsfFirmwareInfo{boost::extents[4][48][5][4]};
    store2DFirmwareData(t2DFirmwareInfo, t2DTsfFirmwareInfo);

    // t2DInfo[tIndex][charge, rho, phi0]
    boost::multi_array<double, 2> t2DInfo{boost::extents[0][3]};
    // t2DTsfInfo[tIndex][axSL][id, rt, lr, pr, -9999]
    boost::multi_array<double, 3> t2DTsfInfo{boost::extents[0][5][5]};

    filter2DData(t2DFirmwareInfo, t2DTsfFirmwareInfo, t2DInfo, t2DTsfInfo);
    add2DDatastore(t2DInfo, t2DTsfInfo);
  }

  if (m_addEventTimeToDatastore) {
    if (!m_eventTime.isValid()) m_eventTime.create();
    // add eventTime
    bool validEventTime = 0;
    int eventTime = 0;
    for (int iClk = 0; iClk < m_firmwareResults.getEntries() - 17 - 1; iClk++) {
      TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
      if (result->m_t3dtrk0_evtTimeValid_delay) {
        validEventTime = 1;
        eventTime = result->m_t3dtrk0_evtTime_delay;
      }
    }
    if (validEventTime) {
      m_eventTime->addBinnedEventT0(eventTime, Const::CDC);
    }
    if (m_isVerbose) {
      if (validEventTime) cout << "[ET] valid: 1 eventTime:" << eventTime << endl;
      else cout << "[ET] valid: 0" << endl;
    }
  }

  if (m_add3DToDatastore) {
    // t3DFirmwareInfo[tIndex][iClk][2DValid, 2DisOld, TSFValid, EventTimeValid, eventTime, charge, rho, phi0, z0, cot, zchi]
    boost::multi_array<double, 3> t3DFirmwareInfo{boost::extents[4][48][11]};

    // m_fit3DWithTSIM 0:firmware 1:fastSim 2:firmSim
    // Use Firmware results
    if (m_fit3DWithTSIM == 0) store3DFirmwareData(t3DFirmwareInfo);
    // Use fast sim with debug
    if (m_fit3DWithTSIM == 1) store3DFastSimData(t3DFirmwareInfo);
    // Use firm sim with debug
    if (m_fit3DWithTSIM == 2) store3DFirmSimData(t3DFirmwareInfo);

    // t3DInfo[eventTime, charge, rho, phi0, z0, cot, zchi]
    boost::multi_array<double, 2> t3DInfo{boost::extents[0][7]};


    filter3DData(t3DFirmwareInfo, t3DInfo);

    if (m_fit3DWithTSIM == 0) add3DDatastore(t3DInfo);
    else add3DDatastore(t3DInfo, 0);
  }

  if (m_isVerbose > 1) {
    debug3DFirmware();
  }



  //vector<int> t2DClks;
  //vector<int> t2DTrackId;
  //filter2DData(t2DFirmwareInfo, t2DTsfFirmwareInfo, t2DInfo, t2DTsfInfo, t2DClks, t2DTrackId);
  //for(unsigned iTrack = 0; iTrack < t2DInfo.size(); iTrack++)
  //{
  //  cout<<"[2D] iClk: "<<t2DClks[iTrack]<<" trackid: "<<t2DTrackId[iTrack]<<" charge:"<<t2DInfo[iTrack][0]<<endl;
  //  int rho_s = t2DInfo[iTrack][1];
  //  int rho_2Dint = toSigned(rho_s, 7);
  //  double rho = 0.3*34/30/1.5e-4/abs(rho_2Dint);
  //  int rho_3Dint = rho*(pow(2,11)-0.5)/2500;
  //  cout<<"  rho_s "<<rho_s<<" rho_int: "<<rho_2Dint<<" rho: "<<rho<<" rho_3Dint: "<<rho_3Dint<<endl;;
  //  //cout<<"  phi0: "<<t2DInfo[iTrack][2]<<" s: "<<toSigned(t2DInfo[iTrack][2],13)<<" convert: "<<endl;
  //  //for(unsigned iAx = 0; iAx < t2DTsfInfo[iTrack].size(); iAx++)
  //  //{
  //  //  cout<<"  iAx: "<<iAx<<" id: "<<t2DTsfInfo[iTrack][iAx][0]<<" lr: "<<t2DTsfInfo[iTrack][iAx][2]<<endl;
  //  //}
  //}
  //for (unsigned iTrack = 0; iTrack < t3DInfo.size(); iTrack++)
  //{
  //  cout<<"iClk: "<<t3DClks[iTrack]<<" trackid: "<<t3DTrackId[iTrack]<<" validTS: "<<bitset<4>(t3DInfo[iTrack][0])<<" z0: "<<t3DInfo[iTrack][1]<<" cot: "<<t3DInfo[iTrack][2]<<" zchi: "<<t3DInfo[iTrack][3]<<endl;
  //}


}

◆ exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional paths */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

◆ filter2DData()

void filter2DData	(	boost::multi_array< double, 3 > &	t2DFirmwareInfo,
		boost::multi_array< double, 4 > &	t2DTsfFirmwareInfo,
		boost::multi_array< double, 2 > &	t2DInfo,
		boost::multi_array< double, 3 > &	t2DTsfInfo )

filters t2DFirmwareInfo to t2DInfo*‍/ void filter2DData(boost::multi_array<double, 3> & t2DFirmwareInfo, boost::multi_array<double, 4> & t2DTsfFirmwareInfo, boost::multi_array<double, 2> & t2DInfo, boost::multi_array<double, 3> & t2DTsfInfo, std::vector<int> & t2DClks, std::vector<int> & t2DId);

  /** filters t2DFirmwareInfo to t2DInfo

Definition at line 350 of file TRGCDCT3DConverterModule.cc.

{

  for (unsigned iTrack = 0; iTrack < t2DFirmwareInfo.shape()[0]; iTrack++) {
    for (unsigned iClk = 0; iClk < t2DFirmwareInfo.shape()[1]; iClk++) {
      if (t2DFirmwareInfo[iTrack][iClk][0] == 0) continue;
      // TODO make an algorithm to follow the track.

      //choose new tracks
      //if (t2DInfo.shape()[0] != 0 && t2DFirmwareInfo[iTrack][iClk][1] == 1) continue;

      double track_ref[3] = {t2DFirmwareInfo[iTrack][iClk][2], t2DFirmwareInfo[iTrack][iClk][3], t2DFirmwareInfo[iTrack][iClk][4]};
      boost::multi_array_ref<double, 1> track((double*)track_ref, boost::extents[3]);
      t2DInfo.resize(boost::extents[t2DInfo.shape()[0] + 1][3]);
      t2DInfo[t2DInfo.shape()[0] - 1] = track;


      boost::multi_array<double, 2>  axTSInfo{boost::extents[5][5]};
      for (unsigned iAx = 0; iAx < t2DTsfFirmwareInfo.shape()[2]; iAx++) {
        double id = t2DTsfFirmwareInfo[iTrack][iClk][iAx][0];
        double rt = t2DTsfFirmwareInfo[iTrack][iClk][iAx][1];
        double lr = t2DTsfFirmwareInfo[iTrack][iClk][iAx][2];
        double pr = t2DTsfFirmwareInfo[iTrack][iClk][iAx][3];

        axTSInfo[iAx][0] = id;
        axTSInfo[iAx][1] = rt;
        axTSInfo[iAx][2] = lr;
        axTSInfo[iAx][3] = pr;
        axTSInfo[iAx][4] = -9999;
      }
      t2DTsfInfo.resize(boost::extents[t2DTsfInfo.shape()[0] + 1][5][5]);
      t2DTsfInfo[t2DTsfInfo.shape()[0] - 1] = axTSInfo;
    }
  }
  //for(unsigned iTrack = 0; iTrack < t2DInfo.size(); iTrack++)
  //{
  //  cout<<"iTrack: "<<iTrack<<" charge:"<<t2DInfo[iTrack][0]<<" rho: "<<t2DInfo[iTrack][1]<<" phi0: "<<t2DInfo[iTrack][2]<<endl;
  //  for(unsigned iAx = 0; iAx < t2DTsfInfo[iTrack].size(); iAx++)
  //  {
  //    cout<<"  iAx: "<<iAx<<" id: "<<t2DTsfInfo[iTrack][iAx][0]<<" lr: "<<t2DTsfInfo[iTrack][iAx][2]<<endl;
  //  }
  //}
}

◆ filter3DData()

void filter3DData	(	boost::multi_array< double, 3 > &	t3DFirmwareInfo,
		boost::multi_array< double, 2 > &	t3DInfo )

filters t3DFirmwareInfo to t3DInfo

Definition at line 1540 of file TRGCDCT3DConverterModule.cc.

{
  for (unsigned iTrack = 0; iTrack < t3DFirmwareInfo.shape()[0]; iTrack++) {
    for (unsigned iClk = 0; iClk < t3DFirmwareInfo.shape()[1]; iClk++) {
      //cout<<iClk<<" 2d: "<<t3DFirmwareInfo[iTrack][iClk][0]<<" tsf: "<<t3DFirmwareInfo[iTrack][iClk][2]<<" evt: "<<t3DFirmwareInfo[iTrack][iClk][3]<<" isOld: "<<t3DFirmwareInfo[iTrack][iClk][1]<<endl;
      // 2DValid
      if (t3DFirmwareInfo[iTrack][iClk][0] == 0) continue;
      //cout<<iClk<<" 2d: "<<t3DFirmwareInfo[iTrack][iClk][0]<<" tsf: "<<t3DFirmwareInfo[iTrack][iClk][2]<<" evt: "<<t3DFirmwareInfo[iTrack][iClk][3]<<" isOld: "<<t3DFirmwareInfo[iTrack][iClk][1]<<endl;
      // TSFValid
//t3DFirmwareInfo[iTrack][iClk][0] (t3d_fnf) := t2d_fnf & TSFValid, so using t3d_fnf is already sufficient
//      if (t3DFirmwareInfo[iTrack][iClk][2] == 0) continue;
      // EventTimeValid
//      if (t3DFirmwareInfo[iTrack][iClk][3] == 0) continue;
      // TODO make an algorithm to follow the track.
      // Start follow status of track.
      //choose new tracks
//      if (t3DInfo.size() != 0 && t3DFirmwareInfo[iTrack][iClk][1] == 1) continue;
      //if (t3DFirmwareInfo[iTrack][iClk][1] == 1) continue;
      double track3D_ref[7] = {t3DFirmwareInfo[iTrack][iClk][4], t3DFirmwareInfo[iTrack][iClk][5], t3DFirmwareInfo[iTrack][iClk][6], t3DFirmwareInfo[iTrack][iClk][7], t3DFirmwareInfo[iTrack][iClk][8], t3DFirmwareInfo[iTrack][iClk][9], t3DFirmwareInfo[iTrack][iClk][10]};

      boost::multi_array_ref<double, 1> track3D((double*)track3D_ref, boost::extents[7]);

      t3DInfo.resize(boost::extents[t3DInfo.shape()[0] + 1][7]);
      t3DInfo[t3DInfo.shape()[0] - 1] = track3D;

    }
  }
}

◆ filterTSData()

void filterTSData	(	boost::multi_array< double, 4 > &	tsfFirmwareInfo,
		boost::multi_array< double, 3 > &	tsfInfo )

filters tsfFirmwareInfo to tsfInfo

Definition at line 294 of file TRGCDCT3DConverterModule.cc.

{
  // iSl is stereo SL index
  for (unsigned iSL = 0; iSL < tsfFirmwareInfo.shape()[0]; iSL++) {
    unsigned iTS_filter = 0;
    for (unsigned iTS = 0; iTS < tsfFirmwareInfo.shape()[1]; iTS++) {
      for (unsigned iClk = 0; iClk < tsfFirmwareInfo.shape()[2]; iClk++) {
        double id = tsfFirmwareInfo[iSL][iTS][iClk][0];
        double rt = tsfFirmwareInfo[iSL][iTS][iClk][1];
        double lr = tsfFirmwareInfo[iSL][iTS][iClk][2];
        double pr = tsfFirmwareInfo[iSL][iTS][iClk][3];
        double ft = tsfFirmwareInfo[iSL][iTS][iClk][4];

        if (pr != 0) {
          double ts_ref[5] = {id, rt, lr, pr, ft};
          boost::multi_array_ref<double, 1> ts((double*)ts_ref, boost::extents[5]);
          tsfInfo.resize(boost::extents[4][tsfInfo.shape()[1] + 1][5]);
          tsfInfo[iSL][iTS_filter++] = ts;
        }

      }
    }
  }
}

◆ getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

◆ getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

◆ getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 323 of file Module.h.

    {
      return m_conditions;
    }

◆ getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 313 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

◆ getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

◆ getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 201 of file Module.h.

201{return m_description;}

◆ getFileNames()

virtual std::vector< std::string > getFileNames ( bool outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, RootOutputModule, and StorageRootOutputModule.

Definition at line 133 of file Module.h.

    {
      return std::vector<std::string>();
    }

◆ getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 224 of file Module.h.

224{return m_logConfig;}

◆ getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 505 of file Module.h.

505{ return std::list<ModulePtr>(); }

◆ getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 186 of file Module.h.

186{return m_name;}

◆ getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 196 of file Module.h.

196{return m_package;}

◆ getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns: A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

◆ getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 362 of file Module.h.

362{ return m_moduleParamList; }

◆ getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

◆ getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 380 of file Module.h.

380{ return m_returnValue; }

◆ getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

◆ hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 310 of file Module.h.

310{ return not m_conditions.empty(); };

◆ hasProperties()

bool hasProperties ( unsigned int propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

◆ hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 377 of file Module.h.

377{ return m_hasReturnValue; }

◆ hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

◆ if_false()

void if_false	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = EAfterConditionPath::c_End )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

◆ if_true()

void if_true	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = EAfterConditionPath::c_End )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

◆ if_value()

void if_value	(	const std::string &	expression,
		const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = EAfterConditionPath::c_End )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

◆ initialize()

void initialize ( void )

overridevirtual

Initializes TRGCDCT3DConverterModule.

Reimplemented from Module.

Definition at line 84 of file TRGCDCT3DConverterModule.cc.

{
  m_firmwareResults.isRequired(m_firmwareResultCollectionName);
  if (m_add3DToDatastore) m_tracks3D.registerInDataStore(m_outputCollectionName);
  if (m_add2DFinderToDatastore) m_tracks2D.registerInDataStore(m_inputCollectionName);
  if (m_addTSToDatastore) m_hits.registerInDataStore(m_hitCollectionName);
  if (m_addEventTimeToDatastore) m_eventTime.registerInDataStore(m_EventTimeName);

  if (m_add2DFinderToDatastore && m_addTSToDatastore) m_tracks2D.registerRelationTo(m_hits);
  if (m_add2DFinderToDatastore && m_add3DToDatastore) m_tracks3D.registerRelationTo(m_tracks2D);

  m_commonData = new Belle2::TRGCDCJSignalData();
}

◆ setAbortLevel()

void setAbortLevel ( int abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

◆ setDebugLevel()

void setDebugLevel ( int debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

◆ setDescription()

void setDescription ( const std::string & description )

protectedinherited

Sets the description of the module.

Parameters

description A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

◆ setLogConfig()

void setLogConfig ( const LogConfig & logConfig )

inlineinherited

Set the log system configuration.

Definition at line 229 of file Module.h.

229{m_logConfig = logConfig;}

◆ setLogInfo()

void setLogInfo	(	int	logLevel,
		unsigned int	logInfo )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

◆ setLogLevel()

void setLogLevel ( int logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

◆ setName()

void setName ( const std::string & name )

inlineinherited

Set the name of the module.

Note: The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 213 of file Module.h.

213{ m_name = name; };

◆ setParamList()

void setParamList ( const ModuleParamList & params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 500 of file Module.h.

500{ m_moduleParamList = params; }

◆ setParamPython()

void setParamPython	(	const std::string &	name,
		const boost::python::object &	pyObj )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

◆ setParamPythonDict()

void setParamPythonDict ( const boost::python::dict & dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

◆ setPropertyFlags()

void setPropertyFlags ( unsigned int propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

◆ setReturnValue() [1/2]

void setReturnValue ( bool value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

◆ setReturnValue() [2/2]

void setReturnValue ( int value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

◆ setType()

void setType ( const std::string & type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

◆ store2DFirmwareData()

void store2DFirmwareData	(	boost::multi_array< double, 3 > &	t2DFirmwareInfo,
		boost::multi_array< double, 4 > &	axTsfFirmwareInfo )

converts firmwareResults of 2D to a vector

Definition at line 846 of file TRGCDCT3DConverterModule.cc.

{

  for (int iClk = 0; iClk < m_firmwareResults.getEntries(); iClk++) {
    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    bitset<6> t2d_fnf(int(result->m_t2d_fnf));
    bitset<6> t2d_oldfnf(int(result->m_t3d_2doldtrk));
    //cout<<"iclk:"<<iClk<<" fnf:"<<result->m_t2d_fnf<<" "<<t2d_fnf<<" "<<t2d_fnf[5]<<endl;
    //cout<<"iClk:"<<iClk<<" t2d_fnf:"<<m_firmwareResults[iClk]->m_t2d_fnf<<endl;

    t2DFirmwareInfo[0][iClk][0] = t2d_fnf[5];
    t2DFirmwareInfo[0][iClk][1] = t2d_oldfnf[5];;
    t2DFirmwareInfo[0][iClk][2] = result->m_t2d0_charge;
    t2DFirmwareInfo[0][iClk][3] = result->m_t2d0_rho_s;
    t2DFirmwareInfo[0][iClk][4] = result->m_t2d0_phi;

    t2DFirmwareInfo[1][iClk][0] = t2d_fnf[4];
    t2DFirmwareInfo[1][iClk][1] = t2d_oldfnf[4];;
    t2DFirmwareInfo[1][iClk][2] = result->m_t2d1_charge;
    t2DFirmwareInfo[1][iClk][3] = result->m_t2d1_rho_s;
    t2DFirmwareInfo[1][iClk][4] = result->m_t2d1_phi;

    t2DFirmwareInfo[2][iClk][0] = t2d_fnf[3];
    t2DFirmwareInfo[2][iClk][1] = t2d_oldfnf[3];;
    t2DFirmwareInfo[2][iClk][2] = result->m_t2d2_charge;
    t2DFirmwareInfo[2][iClk][3] = result->m_t2d2_rho_s;
    t2DFirmwareInfo[2][iClk][4] = result->m_t2d2_phi;

    t2DFirmwareInfo[3][iClk][0] = t2d_fnf[2];
    t2DFirmwareInfo[3][iClk][1] = t2d_oldfnf[2];;
    t2DFirmwareInfo[3][iClk][2] = result->m_t2d3_charge;
    t2DFirmwareInfo[3][iClk][3] = result->m_t2d3_rho_s;
    t2DFirmwareInfo[3][iClk][4] = result->m_t2d3_phi;

    t2DTsfFirmwareInfo[0][iClk][0][0] = result->m_t2d0ts0_id;
    t2DTsfFirmwareInfo[0][iClk][0][1] = result->m_t2d0ts0_rt;
    t2DTsfFirmwareInfo[0][iClk][0][2] = result->m_t2d0ts0_lr;
    t2DTsfFirmwareInfo[0][iClk][0][3] = result->m_t2d0ts0_pr;
    t2DTsfFirmwareInfo[0][iClk][1][0] = result->m_t2d0ts2_id;
    t2DTsfFirmwareInfo[0][iClk][1][1] = result->m_t2d0ts2_rt;
    t2DTsfFirmwareInfo[0][iClk][1][2] = result->m_t2d0ts2_lr;
    t2DTsfFirmwareInfo[0][iClk][1][3] = result->m_t2d0ts2_pr;
    t2DTsfFirmwareInfo[0][iClk][2][0] = result->m_t2d0ts4_id;
    t2DTsfFirmwareInfo[0][iClk][2][1] = result->m_t2d0ts4_rt;
    t2DTsfFirmwareInfo[0][iClk][2][2] = result->m_t2d0ts4_lr;
    t2DTsfFirmwareInfo[0][iClk][2][3] = result->m_t2d0ts4_pr;
    t2DTsfFirmwareInfo[0][iClk][3][0] = result->m_t2d0ts6_id;
    t2DTsfFirmwareInfo[0][iClk][3][1] = result->m_t2d0ts6_rt;
    t2DTsfFirmwareInfo[0][iClk][3][2] = result->m_t2d0ts6_lr;
    t2DTsfFirmwareInfo[0][iClk][3][3] = result->m_t2d0ts6_pr;
    t2DTsfFirmwareInfo[0][iClk][4][0] = result->m_t2d0ts8_id;
    t2DTsfFirmwareInfo[0][iClk][4][1] = result->m_t2d0ts8_rt;
    t2DTsfFirmwareInfo[0][iClk][4][2] = result->m_t2d0ts8_lr;
    t2DTsfFirmwareInfo[0][iClk][4][3] = result->m_t2d0ts8_pr;

    t2DTsfFirmwareInfo[1][iClk][0][0] = result->m_t2d1ts0_id;
    t2DTsfFirmwareInfo[1][iClk][0][1] = result->m_t2d1ts0_rt;
    t2DTsfFirmwareInfo[1][iClk][0][2] = result->m_t2d1ts0_lr;
    t2DTsfFirmwareInfo[1][iClk][0][3] = result->m_t2d1ts0_pr;
    t2DTsfFirmwareInfo[1][iClk][1][0] = result->m_t2d1ts2_id;
    t2DTsfFirmwareInfo[1][iClk][1][1] = result->m_t2d1ts2_rt;
    t2DTsfFirmwareInfo[1][iClk][1][2] = result->m_t2d1ts2_lr;
    t2DTsfFirmwareInfo[1][iClk][1][3] = result->m_t2d1ts2_pr;
    t2DTsfFirmwareInfo[1][iClk][2][0] = result->m_t2d1ts4_id;
    t2DTsfFirmwareInfo[1][iClk][2][1] = result->m_t2d1ts4_rt;
    t2DTsfFirmwareInfo[1][iClk][2][2] = result->m_t2d1ts4_lr;
    t2DTsfFirmwareInfo[1][iClk][2][3] = result->m_t2d1ts4_pr;
    t2DTsfFirmwareInfo[1][iClk][3][0] = result->m_t2d1ts6_id;
    t2DTsfFirmwareInfo[1][iClk][3][1] = result->m_t2d1ts6_rt;
    t2DTsfFirmwareInfo[1][iClk][3][2] = result->m_t2d1ts6_lr;
    t2DTsfFirmwareInfo[1][iClk][3][3] = result->m_t2d1ts6_pr;
    t2DTsfFirmwareInfo[1][iClk][4][0] = result->m_t2d1ts8_id;
    t2DTsfFirmwareInfo[1][iClk][4][1] = result->m_t2d1ts8_rt;
    t2DTsfFirmwareInfo[1][iClk][4][2] = result->m_t2d1ts8_lr;
    t2DTsfFirmwareInfo[1][iClk][4][3] = result->m_t2d1ts8_pr;

    t2DTsfFirmwareInfo[2][iClk][0][0] = result->m_t2d2ts0_id;
    t2DTsfFirmwareInfo[2][iClk][0][1] = result->m_t2d2ts0_rt;
    t2DTsfFirmwareInfo[2][iClk][0][2] = result->m_t2d2ts0_lr;
    t2DTsfFirmwareInfo[2][iClk][0][3] = result->m_t2d2ts0_pr;
    t2DTsfFirmwareInfo[2][iClk][1][0] = result->m_t2d2ts2_id;
    t2DTsfFirmwareInfo[2][iClk][1][1] = result->m_t2d2ts2_rt;
    t2DTsfFirmwareInfo[2][iClk][1][2] = result->m_t2d2ts2_lr;
    t2DTsfFirmwareInfo[2][iClk][1][3] = result->m_t2d2ts2_pr;
    t2DTsfFirmwareInfo[2][iClk][2][0] = result->m_t2d2ts4_id;
    t2DTsfFirmwareInfo[2][iClk][2][1] = result->m_t2d2ts4_rt;
    t2DTsfFirmwareInfo[2][iClk][2][2] = result->m_t2d2ts4_lr;
    t2DTsfFirmwareInfo[2][iClk][2][3] = result->m_t2d2ts4_pr;
    t2DTsfFirmwareInfo[2][iClk][3][0] = result->m_t2d2ts6_id;
    t2DTsfFirmwareInfo[2][iClk][3][1] = result->m_t2d2ts6_rt;
    t2DTsfFirmwareInfo[2][iClk][3][2] = result->m_t2d2ts6_lr;
    t2DTsfFirmwareInfo[2][iClk][3][3] = result->m_t2d2ts6_pr;
    t2DTsfFirmwareInfo[2][iClk][4][0] = result->m_t2d2ts8_id;
    t2DTsfFirmwareInfo[2][iClk][4][1] = result->m_t2d2ts8_rt;
    t2DTsfFirmwareInfo[2][iClk][4][2] = result->m_t2d2ts8_lr;
    t2DTsfFirmwareInfo[2][iClk][4][3] = result->m_t2d2ts8_pr;

    t2DTsfFirmwareInfo[3][iClk][0][0] = result->m_t2d3ts0_id;
    t2DTsfFirmwareInfo[3][iClk][0][1] = result->m_t2d3ts0_rt;
    t2DTsfFirmwareInfo[3][iClk][0][2] = result->m_t2d3ts0_lr;
    t2DTsfFirmwareInfo[3][iClk][0][3] = result->m_t2d3ts0_pr;
    t2DTsfFirmwareInfo[3][iClk][1][0] = result->m_t2d3ts2_id;
    t2DTsfFirmwareInfo[3][iClk][1][1] = result->m_t2d3ts2_rt;
    t2DTsfFirmwareInfo[3][iClk][1][2] = result->m_t2d3ts2_lr;
    t2DTsfFirmwareInfo[3][iClk][1][3] = result->m_t2d3ts2_pr;
    t2DTsfFirmwareInfo[3][iClk][2][0] = result->m_t2d3ts4_id;
    t2DTsfFirmwareInfo[3][iClk][2][1] = result->m_t2d3ts4_rt;
    t2DTsfFirmwareInfo[3][iClk][2][2] = result->m_t2d3ts4_lr;
    t2DTsfFirmwareInfo[3][iClk][2][3] = result->m_t2d3ts4_pr;
    t2DTsfFirmwareInfo[3][iClk][3][0] = result->m_t2d3ts6_id;
    t2DTsfFirmwareInfo[3][iClk][3][1] = result->m_t2d3ts6_rt;
    t2DTsfFirmwareInfo[3][iClk][3][2] = result->m_t2d3ts6_lr;
    t2DTsfFirmwareInfo[3][iClk][3][3] = result->m_t2d3ts6_pr;
    t2DTsfFirmwareInfo[3][iClk][4][0] = result->m_t2d3ts8_id;
    t2DTsfFirmwareInfo[3][iClk][4][1] = result->m_t2d3ts8_rt;
    t2DTsfFirmwareInfo[3][iClk][4][2] = result->m_t2d3ts8_lr;
    t2DTsfFirmwareInfo[3][iClk][4][3] = result->m_t2d3ts8_pr;
  }
}

◆ store3DFastSimData()

void store3DFastSimData ( boost::multi_array< double, 3 > & t3DFirmwareInfo )

uses fast sim with debug

Definition at line 1037 of file TRGCDCT3DConverterModule.cc.

{

  for (int iClk = 0; iClk < m_firmwareResults.getEntries() - 17 - 1; iClk++) {

    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    TRGCDCT3DUnpackerStore* result3D = m_firmwareResults[iClk + 17];
    TRGCDCT3DUnpackerStore* resultDebug = m_firmwareResults[iClk + 4];

    if (bitset<6> (result->m_t2d_fnf)[5] == 0) continue;

    // Store information(charge, radius(cm), phi_c(rad), eventTime, eventTimeValid, [TS ID, TS LR, TS driftTime])
    // [TODO] Is evtTime clock correct?
    int charge = resultDebug->m_t3dtrk0_charge == 2 ? -1 : 1;
    double radius = resultDebug->m_t3dtrk0_rho * 2500 / (pow(2, 11) - 0.5);
    double phi_c = toSigned(resultDebug->m_t3dtrk0_phi0, 13) * M_PI / (pow(2, 12) - 0.5);
    int eventTime = result3D->m_t3dtrk0_evtTime_delay;
    int eventTimeValid = result3D->m_t3dtrk0_evtTimeValid_delay;
    // rawStTSs[iSt] = [TS ID, TS LR, TS driftTime]
    vector<vector<int> > rawStTSs(4, vector<int> (3));
    rawStTSs[0][0] = resultDebug->m_t3dtrk0ts0_id;
    rawStTSs[0][1] = resultDebug->m_t3dtrk0ts0_lr;
    rawStTSs[0][2] = resultDebug->m_t3dtrk0ts0_rt;
    rawStTSs[1][0] = resultDebug->m_t3dtrk0ts1_id;
    rawStTSs[1][1] = resultDebug->m_t3dtrk0ts1_lr;
    rawStTSs[1][2] = resultDebug->m_t3dtrk0ts1_rt;
    rawStTSs[2][0] = resultDebug->m_t3dtrk0ts2_id;
    rawStTSs[2][1] = resultDebug->m_t3dtrk0ts2_lr;
    rawStTSs[2][2] = resultDebug->m_t3dtrk0ts2_rt;
    rawStTSs[3][0] = resultDebug->m_t3dtrk0ts3_id;
    rawStTSs[3][1] = resultDebug->m_t3dtrk0ts3_lr;
    rawStTSs[3][2] = resultDebug->m_t3dtrk0ts3_rt;

    // Get geometry
    map<string, vector<double> > stGeometry;
    vector<vector<double> > stXts;
    TRGCDCFitter3D::getStereoGeometry(stGeometry);
    TRGCDCFitter3D::getStereoXt(stGeometry["priorityLayer"], stXts);

    double z0 = 0, cot = 0, chi2 = 0;
    Fitter3DUtility::fitter3D(stGeometry, stXts, eventTimeValid, eventTime, rawStTSs, charge, radius, phi_c, z0, cot, chi2);

    bitset<6> t2d_fnf(int(result3D->m_t3d_2dfnf));
    bitset<4> tsf_fnf(int(result3D->m_t3d_validTS));
    bitset<6> t2d_oldfnf(int(result->m_t3d_2doldtrk));

    //cout<<iClk<<" "<<t2d_fnf<<" "<<t2d_oldfnf<<endl;

    t3DFirmwareInfo[0][iClk][0] = t2d_fnf[5];
    t3DFirmwareInfo[0][iClk][1] = t2d_oldfnf[5];
    t3DFirmwareInfo[0][iClk][2] = tsf_fnf[3];

    t3DFirmwareInfo[0][iClk][3] = result3D->m_t3dtrk0_evtTimeValid_delay;
    t3DFirmwareInfo[0][iClk][4] = result3D->m_t3dtrk0_evtTime_delay;
    t3DFirmwareInfo[0][iClk][5] = charge;
    t3DFirmwareInfo[0][iClk][6] = radius;
    t3DFirmwareInfo[0][iClk][7] = phi_c;
    t3DFirmwareInfo[0][iClk][8] = z0;
    t3DFirmwareInfo[0][iClk][9] = cot;
    t3DFirmwareInfo[0][iClk][10] = chi2;
  }
}

◆ store3DFirmSimData()

void store3DFirmSimData ( boost::multi_array< double, 3 > & t3DFirmwareInfo )

uses firm sim with debug

Definition at line 1101 of file TRGCDCT3DConverterModule.cc.

{
  for (int iClk = 0; iClk < m_firmwareResults.getEntries() - 17 - 1; iClk++) {

    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    TRGCDCT3DUnpackerStore* result3D = m_firmwareResults[iClk + 17];
    TRGCDCT3DUnpackerStore* resultDebug = m_firmwareResults[iClk + 4];

    if (bitset<6> (result->m_t2d_fnf)[5] == 0) continue;

    // Store information(charge, radius(cm), phi_c(rad), eventTime, eventTimeValid, [TS ID, TS LR, TS driftTime])
    // [TODO] Is evtTime clock correct?
    int charge = resultDebug->m_t3dtrk0_charge == 2 ? -1 : 1;
    double radius = resultDebug->m_t3dtrk0_rho * 2500 / (pow(2, 11) - 0.5);
    double phi_c = toSigned(resultDebug->m_t3dtrk0_phi0, 13) * M_PI / (pow(2, 12) - 0.5);
    int eventTime = result3D->m_t3dtrk0_evtTime_delay;
    int eventTimeValid = result3D->m_t3dtrk0_evtTimeValid_delay;
    // rawStTSs[iSt] = [TS ID, TS LR, TS driftTime]
    vector<vector<int> > rawStTSs(4, vector<int> (3));
    rawStTSs[0][0] = resultDebug->m_t3dtrk0ts0_id;
    rawStTSs[0][1] = resultDebug->m_t3dtrk0ts0_lr;
    rawStTSs[0][2] = resultDebug->m_t3dtrk0ts0_rt;
    rawStTSs[1][0] = resultDebug->m_t3dtrk0ts1_id;
    rawStTSs[1][1] = resultDebug->m_t3dtrk0ts1_lr;
    rawStTSs[1][2] = resultDebug->m_t3dtrk0ts1_rt;
    rawStTSs[2][0] = resultDebug->m_t3dtrk0ts2_id;
    rawStTSs[2][1] = resultDebug->m_t3dtrk0ts2_lr;
    rawStTSs[2][2] = resultDebug->m_t3dtrk0ts2_rt;
    rawStTSs[3][0] = resultDebug->m_t3dtrk0ts3_id;
    rawStTSs[3][1] = resultDebug->m_t3dtrk0ts3_lr;
    rawStTSs[3][2] = resultDebug->m_t3dtrk0ts3_rt;

    // Get geometry
    map<string, vector<double> > stGeometry;
    vector<vector<double> > stXts;
    TRGCDCFitter3D::getStereoGeometry(stGeometry);
    TRGCDCFitter3D::getStereoXt(stGeometry["priorityLayer"], stXts);

    // Prepare complex fit3D
    map<string, vector<double> > mConstV;
    map<string, double> mConstD;
    TRGCDCFitter3D::getConstants(mConstD, mConstV);
    Fitter3DUtility::fitter3DFirm(mConstD, mConstV, eventTimeValid, eventTime, rawStTSs, charge, radius, phi_c, m_commonData,
                                  m_mSignalStorage, m_mLutStorage);
    double z0 = m_mSignalStorage["z0_r"].getRealInt();
    double cot = m_mSignalStorage["cot_r"].getRealInt();
    double chi2 = m_mSignalStorage["zChi2_r"].getRealInt();

    bitset<6> t2d_fnf(int(result3D->m_t3d_2dfnf));
    bitset<4> tsf_fnf(int(result3D->m_t3d_validTS));
    bitset<6> t2d_oldfnf(int(result->m_t3d_2doldtrk));

    //cout<<iClk<<" "<<t2d_fnf<<" "<<t2d_oldfnf<<endl;

    t3DFirmwareInfo[0][iClk][0] = t2d_fnf[5];
    t3DFirmwareInfo[0][iClk][1] = t2d_oldfnf[5];
    t3DFirmwareInfo[0][iClk][2] = tsf_fnf[3];

    t3DFirmwareInfo[0][iClk][3] = result3D->m_t3dtrk0_evtTimeValid_delay;
    t3DFirmwareInfo[0][iClk][4] = result3D->m_t3dtrk0_evtTime_delay;
    t3DFirmwareInfo[0][iClk][5] = charge;
    t3DFirmwareInfo[0][iClk][6] = radius;
    t3DFirmwareInfo[0][iClk][7] = phi_c;
    t3DFirmwareInfo[0][iClk][8] = z0;
    t3DFirmwareInfo[0][iClk][9] = cot;
    t3DFirmwareInfo[0][iClk][10] = chi2;
  }
}

◆ store3DFirmwareData()

void store3DFirmwareData ( boost::multi_array< double, 3 > & t3DFirmwareInfo )

converts firmwareResults of 3D to a vector

Definition at line 969 of file TRGCDCT3DConverterModule.cc.

{

  for (int iClk = 0; iClk < m_firmwareResults.getEntries() - 17 - 1; iClk++) {
    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    TRGCDCT3DUnpackerStore* result3D = m_firmwareResults[iClk + 17];

    bitset<6> t3d_fnf(int(result3D->m_t3d_2dfnf));
    bitset<4> tsf_fnf(int(result3D->m_t3d_validTS));
    bitset<6> t3d_oldfnf(int(result->m_t3d_2doldtrk));

    //cout<<iClk<<" "<<t3d_fnf<<" "<<t3d_oldfnf<<endl;

//The evtTime information was for debugging, but the current firmware does not output the evtTime information corresponding to every track.

    t3DFirmwareInfo[0][iClk][0] = t3d_fnf[5];
    t3DFirmwareInfo[0][iClk][1] = t3d_oldfnf[5];
    t3DFirmwareInfo[0][iClk][2] = tsf_fnf[0];
//    t3DFirmwareInfo[0][iClk][3] = result3D->m_t3dtrk0_evtTimeValid_delay;
//    t3DFirmwareInfo[0][iClk][4] = result3D->m_t3dtrk0_evtTime_delay;
    t3DFirmwareInfo[0][iClk][5] = result->m_t2d0_charge;
    t3DFirmwareInfo[0][iClk][6] = result->m_t2d0_rho_s;
    t3DFirmwareInfo[0][iClk][7] = result->m_t2d0_phi;
    t3DFirmwareInfo[0][iClk][8] = result3D->m_t3dtrk0_z0_s;
    t3DFirmwareInfo[0][iClk][9] = result3D->m_t3dtrk0_cot_s;
    t3DFirmwareInfo[0][iClk][10] = result3D->m_t3dtrk0_zchisq;

    t3DFirmwareInfo[1][iClk][0] = t3d_fnf[4];
    t3DFirmwareInfo[1][iClk][1] = t3d_oldfnf[4];
    t3DFirmwareInfo[1][iClk][2] = tsf_fnf[1];
//    t3DFirmwareInfo[1][iClk][3] = result3D->m_t3dtrk1_evtTimeValid_delay;
//    t3DFirmwareInfo[1][iClk][4] = result3D->m_t3dtrk1_evtTime_delay;
    t3DFirmwareInfo[1][iClk][5] = result->m_t2d1_charge;
    t3DFirmwareInfo[1][iClk][6] = result->m_t2d1_rho_s;
    t3DFirmwareInfo[1][iClk][7] = result->m_t2d1_phi;
    t3DFirmwareInfo[1][iClk][8] = result3D->m_t3dtrk1_z0_s;
    t3DFirmwareInfo[1][iClk][9] = result3D->m_t3dtrk1_cot_s;
    t3DFirmwareInfo[1][iClk][10] = result3D->m_t3dtrk1_zchisq;

    t3DFirmwareInfo[2][iClk][0] = t3d_fnf[3];
    t3DFirmwareInfo[2][iClk][1] = t3d_oldfnf[3];
    t3DFirmwareInfo[2][iClk][2] = tsf_fnf[2];
//    t3DFirmwareInfo[2][iClk][3] = result3D->m_t3dtrk2_evtTimeValid_delay;
//    t3DFirmwareInfo[2][iClk][4] = result3D->m_t3dtrk2_evtTime_delay;
    t3DFirmwareInfo[2][iClk][5] = result->m_t2d2_charge;
    t3DFirmwareInfo[2][iClk][6] = result->m_t2d2_rho_s;
    t3DFirmwareInfo[2][iClk][7] = result->m_t2d2_phi;
    t3DFirmwareInfo[2][iClk][8] = result3D->m_t3dtrk2_z0_s;
    t3DFirmwareInfo[2][iClk][9] = result3D->m_t3dtrk2_cot_s;
    t3DFirmwareInfo[2][iClk][10] = result3D->m_t3dtrk2_zchisq;

    t3DFirmwareInfo[3][iClk][0] = t3d_fnf[2];
    t3DFirmwareInfo[3][iClk][1] = t3d_oldfnf[2];
    t3DFirmwareInfo[3][iClk][2] = tsf_fnf[3];
//    t3DFirmwareInfo[3][iClk][3] = result3D->m_t3dtrk3_evtTimeValid_delay;
//    t3DFirmwareInfo[3][iClk][4] = result3D->m_t3dtrk3_evtTime_delay;
    t3DFirmwareInfo[3][iClk][5] = result->m_t2d3_charge;
    t3DFirmwareInfo[3][iClk][6] = result->m_t2d3_rho_s;
    t3DFirmwareInfo[3][iClk][7] = result->m_t2d3_phi;
    t3DFirmwareInfo[3][iClk][8] = result3D->m_t3dtrk3_z0_s;
    t3DFirmwareInfo[3][iClk][9] = result3D->m_t3dtrk3_cot_s;
    t3DFirmwareInfo[3][iClk][10] = result3D->m_t3dtrk3_zchisq;

  }

}

◆ storeTSFirmwareData()

void storeTSFirmwareData ( boost::multi_array< double, 4 > & tsfInfo )

converts firmwareResults of TS to a vector

Definition at line 532 of file TRGCDCT3DConverterModule.cc.

{
  for (int iClk = 0; iClk < m_firmwareResults.getEntries(); iClk++) {
    TRGCDCT3DUnpackerStore* result = m_firmwareResults[iClk];
    //cout<<"iClk:"<<iClk<<" tsf1_cc:"<<result->m_tsf1_cc<<" tsf1ts0_id:"<<result->m_tsf1ts0_id<<" tsf1ts0_rt:"<<result->m_tsf1ts0_rt<<" tsf1ts0_lr:"<<result->m_tsf1ts0_lr<<" tsf1ts0_pr:"<<result->m_tsf1ts0_pr<<endl;
    tsfInfo[0][0][iClk][0] = result->m_tsf1ts0_id;
    tsfInfo[0][0][iClk][1] = result->m_tsf1ts0_rt;
    tsfInfo[0][0][iClk][2] = result->m_tsf1ts0_lr;
    tsfInfo[0][0][iClk][3] = result->m_tsf1ts0_pr;
    tsfInfo[0][0][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][1][iClk][0] = result->m_tsf1ts1_id;
    tsfInfo[0][1][iClk][1] = result->m_tsf1ts1_rt;
    tsfInfo[0][1][iClk][2] = result->m_tsf1ts1_lr;
    tsfInfo[0][1][iClk][3] = result->m_tsf1ts1_pr;
    tsfInfo[0][1][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][2][iClk][0] = result->m_tsf1ts2_id;
    tsfInfo[0][2][iClk][1] = result->m_tsf1ts2_rt;
    tsfInfo[0][2][iClk][2] = result->m_tsf1ts2_lr;
    tsfInfo[0][2][iClk][3] = result->m_tsf1ts2_pr;
    tsfInfo[0][2][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][3][iClk][0] = result->m_tsf1ts3_id;
    tsfInfo[0][3][iClk][1] = result->m_tsf1ts3_rt;
    tsfInfo[0][3][iClk][2] = result->m_tsf1ts3_lr;
    tsfInfo[0][3][iClk][3] = result->m_tsf1ts3_pr;
    tsfInfo[0][3][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][4][iClk][0] = result->m_tsf1ts4_id;
    tsfInfo[0][4][iClk][1] = result->m_tsf1ts4_rt;
    tsfInfo[0][4][iClk][2] = result->m_tsf1ts4_lr;
    tsfInfo[0][4][iClk][3] = result->m_tsf1ts4_pr;
    tsfInfo[0][4][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][5][iClk][0] = result->m_tsf1ts5_id;
    tsfInfo[0][5][iClk][1] = result->m_tsf1ts5_rt;
    tsfInfo[0][5][iClk][2] = result->m_tsf1ts5_lr;
    tsfInfo[0][5][iClk][3] = result->m_tsf1ts5_pr;
    tsfInfo[0][5][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][6][iClk][0] = result->m_tsf1ts6_id;
    tsfInfo[0][6][iClk][1] = result->m_tsf1ts6_rt;
    tsfInfo[0][6][iClk][2] = result->m_tsf1ts6_lr;
    tsfInfo[0][6][iClk][3] = result->m_tsf1ts6_pr;
    tsfInfo[0][6][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][7][iClk][0] = result->m_tsf1ts7_id;
    tsfInfo[0][7][iClk][1] = result->m_tsf1ts7_rt;
    tsfInfo[0][7][iClk][2] = result->m_tsf1ts7_lr;
    tsfInfo[0][7][iClk][3] = result->m_tsf1ts7_pr;
    tsfInfo[0][7][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][8][iClk][0] = result->m_tsf1ts8_id;
    tsfInfo[0][8][iClk][1] = result->m_tsf1ts8_rt;
    tsfInfo[0][8][iClk][2] = result->m_tsf1ts8_lr;
    tsfInfo[0][8][iClk][3] = result->m_tsf1ts8_pr;
    tsfInfo[0][8][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][9][iClk][0] = result->m_tsf1ts9_id;
    tsfInfo[0][9][iClk][1] = result->m_tsf1ts9_rt;
    tsfInfo[0][9][iClk][2] = result->m_tsf1ts9_lr;
    tsfInfo[0][9][iClk][3] = result->m_tsf1ts9_pr;
    tsfInfo[0][9][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][10][iClk][0] = result->m_tsf1ts10_id;
    tsfInfo[0][10][iClk][1] = result->m_tsf1ts10_rt;
    tsfInfo[0][10][iClk][2] = result->m_tsf1ts10_lr;
    tsfInfo[0][10][iClk][3] = result->m_tsf1ts10_pr;
    tsfInfo[0][10][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][11][iClk][0] = result->m_tsf1ts11_id;
    tsfInfo[0][11][iClk][1] = result->m_tsf1ts11_rt;
    tsfInfo[0][11][iClk][2] = result->m_tsf1ts11_lr;
    tsfInfo[0][11][iClk][3] = result->m_tsf1ts11_pr;
    tsfInfo[0][11][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][12][iClk][0] = result->m_tsf1ts12_id;
    tsfInfo[0][12][iClk][1] = result->m_tsf1ts12_rt;
    tsfInfo[0][12][iClk][2] = result->m_tsf1ts12_lr;
    tsfInfo[0][12][iClk][3] = result->m_tsf1ts12_pr;
    tsfInfo[0][12][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][13][iClk][0] = result->m_tsf1ts13_id;
    tsfInfo[0][13][iClk][1] = result->m_tsf1ts13_rt;
    tsfInfo[0][13][iClk][2] = result->m_tsf1ts13_lr;
    tsfInfo[0][13][iClk][3] = result->m_tsf1ts13_pr;
    tsfInfo[0][13][iClk][4] = result->m_tsf1_cc;
    tsfInfo[0][14][iClk][0] = result->m_tsf1ts14_id;
    tsfInfo[0][14][iClk][1] = result->m_tsf1ts14_rt;
    tsfInfo[0][14][iClk][2] = result->m_tsf1ts14_lr;
    tsfInfo[0][14][iClk][3] = result->m_tsf1ts14_pr;
    tsfInfo[0][14][iClk][4] = result->m_tsf1_cc;

    tsfInfo[1][0][iClk][0] = result->m_tsf3ts0_id;
    tsfInfo[1][0][iClk][1] = result->m_tsf3ts0_rt;
    tsfInfo[1][0][iClk][2] = result->m_tsf3ts0_lr;
    tsfInfo[1][0][iClk][3] = result->m_tsf3ts0_pr;
    tsfInfo[1][0][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][1][iClk][0] = result->m_tsf3ts1_id;
    tsfInfo[1][1][iClk][1] = result->m_tsf3ts1_rt;
    tsfInfo[1][1][iClk][2] = result->m_tsf3ts1_lr;
    tsfInfo[1][1][iClk][3] = result->m_tsf3ts1_pr;
    tsfInfo[1][1][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][2][iClk][0] = result->m_tsf3ts2_id;
    tsfInfo[1][2][iClk][1] = result->m_tsf3ts2_rt;
    tsfInfo[1][2][iClk][2] = result->m_tsf3ts2_lr;
    tsfInfo[1][2][iClk][3] = result->m_tsf3ts2_pr;
    tsfInfo[1][2][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][3][iClk][0] = result->m_tsf3ts3_id;
    tsfInfo[1][3][iClk][1] = result->m_tsf3ts3_rt;
    tsfInfo[1][3][iClk][2] = result->m_tsf3ts3_lr;
    tsfInfo[1][3][iClk][3] = result->m_tsf3ts3_pr;
    tsfInfo[1][3][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][4][iClk][0] = result->m_tsf3ts4_id;
    tsfInfo[1][4][iClk][1] = result->m_tsf3ts4_rt;
    tsfInfo[1][4][iClk][2] = result->m_tsf3ts4_lr;
    tsfInfo[1][4][iClk][3] = result->m_tsf3ts4_pr;
    tsfInfo[1][4][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][5][iClk][0] = result->m_tsf3ts5_id;
    tsfInfo[1][5][iClk][1] = result->m_tsf3ts5_rt;
    tsfInfo[1][5][iClk][2] = result->m_tsf3ts5_lr;
    tsfInfo[1][5][iClk][3] = result->m_tsf3ts5_pr;
    tsfInfo[1][5][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][6][iClk][0] = result->m_tsf3ts6_id;
    tsfInfo[1][6][iClk][1] = result->m_tsf3ts6_rt;
    tsfInfo[1][6][iClk][2] = result->m_tsf3ts6_lr;
    tsfInfo[1][6][iClk][3] = result->m_tsf3ts6_pr;
    tsfInfo[1][6][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][7][iClk][0] = result->m_tsf3ts7_id;
    tsfInfo[1][7][iClk][1] = result->m_tsf3ts7_rt;
    tsfInfo[1][7][iClk][2] = result->m_tsf3ts7_lr;
    tsfInfo[1][7][iClk][3] = result->m_tsf3ts7_pr;
    tsfInfo[1][7][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][8][iClk][0] = result->m_tsf3ts8_id;
    tsfInfo[1][8][iClk][1] = result->m_tsf3ts8_rt;
    tsfInfo[1][8][iClk][2] = result->m_tsf3ts8_lr;
    tsfInfo[1][8][iClk][3] = result->m_tsf3ts8_pr;
    tsfInfo[1][8][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][9][iClk][0] = result->m_tsf3ts9_id;
    tsfInfo[1][9][iClk][1] = result->m_tsf3ts9_rt;
    tsfInfo[1][9][iClk][2] = result->m_tsf3ts9_lr;
    tsfInfo[1][9][iClk][3] = result->m_tsf3ts9_pr;
    tsfInfo[1][9][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][10][iClk][0] = result->m_tsf3ts10_id;
    tsfInfo[1][10][iClk][1] = result->m_tsf3ts10_rt;
    tsfInfo[1][10][iClk][2] = result->m_tsf3ts10_lr;
    tsfInfo[1][10][iClk][3] = result->m_tsf3ts10_pr;
    tsfInfo[1][10][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][11][iClk][0] = result->m_tsf3ts11_id;
    tsfInfo[1][11][iClk][1] = result->m_tsf3ts11_rt;
    tsfInfo[1][11][iClk][2] = result->m_tsf3ts11_lr;
    tsfInfo[1][11][iClk][3] = result->m_tsf3ts11_pr;
    tsfInfo[1][11][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][12][iClk][0] = result->m_tsf3ts12_id;
    tsfInfo[1][12][iClk][1] = result->m_tsf3ts12_rt;
    tsfInfo[1][12][iClk][2] = result->m_tsf3ts12_lr;
    tsfInfo[1][12][iClk][3] = result->m_tsf3ts12_pr;
    tsfInfo[1][12][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][13][iClk][0] = result->m_tsf3ts13_id;
    tsfInfo[1][13][iClk][1] = result->m_tsf3ts13_rt;
    tsfInfo[1][13][iClk][2] = result->m_tsf3ts13_lr;
    tsfInfo[1][13][iClk][3] = result->m_tsf3ts13_pr;
    tsfInfo[1][13][iClk][4] = result->m_tsf3_cc;
    tsfInfo[1][14][iClk][0] = result->m_tsf3ts14_id;
    tsfInfo[1][14][iClk][1] = result->m_tsf3ts14_rt;
    tsfInfo[1][14][iClk][2] = result->m_tsf3ts14_lr;
    tsfInfo[1][14][iClk][3] = result->m_tsf3ts14_pr;
    tsfInfo[1][14][iClk][4] = result->m_tsf3_cc;

    tsfInfo[2][0][iClk][0] = result->m_tsf5ts0_id;
    tsfInfo[2][0][iClk][1] = result->m_tsf5ts0_rt;
    tsfInfo[2][0][iClk][2] = result->m_tsf5ts0_lr;
    tsfInfo[2][0][iClk][3] = result->m_tsf5ts0_pr;
    tsfInfo[2][0][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][1][iClk][0] = result->m_tsf5ts1_id;
    tsfInfo[2][1][iClk][1] = result->m_tsf5ts1_rt;
    tsfInfo[2][1][iClk][2] = result->m_tsf5ts1_lr;
    tsfInfo[2][1][iClk][3] = result->m_tsf5ts1_pr;
    tsfInfo[2][1][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][2][iClk][0] = result->m_tsf5ts2_id;
    tsfInfo[2][2][iClk][1] = result->m_tsf5ts2_rt;
    tsfInfo[2][2][iClk][2] = result->m_tsf5ts2_lr;
    tsfInfo[2][2][iClk][3] = result->m_tsf5ts2_pr;
    tsfInfo[2][2][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][3][iClk][0] = result->m_tsf5ts3_id;
    tsfInfo[2][3][iClk][1] = result->m_tsf5ts3_rt;
    tsfInfo[2][3][iClk][2] = result->m_tsf5ts3_lr;
    tsfInfo[2][3][iClk][3] = result->m_tsf5ts3_pr;
    tsfInfo[2][3][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][4][iClk][0] = result->m_tsf5ts4_id;
    tsfInfo[2][4][iClk][1] = result->m_tsf5ts4_rt;
    tsfInfo[2][4][iClk][2] = result->m_tsf5ts4_lr;
    tsfInfo[2][4][iClk][3] = result->m_tsf5ts4_pr;
    tsfInfo[2][4][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][5][iClk][0] = result->m_tsf5ts5_id;
    tsfInfo[2][5][iClk][1] = result->m_tsf5ts5_rt;
    tsfInfo[2][5][iClk][2] = result->m_tsf5ts5_lr;
    tsfInfo[2][5][iClk][3] = result->m_tsf5ts5_pr;
    tsfInfo[2][5][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][6][iClk][0] = result->m_tsf5ts6_id;
    tsfInfo[2][6][iClk][1] = result->m_tsf5ts6_rt;
    tsfInfo[2][6][iClk][2] = result->m_tsf5ts6_lr;
    tsfInfo[2][6][iClk][3] = result->m_tsf5ts6_pr;
    tsfInfo[2][6][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][7][iClk][0] = result->m_tsf5ts7_id;
    tsfInfo[2][7][iClk][1] = result->m_tsf5ts7_rt;
    tsfInfo[2][7][iClk][2] = result->m_tsf5ts7_lr;
    tsfInfo[2][7][iClk][3] = result->m_tsf5ts7_pr;
    tsfInfo[2][7][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][8][iClk][0] = result->m_tsf5ts8_id;
    tsfInfo[2][8][iClk][1] = result->m_tsf5ts8_rt;
    tsfInfo[2][8][iClk][2] = result->m_tsf5ts8_lr;
    tsfInfo[2][8][iClk][3] = result->m_tsf5ts8_pr;
    tsfInfo[2][8][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][9][iClk][0] = result->m_tsf5ts9_id;
    tsfInfo[2][9][iClk][1] = result->m_tsf5ts9_rt;
    tsfInfo[2][9][iClk][2] = result->m_tsf5ts9_lr;
    tsfInfo[2][9][iClk][3] = result->m_tsf5ts9_pr;
    tsfInfo[2][9][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][10][iClk][0] = result->m_tsf5ts10_id;
    tsfInfo[2][10][iClk][1] = result->m_tsf5ts10_rt;
    tsfInfo[2][10][iClk][2] = result->m_tsf5ts10_lr;
    tsfInfo[2][10][iClk][3] = result->m_tsf5ts10_pr;
    tsfInfo[2][10][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][11][iClk][0] = result->m_tsf5ts11_id;
    tsfInfo[2][11][iClk][1] = result->m_tsf5ts11_rt;
    tsfInfo[2][11][iClk][2] = result->m_tsf5ts11_lr;
    tsfInfo[2][11][iClk][3] = result->m_tsf5ts11_pr;
    tsfInfo[2][11][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][12][iClk][0] = result->m_tsf5ts12_id;
    tsfInfo[2][12][iClk][1] = result->m_tsf5ts12_rt;
    tsfInfo[2][12][iClk][2] = result->m_tsf5ts12_lr;
    tsfInfo[2][12][iClk][3] = result->m_tsf5ts12_pr;
    tsfInfo[2][12][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][13][iClk][0] = result->m_tsf5ts13_id;
    tsfInfo[2][13][iClk][1] = result->m_tsf5ts13_rt;
    tsfInfo[2][13][iClk][2] = result->m_tsf5ts13_lr;
    tsfInfo[2][13][iClk][3] = result->m_tsf5ts13_pr;
    tsfInfo[2][13][iClk][4] = result->m_tsf5_cc;
    tsfInfo[2][14][iClk][0] = result->m_tsf5ts14_id;
    tsfInfo[2][14][iClk][1] = result->m_tsf5ts14_rt;
    tsfInfo[2][14][iClk][2] = result->m_tsf5ts14_lr;
    tsfInfo[2][14][iClk][3] = result->m_tsf5ts14_pr;
    tsfInfo[2][14][iClk][4] = result->m_tsf5_cc;

    tsfInfo[3][0][iClk][0] = result->m_tsf7ts0_id;
    tsfInfo[3][0][iClk][1] = result->m_tsf7ts0_rt;
    tsfInfo[3][0][iClk][2] = result->m_tsf7ts0_lr;
    tsfInfo[3][0][iClk][3] = result->m_tsf7ts0_pr;
    tsfInfo[3][0][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][1][iClk][0] = result->m_tsf7ts1_id;
    tsfInfo[3][1][iClk][1] = result->m_tsf7ts1_rt;
    tsfInfo[3][1][iClk][2] = result->m_tsf7ts1_lr;
    tsfInfo[3][1][iClk][3] = result->m_tsf7ts1_pr;
    tsfInfo[3][1][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][2][iClk][0] = result->m_tsf7ts2_id;
    tsfInfo[3][2][iClk][1] = result->m_tsf7ts2_rt;
    tsfInfo[3][2][iClk][2] = result->m_tsf7ts2_lr;
    tsfInfo[3][2][iClk][3] = result->m_tsf7ts2_pr;
    tsfInfo[3][2][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][3][iClk][0] = result->m_tsf7ts3_id;
    tsfInfo[3][3][iClk][1] = result->m_tsf7ts3_rt;
    tsfInfo[3][3][iClk][2] = result->m_tsf7ts3_lr;
    tsfInfo[3][3][iClk][3] = result->m_tsf7ts3_pr;
    tsfInfo[3][3][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][4][iClk][0] = result->m_tsf7ts4_id;
    tsfInfo[3][4][iClk][1] = result->m_tsf7ts4_rt;
    tsfInfo[3][4][iClk][2] = result->m_tsf7ts4_lr;
    tsfInfo[3][4][iClk][3] = result->m_tsf7ts4_pr;
    tsfInfo[3][4][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][5][iClk][0] = result->m_tsf7ts5_id;
    tsfInfo[3][5][iClk][1] = result->m_tsf7ts5_rt;
    tsfInfo[3][5][iClk][2] = result->m_tsf7ts5_lr;
    tsfInfo[3][5][iClk][3] = result->m_tsf7ts5_pr;
    tsfInfo[3][5][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][6][iClk][0] = result->m_tsf7ts6_id;
    tsfInfo[3][6][iClk][1] = result->m_tsf7ts6_rt;
    tsfInfo[3][6][iClk][2] = result->m_tsf7ts6_lr;
    tsfInfo[3][6][iClk][3] = result->m_tsf7ts6_pr;
    tsfInfo[3][6][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][7][iClk][0] = result->m_tsf7ts7_id;
    tsfInfo[3][7][iClk][1] = result->m_tsf7ts7_rt;
    tsfInfo[3][7][iClk][2] = result->m_tsf7ts7_lr;
    tsfInfo[3][7][iClk][3] = result->m_tsf7ts7_pr;
    tsfInfo[3][7][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][8][iClk][0] = result->m_tsf7ts8_id;
    tsfInfo[3][8][iClk][1] = result->m_tsf7ts8_rt;
    tsfInfo[3][8][iClk][2] = result->m_tsf7ts8_lr;
    tsfInfo[3][8][iClk][3] = result->m_tsf7ts8_pr;
    tsfInfo[3][8][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][9][iClk][0] = result->m_tsf7ts9_id;
    tsfInfo[3][9][iClk][1] = result->m_tsf7ts9_rt;
    tsfInfo[3][9][iClk][2] = result->m_tsf7ts9_lr;
    tsfInfo[3][9][iClk][3] = result->m_tsf7ts9_pr;
    tsfInfo[3][9][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][10][iClk][0] = result->m_tsf7ts10_id;
    tsfInfo[3][10][iClk][1] = result->m_tsf7ts10_rt;
    tsfInfo[3][10][iClk][2] = result->m_tsf7ts10_lr;
    tsfInfo[3][10][iClk][3] = result->m_tsf7ts10_pr;
    tsfInfo[3][10][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][11][iClk][0] = result->m_tsf7ts11_id;
    tsfInfo[3][11][iClk][1] = result->m_tsf7ts11_rt;
    tsfInfo[3][11][iClk][2] = result->m_tsf7ts11_lr;
    tsfInfo[3][11][iClk][3] = result->m_tsf7ts11_pr;
    tsfInfo[3][11][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][12][iClk][0] = result->m_tsf7ts12_id;
    tsfInfo[3][12][iClk][1] = result->m_tsf7ts12_rt;
    tsfInfo[3][12][iClk][2] = result->m_tsf7ts12_lr;
    tsfInfo[3][12][iClk][3] = result->m_tsf7ts12_pr;
    tsfInfo[3][12][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][13][iClk][0] = result->m_tsf7ts13_id;
    tsfInfo[3][13][iClk][1] = result->m_tsf7ts13_rt;
    tsfInfo[3][13][iClk][2] = result->m_tsf7ts13_lr;
    tsfInfo[3][13][iClk][3] = result->m_tsf7ts13_pr;
    tsfInfo[3][13][iClk][4] = result->m_tsf7_cc;
    tsfInfo[3][14][iClk][0] = result->m_tsf7ts14_id;
    tsfInfo[3][14][iClk][1] = result->m_tsf7ts14_rt;
    tsfInfo[3][14][iClk][2] = result->m_tsf7ts14_lr;
    tsfInfo[3][14][iClk][3] = result->m_tsf7ts14_pr;
    tsfInfo[3][14][iClk][4] = result->m_tsf7_cc;

  }
}

◆ t2DPhiTot3DPhi()

int t2DPhiTot3DPhi	(	int	phi,
		int	rho )

converts to 2D rho to 3D rho value, obsolete

converts to 2D phi to 3D phi value

Definition at line 277 of file TRGCDCT3DConverterModule.cc.

{
  double phiReal = 45 + 90. / 80 * (1 + phi);
  if (toSigned(rho, 7) >= 0) phiReal -= 90;
  else phiReal += 90;

  while (phiReal > 180) {
    phiReal -= 360;
  }
  while (phiReal < -180) {
    phiReal += 360;
  }

  int phiInt = phiReal * (pow(2, 12) - 0.5) / 180;
  return phiInt;
}

◆ terminate()

void terminate ( void )

overridevirtual

Called when processing ended.

Reimplemented from Module.

Definition at line 80 of file TRGCDCT3DConverterModule.cc.

81{

82}

◆ toSigned()

int toSigned	(	int	value,
		int	nBits )

converts to signed value

Definition at line 254 of file TRGCDCT3DConverterModule.cc.

{
  int signMask = 1 << (nBits - 1);
  if (value & signMask) {
    int mask = (1 << nBits) - 1;
    value |= ~mask;
  }
  return value;
}

◆ toTSID()

int toTSID	(	int	iSL,
		int	iWire )

converts sl, iWire to continuous TS ID [0,2335]

Definition at line 220 of file TRGCDCT3DConverterModule.cc.

{
  vector<int> nWires = {160, 160, 192, 224, 256, 288, 320, 352, 384};
  int id = 0;
  for (int i = 0; i < (int)iSL; i++) {
    id += nWires[i];
  }

//Correct the segmentID.  The zero points of raw segmentID for four boards are different.
  if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore0") {
    id = id + iWire + nWires[(int)iSL] / 4.0 * 0;
    if (iWire + nWires[(int)iSL] / 4.0 * 0 > nWires[(int)iSL]) {
      id = id - nWires[(int)iSL];
    }
  } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore1") {
    id = id + iWire + nWires[(int)iSL] / 4.0 * 1;
    if (iWire + nWires[(int)iSL] / 4.0 * 1 > nWires[(int)iSL]) {
      id = id - nWires[(int)iSL];
    }
  } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore2") {
    id = id + iWire + nWires[(int)iSL] / 4.0 * 2;
    if (iWire + nWires[(int)iSL] / 4.0 * 2 > nWires[(int)iSL]) {
      id = id - nWires[(int)iSL];
    }
  } else if (m_firmwareResultCollectionName == "TRGCDCT3DUnpackerStore3") {
    id = id + iWire + nWires[(int)iSL] / 4.0 * 3;
    if (iWire + nWires[(int)iSL] / 4.0 * 3 > nWires[(int)iSL]) {
      id = id - nWires[(int)iSL];
    }
  }
  //cout<<"toID: iSL"<<iSL<<" iWire:"<<iWire<<" id:"<<id<<endl;
  return id;
}

Member Data Documentation

◆ m_add2DFinderToDatastore

bool m_add2DFinderToDatastore

protected

Flag for adding 2D finder to datastore.

Definition at line 142 of file TRGCDCT3DConverterModule.h.

◆ m_add3DToDatastore

bool m_add3DToDatastore

protected

Flag for adding 3D to datastore.

Definition at line 146 of file TRGCDCT3DConverterModule.h.

◆ m_addEventTimeToDatastore

bool m_addEventTimeToDatastore

protected

Flag for adding event time to datastore.

Definition at line 152 of file TRGCDCT3DConverterModule.h.

◆ m_addTSToDatastore

bool m_addTSToDatastore

protected

Flag for adding TS to datastore.

Definition at line 138 of file TRGCDCT3DConverterModule.h.

◆ m_commonData

Belle2::TRGCDCJSignalData* m_commonData

private

TRGCDCJSignalData for VHDL generation (jbkim's class)

Definition at line 171 of file TRGCDCT3DConverterModule.h.

◆ m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 520 of file Module.h.

◆ m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 510 of file Module.h.

◆ m_eventTime

StoreObjPtr<BinnedEventT0> m_eventTime

private

StoreObjPtr containing the event time.

Definition at line 168 of file TRGCDCT3DConverterModule.h.

◆ m_EventTimeName

std::string m_EventTimeName

protected

name of the event time StoreObjPtr

Definition at line 150 of file TRGCDCT3DConverterModule.h.

◆ m_firmwareResultCollectionName

std::string m_firmwareResultCollectionName

protected

Name of the StoreArray containing the input firmware results.

Definition at line 134 of file TRGCDCT3DConverterModule.h.

◆ m_firmwareResults

StoreArray<TRGCDCT3DUnpackerStore> m_firmwareResults

private

list of firmware results

Definition at line 160 of file TRGCDCT3DConverterModule.h.

◆ m_fit3DWithTSIM

unsigned m_fit3DWithTSIM

protected

Mode for fitting with TSIM.

Definition at line 148 of file TRGCDCT3DConverterModule.h.

◆ m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 517 of file Module.h.

◆ m_hitCollectionName

std::string m_hitCollectionName

protected

Name of the StoreArray containing the input track segment hits.

Definition at line 136 of file TRGCDCT3DConverterModule.h.

◆ m_hits

StoreArray<CDCTriggerSegmentHit> m_hits

private

list of track segment hits

Definition at line 162 of file TRGCDCT3DConverterModule.h.

◆ m_inputCollectionName

std::string m_inputCollectionName

protected

Name of the StoreArray containing the input tracks from the 2D fitter.

Definition at line 140 of file TRGCDCT3DConverterModule.h.

◆ m_isVerbose

unsigned m_isVerbose

protected

Switch printing detail information.

Definition at line 154 of file TRGCDCT3DConverterModule.h.

◆ m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 513 of file Module.h.

◆ m_mLutStorage

std::map<std::string, TRGCDCJLUT*> m_mLutStorage

private

TRGCDCJLUT for VHDL generation (jbkim's class)

Definition at line 175 of file TRGCDCT3DConverterModule.h.

◆ m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 515 of file Module.h.

◆ m_mSignalStorage

std::map<std::string, TRGCDCJSignal> m_mSignalStorage

private

TRGCDCJSignal for VHDL generation (jbkim's class)

Definition at line 173 of file TRGCDCT3DConverterModule.h.

◆ m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 507 of file Module.h.

◆ m_outputCollectionName

std::string m_outputCollectionName

protected

Name of the StoreArray containing the resulting 3D tracks.

Definition at line 144 of file TRGCDCT3DConverterModule.h.

◆ m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 509 of file Module.h.

◆ m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 511 of file Module.h.

◆ m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 518 of file Module.h.

◆ m_tracks2D

StoreArray<CDCTriggerTrack> m_tracks2D

private

list of 2D input tracks

Definition at line 164 of file TRGCDCT3DConverterModule.h.

◆ m_tracks3D

StoreArray<CDCTriggerTrack> m_tracks3D

private

list of 3D output tracks

Definition at line 166 of file TRGCDCT3DConverterModule.h.

◆ m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 508 of file Module.h.

The documentation for this class was generated from the following files:

trg/cdc/modules/trgcdct3dConverter/include/TRGCDCT3DConverterModule.h
trg/cdc/modules/trgcdct3dConverter/src/TRGCDCT3DConverterModule.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ EAfterConditionPath

Member Enumeration Documentation

◆ EModulePropFlags

Constructor & Destructor Documentation

◆ TRGCDCT3DConverterModule()

◆ ~TRGCDCT3DConverterModule()

Member Function Documentation

◆ add2DDatastore()

◆ add3DDatastore()

◆ addTSDatastore()

◆ beginRun()

◆ clone()

◆ debug3DFirmware()

◆ def_beginRun()

◆ def_endRun()

◆ def_event()

◆ def_initialize()

◆ def_terminate()

◆ endRun()

◆ evalCondition()

◆ event()

◆ exposePythonAPI()

◆ filter2DData()

◆ filter3DData()

◆ filterTSData()

◆ getAfterConditionPath()

◆ getAllConditionPaths()

◆ getAllConditions()

◆ getCondition()

◆ getConditionPath()

◆ getDescription()

◆ getFileNames()

◆ getLogConfig()

◆ getModules()

◆ getName()

◆ getPackage()

◆ getParamInfoListPython()

◆ getParamList()

◆ getPathString()

◆ getReturnValue()

◆ getType()

◆ hasCondition()

◆ hasProperties()

◆ hasReturnValue()

◆ hasUnsetForcedParams()

◆ if_false()

◆ if_true()

◆ if_value()

◆ initialize()

◆ setAbortLevel()

◆ setDebugLevel()

◆ setDescription()

◆ setLogConfig()

◆ setLogInfo()

◆ setLogLevel()

◆ setName()

◆ setParamList()

◆ setParamPython()

◆ setParamPythonDict()

◆ setPropertyFlags()

◆ setReturnValue() [1/2]

◆ setReturnValue() [2/2]

◆ setType()

◆ store2DFirmwareData()

◆ store3DFastSimData()

◆ store3DFirmSimData()

◆ store3DFirmwareData()

◆ storeTSFirmwareData()

◆ t2DPhiTot3DPhi()

◆ terminate()

◆ toSigned()
