Findlet for rejecting wrong SpacePointTrackCands and for removing bad hits. More...

#include <TrackCandidateOverlapResolver.h>

Inheritance diagram for TrackCandidateOverlapResolver:

[legend]

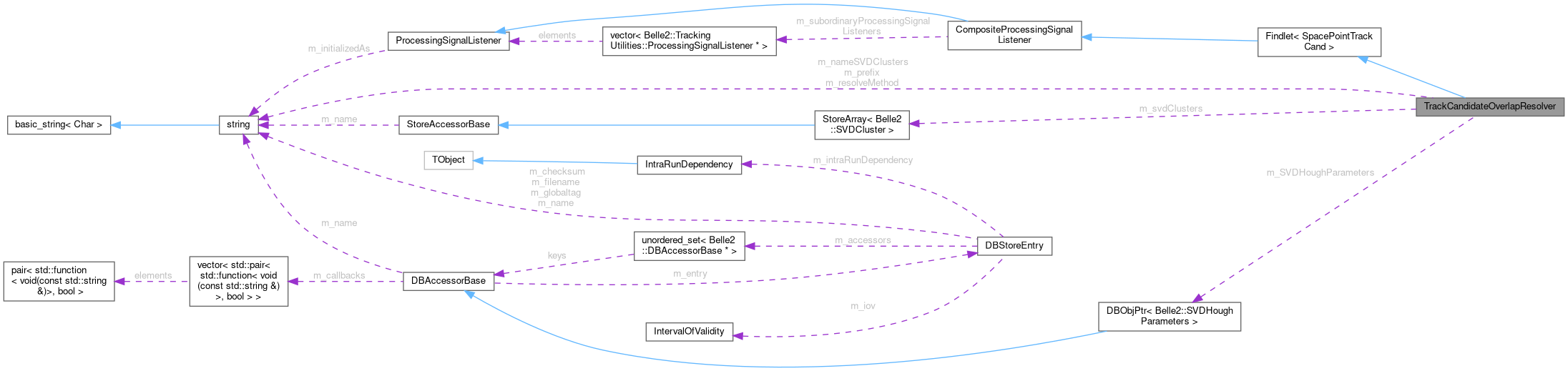

Collaboration diagram for TrackCandidateOverlapResolver:

[legend]

Public Types
using	IOTypes
	Types that should be served to apply on invocation.

using	IOVectors
	Vector types that should be served to apply on invocation.

Public Member Functions
	TrackCandidateOverlapResolver ()
	Find intercepts in the 2D Hough space.

	~TrackCandidateOverlapResolver ()
	Default destructor.

void	exposeParameters (ModuleParamList *moduleParamList, const std::string &prefix) override
	Expose the parameters of the sub findlets.

void	initialize () override
	Create the store arrays.

void	beginRun () override
	Check dbobject validity.

void	apply (std::vector< SpacePointTrackCand > &spacePointTrackCandsToResolve) override
	Reject bad SpacePointTrackCands and bad hits inside the remaining.

virtual std::string	getDescription ()
	Brief description of the purpose of the concrete findlet.

virtual std::string	getDescription ()
	Brief description of the purpose of the concrete findlet.

virtual void	apply (ToVector< AIOTypes > &... ioVectors)=0
	Main function executing the algorithm.

void	beginEvent () override
	Receive and dispatch signal for the start of a new event.

void	endRun () override
	Receive and dispatch signal for the end of the run.

void	terminate () override
	Receive and dispatch Signal for termination of the event processing.

Protected Types
using	ToVector
	Short hand for ToRangeImpl.

Protected Member Functions
void	addProcessingSignalListener (ProcessingSignalListener *psl)
	Register a processing signal listener to be notified.

int	getNProcessingSignalListener ()
	Get the number of currently registered listeners.

Private Types
using	Super = TrackingUtilities::Findlet<SpacePointTrackCand>
	Parent class.

Private Attributes
StoreArray< SVDCluster >	m_svdClusters
	Stay connected to the DataStore for timing improvement.

std::string	m_nameSVDClusters = "SVDClusters"
	Name of array of SVDCluster.

std::string	m_resolveMethod = "greedy"
	Strategy used to resolve overlaps.

double	m_minActivityState = 0.7
	Minimum of activityState of candidate required to be accepted by the algorithm.

DBObjPtr< SVDHoughParameters >	m_SVDHoughParameters
	DB object containing the SVDHough parameters.

std::string	m_prefix = ""
	parameters prefix (finalOverlapResolver, refinerOverlapResolver)

std::vector< ProcessingSignalListener * >	m_subordinaryProcessingSignalListeners
	References to subordinary signal processing listener contained in this findlet.

bool	m_initialized
	Flag to keep track whether initialization happened before.

bool	m_terminated
	Flag to keep track whether termination happened before.

std::string	m_initializedAs
	Name of the type during initialisation.

Detailed Description

Findlet for rejecting wrong SpacePointTrackCands and for removing bad hits.

Definition at line 27 of file TrackCandidateOverlapResolver.h.

Member Typedef Documentation

◆ IOTypes

using IOTypes

inherited

Types that should be served to apply on invocation.

Definition at line 30 of file Findlet.h.

◆ IOVectors

using IOVectors

inherited

Vector types that should be served to apply on invocation.

Definition at line 53 of file Findlet.h.

◆ Super

using Super = TrackingUtilities::Findlet<SpacePointTrackCand>

private

Parent class.

Definition at line 29 of file TrackCandidateOverlapResolver.h.

◆ ToVector

using ToVector

protectedinherited

Short hand for ToRangeImpl.

Definition at line 49 of file Findlet.h.

Constructor & Destructor Documentation

◆ TrackCandidateOverlapResolver()

TrackCandidateOverlapResolver ( )

Find intercepts in the 2D Hough space.

Definition at line 27 of file TrackCandidateOverlapResolver.cc.

                                                             : Super()
{
}

Member Function Documentation

◆ addProcessingSignalListener()

void addProcessingSignalListener ( ProcessingSignalListener * psl )

protectedinherited

Register a processing signal listener to be notified.

Definition at line 53 of file CompositeProcessingSignalListener.cc.

{
  m_subordinaryProcessingSignalListeners.push_back(psl);
}

◆ apply()

void apply ( std::vector< SpacePointTrackCand > & spacePointTrackCandsToResolve )

override

Reject bad SpacePointTrackCands and bad hits inside the remaining.

Definition at line 72 of file TrackCandidateOverlapResolver.cc.

{
  //Create matrix[svdCluster][track]
  unsigned short nHits = m_svdClusters.getEntries();

  //Create subset of active Candidates
  std::vector<SpacePointTrackCand*> activeCandidates;
  auto requiredSpace = spacePointTrackCandsToResolve.size();
  activeCandidates.reserve(requiredSpace);
  for (SpacePointTrackCand& sptc : spacePointTrackCandsToResolve) {
    if (sptc.hasRefereeStatus(SpacePointTrackCand::c_isActive)) activeCandidates.push_back(&sptc);
  }
  unsigned short const nActiveCandidates = activeCandidates.size();
  if (nActiveCandidates < 2) {
    B2DEBUG(29, "Less than 2 active SPTC. No reason to do SVDOverlapResolver!");
    return;
  }

  //now fill the cluster/track matrix:
  std::vector<std::vector<unsigned short> > svdHitRelatedTracks(nHits);
  //TODO: Check if one saves time by reserving some space for each single of those vectors;
  for (unsigned short iCand = 0; iCand < nActiveCandidates; ++iCand) {

    for (const SpacePoint* spacePointPointer : activeCandidates.at(iCand)->getHits()) {
      //only SVD is handled with this algorithm
      if (spacePointPointer->getType() != VXD::SensorInfoBase::SensorType::SVD) continue;

      //at the position of the svdCluster Index, the track index is pushed back;
      RelationVector<SVDCluster> svdClusterRelations = spacePointPointer->getRelationsTo<SVDCluster>(m_nameSVDClusters);
      for (SVDCluster const& svdClusterPointer : svdClusterRelations) {
        svdHitRelatedTracks[svdClusterPointer.getArrayIndex()].push_back(iCand);
      }
    }
  }

  //Create the overlap matrix and store it into the OverlapNetwork
  OverlapMatrixCreator overlapMatrixCreator(svdHitRelatedTracks, nActiveCandidates);
  auto overlapMatrix = overlapMatrixCreator.getOverlapMatrix();

  //Resolve overlap
  //Create an empty object of the type,
  //that needs to be given to Scrooge.
  std::vector<OverlapResolverNodeInfo> qiTrackOverlap;
  qiTrackOverlap.reserve(nActiveCandidates);

  //fill this object with the necessary information:
  for (unsigned short iCand = 0; iCand < nActiveCandidates; ++iCand) {
    qiTrackOverlap.emplace_back(
      activeCandidates[iCand]->getQualityIndicator(),
      iCand,
      overlapMatrix.at(iCand),
      1);
  }

  if (m_resolveMethod == "greedy") {
    //make a Scrooge and update the activity
    Scrooge scrooge;
    scrooge.performSelection(qiTrackOverlap);

  } else if (m_resolveMethod == "hopfield") {
    //Performs the actual HNN.
    //As the parameter is taken as reference, the values are changed and can be reused below.
    HopfieldNetwork hopfieldNetwork;
    unsigned maxIterations = 20;
    if (hopfieldNetwork.doHopfield(qiTrackOverlap, maxIterations) == maxIterations) {
      B2WARNING("Hopfield Network failed converge.");
    }
  }

  for (auto&& track : qiTrackOverlap) {
    if (track.activityState < m_minActivityState) {
      activeCandidates[track.trackIndex]->removeRefereeStatus(SpacePointTrackCand::c_isActive);
    }
  }
}

◆ beginEvent()

void beginEvent ( )

overrideinherited

Receive and dispatch signal for the start of a new event.

Definition at line 36 of file CompositeProcessingSignalListener.cc.

{
  Super::beginEvent();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->beginEvent();
  }
}

◆ beginRun()

void beginRun ( )

overridevirtual

Check dbobject validity.

Reimplemented from CompositeProcessingSignalListener.

Definition at line 59 of file TrackCandidateOverlapResolver.cc.

{
  if (!m_SVDHoughParameters.isValid()) {
    B2FATAL("SVDHough - TrackCandidateOverlapResolver: SVDHoughParameter dbobject not found, using default parameters.");
  } else {
    if (m_prefix == "finalOverlapResolver") {
      m_minActivityState = m_SVDHoughParameters->getFinalOverlapResolverMinActivityState();
    } else if (m_prefix == "refinerOverlapResolver") {
      m_minActivityState = m_SVDHoughParameters->getRefinerOverlapResolverMinActivityState();
    }
  }
}

◆ endRun()

void endRun ( )

overrideinherited

Receive and dispatch signal for the end of the run.

Definition at line 39 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->endRun();
  }
  Super::endRun();
}

◆ exposeParameters()

void exposeParameters	(	ModuleParamList *	moduleParamList,
		const std::string &	prefix )

overridevirtual

Expose the parameters of the sub findlets.

Reimplemented from CompositeProcessingSignalListener.

Definition at line 31 of file TrackCandidateOverlapResolver.cc.

{
  Super::exposeParameters(moduleParamList, prefix);

  m_prefix = prefix;

  moduleParamList->addParameter(TrackingUtilities::prefixed(prefix, "ResolveMethod"), m_resolveMethod,
                                "Strategy used to resolve overlaps. Currently implemented are \"greedy\" and \"hopfield\".",
                                m_resolveMethod);
  moduleParamList->addParameter(TrackingUtilities::prefixed(prefix, "NameSVDClusters"), m_nameSVDClusters,
                                "Name of expected SVDClusters StoreArray.", m_nameSVDClusters);

  moduleParamList->addParameter(TrackingUtilities::prefixed(prefix, "minActivityState"), m_minActivityState,
                                "Sets the minimal value of activity for acceptance. [0,1]", m_minActivityState);
}

◆ getDescription() [1/2]

virtual std::string getDescription ( )

inlinevirtualinherited

Brief description of the purpose of the concrete findlet.

Definition at line 60 of file Findlet.h.

      {
        return "(no description)";
      }

◆ getDescription() [2/2]

virtual std::string getDescription ( )

inlinevirtualinherited

Brief description of the purpose of the concrete findlet.

Definition at line 60 of file Findlet.h.

      {
        return "(no description)";
      }

◆ getNProcessingSignalListener()

int getNProcessingSignalListener ( )

protectedinherited

Get the number of currently registered listeners.

Definition at line 56 of file CompositeProcessingSignalListener.cc.

{
  return m_subordinaryProcessingSignalListeners.size();
}

◆ initialize()

void initialize ( )

overridevirtual

Create the store arrays.

Reimplemented from CompositeProcessingSignalListener.

Definition at line 48 of file TrackCandidateOverlapResolver.cc.

{
  Super::initialize();

  m_svdClusters.isRequired(m_nameSVDClusters);

  B2ASSERT("ResolveMethod has to be either 'greedy' or 'hopfield'. Selected ResolveMethod: " << m_resolveMethod,
           m_resolveMethod == "greedy" || m_resolveMethod == "hopfield");

}

◆ terminate()

void terminate ( )

overrideinherited

Receive and dispatch Signal for termination of the event processing.

Definition at line 42 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->terminate();
  }
  Super::terminate();
}

Definition at line 55 of file ProcessingSignalListener.h.

The documentation for this class was generated from the following files:

tracking/vxdHoughTracking/findlets/include/TrackCandidateOverlapResolver.h
tracking/vxdHoughTracking/findlets/src/TrackCandidateOverlapResolver.cc

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ IOTypes

◆ IOVectors

◆ Super

◆ ToVector

Constructor & Destructor Documentation

◆ TrackCandidateOverlapResolver()

Member Function Documentation

◆ addProcessingSignalListener()

◆ apply()

◆ beginEvent()

◆ beginRun()

◆ endRun()

◆ exposeParameters()

◆ getDescription() [1/2]

◆ getDescription() [2/2]

◆ getNProcessingSignalListener()

◆ initialize()

◆ terminate()

Member Data Documentation

◆ m_initialized

◆ m_initializedAs

◆ m_minActivityState

◆ m_nameSVDClusters

◆ m_prefix

◆ m_resolveMethod

◆ m_subordinaryProcessingSignalListeners

◆ m_svdClusters

◆ m_SVDHoughParameters

◆ m_terminated
