Geometry parameters of Quartz Bar Box (mother class) More...

#include <TOPGeoQBB.h>

Inheritance diagram for TOPGeoQBB:

[legend]

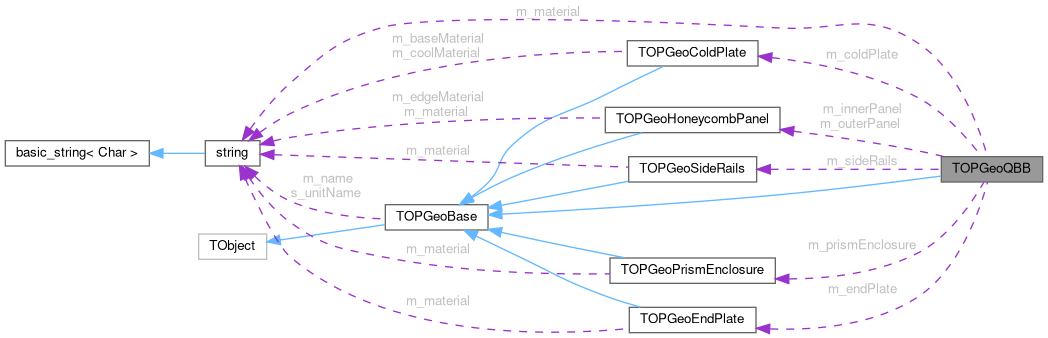

Collaboration diagram for TOPGeoQBB:

[legend]

Public Member Functions
	TOPGeoQBB ()
	Default constructor.

	TOPGeoQBB (double width, double length, double prismPosition, const std::string &material, const std::string &name="TOPQBB")
	Useful constructor.

void	setInnerPanel (const TOPGeoHoneycombPanel &innerPanel)
	Sets inner honeycomb panel.

void	setOuterPanel (const TOPGeoHoneycombPanel &outerPanel)
	Sets outer honeycomb panel.

void	setSideRails (const TOPGeoSideRails &sideRails)
	Sets side rails.

void	setPrismEnclosure (const TOPGeoPrismEnclosure &prismEnclosure)
	Sets prism enclosure.

void	setEndPlate (const TOPGeoEndPlate &endPlate)
	Sets forward end plate.

void	setColdPlate (const TOPGeoColdPlate &coldPlate)
	Sets forward cold plate.

double	getWidth () const
	Returns full width.

double	getPanelWidth () const
	Returns panel width used in x-y contours of honeycomb panels.

double	getLength () const
	Returns full length.

double	getSideRailsLength () const
	Returns side rails length.

double	getPrismPosition () const
	Returns the position of prism-bar joint wrt QBB back.

const std::string &	getMaterial () const
	Returns the name of material inside QBB.

const TOPGeoHoneycombPanel &	getInnerPanel () const
	Returns inner honeycomb panel.

const TOPGeoHoneycombPanel &	getOuterPanel () const
	Returns outer honeycomb panel.

const TOPGeoSideRails &	getSideRails () const
	Returns side rails.

const TOPGeoPrismEnclosure &	getPrismEnclosure () const
	Returns prism enclosure.

const TOPGeoEndPlate &	getForwardEndPlate () const
	Returns forward end plate.

const TOPGeoColdPlate &	getColdPlate () const
	Returns cold plate.

std::vector< std::pair< double, double > >	getForwardContour () const
	Returns forward x-y contour.

std::vector< std::pair< double, double > >	getInnerPanelContour () const
	Returns inner honeycomb panel x-y contour.

std::vector< std::pair< double, double > >	getOuterPanelContour () const
	Returns outer honeycomb panel x-y contour.

std::vector< std::pair< double, double > >	getBackwardContour () const
	Returns backward x-y contour.

std::vector< std::pair< double, double > >	getPrismEnclosureContour () const
	Returns prism enclosure wall x-y contour.

std::vector< std::pair< double, double > >	getBackPlateContour () const
	Returns prism enclosure back plate x-y contour.

std::vector< std::pair< double, double > >	getFrontPlateContour () const
	Returns prism enclosure front plate x-y contour.

bool	isConsistent () const override
	Check for consistency of data members.

virtual void	print (const std::string &title="QBB geometry parameters") const override
	Print the content of the class.

void	printForwardContour () const
	Print forward contour (polygon) - for debugging.

void	printInnerPanelContour () const
	Print inner honeycomb panel contour (polygon) - for debugging.

void	printOuterPanelContour () const
	Print outer honeycomb panel contour (polygon) - for debugging.

void	printBackwardContour () const
	Print backward contour (polygon) - for debugging.

void	printPrismEnclosureContour () const
	Print prism enclosure contour (polygon) - for debugging.

void	printBackPlateContour () const
	Print prism enclosure back plate contour (polygon) - for debugging.

void	printFrontPlateContour () const
	Print prism enclosure front plate contour (polygon) - for debugging.

void	setName (const std::string &name)
	Sets object name.

const std::string &	getName () const
	Returns object name.

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface.

double	getReflectivity (const GeoOpticalSurface &surface, double energy) const
	Returns reflectivity of optical surface at given photon energy.

Protected Member Functions
void	printUnderlined (const std::string &title) const
	Print the content of the class.

	ClassDef (TOPGeoBase, 1)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDefOverride (TOPGeoQBB, 2)
	ClassDef.

Private Attributes
float	m_width = 0
	full width

float	m_length = 0
	full length

float	m_prismPosition = 0
	position of prism-bar joint wrt QBB back

std::string	m_material
	material inside QBB

TOPGeoHoneycombPanel	m_innerPanel
	inner honeycomb panel

TOPGeoHoneycombPanel	m_outerPanel
	outer honeycomb panel

TOPGeoSideRails	m_sideRails
	side rails

TOPGeoPrismEnclosure	m_prismEnclosure
	prism enclosure

TOPGeoEndPlate	m_endPlate
	forward end plate

TOPGeoColdPlate	m_coldPlate
	cold plate

Detailed Description

Geometry parameters of Quartz Bar Box (mother class)

Definition at line 30 of file TOPGeoQBB.h.

Constructor & Destructor Documentation

◆ TOPGeoQBB() [1/2]

TOPGeoQBB ( )

inline

Default constructor.

Definition at line 36 of file TOPGeoQBB.h.

37 {}

◆ TOPGeoQBB() [2/2]

TOPGeoQBB	(	double	width,
		double	length,
		double	prismPosition,
		const std::string &	material,
		const std::string &	name = "TOPQBB" )

inline

Useful constructor.

Parameters

width	full width
length	full length
prismPosition	position of prism-bar joint wrt QBB back
material	material inside QBB
name	volume name in Geant

Definition at line 47 of file TOPGeoQBB.h.

                                               : TOPGeoBase(name),
      m_width(width), m_length(length), m_prismPosition(prismPosition), m_material(material)
    {}

Member Function Documentation

◆ getColdPlate()

const TOPGeoColdPlate & getColdPlate ( ) const

inline

Returns cold plate.

Returns: cold plate geometry parameters

Definition at line 174 of file TOPGeoQBB.h.

174{return m_coldPlate;}

◆ getForwardEndPlate()

const TOPGeoEndPlate & getForwardEndPlate ( ) const

inline

Returns forward end plate.

Returns: end plate geometry parameters

Definition at line 168 of file TOPGeoQBB.h.

168{return m_endPlate;}

◆ getInnerPanel()

const TOPGeoHoneycombPanel & getInnerPanel ( ) const

inline

Returns inner honeycomb panel.

Returns: panel geometry parameters

Definition at line 144 of file TOPGeoQBB.h.

144{return m_innerPanel;}

◆ getLength()

double getLength ( ) const

inline

Returns full length.

Returns: length

Definition at line 117 of file TOPGeoQBB.h.

117{return m_length / s_unit;}

◆ getMaterial()

const std::string & getMaterial ( ) const

inline

Returns the name of material inside QBB.

Returns: material name

Definition at line 138 of file TOPGeoQBB.h.

138{return m_material;}

◆ getName()

const std::string & getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 51 of file TOPGeoBase.h.

51{return m_name;}

◆ getOuterPanel()

const TOPGeoHoneycombPanel & getOuterPanel ( ) const

inline

Returns outer honeycomb panel.

Returns: panel geometry parameters

Definition at line 150 of file TOPGeoQBB.h.

150{return m_outerPanel;}

◆ getPanelWidth()

double getPanelWidth ( ) const

inline

Returns panel width used in x-y contours of honeycomb panels.

Returns: width

Definition at line 108 of file TOPGeoQBB.h.

    {
      return getWidth() - 2 * m_sideRails.getThickness();
    }

◆ getPrismEnclosure()

const TOPGeoPrismEnclosure & getPrismEnclosure ( ) const

inline

Returns prism enclosure.

Returns: prism enclosure geometry parameters

Definition at line 162 of file TOPGeoQBB.h.

162{return m_prismEnclosure;}

◆ getPrismPosition()

double getPrismPosition ( ) const

inline

Returns the position of prism-bar joint wrt QBB back.

Returns: position

Definition at line 132 of file TOPGeoQBB.h.

132{return m_prismPosition / s_unit;}

◆ getSideRails()

const TOPGeoSideRails & getSideRails ( ) const

inline

Returns side rails.

Returns: side rails geometry parameters

Definition at line 156 of file TOPGeoQBB.h.

156{return m_sideRails;}

◆ getSideRailsLength()

double getSideRailsLength ( ) const

inline

Returns side rails length.

Returns: length

Definition at line 123 of file TOPGeoQBB.h.

    {
      return getLength() - m_prismEnclosure.getBackThickness() - m_endPlate.getThickness();
    }

◆ getWidth()

double getWidth ( ) const

inline

Returns full width.

Returns: width

Definition at line 102 of file TOPGeoQBB.h.

102{return m_width / s_unit;}

◆ setColdPlate()

void setColdPlate ( const TOPGeoColdPlate & coldPlate )

inline

Sets forward cold plate.

Parameters

coldPlate geometry parameters

Definition at line 96 of file TOPGeoQBB.h.

96{m_coldPlate = coldPlate;}

◆ setEndPlate()

void setEndPlate ( const TOPGeoEndPlate & endPlate )

inline

Sets forward end plate.

Parameters

endPlate geometry parameters

Definition at line 90 of file TOPGeoQBB.h.

90{m_endPlate = endPlate;}

◆ setInnerPanel()

void setInnerPanel ( const TOPGeoHoneycombPanel & innerPanel )

inline

Sets inner honeycomb panel.

Parameters

innerPanel geometry parameters

Definition at line 57 of file TOPGeoQBB.h.

    {
      m_innerPanel = innerPanel;
    }

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 45 of file TOPGeoBase.h.

45{m_name = name;}

◆ setOuterPanel()

void setOuterPanel ( const TOPGeoHoneycombPanel & outerPanel )

inline

Sets outer honeycomb panel.

Parameters

outerPanel geometry parameters

Definition at line 66 of file TOPGeoQBB.h.

    {
      m_outerPanel = outerPanel;
    }

◆ setPrismEnclosure()

void setPrismEnclosure ( const TOPGeoPrismEnclosure & prismEnclosure )

inline

Sets prism enclosure.

Parameters

prismEnclosure geometry parameters

Definition at line 81 of file TOPGeoQBB.h.

    {
      m_prismEnclosure = prismEnclosure;
    }

◆ setSideRails()

void setSideRails ( const TOPGeoSideRails & sideRails )

inline

Sets side rails.

Parameters

sideRails geometry parameters

Definition at line 75 of file TOPGeoQBB.h.

75{m_sideRails = sideRails;}

Member Data Documentation

◆ m_coldPlate

TOPGeoColdPlate m_coldPlate

private

cold plate

Definition at line 276 of file TOPGeoQBB.h.

◆ m_endPlate

TOPGeoEndPlate m_endPlate

private

forward end plate

Definition at line 275 of file TOPGeoQBB.h.

◆ m_innerPanel

TOPGeoHoneycombPanel m_innerPanel

private

inner honeycomb panel

Definition at line 271 of file TOPGeoQBB.h.

◆ m_length

float m_length = 0

private

full length

Definition at line 268 of file TOPGeoQBB.h.

◆ m_material

std::string m_material

private

material inside QBB

Definition at line 270 of file TOPGeoQBB.h.

◆ m_name

std::string m_name

protectedinherited

geometry object name

Definition at line 89 of file TOPGeoBase.h.

◆ m_outerPanel

TOPGeoHoneycombPanel m_outerPanel

private

outer honeycomb panel

Definition at line 272 of file TOPGeoQBB.h.

◆ m_prismEnclosure

TOPGeoPrismEnclosure m_prismEnclosure

private

prism enclosure

Definition at line 274 of file TOPGeoQBB.h.

◆ m_prismPosition

float m_prismPosition = 0

private

position of prism-bar joint wrt QBB back

Definition at line 269 of file TOPGeoQBB.h.

◆ m_sideRails

TOPGeoSideRails m_sideRails

private

side rails

Definition at line 273 of file TOPGeoQBB.h.

◆ m_width

float m_width = 0

private

full width

Definition at line 267 of file TOPGeoQBB.h.

The documentation for this class was generated from the following files:

top/dbobjects/include/TOPGeoQBB.h
top/dbobjects/src/TOPGeoQBB.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TOPGeoQBB() [1/2]

◆ TOPGeoQBB() [2/2]

Member Function Documentation

◆ getColdPlate()

◆ getForwardEndPlate()

◆ getInnerPanel()

◆ getLength()

◆ getMaterial()

◆ getName()

◆ getOuterPanel()

◆ getPanelWidth()

◆ getPrismEnclosure()

◆ getPrismPosition()

◆ getSideRails()

◆ getSideRailsLength()

◆ getWidth()

◆ setColdPlate()

◆ setEndPlate()

◆ setInnerPanel()

◆ setName()

◆ setOuterPanel()

◆ setPrismEnclosure()

◆ setSideRails()

Member Data Documentation

◆ m_coldPlate

◆ m_endPlate

◆ m_innerPanel

◆ m_length

◆ m_material

◆ m_name

◆ m_outerPanel

◆ m_prismEnclosure

◆ m_prismPosition

◆ m_sideRails

◆ m_width
