TRGBoard Class Reference

A class to represent a trigger board. More...

#include <Board.h>

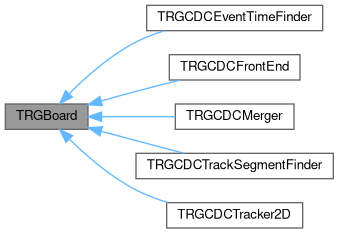

Inheritance diagram for TRGBoard:

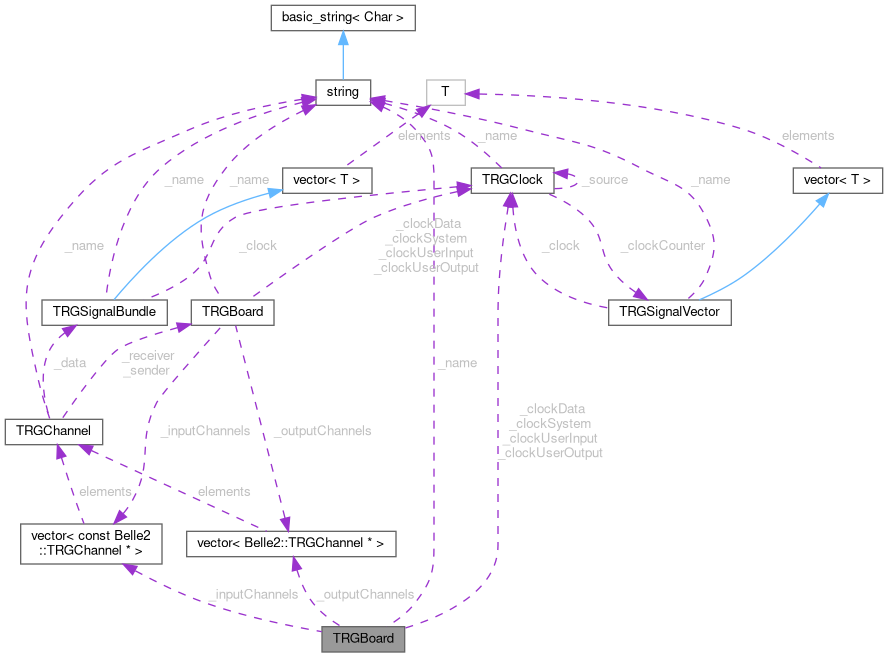

Collaboration diagram for TRGBoard:

Public Member Functions
	TRGBoard (const std::string &name, const TRGClock &systemClock, const TRGClock &dataClock, const TRGClock &userClockInput, const TRGClock &userClockOutput)
	Constructor.
virtual	~TRGBoard ()
	Destructor.
const std::string &	name (void) const
	returns name.
const TRGClock &	clockSystem (void) const
	returns system clock.
const TRGClock &	clockData (void) const
	returns data clock.
const TRGClock &	clockUserInput (void) const
	returns Aurora user clock for input.
const TRGClock &	clockUserOutput (void) const
	returns Aurora user clock for output.
unsigned	nInput (void) const
	returns input channels.
const TRGChannel *	input (unsigned i) const
	returns input channel i.
unsigned	nOutput (void) const
	returns output channels.
TRGChannel *	output (unsigned i) const
	returns output channel i.
void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents.
void	appendInput (const TRGChannel *)
	appends an input Aurora channel.
void	appendOutput (TRGChannel *)
	appends an output Aurora channel.

Private Attributes
const std::string	_name
	Name of a board.
const TRGClock *	_clockSystem
	System clock.
const TRGClock *	_clockData
	Data clock.
const TRGClock *	_clockUserInput
	User clock.
const TRGClock *	_clockUserOutput
	User clock.
std::vector< const TRGChannel * >	_inputChannels
	Input Aurora channel.
std::vector< TRGChannel * >	_outputChannels
	Output Aurora channel.

Detailed Description

A class to represent a trigger board.

Definition at line 25 of file Board.h.

Member Data Documentation

_clockData

const TRGClock* _clockData

private

Data clock.

Definition at line 90 of file Board.h.

_clockSystem

const TRGClock* _clockSystem

private

System clock.

Definition at line 87 of file Board.h.

_clockUserInput

const TRGClock* _clockUserInput

private

User clock.

Definition at line 93 of file Board.h.

_clockUserOutput

const TRGClock* _clockUserOutput

private

User clock.

Definition at line 96 of file Board.h.

_inputChannels

std::vector<const TRGChannel*> _inputChannels

private

Input Aurora channel.

Definition at line 99 of file Board.h.

_name

const std::string _name

private

Name of a board.

Definition at line 84 of file Board.h.

_outputChannels

std::vector<TRGChannel*> _outputChannels

private

Output Aurora channel.

Definition at line 102 of file Board.h.

---

The documentation for this class was generated from the following files:

• trg/trg/include/Board.h
• trg/trg/src/Board.cc
