Geometry parameters of Merger PCB. More...

#include <ARICHGeoMerger.h>

Inheritance diagram for ARICHGeoMerger:

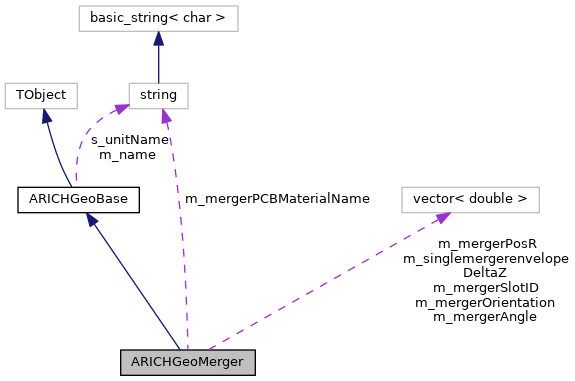

Collaboration diagram for ARICHGeoMerger:

[legend]

Public Member Functions
	ARICHGeoMerger ()
	Default constructor.

void	setMergerPCBMaterialName (const std::string &materialName)
	Set merger PCB material name. More...

void	setMergerPCBLenght (double sizeL)
	Set merger PCB lenght. More...

void	setMergerPCBWidth (double sizeW)
	Set merger PCB width. More...

void	setMergerPCBThickness (double thickness)
	Set merger PCB thickness. More...

void	setSingleMergerEnvelopeSizeL (double sizeL)
	Set single merger PCB and merger cooling envelop length. More...

void	setSingleMergerEnvelopeSizeW (double sizeW)
	Set single merger PCB and merger cooling envelop width. More...

void	setSingleMergerEnvelopeThickness (double thickness)
	Set single merger PCB and merger cooling envelop thickness. More...

void	setSingleMergerenvelopeDeltaZ (const std::vector< double > &singlemergerenvelopeDeltaZ)
	Set vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm. More...

void	setMergerPCBscrewholeR (double screwholeR)
	Set merger PCB screw hole radius. More...

void	setMergerPCBscrewholePosdY (double screwholePosdY)
	Set merger PCB screw hole position from the left and right sides. More...

void	setMergerPCBscrewholePosdX1 (double screwholePosdX1)
	Set merger PCB screw hole position from the bottom edge. More...

void	setMergerPCBscrewholePosdX2 (double screwholePosdX2)
	Set merger PCB screw hole position from the top edge. More...

void	setEnvelopeOuterRadius (double envelopeOuterRadius)
	Set outer radius of merger PCB assembly envelope. More...

void	setEnvelopeInnerRadius (double envelopeInnerRadius)
	Set inner radius of merger PCB assembly envelope. More...

void	setEnvelopeThickness (double envelopeThickness)
	Set thickness of merger PCB assembly envelope. More...

void	setEnvelopeCenterPosition (double x0, double y0, double z0)
	Set position of merger PCB assembly envelope. More...

void	setSingleMergeEnvelopePosition (double x0, double y0, double z0)
	Set position of merger PCB inside the single merger envelope. More...

void	setMergerSlotID (const std::vector< double > &mergerSlotID)
	Set vector of merger boards slot numbers. More...

void	setMergerPosR (const std::vector< double > &mergerPosR)
	Set vector of merger boards distances from the center in mm. More...

void	setMergerAngle (const std::vector< double > &mergerAngle)
	Set vector of merger boarts azimuthal angles in polar coordinate system in deg. More...

void	setMergerOrientation (const std::vector< double > &mergerOrientation)
	Set vector of merger boarts orientations. More...

const std::string &	getMergerPCBMaterialName () const
	Returns merger PCB material name. More...

double	getSizeL () const
	Returns merger PCB lenght. More...

double	getSizeW () const
	Returns merger PCB width. More...

double	getThickness () const
	Returns merger PCB thickness. More...

double	getSingleMergerEnvelopeSizeL () const
	Returns single merger PCB and merger cooling envelop length. More...

double	getSingleMergerEnvelopeSizeW () const
	Returns single merger PCB and merger cooling envelop width. More...

double	getSingleMergerEnvelopeThickness () const
	Returns single merger PCB and merger cooling envelop thickness. More...

const std::vector< double > &	getSingleMergerenvelopeDeltaZ () const
	Returns vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm. More...

double	getMergerPCBscrewholeR () const
	Returns merger PCB screw hole radius. More...

double	getMergerPCBscrewholePosdY () const
	Returns merger PCB screw hole position from the left and right sides. More...

double	getMergerPCBscrewholePosdX1 () const
	Returns merger PCB screw hole position from the bottom edge. More...

double	getMergerPCBscrewholePosdX2 () const
	Returns merger PCB screw hole position from the top edge. More...

double	getEnvelopeOuterRadius () const
	Returns Outer radius of merger PCB assembly envelope. More...

double	getEnvelopeInnerRadius () const
	Returns Inner radius of merger PCB assembly envelope. More...

double	getEnvelopeThickness () const
	Returns Thickness of merger PCB assembly envelope. More...

TVector3	getEnvelopeCenterPosition () const
	Returns position vector (TVector3) of merger PCB assembly envelope. More...

TVector3	getSingleMergeEnvelopePosition () const
	Returns position vector (TVector3) of merger PCB inside the single merger envelope. More...

const std::vector< double > &	getMergerSlotID () const
	Returns vector of merger boards slot numbers. More...

const std::vector< double > &	getMergerPosR () const
	Returns vector of merger boards distances from the center in mm. More...

const std::vector< double > &	getMergerAngle () const
	Returns vector of merger boarts azimuthal angles in polar coordinate system in deg. More...

const std::vector< double > &	getMergerOrientation () const
	Returns vector of merger boarts orientations in deg. More...

void	print (const std::string &title="Merger PCB geometry parameters") const
	Print the content of the class. More...

void	checkMergerPositionsDataConsistency () const
	Check data consistency of the merger positions In case of failure print the BASF2 ERROR message using B2ASSERT.

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual bool	isConsistent () const
	Check for consistency of data members. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters. More...

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDef (ARICHGeoMerger, 2)
	Orientation of the merger board in deg. More...

Private Attributes
std::string	m_mergerPCBMaterialName
	Material of merger PCB.

double	m_sizeL = 0.0
	Size of merger PCB : length.

double	m_sizeW = 0.0
	Size of merger PCB : width.

double	m_thickness = 0.0
	Thickenss of merger PCB.

double	m_singlemergerenvelopeSizeL = 0.0

double	m_singlemergerenvelopeSizeW = 0.0
	Size of single merger PCB and merger cooling envelop : length.

double	m_singlemergerenvelopeThickness = 0.0
	Size of single merger PCB and merger cooling envelop : width.

std::vector< double >	m_singlemergerenvelopeDeltaZ
	Thickenss of single merger PCB and merger cooling envelop. More...

double	m_mergerPCBscrewholeR = 0.0

double	m_mergerPCBscrewholePosdY = 0.0
	Merger PCB screw hole radius.

double	m_mergerPCBscrewholePosdX1 = 0.0
	Merger PCB screw hole position from the left and right sides.

double	m_mergerPCBscrewholePosdX2 = 0.0
	Merger PCB screw hole position from the bottom edge.

double	m_envelopeOuterRadius = 0.0
	Merger PCB screw hole position from the top edge.

double	m_envelopeInnerRadius = 0.0
	Outer radius of merger PCB assembly envelope.

double	m_envelopeThickness = 0.0
	Inner radius of merger PCB assembly envelope.

double	m_envelopeX0 = 0.0
	Thickness of merger PCB assembly envelope.

double	m_envelopeY0 = 0.0
	X0 merger PCB assembly envelope.

double	m_envelopeZ0 = 0.0
	Y0 merger PCB assembly envelope.

double	m_envelopePosX0 = 0.0
	Z0 merger PCB assembly envelope.

double	m_envelopePosY0 = 0.0
	Position of the merger inside the envelope.

double	m_envelopePosZ0 = 0.0
	Position of the merger inside the envelope.

std::vector< double >	m_mergerSlotID
	Position of the merger inside the envelope.

std::vector< double >	m_mergerPosR
	Merger slot number.

std::vector< double >	m_mergerAngle
	Distance from the center in mm.

std::vector< double >	m_mergerOrientation
	Azimuthal angle of the merger PCB center in polar coordinate system in deg.

Detailed Description

Geometry parameters of Merger PCB.

Definition at line 36 of file ARICHGeoMerger.h.

Member Function Documentation

◆ ClassDef()

ClassDef	(	ARICHGeoMerger	,
		2
	)

private

Orientation of the merger board in deg.

ClassDef

◆ getEnvelopeCenterPosition()

TVector3 getEnvelopeCenterPosition ( ) const

inline

Returns position vector (TVector3) of merger PCB assembly envelope.

Returns: position vector (TVector3) of merger PCB assembly envelope

Definition at line 270 of file ARICHGeoMerger.h.

◆ getEnvelopeInnerRadius()

double getEnvelopeInnerRadius ( ) const

inline

Returns Inner radius of merger PCB assembly envelope.

Returns: Inner radius of merger PCB assembly envelope

Definition at line 258 of file ARICHGeoMerger.h.

◆ getEnvelopeOuterRadius()

double getEnvelopeOuterRadius ( ) const

inline

Returns Outer radius of merger PCB assembly envelope.

Returns: Outer radius of merger PCB assembly envelope

Definition at line 252 of file ARICHGeoMerger.h.

◆ getEnvelopeThickness()

double getEnvelopeThickness ( ) const

inline

Returns Thickness of merger PCB assembly envelope.

Returns: Thickness of merger PCB assembly envelope

Definition at line 264 of file ARICHGeoMerger.h.

◆ getMergerAngle()

const std::vector<double>& getMergerAngle ( ) const

inline

Returns vector of merger boarts azimuthal angles in polar coordinate system in deg.

Returns: vector of merger boarts azimuthal angles in polar coordinate system in deg

Definition at line 294 of file ARICHGeoMerger.h.

◆ getMergerOrientation()

const std::vector<double>& getMergerOrientation ( ) const

inline

Returns vector of merger boarts orientations in deg.

Returns: vector of merger boarts orientations in deg

Definition at line 300 of file ARICHGeoMerger.h.

◆ getMergerPCBMaterialName()

const std::string& getMergerPCBMaterialName ( ) const

inline

Returns merger PCB material name.

Returns: merger PCB material name

Definition at line 180 of file ARICHGeoMerger.h.

◆ getMergerPCBscrewholePosdX1()

double getMergerPCBscrewholePosdX1 ( ) const

inline

Returns merger PCB screw hole position from the bottom edge.

Returns: merger PCB screw hole position from the bottom edge

Definition at line 240 of file ARICHGeoMerger.h.

◆ getMergerPCBscrewholePosdX2()

double getMergerPCBscrewholePosdX2 ( ) const

inline

Returns merger PCB screw hole position from the top edge.

Returns: merger PCB screw hole position from the top edge

Definition at line 246 of file ARICHGeoMerger.h.

◆ getMergerPCBscrewholePosdY()

double getMergerPCBscrewholePosdY ( ) const

inline

Returns merger PCB screw hole position from the left and right sides.

Returns: merger PCB screw hole position from the left and right sides

Definition at line 234 of file ARICHGeoMerger.h.

◆ getMergerPCBscrewholeR()

double getMergerPCBscrewholeR ( ) const

inline

Returns merger PCB screw hole radius.

Returns: merger PCB screw hole radius

Definition at line 228 of file ARICHGeoMerger.h.

◆ getMergerPosR()

const std::vector<double>& getMergerPosR ( ) const

inline

Returns vector of merger boards distances from the center in mm.

Returns: vector of merger boards distances from the center in mm

Definition at line 288 of file ARICHGeoMerger.h.

◆ getMergerSlotID()

const std::vector<double>& getMergerSlotID ( ) const

inline

Returns vector of merger boards slot numbers.

Returns: vector of merger boards slot numbers

Definition at line 282 of file ARICHGeoMerger.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 59 of file ARICHGeoBase.h.

◆ getSingleMergeEnvelopePosition()

TVector3 getSingleMergeEnvelopePosition ( ) const

inline

Returns position vector (TVector3) of merger PCB inside the single merger envelope.

Returns: position vector (TVector3) of merger PCB inside the single merger envelope

Definition at line 276 of file ARICHGeoMerger.h.

◆ getSingleMergerenvelopeDeltaZ()

const std::vector<double>& getSingleMergerenvelopeDeltaZ ( ) const

inline

Returns vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm.

Returns: vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm

Definition at line 222 of file ARICHGeoMerger.h.

◆ getSingleMergerEnvelopeSizeL()

double getSingleMergerEnvelopeSizeL ( ) const

inline

Returns single merger PCB and merger cooling envelop length.

Returns: single merger PCB and merger cooling envelop length

Definition at line 204 of file ARICHGeoMerger.h.

◆ getSingleMergerEnvelopeSizeW()

double getSingleMergerEnvelopeSizeW ( ) const

inline

Returns single merger PCB and merger cooling envelop width.

Returns: single merger PCB and merger cooling envelop width

Definition at line 210 of file ARICHGeoMerger.h.

◆ getSingleMergerEnvelopeThickness()

double getSingleMergerEnvelopeThickness ( ) const

inline

Returns single merger PCB and merger cooling envelop thickness.

Returns: single merger PCB and merger cooling envelop thickness

Definition at line 216 of file ARICHGeoMerger.h.

◆ getSizeL()

double getSizeL ( ) const

inline

Returns merger PCB lenght.

Returns: merger PCB lenght

Definition at line 186 of file ARICHGeoMerger.h.

◆ getSizeW()

double getSizeW ( ) const

inline

Returns merger PCB width.

Returns: merger PCB width

Definition at line 192 of file ARICHGeoMerger.h.

◆ getThickness()

double getThickness ( ) const

inline

Returns merger PCB thickness.

Returns: merger PCB thickness

Definition at line 198 of file ARICHGeoMerger.h.

◆ isConsistent()

virtual bool isConsistent ( ) const

inlinevirtualinherited

Check for consistency of data members.

Returns: true if values consistent (valid)

Reimplemented in ARICHGeoHAPD, ARICHPositionElement, ARICHGeoSupport, ARICHGeoAerogelPlane, ARICHGeoMasterVolume, ARICHGeoMirrors, and ARICHGeoDetectorPlane.

Definition at line 65 of file ARICHGeoBase.h.

◆ print()

void print ( const std::string & title = "Merger PCB geometry parameters" ) const

virtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 23 of file ARICHGeoMerger.cc.

 {

   ARICHGeoBase::print(title);

   cout << "Outer radius of merger PCB assembly envelope            : " << getEnvelopeOuterRadius() << endl
        << "Inner radius of merger PCB assembly envelope            : " << getEnvelopeInnerRadius() << endl
        << "Thickness of merger PCB assembly envelope               : " << getEnvelopeThickness() << endl;
   cout << "X0 merger PCB assembly envelope                         : " << getEnvelopeCenterPosition().X() << endl
        << "Y0 merger PCB assembly envelope                         : " << getEnvelopeCenterPosition().Y() << endl
        << "Z0 merger PCB assembly envelope                         : " << getEnvelopeCenterPosition().Z() << endl;
   cout << "merger PCB material name                                : " << getMergerPCBMaterialName() << endl
        << "merger PCB lenght                                       : " << getSizeL() << endl
        << "merger PCB width                                        : " << getSizeW() << endl
        << "merger PCB thickness                                    : " << getThickness() << endl;
   cout << "merger PCB screw whole radius                           : " << getMergerPCBscrewholeR() << endl
        << "merger PCB screw whole position from the left and right sides : " << getMergerPCBscrewholePosdY() << endl
        << "merger PCB screw whole position from the bottom edge    : " << getMergerPCBscrewholePosdX1() << endl
        << "merger PCB screw whole position from the top edge       : " << getMergerPCBscrewholePosdX2() << endl;
   cout << "single merger PCB and merger cooling envelope length    : " << getSingleMergerEnvelopeSizeL() << endl
        << "single merger PCB and merger cooling envelope width     : " << getSingleMergerEnvelopeSizeW() << endl
        << "single merger PCB and merger cooling envelope thickness : " << getSingleMergerEnvelopeThickness() << endl;
   cout << "X0 of merger PCB inside the single merger envelope      : " << getSingleMergeEnvelopePosition().X() << endl
        << "Y0 of merger PCB inside the single merger envelope      : " << getSingleMergeEnvelopePosition().Y() << endl
        << "Z0 of merger PCB inside the single merger envelope      : " << getSingleMergeEnvelopePosition().Z() << endl;

   //checkMergerPositionsDataConsistency();

   cout << setw(20) << "#"
        << setw(20) << "mergerSlotID"
        << setw(20) << "mergerPosR"
        << setw(20) << "mergerAngle"
        << setw(20) << "mergerOrientation"
        << setw(20) << "mergerDeltaZ" << endl;
   for (unsigned i = 0; i < getMergerSlotID().size(); i++) {
     cout << setw(20) << i
          << setw(20) << getMergerSlotID().at(i)
          << setw(20) << getMergerPosR().at(i)
          << setw(20) << getMergerAngle().at(i)
          << setw(20) << getMergerOrientation().at(i)
          << setw(20) << getSingleMergerenvelopeDeltaZ().at(i)
          << endl;
   }
 }

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 27 of file ARICHGeoBase.cc.

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 34 of file ARICHGeoBase.cc.

◆ setEnvelopeCenterPosition()

void setEnvelopeCenterPosition	(	double	x0,
		double	y0,
		double	z0
	)

inline

Set position of merger PCB assembly envelope.

Parameters

x0	x position of merger PCB assembly envelope
y0	y position of merger PCB assembly envelope
z0	z position of merger PCB assembly envelope

Definition at line 142 of file ARICHGeoMerger.h.

◆ setEnvelopeInnerRadius()

void setEnvelopeInnerRadius ( double envelopeInnerRadius )

inline

Set inner radius of merger PCB assembly envelope.

Parameters

envelopeInnerRadius inner radius of merger PCB assembly envelope

Definition at line 128 of file ARICHGeoMerger.h.

◆ setEnvelopeOuterRadius()

void setEnvelopeOuterRadius ( double envelopeOuterRadius )

inline

Set outer radius of merger PCB assembly envelope.

Parameters

envelopeOuterRadius outer radius of merger PCB assembly envelope

Definition at line 122 of file ARICHGeoMerger.h.

◆ setEnvelopeThickness()

void setEnvelopeThickness ( double envelopeThickness )

inline

Set thickness of merger PCB assembly envelope.

Parameters

envelopeThickness thickness of merger PCB assembly envelope

Definition at line 134 of file ARICHGeoMerger.h.

◆ setMergerAngle()

void setMergerAngle ( const std::vector< double > & mergerAngle )

inline

Set vector of merger boarts azimuthal angles in polar coordinate system in deg.

Parameters

mergerAngle vector of merger boarts azimuthal angles

Definition at line 168 of file ARICHGeoMerger.h.

◆ setMergerOrientation()

void setMergerOrientation ( const std::vector< double > & mergerOrientation )

inline

Set vector of merger boarts orientations.

Parameters

mergerOrientation vector of merger boarts orientations

Definition at line 174 of file ARICHGeoMerger.h.

◆ setMergerPCBLenght()

void setMergerPCBLenght ( double sizeL )

inline

Set merger PCB lenght.

Parameters

sizeL merger PCB lenght

Definition at line 56 of file ARICHGeoMerger.h.

◆ setMergerPCBMaterialName()

void setMergerPCBMaterialName ( const std::string & materialName )

inline

Set merger PCB material name.

Parameters

materialName merger PCB material name

Definition at line 50 of file ARICHGeoMerger.h.

◆ setMergerPCBscrewholePosdX1()

void setMergerPCBscrewholePosdX1 ( double screwholePosdX1 )

inline

Set merger PCB screw hole position from the bottom edge.

Parameters

screwholePosdX1 merger PCB screw hole position from the bottom edge

Definition at line 110 of file ARICHGeoMerger.h.

◆ setMergerPCBscrewholePosdX2()

void setMergerPCBscrewholePosdX2 ( double screwholePosdX2 )

inline

Set merger PCB screw hole position from the top edge.

Parameters

screwholePosdX2 merger PCB screw hole position from the top edge

Definition at line 116 of file ARICHGeoMerger.h.

◆ setMergerPCBscrewholePosdY()

void setMergerPCBscrewholePosdY ( double screwholePosdY )

inline

Set merger PCB screw hole position from the left and right sides.

Parameters

screwholePosdY merger PCB screw hole position from the left and right sides

Definition at line 104 of file ARICHGeoMerger.h.

◆ setMergerPCBscrewholeR()

void setMergerPCBscrewholeR ( double screwholeR )

inline

Set merger PCB screw hole radius.

Parameters

screwholeR merger PCB screw hole radius

Definition at line 98 of file ARICHGeoMerger.h.

◆ setMergerPCBThickness()

void setMergerPCBThickness ( double thickness )

inline

Set merger PCB thickness.

Parameters

thickness merger PCB thickness

Definition at line 68 of file ARICHGeoMerger.h.

◆ setMergerPCBWidth()

void setMergerPCBWidth ( double sizeW )

inline

Set merger PCB width.

Parameters

sizeW merger PCB width

Definition at line 62 of file ARICHGeoMerger.h.

◆ setMergerPosR()

void setMergerPosR ( const std::vector< double > & mergerPosR )

inline

Set vector of merger boards distances from the center in mm.

Parameters

mergerPosR vector of merger boards distances from the center in mm

Definition at line 162 of file ARICHGeoMerger.h.

◆ setMergerSlotID()

void setMergerSlotID ( const std::vector< double > & mergerSlotID )

inline

Set vector of merger boards slot numbers.

Parameters

mergerSlotID vector of merger slot numbers

Definition at line 156 of file ARICHGeoMerger.h.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 53 of file ARICHGeoBase.h.

◆ setSingleMergeEnvelopePosition()

void setSingleMergeEnvelopePosition	(	double	x0,
		double	y0,
		double	z0
	)

inline

Set position of merger PCB inside the single merger envelope.

Parameters

x0	x of merger PCB inside the single merger envelope
y0	y of merger PCB inside the single merger envelope
z0	z of merger PCB inside the single merger envelope

Definition at line 150 of file ARICHGeoMerger.h.

◆ setSingleMergerenvelopeDeltaZ()

void setSingleMergerenvelopeDeltaZ ( const std::vector< double > & singlemergerenvelopeDeltaZ )

inline

Set vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm.

Parameters

singlemergerenvelopeDeltaZ vector of Z position of the single merger and merger cooling body envelope inside global merger envelope in mm

Definition at line 92 of file ARICHGeoMerger.h.

◆ setSingleMergerEnvelopeSizeL()

void setSingleMergerEnvelopeSizeL ( double sizeL )

inline

Set single merger PCB and merger cooling envelop length.

Parameters

sizeL merger PCB and merger cooling envelop length

Definition at line 74 of file ARICHGeoMerger.h.

◆ setSingleMergerEnvelopeSizeW()

void setSingleMergerEnvelopeSizeW ( double sizeW )

inline

Set single merger PCB and merger cooling envelop width.

Parameters

sizeW merger PCB and merger cooling envelop width

Definition at line 80 of file ARICHGeoMerger.h.

◆ setSingleMergerEnvelopeThickness()

void setSingleMergerEnvelopeThickness ( double thickness )

inline

Set single merger PCB and merger cooling envelop thickness.

Parameters

thickness single merger PCB and merger cooling envelop thickness

Definition at line 86 of file ARICHGeoMerger.h.

Member Data Documentation

◆ m_singlemergerenvelopeDeltaZ

std::vector<double> m_singlemergerenvelopeDeltaZ

private

Thickenss of single merger PCB and merger cooling envelop.

Z position of the single merger and merger cooling body envelope inside global merger envelope in mm

Definition at line 324 of file ARICHGeoMerger.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoMerger.h
arich/dbobjects/src/ARICHGeoMerger.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ ClassDef()

◆ getEnvelopeCenterPosition()

◆ getEnvelopeInnerRadius()

◆ getEnvelopeOuterRadius()

◆ getEnvelopeThickness()

◆ getMergerAngle()

◆ getMergerOrientation()

◆ getMergerPCBMaterialName()

◆ getMergerPCBscrewholePosdX1()

◆ getMergerPCBscrewholePosdX2()

◆ getMergerPCBscrewholePosdY()

◆ getMergerPCBscrewholeR()

◆ getMergerPosR()

◆ getMergerSlotID()

◆ getName()

◆ getSingleMergeEnvelopePosition()

◆ getSingleMergerenvelopeDeltaZ()

◆ getSingleMergerEnvelopeSizeL()

◆ getSingleMergerEnvelopeSizeW()

◆ getSingleMergerEnvelopeThickness()

◆ getSizeL()

◆ getSizeW()

◆ getThickness()

◆ isConsistent()

◆ print()

◆ printPlacement()

◆ printSurface()

◆ setEnvelopeCenterPosition()

◆ setEnvelopeInnerRadius()

◆ setEnvelopeOuterRadius()

◆ setEnvelopeThickness()

◆ setMergerAngle()

◆ setMergerOrientation()

◆ setMergerPCBLenght()

◆ setMergerPCBMaterialName()

◆ setMergerPCBscrewholePosdX1()

◆ setMergerPCBscrewholePosdX2()

◆ setMergerPCBscrewholePosdY()

◆ setMergerPCBscrewholeR()

◆ setMergerPCBThickness()

◆ setMergerPCBWidth()

◆ setMergerPosR()

◆ setMergerSlotID()

◆ setName()

◆ setSingleMergeEnvelopePosition()

◆ setSingleMergerenvelopeDeltaZ()

◆ setSingleMergerEnvelopeSizeL()

◆ setSingleMergerEnvelopeSizeW()

◆ setSingleMergerEnvelopeThickness()

Member Data Documentation

◆ m_singlemergerenvelopeDeltaZ
