DQMHistAnalysisKLMModule Class Reference

Analysis of KLM DQM histograms. More...

#include <DQMHistAnalysisKLM.h>

Inheritance diagram for DQMHistAnalysisKLMModule:

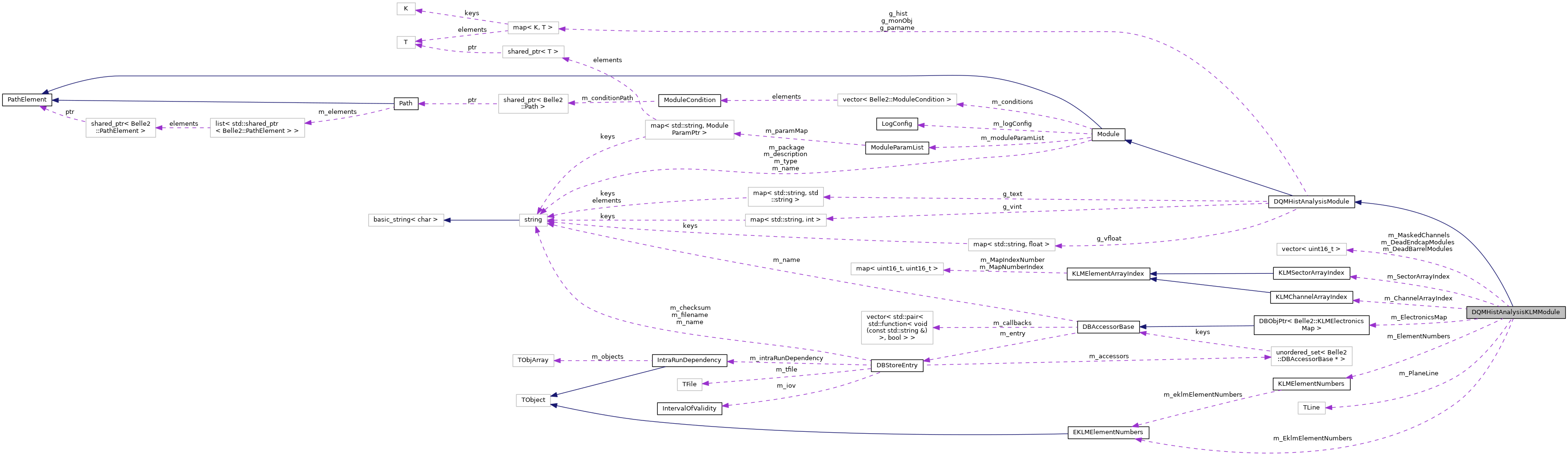

Collaboration diagram for DQMHistAnalysisKLMModule:

Public Types

enum  EParamType {
  c_ParamINT,
  c_ParamFLOAT,
  c_ParamTEXT
}
 The enumeration types for the module parameters. More...

typedef std::map< std::string, EParamTypeParamTypeList
 The type of list of module parameter types.

typedef std::map< std::string, int > IntValueList
 The type of list of integer module parameter.

typedef std::map< std::string, float > FloatValueList
 The type of list of float module parameter.

typedef std::map< std::string, std::string > TextList
 The type of list of string module parameter.

typedef std::map< std::string, TH1 * > HistList
 The type of list of histograms.

typedef std::map< std::string, MonitoringObject * > MonObjList
 The type of list of MonitoringObjects.

enum  EModulePropFlags {
  c_Input = 1,
  c_Output = 2,
  c_ParallelProcessingCertified = 4,
  c_HistogramManager = 8,
  c_InternalSerializer = 16,
  c_TerminateInAllProcesses = 32,
  c_DontCollectStatistics = 64
}
 Each module can be tagged with property flags, which indicate certain features of the module. More...

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath
 Forward the EAfterConditionPath definition from the ModuleCondition.


Public Member Functions

 DQMHistAnalysisKLMModule ()
 Constructor.

 ~DQMHistAnalysisKLMModule ()
 Destructor.

void initialize () override
 Initializer.

void beginRun () override
 Called when entering a new run.

void event () override
 This method is called for each event.

void endRun () override
 This method is called if the current run ends.

void terminate () override
 This method is called at the end of the event processing.

virtual std::vector< std::string > getFileNames (__attribute__((unused)) bool outputFiles)
 Return a list of output filenames for this modules. More...

const std::string & getName () const
 Returns the name of the module. More...

const std::string & getType () const
 Returns the type of the module (i.e. More...

const std::string & getPackage () const
 Returns the package this module is in.

const std::string & getDescription () const
 Returns the description of the module.

void setName (const std::string &name)
 Set the name of the module. More...

void setPropertyFlags (unsigned int propertyFlags)
 Sets the flags for the module properties. More...

LogConfiggetLogConfig ()
 Returns the log system configuration.

void setLogConfig (const LogConfig &logConfig)
 Set the log system configuration.

void setLogLevel (int logLevel)
 Configure the log level.

void setDebugLevel (int debugLevel)
 Configure the debug messaging level.

void setAbortLevel (int abortLevel)
 Configure the abort log level.

void setLogInfo (int logLevel, unsigned int logInfo)
 Configure the printed log information for the given level. More...

void if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
 Add a condition to the module. More...

void if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
 A simplified version to add a condition to the module. More...

void if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
 A simplified version to set the condition of the module. More...

bool hasCondition () const
 Returns true if at least one condition was set for the module.

const ModuleConditiongetCondition () const
 Return a pointer to the first condition (or nullptr, if none was set)

const std::vector< ModuleCondition > & getAllConditions () const
 Return all set conditions for this module.

bool evalCondition () const
 If at least one condition was set, it is evaluated and true returned if at least one condition returns true. More...

std::shared_ptr< PathgetConditionPath () const
 Returns the path of the last true condition (if there is at least one, else reaturn a null pointer). More...

Module::EAfterConditionPath getAfterConditionPath () const
 What to do after the conditional path is finished. More...

std::vector< std::shared_ptr< Path > > getAllConditionPaths () const
 Return all condition paths currently set (no matter if the condition is true or not).

bool hasProperties (unsigned int propertyFlags) const
 Returns true if all specified property flags are available in this module. More...

bool hasUnsetForcedParams () const
 Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

const ModuleParamListgetParamList () const
 Return module param list.

template<typename T >
ModuleParam< T > & getParam (const std::string &name) const
 Returns a reference to a parameter. More...

bool hasReturnValue () const
 Return true if this module has a valid return value set.

int getReturnValue () const
 Return the return value set by this module. More...

std::shared_ptr< PathElementclone () const override
 Create an independent copy of this module. More...

std::shared_ptr< boost::python::list > getParamInfoListPython () const
 Returns a python list of all parameters. More...


Static Public Member Functions

static const HistListgetHistList ()
 Get the list of the histograms. More...

static const MonObjListgetMonObjList ()
 Get the list of MonitoringObjects. More...

static TH1 * findHist (const std::string &histname)
 Find histogram. More...

static TH1 * findHist (const std::string &dirname, const std::string &histname)
 Find histogram. More...

static TH1 * findHist (const TDirectory *histdir, const TString &histname)
 Find histogram. More...

static MonitoringObjectfindMonitoringObject (const std::string &objName)
 Find MonitoringObject. More...

static void setIntValue (const std::string &parname, int vint)
 Set the integer value of the parameter. More...

static void setFloatValue (const std::string &parname, float vfloat)
 Set the float value of the parameter. More...

static void setText (const std::string &parname, const std::string &text)
 Set the string value of the parameter. More...

static void addHist (const std::string &dirname, const std::string &histname, TH1 *h)
 Add histogram. More...

static MonitoringObjectgetMonitoringObject (const std::string &histname)
 Get MonitoringObject with given name (new object is created if non-existing) More...

static void resetHist ()
 Clear and reset the list of histograms.

static HistListgetHists ()
 Get the list of histograms. More...

static ParamTypeListgetParNames ()
 Get the list of the names and types of the parameters. More...

static IntValueListgetIntValues ()
 Get the list of integer parameters. More...

static FloatValueListgetFloatValues ()
 Get the list of float parameters. More...

static TextListgetTexts ()
 Get the list of string parameters. More...

static void exposePythonAPI ()
 Exposes methods of the Module class to Python.


Protected Member Functions

double getProcessedEvents ()
 Get number of processed events.

void analyseChannelHitHistogram (int subdetector, int section, int sector, TH1 *histogram, TCanvas *canvas, TLatex &latex)
 Analyse channel hit histogram. More...

void processPlaneHistogram (const std::string &histName, TLatex &latex)
 Process histogram containing the number of hits in plane. More...

void fillMaskedChannelsHistogram (const std::string &histName)
 Fill histogram containing masked channels per sector. More...

TCanvas * findCanvas (const std::string &canvasName)
 Find TCanvas that matches a given name. More...

virtual void def_initialize ()
 Wrappers to make the methods without "def_" prefix callable from Python. More...

virtual void def_beginRun ()
 Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

virtual void def_event ()
 Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

virtual void def_endRun ()
 This method can receive that the current run ends as a call from the Python side. More...

virtual void def_terminate ()
 Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

void setDescription (const std::string &description)
 Sets the description of the module. More...

void setType (const std::string &type)
 Set the module type. More...

template<typename T >
void addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
 Adds a new parameter to the module. More...

template<typename T >
void addParam (const std::string &name, T &paramVariable, const std::string &description)
 Adds a new enforced parameter to the module. More...

void setReturnValue (int value)
 Sets the return value for this module as integer. More...

void setReturnValue (bool value)
 Sets the return value for this module as bool. More...

void setParamList (const ModuleParamList &params)
 Replace existing parameter list.


Protected Attributes

double m_ProcessedEvents
 Number of processed events.

int m_ThresholdForMasked
 Threshold for masked channels.

int m_ThresholdForHot
 Threshold for hot channels.

int m_MinHitsForFlagging
 Minimal number of hits for flagging.

double m_MinProcessedEventsForMessagesInput
 Input parameter for minimal number of processed events for error messages.

double m_MinProcessedEventsForMessages
 Minimal number of processed events for error messages.

std::vector< uint16_t > m_DeadBarrelModules
 Vector of dead barrel modules.

std::vector< uint16_t > m_DeadEndcapModules
 Vector of dead endcap modules.

std::vector< uint16_t > m_MaskedChannels
 Vector of masked channels.

TLine m_PlaneLine
 TLine for boundary in plane histograms.

TText m_PlaneText
 TText for names in plane histograms.

const KLMChannelArrayIndexm_ChannelArrayIndex
 KLM channel array index.

const KLMSectorArrayIndexm_SectorArrayIndex
 KLM sector array index.

const KLMElementNumbersm_ElementNumbers
 KLM element numbers.

const EKLMElementNumbersm_EklmElementNumbers
 EKLM element numbers.

DBObjPtr< KLMElectronicsMapm_ElectronicsMap
 Electronics map.


Private Member Functions

std::list< ModulePtrgetModules () const override
 no submodules, return empty list

std::string getPathString () const override
 return the module name.

void setParamPython (const std::string &name, const boost::python::object &pyObj)
 Implements a method for setting boost::python objects. More...

void setParamPythonDict (const boost::python::dict &dictionary)
 Implements a method for reading the parameter values from a boost::python dictionary. More...


Private Attributes

std::string m_name
 The name of the module, saved as a string (user-modifiable)

std::string m_type
 The type of the module, saved as a string.

std::string m_package
 Package this module is found in (may be empty).

std::string m_description
 The description of the module.

unsigned int m_propertyFlags
 The properties of the module as bitwise or (with |) of EModulePropFlags.

LogConfig m_logConfig
 The log system configuration of the module.

ModuleParamList m_moduleParamList
 List storing and managing all parameter of the module.

bool m_hasReturnValue
 True, if the return value is set.

int m_returnValue
 The return value.

std::vector< ModuleConditionm_conditions
 Module condition, only non-null if set.


Static Private Attributes

static ParamTypeList g_parname
 The list of module parameter types.

static IntValueList g_vint
 The list of integer module parameter.

static FloatValueList g_vfloat
 The list of float module parameter.

static TextList g_text
 The list of string module parameter.

static HistList g_hist
 The list of histograms.

static MonObjList g_monObj
 The list of MonitoringObjects.


Detailed Description

Analysis of KLM DQM histograms.

Definition at line 52 of file DQMHistAnalysisKLM.h.

Member Enumeration Documentation

◆ EModulePropFlags

enum EModulePropFlags
inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input

This module is an input module (reads data).

c_Output

This module is an output module (writes data).

c_ParallelProcessingCertified

This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

c_HistogramManager

This module is used to manage histograms accumulated by other modules.

c_InternalSerializer

This module is an internal serializer/deserializer for parallel processing.

c_TerminateInAllProcesses

When using parallel processing, call this module's terminate() function in all processes().

This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.

c_DontCollectStatistics

No statistics is collected for this module.

Definition at line 79 of file Module.h.

◆ EParamType

enum EParamType
inherited

The enumeration types for the module parameters.

Enumerator
c_ParamINT

The integer type for module parameter.

c_ParamFLOAT

The float type for module parameter.

c_ParamTEXT

The string type for module parameter.

Definition at line 33 of file DQMHistAnalysis.h.

Member Function Documentation

◆ addHist()

void addHist ( const std::string &  dirname,
const std::string &  histname,
TH1 *  h
)
staticinherited

Add histogram.

Parameters
dirnameThe name of the directory.
histnameThe name of the histogram.
hThe TH1 pointer for the histogram.

Definition at line 46 of file DQMHistAnalysis.cc.

◆ analyseChannelHitHistogram()

void analyseChannelHitHistogram ( int  subdetector,
int  section,
int  sector,
TH1 *  histogram,
TCanvas *  canvas,
TLatex &  latex
)
protected

Analyse channel hit histogram.

Parameters
[in]subdetectorSubdetector.
[in]sectionSection.
[in]sectorSector.
[in]histogramHistogram.
[in]canvasCanvas.
[out]latexTLatex to draw messages.

Definition at line 101 of file DQMHistAnalysisKLM.cc.

104 {
105  double x = 0.15;
106  double y = 0.85;
107  int i, n;
108  std::map<uint16_t, double> moduleHitMap;
109  std::map<uint16_t, double>::iterator it;
110  double average = 0;
111  int channelSubdetector, channelSection, channelSector;
112  int layer, plane, strip;
113  std::string str;
114  canvas->Clear();
115  canvas->cd();
116  histogram->SetStats(false);
117  histogram->Draw();
118  n = histogram->GetXaxis()->GetNbins();
119  for (i = 1; i <= n; i++) {
120  uint16_t channelIndex = std::round(histogram->GetBinCenter(i));
121  uint16_t channelNumber = m_ChannelArrayIndex->getNumber(channelIndex);
122  double nHitsPerModule = histogram->GetBinContent(i);
123  average = average + nHitsPerModule;
125  channelNumber, &channelSubdetector, &channelSection, &channelSector,
126  &layer, &plane, &strip);
127  if ((channelSubdetector != subdetector) ||
128  (channelSection != section) ||
129  (channelSector != sector))
130  B2FATAL("Inconsistent element numbers.");
131  uint16_t module = m_ElementNumbers->moduleNumber(
132  subdetector, section, sector, layer);
133  it = moduleHitMap.find(module);
134  if (it == moduleHitMap.end())
135  moduleHitMap.insert(std::pair<uint16_t, double>(module, nHitsPerModule));
136  else
137  it->second += nHitsPerModule;
138  }
139  unsigned int activeModuleChannels = 0;
140  for (it = moduleHitMap.begin(); it != moduleHitMap.end(); ++it) {
141  uint16_t moduleNumber = it->first;
142  if (it->second != 0) {
143  activeModuleChannels += m_ElementNumbers->getNChannelsModule(moduleNumber);
144  continue;
145  }
147  moduleNumber, &channelSubdetector, &channelSection, &channelSector, &layer);
148  /* Channel with plane = 1, strip = 1 exists for any BKLM or EKLM module. */
149  uint16_t channel = m_ElementNumbers->channelNumber(
150  channelSubdetector, channelSection, channelSector,
151  layer, 1, 1);
152  const KLMElectronicsChannel* electronicsChannel =
153  m_ElectronicsMap->getElectronicsChannel(channel);
154  if (electronicsChannel == nullptr)
155  B2FATAL("Incomplete KLM electronics map.");
156  str = "No data from HSLB ";
157  if (channelSubdetector == KLMElementNumbers::c_BKLM) {
158  str += BKLMElementNumbers::getHSLBName(electronicsChannel->getCopper(),
159  electronicsChannel->getSlot());
160  } else {
161  str += EKLMElementNumbers::getHSLBName(electronicsChannel->getCopper(),
162  electronicsChannel->getSlot());
163  }
164  str += ", lane " + std::to_string(electronicsChannel->getLane());
165  latex.DrawLatexNDC(x, y, str.c_str());
166  y -= 0.05;
167  /* Store the module number, used later in processPlaneHistogram
168  * to color the canvas with red and to raise up an alarm. */
169  if (channelSubdetector == KLMElementNumbers::c_BKLM) {
170  std::vector<uint16_t>::iterator ite = std::find(m_DeadBarrelModules.begin(),
171  m_DeadBarrelModules.end(),
172  moduleNumber);
173  if (ite == m_DeadBarrelModules.end())
174  m_DeadBarrelModules.push_back(moduleNumber);
175  } else {
176  std::vector<uint16_t>::iterator ite = std::find(m_DeadEndcapModules.begin(),
177  m_DeadEndcapModules.end(),
178  moduleNumber);
179  if (ite == m_DeadEndcapModules.end())
180  m_DeadEndcapModules.push_back(moduleNumber);
181  }
182  }
183  if (activeModuleChannels == 0)
184  return;
185  average /= activeModuleChannels;
186  for (i = 1; i <= n; ++i) {
187  uint16_t channelIndex = std::round(histogram->GetBinCenter(i));
188  uint16_t channelNumber = m_ChannelArrayIndex->getNumber(channelIndex);
189  double nHits = histogram->GetBinContent(i);
191  channelNumber, &channelSubdetector, &channelSection, &channelSector,
192  &layer, &plane, &strip);
193  std::string channelStatus = "Normal";
194  if ((nHits > average * m_ThresholdForMasked) && (nHits > m_MinHitsForFlagging)) {
195  channelStatus = "Masked";
196  std::vector<uint16_t>::iterator ite = std::find(m_MaskedChannels.begin(),
197  m_MaskedChannels.end(),
198  channelNumber);
199  if (ite == m_MaskedChannels.end())
200  m_MaskedChannels.push_back(channelNumber);
201  B2DEBUG(20, "KLM@MaskMe " << channelNumber);
202  } else if ((nHits > average * m_ThresholdForHot) && (nHits > m_MinHitsForFlagging)) {
203  channelStatus = "Hot";
204  }
205  if (channelStatus != "Normal") {
206  const KLMElectronicsChannel* electronicsChannel =
207  m_ElectronicsMap->getElectronicsChannel(channelNumber);
208  if (electronicsChannel == nullptr)
209  B2FATAL("Incomplete BKLM electronics map.");
210  if (channelStatus == "Masked")
211  histogram->SetBinContent(i, 0);
212  str = channelStatus + " channel: HSLB ";
213  if (channelSubdetector == KLMElementNumbers::c_BKLM) {
214  str += BKLMElementNumbers::getHSLBName(electronicsChannel->getCopper(),
215  electronicsChannel->getSlot());
216  } else {
217  str += EKLMElementNumbers::getHSLBName(electronicsChannel->getCopper(),
218  electronicsChannel->getSlot());
219  }
220  str += (", lane " + std::to_string(electronicsChannel->getLane()) +
221  ", axis " + std::to_string(electronicsChannel->getAxis()) +
222  ", channel " + std::to_string(electronicsChannel->getChannel()));
223  latex.DrawLatexNDC(x, y, str.c_str());
224  y -= 0.05;
225  }
226  }
227  canvas->Modified();
228 }

◆ clone()

std::shared_ptr< PathElement > clone ( ) const
overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 181 of file Module.cc.

◆ def_endRun()

virtual void def_endRun ( )
inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 441 of file Module.h.

◆ def_initialize()

virtual void def_initialize ( )
inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 422 of file Module.h.

◆ evalCondition()

bool evalCondition ( ) const
inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns
True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 98 of file Module.cc.

◆ fillMaskedChannelsHistogram()

void fillMaskedChannelsHistogram ( const std::string &  histName)
protected

Fill histogram containing masked channels per sector.

Parameters
[in]histNameHistogram name.

Definition at line 230 of file DQMHistAnalysisKLM.cc.

◆ findCanvas()

TCanvas * findCanvas ( const std::string &  canvasName)
protected

Find TCanvas that matches a given name.

Parameters
[in]canvasNameName of the desired TCanvas.
[out]TCanvas*Matching TCanvas.

Definition at line 366 of file DQMHistAnalysisKLM.cc.

◆ findHist() [1/3]

TH1 * findHist ( const std::string &  dirname,
const std::string &  histname
)
staticinherited

Find histogram.

Parameters
dirnameThe name of the directory.
histnameThe name of the histogram.
Returns
The found histogram, or nullptr if not found.

Definition at line 130 of file DQMHistAnalysis.cc.

◆ findHist() [2/3]

TH1 * findHist ( const std::string &  histname)
staticinherited

Find histogram.

Parameters
histnameThe name of the histogram.
Returns
The found histogram, or nullptr if not found.

Definition at line 83 of file DQMHistAnalysis.cc.

◆ findHist() [3/3]

TH1 * findHist ( const TDirectory *  histdir,
const TString &  histname
)
staticinherited

Find histogram.

Parameters
histdirThe TDirectory of the directory.
histnameThe name of the histogram.
Returns
The found histogram, or nullptr if not found.

Definition at line 139 of file DQMHistAnalysis.cc.

◆ findMonitoringObject()

MonitoringObject * findMonitoringObject ( const std::string &  objName)
staticinherited

Find MonitoringObject.

Parameters
objNameThe name of the MonitoringObject.
Returns
The found MonitoringObject, or nullptr if not found.

Definition at line 153 of file DQMHistAnalysis.cc.

◆ getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const
inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 135 of file Module.cc.

◆ getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const
inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).


Definition at line 115 of file Module.cc.

◆ getFileNames()

virtual std::vector<std::string> getFileNames ( __attribute__((unused)) bool  outputFiles)
inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Definition at line 136 of file Module.h.

◆ getFloatValues()

static FloatValueList& getFloatValues ( )
inlinestaticinherited

Get the list of float parameters.

Returns
The list of float parameters.

Definition at line 199 of file DQMHistAnalysis.h.

◆ getHistList()

const DQMHistAnalysisModule::HistList & getHistList ( )
staticinherited

Get the list of the histograms.

Returns
The list of the histograms.

Definition at line 72 of file DQMHistAnalysis.cc.

◆ getHists()

static HistList& getHists ( )
inlinestaticinherited

Get the list of histograms.

Returns
The list of histograms.

Definition at line 184 of file DQMHistAnalysis.h.

◆ getIntValues()

static IntValueList& getIntValues ( )
inlinestaticinherited

Get the list of integer parameters.

Returns
The list of integer parameters.

Definition at line 194 of file DQMHistAnalysis.h.

◆ getMonitoringObject()

MonitoringObject * getMonitoringObject ( const std::string &  histname)
staticinherited

Get MonitoringObject with given name (new object is created if non-existing)

Parameters
objNamename of MonitoringObject to get

Definition at line 55 of file DQMHistAnalysis.cc.

◆ getMonObjList()

const DQMHistAnalysisModule::MonObjList & getMonObjList ( )
staticinherited

Get the list of MonitoringObjects.

Returns
The list of the MonitoringObjects.

Definition at line 77 of file DQMHistAnalysis.cc.

◆ getName()

const std::string& getName ( ) const
inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 189 of file Module.h.

◆ getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const
inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns
A python list containing the parameters of this parameter list.

Definition at line 281 of file Module.cc.

◆ getParNames()

static ParamTypeList& getParNames ( )
inlinestaticinherited

Get the list of the names and types of the parameters.

Returns
The list of the names and types of the parameters.

Definition at line 189 of file DQMHistAnalysis.h.

◆ getReturnValue()

int getReturnValue ( ) const
inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 383 of file Module.h.

◆ getTexts()

static TextList& getTexts ( )
inlinestaticinherited

Get the list of string parameters.

Returns
The list of string parameters.

Definition at line 204 of file DQMHistAnalysis.h.

◆ getType()

const std::string & getType ( ) const
inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 43 of file Module.cc.

◆ hasProperties()

bool hasProperties ( unsigned int  propertyFlags) const
inherited

Returns true if all specified property flags are available in this module.

Parameters
propertyFlagsOred EModulePropFlags which should be compared with the module flags.

Definition at line 162 of file Module.cc.

◆ if_false()

void if_false ( const std::shared_ptr< Path > &  path,
EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End
)
inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters
pathShared pointer to the Path which will be executed if the return value is false.
afterConditionPathWhat to do after executing 'path'.

Definition at line 87 of file Module.cc.

◆ if_true()

void if_true ( const std::shared_ptr< Path > &  path,
EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End
)
inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters
pathShared pointer to the Path which will be executed if the return value is true.
afterConditionPathWhat to do after executing 'path'.

Definition at line 92 of file Module.cc.

◆ if_value()

void if_value ( const std::string &  expression,
const std::shared_ptr< Path > &  path,
EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End
)
inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://confluence.desy.de/display/BI/Software+ModCondTut or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters
expressionThe expression of the condition.
pathShared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPathWhat to do after executing 'path'.

Definition at line 81 of file Module.cc.

◆ processPlaneHistogram()

void processPlaneHistogram ( const std::string &  histName,
TLatex &  latex
)
protected

Process histogram containing the number of hits in plane.

Parameters
[in]histNameHistogram name.
[out]latexTLatex to draw messages.

Definition at line 267 of file DQMHistAnalysisKLM.cc.

◆ setDescription()

void setDescription ( const std::string &  description)
protectedinherited

Sets the description of the module.

Parameters
descriptionA description of the module.

Definition at line 216 of file Module.cc.

◆ setFloatValue()

void setFloatValue ( const std::string &  parname,
float  vfloat
)
staticinherited

Set the float value of the parameter.

Parameters
parnameThe name of the parameter.
vfloatThe value to be set.

Definition at line 181 of file DQMHistAnalysis.cc.

◆ setIntValue()

void setIntValue ( const std::string &  parname,
int  vint
)
staticinherited

Set the integer value of the parameter.

Parameters
parnameThe name of the parameter.
vintThe value to be set.

Definition at line 169 of file DQMHistAnalysis.cc.

◆ setLogInfo()

void setLogInfo ( int  logLevel,
unsigned int  logInfo
)
inherited

Configure the printed log information for the given level.

Parameters
logLevelThe log level (one of LogConfig::ELogLevel)
logInfoWhat kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 75 of file Module.cc.

◆ setName()

void setName ( const std::string &  name)
inlineinherited

Set the name of the module.

Note
The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.
Parameters
nameThe name of the module

Definition at line 216 of file Module.h.

◆ setParamPython()

void setParamPython ( const std::string &  name,
const boost::python::object &  pyObj
)
privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters
nameThe unique name of the parameter.
pyObjThe object which should be converted and stored as the parameter value.

Definition at line 236 of file Module.cc.

◆ setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary)
privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters
dictionaryThe python dictionary from which the parameter values are read.

Definition at line 251 of file Module.cc.

◆ setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags)
inherited

Sets the flags for the module properties.

Parameters
propertyFlagsbitwise OR of EModulePropFlags

Definition at line 210 of file Module.cc.

◆ setReturnValue() [1/2]

void setReturnValue ( bool  value)
protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters
valueThe value of the return value.

Definition at line 229 of file Module.cc.

◆ setReturnValue() [2/2]

void setReturnValue ( int  value)
protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters
valueThe value of the return value.

Definition at line 222 of file Module.cc.

◆ setText()

void setText ( const std::string &  parname,
const std::string &  text
)
staticinherited

Set the string value of the parameter.

Parameters
parnameThe name of the parameter.
textThe value to be set.

Definition at line 193 of file DQMHistAnalysis.cc.

◆ setType()

void setType ( const std::string &  type)
protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 50 of file Module.cc.


The documentation for this class was generated from the following files:
Belle2::KLMElectronicsChannel::getChannel
int getChannel() const
Get channel.
Definition: KLMElectronicsChannel.h:145
Belle2::DQMHistAnalysisKLMModule::m_ThresholdForMasked
int m_ThresholdForMasked
Threshold for masked channels.
Definition: DQMHistAnalysisKLM.h:135
Belle2::DQMHistAnalysisKLMModule::m_ChannelArrayIndex
const KLMChannelArrayIndex * m_ChannelArrayIndex
KLM channel array index.
Definition: DQMHistAnalysisKLM.h:165
Belle2::DQMHistAnalysisKLMModule::m_MaskedChannels
std::vector< uint16_t > m_MaskedChannels
Vector of masked channels.
Definition: DQMHistAnalysisKLM.h:156
Belle2::EKLMElementNumbers::getHSLBName
static std::string getHSLBName(int copper, int slot)
Get HSLB name.
Definition: EKLMElementNumbers.cc:273
Belle2::BKLMElementNumbers::getHSLBName
static std::string getHSLBName(int copper, int slot)
Get HSLB name.
Definition: BKLMElementNumbers.cc:203
Belle2::DQMHistAnalysisKLMModule::m_ElectronicsMap
DBObjPtr< KLMElectronicsMap > m_ElectronicsMap
Electronics map.
Definition: DQMHistAnalysisKLM.h:177
Belle2::KLMElectronicsChannel::getSlot
int getSlot() const
Get slot.
Definition: KLMElectronicsChannel.h:94
Belle2::DQMHistAnalysisKLMModule::m_MinHitsForFlagging
int m_MinHitsForFlagging
Minimal number of hits for flagging.
Definition: DQMHistAnalysisKLM.h:141
Belle2::KLMElementNumbers::channelNumber
uint16_t channelNumber(int subdetector, int section, int sector, int layer, int plane, int strip) const
Get channel number.
Definition: KLMElementNumbers.cc:37
Belle2::KLMElementNumbers::moduleNumberToElementNumbers
void moduleNumberToElementNumbers(uint16_t module, int *subdetector, int *section, int *sector, int *layer) const
Get element numbers by module number.
Definition: KLMElementNumbers.cc:186
Belle2::KLMElectronicsChannel::getAxis
int getAxis() const
Get axis.
Definition: KLMElectronicsChannel.h:128
Belle2::KLMElementArrayIndex::getNumber
uint16_t getNumber(uint16_t index) const
Get element number.
Definition: KLMElementArrayIndex.cc:63
Belle2::moduleHitMap
TH2 * moduleHitMap(TH1 *hitMap, int moduleID)
Make hit map in HAPD view (12*12 channels)
Definition: hitMapMaker.cc:42
Belle2::KLMElementNumbers::getNChannelsModule
unsigned int getNChannelsModule(uint16_t module) const
Get number of channels in module.
Definition: KLMElementNumbers.cc:208
Belle2::DQMHistAnalysisKLMModule::m_ThresholdForHot
int m_ThresholdForHot
Threshold for hot channels.
Definition: DQMHistAnalysisKLM.h:138
Belle2::DQMHistAnalysisKLMModule::m_DeadEndcapModules
std::vector< uint16_t > m_DeadEndcapModules
Vector of dead endcap modules.
Definition: DQMHistAnalysisKLM.h:153
Belle2::KLMElementNumbers::c_BKLM
@ c_BKLM
BKLM.
Definition: KLMElementNumbers.h:47
Belle2::DQMHistAnalysisKLMModule::m_ElementNumbers
const KLMElementNumbers * m_ElementNumbers
KLM element numbers.
Definition: DQMHistAnalysisKLM.h:171
Belle2::KLMElectronicsChannel::getCopper
int getCopper() const
Get copper.
Definition: KLMElectronicsChannel.h:77
Belle2::KLMElectronicsChannel
BKLM electronics channel.
Definition: KLMElectronicsChannel.h:33
Belle2::DQMHistAnalysisKLMModule::m_DeadBarrelModules
std::vector< uint16_t > m_DeadBarrelModules
Vector of dead barrel modules.
Definition: DQMHistAnalysisKLM.h:150
Belle2::KLMElectronicsChannel::getLane
int getLane() const
Get lane.
Definition: KLMElectronicsChannel.h:111
Belle2::KLMElementNumbers::moduleNumber
uint16_t moduleNumber(int subdetector, int section, int sector, int layer) const
Get module number.
Definition: KLMElementNumbers.cc:149
Belle2::KLMElementNumbers::channelNumberToElementNumbers
void channelNumberToElementNumbers(uint16_t channel, int *subdetector, int *section, int *sector, int *layer, int *plane, int *strip) const
Get element numbers by channel number.
Definition: KLMElementNumbers.cc:106
