eclBhabhaTAlgorithm Class Reference

Calibrate ecl crystals using bhabha events. More...

#include <eclBhabhaTAlgorithm.h>

Inheritance diagram for eclBhabhaTAlgorithm:

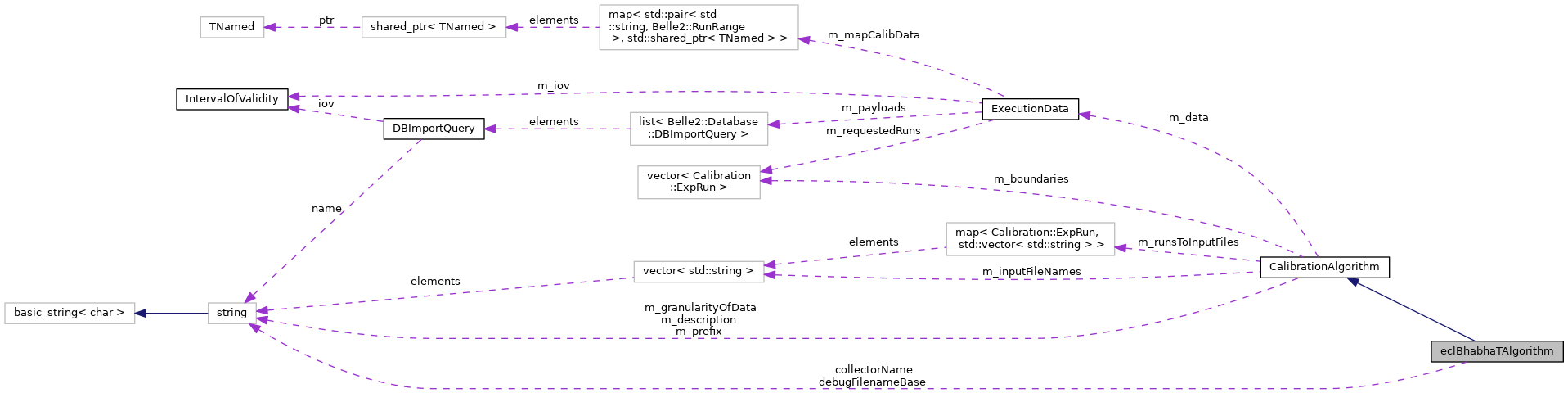

Collaboration diagram for eclBhabhaTAlgorithm:

Public Types

enum  EResult {
  c_OK,
  c_Iterate,
  c_NotEnoughData,
  c_Failure,
  c_Undefined
}
 The result of calibration. More...


Public Member Functions

 eclBhabhaTAlgorithm ()
 ..Constructor

virtual ~eclBhabhaTAlgorithm ()
 ..Destructor

std::string getPrefix () const
 Get the prefix used for getting calibration data.

bool checkPyExpRun (PyObject *pyObj)
 Checks that a PyObject can be successfully converted to an ExpRun type. More...

Calibration::ExpRun convertPyExpRun (PyObject *pyObj)
 Performs the conversion of PyObject to ExpRun. More...

std::string getCollectorName () const
 Alias for prefix. More...

void setPrefix (const std::string &prefix)
 Set the prefix used to identify datastore objects.

void setInputFileNames (PyObject *inputFileNames)
 Set the input file names used for this algorithm from a Python list. More...

PyObject * getInputFileNames ()
 Get the input file names used for this algorithm and pass them out as a Python list of unicode strings.

std::vector< Calibration::ExpRun > getRunListFromAllData () const
 Get the complete list of runs from inspection of collected data.

RunRange getRunRangeFromAllData () const
 Get the complete RunRange from inspection of collected data.

IntervalOfValidity getIovFromAllData () const
 Get the complete IoV from inspection of collected data.

void fillRunToInputFilesMap ()
 Fill the mapping of ExpRun -> Files.

std::string getGranularity () const
 Get the granularity of collected data.

EResult execute (std::vector< Calibration::ExpRun > runs={}, int iteration=0, IntervalOfValidity iov=IntervalOfValidity())
 Runs calibration over vector of runs for a given iteration. More...

EResult execute (PyObject *runs, int iteration=0, IntervalOfValidity iov=IntervalOfValidity())
 Runs calibration over Python list of runs. Converts to C++ and then calls the other execute() function.

std::list< Database::DBImportQuery > & getPayloads ()
 Get constants (in TObjects) for database update from last execution.

std::list< Database::DBImportQuerygetPayloadValues ()
 Get constants (in TObjects) for database update from last execution but passed by VALUE.

bool commit ()
 Submit constants from last calibration into database.

bool commit (std::list< Database::DBImportQuery > payloads)
 Submit constants from a (potentially previous) set of payloads.

const std::string & getDescription () const
 Get the description of the algoithm (set by developers in constructor)

bool loadInputJson (const std::string &jsonString)
 Load the m_inputJson variable from a string (useful from Python interface). The rturn bool indicates success or failure.

const std::string dumpOutputJson () const
 Dump the JSON string of the output JSON object.

const std::vector< Calibration::ExpRun > findPayloadBoundaries (std::vector< Calibration::ExpRun > runs, int iteration=0)
 Used to discover the ExpRun boundaries that you want the Python CAF to execute on. This is optional and only used in some.

template<>
std::shared_ptr< TTree > getObjectPtr (const std::string &name, const std::vector< Calibration::ExpRun > &requestedRuns)
 Specialization of getObjectPtr<TTree>.


Public Attributes

int cellIDLo
 Fit crystals with cellID0 in the inclusive range [cellIDLo,cellIDHi].

int cellIDHi
 Fit crystals with cellID0 in the inclusive range [cellIDLo,cellIDHi].

double meanCleanRebinFactor
 Rebinning factor for mean calculation.

double meanCleanCutMinFactor
 After rebinning, create a mask for bins that have values less than meanCleanCutMinFactor times the maximum bin value. More...

int crateIDLo
 Fit crates with crateID0 in the inclusive range [crateIDLo,crateIDHi].

int crateIDHi
 Fit crates with crateID0 in the inclusive range [crateIDLo,crateIDHi].

bool debugOutput
 Save every histogram and fitted function to debugFilename.

std::string debugFilenameBase
 Name of file with debug output, eclBhabhaTAlgorithm.root by default.

std::string collectorName
 Name of the collector.


Protected Member Functions

virtual EResult calibrate ()
 ..Run algorithm on events More...

void setInputFileNames (std::vector< std::string > inputFileNames)
 Set the input file names used for this algorithm. More...

virtual bool isBoundaryRequired (const Calibration::ExpRun &)
 Given the current collector data, make a decision about whether or not this run should be the start of a payload boundary.

virtual void boundaryFindingSetup (std::vector< Calibration::ExpRun >, int)
 If you need to make some changes to your algorithm class before 'findPayloadBoundaries' is run, make them in this function.

virtual void boundaryFindingTearDown ()
 Put your algorithm back into a state ready for normal execution if you need to.

const std::vector< Calibration::ExpRun > & getRunList () const
 Get the list of runs for which calibration is called.

int getIteration () const
 Get current iteration.

std::vector< std::string > getVecInputFileNames () const
 Get the input file names used for this algorithm as a STL vector.

template<class T >
std::shared_ptr< T > getObjectPtr (const std::string &name, const std::vector< Calibration::ExpRun > &requestedRuns)
 Get calibration data object by name and list of runs, the Merge function will be called to generate the overall object.

template<class T >
std::shared_ptr< T > getObjectPtr (std::string name)
 Get calibration data object (for all runs the calibration is requested for) This function will only work during or after execute() has been called once.

template<>
shared_ptr< TTree > getObjectPtr (const string &name, const vector< ExpRun > &requestedRuns)
 We cheekily cast the TChain to TTree for the returned pointer so that the user never knows Hopefully this doesn't cause issues if people do low level stuff to the tree...

std::string getGranularityFromData () const
 Get the granularity of collected data.

void saveCalibration (TClonesArray *data, const std::string &name)
 Store DBArray payload with given name with default IOV.

void saveCalibration (TClonesArray *data, const std::string &name, const IntervalOfValidity &iov)
 Store DBArray with given name and custom IOV.

void saveCalibration (TObject *data)
 Store DB payload with default name and default IOV.

void saveCalibration (TObject *data, const IntervalOfValidity &iov)
 Store DB payload with default name and custom IOV.

void saveCalibration (TObject *data, const std::string &name)
 Store DB payload with given name with default IOV.

void saveCalibration (TObject *data, const std::string &name, const IntervalOfValidity &iov)
 Store DB payload with given name and custom IOV.

void updateDBObjPtrs (const unsigned int event, const int run, const int experiment)
 Updates any DBObjPtrs by calling update(event) for DBStore.

void setDescription (const std::string &description)
 Set algorithm description (in constructor)

void clearCalibrationData ()
 Clear calibration data.

Calibration::ExpRun getAllGranularityExpRun () const
 Returns the Exp,Run pair that means 'Everything'. Currently unused.

void resetInputJson ()
 Clears the m_inputJson member variable.

void resetOutputJson ()
 Clears the m_outputJson member variable.

template<class T >
void setOutputJsonValue (const std::string &key, const T &value)
 Set a key:value pair for the outputJson object, expected to used interally during calibrate()

template<class T >
const T getOutputJsonValue (const std::string &key) const
 Get a value using a key from the JSON output object, not sure why you would want to do this.

template<class T >
const T getInputJsonValue (const std::string &key) const
 Get an input JSON value using a key. The normal exceptions are raised when the key doesn't exist.

const nlohmann::json & getInputJsonObject () const
 Get the entire top level JSON object. We explicitly say this must be of object type so that we might pick.

bool inputJsonKeyExists (const std::string &key) const
 Test for a key in the input JSON object.


Protected Attributes

std::vector< Calibration::ExpRun > m_boundaries


Private Member Functions

std::string getExpRunString (Calibration::ExpRun &expRun) const
 Gets the "exp.run" string repr. of (exp,run)

std::string getFullObjectPath (std::string name, Calibration::ExpRun expRun) const
 constructs the full TDirectory + Key name of an object in a TFile based on its name and exprun


Private Attributes

std::vector< std::string > m_inputFileNames
 List of input files to the Algorithm, will initially be user defined but then gets the wildcards expanded during execute()

std::map< Calibration::ExpRun, std::vector< std::string > > m_runsToInputFiles
 Map of Runs to input files. Gets filled when you call getRunRangeFromAllData, gets cleared when setting input files again.

std::string m_granularityOfData
 Granularity of input data. This only changes when the input files change so it isn't specific to an execution.

ExecutionData m_data
 Data specific to a SINGLE execution of the algorithm. Gets reset at the beginning of execution.

std::string m_description {""}
 Description of the algorithm.

std::string m_prefix {""}
 The name of the TDirectory the collector objects are contained within.

nlohmann::json m_jsonExecutionInput = nlohmann::json::object()
 Optional input JSON object used to make decisions about how to execute the algorithm code.

nlohmann::json m_jsonExecutionOutput = nlohmann::json::object()
 Optional output JSON object that can be set during the execution by the underlying algorithm code.


Static Private Attributes

static const Calibration::ExpRun m_allExpRun = make_pair(-1, -1)


Detailed Description

Calibrate ecl crystals using bhabha events.

Definition at line 39 of file eclBhabhaTAlgorithm.h.

Member Enumeration Documentation

◆ EResult

enum EResult
inherited

The result of calibration.

Enumerator
c_OK

Finished successfuly =0 in Python.

c_Iterate

Needs iteration =1 in Python.

c_NotEnoughData

Needs more data =2 in Python.

c_Failure

Failed =3 in Python.

c_Undefined

Not yet known (before execution) =4 in Python.

Definition at line 50 of file CalibrationAlgorithm.h.

Member Function Documentation

◆ calibrate()

CalibrationAlgorithm::EResult calibrate ( )
protectedvirtual

..Run algorithm on events

Put root into batch mode so that we don't try to open a graphics window

Write out job parameters


Implements CalibrationAlgorithm.

Definition at line 36 of file eclBhabhaTAlgorithm.cc.

37 {
39  gROOT->SetBatch();
40
41
43  B2INFO("eclBhabhaTAlgorithm parameters:");
44  B2INFO("cellIDLo = " << cellIDLo);
45  B2INFO("cellIDHi = " << cellIDHi);
46  B2INFO("meanCleanRebinFactor = " << meanCleanRebinFactor);
47  B2INFO("meanCleanCutMinFactor = " << meanCleanCutMinFactor);
48  B2INFO("crateIDLo = " << crateIDLo);
49  B2INFO("crateIDHi = " << crateIDHi);
50
51
52  /* Histogram with the data collected by eclBhabhaTCollectorModule */
53
54  auto TimevsCrysPrevCrateCalibPrevCrystCalib = getObjectPtr<TH2F>("TimevsCrysPrevCrateCalibPrevCrystCalib");
55  auto TimevsCratePrevCrateCalibPrevCrystCalib = getObjectPtr<TH2F>("TimevsCratePrevCrateCalibPrevCrystCalib");
56  auto TimevsCrysNoCalibrations = getObjectPtr<TH2F>("TimevsCrysNoCalibrations");
57  auto TimevsCrysPrevCrateCalibNoCrystCalib = getObjectPtr<TH2F>("TimevsCrysPrevCrateCalibNoCrystCalib");
58  auto TimevsCrateNoCrateCalibPrevCrystCalib = getObjectPtr<TH2F>("TimevsCrateNoCrateCalibPrevCrystCalib");
59
60  // Collect other plots just for reference - combines all the runs for these plots.
61  auto cutflow = getObjectPtr<TH1F>("cutflow");
62
63
64  if (!TimevsCrysNoCalibrations) return c_Failure;
65
68  // Make tool for mapping ecl crystal to other ecl objects
69  // e.g. crates, shapers, etc.
70  // Need to load information about the event/run/experiment to get the right database information
71  int expNumberForCrates = -1;
72  int runNumberForCrates = -1;
73  int eventNumberForCrates = 1;
74  for (auto expRun : getRunList()) {
75  expNumberForCrates = expRun.first;
76  runNumberForCrates = expRun.second;
77  }
78  updateDBObjPtrs(eventNumberForCrates, runNumberForCrates, expNumberForCrates);
79  unique_ptr<ECLChannelMapper> crystalMapper(new ECL::ECLChannelMapper());
80  crystalMapper->initFromDB();
81
82
83  TFile* histfile = 0;
84  unique_ptr<TTree> tree_crystal(new TTree("tree_crystal", "Debug data from bhabha time calibration algorithm for crystals"));
85
86  unique_ptr<TTree> tree_crate(new TTree("tree_crate", "Debug data from bhabha time calibration algorithm for crates"));
87  int tree_cid;
88
89  // Vector of time offsets to be saved in the database.
90  vector<float> t_offsets;
91  // Vector of time offset uncertainties to be saved in the database.
92  vector<float> t_offsets_unc;
93
94  vector<float> t_offsets_prev; // previous time offsets
95
96  // temp copies of offsets
97  vector<float> t_offsets_temp;
98  vector<float> t_offsets_unc_temp;
99
100
101  int minNumEntries = 40;
102
103
104  double mean = 0;
105  double sigma = -1;
106  double mean_unc = 0;
107  int crystalCalibSaved = 0;
108  double tsPrev = 0;
109
110
111  bool minRunNumBool = false;
112  bool maxRunNumBool = false;
113  int minRunNum = -1;
114  int maxRunNum = -1;
115  int minExpNum = -1;
116  int maxExpNum = -1;
117  for (auto expRun : getRunList()) {
118  int expNumber = expRun.first;
119  int runNumber = expRun.second;
120  if (!minRunNumBool) {
121  minExpNum = expNumber;
122  minRunNum = runNumber;
123  minRunNumBool = true;
124  }
125  if (!maxRunNumBool) {
126  maxExpNum = expNumber;
127  maxRunNum = runNumber;
128  maxRunNumBool = true;
129  }
130  if (((minRunNum > runNumber) && (minExpNum >= expNumber)) ||
131  (minExpNum > expNumber)) {
132  minExpNum = expNumber;
133  minRunNum = runNumber;
134  }
135  if (((maxRunNum < runNumber) && (maxExpNum <= expNumber)) ||
136  (maxExpNum < expNumber))
137
138  {
139  maxExpNum = expNumber;
140  maxRunNum = runNumber;
141  }
142  }
143
144  B2INFO("debugFilenameBase = " << debugFilenameBase);
145  string runNumsString = string("_") + to_string(minExpNum) + "_" + to_string(minRunNum) + string("-") + to_string(
146  maxExpNum) + "_" + to_string(maxRunNum);
147  string debugFilename = debugFilenameBase + runNumsString + string(".root");
148
149
150  B2INFO("Debug output rootfile: " << debugFilename);
151  histfile = new TFile(debugFilename.c_str(), "recreate");
152
153
154  TimevsCrysPrevCrateCalibPrevCrystCalib ->Write();
155  TimevsCratePrevCrateCalibPrevCrystCalib->Write();
156  TimevsCrysNoCalibrations ->Write();
157  TimevsCrysPrevCrateCalibNoCrystCalib ->Write();
158  TimevsCrateNoCrateCalibPrevCrystCalib ->Write();
159
160  cutflow->Write();
161
162
163  if (debugOutput) {
164  tree_crystal->Branch("cid", &tree_cid)->SetTitle("Cell ID, 1..8736");
165  tree_crystal->Branch("ts", &mean)->SetTitle("Time offset mean, ts, ns");
166  tree_crystal->Branch("tsUnc", &mean_unc)->SetTitle("Error of time ts mean, ns.");
167  tree_crystal->Branch("tsSigma", &sigma)->SetTitle("Sigma of time ts distribution, ns");
168  tree_crystal->Branch("crystalCalibSaved",
169  &crystalCalibSaved)->SetTitle("0=crystal skipped, 1=crystal calib saved (num entries based)");
170  tree_crystal->Branch("tsPrev", &tsPrev)->SetTitle("Previous crystal time offset, ts, ns");
171  tree_crystal->SetAutoSave(10);
172  }
173
174
175  double hist_tmin = TimevsCrysNoCalibrations->GetYaxis()->GetXmin();
176  double hist_tmax = TimevsCrysNoCalibrations->GetYaxis()->GetXmax();
177
178  double time_fit_min = hist_tmax; // Set min value to largest possible value so that it gets reset
179  double time_fit_max = hist_tmin; // Set max value to smallest possible value so that it gets reset
180
181  B2INFO("hist_tmin = " << hist_tmin);
182  B2INFO("hist_tmax = " << hist_tmax);
183
184
185  const double TICKS_TO_NS = 1.0 / (4.0 * EclConfiguration::m_rf) *
186  1e3; // 1/(4fRF) = 0.4913 ns/clock tick, where fRF is the accelerator RF frequency, fRF=508.889 MHz. Same for all crystals. Proper accurate value
187
188  // The ts and tcrate database values are filled once per tcol instance so count the number of times that the database values
189  // were summed together by the histogram merging process and extract out the original values again.
190  auto databaseCounter = getObjectPtr<TH1F>("databaseCounter");
191  float numTimesFilled = databaseCounter->GetBinContent(1);
192  B2INFO("Number of times database histograms were merged = " << numTimesFilled);
193
194
195  auto TsDatabase = getObjectPtr<TH1F>("TsDatabase");
196  auto TsDatabaseUnc = getObjectPtr<TH1F>("TsDatabaseUnc");
197  for (int i = 1; i <= 8736; i++) {
198  t_offsets.push_back(TsDatabase->GetBinContent(i - 1) / numTimesFilled);
199  t_offsets_prev.push_back(TsDatabase->GetBinContent(i) / numTimesFilled);
200
201  B2INFO(" TsDatabase->GetBinContent(i) = " << TsDatabase->GetBinContent(i));
202  B2INFO("t_offsets_prev = " << t_offsets_prev[i - 1]);
203
204
205  t_offsets_unc.push_back(TsDatabaseUnc->GetBinContent(i - 1) / numTimesFilled);
206  }
207
208
209  for (int crys_id = cellIDLo; crys_id <= cellIDHi; crys_id++) {
210  mean = 0;
211  mean_unc = -1;
212  sigma = -1;
213  crystalCalibSaved = 0;
214
215  double database_mean = 0;
216  double database_mean_unc = 0;
217
218  B2INFO("Crystal id = " << crys_id);
219
220
221  vector<bool> ts_new_was_set(8736, false);
222
223
224  /* Determining which bins to mask out for mean calculation
225  */
226
227  TH1D* h_time = TimevsCrysPrevCrateCalibNoCrystCalib->ProjectionY("h_time_psi", crys_id, crys_id);
228  TH1D* h_timeMask = (TH1D*)h_time->Clone();
229  TH1D* h_timeMasked = (TH1D*)h_time->Clone();
230  TH1D* h_timeRebin = (TH1D*)h_time->Clone();
231
232  // Do rebinning and cleaning of some bins but only if the user selection values call for it since it slows the code down
233  if (meanCleanRebinFactor != 1 || meanCleanCutMinFactor != 1) {
234
235  h_timeRebin->Rebin(meanCleanRebinFactor);
236
237  h_timeMask->Scale(0.0); // set all bins to being masked off
238
239  time_fit_min = hist_tmax; // Set min value to largest possible value so that it gets reset
240  time_fit_max = hist_tmin; // Set max value to smallest possible value so that it gets reset
241
242  // Find value of bin with max value
243  double histRebin_max = h_timeRebin->GetMaximum();
244
245  bool maskedOutNonZeroBin = false;
246  // Loop over all bins to find those with content less than a certain threshold. Mask the non-rebinned histogram for the corresponding bins
247  for (int bin = 1; bin <= h_timeRebin->GetNbinsX(); bin++) {
248  for (int rebinCounter = 1; rebinCounter <= meanCleanRebinFactor; rebinCounter++) {
249  int nonRebinnedBinNumber = (bin - 1) * meanCleanRebinFactor + rebinCounter;
250  if (nonRebinnedBinNumber < h_time->GetNbinsX()) {
251  if (h_timeRebin->GetBinContent(bin) >= histRebin_max * meanCleanCutMinFactor) {
252  h_timeMask->SetBinContent(nonRebinnedBinNumber, 1);
253
254  // Save the lower and upper edges of the rebin histogram time range for fitting purposes
255  double x_lower = h_timeRebin->GetXaxis()->GetBinLowEdge(bin);
256  double x_upper = h_timeRebin->GetXaxis()->GetBinUpEdge(bin);
257  if (x_lower < time_fit_min) {
258  time_fit_min = x_lower;
259  }
260  if (x_upper > time_fit_max) {
261  time_fit_max = x_upper;
262  }
263
264  } else {
265  if (h_time->GetBinContent(nonRebinnedBinNumber) > 0) {
266  B2INFO("Setting bin " << nonRebinnedBinNumber << " from " << h_timeMasked->GetBinContent(nonRebinnedBinNumber) << " to 0");
267  maskedOutNonZeroBin = true;
268  }
269  h_timeMasked->SetBinContent(nonRebinnedBinNumber, 0);
270  }
271  }
272  }
273  }
274  B2INFO("Bins with non-zero values have been masked out: " << maskedOutNonZeroBin);
275  h_timeMasked->ResetStats();
276  h_timeMask->ResetStats();
277
278  }
279
280  // Calculate mean from masked histogram
281  double default_meanMasked = h_timeMasked->GetMean();
282  //double default_meanMasked_unc = h_timeMasked->GetMeanError();
283  B2INFO("default_meanMasked = " << default_meanMasked);
284
285
286  // Get the overall mean and standard deviation of the distribution within the plot. This doesn't require a fit.
287  double default_mean = h_time->GetMean();
288  double default_mean_unc = h_time->GetMeanError();
289  double default_sigma = h_time->GetStdDev();
290
291  B2INFO("Fitting crystal between " << time_fit_min << " and " << time_fit_max);
292
293  // gaus(0) is a substitute for [0]*exp(-0.5*((x-[1])/[2])**2)
294  TF1* gaus = new TF1("func", "gaus(0)", time_fit_min, time_fit_max);
295  gaus->SetParNames("numCrystalHitsNormalization", "mean", "sigma");
296  /*
297  gaus->ReleaseParameter(0); // number of crystals
298  gaus->ReleaseParameter(1); // mean
299  gaus->ReleaseParameter(2); // standard deviation
300  */
301
302  double hist_max = h_time->GetMaximum();
303
304  //=== Estimate initial value of sigma as std dev.
305  double stddev = h_time->GetStdDev();
306  sigma = stddev;
307  mean = default_mean;
308
309  //=== Setting parameters for initial iteration
310  gaus->SetParameter(0, hist_max / 2.);
311  gaus->SetParameter(1, mean);
312  gaus->SetParameter(2, sigma);
313  // L -- Use log likelihood method
314  // I -- Use integral of function in bin instead of value at bin center // not using
315  // R -- Use the range specified in the function range
316  // B -- Fix one or more parameters with predefined function // not using
317  // Q -- Quiet mode
318
319  h_timeMasked->Fit(gaus, "LQR"); // L for likelihood, R for x-range, Q for fit quiet mode
320
321  double fit_mean = gaus->GetParameter(1);
322  double fit_mean_unc = gaus->GetParError(1);
323  double fit_sigma = gaus->GetParameter(2);
324
325  double meanDiff = fit_mean - default_mean;
326  double meanUncDiff = fit_mean_unc - default_mean_unc;
327  double sigmaDiff = fit_sigma - default_sigma;
328
329  bool good_fit = false;
330
331  if ((fabs(meanDiff) > 10) ||
332  (fabs(meanUncDiff) > 10) ||
333  (fabs(sigmaDiff) > 10) ||
334  (fit_mean_unc > 3) ||
335  (fit_sigma < 0.1) ||
336  (fit_mean < time_fit_min) ||
337  (fit_mean > time_fit_max)) {
338  B2INFO("Crystal id = " << crys_id);
339  B2INFO("fit mean, default mean = " << fit_mean << ", " << default_mean);
340  B2INFO("fit mean unc, default mean unc = " << fit_mean_unc << ", " << default_mean_unc);
341  B2INFO("fit sigma, default sigma = " << fit_sigma << ", " << default_sigma);
342
343  B2INFO("crystal fit mean - hist mean = " << meanDiff);
344  B2INFO("fit mean unc. - hist mean unc. = " << meanUncDiff);
345  B2INFO("fit sigma - hist sigma = " << sigmaDiff);
346
347  B2INFO("fit_mean = " << fit_mean);
348  B2INFO("time_fit_min = " << time_fit_min);
349  B2INFO("time_fit_max = " << time_fit_max);
350
351  if (fabs(meanDiff) > 10) B2INFO("fit mean diff too large");
352  if (fabs(meanUncDiff) > 10) B2INFO("fit mean unc diff too large");
353  if (fabs(sigmaDiff) > 10) B2INFO("fit mean sigma diff too large");
354  if (fit_mean_unc > 3) B2INFO("fit mean unc too large");
355  if (fit_sigma < 0.1) B2INFO("fit sigma too small");
356
357  } else {
358  good_fit = true;
359  }
360
361
362
363  // Set the tree_crystal values - ignore fit values !!!!!!!!!!!!!!!!
364  sigma = default_sigma;
365
366
367  int numEntries = h_time->GetEntries();
368  // If number of entries in histogram is greater than X then use the statistical information from the data otherwise leave crystal uncalibrated. Histograms are still shown though.
369  // ALSO require the that fits are good.
370  if ((numEntries >= minNumEntries) && good_fit) {
371  crystalCalibSaved = 1;
372  database_mean = fit_mean;
373  database_mean_unc = fit_mean_unc;
374  } else {
375  database_mean = default_mean;
376  database_mean_unc = default_mean_unc;
377  }
378
379  if (numEntries < minNumEntries) B2INFO("Number of entries less than minimum");
380  if (numEntries == 0) B2INFO("Number of entries == 0");
381
382
383  tree_cid = crys_id;
384
385  // For the database, convert back from ns to ADC ticks.
386  t_offsets[crys_id - 1] = database_mean / TICKS_TO_NS;
387  t_offsets_unc[crys_id - 1] = database_mean_unc / TICKS_TO_NS;
388
389
390  histfile->WriteTObject(h_time, (std::string("h_time_psi") + std::to_string(crys_id)).c_str());
391  histfile->WriteTObject(h_timeMasked, (std::string("h_time_psi_masked") + std::to_string(crys_id)).c_str());
392
393  mean = database_mean;
394  mean_unc = database_mean_unc;
395
396  tsPrev = t_offsets_prev[crys_id - 1] * TICKS_TO_NS;
397
398  delete gaus;
399  tree_crystal->Fill();
400  }
401
402  ECLCrystalCalib* BhabhaTCalib = new ECLCrystalCalib();
403  BhabhaTCalib->setCalibVector(t_offsets, t_offsets_unc);
404
405
406  // Save the information to the payload if there is at least one crystal
407  // begin calibrated.
408  if (cellIDLo <= cellIDHi) {
409  saveCalibration(BhabhaTCalib, "ECLCrystalTimeOffset");
410  B2DEBUG(30, "crystal payload made");
411  }
412
413
414  B2DEBUG(30, "end of crystal start of crate corrections .....");
415
416
417  /* CRATE CORRECTIONS */
418
419  hist_tmin = TimevsCrateNoCrateCalibPrevCrystCalib->GetYaxis()->GetXmin();
420  hist_tmax = TimevsCrateNoCrateCalibPrevCrystCalib->GetYaxis()->GetXmax();
421
422  B2DEBUG(30, "Found min/max of X axis of TimevsCrateNoCrateCalibPrevCrystCalib");
423
424  // Vector of time offsets to be saved in the database.
425
426  auto TcrateDatabase = getObjectPtr<TH1F>("TcrateDatabase");
427
428
429  B2DEBUG(30, "Retrieved Ts and Tcrate histograms from tcol root file");
430
431  double database_mean_crate = 0;
432  double database_mean_crate_unc = 0;
433
434  double mean_crate = 0;
435  double sigma_crate = -1;
436
437  vector<float> tcrate_mean_new(52, 0.0);
438  vector<float> tcrate_mean_unc_new(52, 0.0);
439  vector<float> tcrate_sigma_new(52, 0.0);
440  vector<float> tcrate_mean_prev(52, 0.0);
441  vector<float> tcrate_sigma_prev(52, 0.0);
442  vector<bool> tcrate_new_was_set(52, false);
443
444  B2DEBUG(30, "crate vectors set");
445
446
447
448  // Crate time calibration constants are saved per crystal so read them per crystal
449  // and save as one entry per crate in the array
450  for (int crys_id = 1; crys_id <= 8736; crys_id++) {
451  int crate_id_from_crystal = crystalMapper->getCrateID(crys_id);
452  tcrate_mean_prev[crate_id_from_crystal - 1] = TcrateDatabase->GetBinContent(crys_id) / numTimesFilled;
453  }
454
455  for (int crate_id = crateIDLo; crate_id <= crateIDHi; crate_id++) {
456
457  B2DEBUG(30, "Start of crate id = " << crate_id);
458
459  TH1D* h_time_crate = TimevsCrateNoCrateCalibPrevCrystCalib->ProjectionY("h_time_psi_crate", crate_id, crate_id);
460  TH1D* h_time_crate_mask = (TH1D*)h_time_crate->Clone();
461  TH1D* h_time_crate_masked = (TH1D*)h_time_crate->Clone();
462  TH1D* h_time_crate_rebin = (TH1D*)h_time_crate->Clone();
463
464
465
466  // Do rebinning and cleaning of some bins but only if the user selection values call for it since it slows the code down
467  if (meanCleanRebinFactor != 1 || meanCleanCutMinFactor != 1) {
468
469  h_time_crate_rebin->Rebin(meanCleanRebinFactor);
470  h_time_crate_mask->Scale(0.0); // set all bins to being masked off
471
472  time_fit_min = hist_tmax; // Set min value to largest possible value so that it gets reset
473  time_fit_max = hist_tmin; // Set max value to smallest possible value so that it gets reset
474
475  // Find value of bin with max value
476  double histRebin_max = h_time_crate_rebin->GetMaximum();
477
478  bool maskedOutNonZeroBin = false;
479  // Loop over all bins to find those with content less than a certain threshold. Mask the non-rebinned histogram for the corresponding bins
480  for (int bin = 1; bin <= h_time_crate_rebin->GetNbinsX(); bin++) {
481  for (int rebinCounter = 1; rebinCounter <= meanCleanRebinFactor; rebinCounter++) {
482  int nonRebinnedBinNumber = (bin - 1) * meanCleanRebinFactor + rebinCounter;
483  if (nonRebinnedBinNumber < h_time_crate->GetNbinsX()) {
484  if (h_time_crate_rebin->GetBinContent(bin) >= histRebin_max * meanCleanCutMinFactor) {
485  h_time_crate_mask->SetBinContent(nonRebinnedBinNumber, 1);
486
487  // Save the lower and upper edges of the rebin histogram time range for fitting purposes
488  double x_lower = h_time_crate_rebin->GetXaxis()->GetBinLowEdge(bin);
489  double x_upper = h_time_crate_rebin->GetXaxis()->GetBinUpEdge(bin);
490  if (x_lower < time_fit_min) {
491  time_fit_min = x_lower;
492  }
493  if (x_upper > time_fit_max) {
494  time_fit_max = x_upper;
495  }
496  } else {
497  if (h_time_crate->GetBinContent(nonRebinnedBinNumber) > 0) {
498  B2INFO("Setting bin " << nonRebinnedBinNumber << " from " << h_time_crate_masked->GetBinContent(nonRebinnedBinNumber) << " to 0");
499  maskedOutNonZeroBin = true;
500  }
501  h_time_crate_masked->SetBinContent(nonRebinnedBinNumber, 0);
502  }
503  }
504  }
505  }
506  B2INFO("Bins with non-zero values have been masked out: " << maskedOutNonZeroBin);
507  h_time_crate_masked->ResetStats();
508  h_time_crate_mask->ResetStats();
509
510  }
511
512
513
514  B2DEBUG(30, "crate loop - projected h_time_psi_crate");
515
516
517  double default_mean_crate = h_time_crate_masked->GetMean();
518  double default_mean_crate_unc = h_time_crate_masked->GetMeanError();
519  double default_sigma_crate = h_time_crate_masked->GetStdDev();
520  B2INFO("Fitting crate between " << time_fit_min << " and " << time_fit_max);
521  TF1* gaus = new TF1("func", "gaus(0)", time_fit_min, time_fit_max);
522  gaus->SetParNames("numCrateHisNormalization", "mean", "sigma");
523  double hist_max = h_time_crate->GetMaximum();
524  double stddev = h_time_crate->GetStdDev();
525  sigma_crate = stddev;
526  mean_crate = default_mean_crate;
527  gaus->SetParameter(0, hist_max / 2.);
528  gaus->SetParameter(1, mean_crate);
529  gaus->SetParameter(2, sigma_crate);
530
531  h_time_crate_masked->Fit(gaus, "LQR"); // L for likelihood, R for x-range, Q for fit quiet mode
532
533  double fit_mean_crate = gaus->GetParameter(1);
534  double fit_mean_crate_unc = gaus->GetParError(1);
535  double fit_sigma_crate = gaus->GetParameter(2);
536
537  double meanDiff = fit_mean_crate - default_mean_crate;
538  double meanUncDiff = fit_mean_crate_unc - default_mean_crate_unc;
539  double sigmaDiff = fit_sigma_crate - default_sigma_crate;
540
541  bool good_fit = false;
542
543  B2DEBUG(30, "Crate id = " << crate_id << " with crate mean = " << default_mean_crate << " +- " << fit_mean_crate_unc);
544
545  if ((fabs(meanDiff) > 7) ||
546  (fabs(meanUncDiff) > 7) ||
547  (fabs(sigmaDiff) > 7) ||
548  (fit_mean_crate_unc > 3) ||
549  (fit_sigma_crate < 0.1) ||
550  (fit_mean_crate < time_fit_min) ||
551  (fit_mean_crate > time_fit_max)) {
552  B2INFO("Crate id = " << crate_id);
553  B2INFO("fit mean, default mean = " << fit_mean_crate << ", " << default_mean_crate);
554  B2INFO("fit sigma, default sigma = " << fit_sigma_crate << ", " << default_sigma_crate);
555
556  B2INFO("crate fit mean - hist mean = " << meanDiff);
557  B2INFO("fit mean unc. - hist mean unc. = " << meanUncDiff);
558  B2INFO("fit sigma - hist sigma = " << sigmaDiff);
559  B2INFO("fit_mean_crate = " << fit_mean_crate);
560  B2INFO("time_fit_min = " << time_fit_min);
561  B2INFO("time_fit_max = " << time_fit_max);
562  } else {
563  good_fit = true;
564  }
565
566  int numEntries = h_time_crate->GetEntries();
567  B2INFO("Number entries = " << numEntries);
568  if ((numEntries >= minNumEntries) && good_fit) {
569
570  database_mean_crate = fit_mean_crate;
571  database_mean_crate_unc = fit_mean_crate_unc;
572
573  } else {
574  database_mean_crate = default_mean_crate;
575  database_mean_crate_unc = default_mean_crate_unc;
576  }
577  if (numEntries == 0) {
578  database_mean_crate = 0;
579  database_mean_crate_unc = 0;
580  }
581
582  tcrate_mean_new[crate_id - 1] = database_mean_crate;
583  tcrate_mean_unc_new[crate_id - 1] = database_mean_crate_unc;
584  tcrate_sigma_new[crate_id - 1] = fit_sigma_crate;
585  tcrate_new_was_set[crate_id - 1] = true;
586
587
588  histfile->WriteTObject(h_time_crate, (std::string("h_time_psi_crate") + std::to_string(crate_id)).c_str());
589  histfile->WriteTObject(h_time_crate_masked, (std::string("h_time_psi_crate_masked") + std::to_string(crate_id)).c_str());
590  histfile->WriteTObject(h_time_crate_rebin, (std::string("h_time_psi_crate_rebinned") + std::to_string(crate_id)).c_str());
591
592  delete gaus;
593  }
594
595  B2DEBUG(30, "crate histograms made");
596
597
598  // Save database for crates
599  // Vector of time offsets to be saved in the database.
600  vector<float> t_offsets_crate;
601  // Vector of time offset uncertainties to be saved in the database.
602  vector<float> t_offsets_crate_unc;
603  for (int i = 1; i <= 8736; i++) {
604  t_offsets_crate.push_back(0);
605  t_offsets_crate_unc.push_back(0);
606  }
607
608
609  for (int crys_id = 1; crys_id <= 8736; crys_id++) {
610
611  int crate_id_from_crystal = crystalMapper->getCrateID(crys_id);
612  if (tcrate_new_was_set[crate_id_from_crystal - 1]) {
613  t_offsets_crate[crys_id - 1] = tcrate_mean_new[crate_id_from_crystal - 1] / TICKS_TO_NS;
614  t_offsets_crate_unc[crys_id - 1] = tcrate_mean_unc_new[crate_id_from_crystal - 1] / TICKS_TO_NS;
615
616  } else {
617  t_offsets_crate[crys_id - 1] = tcrate_mean_prev[crate_id_from_crystal - 1];
618  B2INFO("used old crate mean but zeroed uncertainty since not saved in root file");
619  }
620
621  }
622
623  ECLCrystalCalib* BhabhaTCrateCalib = new ECLCrystalCalib();
624  BhabhaTCrateCalib->setCalibVector(t_offsets_crate, t_offsets_crate_unc);
625
626
627  // Save the information to the payload if there is at least one crate
628  // begin calibrated.
629  if (crateIDLo <= crateIDHi) {
630  saveCalibration(BhabhaTCrateCalib, "ECLCrateTimeOffset");
631  B2DEBUG(30, "crate payload made");
632  }
633
634
635  int tree_crateid;
636  int tree_runNum;
637  double tree_tcrate_mean;
638  double tree_tcrate_mean_unc;
639  double tree_tcrate_sigma;
640  double tree_tcrate_meanPrev;
641
642  tree_crate->Branch("runNum", &tree_runNum)->SetTitle("Run number, 0..infinity and beyond!");
643  tree_crate->Branch("crateid", &tree_crateid)->SetTitle("Crate id, 1..52");
644  tree_crate->Branch("tcrate", &tree_tcrate_mean)->SetTitle("Crate time offset mean, tcrate, ns");
645  tree_crate->Branch("tcratePrev", &tree_tcrate_meanPrev)->SetTitle("Previous crate time offset mean, tcrate, ns");
646  tree_crate->Branch("tcrate_unc", &tree_tcrate_mean_unc)->SetTitle("Error of time tcrate mean, ns.");
647  tree_crate->Branch("tcrate_sigma", &tree_tcrate_sigma)->SetTitle("Sigma of time tcrate distribution, ns");
648  tree_crate->SetAutoSave(10);
649
650
651  for (auto expRun : getRunList()) {
652  // Key command to make sure your DBObjPtrs are correct
653  B2INFO("run num, exp num: " << expRun.second << ", " << expRun.first);
654  int runNumber = expRun.second;
655
656  for (int crate_id = 1; crate_id <= 52; crate_id++) {
657  if (tcrate_new_was_set[crate_id - 1]) {
658  tree_runNum = runNumber;
659  tree_crateid = crate_id;
660  tree_tcrate_mean = tcrate_mean_new[crate_id - 1];
661  tree_tcrate_mean_unc = tcrate_mean_unc_new[crate_id - 1];
662  tree_tcrate_sigma = tcrate_sigma_new[crate_id - 1];
663  tree_tcrate_meanPrev = tcrate_mean_prev[crate_id - 1] * TICKS_TO_NS;
664  tree_crate->Fill();
665  }
666  }
667  }
668
669  B2DEBUG(30, "end of crate corrections .....");
670
671  tree_crystal->Write();
672  tree_crate->Write();
673
674  histfile->Close();
675
676  tree_crystal = 0;
677  tree_crate = 0;
678
679  B2INFO("Finished talgorithm");
680  return c_OK;
681 }

◆ checkPyExpRun()

bool checkPyExpRun ( PyObject *  pyObj)
inherited

Checks that a PyObject can be successfully converted to an ExpRun type.

Checks if the PyObject can be converted to ExpRun.

Definition at line 21 of file CalibrationAlgorithm.cc.

◆ convertPyExpRun()

ExpRun convertPyExpRun ( PyObject *  pyObj)
inherited

Performs the conversion of PyObject to ExpRun.

Converts the PyObject to an ExpRun. We've preoviously checked the object so this assumes a lot about the PyObject.

Definition at line 63 of file CalibrationAlgorithm.cc.

◆ execute()

EResult execute ( std::vector< Calibration::ExpRun >  runs = {},
int  iteration = 0,
IntervalOfValidity  iov = IntervalOfValidity()
)
inherited

Runs calibration over vector of runs for a given iteration.

You can also specify the IoV to save the database payload as. By default the Algorithm will create an IoV from your requested ExpRuns, or from the overall ExpRuns of the input data if you haven't specified ExpRuns in this function.

No checks are performed to make sure that a IoV you specify matches the data you ran over, it simply labels the IoV to commit to the database later.

◆ getCollectorName()

std::string getCollectorName ( ) const
inlineinherited

Alias for prefix.

For convenience and less writing, we say developers to set this to default collector module name in constructor of base class. One can however use the dublets of collector+algorithm multiple times with different settings. To bind these together correctly, the prefix has to be set the same for algo and collector. So we call the setter setPrefix rather than setModuleName or whatever. This getter will work out of the box for default cases -> return the name of module you have to add to your path to collect data for this algorihtm.

Definition at line 174 of file CalibrationAlgorithm.h.

◆ setInputFileNames() [1/2]

void setInputFileNames ( PyObject *  inputFileNames)
inherited

Set the input file names used for this algorithm from a Python list.

Set the input file names used for this algorithm and resolve the wildcards.

Definition at line 159 of file CalibrationAlgorithm.cc.

◆ setInputFileNames() [2/2]

void setInputFileNames ( std::vector< std::string >  inputFileNames)
protectedinherited

Set the input file names used for this algorithm.

Set the input file names used for this algorithm and resolve the wildcards.

Definition at line 187 of file CalibrationAlgorithm.cc.

Member Data Documentation

◆ meanCleanCutMinFactor

double meanCleanCutMinFactor

After rebinning, create a mask for bins that have values less than meanCleanCutMinFactor times the maximum bin value.

Expand mask and apply to non-rebinned histogram.

Definition at line 53 of file eclBhabhaTAlgorithm.h.


The documentation for this class was generated from the following files:
Belle2::ECL::eclBhabhaTAlgorithm::cellIDHi
int cellIDHi
Fit crystals with cellID0 in the inclusive range [cellIDLo,cellIDHi].
Definition: eclBhabhaTAlgorithm.h:51
Belle2::CalibrationAlgorithm::saveCalibration
void saveCalibration(TClonesArray *data, const std::string &name)
Store DBArray payload with given name with default IOV.
Definition: CalibrationAlgorithm.cc:290
Belle2::ECL::eclBhabhaTAlgorithm::debugOutput
bool debugOutput
Save every histogram and fitted function to debugFilename.
Definition: eclBhabhaTAlgorithm.h:58
Belle2::CalibrationAlgorithm::c_OK
@ c_OK
Finished successfuly =0 in Python.
Definition: CalibrationAlgorithm.h:51
Belle2::ECLCrystalCalib
General DB object to store one calibration number per ECL crystal.
Definition: ECLCrystalCalib.h:34
Belle2::ECL::eclBhabhaTAlgorithm::crateIDLo
int crateIDLo
Fit crates with crateID0 in the inclusive range [crateIDLo,crateIDHi].
Definition: eclBhabhaTAlgorithm.h:56
Belle2::CalibrationAlgorithm::updateDBObjPtrs
void updateDBObjPtrs(const unsigned int event, const int run, const int experiment)
Updates any DBObjPtrs by calling update(event) for DBStore.
Definition: CalibrationAlgorithm.cc:398
Belle2::ECL::eclBhabhaTAlgorithm::crateIDHi
int crateIDHi
Fit crates with crateID0 in the inclusive range [crateIDLo,crateIDHi].
Definition: eclBhabhaTAlgorithm.h:57
Belle2::ECL::ECLChannelMapper
This class provides access to ECL channel map that is either a) Loaded from the database (see ecl/dbo...
Definition: ECLChannelMapper.h:36
Belle2::CalibrationAlgorithm::c_Failure
@ c_Failure
Failed =3 in Python.
Definition: CalibrationAlgorithm.h:54
Belle2::ECL::EclConfiguration::m_rf
static constexpr double m_rf
accelerating RF, http://ptep.oxfordjournals.org/content/2013/3/03A006.full.pdf
Definition: EclConfiguration.h:45
Belle2::CalibrationAlgorithm::getRunList
const std::vector< Calibration::ExpRun > & getRunList() const
Get the list of runs for which calibration is called.
Definition: CalibrationAlgorithm.h:276
Belle2::ECL::eclBhabhaTAlgorithm::cellIDLo
int cellIDLo
Fit crystals with cellID0 in the inclusive range [cellIDLo,cellIDHi].
Definition: eclBhabhaTAlgorithm.h:50
Belle2::ECL::eclBhabhaTAlgorithm::meanCleanRebinFactor
double meanCleanRebinFactor
Rebinning factor for mean calculation.
Definition: eclBhabhaTAlgorithm.h:52
Belle2::ECLCrystalCalib::setCalibVector
void setCalibVector(const std::vector< float > &CalibConst, const std::vector< float > &CalibConstUnc)
Set vector of constants with uncertainties.
Definition: ECLCrystalCalib.h:48
Belle2::ECL::eclBhabhaTAlgorithm::debugFilenameBase
std::string debugFilenameBase
Name of file with debug output, eclBhabhaTAlgorithm.root by default.
Definition: eclBhabhaTAlgorithm.h:60
Belle2::ECL::eclBhabhaTAlgorithm::meanCleanCutMinFactor
double meanCleanCutMinFactor
After rebinning, create a mask for bins that have values less than meanCleanCutMinFactor times the ma...
Definition: eclBhabhaTAlgorithm.h:53
