Singleton class for TOP Geometry Parameters. More...

#include <TOPGeometryPar.h>

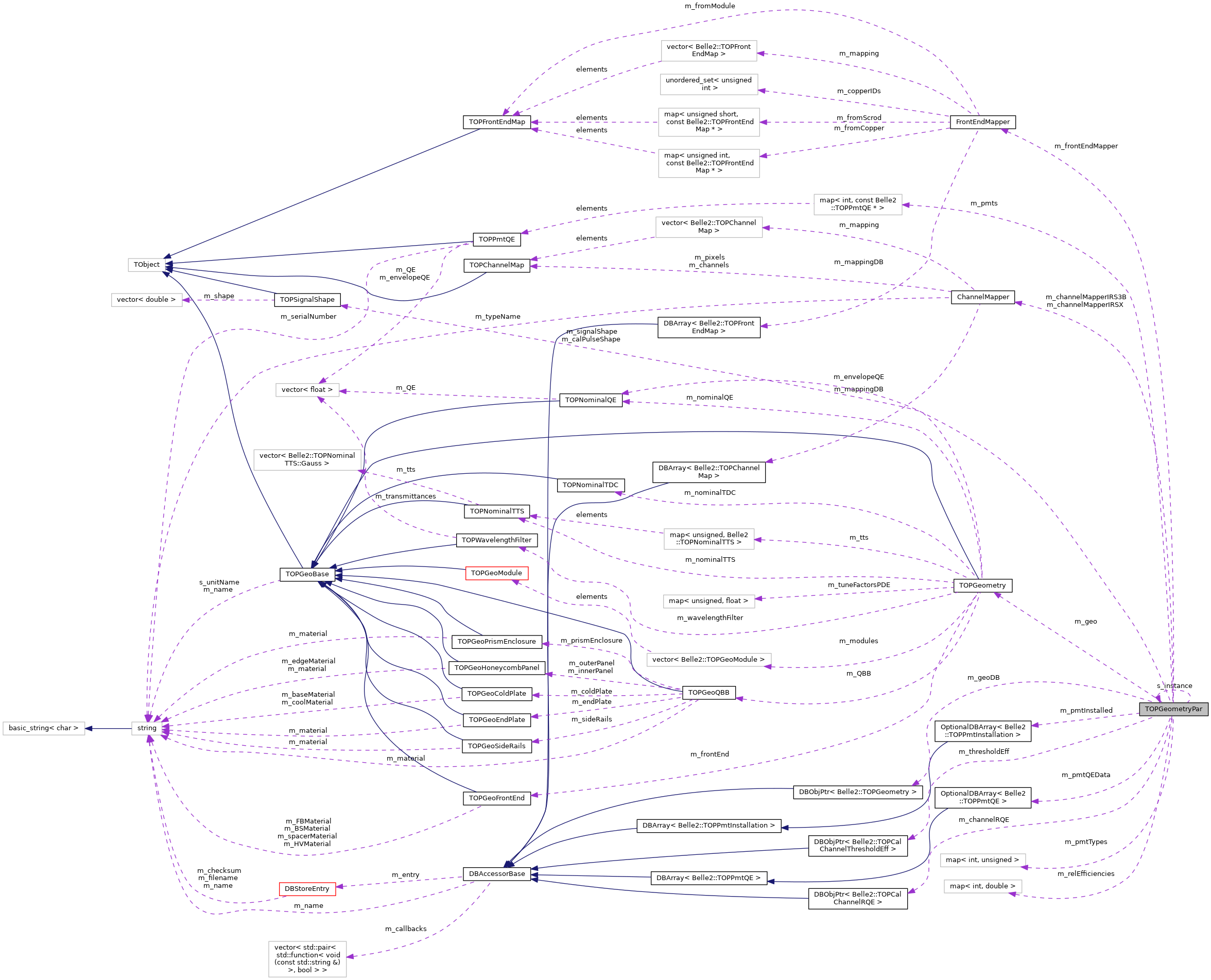

Collaboration diagram for TOPGeometryPar:

[legend]

Public Member Functions
virtual	~TOPGeometryPar ()
	Destructor.

void	Initialize (const GearDir &content)
	Initialize from Gearbox (XML) More...

void	Initialize ()
	Initialize from database.

bool	isValid () const
	check if the geometry is available More...

const TOPGeometry *	getGeometry () const
	Returns pointer to geometry object using Basf2 units. More...

const FrontEndMapper &	getFrontEndMapper () const
	Returns front-end mapper (mapping of SCROD's to positions within TOP modules) More...

const ChannelMapper &	getChannelMapper () const
	Returns default channel mapper (mapping of channels to pixels) More...

const ChannelMapper &	getChannelMapper (ChannelMapper::EType type) const
	Returns channel mapper (mapping of channels to pixels) - Gearbox only. More...

double	getPMTEfficiencyEnvelope (double energy) const
	Returns PMT efficiency envelope, e.g. More...

double	getPMTEfficiency (double energy, int moduleID, int pmtID, double x, double y) const
	Returns PMT pixel efficiency, a product of quantum and collection efficiency. More...

double	getRelativePixelEfficiency (int moduleID, int pixelID) const
	Returns relative pixel efficiency (including CE, RQE and threshold efficiency) More...

unsigned	getPMTType (int moduleID, int pmtID) const
	Returns PMT type at a given position. More...

const TOPNominalTTS &	getTTS (int moduleID, int pmtID) const
	Returns TTS of a PMT at given position. More...

Static Public Member Functions
static TOPGeometryPar *	Instance ()
	Static method to obtain the pointer to its instance. More...

Static Public Attributes
static const double	c_hc = 1239.84193
	Planck constant times speed of light in [eV*nm].

Private Member Functions
	TOPGeometryPar ()
	Hidden constructor since it is a singleton class.

void	finalizeInitialization ()
	finalize initialization

TOPGeometry *	createConfiguration (const GearDir &content)
	Create a parameter object from gearbox. More...

TOPGeoBarSegment	createBarSegment (const GearDir &content, const std::string &serialNumber)
	Create a parameter object from gearbox for bar segment. More...

TOPGeoMirrorSegment	createMirrorSegment (const GearDir &content, const std::string &serialNumber)
	Create a parameter object from gearbox for mirror segment. More...

TOPGeoPrism	createPrism (const GearDir &content, const std::string &serialNumber)
	Create a parameter object from gearbox for prism. More...

std::string	addNumber (const std::string &str, unsigned number)
	Adds number to string. More...

void	clearCache ()
	Clears cache for PMT dependent QE data - function is used in call backs.

void	setEnvelopeQE () const
	Constructs envelope of quantum efficiency from PMT data.

void	mapPmtQEToPositions () const
	Maps PMT QE data to positions within the detector.

void	mapPmtTypeToPositions () const
	Maps PMT type to positions within the detector.

void	prepareRelEfficiencies () const
	Prepares a map of relative pixel efficiencies.

int	getUniquePmtID (int moduleID, int pmtID) const
	Returns unique PMT ID within the detector. More...

int	getUniquePixelID (int moduleID, int pixelID) const
	Returns unique pixel ID within the detector. More...

double	integralOfQE (const std::vector< float > &qe, double ce, double lambdaFirst, double lambdaStep) const
	Returns integral of quantum efficiency over photon energies. More...

Private Attributes
TOPGeometry *	m_geo = 0
	geometry parameters from Gearbox

DBObjPtr< TOPGeometry > *	m_geoDB = 0
	geometry parameters from database

bool	m_fromDB = false
	parameters from database or Gearbox

bool	m_valid = false
	true if geometry is available

bool	m_oldPayload = false
	true if old payload found in DB

bool	m_BfieldOn = true
	true if B field is on

FrontEndMapper	m_frontEndMapper
	front end electronics mapper

ChannelMapper	m_channelMapperIRS3B
	channel-pixel mapper

ChannelMapper	m_channelMapperIRSX
	channel-pixel mapper

OptionalDBArray< TOPPmtInstallation >	m_pmtInstalled
	PMT installation data.

OptionalDBArray< TOPPmtQE >	m_pmtQEData
	quantum efficiencies

DBObjPtr< TOPCalChannelRQE >	m_channelRQE
	channel relative quantum effi.

DBObjPtr< TOPCalChannelThresholdEff >	m_thresholdEff
	channel threshold effi.

TOPNominalQE	m_envelopeQE
	envelope quantum efficiency

std::map< int, const TOPPmtQE * >	m_pmts
	QE data mapped to positions.

std::map< int, double >	m_relEfficiencies
	pixel relative QE

std::map< int, unsigned >	m_pmtTypes
	PMT types mapped to positions.

Static Private Attributes
static TOPGeometryPar *	s_instance = 0
	Pointer to the class instance.

Detailed Description

Singleton class for TOP Geometry Parameters.

Definition at line 47 of file TOPGeometryPar.h.

Member Function Documentation

◆ addNumber()

std::string addNumber	(	const std::string &	str,
		unsigned	number
	)

private

Adds number to string.

Parameters

str	string
number	number to be added

Returns: string with a number

Definition at line 948 of file TOPGeometryPar.cc.

     {
       stringstream ss;
       if (number < 10) {
         ss << str << "0" << number;
       } else {
         ss << str << number;
       }
       string out;
       ss >> out;
       return out;
     }

◆ createBarSegment()

TOPGeoBarSegment createBarSegment	(	const GearDir &	content,
		const std::string &	serialNumber
	)

private

Create a parameter object from gearbox for bar segment.

Parameters

content	XML data directory
serialNumber	bar segment serial number

Definition at line 870 of file TOPGeometryPar.cc.

◆ createConfiguration()

TOPGeometry * createConfiguration ( const GearDir & content )

private

Create a parameter object from gearbox.

Parameters

content XML data directory

Definition at line 439 of file TOPGeometryPar.cc.

◆ createMirrorSegment()

TOPGeoMirrorSegment createMirrorSegment	(	const GearDir &	content,
		const std::string &	serialNumber
	)

private

Create a parameter object from gearbox for mirror segment.

Parameters

content	XML data directory
serialNumber	mirror segment serial number

Definition at line 893 of file TOPGeometryPar.cc.

◆ createPrism()

TOPGeoPrism createPrism	(	const GearDir &	content,
		const std::string &	serialNumber
	)

private

Create a parameter object from gearbox for prism.

Parameters

content	XML data directory
serialNumber	prism serial number

Definition at line 923 of file TOPGeometryPar.cc.

◆ getChannelMapper() [1/2]

const ChannelMapper& getChannelMapper ( ) const

inline

Returns default channel mapper (mapping of channels to pixels)

Returns: channel mapper object

Definition at line 95 of file TOPGeometryPar.h.

95 : return m_channelMapperIRS3B;

◆ getChannelMapper() [2/2]

const ChannelMapper& getChannelMapper ( ChannelMapper::EType type ) const

inline

Returns channel mapper (mapping of channels to pixels) - Gearbox only.

Returns: channel mapper object

Definition at line 101 of file TOPGeometryPar.h.

◆ getFrontEndMapper()

const FrontEndMapper& getFrontEndMapper ( ) const

inline

Returns front-end mapper (mapping of SCROD's to positions within TOP modules)

Returns: front-end mapper object

Definition at line 89 of file TOPGeometryPar.h.

◆ getGeometry()

const TOPGeometry * getGeometry ( ) const

Returns pointer to geometry object using Basf2 units.

Returns: pointer to geometry object

Definition at line 167 of file TOPGeometryPar.cc.

◆ getPMTEfficiency()

double getPMTEfficiency	(	double	energy,
		int	moduleID,
		int	pmtID,
		double	x,
		double	y
	)		const

Returns PMT pixel efficiency, a product of quantum and collection efficiency.

Parameters

energy	photon energy in [eV]
moduleID	slot ID
pmtID	PMT ID
x	photon detection position x in local PMT frame
y	photon detection position y in local PMT frame

Returns: the efficiency

Definition at line 191 of file TOPGeometryPar.cc.

◆ getPMTEfficiencyEnvelope()

double getPMTEfficiencyEnvelope ( double energy ) const

Returns PMT efficiency envelope, e.g.

at given photon energy the maximum over all PMT's of a product of quantum and collection efficiency.

Parameters

energy photon energy in [eV]

Returns: the maximal efficiency

Definition at line 179 of file TOPGeometryPar.cc.

◆ getPMTType()

unsigned getPMTType	(	int	moduleID,
		int	pmtID
	)		const

Returns PMT type at a given position.

Parameters

moduleID	slot ID
pmtID	PMT ID

Returns: PMT type

Definition at line 248 of file TOPGeometryPar.cc.

◆ getRelativePixelEfficiency()

double getRelativePixelEfficiency	(	int	moduleID,
		int	pixelID
	)		const

Returns relative pixel efficiency (including CE, RQE and threshold efficiency)

Returns: pixel efficiency relative to nominal photocathode

Definition at line 225 of file TOPGeometryPar.cc.

◆ getTTS()

const TOPNominalTTS & getTTS	(	int	moduleID,
		int	pmtID
	)		const

Returns TTS of a PMT at given position.

Parameters

moduleID	slot ID
pmtID	PMT ID

Returns: TTS

Definition at line 257 of file TOPGeometryPar.cc.

◆ getUniquePixelID()

int getUniquePixelID	(	int	moduleID,
		int	pixelID
	)		const

inlineprivate

Returns unique pixel ID within the detector.

Parameters

moduleID	slot ID
pixelID	pixel ID

Returns: unique ID

Definition at line 247 of file TOPGeometryPar.h.

◆ getUniquePmtID()

int getUniquePmtID	(	int	moduleID,
		int	pmtID
	)		const

inlineprivate

Returns unique PMT ID within the detector.

Parameters

moduleID	slot ID
pmtID	PMT ID

Returns: unique ID

Definition at line 236 of file TOPGeometryPar.h.

◆ Initialize()

void Initialize ( const GearDir & content )

Initialize from Gearbox (XML)

Parameters

content XML data directory

Definition at line 54 of file TOPGeometryPar.cc.

◆ Instance()

TOPGeometryPar * Instance ( )

static

Static method to obtain the pointer to its instance.

Returns: pointer to the instance of this class.

Definition at line 45 of file TOPGeometryPar.cc.

◆ integralOfQE()

double integralOfQE	(	const std::vector< float > &	qe,
		double	ce,
		double	lambdaFirst,
		double	lambdaStep
	)		const

private

Returns integral of quantum efficiency over photon energies.

Parameters

qe	quantum efficiency data points
ce	collection efficiency data points
lambdaFirst	wavelenght of the first data point [nm]
lambdaStep	wavelength step [nm]

Returns: integral [eV]

Definition at line 421 of file TOPGeometryPar.cc.

◆ isValid()

bool isValid ( ) const

inline

check if the geometry is available

Returns: true if available

Definition at line 77 of file TOPGeometryPar.h.

The documentation for this class was generated from the following files:

top/geometry/include/TOPGeometryPar.h
top/geometry/src/TOPGeometryPar.cc
