The creator for the CLAW geometry. More...

#include <ClawCreator.h>

Inheritance diagram for ClawCreator:

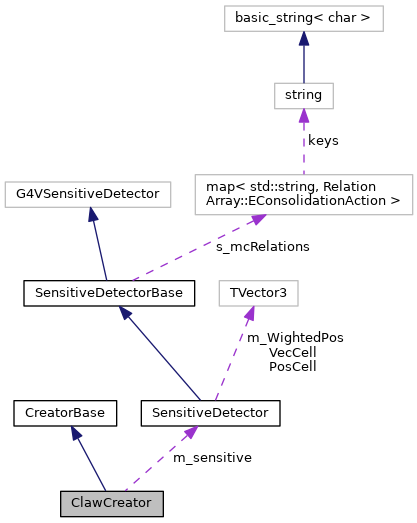

Collaboration diagram for ClawCreator:

[legend]

Public Member Functions
virtual void	create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type)
	Function to actually create the geometry, has to be overridden by derived classes. More...

	BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
	Exception that will be thrown in createFromDB if member is not yet implemented by creator.

virtual void	createFromDB (const std::string &name, G4LogicalVolume &topVolume, GeometryTypes type)
	Function to create the geometry from the Database. More...

virtual void	createPayloads (const GearDir &content, const IntervalOfValidity &iov)
	Function to create the geometry database. More...

Protected Attributes
SensitiveDetector *	m_sensitive
	SensitiveDetector CLAW.

Detailed Description

The creator for the CLAW geometry.

Definition at line 29 of file ClawCreator.h.

Member Function Documentation

◆ create()

void create	(	const GearDir &	content,
		G4LogicalVolume &	topVolume,
		geometry::GeometryTypes	type
	)

virtual

Function to actually create the geometry, has to be overridden by derived classes.

Parameters

content	GearDir pointing to the parameters which should be used for construction
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Implements CreatorBase.

Definition at line 60 of file ClawCreator.cc.

     {
       //lets get the stepsize parameter with a default value of 5 µm
       double stepSize = content.getLength("stepSize", 5 * CLHEP::um);

       G4VisAttributes* red = new G4VisAttributes(G4Colour(1, 0, 0));
       red->SetForceAuxEdgeVisible(true);
       G4VisAttributes* green = new G4VisAttributes(G4Colour(0, 1, 0));
       green->SetForceAuxEdgeVisible(true);
       G4VisAttributes* gray = new G4VisAttributes(G4Colour(.5, .5, .5));
       gray->SetForceAuxEdgeVisible(true);

       G4VisAttributes* coppercolor = new G4VisAttributes(G4Colour(218. / 255., 138. / 255., 103. / 255.));
       coppercolor->SetForceAuxEdgeVisible(true);

       int detID = 0;
       //Lets loop over all the Active nodes
       BOOST_FOREACH(const GearDir & activeParams, content.getNodes("Active")) {
         /*
               double x_pos[100];
               double y_pos[100];
               double x_off[100];
               double y_off[100];
               double z_pos[100];
               double phi[100];
               double thetaZ[100];
               double r[100];
               int dimx = 0;
               int dimy = 0;
               int dimx_offset = 0;
               int dimy_offset = 0;
               int dimz = 0;
               int dimr_dia = 0;
               for (double x_offset : activeParams.getArray("x_offset", {0})) {
                 x_offset *= CLHEP::cm;
                 x_off[dimx_offset] = x_offset;
                 dimx_offset++;
               }
               for (double y_offset : activeParams.getArray("y_offset", {0})) {
                 y_offset *= CLHEP::cm;
                 y_off[dimy_offset] = y_offset;
                 dimy_offset++;
               }
               for (double x : activeParams.getArray("x", {0})) {
                 x *= CLHEP::cm;
                 x_pos[dimx] = x + x_off[dimx];
                 dimx++;
               }
               for (double y : activeParams.getArray("y", {0})) {
                 y *= CLHEP::cm;
                 y_pos[dimy] = y + y_off[dimy];
                 dimy++;
               }
               for (double z : activeParams.getArray("z", {0})) {
                 z *= CLHEP::cm;
                 z_pos[dimz] = z;
                 if (dimx != 0 && dimy != 0)
                   r[dimz] = sqrt(x_pos[dimz] * x_pos[dimz] + y_pos[dimz] * y_pos[dimz]);
                 dimz++;
               }
               int dimPhi = 0;
               for (double Phi : activeParams.getArray("Phi", {0})) {
                 phi[dimPhi] = Phi;
                 dimPhi++;
               }
               int dimThetaZ = 0;
               for (double ThetaZ : activeParams.getArray("ThetaZ", {0})) {
                 thetaZ[dimThetaZ] = ThetaZ;
                 dimThetaZ++;
               }
               if (dimx == 0 && dimy == 0) {
                 for (double r_dia : activeParams.getArray("r_dia", {0})) {
                   r_dia *= CLHEP::cm;
                   r[dimr_dia] = r_dia;
                   dimr_dia++;
                 }
               }
         */
         int Nscint = activeParams.getInt("Nscint");
         G4double x = activeParams.getLength("x") * CLHEP::cm;
         G4double y = activeParams.getLength("y") * CLHEP::cm;
         G4double z = activeParams.getLength("z_claw") * CLHEP::cm;
         /*G4double r = 0;
         if (x == 0 && y == 0)
           r = activeParams.getLength("r_claw") * CLHEP::cm;
         else
         r = sqrt(x * x + y * y);*/
         //G4double phi = activeParams.getAngle("Phi");
         //G4double thetaZ = activeParams.getAngle("ThetaZ");
         G4double dx_board = activeParams.getLength("dx_board") / 2.*CLHEP::cm;
         G4double dy_board = activeParams.getLength("dy_board") / 2.*CLHEP::cm;
         G4double dz_board = activeParams.getLength("dz_board") / 2.*CLHEP::cm;
         G4double dz_Culayer =  activeParams.getLength("dz_Culayer") / 2.*CLHEP::cm;
         G4double dx_scint = activeParams.getLength("dx_scint") / 2.*CLHEP::cm;
         G4double dy_scint = activeParams.getLength("dy_scint") / 2.*CLHEP::cm;
         G4double dz_scint = activeParams.getLength("dz_scint") / 2.*CLHEP::cm;
         G4double Al_width = activeParams.getLength("Al_width") / 2.*CLHEP::cm;
         G4double dx_Al = dx_scint + Al_width;
         G4double dy_Al = dy_scint + Al_width;
         G4double dz_Al = dz_scint + Al_width;
         G4double dx_air = dx_Al;
         G4double dy_air = dy_Al * Nscint;
         G4double dz_air = dz_board + 2. * dz_Culayer + dz_Al;
         //cout << " dx sol 1 " << dx_air << " sol 2 " << dx_board << endl;
         //cout << " dy sol 1 " << dy_air << " sol 2 " << dy_board << endl;

         //create air volume engloging ladder + scintillator + Al foil
         G4Box* s_air = new G4Box("s_air", dx_air, dy_air, dz_air);
         G4LogicalVolume* l_air = new G4LogicalVolume(s_air, geometry::Materials::get("G4_AIR"), "l_air");


         //create claw G10 board
         G4Box* s_board = new G4Box("s_board", dx_board, dy_board, dz_board);
         G4LogicalVolume* l_board = new G4LogicalVolume(s_board, geometry::Materials::get("G10"), "l_board");
         l_board->SetVisAttributes(green);

         G4double r_board = dz_air - 2. * dz_Culayer - dz_board;

         //create copper layer on each side of the G10 board
         G4Box* s_Culayer = new G4Box("s_Culayer", dx_board, dy_board, dz_Culayer);
         G4LogicalVolume* l_Culayer = new G4LogicalVolume(s_Culayer, geometry::Materials::get("Cu"), "l_Culayer");
         l_Culayer->SetVisAttributes(coppercolor);

         G4double r_Culayer_bot = r_board - dz_board - dz_Culayer;
         G4double r_Culayer_top = r_board + dz_board + dz_Culayer;
         //cout << " cu bot sol 1 " << r_Culayer_bot << " sol 2 " << -dz_air + dz_Culayer<< endl;

         //create scintillator and Al foil around it
         G4VSolid* s_scint = new G4Box("s_scint", dx_scint, dy_scint, dz_scint);
         G4VSolid* s_Al = new G4Box("s_Al", dx_Al, dy_Al, dz_Al);
         s_Al = new G4SubtractionSolid("s_Al", s_Al, s_scint, 0, G4ThreeVector(0, 0, 0));
         G4LogicalVolume* l_Al = new G4LogicalVolume(s_Al, geometry::Materials::get("Al"), "l_Al");
         l_Al->SetVisAttributes(gray);

         G4LogicalVolume* l_scint = new G4LogicalVolume(s_scint, geometry::Materials::get("G4_POLYSTYRENE"), "l_scint", 0, m_sensitive);
         l_scint->SetVisAttributes(red);
         //Lets limit the Geant4 stepsize inside the volume
         l_scint->SetUserLimits(new G4UserLimits(stepSize));

         G4double r_Al = r_Culayer_bot - dz_Culayer - dz_Al;
         //cout << " dz_air " << dz_air << " x2 " << 2. * dz_air << " r_Al " << r_Al << " tot " << r_Al + dz_Al << " sol3 " << r_Culayer_top + dz_Culayer + dz_Al << endl;
         double z_0 = -dy_air + dy_Al;

         //for(int i = 0; i < dimz; i++) {

         //G4Transform3D transform = G4RotateZ3D(-M_PI / 2 + phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]);
         //G4Transform3D transform = G4RotateZ3D(-M_PI / 2 + phi) * G4Translate3D(0, r, z) * G4RotateX3D(-M_PI / 2 - thetaZ);
         G4Transform3D transform = G4Translate3D(x, y, z);
         new G4PVPlacement(transform, l_air, "p_air", &topVolume, false, 1);
         new G4PVPlacement(0, G4ThreeVector(0, 0, r_board), l_board, "p_board", l_air, false, 1);
         new G4PVPlacement(0, G4ThreeVector(0, 0, r_Culayer_bot), l_Culayer, "p_Culayer_bot", l_air, false, 1);
         new G4PVPlacement(0, G4ThreeVector(0, 0, r_Culayer_top), l_Culayer, "p_Culayer_top", l_air, false, 1);

         for (int j = 0; j < Nscint; j++) {
           double i_z = z_0 + j * 2. * dy_Al;

           new G4PVPlacement(0, G4ThreeVector(0, i_z, r_Al), l_Al, "p_Al", l_air, false, 1);
           new G4PVPlacement(0, G4ThreeVector(0, i_z, r_Al), l_scint, "p_scint", l_air, false, detID);
           B2INFO("Phase1-CLAWS-" << detID << " placed at: " << transform.getTranslation() << " mm");
           detID++;
           //}
         }
       }
     }

◆ createFromDB()

void createFromDB	(	const std::string &	name,
		G4LogicalVolume &	topVolume,
		GeometryTypes	type
	)

virtualinherited

Function to create the geometry from the Database.

Parameters

name	name of the component in the database, could be used to disambiguate multiple components created with the same creator
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoBKLMCreator, GeoPXDCreator, GeoSVDCreator, GeoTOPCreator, GeoSTRCreator, GeoHeavyMetalShieldCreator, GeoCDCCreator, GeoCOILCreator, GeoVXDServiceCreator, GeoKLMCreator, GeoECLCreator, and GeoMagneticField.

Definition at line 27 of file CreatorBase.cc.

◆ createPayloads()

void createPayloads	(	const GearDir &	content,
		const IntervalOfValidity &	iov
	)

virtualinherited

Function to create the geometry database.

This function should be implemented to convert Gearbox parameters to one ore more database payloads

Parameters

content	GearDir pointing to the parameters which should be used for construction
iov	interval of validity to use when generating payloads

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoTOPCreator, GeoCDCCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoMagneticField, GeoBKLMCreator, GeoKLMCreator, GeoECLCreator, GeoPXDCreator, GeoSVDCreator, GeoSTRCreator, GeoCOILCreator, GeoHeavyMetalShieldCreator, and GeoVXDServiceCreator.

Definition at line 34 of file CreatorBase.cc.

The documentation for this class was generated from the following files:

beast/claw/geometry/include/ClawCreator.h
beast/claw/geometry/src/ClawCreator.cc
