Ph1bpipeCreator Class Reference

The creator for the PH1BPIPE geometry. More...

#include <Ph1bpipeCreator.h>

Inheritance diagram for Ph1bpipeCreator:
Inheritance graph
[legend]

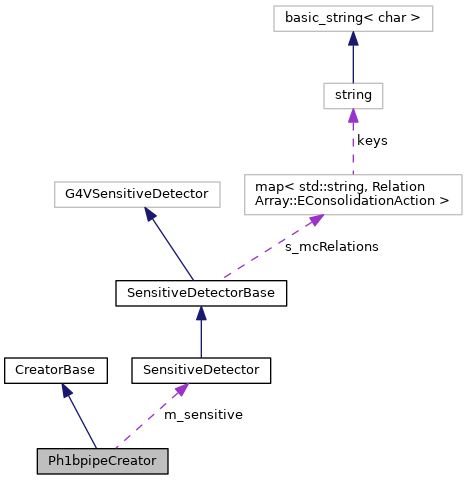

Collaboration diagram for Ph1bpipeCreator:
Collaboration graph
[legend]

Public Member Functions

virtual void create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type)
 Function to actually create the geometry, has to be overridden by derived classes. More...

 BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
 Exception that will be thrown in createFromDB if member is not yet implemented by creator.

virtual void createFromDB (const std::string &name, G4LogicalVolume &topVolume, GeometryTypes type)
 Function to create the geometry from the Database. More...

virtual void createPayloads (const GearDir &content, const IntervalOfValidity &iov)
 Function to create the geometry database. More...


Protected Attributes

SensitiveDetector * m_sensitive
 SensitiveDetector phase 1 beam pipe.


Detailed Description

The creator for the PH1BPIPE geometry.

Definition at line 29 of file Ph1bpipeCreator.h.

Member Function Documentation

◆ create()

void create ( const GearDir &  content,
G4LogicalVolume &  topVolume,
geometry::GeometryTypes  type
)
virtual

Function to actually create the geometry, has to be overridden by derived classes.

Parameters
contentGearDir pointing to the parameters which should be used for construction
topVolumeTop volume in which the geometry has to be placed
typeType of geometry to be build

double stepSize = content.getLength("stepSize", 5*CLHEP::um);

Implements CreatorBase.

Definition at line 63 of file Ph1bpipeCreator.cc.

64  {
65  //Beam pipes 6 pillars
66  double pillar_height = 61.9 * CLHEP::cm / 2.;
67  double pillar_length = 3. * CLHEP::cm;
68  double pillar_width = pillar_length;
69  G4VSolid* s_bppillar = new G4Box("s_bppillar", pillar_length, pillar_height, pillar_width);
70  G4LogicalVolume* l_bppillar = new G4LogicalVolume(s_bppillar, geometry::Materials::get("Al") , "l_bppillar", 0, 0);
71  G4VisAttributes* white = new G4VisAttributes(G4Colour(1, 1, 1));
72  white->SetForceAuxEdgeVisible(true);
73  l_bppillar->SetVisAttributes(white);
74  double y_offset = -76. * CLHEP::cm + pillar_height;
75  G4ThreeVector Pillarpos = G4ThreeVector(0, y_offset, -154.0 * CLHEP::cm);
76  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar1", &topVolume, false, 1);
77  Pillarpos = G4ThreeVector(0, y_offset, 154.0 * CLHEP::cm);
78  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar2", &topVolume, false, 1);
79  Pillarpos = G4ThreeVector(11.4175236299 * CLHEP::cm, y_offset, -227.758203051 * CLHEP::cm);
80  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar3", &topVolume, false, 1);
81  Pillarpos = G4ThreeVector(-10.4976636985 * CLHEP::cm, y_offset, 227.758203051 * CLHEP::cm);
82  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar4", &topVolume, false, 1);
83  Pillarpos = G4ThreeVector(-8.71250756316 * CLHEP::cm , y_offset, -209.819190072 * CLHEP::cm);
84  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar5", &topVolume, false, 1);
85  Pillarpos = G4ThreeVector(8.71248973173 * CLHEP::cm, y_offset, 209.819190072 * CLHEP::cm);
86  new G4PVPlacement(0, Pillarpos, l_bppillar, "p_bppilar6", &topVolume, false, 1);
87
88  //Central beam pipe reinforcement
89  double x_reih = 2. * CLHEP::cm / 2.;
90  double y_reih = 2.3 * CLHEP::cm / 2.;
91  double z_reih = 48. * CLHEP::cm / 2.;
92  G4VSolid* s_reih = new G4Box("s_reih", x_reih, y_reih, z_reih);
93  G4LogicalVolume* l_reih = new G4LogicalVolume(s_reih, geometry::Materials::get("Al") , "l_reih", 0, 0);
94  l_reih->SetVisAttributes(white);
95  G4ThreeVector Reihpos = G4ThreeVector(72.8780869619 * CLHEP::mm, 0, 1.35841468498 * CLHEP::mm);
96  new G4PVPlacement(0, Reihpos, l_reih, "p_Reih1", &topVolume, false, 1);
97  Reihpos = G4ThreeVector(-72.8780869619 * CLHEP::mm, 0, 1.35841468498 * CLHEP::mm);
98  new G4PVPlacement(0, Reihpos, l_reih, "p_Reih2", &topVolume, false, 1);
99
100  double x_reiv = 2. * CLHEP::cm / 2.;
101  double y_reiv = 5.2 * CLHEP::cm / 2.;
102  double z_reiv = 140. * CLHEP::cm / 2.;
103  G4VSolid* s_reiv = new G4Box("s_reiv", x_reiv, y_reiv, z_reiv);
104  G4LogicalVolume* l_reiv = new G4LogicalVolume(s_reiv, geometry::Materials::get("Al") , "l_reiv", 0, 0);
105  l_reiv->SetVisAttributes(white);
106  //G4ThreeVector Reivpos = G4ThreeVector(0, -77.5018052955 * CLHEP::mm, 0);
107  G4ThreeVector Reivpos = G4ThreeVector(0, -83.0 * CLHEP::mm, 0);
108  new G4PVPlacement(0, Reivpos, l_reiv, "p_Reiv1", &topVolume, false, 1);
109  //Reivpos = G4ThreeVector(0, 77.4981947045 * CLHEP::mm,0 );
110  Reivpos = G4ThreeVector(0, 83.0 * CLHEP::mm, 0);
111  new G4PVPlacement(0, Reivpos, l_reiv, "p_Reiv2", &topVolume, false, 1);
112
113  /*
114  Central beampipe +- pipe_hz = 20cm
115  Flanges of centra BP endcap_hz = 2.2cm thick
116  Distance of the end of xshape from IP xpipe_hz1 = 200cm
117  Length of far beampipe backward xpipePOS_hz = 168.1cm
118  Length of far beampipe backward xpipeMIN_hz = 141.3cm
119  */
120
121  //lets get the stepsize parameter with a default value of 5 µm
122  double stepSize = content.getLength("stepSize", 5 * CLHEP::um);
123 // flag_limitStep = true for SynRad simulation
124  double stepMax = 50. *CLHEP::mm;
125  //cout << " stepMax = " << stepMax << endl;
126  bool flag_limitStep = false;
127 // bool flag_limitStep = true;
128
130  double SafetyLength = 0.1 * CLHEP ::cm;
131
132  double xpipe_hz1 = content.getLength("xpipe_hz1") * CLHEP::cm;
133  double pipe_hz = content.getLength("pipe_hz") * CLHEP::cm;
134  double pipe_outerRadius_x = content.getLength("pipe_outerRadius_x") * CLHEP::cm;
135  double pipe_outerRadius_y = content.getLength("pipe_outerRadius_y") * CLHEP::cm;
136  double pipe_innerRadius_x = content.getLength("pipe_innerRadius_x") * CLHEP::cm;
137  double pipe_innerRadius_y = content.getLength("pipe_innerRadius_y") * CLHEP::cm;
138  double xpipe_innerRadius = content.getLength("xpipe_innerRadius") * CLHEP::cm;
139  double xpipe_outerRadius = content.getLength("xpipe_outerRadius") * CLHEP::cm;
140  double pipe_innerRadiusTiN_x = content.getLength("pipe_innerRadiusTiN_x") * CLHEP::cm;
141  double pipe_innerRadiusTiN_y = content.getLength("pipe_innerRadiusTiN_y") * CLHEP::cm;
142  double xpipe_innerRadiusTiN = content.getLength("xpipe_innerRadiusTiN") * CLHEP::cm;
143  double endcap_hz = content.getLength("endcap_hz") * CLHEP::cm;
144  double endcap_outerRadius = content.getLength("endcap_outerRadius") * CLHEP::cm;
145  double xpipePOS_hz = content.getLength("xpipePOS_hz") * CLHEP::cm;
146  double xpipeMIN_hz = content.getLength("xpipeMIN_hz") * CLHEP::cm;
147
148  //create ph1bpipe volume
149  double startAngle = 0.*CLHEP::deg;
150  double spanningAngle = 360.*CLHEP::deg;
151  double A1 = 0.0415 * CLHEP::rad;
152 // //cout << " A1 = " << A1 << endl;
153  double OBtemp = sqrt(pow(xpipe_hz1, 2) + pow(xpipe_innerRadius / 2., 2));
154  // cout << " OBtemp = " << OBtemp << endl;
155  double BCtemp = OBtemp * sin(A1);
156  // cout << " BCtemp = " << BCtemp << endl;
157  double ABtemp = sqrt(pow(pipe_hz, 2) + pow(OBtemp, 2) - 2 * pipe_hz * OBtemp * cos(A1));
158  // cout << " ABtemp = " << ABtemp << endl;
159  double A2 = asin(BCtemp / ABtemp) * CLHEP::rad;
160  // cout << " A2 = " << A2 << endl;
161  double xpipe_hz = ABtemp - 2 * endcap_hz / cos(A2); // Length of xshape pipe
162  // cout << " xpipe_hz = " << xpipe_hz << endl;
163  double xcont2 = BCtemp + xpipe_outerRadius; // +Z size of AluCont_f trapezoid
164  double xcont1 = xpipe_outerRadius + 2 * endcap_hz * tan(A2); //-Z size of AluCont_f trapezoid
165  double xcont3 = xcont2 + xpipePOS_hz * sin(A1); // +Z size of AluCont_fp trapezoid
166  double xcont4 = xcont3 - 2 * xpipe_outerRadius; // +Z size of AluCont_fps trapezoid
167  double xcont5 = xcont2 - 2 * xpipe_outerRadius; // -Z size of AluCont_fps trapezoid
168  double xcont3M = xcont2 + xpipeMIN_hz * sin(A1); // +Z size of AluCont_bp trapezoid
169  double xcont4M = xcont3M - 2 * xpipe_outerRadius; // +Z size of AluCont_bps trapezoid
170  // cout << " xcont2 = " << xcont2 << " xcont1 = " << xcont1 << endl;
171  // cout << " xcont3 = " << xcont3 << " xcont4 = " << xcont4 << " xcont5 = " << xcont5 << endl;
172  // cout << " xcont3M = " << xcont3M << " xcont4M = " << xcont4M << endl;
173  double dxtr = 0.5 * (ABtemp + 2 * endcap_hz / cos(A2)) * sin(2 * A2);
174  double dztr = (ABtemp + 2 * endcap_hz / cos(A2)) * sin(A2) * sin(A2);
175  // cout << "dxtr = " << dxtr << " dztr = " << dztr << endl;
176
177  string matPipe = content.getString("MaterialPipe");
178  string matTiN = content.getString("MaterialTiN");
179  string vacPipe = content.getString("MatVacuum");
180  G4double tubinR = 0.0 * CLHEP::cm;
181
182  G4VSolid* s_PH1BPIPE = new G4EllipticalTube("s_PH1BPIPE",
183  pipe_outerRadius_x,
184  pipe_outerRadius_y,
185  pipe_hz);
186  G4LogicalVolume* l_PH1BPIPE = new G4LogicalVolume(s_PH1BPIPE, geometry::Materials::get(matPipe), "l_PH1BPIPE", 0, 0);
187  //Lets limit the Geant4 stepsize inside the volume
188  l_PH1BPIPE->SetUserLimits(new G4UserLimits(stepSize));
189  //position central ph1bpipe volume
190  G4ThreeVector PH1BPIPEpos = G4ThreeVector(
191  content.getLength("x_ph1bpipe") * CLHEP::cm,
192  content.getLength("y_ph1bpipe") * CLHEP::cm,
193  content.getLength("z_ph1bpipe") * CLHEP::cm
194  );
195  new G4PVPlacement(0, PH1BPIPEpos, l_PH1BPIPE, "p_PH1BPIPE", &topVolume, false, 0);
196
197  G4VSolid* s_PH1BPIPETiN = new G4EllipticalTube("s_PH1BPIPETiN",
198  pipe_innerRadius_x,
199  pipe_innerRadius_y,
200  pipe_hz);
201  G4LogicalVolume* l_PH1BPIPETiN = new G4LogicalVolume(s_PH1BPIPETiN, geometry::Materials::get(matTiN), "l_PH1BPIPETiN", 0, 0);
202  new G4PVPlacement(0, PH1BPIPEpos, l_PH1BPIPETiN, "p_PH1BPIPETiN", l_PH1BPIPE , false, 0);
203
204  G4VSolid* s_PH1BPIPEV = new G4EllipticalTube("s_PH1BPIPEV",
205  pipe_innerRadiusTiN_x,
206  pipe_innerRadiusTiN_y,
207  pipe_hz);
208  G4VSolid* s_PH1BPIPEVac = new G4IntersectionSolid("s_PH1BPIPEVac", s_PH1BPIPE, s_PH1BPIPEV);
209  G4LogicalVolume* l_PH1BPIPEVac = new G4LogicalVolume(s_PH1BPIPEVac, geometry::Materials::get(vacPipe), "l_PH1BPIPEVac", 0, 0);
210  if (flag_limitStep) l_PH1BPIPEVac->SetUserLimits(new G4UserLimits(stepMax));
211  new G4PVPlacement(0, PH1BPIPEpos, l_PH1BPIPEVac, "p_PH1BPIPEVac", l_PH1BPIPETiN , false, 0);
212
213  //create central endcaps
214  G4VSolid* s_PH1BPIPEendcap = new G4Tubs("s_PH1BPIPEendcap", 0.,
215  endcap_outerRadius,
216  endcap_hz,
217  startAngle, spanningAngle);
218  G4LogicalVolume* l_PH1BPIPEendcapTop = new G4LogicalVolume(s_PH1BPIPEendcap, geometry::Materials::get(matPipe),
219  "l_PH1BPIPEendcapTop", 0, 0);
220  G4LogicalVolume* l_PH1BPIPEendcapBot = new G4LogicalVolume(s_PH1BPIPEendcap, geometry::Materials::get(matPipe),
221  "l_PH1BPIPEendcapBot", 0, 0);
222  //position central endcaps
223  G4ThreeVector PH1BPIPEendcapposTop = G4ThreeVector(
224  content.getLength("x_ph1bpipe") * CLHEP::cm,
225  content.getLength("y_ph1bpipe") * CLHEP::cm,
226  content.getLength("z_ph1bpipe") * CLHEP::cm + pipe_hz + endcap_hz
227  );
228
229  G4ThreeVector PH1BPIPEendcapposBot = G4ThreeVector(
230  content.getLength("x_ph1bpipe") * CLHEP::cm,
231  content.getLength("y_ph1bpipe") * CLHEP::cm,
232  content.getLength("z_ph1bpipe") * CLHEP::cm - pipe_hz - endcap_hz
233  );
234  new G4PVPlacement(0, PH1BPIPEendcapposTop, l_PH1BPIPEendcapTop, "p_PH1BPIPEendcapTop", &topVolume, false, 0);
235  new G4PVPlacement(0, PH1BPIPEendcapposBot, l_PH1BPIPEendcapBot, "p_PH1BPIPEendcapBot", &topVolume, false, 0);
236
237  G4VSolid* s_PH1BPIPEendcapTiN = new G4EllipticalTube("s_PH1BPIPEendcapTiN",
238  pipe_innerRadius_x,
239  pipe_innerRadius_y,
240  endcap_hz);
241  G4LogicalVolume* l_PH1BPIPEendcapTiNTop = new G4LogicalVolume(s_PH1BPIPEendcapTiN, geometry::Materials::get(matTiN),
242  "l_PH1BPIPEendcapTiNTop", 0, 0);
243  G4LogicalVolume* l_PH1BPIPEendcapTiNBot = new G4LogicalVolume(s_PH1BPIPEendcapTiN, geometry::Materials::get(matTiN),
244  "l_PH1BPIPEendcapTiNBot", 0, 0);
245  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_PH1BPIPEendcapTiNTop, "p_PH1BPIPEendcapTiNTop", l_PH1BPIPEendcapTop , false, 0);
246  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_PH1BPIPEendcapTiNBot, "p_PH1BPIPEendcapTiNBot", l_PH1BPIPEendcapBot , false, 0);
247
248  G4VSolid* s_PH1BPIPEendcapV = new G4EllipticalTube("s_PH1BPIPEendcapV",
249  pipe_innerRadiusTiN_x,
250  pipe_innerRadiusTiN_y,
251  endcap_hz);
252  G4VSolid* s_PH1BPIPEendcapVac = new G4IntersectionSolid("s_PH1BPIPEendcapVac", s_PH1BPIPEendcap , s_PH1BPIPEendcapV);
253  G4LogicalVolume* l_PH1BPIPEendcapVac = new G4LogicalVolume(s_PH1BPIPEendcapVac, geometry::Materials::get(vacPipe),
254  "l_PH1BPIPEendcapVac", 0, 0);
255  if (flag_limitStep) l_PH1BPIPEendcapVac->SetUserLimits(new G4UserLimits(stepMax));
256  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_PH1BPIPEendcapVac, "p_PH1BPIPEendcapVacTop", l_PH1BPIPEendcapTiNTop, false, 0);
257  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_PH1BPIPEendcapVac, "p_PH1BPIPEendcapVacBot", l_PH1BPIPEendcapTiNBot, false, 0);
258
259  //create x shape tubes forward
260  // Alu trapezoid containing x-shape tube
261  G4VSolid* AluCont_f = new G4Trd("AluCont_f", xcont1, xcont2, xcont1, xcont1, xpipe_hz / 2.0 * cos(A2));
262  G4LogicalVolume* logi_AluCont_f = new G4LogicalVolume(AluCont_f, geometry::Materials::get(matPipe), "logi_AluCont_f", 0 , 0);
263  new G4PVPlacement(0, G4ThreeVector(0, 0, pipe_hz + endcap_hz * 2.0 + 0.5 * xpipe_hz * cos(A2)),
264  logi_AluCont_f, "phys_AluCont_f", &topVolume, false, 0);
265 // //cout << " AluCont_f z pos = " << pipe_hz + endcap_hz*2.0 + xpipe_hz*cos(A2)/2. << endl;
266 // //cout << " AluCont_f zmax pos = " << pipe_hz + endcap_hz*2.0 + xpipe_hz*cos(A2) << endl;
267
268  // create x part
269  G4VSolid* s_Xshapef_11 = new G4Tubs("s_Xshapef_11",
270  tubinR,
271  xpipe_innerRadius,
272  xpipe_hz,
273  startAngle, spanningAngle);
274  G4VSolid* s_Xshapef_12 = new G4Tubs("s_Xshapef_12",
275  tubinR,
276  xpipe_innerRadius * 2.0,
277  xpipe_hz / 2.0 ,
278  startAngle, spanningAngle);
279  G4VSolid* s_Xshapef_21 = new G4Tubs("s_Xshapef_21",
280  tubinR,
281  xpipe_innerRadiusTiN,
282  xpipe_hz,
283  startAngle, spanningAngle);
284  G4VSolid* s_Xshapef_22 = new G4Tubs("s_Xshapef_22",
285  tubinR,
286  xpipe_innerRadiusTiN * 2.0,
287  xpipe_hz / 2.0 ,
288  startAngle, spanningAngle);
289  //create TiN layer on
290
291  G4VSolid* s_XshapefTiN_11 = new G4Tubs("s_XshapefTiN_11",
292  tubinR,
293  xpipe_innerRadius,
294  xpipe_hz,
295  startAngle, spanningAngle);
296  G4VSolid* s_XshapefTiN_12 = new G4Tubs("s_XshapefTiN_12",
297  tubinR,
298  xpipe_innerRadius * 2.0,
299  xpipe_hz / 2.0 ,
300  startAngle, spanningAngle);
301  G4VSolid* s_XshapefTiN_21 = new G4Tubs("s_XshapefTiN_21",
302  tubinR,
303  xpipe_innerRadius,
304  xpipe_hz,
305  startAngle, spanningAngle);
306  G4VSolid* s_XshapefTiN_22 = new G4Tubs("s_XshapefTiN_22",
307  tubinR,
308  xpipe_innerRadius * 2.0,
309  xpipe_hz / 2.0 ,
310  startAngle, spanningAngle);
311  //Slanted tube1
312  G4Transform3D transform_sXshapef_12 = G4Translate3D(0., 0., 0.);
313  transform_sXshapef_12 = transform_sXshapef_12 * G4RotateY3D(-A2);
314  G4IntersectionSolid* Xshapef1 = new G4IntersectionSolid("Xshapef1", s_Xshapef_11, s_Xshapef_12, transform_sXshapef_12);
315  //Slanted tube2
316  G4Transform3D transform_sXshapef_22 = G4Translate3D(0., 0., 0.);
317  transform_sXshapef_22 = transform_sXshapef_22 * G4RotateY3D(A2);
318  G4IntersectionSolid* Xshapef2 = new G4IntersectionSolid("Xshapef2", s_Xshapef_21, s_Xshapef_22, transform_sXshapef_22);
319  //Slanted tube1TiN
320  G4Transform3D transform_sXshapefTiN_12 = G4Translate3D(0., 0., 0.);
321  transform_sXshapefTiN_12 = transform_sXshapefTiN_12 * G4RotateY3D(-A2);
322  G4IntersectionSolid* XshapefTiN1 = new G4IntersectionSolid("XshapefTiN1", s_XshapefTiN_11, s_XshapefTiN_12,
323  transform_sXshapefTiN_12);
324  //Slanted tube2TiN
325  G4Transform3D transform_sXshapefTiN_22 = G4Translate3D(0., 0., 0.);
326  transform_sXshapefTiN_22 = transform_sXshapefTiN_22 * G4RotateY3D(A2);
327  G4IntersectionSolid* XshapefTiN2 = new G4IntersectionSolid("XshapefTiN2", s_XshapefTiN_21, s_XshapefTiN_22,
328  transform_sXshapefTiN_22);
329
330  // (sXshapeTiN2 + sXshapeTiN1)
331  G4Transform3D transform_XshapefTiN1 = G4Translate3D(dxtr, 0. , -dztr);
332  transform_XshapefTiN1 = transform_XshapefTiN1 * G4RotateY3D(2.*A2);
333  G4UnionSolid* XshapeTiNForwx = new G4UnionSolid("XshapeTiNForwx", XshapefTiN2 , XshapefTiN1 , transform_XshapefTiN1);
334  // Place XshapeTiNForwx into logi_AluCont_f
335  G4RotationMatrix* yRot = new G4RotationMatrix;
336  yRot->rotateY(A2);
337  G4ThreeVector transform_XshapeTiNForwx(-dxtr / 2., 0., 0.);
338  G4IntersectionSolid* XshapeTiNForw = new G4IntersectionSolid("XshapeTiNForw", AluCont_f, XshapeTiNForwx, yRot,
339  transform_XshapeTiNForwx);
340  G4LogicalVolume* l_XshapeTiNForw = new G4LogicalVolume(XshapeTiNForw, geometry::Materials::get(matTiN), "l_XshapeTiNForw", 0 , 0);
341  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_XshapeTiNForw, "p_XshapeTiNForw", logi_AluCont_f , false, 0);
342
343  // sXshape2 + sXshape1
344  G4Transform3D transform_Xshapef1 = G4Translate3D(dxtr , 0. , -dztr);
345  transform_Xshapef1 = transform_Xshapef1 * G4RotateY3D(2.*A2);
346  G4UnionSolid* XshapeForwx = new G4UnionSolid("XshapeForwx", Xshapef2 , Xshapef1 , transform_Xshapef1);
347  // Place XshapeForwx into l_XshapeTiNForw
348  G4Transform3D transform_XshapeForwx = G4Translate3D(-dxtr / 2., 0., 0.);
349  transform_XshapeForwx = transform_XshapeForwx * G4RotateY3D(-A2);
350  G4IntersectionSolid* XshapeForw = new G4IntersectionSolid("XshapeForw", AluCont_f, XshapeForwx, transform_XshapeForwx);
351  G4LogicalVolume* l_XshapeForw = new G4LogicalVolume(XshapeForw, geometry::Materials::get(vacPipe), "l_XshapeForw", 0 , 0);
352  if (flag_limitStep) l_XshapeForw ->SetUserLimits(new G4UserLimits(stepMax));
353  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_XshapeForw, "p_XshapeForw", l_XshapeTiNForw , false, 0);
354
355  //create far forward parts
356  // Alu trapezoid containing far parts
357  G4VSolid* AluCont_fpO = new G4Trd("AluCont_fpO", xcont2, xcont3, xcont1, xcont1, xpipePOS_hz / 2.0 * cos(A1));
358  G4VSolid* AluCont_fps = new G4Trd("AluCont_fps", xcont5, xcont4, xcont1, xcont1, xpipePOS_hz / 2.0 * cos(A1));
359  G4Transform3D transform_AluCont_fps = G4Translate3D(0., 0., 0.);
360  G4SubtractionSolid* AluCont_fp = new G4SubtractionSolid("AluCont_fp", AluCont_fpO, AluCont_fps, transform_AluCont_fps);
361  G4LogicalVolume* logi_AluCont_fp = new G4LogicalVolume(AluCont_fp, geometry::Materials::get(matPipe), "logi_AluCont_fp", 0 , 0);
362  new G4PVPlacement(0, G4ThreeVector(0, 0, pipe_hz + endcap_hz * 2.0 + xpipe_hz * cos(A2) + xpipePOS_hz / 2.0 * cos(A1)),
363  logi_AluCont_fp, "phys_AluCont_fp", &topVolume, false, 0);
364  //HER far forward part
365  //slanted tubes Vacuum
366  G4VSolid* s_XshapefPOS_11 = new G4Tubs("s_XshapefPOS11",
367  tubinR,
368  xpipe_innerRadius,
369  xpipePOS_hz,
370  startAngle, spanningAngle);
371  G4VSolid* s_XshapefPOS_12 = new G4Tubs("s_XshapefPOS12",
372  tubinR,
373  xpipe_innerRadius * 2,
374  xpipePOS_hz / 2. - 0.7568202457 * SafetyLength,
375  startAngle, spanningAngle);
376  G4Transform3D transform_sXshapefPOS_12 = G4Translate3D(0., 0., 0.);
377  transform_sXshapefPOS_12 = transform_sXshapefPOS_12 * G4RotateY3D(-A1);
378  G4IntersectionSolid* XshapefPOS1 = new G4IntersectionSolid("XshapefPOS1", s_XshapefPOS_11, s_XshapefPOS_12,
379  transform_sXshapefPOS_12);
380  //put HER vacuum part in AluCont_fp
381  G4LogicalVolume* l_XshapefPOS1 = new G4LogicalVolume(XshapefPOS1, geometry::Materials::get(vacPipe), "l_XshapefPOS1", 0 , 0);
382  if (flag_limitStep) l_XshapefPOS1 ->SetUserLimits(new G4UserLimits(stepMax));
383  G4RotationMatrix* yRotP = new G4RotationMatrix;
384  yRotP->rotateY(-A1);
385  new G4PVPlacement(yRotP, G4ThreeVector(2 * endcap_hz * tan(A2) + xpipe_hz * sin(A2) + xpipePOS_hz / 2.*sin(A1), 0., 0.),
386  l_XshapefPOS1 , "p_XshapefPOS1", logi_AluCont_fp, false, 0);
387  //LER far forward part
388  //slanted tubes TiN
389  G4VSolid* s_XshapefPOS_21 = new G4Tubs("s_XshapefPOS21",
390  tubinR,
391  xpipe_innerRadius,
392  xpipePOS_hz,
393  startAngle, spanningAngle);
394  G4VSolid* s_XshapefPOS_22 = new G4Tubs("s_XshapefPOS22",
395  tubinR,
396  xpipe_innerRadius * 2,
397  xpipePOS_hz / 2. - 0.7568202457 * SafetyLength,
398  startAngle, spanningAngle);
399  G4Transform3D transform_sXshapefPOS_22 = G4Translate3D(0., 0., 0.);
400  transform_sXshapefPOS_22 = transform_sXshapefPOS_22 * G4RotateY3D(A1);
401  G4IntersectionSolid* XshapefPOS2 = new G4IntersectionSolid("XshapefPOS2", s_XshapefPOS_21, s_XshapefPOS_22,
402  transform_sXshapefPOS_22);
403  //put HER TiN part in AluCont_fp
404  G4LogicalVolume* l_XshapefPOS2 = new G4LogicalVolume(XshapefPOS2, geometry::Materials::get(matTiN), "l_XshapefPOS2", 0 , 0);
405  G4RotationMatrix* yRotM = new G4RotationMatrix;
406  yRotM->rotateY(A1);
407  new G4PVPlacement(yRotM, G4ThreeVector(-(2 * endcap_hz * tan(A2) + xpipe_hz * sin(A2) + xpipePOS_hz / 2.*sin(A1)), 0., 0.),
408  l_XshapefPOS2 , "p_XshapefPOS2", logi_AluCont_fp, false, 0);
409  //slanted tubes Vacuum
410  G4VSolid* s_XshapefPOS_31 = new G4Tubs("s_XshapefPOS31",
411  tubinR,
412  xpipe_innerRadiusTiN,
413  xpipePOS_hz,
414  startAngle, spanningAngle);
415  G4VSolid* s_XshapefPOS_32 = new G4Tubs("s_XshapefPOS32",
416  tubinR,
417  xpipe_innerRadiusTiN * 2,
418  xpipePOS_hz / 2. - 0.7568202457 * SafetyLength,
419  startAngle, spanningAngle);
420  G4Transform3D transform_sXshapefPOS_32 = G4Translate3D(0., 0., 0.);
421  transform_sXshapefPOS_32 = transform_sXshapefPOS_32 * G4RotateY3D(A1);
422  G4IntersectionSolid* XshapefPOS3 = new G4IntersectionSolid("XshapefPOS3", s_XshapefPOS_31, s_XshapefPOS_32,
423  transform_sXshapefPOS_32);
424  //put HER vacuum part into l_XshapefPOS2
425  G4LogicalVolume* l_XshapefPOS3 = new G4LogicalVolume(XshapefPOS3, geometry::Materials::get(vacPipe), "l_XshapefPOS3", 0 , 0);
426  if (flag_limitStep) l_XshapefPOS3 ->SetUserLimits(new G4UserLimits(stepMax));
427  new G4PVPlacement(0, G4ThreeVector(0. , 0., 0.), l_XshapefPOS3 , "p_XshapefPOS3", l_XshapefPOS2, false, 0);
428
429  // create x-shape tubes backward
430  // Alu trapezoid containing x-shape tube
431  G4VSolid* AluCont_b = new G4Trd("AluCont_b", xcont2, xcont1, xcont1, xcont1, xpipe_hz / 2.0 * cos(A2));
432  G4LogicalVolume* logi_AluCont_b = new G4LogicalVolume(AluCont_b, geometry::Materials::get(matPipe), "logi_AluCont_b", 0 , 0);
433  new G4PVPlacement(0, G4ThreeVector(0, 0, -pipe_hz - endcap_hz * 2.0 - xpipe_hz * cos(A2) / 2.), logi_AluCont_b, "phys_AluCont_b",
434  &topVolume, false, 1);
435  //cout << " logi_AluCont_b z = " << -pipe_hz - endcap_hz*2.0 - xpipe_hz*cos(A2)/2. << endl;
436  //cout << " logi_AluCont_b zmax = " << -pipe_hz - endcap_hz*2.0 - xpipe_hz*cos(A2) << endl;
437
438  // create x part
439  G4VSolid* s_Xshapeb_11 = new G4Tubs("s_Xshapeb_11",
440  tubinR,
441  xpipe_innerRadiusTiN,
442  xpipe_hz,
443  startAngle, spanningAngle);
444  G4VSolid* s_Xshapeb_12 = new G4Tubs("s_Xshapeb_12",
445  tubinR,
446  xpipe_innerRadiusTiN * 2.0,
447  xpipe_hz / 2.0,
448  startAngle, spanningAngle);
449  G4VSolid* s_Xshapeb_21 = new G4Tubs("s_Xshapeb_21",
450  tubinR,
451  xpipe_innerRadius,
452  xpipe_hz,
453  startAngle, spanningAngle);
454  G4VSolid* s_Xshapeb_22 = new G4Tubs("s_Xshapeb_22",
455  tubinR,
456  xpipe_innerRadius * 2.0,
457  xpipe_hz / 2.0,
458  startAngle, spanningAngle);
459  //create TiN layer on
460  G4VSolid* s_XshapebTiN_11 = new G4Tubs("s_XshapebTiN_11",
461  tubinR,
462  xpipe_innerRadius,
463  xpipe_hz,
464  startAngle, spanningAngle);
465  G4VSolid* s_XshapebTiN_12 = new G4Tubs("s_XshapebTiN_12",
466  tubinR,
467  xpipe_innerRadius * 2.0,
468  xpipe_hz / 2.0,
469  startAngle, spanningAngle);
470  G4VSolid* s_XshapebTiN_21 = new G4Tubs("s_XshapebTiN_21",
471  tubinR,
472  xpipe_innerRadius,
473  xpipe_hz,
474  startAngle, spanningAngle);
475  G4VSolid* s_XshapebTiN_22 = new G4Tubs("s_XshapebTiN_22",
476  tubinR,
477  xpipe_innerRadius * 2.0,
478  xpipe_hz / 2.0,
479  startAngle, spanningAngle);
480  //Slanted tube1
481  G4Transform3D transform_sXshapeb_12 = G4Translate3D(0., 0., 0.);
482  transform_sXshapeb_12 = transform_sXshapeb_12 * G4RotateY3D(A2);
483  G4IntersectionSolid* Xshapeb1 = new G4IntersectionSolid("Xshapeb1", s_Xshapeb_11, s_Xshapeb_12, transform_sXshapeb_12);
484  //Slanted tube2
485  G4Transform3D transform_sXshapeb_22 = G4Translate3D(0., 0., 0.);
486  transform_sXshapeb_22 = transform_sXshapeb_22 * G4RotateY3D(-A2);
487  G4IntersectionSolid* Xshapeb2 = new G4IntersectionSolid("Xshapeb2", s_Xshapeb_21, s_Xshapeb_22, transform_sXshapeb_22);
488  //Slanted tube1TiN
489  G4Transform3D transform_sXshapebTiN_12 = G4Translate3D(0., 0., 0.);
490  transform_sXshapebTiN_12 = transform_sXshapebTiN_12 * G4RotateY3D(A2);
491  G4IntersectionSolid* XshapebTiN1 = new G4IntersectionSolid("XshapebTiN1", s_XshapebTiN_11, s_XshapebTiN_12,
492  transform_sXshapebTiN_12);
493  //Slanted tube2TiN
494  G4Transform3D transform_sXshapebTiN_22 = G4Translate3D(0., 0., 0.);
495  transform_sXshapebTiN_22 = transform_sXshapebTiN_22 * G4RotateY3D(-A2);
496  G4IntersectionSolid* XshapebTiN2 = new G4IntersectionSolid("XshapebTiN2", s_XshapebTiN_21, s_XshapebTiN_22,
497  transform_sXshapebTiN_22);
498
499  // (sXshapeTiN2 + sXshapeTiN1)
500  G4Transform3D transform_XshapebTiN1 = G4Translate3D(dxtr, 0. , dztr);
501  //cout << "dxtr= " << dxtr << " dztr= " << dztr << endl;;
502  transform_XshapebTiN1 = transform_XshapebTiN1 * G4RotateY3D(-2.*A2);
503  G4UnionSolid* XshapeTiNBackwx = new G4UnionSolid("XshapeTiNBackwx", XshapebTiN2 , XshapebTiN1 , transform_XshapebTiN1);
504  // Place XshapeTiNBackwx into logi_AluCont_b
505  G4Transform3D transform_XshapeTiNBackwx = G4Translate3D(-dxtr / 2., 0., 0.);
506  transform_XshapeTiNBackwx = transform_XshapeTiNBackwx * G4RotateY3D(A2);
507  G4IntersectionSolid* XshapeTiNBackw = new G4IntersectionSolid("XshapeTiNBackw", AluCont_b, XshapeTiNBackwx,
508  transform_XshapeTiNBackwx);
509  G4LogicalVolume* l_XshapeTiNBackw = new G4LogicalVolume(XshapeTiNBackw, geometry::Materials::get(matTiN), "l_XshapeTiNBackw", 0 ,
510  0);
511  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_XshapeTiNBackw, "p_XshapeTiNBackw", logi_AluCont_b , false, 0);
512
513  // sXshape2 + sXshape1
514  G4Transform3D transform_Xshapeb1 = G4Translate3D(dxtr, 0. , dztr);
515  transform_Xshapeb1 = transform_Xshapeb1 * G4RotateY3D(-2.*A2);
516  G4UnionSolid* XshapeBackwx = new G4UnionSolid("XshapebBackwx", Xshapeb2 , Xshapeb1 , transform_Xshapeb1);
517  G4Transform3D transform_XshapeBackwx = G4Translate3D(-dxtr / 2., 0., 0.);
518  transform_XshapeBackwx = transform_XshapeBackwx * G4RotateY3D(A2);
519  G4IntersectionSolid* XshapeBackw = new G4IntersectionSolid("XshapeBackw", AluCont_b, XshapeBackwx, transform_XshapeBackwx);
520  G4LogicalVolume* l_XshapeBackw = new G4LogicalVolume(XshapeBackw, geometry::Materials::get(vacPipe), "l_XshapeBackw", 0 , 0);
521  if (flag_limitStep) l_XshapeBackw->SetUserLimits(new G4UserLimits(stepMax));
522  // Place XshapeBackw
523  new G4PVPlacement(0, G4ThreeVector(0., 0., 0.), l_XshapeBackw, "p_XshapeBackw", l_XshapeTiNBackw , false, 0);
524
525  //create far backward parts
526  // Alu trapezoid containing far parts
527  G4VSolid* AluCont_bpO = new G4Trd("AluCont_bpO", xcont3M, xcont2, xcont1, xcont1, xpipeMIN_hz / 2.0 * cos(A1));
528  G4VSolid* AluCont_bps = new G4Trd("AluCont_bps", xcont4M, xcont5, xcont1, xcont1, xpipeMIN_hz / 2.0 * cos(A1));
529  G4Transform3D transform_AluCont_bps = G4Translate3D(0., 0., 0.);
530  G4SubtractionSolid* AluCont_bp = new G4SubtractionSolid("AluCont_bp", AluCont_bpO, AluCont_bps, transform_AluCont_bps);
531  G4LogicalVolume* logi_AluCont_bp = new G4LogicalVolume(AluCont_bp, geometry::Materials::get(matPipe), "logi_AluCont_bp", 0 , 0);
532  new G4PVPlacement(0, G4ThreeVector(0, 0, -(pipe_hz + endcap_hz * 2.0 + xpipe_hz * cos(A2) + xpipeMIN_hz / 2.0 * cos(A1))),
533  logi_AluCont_bp, "phys_AluCont_bp", &topVolume, false, 0);
534  //HER far backward part
535  //slanted tubes Vacuum
536  G4VSolid* s_XshapebMIN_11 = new G4Tubs("s_XshapebMIN11",
537  tubinR,
538  xpipe_innerRadius,
539  xpipeMIN_hz,
540  startAngle, spanningAngle);
541  G4VSolid* s_XshapebMIN_12 = new G4Tubs("s_XshapebMIN12",
542  tubinR,
543  xpipe_innerRadius * 2,
544  xpipeMIN_hz / 2. - 0.525641366 * SafetyLength,
545  startAngle, spanningAngle);
546  G4Transform3D transform_sXshapebMIN_12 = G4Translate3D(0., 0., 0.);
547  transform_sXshapebMIN_12 = transform_sXshapebMIN_12 * G4RotateY3D(-A1);
548  G4IntersectionSolid* XshapebMIN1 = new G4IntersectionSolid("XshapebMIN1", s_XshapebMIN_11, s_XshapebMIN_12,
549  transform_sXshapebMIN_12);
550  //put HER vacuum part in AluCont_bp
551  G4LogicalVolume* l_XshapebMIN1 = new G4LogicalVolume(XshapebMIN1, geometry::Materials::get(vacPipe), "l_XshapebMIN1", 0 , 0);
552  if (flag_limitStep) l_XshapebMIN1 ->SetUserLimits(new G4UserLimits(stepMax));
553  new G4PVPlacement(yRotP, G4ThreeVector(-(2 * endcap_hz * tan(A2) + xpipe_hz * sin(A2) + xpipeMIN_hz / 2.*sin(A1)), 0., 0.),
554  l_XshapebMIN1 , "p_XshapebMIN1", logi_AluCont_bp, false, 0);
555  //LER far backward part
556  //slanted tubes TiN
557  G4VSolid* s_XshapebMIN_21 = new G4Tubs("s_XshapebMIN21",
558  tubinR,
559  xpipe_innerRadius,
560  xpipeMIN_hz,
561  startAngle, spanningAngle);
562  G4VSolid* s_XshapebMIN_22 = new G4Tubs("s_XshapebMIN22",
563  tubinR,
564  xpipe_innerRadius * 2,
565  xpipeMIN_hz / 2. - 0.525641366 * SafetyLength,
566  startAngle, spanningAngle);
567  G4Transform3D transform_sXshapebMIN_22 = G4Translate3D(0., 0., 0.);
568  transform_sXshapebMIN_22 = transform_sXshapebMIN_22 * G4RotateY3D(A1);
569  G4IntersectionSolid* XshapebMIN2 = new G4IntersectionSolid("XshapebMIN2", s_XshapebMIN_21, s_XshapebMIN_22,
570  transform_sXshapebMIN_22);
571  //put HER TiN part in AluCont_bp
572  G4LogicalVolume* l_XshapebMIN2 = new G4LogicalVolume(XshapebMIN2, geometry::Materials::get(matTiN), "l_XshapebMIN2", 0 , 0);
573  new G4PVPlacement(yRotM, G4ThreeVector(2 * endcap_hz * tan(A2) + xpipe_hz * sin(A2) + xpipeMIN_hz / 2.*sin(A1), 0., 0.),
574  l_XshapebMIN2 , "p_XshapebMIN2", logi_AluCont_bp, false, 0);
575  //slanted tubes Vacuum
576  G4VSolid* s_XshapebMIN_31 = new G4Tubs("s_XshapebMIN31",
577  tubinR,
578  xpipe_innerRadiusTiN,
579  xpipeMIN_hz,
580  startAngle, spanningAngle);
581  G4VSolid* s_XshapebMIN_32 = new G4Tubs("s_XshapebMIN32",
582  tubinR,
583  xpipe_innerRadiusTiN * 2,
584  xpipeMIN_hz / 2. - 0.525641366 * SafetyLength,
585  startAngle, spanningAngle);
586  G4Transform3D transform_sXshapebMIN_32 = G4Translate3D(0., 0., 0.);
587  transform_sXshapebMIN_32 = transform_sXshapebMIN_32 * G4RotateY3D(A1);
588  G4IntersectionSolid* XshapebMIN3 = new G4IntersectionSolid("XshapebMIN3", s_XshapebMIN_31, s_XshapebMIN_32,
589  transform_sXshapebMIN_32);
590  //put HER vacuum part in AluCont_bp
591  G4LogicalVolume* l_XshapebMIN3 = new G4LogicalVolume(XshapebMIN3, geometry::Materials::get(vacPipe), "l_XshapebMIN3", 0 , 0);
592  if (flag_limitStep) l_XshapebMIN3 ->SetUserLimits(new G4UserLimits(stepMax));
593  new G4PVPlacement(0, G4ThreeVector(0. , 0., 0.), l_XshapebMIN3 , "p_XshapebMIN3", l_XshapebMIN2, false, 0);
594
595  }

◆ createFromDB()

void createFromDB ( const std::string &  name,
G4LogicalVolume &  topVolume,
GeometryTypes  type
)
virtualinherited

Function to create the geometry from the Database.

Parameters
namename of the component in the database, could be used to disambiguate multiple components created with the same creator
topVolumeTop volume in which the geometry has to be placed
typeType of geometry to be build

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoBKLMCreator, GeoPXDCreator, GeoSVDCreator, GeoTOPCreator, GeoSTRCreator, GeoHeavyMetalShieldCreator, GeoCDCCreator, GeoCOILCreator, GeoVXDServiceCreator, GeoKLMCreator, GeoECLCreator, and GeoMagneticField.

Definition at line 27 of file CreatorBase.cc.

◆ createPayloads()

void createPayloads ( const GearDir &  content,
const IntervalOfValidity &  iov
)
virtualinherited

Function to create the geometry database.

This function should be implemented to convert Gearbox parameters to one ore more database payloads

Parameters
contentGearDir pointing to the parameters which should be used for construction
iovinterval of validity to use when generating payloads

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoTOPCreator, GeoCDCCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoMagneticField, GeoBKLMCreator, GeoKLMCreator, GeoECLCreator, GeoPXDCreator, GeoSVDCreator, GeoSTRCreator, GeoCOILCreator, GeoHeavyMetalShieldCreator, and GeoVXDServiceCreator.

Definition at line 34 of file CreatorBase.cc.

The documentation for this class was generated from the following files:
Belle2::geometry::Materials::get
static G4Material * get(const std::string &name)
Find given material.
Definition: Materials.h:65
