KLMElectronicsMapImporter Class Reference

KLM database importer. More...

#include <KLMElectronicsMapImporter.h>

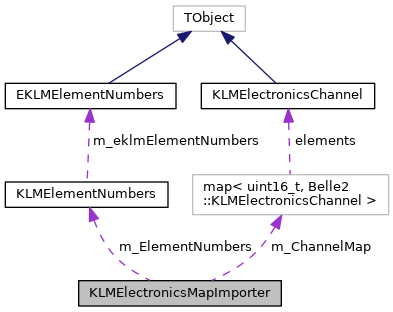

Collaboration diagram for KLMElectronicsMapImporter:

Public Member Functions
	KLMElectronicsMapImporter ()
	Constructor.
	~KLMElectronicsMapImporter ()
	Destructor.
void	setIOV (int experimentLow, int runLow, int experimentHigh, int runHigh)
	Set interval of validity.
void	clearElectronicsMap ()
	Clear electronics map (to be able to import its multiple versions).
void	loadBKLMElectronicsMap (int version)
	Load BKLM electronics map. More...
void	loadEKLMElectronicsMap (int version, bool mc)
	Load EKLM electronics map. More...
void	setLane (int subdetector, int section, int sector, int layer, int lane)
	Set non-default lane for all channels in a module. More...
void	setLane (int subdetector, int section, int sector, int layer, int plane, int lane)
	Set non-default lane for all channels in a plane. More...
void	importElectronicsMap ()
	Import electronics map.

Private Member Functions
int	getEKLMStripFirmwareBySoftware (int stripSoftware) const
	Get EKLM firmware strip number by software strip number. More...
void	setChannelsEKLMSegment (int section, int sector, int layer, int plane, int segment, int firmwareSegment)
	Set channels for EKLM segment. More...
void	addEKLMLane (int section, int sector, int layer, int copper, int slot, int lane)
	Add EKLM electronics map lane. More...

Private Attributes
const KLMElementNumbers *	m_ElementNumbers
	Element numbers.
std::map< uint16_t, KLMElectronicsChannel >	m_ChannelMap
	Data for creation of the electronics map.
int	m_ExperimentLow = 0
	Low experiment.
int	m_RunLow = 0
	Low run.
int	m_ExperimentHigh = -1
	High experiment.
int	m_RunHigh = -1
	High run.

Detailed Description

KLM database importer.

Definition at line 37 of file KLMElectronicsMapImporter.h.

Member Function Documentation

addEKLMLane()

void addEKLMLane ( int  section, int  sector, int  layer, int  copper, int  slot, int  lane  )

private

Add EKLM electronics map lane.

Parameters

[in]	section	Section.
[in]	sector	Sector.
[in]	layer	Layer.
[in]	copper	Copper.
[in]	slot	Slot.
[in]	lane	Lane.

Definition at line 189 of file KLMElectronicsMapImporter.cc.

{
  for (int plane = 1; plane <= EKLMElementNumbers::getMaximalPlaneNumber(); ++plane) {
    for (int strip = 1; strip <= EKLMElementNumbers::getMaximalStripNumber(); ++strip) {
      int axis = plane - 1;
      int channel = getEKLMStripFirmwareBySoftware(strip);
      uint16_t detectorChannel = m_ElementNumbers->channelNumberEKLM(
                                   section, sector, layer, plane, strip);
      m_ChannelMap.insert(
        std::pair<uint16_t, KLMElectronicsChannel>(
          detectorChannel,
          KLMElectronicsChannel(EKLM_ID + copper, slot, lane, axis, channel)));
    }
  }
}

getEKLMStripFirmwareBySoftware()

int getEKLMStripFirmwareBySoftware ( int  stripSoftware ) const

private

Get EKLM firmware strip number by software strip number.

Parameters

[in]

stripSoftware

Software strip number.

Definition at line 177 of file KLMElectronicsMapImporter.cc.

loadBKLMElectronicsMap()

void loadBKLMElectronicsMap

(

int

version

)

Load BKLM electronics map.

Parameters

[in]

version

map version: 1) Before experiment 10. 2) Experiment 10 and later (mapping in chimney sector has changed)

Definition at line 49 of file KLMElectronicsMapImporter.cc.

loadEKLMElectronicsMap()

void loadEKLMElectronicsMap	(	int	version,
		bool	mc
	)

Load EKLM electronics map.

Parameters

[in]	version	Map version: 1) Phase 2, experiment 3. Connection of cables was wrong for backward sectors 2 and 3. 2) Phase 3, starting from experiment 4.
[in]	mc	MC or data (MC does not have occasional cable switches that exist in the data).

Definition at line 224 of file KLMElectronicsMapImporter.cc.

setChannelsEKLMSegment()

void setChannelsEKLMSegment ( int  section, int  sector, int  layer, int  plane, int  segment, int  firmwareSegment  )

private

Set channels for EKLM segment.

Parameters

[in]	section	Section.
[in]	sector	Sector.
[in]	layer	Layer.
[in]	plane	Plane.
[in]	segment	Segment.
[in]	firmwareSegment	Segment number in firmware.

Definition at line 206 of file KLMElectronicsMapImporter.cc.

setLane() [1/2]

void setLane	(	int	subdetector,
		int	section,
		int	sector,
		int	layer,
		int	lane
	)

Set non-default lane for all channels in a module.

Parameters

[in]	subdetector	Subdetector.
[in]	section	Section.
[in]	sector	Sector.
[in]	layer	Layer.
[in]	lane	Lane.

Definition at line 393 of file KLMElectronicsMapImporter.cc.

setLane() [2/2]

void setLane	(	int	subdetector,
		int	section,
		int	sector,
		int	layer,
		int	plane,
		int	lane
	)

Set non-default lane for all channels in a plane.

Parameters

[in]	subdetector	Subdetector.
[in]	section	Section.
[in]	sector	Sector.
[in]	layer	Layer.
[in]	plane	Plane.
[in]	lane	Lane.

Definition at line 412 of file KLMElectronicsMapImporter.cc.

---

The documentation for this class was generated from the following files:

• klm/calibration/include/KLMElectronicsMapImporter.h
• klm/calibration/src/KLMElectronicsMapImporter.cc
