Alignment of a TOP module: core of the method is coded in fortran. More...

#include <TOPalign.h>

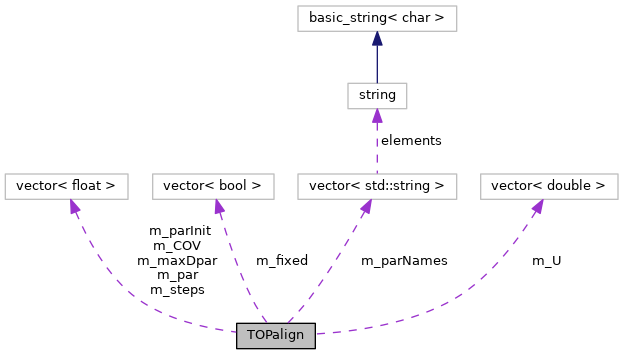

Collaboration diagram for TOPalign:

[legend]

Public Member Functions
	TOPalign ()
	Constructor.

void	setModuleID (int moduleID)
	Sets module ID. More...

void	setSteps (double position, double angle, double time, double refind)
	Sets steps for numerical calculation of derivatives. More...

void	setGrid (int NP, int NC)
	Sets grid for averaging of time-of-propagation in analytic PDF. More...

void	setParameters (const std::vector< double > &parInit)
	Sets initial values of parameters (overwrites current parameters!) Order is: translations in x, y, z, rotation angles around x, y, z, t0, dn/n. More...

void	fixParameter (const std::string &name)
	Fixes parameter with its name given as argument. More...

void	unfixParameter (const std::string &name)
	Unfixes parameter with its name given as argument. More...

void	unfixAll ()
	Unfixes all parameters.

int	iterate (const TOPtrack &track, const Const::ChargedStable &hypothesis)
	Run a single iteration. More...

void	reset ()
	Reset the object.

int	getModuleID () const
	Returns module ID. More...

const std::vector< float > &	getParameters () const
	Returns alignment parameters. More...

const std::vector< std::string > &	getParameterNames () const
	Returns alignment parameter names. More...

std::vector< float >	getErrors () const
	Returns errors on alignment parameters. More...

const std::vector< float > &	getErrorMatrix () const
	Returns error matrix of alignment parameters. More...

int	getNumTracks () const
	Returns track counter. More...

int	getNumUsedTracks () const
	Returns number of tracks used in current result. More...

bool	isValid () const
	Checks if the results are valid. More...

int	getNumOfPhotons () const
	Returns number of photons used for log likelihood calculation. More...

Static Public Member Functions
static void	clearData ()
	Clear data list.

static int	addData (int moduleID, int pixelID, double time, double timeError)
	Add data. More...

static void	setPhotonYields (double bkgPerModule, double scaleN0=1)
	Sets expected photon yields. More...

Private Attributes
int	m_moduleID = 0
	module ID

int	m_opt = 0
	PDF option (=rough)

int	m_NP = 0
	grid for averaging: number of emission points along track

int	m_NC = 0
	grid for averaging: number of Cerenkov angles

std::vector< std::string >	m_parNames
	parameter names

std::vector< float >	m_parInit
	initial parameter values

std::vector< float >	m_par
	current parameter values

std::vector< float >	m_steps
	step sizes

std::vector< float >	m_maxDpar
	maximal parameter changes in one iteration

std::vector< bool >	m_fixed
	true if parameter is fixed

std::vector< float >	m_COV
	covariance matrix

int	m_numTracks = 0
	track counter

int	m_numUsedTracks = 0
	number of tracks used

bool	m_valid = false
	validity of results

int	m_numPhotons = 0
	number of photons used for log likelihood calculation

std::vector< double >	m_U
	matrix (neg. More...

Detailed Description

Alignment of a TOP module: core of the method is coded in fortran.

Definition at line 38 of file TOPalign.h.

Member Function Documentation

◆ addData()

int addData	(	int	moduleID,
		int	pixelID,
		double	time,
		double	timeError
	)

static

Add data.

Parameters

moduleID	module ID
pixelID	pixel ID (e.g. software channel, 1-based)
time	TBC and local T0 corrected time in [ns]
timeError	time uncertainty in [ns]

Returns: data size (or 0/negative on error)

Definition at line 78 of file TOPalign.cc.

     {
       int status = 0;
       moduleID--; // 0-based ID used in fortran
       pixelID--;   // 0-based ID used in fortran
       float t = (float) time;
       float terr = (float) timeError;
       data_put_(&moduleID, &pixelID, &t, &terr, &status);
       switch (status) {
         case 0:
           B2WARNING("addData: no space available in /TOP_DATA/");
           return status;
         case -1:
           B2ERROR("addData: invalid module ID."
                   << LogVar("moduleID", moduleID + 1));
           return status;
         case -2:
           B2ERROR("addData: invalid pixel ID."
                   << LogVar("pixelID", pixelID + 1));
           return status;
         case -3:
           B2DEBUG(100, "addData: digit should already be masked-out (different masks used?)");
           return status;
         default:
           return status;
       }
     }

◆ fixParameter()

void fixParameter ( const std::string & name )

inline

Fixes parameter with its name given as argument.

Parameters

name	parameter name

Definition at line 111 of file TOPalign.h.

                                      : invalid parameter name '" << name << "'");
       }

       void unfixParameter(const std::string& name)
       {
         for (unsigned i = 0; i < m_parNames.size(); i++) {

◆ getErrorMatrix()

const std::vector<float>& getErrorMatrix ( ) const

inline

Returns error matrix of alignment parameters.

Returns: error matrix (N x N symmetric matrix as a std::vector of N*N components)

Definition at line 188 of file TOPalign.h.

◆ getErrors()

std::vector< float > getErrors ( ) const

Returns errors on alignment parameters.

Order is: translations in x, y, z, rotation angles around x, y, z, t0, dn/n

Returns: errors

Definition at line 183 of file TOPalign.cc.

◆ getModuleID()

int getModuleID ( ) const

inline

Returns module ID.

Returns: module ID

Definition at line 162 of file TOPalign.h.

◆ getNumOfPhotons()

int getNumOfPhotons ( ) const

inline

Returns number of photons used for log likelihood calculation.

Returns: number of photons or -1 if track doesn't hit the bar (no log likelihood)

Definition at line 212 of file TOPalign.h.

◆ getNumTracks()

int getNumTracks ( ) const

inline

Returns track counter.

Returns: number of tracks

Definition at line 194 of file TOPalign.h.

◆ getNumUsedTracks()

int getNumUsedTracks ( ) const

inline

Returns number of tracks used in current result.

Returns: number of tracks

Definition at line 200 of file TOPalign.h.

◆ getParameterNames()

const std::vector<std::string>& getParameterNames ( ) const

inline

Returns alignment parameter names.

Returns: parameter names

Definition at line 175 of file TOPalign.h.

◆ getParameters()

const std::vector<float>& getParameters ( ) const

inline

Returns alignment parameters.

Order is: translations in x, y, z, rotation angles around x, y, z, t0, dn/n

Returns: parameters

Definition at line 169 of file TOPalign.h.

◆ isValid()

bool isValid ( ) const

inline

Checks if the results are valid.

Returns: true if results valid

Definition at line 206 of file TOPalign.h.

◆ iterate()

int iterate	(	const TOPtrack &	track,
		const Const::ChargedStable &	hypothesis
	)

Run a single iteration.

Parameters

track	track parameters
hypothesis	particle hypothesis

Returns: error status (0 = OK, < 0 no track hit, > 0 matrix not pos. definite)

Definition at line 114 of file TOPalign.cc.

◆ setGrid()

void setGrid	(	int	NP,
		int	NC
	)

inline

Sets grid for averaging of time-of-propagation in analytic PDF.

Parameters

NP	number of emission points along track
NC	number of Cerenkov angles

Definition at line 88 of file TOPalign.h.

◆ setModuleID()

void setModuleID ( int moduleID )

inline

Sets module ID.

Parameters

moduleID module ID

Definition at line 72 of file TOPalign.h.

◆ setParameters()

void setParameters ( const std::vector< double > & parInit )

inline

Sets initial values of parameters (overwrites current parameters!) Order is: translations in x, y, z, rotation angles around x, y, z, t0, dn/n.

Parameters

parInit initial values

Definition at line 99 of file TOPalign.h.

◆ setPhotonYields()

void setPhotonYields	(	double	bkgPerModule,
		double	scaleN0 = `1`
	)

static

Sets expected photon yields.

Parameters

bkgPerModule	estimation for minimal number of background hits
scaleN0	scale factor for figure-of-merit N0

Definition at line 106 of file TOPalign.cc.

◆ setSteps()

void setSteps	(	double	position,
		double	angle,
		double	time,
		double	refind
	)

Sets steps for numerical calculation of derivatives.

Parameters

position	step size for translations [cm]
angle	step size for rotations [radians]
time	step size for T0 [ns]
refind	step size for refractive index scale factor

Definition at line 59 of file TOPalign.cc.

◆ unfixParameter()

void unfixParameter ( const std::string & name )

inline

Unfixes parameter with its name given as argument.

Parameters

name	parameter name

Definition at line 126 of file TOPalign.h.

Member Data Documentation

◆ m_U

std::vector<double> m_U

private

matrix (neg.

sum of second derivatives)

Definition at line 233 of file TOPalign.h.

The documentation for this class was generated from the following files:

top/reconstruction/include/TOPalign.h
top/reconstruction/src/TOPalign.cc
