AsicBackgroundLibraryCreator Class Referenceabstract

Finds ASICs with single signal hit, records info to the library. More...

#include <AsicBackgroundLibraryCreator.h>

Inheritance diagram for AsicBackgroundLibraryCreator:

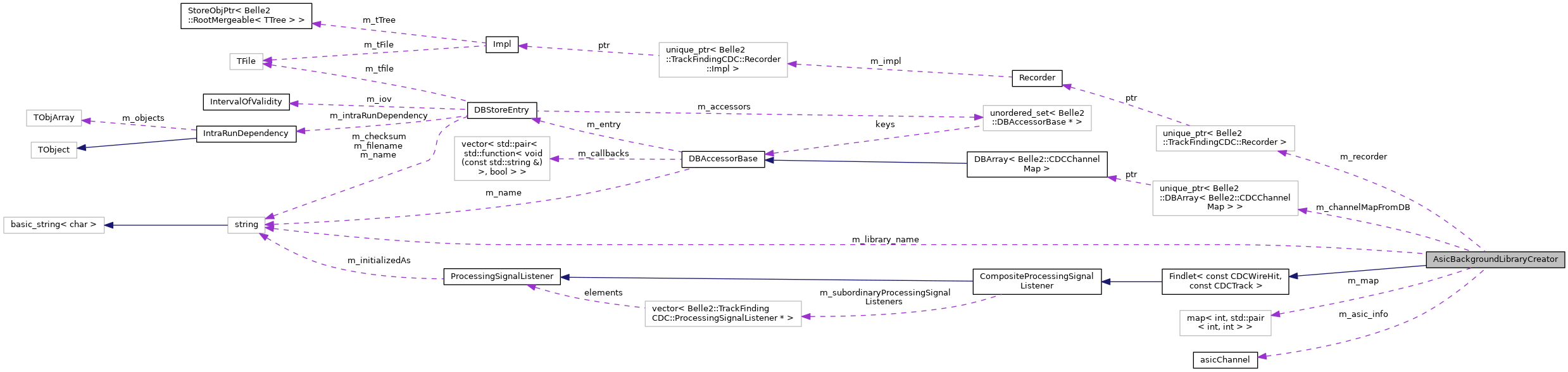

Collaboration diagram for AsicBackgroundLibraryCreator:

Public Types

using IOTypes = std::tuple< AIOTypes... >
 Types that should be served to apply on invokation.

using IOVectors = std::tuple< std::vector< AIOTypes >... >
 Vector types that should be served to apply on invokation.


Public Member Functions

 AsicBackgroundLibraryCreator ()=default
 Default constructor.

void initialize () final
 Access database here, open library for writing:

void beginRun () final
 Reload channel map if needed.

std::string getDescription () final
 Short description of the findlet.

void exposeParameters (ModuleParamList *moduleParamList, const std::string &prefix) final
 Expose the parameters to a module.

void apply (const std::vector< CDCWireHit > &wireHits, const std::vector< CDCTrack > &tracks) final
 Main algorithm marking hit as background.

void terminate () final
 write out the library

virtual void exposeParameters (ModuleParamList *moduleParamList __attribute__((unused)), const std::string &prefix __attribute__((unused)))
 Forward prefixed parameters of this findlet to the module parameter list.

virtual void apply (ToVector< AIOTypes > &... ioVectors)=0
 Main function executing the algorithm.

void beginEvent () override
 Receive and dispatch signal for the start of a new event.

void endRun () override
 Receive and dispatch signal for the end of the run.


Protected Types

using ToVector = typename ToVectorImpl< T >::Type
 Short hand for ToRangeImpl.


Protected Member Functions

void addProcessingSignalListener (ProcessingSignalListener *psl)
 Register a processing signal listener to be notified.

int getNProcessingSignalListener ()
 Get the number of currently registered listeners.


Private Types

using Super = Findlet< const CDCWireHit, const CDCTrack >
 Type of the base class.


Private Member Functions

void selectAsic (const std::vector< const CDCWireHit * > &wireHits, const std::vector< CDCTrack > &tracks)
 Algorithm to select suitable ASIC for library creation. More...


Private Attributes

std::unique_ptr< DBArray< CDCChannelMap > > m_channelMapFromDB
 Channel map retrieved from DB.

std::map< int, std::pair< int, int > > m_map
 map from ewire to board/channel ID

std::string m_library_name {"CDCAsicLibrary.root"}
 output library name

size_t m_minimal_hit_number {1}
 min. number of hits in ASIC for background check

double m_distance_signal_max {0.25}
 maximal distance from track to signal hit

double m_distance_background_min {0.5}
 minimal distance from track to background hit

bool m_use_axial_hits_only {false}
 use axial layers only

bool m_write_extra_vars {false}
 extra vars to the library

size_t m_minimal_hits_on_track {40}
 min. number of hits on the track

std::unique_ptr< Recorderm_recorder
 Recorder for the root output.

asicChannel m_asic_info [8]
 all 8 channels

UChar_t m_board {0}
 signal boardID

UChar_t m_channel {0}
 signal channelID

UChar_t m_n_hit {0}
 For debuging, store also number of channels with hits.

float m_dist_signal {0}
 Distance to signal hit.

float m_dist_bg {0}
 min. distance to non-linked hits

Short_t m_adc_sig {0}
 ADC of the signal.

Short_t m_adc_max_bg {0}
 Max. ADC background.

UShort_t m_n_hit_track {0}
 Number of hits on the track.

std::vector< ProcessingSignalListener * > m_subordinaryProcessingSignalListeners
 References to subordinary signal processing listener contained in this findlet.

bool m_initialized = false
 Flag to keep track whether initialization happend before.

bool m_terminated = false
 Flag to keep track whether termination happend before.

std::string m_initializedAs
 Name of the type during initialisation.


Detailed Description

Finds ASICs with single signal hit, records info to the library.

Definition at line 39 of file AsicBackgroundLibraryCreator.h.

Member Function Documentation

◆ selectAsic()

void selectAsic ( const std::vector< const CDCWireHit * > &  wireHits,
const std::vector< CDCTrack > &  tracks
)
private

Algorithm to select suitable ASIC for library creation.

This is abnormal situation, detected for few runs, related to CDC unpacker. Hits are to be marked as background.

Definition at line 180 of file AsicBackgroundLibraryCreator.cc.

181 {
182
183  if (wireHits.size() < m_minimal_hit_number) {
184  return;
185  };
186
187  if (wireHits.size() > 8) {
188  B2ERROR("Number of hits per asic should not exceed 8, observe too many hits." << LogVar("nHits", wireHits.size()));
190  return;
191  }
192
193
194  // count taken non-background hits:
195  int count = 0;
196  const CDCWireHit* signal = nullptr;
197  for (auto& hit : wireHits) {
198  if (!(*hit)->hasBackgroundFlag() && (*hit)->hasTakenFlag()) {
199  count += 1;
200  signal = hit;
201  }
202  }
203
204  // require one and only one taken hit
205  if (count != 1) {
206  return;
207  }
208
209
210  // check if only axial hits are used:
211
212  if ((!signal->isAxial()) && m_use_axial_hits_only) {
213  return;
214  }
215
216  // find the track to which this hit belongs
217  const CDCTrack* signalTrack = nullptr;
218  for (auto& track : tracks) {
219  for (auto& hit : track) {
220  if (&hit.getWireHit() == signal) {
221  signalTrack = &track;
222  break;
223  }
224  }
225  if (signalTrack != nullptr) {
226  break;
227  }
228  }
229
230  if (signalTrack == nullptr) {
231  B2DEBUG(29, "AsicBackgroundLibraryCreator::No track found for the signal hit");
232  return;
233  }
234
235  m_n_hit_track = signalTrack->size();
236
238
239  // check the distance from the track to each signal hit
240  const auto& trajectory = signalTrack->getStartTrajectory3D();
241
242  m_dist_bg = 1000.;
243
244  for (auto& hit : wireHits) {
245
246  const float dist = getDist2D(trajectory, hit);
247
248
249  if (hit == signal) {
250  m_dist_signal = dist;
251  if (dist > m_distance_signal_max) return;
252  } else {
253  m_dist_bg = min(m_dist_bg, dist);
254  if (dist < m_distance_background_min) return;
255  }
256  }
257
258
259  // Ok, passes all cuts !
260
261  // reset the library entries
262  for (auto& channel : m_asic_info) {
263  channel.TDC = -1;
264  channel.ADC = -1;
265  channel.TOT = -1;
266  }
267
268  // add to the library
269
270  m_n_hit = wireHits.size();
271
272  m_adc_max_bg = 0;
273  for (auto& hit : wireHits) {
274  auto eWire = hit->getWireID().getEWire();
275  auto channel = m_map[eWire].second;
276  auto asicCH = channel % 8;
277  m_asic_info[asicCH].ADC = hit->getHit()->getADCCount();
278  m_asic_info[asicCH].TDC = hit->getHit()->getTDCCount();
279  m_asic_info[asicCH].TOT = hit->getHit()->getTOT();
280
281  if (hit != signal) {
282  m_adc_max_bg = max(m_adc_max_bg, m_asic_info[asicCH].ADC);
283  }
284  }
285  // also signal hit info
286  auto eWire = signal->getWireID().getEWire();
287  m_channel = m_map[eWire].second;
288  m_board = m_map[eWire].first;
289  m_adc_sig = signal->getHit()->getADCCount();
290
291  // make sure that ADC of the signal is >= than ADC of the background:
292  if (m_adc_sig < m_adc_max_bg) return;
293
294  // write out
295  m_recorder->capture();
296 }

The documentation for this class was generated from the following files:
