The creator for the CAVE geometry. More...

#include <CaveCreator.h>

Inheritance diagram for CaveCreator:

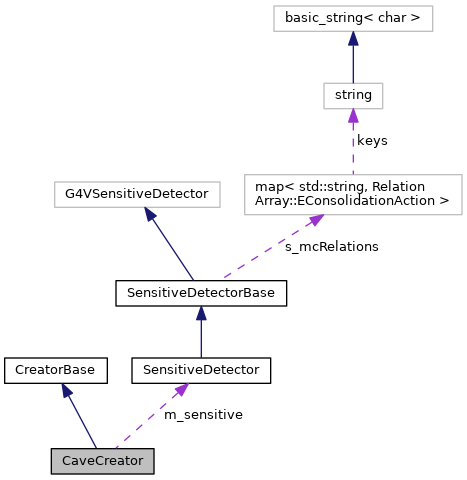

Collaboration diagram for CaveCreator:

[legend]

Public Member Functions
virtual void	create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type)
	Function to actually create the geometry, has to be overridden by derived classes. More...

	BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
	Exception that will be thrown in createFromDB if member is not yet implemented by creator.

virtual void	createFromDB (const std::string &name, G4LogicalVolume &topVolume, GeometryTypes type)
	Function to create the geometry from the Database. More...

virtual void	createPayloads (const GearDir &content, const IntervalOfValidity &iov)
	Function to create the geometry database. More...

Protected Attributes
SensitiveDetector *	m_sensitive
	SensitiveDetector cave.

Detailed Description

The creator for the CAVE geometry.

Definition at line 29 of file CaveCreator.h.

Member Function Documentation

◆ create()

void create	(	const GearDir &	content,
		G4LogicalVolume &	topVolume,
		geometry::GeometryTypes	type
	)

virtual

Function to actually create the geometry, has to be overridden by derived classes.

Parameters

content	GearDir pointing to the parameters which should be used for construction
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Implements CreatorBase.

Definition at line 55 of file CaveCreator.cc.

     {
       G4double density;
       G4double A;
       G4int Z;

       G4String name, symbol;
       G4double fractionmass;

       A = 1.01 * CLHEP::g / CLHEP::mole;
       G4Element* elH  = new G4Element(name = "Hydrogen", symbol = "H" , Z = 1, A);

       A = 12.01 * CLHEP::g / CLHEP::mole;
       G4Element* elC  = new G4Element(name = "Carbon"  , symbol = "C" , Z = 6, A);

       A = 16.00 * CLHEP::g / CLHEP::mole;
       G4Element* elO  = new G4Element(name = "Oxygen"  , symbol = "O" , Z = 8, A);

       A = 22.99 * CLHEP::g / CLHEP::mole;
       G4Element* elNa  = new G4Element(name = "Natrium"  , symbol = "Na" , Z = 11 , A);

       A = 200.59 * CLHEP::g / CLHEP::mole;
       G4Element* elHg  = new G4Element(name = "Hg"  , symbol = "Hg" , Z = 80, A);

       A = 26.98 * CLHEP::g / CLHEP::mole;
       G4Element* elAl  = new G4Element(name = "Aluminium"  , symbol = "Al" , Z = 13, A);

       A = 28.09 * CLHEP::g / CLHEP::mole;
       G4Element* elSi  = new G4Element(name = "Silicon", symbol = "Si", Z = 14, A);

       A = 39.1 * CLHEP::g / CLHEP::mole;
       G4Element* elK  = new G4Element(name = "K"  , symbol = "K" , Z = 19 , A);

       A = 69.72 * CLHEP::g / CLHEP::mole;
       G4Element* elCa  = new G4Element(name = "Calzium"  , symbol = "Ca" , Z = 31 , A);

       A = 55.85 * CLHEP::g / CLHEP::mole;
       G4Element* elFe = new G4Element(name = "Iron"    , symbol = "Fe", Z = 26, A);

       density = 2.03 * CLHEP::g / CLHEP::cm3;
       G4Material* Concrete = new G4Material("Concrete", density, 10);
       Concrete->AddElement(elH , fractionmass = 0.01);
       Concrete->AddElement(elO , fractionmass = 0.529);
       Concrete->AddElement(elNa , fractionmass = 0.016);
       Concrete->AddElement(elHg , fractionmass = 0.002);
       Concrete->AddElement(elAl , fractionmass = 0.034);
       Concrete->AddElement(elSi , fractionmass = 0.337);
       Concrete->AddElement(elK , fractionmass = 0.013);
       Concrete->AddElement(elCa , fractionmass = 0.044);
       Concrete->AddElement(elFe , fractionmass = 0.014);
       Concrete->AddElement(elC , fractionmass = 0.001);


       //lets get the stepsize parameter with a default value of 5 µm
       double stepSize = content.getLength("stepSize", 5 * CLHEP::um);

       //no get the array. Notice that the default framework unit is cm, so the
       //values will be automatically converted
       vector<double> bar = content.getArray("bar");
       B2INFO("Contents of bar: ");
       BOOST_FOREACH(double value, bar) {
         B2INFO("value: " << value);
       }
       int detID = 0;
       //Lets loop over all the Active nodes
       BOOST_FOREACH(const GearDir & activeParams, content.getNodes("Active")) {

         //create cave volume
         G4Box* s_CAVE = new G4Box("s_CAVE",
                                   activeParams.getLength("px")*CLHEP::cm ,
                                   activeParams.getLength("py")*CLHEP::cm ,
                                   activeParams.getLength("pz")*CLHEP::cm);

         //G4LogicalVolume* l_CAVE = new G4LogicalVolume(s_CAVE, geometry::Materials::get("CAVE"), "l_CAVE", 0, m_sensitive);
         G4LogicalVolume* l_CAVE = new G4LogicalVolume(s_CAVE, Concrete, "l_CAVE", 0, 0);

         //Lets limit the Geant4 stepsize inside the volume
         l_CAVE->SetUserLimits(new G4UserLimits(stepSize));

         //position cave volume
         G4ThreeVector CAVEpos = G4ThreeVector(
                                   activeParams.getLength("x_cave") * CLHEP::cm,
                                   activeParams.getLength("y_cave") * CLHEP::cm,
                                   activeParams.getLength("z_cave") * CLHEP::cm
                                 );

         G4RotationMatrix* rot_cave = new G4RotationMatrix();
         rot_cave->rotateX(activeParams.getLength("AngleX"));
         rot_cave->rotateY(activeParams.getLength("AngleY"));
         rot_cave->rotateZ(activeParams.getLength("AngleZ"));
         //geometry::setColor(*l_CAVE, "#006699");
         //double angle = activeParams.getDouble("angle");
         //double rx = activeParams.getDouble("rx");
         //double ry = activeParams.getDouble("ry");
         //double rz = activeParams.getDouble("rz");
         //rot_cave->rotate(-angle, G4ThreeVector(rx, ry, rz));
         new G4PVPlacement(rot_cave, CAVEpos, l_CAVE, "p_CAVE", &topVolume, false, detID);

         detID++;
       }
     }

◆ createFromDB()

void createFromDB	(	const std::string &	name,
		G4LogicalVolume &	topVolume,
		GeometryTypes	type
	)

virtualinherited

Function to create the geometry from the Database.

Parameters

name	name of the component in the database, could be used to disambiguate multiple components created with the same creator
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoBKLMCreator, GeoPXDCreator, GeoSVDCreator, GeoTOPCreator, GeoSTRCreator, GeoHeavyMetalShieldCreator, GeoCDCCreator, GeoCOILCreator, GeoVXDServiceCreator, GeoKLMCreator, GeoECLCreator, and GeoMagneticField.

Definition at line 27 of file CreatorBase.cc.

◆ createPayloads()

void createPayloads	(	const GearDir &	content,
		const IntervalOfValidity &	iov
	)

virtualinherited

Function to create the geometry database.

This function should be implemented to convert Gearbox parameters to one ore more database payloads

Parameters

content	GearDir pointing to the parameters which should be used for construction
iov	interval of validity to use when generating payloads

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoTOPCreator, GeoCDCCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoMagneticField, GeoBKLMCreator, GeoKLMCreator, GeoECLCreator, GeoPXDCreator, GeoSVDCreator, GeoSTRCreator, GeoCOILCreator, GeoHeavyMetalShieldCreator, and GeoVXDServiceCreator.

Definition at line 34 of file CreatorBase.cc.

The documentation for this class was generated from the following files:

beast/cave/geometry/include/CaveCreator.h
beast/cave/geometry/src/CaveCreator.cc
