PindiodeCreator Class Reference

The creator for the PINDIODE geometry. More...

#include <PindiodeCreator.h>

Inheritance diagram for PindiodeCreator:
Inheritance graph
[legend]

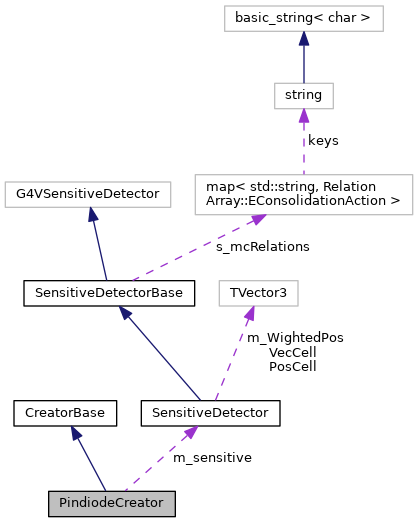

Collaboration diagram for PindiodeCreator:
Collaboration graph
[legend]

Public Member Functions

virtual void create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type)
 Function to actually create the geometry, has to be overridden by derived classes. More...

 BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
 Exception that will be thrown in createFromDB if member is not yet implemented by creator.

virtual void createFromDB (const std::string &name, G4LogicalVolume &topVolume, GeometryTypes type)
 Function to create the geometry from the Database. More...

virtual void createPayloads (const GearDir &content, const IntervalOfValidity &iov)
 Function to create the geometry database. More...


Protected Attributes

SensitiveDetector * m_sensitive
 SensitiveDetector PINDIODE.


Detailed Description

The creator for the PINDIODE geometry.

Definition at line 29 of file PindiodeCreator.h.

Member Function Documentation

◆ create()

void create ( const GearDir &  content,
G4LogicalVolume &  topVolume,
geometry::GeometryTypes  type
)
virtual

Function to actually create the geometry, has to be overridden by derived classes.

Parameters
contentGearDir pointing to the parameters which should be used for construction
topVolumeTop volume in which the geometry has to be placed
typeType of geometry to be build

Implements CreatorBase.

Definition at line 63 of file PindiodeCreator.cc.

64  {
65  //Visualization Attributes
66  //G4VisAttributes *invis = new G4VisAttributes(G4Colour(1,1,1));
67  //invis->SetColor(0,0,0,0);
68  //invis->SetForceWireframe(true);
69  //invis->SetVisibility(false);
70  G4VisAttributes* red = new G4VisAttributes(G4Colour(1, 0, 0));
71  red->SetForceAuxEdgeVisible(true);
72  //G4VisAttributes *redwire = new G4VisAttributes(G4Colour(1,0,0));
73  //redwire->SetForceAuxEdgeVisible(true);
74  //redwire->SetForceWireframe(true);
75  G4VisAttributes* green = new G4VisAttributes(G4Colour(0, 1, 0));
76  green->SetForceAuxEdgeVisible(true);
77  //G4VisAttributes *blue = new G4VisAttributes(G4Colour(0,0,1));
78  //blue->SetForceAuxEdgeVisible(true);
79  //G4VisAttributes *white = new G4VisAttributes(G4Colour(1,1,1));
80  //white->SetForceAuxEdgeVisible(true);
81  G4VisAttributes* gray = new G4VisAttributes(G4Colour(.5, .5, .5));
82  gray->SetForceAuxEdgeVisible(true);
83  G4VisAttributes* yellow = new G4VisAttributes(G4Colour(1, 1, 0));
84  yellow->SetForceAuxEdgeVisible(true);
85  //G4VisAttributes *cyan = new G4VisAttributes(G4Colour(0,1,1));
86  //cyan->SetForceAuxEdgeVisible(true);
87  //G4VisAttributes *magenta = new G4VisAttributes(G4Colour(1,0,1));
88  //magenta->SetForceAuxEdgeVisible(true);
89  //G4VisAttributes *brown = new G4VisAttributes(G4Colour(.5,.5,0));
90  //brown->SetForceAuxEdgeVisible(true);
91  //G4VisAttributes *orange = new G4VisAttributes(G4Colour(1,2,0));
92  //orange->SetForceAuxEdgeVisible(true);
93  //G4VisAttributes* coppercolor = new G4VisAttributes(G4Colour(218. / 255., 138. / 255., 103. / 255.));
94  //coppercolor->SetForceAuxEdgeVisible(true);
95
96  //lets get the stepsize parameter with a default value of 5 µm
97  double stepSize = content.getLength("stepSize", 5 * CLHEP::um);
98  /*
99  //no get the array. Notice that the default framework unit is cm, so the
100  //values will be automatically converted
101  vector<double> bar = content.getArray("bar");
102  B2INFO("Contents of bar: ");
103  BOOST_FOREACH(double value, bar) {
104  B2INFO("value: " << value);
105  }
106  */
107
108  //Lets loop over all the Active nodes
109  BOOST_FOREACH(const GearDir & activeParams, content.getNodes("Active")) {
110
111  int phase = activeParams.getInt("phase");
112  G4double dx_pins = activeParams.getLength("dx_pins") / 2.*CLHEP::cm;
113  G4double dy_pins = activeParams.getLength("dy_pins") / 2.*CLHEP::cm;
114  G4double dz_pins = activeParams.getLength("dz_pins") / 2.*CLHEP::cm;
115  //Positioned PIN diodes
116  double x_pos[100];
117  double y_pos[100];
118  double z_pos[100];
119  double thetaX[100];
120  double thetaZ[100];
121  double thetaY[100];
122  double ch_wAu[100];
123  double ch_woAu[100];
124  double phi[100];
125  double r[100];
126  int dimr_pin = 0;
127  if (phase == 1) {
128  int dimwAu = 0;
129  for (int wAu : activeParams.getArray("Ch_wAu", {0})) {
130  ch_wAu[dimwAu] = wAu;
131  dimwAu++;
132  }
133  int dimwoAu = 0;
134  for (int woAu : activeParams.getArray("Ch_woAu", {0})) {
135  ch_woAu[dimwoAu] = woAu;
136  dimwoAu++;
137  }
138  int dimx = 0;
139  for (double x : activeParams.getArray("x", {0})) {
140  x *= CLHEP::cm;
141  x_pos[dimx] = x;
142  dimx++;
143  }
144  int dimy = 0;
145  for (double y : activeParams.getArray("y", {0})) {
146  y *= CLHEP::cm;
147  y_pos[dimy] = y;
148  r[dimy] = sqrt(x_pos[dimy] * x_pos[dimy] + y_pos[dimy] * y_pos[dimy]);
149  double Phi = 0;
150  if (x_pos[dimy] >= 0) Phi = TMath::ASin(y_pos[dimy] / r[dimy]) * TMath::RadToDeg();
151  else if (x_pos[dimy] < 0) Phi = -TMath::ASin(y_pos[dimy] / r[dimy]) * TMath::RadToDeg() + 180.;
152  phi[dimy] = Phi * CLHEP::deg - 90. * CLHEP::deg;
153  dimy++;
154  }
155  int dimThetaX = 0;
156  for (double ThetaX : activeParams.getArray("ThetaX", {0})) {
157  thetaX[dimThetaX] = ThetaX;
158  dimThetaX++;
159  }
160  int dimThetaY = 0;
161  for (double ThetaY : activeParams.getArray("ThetaY", {0})) {
162  thetaY[dimThetaY] = ThetaY;
163  dimThetaY++;
164  }
165  }
166  int dimPhi = 0;
167  if (phase == 2) {
168  for (int i = 0; i < 100; i++) {
169  x_pos[i] = 0;
170  y_pos[i] = 0;
171  z_pos[i] = 0;
172  }
173  for (double Phi : activeParams.getArray("Phi", {0})) {
174  phi[dimPhi] = Phi - 90. * CLHEP::deg;
175  dimPhi++;
176  }
177  for (double r_pin : activeParams.getArray("r_pin", {0})) {
178  r_pin *= CLHEP::cm;
179  r[dimr_pin] = r_pin;
180  dimr_pin++;
181  }
182  }
183  int dimz = 0;
184  for (double z : activeParams.getArray("z", {0})) {
185  z *= CLHEP::cm;
186  z_pos[dimz] = z;
187  dimz++;
188  }
189  int dimThetaZ = 0;
190  for (double ThetaZ : activeParams.getArray("ThetaZ", {0})) {
191  thetaZ[dimThetaZ] = ThetaZ;
192  dimThetaZ++;
193  }
194
195  //inch to cm
196  G4double InchtoCm = 2.54 * CLHEP::cm;
197
198  //Create Air Box
199  G4double dz_airbox = 0.563 / 2. * InchtoCm;
200  G4double dx_airbox = 1. / 2. * InchtoCm;
201  G4double dy_airbox = 0.315 / 2. * InchtoCm;
202  /*
203  G4double dz_airbox_e = 0.1 / 2. * CLHEP::cm;
204  G4double dx_airbox_e = 0.1 / 2. * CLHEP::cm;
205  G4double dy_airbox_e = 0.1 / 2. * CLHEP::cm;
206  G4VSolid* s_airbox = new G4Box("s_airbox", dx_airbox + dx_airbox_e, dy_airbox + dy_airbox_e, dz_airbox + dz_airbox_e);
207  G4LogicalVolume* l_airbox = new G4LogicalVolume(s_airbox, G4Material::GetMaterial("G4_AIR"), "l_airbox");
208  for (int i = 0; i < dimz; i++) {
209  if (phase == 1) {
210  G4RotationMatrix* pRot = new G4RotationMatrix();
211  pRot->rotateX(thetaX[i]);
212  pRot->rotateY(thetaY[i]);
213  pRot->rotateZ(thetaZ[i]);
214  new G4PVPlacement(pRot, G4ThreeVector(x_pos[i], y_pos[i], z_pos[i]), l_airbox, TString::Format("p_airbox_%d", i).Data(), &topVolume,
215  false, 0);
216  } else if (phase == 2) {
217  G4Transform3D transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]);
218  new G4PVPlacement(transform, l_airbox, TString::Format("p_pin_airbox_%d", i).Data(), &topVolume, false, 0);
219  }
220  }
221  */
222  //Create PIN diode base box
223  G4double dz_base = 0.5 / 2. * InchtoCm;
224  G4double dx_base = dx_airbox;
225  G4double dy_base = 0.25 / 2. * InchtoCm;
226  G4VSolid* s_base = new G4Box("s_base", dx_base, dy_base, dz_base);
227
228  G4double ir_hole = 0.;
229  G4double or_hole = 5. / 2.*CLHEP::mm;
230  G4double h_hole = 0.382 / 2. * InchtoCm;
231  G4double sA_hole = 0.*CLHEP::deg;
232  G4double spA_hole = 360.*CLHEP::deg;
233  G4VSolid* s_hole = new G4Tubs("s_hole", ir_hole, or_hole, h_hole, sA_hole, spA_hole);
234  G4double x_pos_hole = dx_base - 0.315 * InchtoCm;
235  G4double y_pos_hole = (0.187 - 0.250 / 2.) * InchtoCm;
236  G4double z_pos_hole = -(0.5 - 0.382) * InchtoCm;
237  s_base = new G4SubtractionSolid("s_base_hole1", s_base, s_hole, 0, G4ThreeVector(x_pos_hole, y_pos_hole, z_pos_hole));
238  s_base = new G4SubtractionSolid("s_base_hole2", s_base, s_hole, 0, G4ThreeVector(-x_pos_hole, y_pos_hole, z_pos_hole));
239  /*s_base = new G4SubtractionSolid("s_base_hole1", s_base, s_hole, 0, G4ThreeVector((0.5 - 0.315)*InchtoCm,
240  (0.187 - 0.250 / 2.)*InchtoCm, -(0.5 - 0.382)*InchtoCm));
241  s_base = new G4SubtractionSolid("s_base_hole2", s_base, s_hole, 0, G4ThreeVector(-(0.5 - 0.315)*InchtoCm,
242  (0.187 - 0.250 / 2.)*InchtoCm, -(0.5 - 0.382)*InchtoCm));*/
243  double iTheta[4] = {0, 90, 180, 270};
244  G4LogicalVolume* l_base = new G4LogicalVolume(s_base, G4Material::GetMaterial("Al6061"), "l_base");
245  l_base->SetVisAttributes(yellow);
246  G4Transform3D transform;
247  for (int i = 0; i < dimz; i++) {
248  if (phase == 1) {
249  transform = G4Translate3D(x_pos[i], y_pos[i],
250  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]);
251  //if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]);
252  new G4PVPlacement(transform, l_base, TString::Format("p_pin_base_%d", i).Data(), &topVolume, false, 0);
253  B2INFO("PIN base-" << (int)i / 4 << "-" << iTheta[i - ((int)i / 4) * 4] << " placed at: " << transform.getTranslation() << " mm ");
254  }
255  }
256  /*
257  for (int i = 0; i < dimz; i++) {
258  new G4PVPlacement(0, G4ThreeVector(0, dy_base - dy_airbox, dz_airbox - dz_base), l_base, TString::Format("p_base_%d", i).Data(),
259  l_airbox, false, 0);
260  }
261  */
262  //Create diode cover
263  G4double dz_cover1 = dz_airbox;
264  G4double dx_cover1 = dx_airbox;
265  G4double dy_cover1 = dy_airbox - dy_base;
266  G4VSolid* s_cover1 = new G4Box("s_cover1", dx_cover1, dy_cover1, dz_cover1);
267
268  G4double dx_shole = (0.563 - 0.406) / 2. * InchtoCm;
269  G4VSolid* s_shole = new G4Box("s_shole", dx_shole, dy_cover1, dx_shole);
270  G4double x_pos_cover_hole = dx_base - 0.392 * InchtoCm + dx_shole;
271  //G4double y_pos_cover_hole = 0;
272  G4double z_pos_cover_hole = dz_airbox - 0.406 * InchtoCm + dx_shole;
273  s_cover1 = new G4SubtractionSolid("s_cover1_hole1", s_cover1, s_shole, 0, G4ThreeVector(x_pos_cover_hole, 0, z_pos_cover_hole));
274  s_cover1 = new G4SubtractionSolid("s_cover1_hole2", s_cover1, s_shole, 0, G4ThreeVector(-x_pos_cover_hole, 0, z_pos_cover_hole));
275  /*
276  s_cover1 = new G4SubtractionSolid("s_cover1_hole1", s_cover1, s_shole, 0, G4ThreeVector((0.5 - 0.392)*InchtoCm + dx_shole, 0,
277  (0.563 / 2. - 0.406)*InchtoCm + dx_shole));
278  s_cover1 = new G4SubtractionSolid("s_cover1_hole2", s_cover1, s_shole, 0, G4ThreeVector(-(0.5 - 0.392)*InchtoCm - dx_shole, 0,
279  (0.563 / 2. - 0.406)*InchtoCm + dx_shole));
280  */
281  G4LogicalVolume* l_cover1 = new G4LogicalVolume(s_cover1, G4Material::GetMaterial("Al6061"), "l_cover1");
282  l_cover1->SetVisAttributes(yellow);
283  for (int i = 0; i < dimz; i++) {
284  if (phase == 1) {
285  transform = G4Translate3D(x_pos[i], y_pos[i],
286  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
287  G4Translate3D(0., dy_base + dy_cover1, (dz_cover1 - dz_base) - dy_cover1 * 2.);
288  //if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
289  // G4Translate3D(0., dy_base + dy_cover1, (dz_cover1 - dz_base) - dy_cover1 * 2.);
290  new G4PVPlacement(transform, l_cover1, TString::Format("p_pin_cover1_%d", i).Data(), &topVolume, false, 0);
291  }
292  }
293  /*
294  for (int i = 0; i < dimz; i++) {
295  new G4PVPlacement(0, G4ThreeVector(0, dy_airbox_e / 2. + dy_airbox - dy_cover1, 0), l_cover1, TString::Format("p_cover1_%d",
296  i).Data(), l_airbox,
297  false, 0);
298  }
299  */
300  G4double dz_cover2 = dz_airbox - dz_base;
301  G4double dx_cover2 = dx_airbox;
302  G4double dy_cover2 = dy_base;
303  G4VSolid* s_cover2 = new G4Box("s_cover2", dx_cover2, dy_cover2, dz_cover2);
304  G4LogicalVolume* l_cover2 = new G4LogicalVolume(s_cover2, G4Material::GetMaterial("Al6061"), "l_cover2");
305  l_cover2->SetVisAttributes(yellow);
306  for (int i = 0; i < dimz; i++) {
307  if (phase == 1) {
308  transform = G4Translate3D(x_pos[i], y_pos[i],
309  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
310  G4Translate3D(0., -2.*dy_cover1, - dz_base - dz_cover2);
311  //if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
312  //G4Translate3D(0., -2.*dy_cover1, - dz_base - dz_cover2);
313  new G4PVPlacement(transform, l_cover2, TString::Format("p_pin_cover2_%d", i).Data(), &topVolume, false, 0);
314  }
315  }
316  /*
317  for (int i = 0; i < dimz; i++) {
318  new G4PVPlacement(0, G4ThreeVector(0, dy_cover2 - dy_airbox, dz_cover2 - dz_airbox - dz_airbox_e / 2.), l_cover2,
319  TString::Format("p_cover2_%d",
320  i).Data(), l_airbox, false, 0);
321  }
322  */
323  //Create PIN plastic subtrate
324  /*
325  h_hole = 0.6 / 2.*CLHEP::cm;
326  sA_hole = 0.*deg;
327  spA_hole = 180.*deg;
328  G4VSolid* s_pinsubtrate = new G4Tubs("s_pinsubtrate", ir_hole, or_hole, h_hole, sA_hole, spA_hole);
329  G4LogicalVolume* l_pinsubtrate = new G4LogicalVolume(s_pinsubtrate, geometry::Materials::get("G4_POLYSTYRENE"), "l_pinsubtrate");
330  transform = G4RotateZ3D(phi) * G4Translate3D(0, r, z) * G4RotateX3D(-M_PI / 2 - thetaZ) *
331  G4Translate3D((0.5 - 0.315) * InchtoCm, (0.187 - 0.250 / 2.) * InchtoCm, -(0.5 - 0.382) * InchtoCm) * G4RotateZ3D(360.0);
332  new G4PVPlacement(transform, l_pinsubtrate, "p_pinsubtrate_1", &topVolume, false, 0);
333  transform = G4RotateZ3D(phi) * G4Translate3D(0, r, z) * G4RotateX3D(-M_PI / 2 - thetaZ) *
334  G4Translate3D(-(0.5 - 0.315) * InchtoCm, (0.187 - 0.250 / 2.) * InchtoCm, -(0.5 - 0.382) * InchtoCm) * G4RotateZ3D(360.0);
335  new G4PVPlacement(transform, l_pinsubtrate, "p_pinsubtrate_2", &topVolume, false, 0);
336  */
337
338  //Sensitive area
339  G4double dx_pin = dx_pins;
340  G4double dz_pin = dz_pins;
341  G4double dy_pin = dy_pins;
342
343  G4VSolid* s_pin = new G4Box("s_pin", dx_pin, dy_pin, dz_pin);
344  G4LogicalVolume* l_pin = new G4LogicalVolume(s_pin, geometry::Materials::get("G4_SILICON_DIOXIDE"), "l_pin", 0, m_sensitive);
345  l_pin->SetVisAttributes(yellow);
346  l_pin->SetUserLimits(new G4UserLimits(stepSize));
347  int detID = 0;
348  for (int i = 0; i < dimz; i++) {
349  int detID1 = 2 * i;
350  int detID2 = 2 * i + 1;
351  if (phase == 1) {
352  detID1 = ch_wAu[i];
353  detID2 = ch_woAu[i];
354  }
355  if (phase == 1) {
356  transform = G4Translate3D(x_pos[i], y_pos[i],
357  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
358  G4Translate3D((0.5 - 0.392) * InchtoCm + dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
359  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - 0. - dz_pin);
360  /*
361  if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
362  G4Translate3D((0.5 - 0.392) * InchtoCm + dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
363  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - 0. - dz_pin);
364  */
365  new G4PVPlacement(transform, l_pin, TString::Format("p_pin_1_%d", i).Data(), &topVolume, false, detID1);
366  B2INFO("With Au PIN-" << detID1 << " placed at: " << transform.getTranslation() << " mm");
367  }
368  if (phase == 1) {
369  transform = G4Translate3D(x_pos[i], y_pos[i],
370  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
371  G4Translate3D(-(0.5 - 0.392) * InchtoCm - dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
372  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
373  new G4PVPlacement(transform, l_pin, TString::Format("p_pin_2_%d", i).Data(), &topVolume, false, detID2);
374  B2INFO(" PIN-" << detID2 << " placed at: " << transform.getTranslation() << " mm");
375  }
376  /*
377  if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
378  G4Translate3D(-(0.5 - 0.392) * InchtoCm - dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
379  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
380  */
381
382  if (phase == 2) {
383  for (int j = 0; j < dimPhi; j++) {
384  transform = G4RotateZ3D(phi[j]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[j]);
385  new G4PVPlacement(transform, l_pin, TString::Format("p_pin_%d", i).Data(), &topVolume, false, detID);
386  B2INFO("PIN-" << detID << " placed at: " << transform.getTranslation() << " mm");
387  detID ++;
388  }
389  }
390  }
391  /*
392  for (int i = 0; i < dimz; i++) {
393
394  int detID1 = 2 * i;
395  int detID2 = 2 * i + 1;
396  if (phase == 1) {
397  detID1 = ch_wAu[i];
398  detID2 = ch_woAu[i];
399  }
400
401  new G4PVPlacement(0, G4ThreeVector((0.5 - 0.392) * InchtoCm + dx_shole,
402  (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
403  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - 0. - dz_pin)
404  , l_pin, TString::Format("p_pin_1_%d", i).Data(), l_airbox, false, detID1);
405  new G4PVPlacement(0, G4ThreeVector(-(0.5 - 0.392) * InchtoCm - dx_shole,
406  (0.187 - 0.250 / 2.) * InchtoCm + dy_pin,
407  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin)
408  , l_pin, TString::Format("p_pin_2_%d", i).Data(), l_airbox, false, detID2);
409
410  new G4PVPlacement(0, G4ThreeVector(x_pos_cover_hole,
411  y_pos_hole + dy_pin,
412  z_pos_cover_hole + dx_shole - dz_pin)
413  , l_pin, TString::Format("p_pin_1_%d", i).Data(), l_airbox, false, detID1);
414  new G4PVPlacement(0, G4ThreeVector(-x_pos_cover_hole,
415  y_pos_hole + dy_pin,
416  z_pos_cover_hole + dx_shole - dz_pin)
417  , l_pin, TString::Format("p_pin_2_%d", i).Data(), l_airbox, false, detID2);
418  }
419  */
420  G4double dx_layer = 2.65 / 2.*CLHEP::mm;
421  G4double dz_layer = 2.65 / 2.*CLHEP::mm;
422  G4double dy_layer1 = 0.01 / 2.*CLHEP::mm;
423  G4VSolid* s_layer1 = new G4Box("s_layer1", dx_layer, dy_layer1, dz_layer);
424  G4LogicalVolume* l_layer1 = new G4LogicalVolume(s_layer1, geometry::Materials::get("G4_Au"), "l_layer1");
425  l_layer1->SetVisAttributes(red);
426  for (int i = 0; i < dimz; i++) {
427  if (phase == 1) {
428  transform = G4Translate3D(x_pos[i], y_pos[i],
429  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
430  G4Translate3D((0.5 - 0.392) * InchtoCm + dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_layer1 + 2.* dy_pin,
431  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
432  //if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
433  //G4Translate3D((0.5 - 0.392) * InchtoCm + dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_layer1 + 2.* dy_pin,
434  //(0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
435  new G4PVPlacement(transform, l_layer1, TString::Format("p_pin_layer1_%d", i).Data(), &topVolume, false, 0);
436  }
437  }
438  /*
439  for (int i = 0; i < dimz; i++) {
440
441  new G4PVPlacement(0, G4ThreeVector((0.5 - 0.392) * InchtoCm + dx_shole,
442  (0.187 - 0.250 / 2.) * InchtoCm + dy_layer1 + 2.* dy_pin,
443  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin),
444  l_layer1, TString::Format("p_layer1_%d", i).Data(), l_airbox, false, 0);
445
446  new G4PVPlacement(0, G4ThreeVector(x_pos_cover_hole,
447  y_pos_hole + dy_layer1 + 2.* dy_pin,
448  z_pos_cover_hole + dx_shole - dz_pin),
449  l_layer1, TString::Format("p_layer1_%d", i).Data(), l_airbox, false, 1);
450  }
451  */
452  G4double dy_layer2 = 0.001 / 2.*InchtoCm;
453  G4VSolid* s_layer2 = new G4Box("s_layer1", dx_layer, dy_layer2, dz_layer);
454  G4LogicalVolume* l_layer2 = new G4LogicalVolume(s_layer2, geometry::Materials::get("Al"), "l_layer2");
455  l_layer2->SetVisAttributes(green);
456  for (int i = 0; i < dimz; i++) {
457  if (phase == 1) {
458  transform = G4Translate3D(x_pos[i], y_pos[i],
459  z_pos[i]) * G4RotateX3D(thetaX[i]) * G4RotateY3D(thetaY[i]) * G4RotateZ3D(thetaZ[i]) *
460  G4Translate3D(-(0.5 - 0.392) * InchtoCm - dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_layer2 + 2. * dy_pin,
461  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
462  //if (phase == 2) transform = G4RotateZ3D(phi[i]) * G4Translate3D(0, r[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ[i]) *
463  //G4Translate3D(-(0.5 - 0.392) * InchtoCm - dx_shole, (0.187 - 0.250 / 2.) * InchtoCm + dy_layer2 + 2. * dy_pin,
464  //(0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin);
465  new G4PVPlacement(transform, l_layer2, TString::Format("p_pin_layer2_%d", i).Data(), &topVolume, false, 0);
466  }
467  }
468  /*
469  for (int i = 0; i < dimz; i++) {
470
471  new G4PVPlacement(0, G4ThreeVector(-(0.5 - 0.392) * InchtoCm - dx_shole,
472  (0.187 - 0.250 / 2.) * InchtoCm + dy_layer2 + 2. * dy_pin,
473  (0.563 / 2. - 0.406) * InchtoCm + dx_shole * 2 - dz_pin),
474  l_layer2, TString::Format("p_layer2_%d", i).Data(), l_airbox, false, 0);
475
476  new G4PVPlacement(0, G4ThreeVector(-x_pos_cover_hole,
477  y_pos_hole + dy_layer2 + 2. * dy_pin,
478  z_pos_cover_hole + dx_shole - dz_pin),
479  l_layer2, TString::Format("p_layer2_%d", i).Data(), l_airbox, false, 1);
480  }
481  */
482  }
483  }

◆ createFromDB()

void createFromDB ( const std::string &  name,
G4LogicalVolume &  topVolume,
GeometryTypes  type
)
virtualinherited

Function to create the geometry from the Database.

Parameters
namename of the component in the database, could be used to disambiguate multiple components created with the same creator
topVolumeTop volume in which the geometry has to be placed
typeType of geometry to be build

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoBKLMCreator, GeoPXDCreator, GeoSVDCreator, GeoTOPCreator, GeoSTRCreator, GeoHeavyMetalShieldCreator, GeoCDCCreator, GeoCOILCreator, GeoVXDServiceCreator, GeoKLMCreator, GeoECLCreator, and GeoMagneticField.

Definition at line 27 of file CreatorBase.cc.

◆ createPayloads()

void createPayloads ( const GearDir &  content,
const IntervalOfValidity &  iov
)
virtualinherited

Function to create the geometry database.

This function should be implemented to convert Gearbox parameters to one ore more database payloads

Parameters
contentGearDir pointing to the parameters which should be used for construction
iovinterval of validity to use when generating payloads

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoTOPCreator, GeoCDCCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoMagneticField, GeoBKLMCreator, GeoKLMCreator, GeoECLCreator, GeoPXDCreator, GeoSVDCreator, GeoSTRCreator, GeoCOILCreator, GeoHeavyMetalShieldCreator, and GeoVXDServiceCreator.

Definition at line 34 of file CreatorBase.cc.

The documentation for this class was generated from the following files:
Belle2::geometry::Materials::get
static G4Material * get(const std::string &name)
Find given material.
Definition: Materials.h:65
Belle2::pindiode::PindiodeCreator::m_sensitive
SensitiveDetector * m_sensitive
SensitiveDetector PINDIODE.
Definition: PindiodeCreator.h:36
