QcsmonitorCreator Class Reference

The creator for the QCSMONITOR geometry. More...

#include <QcsmonitorCreator.h>

Inheritance diagram for QcsmonitorCreator:

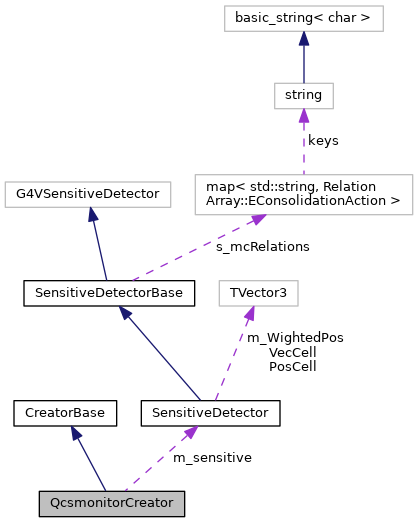

Collaboration diagram for QcsmonitorCreator:

Public Member Functions
virtual void	create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type)
	Function to actually create the geometry, has to be overridden by derived classes. More...
	BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
	Exception that will be thrown in createFromDB if member is not yet implemented by creator.
virtual void	createFromDB (const std::string &name, G4LogicalVolume &topVolume, GeometryTypes type)
	Function to create the geometry from the Database. More...
virtual void	createPayloads (const GearDir &content, const IntervalOfValidity &iov)
	Function to create the geometry database. More...

Protected Attributes
SensitiveDetector *	m_sensitive
	SensitiveDetector QCSMONITOR.

Detailed Description

The creator for the QCSMONITOR geometry.

Definition at line 29 of file QcsmonitorCreator.h.

Member Function Documentation

create()

void create ( const GearDir &  content, G4LogicalVolume &  topVolume, geometry::GeometryTypes  type  )

virtual

Function to actually create the geometry, has to be overridden by derived classes.

Parameters

content	GearDir pointing to the parameters which should be used for construction
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Implements CreatorBase.

Definition at line 60 of file QcsmonitorCreator.cc.

    {
      //lets get the stepsize parameter with a default value of 5 µm
      double stepSize = content.getLength("stepSize", 5 * CLHEP::um);

      G4VisAttributes* red = new G4VisAttributes(G4Colour(1, 0, 0));
      red->SetForceAuxEdgeVisible(true);
      G4VisAttributes* green = new G4VisAttributes(G4Colour(0, 1, 0));
      green->SetForceAuxEdgeVisible(true);
      G4VisAttributes* gray = new G4VisAttributes(G4Colour(.5, .5, .5));
      gray->SetForceAuxEdgeVisible(true);
      G4VisAttributes* coppercolor = new G4VisAttributes(G4Colour(218. / 255., 138. / 255., 103. / 255.));
      coppercolor->SetForceAuxEdgeVisible(true);

      //Lets loop over all the Active nodes
      BOOST_FOREACH(const GearDir & activeParams, content.getNodes("Active")) {
        int phase = activeParams.getInt("phase");
        G4double dx_scint = activeParams.getLength("dx_scint") / 2.*CLHEP::cm;
        G4double dy_scint = activeParams.getLength("dy_scint") / 2.*CLHEP::cm;
        G4double dz_scint = activeParams.getLength("dz_scint") / 2.*CLHEP::cm;
        double thetaZ = activeParams.getAngle("ThetaZ");
        G4VSolid* s_scint = new G4Box("s_scint", dx_scint, dy_scint, dz_scint);
        G4LogicalVolume* l_scint = new G4LogicalVolume(s_scint, geometry::Materials::get("G4_POLYSTYRENE"), "l_scint", 0, m_sensitive);
        l_scint->SetVisAttributes(green);
        //Lets limit the Geant4 stepsize inside the volume
        l_scint->SetUserLimits(new G4UserLimits(stepSize));
        double x_pos[100];
        double y_pos[100];
        double z_pos[100];
        double r_pos[100];
        int dim = 0;
        if (phase == 1) {
          dim = 0;
          for (double x : activeParams.getArray("x", {0})) {
            x *= CLHEP::cm;
            x_pos[dim] = x;
            dim++;
          }
          dim = 0;
          for (double y : activeParams.getArray("y", {0})) {
            y *= CLHEP::cm;
            y_pos[dim] = y;
            dim++;
          }
        }
        dim = 0;
        for (double z : activeParams.getArray("z", {0})) {
          z *= CLHEP::cm;
          z_pos[dim] = z;
          //cout << "QCSS z " << z << " zpos " << z_pos[dim] << endl;
          if (phase == 1) {
            r_pos[dim] = sqrt(x_pos[dim] * x_pos[dim] + y_pos[dim] * y_pos[dim]);
          }
          dim++;
        }
        //if (phase == 1) dim = 1;
        if (phase == 2) {
          dim = 0;
          for (double r : activeParams.getArray("r", {0})) {
            r *= CLHEP::cm;
            r_pos[dim] = r + dz_scint;
            dim++;
          }
          for (int i = 0; i < 100; i++) {
            x_pos[i] = 0;
            y_pos[i] = 0;
            //x_off[i] = 0;
            //y_off[i] = 0;
          }
        }
        int detID = 0;
        G4Transform3D transform;
        for (double phi : activeParams.getArray("Phi", {M_PI / 2})) {
          //phi  *= CLHEP::deg;
          for (int i = 0; i < dim; i++) {
            if (phase == 2) {
              transform = G4RotateZ3D(phi - M_PI / 2) * G4Translate3D(0, r_pos[i], z_pos[i]) * G4RotateX3D(-M_PI / 2 - thetaZ);
              //cout << "phase 2" << endl;
            }
            if (phase == 1) {
              transform = G4Translate3D(x_pos[i], y_pos[i], z_pos[i]) * G4RotateZ3D(phi) * G4RotateX3D(thetaZ);
              //cout << "phase 1" << endl;
            }
            //cout << "QCS r " << r_pos[i] << " width " << dz_scint << " z " << z_pos[i] << " phi " << phi << " x " << x_pos[i] << " y " <<
            //     y_pos[i] << endl;
            new G4PVPlacement(transform, l_scint, TString::Format("p_scint_%d", detID).Data() , &topVolume, false, detID);
            B2INFO("QCSS-" << detID << " placed at: " << transform.getTranslation() << " mm ");
            //cout << " Nb of detector " << detID << endl;
            detID++;
          }
        }
      }
    }

createFromDB()

void createFromDB ( const std::string &  name, G4LogicalVolume &  topVolume, GeometryTypes  type  )

virtualinherited

Function to create the geometry from the Database.

Parameters

name	name of the component in the database, could be used to disambiguate multiple components created with the same creator
topVolume	Top volume in which the geometry has to be placed
type	Type of geometry to be build

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoBKLMCreator, GeoPXDCreator, GeoSVDCreator, GeoTOPCreator, GeoSTRCreator, GeoHeavyMetalShieldCreator, GeoCDCCreator, GeoCOILCreator, GeoVXDServiceCreator, GeoKLMCreator, GeoECLCreator, and GeoMagneticField.

Definition at line 27 of file CreatorBase.cc.

createPayloads()

void createPayloads ( const GearDir &  content, const IntervalOfValidity &  iov  )

virtualinherited

Function to create the geometry database.

This function should be implemented to convert Gearbox parameters to one ore more database payloads

Parameters

content	GearDir pointing to the parameters which should be used for construction
iov	interval of validity to use when generating payloads

Reimplemented in GeoEKLMCreator, GeoFarBeamLineCreator, GeoCryostatCreator, MyDBCreator, GeoARICHCreator, GeoTOPCreator, GeoCDCCreator, GeoBeamPipeCreator, GeoServiceMaterialCreator, GeoMagneticField, GeoBKLMCreator, GeoKLMCreator, GeoECLCreator, GeoPXDCreator, GeoSVDCreator, GeoSTRCreator, GeoCOILCreator, GeoHeavyMetalShieldCreator, and GeoVXDServiceCreator.

Definition at line 34 of file CreatorBase.cc.

---

The documentation for this class was generated from the following files:

• beast/qcsmonitor/geometry/include/QcsmonitorCreator.h
• beast/qcsmonitor/geometry/src/QcsmonitorCreator.cc
