PXDDAQDQMModule Class Reference

The PXD DAQ DQM module. More...

#include <PXDDAQDQMModule.h>

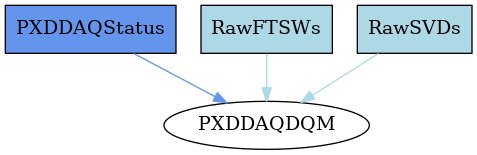

Inheritance diagram for PXDDAQDQMModule:

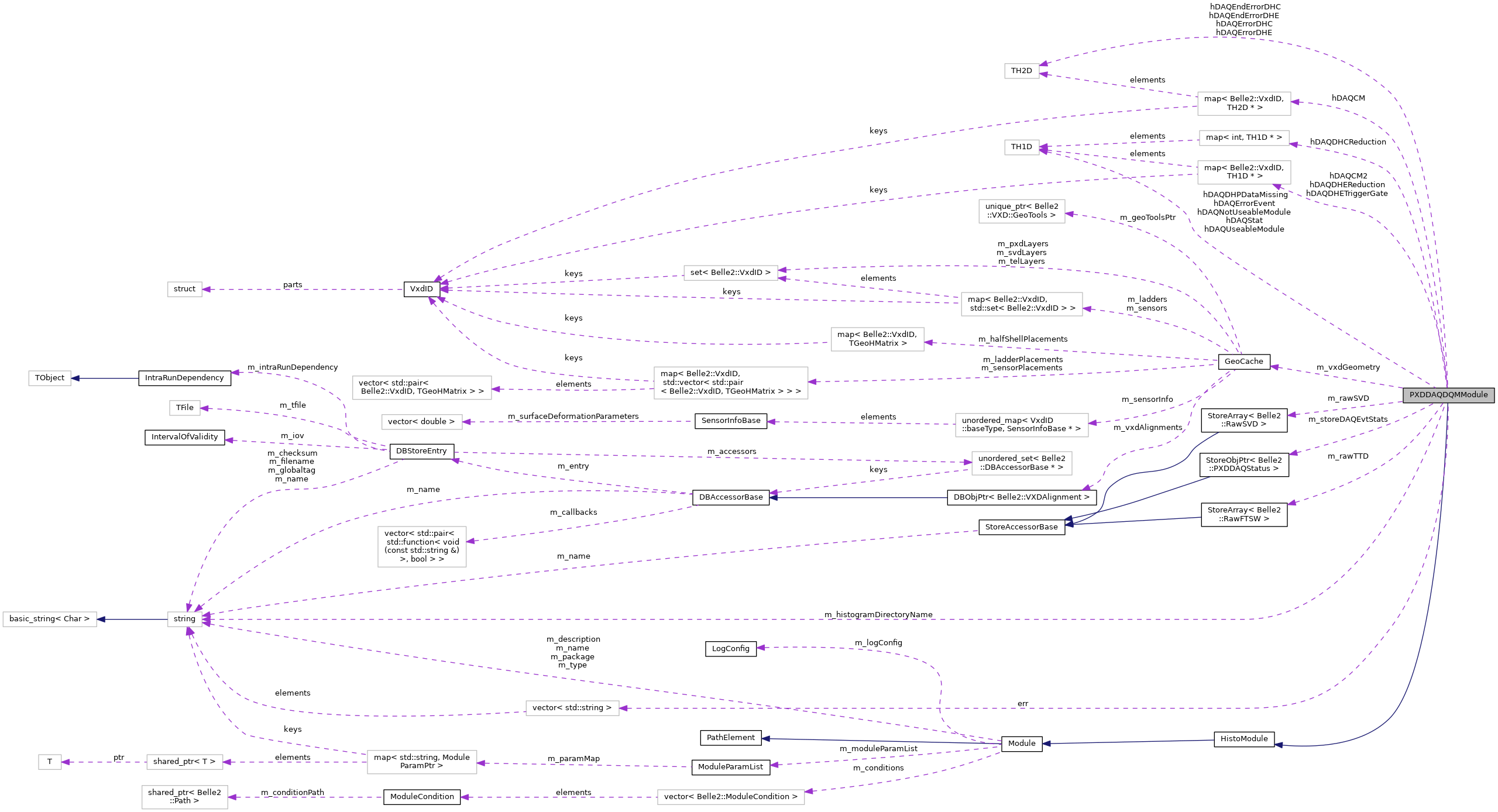

Collaboration diagram for PXDDAQDQMModule:

Public Types
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	PXDDAQDQMModule ()
	Constructor defining the parameters.
virtual void	endRun () override
	Function to process end_run record.
virtual void	terminate () override
	Function to terminate module.
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules. More...
const std::string &	getName () const
	Returns the name of the module. More...
const std::string &	getType () const
	Returns the type of the module (i.e. More...
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module. More...
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties. More...
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level. More...
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module. More...
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module. More...
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module. More...
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true. More...
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer). More...
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished. More...
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module. More...
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter. More...
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module. More...
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module. More...
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters. More...

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python. More...
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side. More...
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module. More...
void	setType (const std::string &type)
	Set the module type. More...
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module. More...
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module. More...
void	setReturnValue (int value)
	Sets the return value for this module as integer. More...
void	setReturnValue (bool value)
	Sets the return value for this module as bool. More...
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Private Member Functions
void	initialize () override final
	Initialize. More...
void	beginRun () override final
	Begin run.
void	event () override final
	Event. More...
void	defineHisto () override final
	Define histograms.
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects. More...
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary. More...

Private Attributes
std::string	m_histogramDirectoryName
	Name of the histogram directory in ROOT file.
StoreObjPtr< PXDDAQStatus >	m_storeDAQEvtStats
	Input array for DAQ Status.
StoreArray< RawSVD >	m_rawSVD
	Input array for SVD/x-check HLT EODB .
StoreArray< RawFTSW >	m_rawTTD
	Input array for TTD/FTSW.
VXD::GeoCache &	m_vxdGeometry
	the geometry
TH1D *	hDAQErrorEvent {}
	Remark: Because of DHH load balancing and sub event building, the very same DHE and DHC can show up in different packets (for different events)! but we will fill only one histogram. More...
TH1D *	hDAQUseableModule {}
	Count Useable/unuseable decision.
TH1D *	hDAQNotUseableModule {}
	Count Useable/unuseable decision.
TH1D *	hDAQDHPDataMissing {}
	Count Missing DHP data.
TH2D *	hDAQErrorDHC {}
	individual DHC errors
TH2D *	hDAQErrorDHE {}
	individual DHE errors
TH2D *	hDAQEndErrorDHC {}
	individual DHC END errors
TH2D *	hDAQEndErrorDHE {}
	individual DHE END errors
std::map< VxdID, TH1D * >	hDAQDHETriggerGate
	DHE Trigger Gate ("start Row")
std::map< VxdID, TH1D * >	hDAQDHEReduction
	DHE data reduction
std::map< VxdID, TH2D * >	hDAQCM
	Common Mode per DHE to gate and DHP level.
std::map< VxdID, TH1D * >	hDAQCM2
	Common Mode per DHE to gate and DHP level.
std::map< int, TH1D * >	hDAQDHCReduction
	DHC data reduction
TH1I *	hEODBAfterInjLER {}
	Histogram of EODB after LER injection.
TH1I *	hEODBAfterInjHER {}
	Histogram of EODB after HER injection.
TH1I *	hCM63AfterInjLER {}
	Histogram of CM63 after LER injection.
TH1I *	hCM63AfterInjHER {}
	Histogram of CM63 after HER injection.
TH1I *	hTruncAfterInjLER {}
	Histogram Truncation after LER injection.
TH1I *	hTruncAfterInjHER {}
	Histogram Truncation after HER injection.
TH1I *	hMissAfterInjLER {}
	Histogram MissFrame after LER injection.
TH1I *	hMissAfterInjHER {}
	Histogram MissFrame after HER injection.
TH1I *	hEODBTrgDiff {}
	Histogram of EODB after last trigger.
TH1I *	hCM63TrgDiff {}
	Histogram of CM63 after last trigger.
TH1I *	hTruncTrgDiff {}
	Histogram Truncation after last trigger.
TH1I *	hMissTrgDiff {}
	Histogram MissFrame after last trigger.
TH1D *	hDAQStat {}
	Histogram for Truncation etc Stats.
std::vector< std::string >	err
	vector of errors
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

The PXD DAQ DQM module.

Creates basic DQM for PXD DAQ errors and statistics

Definition at line 39 of file PXDDAQDQMModule.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

Member Function Documentation

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

event()

void event ( void  )

finaloverrideprivatevirtual

Event.

An Error Flag can only be set, if the object actually exists, thus we have to check for a difference to the number of events, too Remark: for HLT event selection and/or events rejected by the event- of-doom-buster, we might count anyhow broken events as broken from PXD

Reimplemented from HistoModule.

Definition at line 174 of file PXDDAQDQMModule.cc.

{
  hDAQErrorEvent->Fill(-1);// Event counter
  hDAQStat->Fill(-1); // to normalize to the number of events
  hDAQDHPDataMissing->Fill(-1); // to normalize to the number of events
  hDAQErrorDHC->Fill(-1, -1); // to normalize to the number of events
  hDAQErrorDHE->Fill(-1, -1); // to normalize to the number of events
  for (auto& it : hDAQCM2) if (it.second) it.second->Fill(-1); // to normalize to the number of events
  for (auto& it : hDAQCM) if (it.second) it.second->Fill(-1, -1); // to normalize to the number of events

  bool eodbFlag = m_rawSVD.getEntries() == 0;

  bool truncFlag = false; // flag events which are DHE truncated
  bool nolinkFlag = false; // flag events which are DHE truncated
  bool missingFlag = false; // flag events where frame is missing
  bool timeoutFlag = false; // flag events where frame timeout
  bool mismatchFlag = false; // flag events where trig mismatched
  bool cm63Flag = false; // flag event which are CM63 truncated

  B2DEBUG(20, "Iterate PXD DAQ Status");
  auto evt = *m_storeDAQEvtStats;
  auto evt_emask = evt.getErrorMask();
  for (int i = 0; i < ONSEN_MAX_TYPE_ERR; i++) {
    if (evt_emask[i]) hDAQErrorEvent->Fill(getPXDBitErrorName(i).c_str(), 1);
  }
  B2DEBUG(20, "Iterate PXD Packets, Err " << evt_emask);
  for (auto& pkt : evt) {
    B2DEBUG(20, "Iterate PXD DHC in Pkt " << pkt.getPktIndex());
    for (auto& dhc : pkt) {
      hDAQErrorDHC->Fill(dhc.getDHCID(), -1);// normalize
      auto dhc_emask = dhc.getErrorMask();
      for (int i = 0; i < ONSEN_MAX_TYPE_ERR; i++) {
        if (dhc_emask[i]) hDAQErrorDHC->Fill(dhc.getDHCID(), i);
      }
      unsigned int cmask = dhc.getEndErrorInfo();
      for (int i = 0; i < 32; i++) {
        unsigned int mask = (1 << i);
        if ((cmask & mask) == mask) hDAQEndErrorDHC->Fill(dhc.getDHCID(), i);
      }
      if (hDAQDHCReduction[dhc.getDHCID()]) {
        float red = dhc.getRedCnt() ? float(dhc.getRawCnt()) / dhc.getRedCnt() : 0.;
        B2DEBUG(98, "==DHC " << dhc.getDHCID() << "(Raw)" << dhc.getRawCnt() << " / (Red)" << dhc.getRedCnt() << " = " << red);
        if (red >= 40.) red = 39.999999999; // Bad, bad workaround. but we want to see the overflows
        hDAQDHCReduction[dhc.getDHCID()]->Fill(red);
      }
      B2DEBUG(20, "Iterate PXD DHE in DHC " << dhc.getDHCID() << " , Err " << dhc_emask);
      for (auto& dhe : dhc) {
        hDAQErrorDHE->Fill(dhe.getDHEID(), -1);// normalize
        auto dhe_emask = dhe.getErrorMask();
        B2DEBUG(20, "DHE " << dhe.getDHEID() << " , Err " << dhe_emask);
        for (int i = 0; i < ONSEN_MAX_TYPE_ERR; i++) {
          if (dhe_emask[i]) hDAQErrorDHE->Fill(dhe.getDHEID(), i);
        }
        if (dhe.isUsable()) {
          hDAQUseableModule->Fill(dhe.getDHEID());
        } else {
          hDAQNotUseableModule->Fill(dhe.getDHEID());
        }
        for (int i = 0; i < 4; i++) {
          if ((dhe.getDHPFoundMask() & (1 << i)) == 0) hDAQDHPDataMissing->Fill(dhe.getDHEID() + i * 0.25);
        }
        for (auto& dhp : dhe) {
          truncFlag |= dhp.getTruncated(); // new firmware workaround flag
        }
        unsigned int emask = dhe.getEndErrorInfo();
        // TODO differentiate between link-lost and truncation
        for (int i = 0; i < 4 * 2; i++) {
          auto sm = (emask >> i * 4) & 0xF;
          if (sm >= 8) sm = 7; // clip unknow to 7, as value >6 undefined for now
          if (sm > 0) hDAQEndErrorDHE->Fill(dhe.getDHEID(), i * 8 + sm); // we dont want to fill noerror=0
          missingFlag |= sm == 0x1; // missing
          timeoutFlag |= sm == 0x2; // timeout
          nolinkFlag |= sm == 0x3; // link down
          // 4 is DHP masked
          mismatchFlag |= sm == 0x5; // start/end mismatch
          truncFlag |= sm == 0x6; // trunc because of size
        }

        if (hDAQDHETriggerGate[dhe.getSensorID()]) hDAQDHETriggerGate[dhe.getSensorID()]->Fill(dhe.getTriggerGate());
        if (hDAQDHEReduction[dhe.getSensorID()]) {
          float red = dhe.getRedCnt() ? float(dhe.getRawCnt()) / dhe.getRedCnt() : 0.;
          B2DEBUG(98, "==DHE " << dhe.getSensorID() << "(Raw)" << dhe.getRawCnt() << " / (Red)" << dhe.getRedCnt() << " = " << red);
          if (red >= 40.) red = 39.999999999; // Bad, bad workaround. but we want to see the overflows
          hDAQDHEReduction[dhe.getSensorID()]->Fill(red);
        }
        for (auto cm = dhe.cm_begin(); cm < dhe.cm_end(); ++cm) {
          // uint8_t, uint16_t, uint8_t ; tuple of Chip ID (2 bit), Row (10 bit), Common Mode (6 bit)
          if (hDAQCM[dhe.getSensorID()]) hDAQCM[dhe.getSensorID()]->Fill(std::get<0>(*cm) * 192 + std::get<1>(*cm) / 4, std::get<2>(*cm));
          if (hDAQCM2[dhe.getSensorID()]) hDAQCM2[dhe.getSensorID()]->Fill(std::get<2>(*cm));
          //if (hDAQCM2[dhe.getSensorID()] && std::get<1>(*cm) < 768 - 2) {
          // Deactivated again as the clean-up effect was insignificant for beam data
          // ignore the always-on rows (second to last: 766 and last 767)
          // row in CM array is already in readout-direction and not V-ID
          // hDAQCM2[dhe.getSensorID()]->Fill(std::get<2>(*cm));
          //}
          cm63Flag |= 63 == std::get<2>(*cm);
        }
      }
    }
  }
// Now fill the histograms which need flags set above
// the code is unluckily a copy of whats in PXDInjection Module, but there we dont have the DAQ flags :-/
  for (auto& it : m_rawTTD) {
//     B2DEBUG(29, "TTD FTSW : " << hex << it.GetTTUtime(0) << " " << it.GetTTCtime(0) << " EvtNr " << it.GetEveNo(0)  << " Type " <<
//             (it.GetTTCtimeTRGType(0) & 0xF) << " TimeSincePrev " << it.GetTimeSincePrevTrigger(0) << " TimeSinceInj " <<
//             it.GetTimeSinceLastInjection(0) << " IsHER " << it.GetIsHER(0) << " Bunch " << it.GetBunchNumber(0));

    double lasttrig = it.GetTimeSincePrevTrigger(0) / 127.; //  127MHz clock ticks to us, inexact rounding
    if (eodbFlag && hEODBTrgDiff) hEODBTrgDiff->Fill(lasttrig);
    if (cm63Flag && hCM63TrgDiff) hCM63TrgDiff->Fill(lasttrig);
    if (truncFlag && hTruncTrgDiff) hTruncTrgDiff->Fill(lasttrig);
    if (missingFlag && hMissTrgDiff) hMissTrgDiff->Fill(lasttrig);

    // get last injection time
    auto difference = it.GetTimeSinceLastInjection(0);
    // check time overflow, too long ago
    if (difference != 0x7FFFFFFF) {
      double diff2 = difference / 127.; //  127MHz clock ticks to us, inexact rounding
      if (it.GetIsHER(0)) {
        if (eodbFlag) {
          if (hEODBAfterInjHER) hEODBAfterInjHER->Fill(diff2);
        }
        if (cm63Flag) {
          hDAQStat->Fill(5); // sum CM63 after HER
          if (diff2 > 1000) hDAQStat->Fill(7); // sum CM63 after HER, but outside injections, 1ms
          if (hCM63AfterInjHER) hCM63AfterInjHER->Fill(diff2);
        }
        if (truncFlag) {
          hDAQStat->Fill(2); // sum truncs after HER
          if (diff2 > 1000) hDAQStat->Fill(9); // sum truncs after HER, but outside injections, 1ms
          if (hTruncAfterInjHER) hTruncAfterInjHER->Fill(diff2);
        }
        if (missingFlag) {
          hDAQStat->Fill(15); // sum missframe after HER
          if (diff2 > 1000) hDAQStat->Fill(17); // sum missframe after HER, but outside injections, 1ms
          if (hMissAfterInjHER) hMissAfterInjHER->Fill(diff2);
        }
      } else {
        if (eodbFlag) {
          if (hEODBAfterInjLER) hEODBAfterInjLER->Fill(diff2);
        }
        if (cm63Flag) {
          hDAQStat->Fill(6); // sum CM63 after LER
          if (diff2 > 1000) hDAQStat->Fill(8); // sum CM63 after LER, but outside injections, 1ms
          if (hCM63AfterInjLER) hCM63AfterInjLER->Fill(diff2);
        }
        if (truncFlag) {
          hDAQStat->Fill(3); // sum truncs after LER
          if (diff2 > 1000) hDAQStat->Fill(10); // sum truncs after LER, but outside injections, 1ms
          if (hTruncAfterInjLER) hTruncAfterInjLER->Fill(diff2);
        }
        if (missingFlag) {
          hDAQStat->Fill(16); // sum missframe after LER
          if (diff2 > 1000) hDAQStat->Fill(18); // sum missframe after LER, but outside injections, 1ms
          if (hMissAfterInjLER) hMissAfterInjLER->Fill(diff2);
        }
      }
    }
    break; // only first TTD packet
  }

// make some nice statistics
  if (truncFlag) hDAQStat->Fill(1);
  if (cm63Flag) hDAQStat->Fill(4);
  if (missingFlag) hDAQStat->Fill(11);
  if (timeoutFlag) hDAQStat->Fill(12);
  if (nolinkFlag) hDAQStat->Fill(13);
  if (mismatchFlag) hDAQStat->Fill(14);

// Check Event-of-doom-busted or otherwise HLT rejected events
  if (eodbFlag) hDAQStat->Fill(0);
}

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

getFileNames()

virtual std::vector<std::string> getFileNames ( bool  outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootOutputModule, and RootInputModule.

Definition at line 134 of file Module.h.

getName()

const std::string& getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

hasProperties()

bool hasProperties ( unsigned int  propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

if_false()

void if_false ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

if_true()

void if_true ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

if_value()

void if_value ( const std::string &  expression, const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://confluence.desy.de/display/BI/Software+ModCondTut or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

initialize()

void initialize ( void  )

finaloverrideprivatevirtual

Initialize.

TODO better use isRequired(), but RawFTSW is not in sim, thus tests are failing

just for checking EODB / Hlt rejections

Reimplemented from HistoModule.

Definition at line 142 of file PXDDAQDQMModule.cc.

setDescription()

void setDescription ( const std::string &  description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

setLogInfo()

void setLogInfo ( int  logLevel, unsigned int  logInfo  )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

setName()

void setName ( const std::string &  name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

setParamPython()

void setParamPython ( const std::string &  name, const boost::python::object &  pyObj  )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

setReturnValue() [1/2]

void setReturnValue ( bool  value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

setReturnValue() [2/2]

void setReturnValue ( int  value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

setType()

void setType ( const std::string &  type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

Member Data Documentation

hDAQErrorEvent

TH1D* hDAQErrorEvent {}

private

Remark: Because of DHH load balancing and sub event building, the very same DHE and DHC can show up in different packets (for different events)! but we will fill only one histogram.

per event errors

Definition at line 64 of file PXDDAQDQMModule.h.

---

The documentation for this class was generated from the following files:

• pxd/modules/pxdDQM/include/PXDDAQDQMModule.h
• pxd/modules/pxdDQM/src/PXDDAQDQMModule.cc
