Specific implementation of SensorInfo for PXD Sensors which provides additional pixel specific information. More...

#include <SensorInfo.h>

Inheritance diagram for SensorInfo:

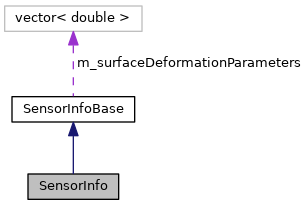

Collaboration diagram for SensorInfo:

Public Types
enum	SensorType { PXD = 0 , SVD = 1 , TEL = 2 , VXD = -1 }
	Enum specifing the type of sensor the SensorInfo represents. More...

Public Member Functions
	SensorInfo (VxdID id=0, float width=0, float length=0, float thickness=0, int uCells=0, int vCells=0, float splitLength=0, int vCells2=0)
	Constructor which automatically sets the SensorType.

void	setID (VxdID id)
	Change the SensorID, useful to copy the SensorInfo from one sensor and use it for another.

void	flipVSegmentation ()
	Flip the Pitch segmentation along v. More...

void	setDEPFETParams (double bulkDoping, double backVoltage, double topVoltage, double sourceBorderSmallPitch, double clearBorderSmallPitch, double drainBorderSmallPitch, double sourceBorderLargePitch, double clearBorderLargePitch, double drainBorderLargePitch, double gateDepth, bool doublePixel, double chargeThreshold, double noiseFraction)
	Set operation parameters like voltages.

void	cook ()
	calculate constants in advance

int	getTrappedID (double x, double y) const
	Get pixel number if the given coordinate is in the correspondin internal gate trapping region or -1 otherwise. More...

void	setIntegrationWindow (double start, double end)
	Set the time window in which the sensor is active.

double	getTemperature () const
	Return the temperature of the sensor.

double	getBulkDoping () const
	Return the bulk doping of the Silicon sensor.

double	getBackVoltage () const
	Return the voltage at the backside of the sensor.

double	getTopVoltage () const
	Return the voltage at the top of the sensor.

double	getSourceBorder (double v) const
	Return the distance between the source side of the pixel and the start of the Gate for a pixel at v. More...

double	getClearBorder (double v) const
	Return the distance between the clear side of the pixel and the start of the Gate for a pixel at v.

double	getDrainBorder (double v) const
	Return the distance between the drain side of the pixel and the start of the Gate for a pixel at v.

double	getGateDepth () const
	Return the gate depth for the sensor.

bool	getDoublePixel () const
	Return true if the Sensor is a double pixel structure: every other pixel is mirrored along v.

double	getChargeThreshold () const
	Get the charge threshold in ADU for the sensor.

double	getNoiseFraction () const
	Get the noise fraction for the sensor.

double	getIntegrationStart () const
	Return the start of the integration window, the timeframe the PXD is sensitive.

double	getIntegrationEnd () const
	Return the end of the integration window, the timeframe the PXD is sensitive.

double	getHallFactor () const
	Return the Hall factor for electrons at sensor temperature.

double	getElectronMobility (double E) const
	Calculate electron mobility at a given electric field. More...

const TVector3	getEField (const TVector3 &point) const
	Model of the E field inside the sensor. More...

const TVector3	getBField (const TVector3 &point) const
	Get B field value from the field map. More...

const TVector3	getLorentzShift (double u, double v) const
	Calculate Lorentz shift. More...

const TVector3	getDriftVelocity (const TVector3 &E, const TVector3 &B) const
	Calculate drift velocity of an electron. More...

int	getPixelKind (const VxdID sensorID, double v) const
	Return pixel kind ID. More...

int	getPixelKindNew (const VxdID &sensorID, int vID) const
	Return pixel kind ID. More...

SensorType	getType () const
	Return the Type of the Sensor.

VxdID	getID () const
	Return the ID of the Sensor.

double	getWidth (double v=0) const
	Return the width of the sensor. More...

double	getBackwardWidth () const
	Convinience Wrapper to return width at backward side. More...

double	getForwardWidth () const
	Convinience Wrapper to return width at forward side. More...

double	getLength () const
	Return the length of the sensor. More...

double	getThickness () const
	Return the thickness of the sensor. More...

double	getUSize (double v=0) const
	Return the width of the sensor. More...

double	getVSize () const
	Return the length of the sensor. More...

double	getWSize () const
	Return the thickness of the sensor. More...

double	getUPitch (double v=0) const
	Return the pitch of the sensor. More...

double	getVPitch (double v=0) const
	Return the pitch of the sensor. More...

int	getVPitchID (double v=0) const
	Return the pitch ID of the sensor. More...

double	getUCellPosition (int uID, int vID=-1) const
	Return the position of a specific strip/pixel in u direction. More...

double	getVCellPosition (int vID) const
	Return the position of a specific strip/pixel in v direction. More...

int	getUCellID (double u, double v=0, bool clamp=false) const
	Return the corresponding pixel/strip ID of a given u coordinate. More...

int	getVCellID (double v, bool clamp=false) const
	Return the corresponding pixel/strip ID of a given v coordinate. More...

int	getUCells () const
	Return number of pixel/strips in u direction.

int	getVCells () const
	Return number of pixel/strips in v direction.

int	getVCells2 () const
	Return number of pixel/strips in v direction up to change pitch.

bool	inside (double u, double v, double uTolerance=DBL_EPSILON, double vTolerance=DBL_EPSILON) const
	Check wether a given point is inside the active area. More...

bool	inside (const TVector3 &local) const
	Check wether a given point is inside the active area. More...

void	forceInside (double &u, double &v) const
	Force a position to be inside the active area. More...

void	forceInside (TVector3 &local) const
	Force a given point inside the active area. More...

TVector3	pointToGlobal (const TVector3 &local, bool reco=false) const
	Convert a point from local to global coordinates. More...

TVector3	vectorToGlobal (const TVector3 &local, bool reco=false) const
	Convert a vector from local to global coordinates. More...

TVector3	pointToLocal (const TVector3 &global, bool reco=false) const
	Convert a point from global to local coordinates. More...

TVector3	vectorToLocal (const TVector3 &global, bool reco=false) const
	Convert a vector from global to local coordinates. More...

void	setTransformation (const TGeoHMatrix &transform, bool reco=false)
	Set the transformation matrix of the Sensor. More...

const TGeoHMatrix &	getTransformation (bool reco=false) const
	Return the transformation matrix of the Sensor. More...

void	setSurfaceParameters (const std::vector< double > &planarParameters)
	Fill parameters of planar deformation to vector.

const std::vector< double > &	getSurfaceParameters () const
	Return parameters of planar deformation.

Protected Member Functions
void	setLorentzFactor ()
	Calculate Lorentz shift factor. More...

Protected Attributes
double	m_temperature
	The temperature of the sensor.

double	m_hallFactor
	The bulk doping of the Silicon sensor.

double	m_bulkDoping
	Doping concentration of the silicon bulk.

double	m_backVoltage
	The voltage at the backside of the sensor.

double	m_topVoltage
	The voltate at the top of the sensor.

double	m_sourceBorderSmallPitch
	The distance between the source side of the pixel and the start of the Gate, small pitch area.

double	m_clearBorderSmallPitch
	The distance between the clear side of the pixel and the start of the Gate, small pitch area

double	m_drainBorderSmallPitch
	The distance between the drain side of the pixel and the start of the Gate, small pitch area

double	m_sourceBorderLargePitch
	The distance between the source side of the pixel and the start of the Gate, large pitch area.

double	m_clearBorderLargePitch
	The distance between the clear side of the pixel and the start of the Gate, large pitch area

double	m_drainBorderLargePitch
	The distance between the drain side of the pixel and the start of the Gate, large pitch area

double	m_gateDepth
	Return depth of the surface where the electrons will be collected.

bool	m_doublePixel
	True if the Sensor is a double pixel structure: every other pixel is mirrored along v.

double	m_chargeThreshold
	Charge threshold.

double	m_noiseFraction
	Fixed noise fraction.

double	m_integrationStart
	The start of the integration window, the timeframe the PXD is sensitive.

double	m_integrationEnd
	The end of the integration window, the timeframe the PXD is sensitive.

double	m_up
	pixel pitch in u direction

double	m_iup
	the reciprocal of the pixel pitch in u direction

double	m_vsplit
	v coordinate which splits small and large pixel regions

double	m_vp
	large pixel pitch in v direction

double	m_ivp
	the reciprocal of the large pixel pitch in v direction

double	m_vp2
	small pixel pitch in v direction

double	m_ivp2
	the reciprocal of the small pixel pitch in v direction

double	m_hxIG
	size in u direction of the internal gate trapping region

double	m_mIGL
	middle of the internal gate trapping region for large pixels

double	m_sIGL
	size in v direction of the internal gate trapping region for large pixels

double	m_mIGS
	middle of the internal gate trapping region for small pixels

double	m_sIGS
	size in v direction of the internal gate trapping region for small pixels

SensorType	m_type
	Type of the Sensor.

unsigned short	m_id
	ID of the Sensor.

double	m_width
	Width of the sensor.

double	m_length
	Length of the Sensor.

double	m_thickness
	Thickness of the Sensor.

double	m_deltaWidth
	Difference between backward and forward width, 0 for rectangular sensors.

double	m_splitLength
	Relative length at which second pixel size starts, 0 for only one pixel size.

int	m_uCells
	Number of strips/pixels in u direction.

int	m_vCells
	Number of strips/pixels in v direction (up to splitLength for two pixel sizes)

int	m_vCells2
	Number of strips/pixels in v direction after splitLength, 0 for only one pixel size.

TGeoHMatrix	m_transform
	Nominal transformation matrix of the Sensor.

TGeoHMatrix	m_recoTransform
	Alignment-corrected transformation matrix of the Sensor for use in reconstruction.

std::vector< double >	m_surfaceDeformationParameters = std::vector<double>(12, 0.0)
	Vector contains all parameter needed for description planar deformation of sensors.

Detailed Description

Specific implementation of SensorInfo for PXD Sensors which provides additional pixel specific information.

Definition at line 23 of file SensorInfo.h.

Member Enumeration Documentation

◆ SensorType

enum SensorType

inherited

Enum specifing the type of sensor the SensorInfo represents.

Enumerator
PXD	PXD Sensor.
SVD	SVD Sensor.
TEL	Testbeam telescope sensor.
VXD	Any type of VXD Sensor.

Definition at line 33 of file SensorInfoBase.h.

                       {
         PXD = 0,
         SVD = 1,
         TEL = 2,
         VXD = -1,
       };

Member Function Documentation

◆ flipVSegmentation()

void flipVSegmentation ( )

inline

Flip the Pitch segmentation along v.

If there are two different pixel sizes than mirror the segmentation along v.

Definition at line 43 of file SensorInfo.h.

       {
         if (m_splitLength <= 0) return;
         std::swap(m_vCells, m_vCells2);
         std::swap(m_sourceBorderSmallPitch, m_sourceBorderLargePitch);
         std::swap(m_clearBorderSmallPitch, m_clearBorderLargePitch);
         std::swap(m_drainBorderSmallPitch, m_drainBorderLargePitch);
         m_splitLength = (1 - m_splitLength);
         cook();
       }

◆ forceInside() [1/2]

void forceInside	(	double &	u,
		double &	v
	)		const

inlineinherited

Force a position to be inside the active area.

Parameters

u	u coordinate to be forced inside
v	v coordinate to be forced inside

Definition at line 251 of file SensorInfoBase.h.

◆ forceInside() [2/2]

void forceInside ( TVector3 & local ) const

inlineinherited

Force a given point inside the active area.

Parameters

local point in local coordinates, will be modified to lie inside or at the border of the sensor

Definition at line 354 of file SensorInfoBase.h.

◆ getBackwardWidth()

double getBackwardWidth ( ) const

inlineinherited

Convinience Wrapper to return width at backward side.

Returns: width of the sensor at the backward side

Definition at line 90 of file SensorInfoBase.h.

◆ getBField()

const TVector3 & getBField ( const TVector3 & point ) const

Get B field value from the field map.

Parameters

point	Desired position in local coordinates.
info	the SensorInfo for the current sensor.

Returns: The B field vector in local coordinates.

Definition at line 45 of file SensorInfo.cc.

 {
   TVector3 pointGlobal = pointToGlobal(point, true);
   TVector3 bGlobal = BFieldManager::getField(pointGlobal);
   TVector3 bLocal = vectorToLocal(bGlobal, true);
   return bLocal;
 }

◆ getDriftVelocity()

const TVector3 getDriftVelocity	(	const TVector3 &	E,
		const TVector3 &	B
	)		const

Calculate drift velocity of an electron.

Parameters

E	Electric field vector
B	Magnetic field vector

Returns: drift velocity of an electron in the E+B field.

Definition at line 53 of file SensorInfo.cc.

◆ getEField()

const TVector3 getEField ( const TVector3 & point ) const

Model of the E field inside the sensor.

Parameters

point	Desired position in local coordinates.
info	The SensorInfo for the current sensor.

Returns: The E field vector in local coordinates.

Definition at line 33 of file SensorInfo.cc.

◆ getElectronMobility()

double getElectronMobility ( double E ) const

Calculate electron mobility at a given electric field.

Based on C. Canali et al., IEEE, ED-22, (1975) 1045

Parameters

E	Electric field, V/cm

Returns: electron mobility, cm*2/V.ns

Definition at line 20 of file SensorInfo.cc.

◆ getForwardWidth()

double getForwardWidth ( ) const

inlineinherited

Convinience Wrapper to return width at forward side.

Returns: width of the sensor at the forward side

Definition at line 98 of file SensorInfoBase.h.

◆ getLength()

double getLength ( void ) const

inlineinherited

Return the length of the sensor.

Returns: length of the sensor

Definition at line 106 of file SensorInfoBase.h.

◆ getLorentzShift()

const TVector3 & getLorentzShift	(	double	u,
		double	v
	)		const

Calculate Lorentz shift.

Parameters

u	Local u coordinate
v	Local v coordinate

Returns: 3-vector (du, dv, 0) of Lorentz shifts.

Definition at line 98 of file SensorInfo.cc.

◆ getPixelKind()

int getPixelKind	(	const VxdID	sensorID,
		double	v
	)		const

Return pixel kind ID.

Parameters

sensorID	the sensor identification
v	Local v coordinate

Returns: pixel kind ID in range 0..7, 0-3 for Layer=1, 4-7 for Layer=2

Definition at line 68 of file SensorInfo.cc.

◆ getPixelKindNew()

int getPixelKindNew	(	const VxdID &	sensorID,
		int	vID
	)		const

Return pixel kind ID.

Parameters

sensorID	the sensor identification
vID	Local vcell ID

Returns: pixel kind ID in range 0, 1, 2, 3 for z55, z60, z70, z85 pixels

Definition at line 77 of file SensorInfo.cc.

◆ getSourceBorder()

double getSourceBorder ( double v ) const

inline

Return the distance between the source side of the pixel and the start of the Gate for a pixel at v.

For these functions to work, the small pitch and large pitch values have to be correctly swapped with the flipVSegmentation method. FIXME: flip... is never called!

Definition at line 105 of file SensorInfo.h.

◆ getThickness()

double getThickness ( ) const

inlineinherited

Return the thickness of the sensor.

Returns: thickness of the sensor

Definition at line 111 of file SensorInfoBase.h.

◆ getTransformation()

const TGeoHMatrix& getTransformation ( bool reco = false ) const

inlineinherited

Return the transformation matrix of the Sensor.

Returns: Transformation matrix of the Sensor

Parameters

reco	Get transformation for reconstruction (true) or nominal (false)

Definition at line 307 of file SensorInfoBase.h.

◆ getTrappedID()

int getTrappedID	(	double	x,
		double	y
	)		const

Get pixel number if the given coordinate is in the correspondin internal gate trapping region or -1 otherwise.

Parameters

x	u-coordinate in the local system
y	v-coordinate in the local system

Returns: pixel number id = ix + 250*iy, or -1

Definition at line 149 of file SensorInfo.cc.

◆ getUCellID()

int getUCellID	(	double	u,
		double	v = `0`,
		bool	clamp = `false`
	)		const

inlineinherited

Return the corresponding pixel/strip ID of a given u coordinate.

Parameters

u	u coordinate of the pixel/strip
v	v coordinate of the pixel/strip, ignored for rectangular sensors
clamp	flag for clamp

Returns: ID of the pixel/strip covering the given coordinate

Definition at line 194 of file SensorInfoBase.h.

◆ getUCellPosition()

double getUCellPosition	(	int	uID,
		int	vID = `-1`
	)		const

inlineinherited

Return the position of a specific strip/pixel in u direction.

Parameters

uID	id of the strip/pixel in u coordinates
vID	id of the strip/pixel in v coordinates, ignored for rectangular sensors

Returns: Pixel/Strip position in u direction

Definition at line 169 of file SensorInfoBase.h.

◆ getUPitch()

double getUPitch ( double v = 0 ) const

inlineinherited

Return the pitch of the sensor.

Parameters

v	v-coordinate where to determine the pitch, ignored for rectangular sensors

Returns: Pixel/Strip size in u direction

Definition at line 133 of file SensorInfoBase.h.

◆ getUSize()

double getUSize ( double v = 0 ) const

inlineinherited

Return the width of the sensor.

Parameters

v	v-coordinate where to determine the width, ignored for recangular sensors

Returns: width of the Sensor

Definition at line 117 of file SensorInfoBase.h.

◆ getVCellID()

int getVCellID	(	double	v,
		bool	clamp = `false`
	)		const

inlineinherited

Return the corresponding pixel/strip ID of a given v coordinate.

Parameters

v	v coordinate of the pixel/strip
clamp	flag for clamp

Returns: ID of the pixel/strip covering the given coordinate

Definition at line 205 of file SensorInfoBase.h.

◆ getVCellPosition()

double getVCellPosition ( int vID ) const

inlineinherited

Return the position of a specific strip/pixel in v direction.

Parameters

vID	id of the strip/pixel in v coordinates

Returns: Pixel/Strip position in v direction

Definition at line 181 of file SensorInfoBase.h.

◆ getVPitch()

double getVPitch ( double v = 0 ) const

inlineinherited

Return the pitch of the sensor.

Parameters

v	v-coordinate where to determine the pitch, only used for sensors with two different pixel sizes along v

Returns: Pixel/Strip size in v direction

Definition at line 140 of file SensorInfoBase.h.

◆ getVPitchID()

int getVPitchID ( double v = 0 ) const

inlineinherited

Return the pitch ID of the sensor.

Parameters

v	v-coordinate where to determine the pitchID only used for PXD sensors with two different pixel sizes along v

Returns: Pixel/Strip ID in v direction: 0 for pitch at smaller v, 1 for bigger v Attention: Pitch ID depend from sensor position For PXD it swap for sensor=1 vs. seensor=2 Sensor=1: bigger pitch = 0, smaller = 1 Sensor=2: smaller pitch = 0, bigger = 1

Definition at line 157 of file SensorInfoBase.h.

◆ getVSize()

double getVSize ( ) const

inlineinherited

Return the length of the sensor.

Returns: length of the sensor

Definition at line 122 of file SensorInfoBase.h.

◆ getWidth()

double getWidth ( double v = 0 ) const

inlineinherited

Return the width of the sensor.

Parameters

v	v-coordinate where to determine the width, ignored for recangular sensors

Returns: width of the Sensor

Definition at line 81 of file SensorInfoBase.h.

◆ getWSize()

double getWSize ( ) const

inlineinherited

Return the thickness of the sensor.

Returns: thickness of the sensor

Definition at line 127 of file SensorInfoBase.h.

◆ inside() [1/2]

bool inside ( const TVector3 & local ) const

inlineinherited

Check wether a given point is inside the active area.

Parameters

local point in local coordinates

Returns: true if inside active area, false otherwise

Definition at line 241 of file SensorInfoBase.h.

◆ inside() [2/2]

bool inside	(	double	u,
		double	v,
		double	uTolerance = `DBL_EPSILON`,
		double	vTolerance = `DBL_EPSILON`
	)		const

inlineinherited

Check wether a given point is inside the active area.

Optionally, one can specify a tolerance which should be added to the sensor edges to still be considered inside

Parameters

u	u coordinate to check, supply 0 if not interested
v	v coordinate to check, supply 0 if not interested
uTolerance	tolerance to be added on each side of the sensor in u direction
vTolerance	tolerance to be added on each side of the sensor in u direction

Returns: true if inside active area, false otherwise

Definition at line 230 of file SensorInfoBase.h.

◆ pointToGlobal()

TVector3 pointToGlobal	(	const TVector3 &	local,
		bool	reco = `false`
	)		const

inlineinherited

Convert a point from local to global coordinates.

Parameters

local	point in local coordinates
reco	Use sensor position in reconstruction (true) or in nominal geometry (false)

Returns: point in global coordinates

Definition at line 365 of file SensorInfoBase.h.

◆ pointToLocal()

TVector3 pointToLocal	(	const TVector3 &	global,
		bool	reco = `false`
	)		const

inlineinherited

Convert a point from global to local coordinates.

Parameters

global	point in global coordinates
reco	Use sensor position in reconstruction (true) or in nominal geometry (false)

Returns: point in local coordinates

Definition at line 385 of file SensorInfoBase.h.

◆ setLorentzFactor()

void setLorentzFactor ( )

protected

Calculate Lorentz shift factor.

This factor is constant for a sensor; the actual, position-dependent Lorentz shift is factor cross B.

◆ setTransformation()

void setTransformation	(	const TGeoHMatrix &	transform,
		bool	reco = `false`
	)

inlineinherited

Set the transformation matrix of the Sensor.

Parameters

transform	Transformation matrix of the Sensor
reco	Set transformation for reconstruction (true) or nominal (false)

Definition at line 297 of file SensorInfoBase.h.

◆ vectorToGlobal()

TVector3 vectorToGlobal	(	const TVector3 &	local,
		bool	reco = `false`
	)		const

inlineinherited

Convert a vector from local to global coordinates.

Parameters

local	vector in local coordinates
reco	Use sensor position in reconstruction (true) or in nominal geometry (false)

Returns: vector in global coordinates

Definition at line 375 of file SensorInfoBase.h.

◆ vectorToLocal()

TVector3 vectorToLocal	(	const TVector3 &	global,
		bool	reco = `false`
	)		const

inlineinherited

Convert a vector from global to local coordinates.

Parameters

global	vector in global coordinates
reco	Use sensor position in reconstruction (true) or in nominal geometry (false)

Returns: vector in local coordinates

Definition at line 395 of file SensorInfoBase.h.

The documentation for this class was generated from the following files:

pxd/geometry/include/SensorInfo.h
pxd/geometry/src/SensorInfo.cc

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ SensorType

Member Function Documentation

◆ flipVSegmentation()

◆ forceInside() [1/2]

◆ forceInside() [2/2]

◆ getBackwardWidth()

◆ getBField()

◆ getDriftVelocity()

◆ getEField()

◆ getElectronMobility()

◆ getForwardWidth()

◆ getLength()

◆ getLorentzShift()

◆ getPixelKind()

◆ getPixelKindNew()

◆ getSourceBorder()

◆ getThickness()

◆ getTransformation()

◆ getTrappedID()

◆ getUCellID()

◆ getUCellPosition()

◆ getUPitch()

◆ getUSize()

◆ getVCellID()

◆ getVCellPosition()

◆ getVPitch()

◆ getVPitchID()

◆ getVSize()

◆ getWidth()

◆ getWSize()

◆ inside() [1/2]

◆ inside() [2/2]

◆ pointToGlobal()

◆ pointToLocal()

◆ setLorentzFactor()

◆ setTransformation()

◆ vectorToGlobal()

◆ vectorToLocal()
