GeoCryostatCreator Class Reference

The creator for the Cryostat geometry of the Belle II detector. More...

#include <GeoCryostatCreator.h>

Inheritance diagram for GeoCryostatCreator:
Inheritance graph
[legend]

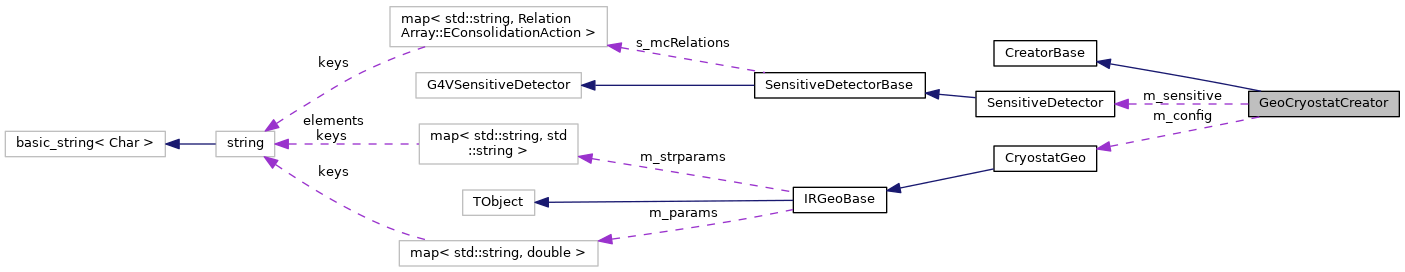

Collaboration diagram for GeoCryostatCreator:
Collaboration graph
[legend]

Public Member Functions

 GeoCryostatCreator ()
 Constructor of the GeoCryostatCreator class.

virtual ~GeoCryostatCreator ()
 The destructor of the GeoCryostatCreator class.

 GeoCryostatCreator (const GeoCryostatCreator &)=delete
 Do not want a copy constructor.

GeoCryostatCreator & operator= (const GeoCryostatCreator &)=delete
 Do not want an assignment operator.

virtual void create (const GearDir &content, G4LogicalVolume &topVolume, geometry::GeometryTypes type) override
 Creates the ROOT Objects for the Cryostat geometry. More...

virtual void createPayloads (const GearDir &content, const IntervalOfValidity &iov) override
 creates DB payload for CryostatGeo class

virtual void createFromDB (const std::string &name, G4LogicalVolume &topVolume, geometry::GeometryTypes type) override
 Create the geometry from the Database.

 BELLE2_DEFINE_EXCEPTION (DBNotImplemented, "Cannot create geometry from Database.")
 Exception that will be thrown in createFromDB if member is not yet implemented by creator.


Protected Attributes

SensitiveDetector * m_sensitive
 Sensitive detector.

CryostatGeo m_config
 geometry parameters object


Private Member Functions

CryostatGeo createConfiguration (const GearDir &param)
 Reads IR geometry parameters from the xml files and createst DB class CryostatGeo.

void createGeometry (G4LogicalVolume &topVolume, geometry::GeometryTypes type)
 Create detector geometry. More...


Detailed Description

The creator for the Cryostat geometry of the Belle II detector.


Definition at line 43 of file GeoCryostatCreator.h.

Member Function Documentation

◆ create()

virtual void create ( const GearDir &  content,
G4LogicalVolume &  topVolume,
geometry::GeometryTypes  type
)
inlineoverridevirtual

Creates the ROOT Objects for the Cryostat geometry.

Parameters
contentA reference to the content part of the parameter description, which should to be used to create the ROOT objects.
topVolumeGeant4 logical top volume.
typeGeometry type.

Implements CreatorBase.

Definition at line 84 of file GeoCryostatCreator.h.

85  {
86  m_config = createConfiguration(content);
87
88  // override geometry configuration from the DB
89  DBStore::Instance().addConstantOverride("CryostatGeo", new CryostatGeo(m_config));
90
91  createGeometry(topVolume, type);
92  }
Belle2::ir::GeoCryostatCreator::m_config
CryostatGeo m_config
geometry parameters object
Definition: GeoCryostatCreator.h:118
Belle2::ir::GeoCryostatCreator::createGeometry
void createGeometry(G4LogicalVolume &topVolume, geometry::GeometryTypes type)
Create detector geometry.
Definition: GeoCryostatCreator.cc:68
Belle2::ir::GeoCryostatCreator::createConfiguration
CryostatGeo createConfiguration(const GearDir &param)
Reads IR geometry parameters from the xml files and createst DB class CryostatGeo.
Definition: GeoCryostatCreator.h:47
Belle2::DBStore::Instance
static DBStore & Instance()
Instance of a singleton DBStore.
Definition: DBStore.cc:26
Belle2::DBStore::addConstantOverride
void addConstantOverride(const std::string &name, TObject *obj, bool oneRun=false)
Add constant override payload.
Definition: DBStore.cc:194

◆ createGeometry()

void createGeometry ( G4LogicalVolume &  topVolume,
geometry::GeometryTypes  type
)
private

Create detector geometry.

Parameters
topVolumeGeant4 logical top volume.
typeGeometry type.

Definition at line 68 of file GeoCryostatCreator.cc.

69  {
70
71  //###### L side index ######
72  //
73  // +- A1spc1+A1spc2
74  // +- A2wal1
75  // +- A3wal1
76  // +- A3wal2
77  // +- A4mag1
78  // +- A4mag2
79  // +- A4mag3
80  // +- A4mag4
81  //
82  // +- B1spc1+B1spc2
83  // +- B2wal1
84  // +- B3wal1
85  // +- B3wal2
86  // +- B4mag1
87  // +- B4mag2
88  // +- B4mag3
89  // +- B4mag4
90  //
91  // +- C1wal1
92  // +- C2spc1
93  // +- C3wal1
94  // +- C4spc1
95  // +- C5wal1
96  // +- C6spc1
97  // +- C7lyr1
98  // +- C7lyr2
99  // +- C7lyr3
100  // +- C7lyr4
101  // +- C7lyr5
102  // +- C2spc2
103  // +- C3wal2
104  // +- C4spc2
105  // +- C5wal2
106  // +- C6spc2
107  // +- C7wal1
108  // +- C5wal3
109  // +- C5wal4
110  // +- C3wal3
111  // +- C2spc3
112  // +- C1wal2
113  //
114  //###### R side index ######
115  //
116  // +- D1spc1
117  // +- D2wal1
118  // +- D3wal1
119  // +- D3wal2
120  // +- D4mag1
121  // +- D4mag2
122  // +- D4mag3
123  //
124  // +- E1spc1
125  // +- E2wal1
126  // +- E3wal1
127  // +- E4mag1
128  // +- E4mag2
129  // +- E4mag3
130  //
131  // +- F1wal1
132  // +- F2spc1
133  // +- F3wal1
134  // +- F4spc1
135  // +- F5wal1
136  // +- F6spc1
137  // +- F7lyr1
138  // +- F7lyr2
139  // +- F7lyr3
140  // +- F7lyr4
141  // +- F7lyr5
142  // +- F3wal2
143  // +- F3wal3
144  // +- F3wal4
145  // +- F1wal2
146
147  double stepMax = 5.0 * Unit::mm;
148  int flag_limitStep = int(m_config.getParameter("LimitStepLength"));
149
150  const double unitFactor = Unit::cm / Unit::mm;
151
152  double crossingAngleHER = m_config.getParameter("CrossingAngle.HER", 0.0415);
153  double crossingAngleLER = m_config.getParameter("CrossingAngle.LER", -0.0415);
154
155  G4Transform3D transform_HER = G4Translate3D(0., 0., 0.);
156  transform_HER = transform_HER * G4RotateY3D(crossingAngleHER);
157
158  G4Transform3D transform_LER = G4Translate3D(0., 0., 0.);
159  transform_LER = transform_LER * G4RotateY3D(crossingAngleLER);
160
161  map<string, CryostatElement> elements;
162
163  //--------------
164  //- Bounding shapes
165
166  // right bounding shape 1
167  CryostatElement tubeR;
168  std::string prep = "TubeR.";
169
170  const int TubeR_N = int(m_config.getParameter(prep + "N"));
171
172  std::vector<double> TubeR_Z(TubeR_N);
173  std::vector<double> TubeR_R(TubeR_N);
174  std::vector<double> TubeR_r(TubeR_N);
175
176  for (int i = 0; i < TubeR_N; ++i) {
177  ostringstream ossZID;
178  ossZID << "Z" << i;
179
180  ostringstream ossRID;
181  ossRID << "R" << i;
182
183  ostringstream ossrID;
184  ossrID << "r" << i;
185
186  TubeR_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
187  TubeR_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
188  TubeR_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
189  }
190
191  tubeR.transform = G4Translate3D(0., 0., 0.);
192  tubeR.geo = new G4Polycone("geo_TubeR_name", 0, 2 * M_PI, TubeR_N, &(TubeR_Z[0]), &(TubeR_r[0]), &(TubeR_R[0]));
193  tubeR.logi = NULL;
194  elements["TubeR"] = tubeR;
195
196  // right bounding shape 2
197  CryostatElement tubeR2;
198  prep = "TubeR2.";
199  const int TubeR2_N = int(m_config.getParameter(prep + "N"));
200
201  std::vector<double> TubeR2_Z(TubeR2_N);
202  std::vector<double> TubeR2_R(TubeR2_N);
203  std::vector<double> TubeR2_r(TubeR2_N);
204
205  for (int i = 0; i < TubeR2_N; ++i) {
206  ostringstream ossZID;
207  ossZID << "Z" << i;
208
209  ostringstream ossRID;
210  ossRID << "R" << i;
211
212  ostringstream ossrID;
213  ossrID << "r" << i;
214
215  TubeR2_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
216  TubeR2_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
217  TubeR2_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
218  }
219
220  tubeR2.transform = G4Translate3D(0., 0., 0.);
221  tubeR2.geo = new G4Polycone("geo_TubeR2_name", 0, 2 * M_PI, TubeR2_N, &(TubeR2_Z[0]), &(TubeR2_r[0]), &(TubeR2_R[0]));
222  tubeR2.logi = NULL;
223  elements["TubeR2"] = tubeR2;
224
225  // left bounding shape
226  CryostatElement tubeL;
227  prep = "TubeL.";
228  const int TubeL_N = int(m_config.getParameter(prep + "N"));
229
230  std::vector<double> TubeL_Z(TubeL_N);
231  std::vector<double> TubeL_R(TubeL_N);
232  std::vector<double> TubeL_r(TubeL_N);
233
234  for (int i = 0; i < TubeL_N; ++i) {
235  ostringstream ossZID;
236  ossZID << "Z" << i;
237
238  ostringstream ossRID;
239  ossRID << "R" << i;
240
241  ostringstream ossrID;
242  ossrID << "r" << i;
243
244  TubeL_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
245  TubeL_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
246  TubeL_r[i] = m_config.getParameter(prep + ossrID.str()) * unitFactor;
247  }
248
249  tubeL.transform = G4Translate3D(0., 0., 0.);
250  tubeL.geo = new G4Polycone("geo_TubeL_name", 0, 2 * M_PI, TubeL_N, &(TubeL_Z[0]), &(TubeL_r[0]), &(TubeL_R[0]));
251  tubeL.logi = NULL;
252  elements["TubeL"] = tubeL;
253
254  //--------------
255  // Special cases with complex geometry
256
257  //--------------
258  //- A1spc1 and B1spc1
259
260  // space containing all structures around right HER beam pipe, part 1
261  CryostatElement A1spc1;
262  prep = "A1spc1.";
263  const int A1spc1_N = int(m_config.getParameter(prep + "N"));
264
265  std::vector<double> A1spc1_Z(A1spc1_N);
266  std::vector<double> A1spc1_r(A1spc1_N);
267  std::vector<double> A1spc1_R(A1spc1_N);
268
269  for (int i = 0; i < A1spc1_N; ++i) {
270  ostringstream ossZID;
271  ossZID << "Z" << i;
272
273  ostringstream ossRID;
274  ossRID << "R" << i;
275
276  ostringstream ossrID;
277  ossrID << "r" << i;
278
279  A1spc1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
280  A1spc1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
281  A1spc1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
282  }
283
284  A1spc1.transform = transform_HER;
285  G4Polycone* geo_A1spc1xx = new G4Polycone("geo_A1spc1xx_name", 0, 2 * M_PI, A1spc1_N, &(A1spc1_Z[0]), &(A1spc1_r[0]),
286  &(A1spc1_R[0]));
287
288  // space containing all structures around right HER beam pipe, part 2
289  CryostatElement A1spc2;
290  prep = "A1spc2.";
291  const int A1spc2_N = int(m_config.getParameter(prep + "N"));
292
293  std::vector<double> A1spc2_Z(A1spc2_N);
294  std::vector<double> A1spc2_R(A1spc2_N);
295  std::vector<double> A1spc2_r(A1spc2_N);
296
297  for (int i = 0; i < A1spc2_N; ++i) {
298  ostringstream ossZID;
299  ossZID << "Z" << i;
300
301  ostringstream ossRID;
302  ossRID << "R" << i;
303
304  ostringstream ossrID;
305  ossrID << "r" << i;
306
307  A1spc2_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
308  A1spc2_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
309  A1spc2_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
310  }
311
312  A1spc2.transform = transform_HER;
313  G4Polycone* geo_A1spc2xx = new G4Polycone("geo_A1spc2xx_name", 0, 2 * M_PI, A1spc2_N, &(A1spc2_Z[0]), &(A1spc2_r[0]),
314  &(A1spc2_R[0]));
315
316  // space containing all structures around right LER beam pipe, part 1
317  CryostatElement B1spc1;
318  prep = "B1spc1.";
319  const int B1spc1_N = int(m_config.getParameter(prep + "N"));
320
321  std::vector<double> B1spc1_Z(B1spc1_N);
322  std::vector<double> B1spc1_R(B1spc1_N);
323  std::vector<double> B1spc1_r(B1spc1_N);
324
325  for (int i = 0; i < B1spc1_N; ++i) {
326  ostringstream ossZID;
327  ossZID << "Z" << i;
328
329  ostringstream ossRID;
330  ossRID << "R" << i;
331
332  ostringstream ossrID;
333  ossrID << "r" << i;
334
335  B1spc1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
336  B1spc1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
337  B1spc1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
338  }
339
340  B1spc1.transform = transform_LER;
341  G4Polycone* geo_B1spc1xx = new G4Polycone("geo_B1spc1xx_name", 0, 2 * M_PI, B1spc1_N, &(B1spc1_Z[0]), &(B1spc1_r[0]),
342  &(B1spc1_R[0]));
343
344  // space containing all structures around right LER beam pipe, part 2
345  CryostatElement B1spc2;
346  prep = "B1spc2.";
347  const int B1spc2_N = int(m_config.getParameter(prep + "N"));
348
349  std::vector<double> B1spc2_Z(B1spc2_N);
350  std::vector<double> B1spc2_R(B1spc2_N);
351  std::vector<double> B1spc2_r(B1spc2_N);
352
353  for (int i = 0; i < B1spc2_N; ++i) {
354  ostringstream ossZID;
355  ossZID << "Z" << i;
356
357  ostringstream ossRID;
358  ossRID << "R" << i;
359
360  ostringstream ossrID;
361  ossrID << "r" << i;
362
363  B1spc2_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
364  B1spc2_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
365  B1spc2_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
366  }
367
368  B1spc2.transform = transform_LER;
369  G4Polycone* geo_B1spc2xx = new G4Polycone("geo_B1spc2xx_name", 0, 2 * M_PI, B1spc2_N, &(B1spc2_Z[0]), &(B1spc2_r[0]),
370  &(B1spc2_R[0]));
371
372  // final cut
373  B1spc2.geo = new G4IntersectionSolid("geo_B1spc2_name", geo_B1spc2xx, elements["TubeR2"].geo, B1spc2.transform.inverse());
374  B1spc2.logi = NULL;
375
376  G4IntersectionSolid* geo_B1spc1x = new G4IntersectionSolid("geo_B1spc1x_name", geo_B1spc1xx, elements["TubeR"].geo,
377  B1spc1.transform.inverse());
378  B1spc1.geo = new G4UnionSolid("geo_B1spc1_name", geo_B1spc1x, B1spc2.geo);
379
380  A1spc2.geo = new G4IntersectionSolid("geo_A1spc2_name", geo_A1spc2xx, elements["TubeR2"].geo, A1spc2.transform.inverse());
381  A1spc2.logi = NULL;
382
383  G4IntersectionSolid* geo_A1spc1xy = new G4IntersectionSolid("geo_A1spc1xy_name", geo_A1spc1xx, elements["TubeR"].geo,
384  A1spc1.transform.inverse());
385  G4UnionSolid* geo_A1spc1x = new G4UnionSolid("geo_A1spc1x_name", geo_A1spc1xy, A1spc2.geo);
386  A1spc1.geo = new G4SubtractionSolid("geo_A1spc1_name", geo_A1spc1x, B1spc1.geo, A1spc1.transform.inverse()*B1spc1.transform);
387
388  string strMat_A1spc1 = m_config.getParameterStr("A1spc1.Material");
389  G4Material* mat_A1spc1 = Materials::get(strMat_A1spc1);
390  A1spc1.logi = new G4LogicalVolume(A1spc1.geo, mat_A1spc1, "logi_A1spc1_name");
391  if (flag_limitStep)
392  A1spc1.logi->SetUserLimits(new G4UserLimits(stepMax));
393
394  //put volume
395  setColor(*A1spc1.logi, "#CC0000");
396  //setVisibility(*A1spc1.logi, false);
397  new G4PVPlacement(A1spc1.transform, A1spc1.logi, "phys_A1spc1_name", &topVolume, false, 0);
398
399  string strMat_B1spc1 = m_config.getParameterStr("B1spc1.Material");
400  G4Material* mat_B1spc1 = Materials::get(strMat_B1spc1);
401  B1spc1.logi = new G4LogicalVolume(B1spc1.geo, mat_B1spc1, "logi_B1spc1_name");
402  if (flag_limitStep)
403  B1spc1.logi->SetUserLimits(new G4UserLimits(stepMax));
404
405  //put volume
406  setColor(*B1spc1.logi, "#CC0000");
407  //setVisibility(*B1spc1.logi, false);
408  new G4PVPlacement(B1spc1.transform, B1spc1.logi, "phys_B1spc1_name", &topVolume, false, 0);
409
410  elements["A1spc1"] = A1spc1;
411  elements["A1spc2"] = A1spc2;
412  elements["B1spc1"] = B1spc1;
413  elements["B1spc2"] = B1spc2;
414
415  //--------------
416  //- C1wal1
417
418  //get parameters from .xml file
419  CryostatElement C1wal1;
420  prep = "C1wal1.";
421  const int C1wal1_N = m_config.getParameter(prep + "N");
422
423  std::vector<double> C1wal1_Z(C1wal1_N);
424  std::vector<double> C1wal1_R(C1wal1_N);
425  std::vector<double> C1wal1_r(C1wal1_N);
426
427  for (int i = 0; i < C1wal1_N; ++i) {
428  ostringstream ossZID;
429  ossZID << "Z" << i;
430
431  ostringstream ossRID;
432  ossRID << "R" << i;
433
434  ostringstream ossrID;
435  ossrID << "r" << i;
436
437  C1wal1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
438  C1wal1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
439  C1wal1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
440  }
441
442  C1wal1.transform = G4Translate3D(0., 0., 0.);
443
444  //define geometry
445  G4Polycone* geo_C1wal1xxx = new G4Polycone("geo_C1wal1xxx_name", 0, 2 * M_PI, C1wal1_N, &(C1wal1_Z[0]), &(C1wal1_r[0]),
446  &(C1wal1_R[0]));
447  G4IntersectionSolid* geo_C1wal1xx = new G4IntersectionSolid("geo_C1wal1xx_name", geo_C1wal1xxx, elements["TubeR"].geo,
448  elements["TubeR"].transform);
449  G4SubtractionSolid* geo_C1wal1x = new G4SubtractionSolid("geo_C1wal1x_name", geo_C1wal1xx, elements["A1spc1"].geo,
450  elements["A1spc1"].transform);
451  C1wal1.geo = new G4SubtractionSolid("geo_C1wal1_name", geo_C1wal1x, elements["B1spc1"].geo, elements["B1spc1"].transform);
452
453  string strMat_C1wal1 = m_config.getParameterStr(prep + "Material");
454  G4Material* mat_C1wal1 = Materials::get(strMat_C1wal1);
455  C1wal1.logi = new G4LogicalVolume(C1wal1.geo, mat_C1wal1, "logi_C1wal1_name");
456
457  //put volume
458  setColor(*C1wal1.logi, "#CC0000");
459  setVisibility(*C1wal1.logi, false);
460  new G4PVPlacement(0, G4ThreeVector(0, 0, 0), C1wal1.logi, "phys_C1wal1_name", &topVolume, false, 0);
461
462  elements["C1wal1"] = C1wal1;
463
464  //--------------
465  //- D1spc1 and E1spc1
466
467  // space containing all structures around left HER beam pipe
468  CryostatElement D1spc1;
469  prep = "D1spc1.";
470  const int D1spc1_N = m_config.getParameter(prep + "N");
471
472  std::vector<double> D1spc1_Z(D1spc1_N);
473  std::vector<double> D1spc1_r(D1spc1_N);
474  std::vector<double> D1spc1_R(D1spc1_N);
475
476  for (int i = 0; i < D1spc1_N; ++i) {
477  ostringstream ossZID;
478  ossZID << "Z" << i;
479
480  ostringstream ossRID;
481  ossRID << "R" << i;
482
483  ostringstream ossrID;
484  ossrID << "r" << i;
485
486  D1spc1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
487  D1spc1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
488  D1spc1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
489  }
490
491  D1spc1.transform = transform_HER;
492  G4Polycone* geo_D1spc1xx = new G4Polycone("geo_D1spc1xx_name", 0, 2 * M_PI, D1spc1_N, &(D1spc1_Z[0]), &(D1spc1_r[0]),
493  &(D1spc1_R[0]));
494
495  // space containing all structures around left LER beam pipe
496  CryostatElement E1spc1;
497  prep = "E1spc1.";
498  const int E1spc1_N = int(m_config.getParameter(prep + "N"));
499
500  std::vector<double> E1spc1_Z(E1spc1_N);
501  std::vector<double> E1spc1_R(E1spc1_N);
502  std::vector<double> E1spc1_r(E1spc1_N);
503
504  for (int i = 0; i < E1spc1_N; ++i) {
505  ostringstream ossZID;
506  ossZID << "Z" << i;
507
508  ostringstream ossRID;
509  ossRID << "R" << i;
510
511  ostringstream ossrID;
512  ossrID << "r" << i;
513
514  E1spc1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
515  E1spc1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
516  E1spc1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
517  }
518
519  E1spc1.transform = transform_LER;
520  G4Polycone* geo_E1spc1xx = new G4Polycone("geo_E1spc1xx_name", 0, 2 * M_PI, E1spc1_N, &(E1spc1_Z[0]), &(E1spc1_r[0]),
521  &(E1spc1_R[0]));
522
523  // final cut
524  G4IntersectionSolid* geo_D1spc1x = new G4IntersectionSolid("geo_D1spc1x_name", geo_D1spc1xx, elements["TubeL"].geo,
525  D1spc1.transform.inverse());
526  E1spc1.geo = new G4IntersectionSolid("geo_E1spc1_name", geo_E1spc1xx, elements["TubeL"].geo, E1spc1.transform.inverse());
527  D1spc1.geo = new G4SubtractionSolid("geo_D1spc1_name", geo_D1spc1x, E1spc1.geo, D1spc1.transform.inverse()*E1spc1.transform);
528
529  string strMat_D1spc1 = m_config.getParameterStr("D1spc1.Material");
530  G4Material* mat_D1spc1 = Materials::get(strMat_D1spc1);
531  D1spc1.logi = new G4LogicalVolume(D1spc1.geo, mat_D1spc1, "logi_D1spc1_name");
532  if (flag_limitStep)
533  D1spc1.logi->SetUserLimits(new G4UserLimits(stepMax));
534
535  //put volume
536  setColor(*D1spc1.logi, "#CC0000");
537  //setVisibility(*D1spc1.logi, false);
538  new G4PVPlacement(D1spc1.transform, D1spc1.logi, "phys_D1spc1_name", &topVolume, false, 0);
539
540  string strMat_E1spc1 = m_config.getParameterStr(prep + "Material");
541  G4Material* mat_E1spc1 = Materials::get(strMat_E1spc1);
542  E1spc1.logi = new G4LogicalVolume(E1spc1.geo, mat_E1spc1, "logi_E1spc1_name");
543  if (flag_limitStep)
544  E1spc1.logi->SetUserLimits(new G4UserLimits(stepMax));
545
546  //put volume
547  setColor(*E1spc1.logi, "#CC0000");
548  //setVisibility(*E1spc1.logi, false);
549  new G4PVPlacement(E1spc1.transform, E1spc1.logi, "phys_E1spc1_name", &topVolume, false, 0);
550
551  elements["E1spc1"] = E1spc1;
552  elements["D1spc1"] = D1spc1;
553
554
555  //--------------
556  //- F1wal1
557
558  //get parameters from .xml file
559  CryostatElement F1wal1;
560  prep = "F1wal1.";
561  const int F1wal1_N = int(m_config.getParameter(prep + "N"));
562
563  std::vector<double> F1wal1_Z(F1wal1_N);
564  std::vector<double> F1wal1_R(F1wal1_N);
565  std::vector<double> F1wal1_r(F1wal1_N);
566
567  for (int i = 0; i < F1wal1_N; ++i) {
568  ostringstream ossZID;
569  ossZID << "Z" << i;
570
571  ostringstream ossRID;
572  ossRID << "R" << i;
573
574  ostringstream ossrID;
575  ossrID << "r" << i;
576
577  F1wal1_Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
578  F1wal1_R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
579  F1wal1_r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
580  }
581
582  F1wal1.transform = G4Translate3D(0., 0., 0.);
583
584  //define geometry
585  G4Polycone* geo_F1wal1xxx = new G4Polycone("geo_F1wal1xxx_name", 0, 2 * M_PI, F1wal1_N, &(F1wal1_Z[0]), &(F1wal1_r[0]),
586  &(F1wal1_R[0]));
587  G4IntersectionSolid* geo_F1wal1xx = new G4IntersectionSolid("geo_F1wal1xx_name", geo_F1wal1xxx, elements["TubeL"].geo,
588  elements["TubeL"].transform);
589  G4SubtractionSolid* geo_F1wal1x = new G4SubtractionSolid("geo_F1wal1x_name", geo_F1wal1xx, elements["D1spc1"].geo,
590  elements["D1spc1"].transform);
591  F1wal1.geo = new G4SubtractionSolid("geo_F1wal1_name", geo_F1wal1x, elements["E1spc1"].geo, elements["E1spc1"].transform);
592
593  string strMat_F1wal1 = m_config.getParameterStr(prep + "Material");
594  G4Material* mat_F1wal1 = Materials::get(strMat_F1wal1);
595  F1wal1.logi = new G4LogicalVolume(F1wal1.geo, mat_F1wal1, "logi_F1wal1_name");
596
597  //put volume
598  setColor(*F1wal1.logi, "#CC0000");
599  setVisibility(*F1wal1.logi, false);
600  new G4PVPlacement(F1wal1.transform, F1wal1.logi, "phys_F1wal1_name", &topVolume, false, 0);
601
602  elements["F1wal1"] = F1wal1;
603
604
605  //--------------
606  //- Rest of elements with typical geometry
607  std::vector<std::string> straightSections;
608  boost::split(straightSections, m_config.getParameterStr("Straight"), boost::is_any_of(" "));
609  for (const auto& name : straightSections) {
610  prep = name + ".";
611
612  CryostatElement polycone;
613
614  int N = int(m_config.getParameter(prep + "N"));
615
616  std::vector<double> Z(N);
617  std::vector<double> R(N);
618  std::vector<double> r(N);
619
620  for (int i = 0; i < N; ++i) {
621  ostringstream ossZID;
622  ossZID << "Z" << i;
623
624  ostringstream ossRID;
625  ossRID << "R" << i;
626
627  ostringstream ossrID;
628  ossrID << "r" << i;
629
630  Z[i] = m_config.getParameter(prep + ossZID.str()) * unitFactor;
631  R[i] = m_config.getParameter(prep + ossRID.str()) * unitFactor;
632  r[i] = m_config.getParameter(prep + ossrID.str(), 0.0) * unitFactor;
633  }
634
635  polycone.transform = G4Translate3D(0.0, 0.0, 0.0);
636
637  //define geometry
638  string motherVolume = m_config.getParameterStr(prep + "MotherVolume");
639  string subtract = m_config.getParameterStr(prep + "Subtract", "");
640  string intersect = m_config.getParameterStr(prep + "Intersect", "");
641
642  string geo_polyconexx_name = "geo_" + name + "xx_name";
643  string geo_polyconex_name = "geo_" + name + "x_name";
644  string geo_polycone_name = "geo_" + name + "_name";
645
646  G4VSolid* geo_polyconexx, *geo_polycone;
647
648  if (subtract != "" && intersect != "") {
649  geo_polyconexx = new G4Polycone(geo_polyconexx_name, 0.0, 2 * M_PI, N, &(Z[0]), &(r[0]), &(R[0]));
650  G4VSolid* geo_polyconex = new G4SubtractionSolid(geo_polyconex_name, geo_polyconexx, elements[subtract].geo,
651  elements[motherVolume].transform.inverse()*polycone.transform.inverse()*elements[subtract].transform);
652  geo_polycone = new G4IntersectionSolid(geo_polycone_name, geo_polyconex, elements[intersect].geo,
653  elements[motherVolume].transform.inverse()*polycone.transform.inverse()*elements[intersect].transform);
654  } else if (subtract != "") {
655  geo_polyconexx = new G4Polycone(geo_polyconexx_name, 0.0, 2 * M_PI, N, &(Z[0]), &(r[0]), &(R[0]));
656  geo_polycone = new G4SubtractionSolid(geo_polycone_name, geo_polyconexx, elements[subtract].geo,
657  elements[motherVolume].transform.inverse()*polycone.transform.inverse()*elements[subtract].transform);
658  } else if (intersect != "") {
659  geo_polyconexx = new G4Polycone(geo_polyconexx_name, 0.0, 2 * M_PI, N, &(Z[0]), &(r[0]), &(R[0]));
660  geo_polycone = new G4IntersectionSolid(geo_polycone_name, geo_polyconexx, elements[intersect].geo,
661  elements[motherVolume].transform.inverse()*polycone.transform.inverse()*elements[intersect].transform);
662  } else
663  geo_polycone = new G4Polycone(geo_polycone_name, 0.0, 2 * M_PI, N, &(Z[0]), &(r[0]), &(R[0]));
664
665  polycone.geo = geo_polycone;
666
667  // define logical volume
668  string strMat_polycone = m_config.getParameterStr(prep + "Material");
669  G4Material* mat_polycone = Materials::get(strMat_polycone);
670  string logi_polycone_name = "logi_" + name + "_name";
671  polycone.logi = new G4LogicalVolume(polycone.geo, mat_polycone, logi_polycone_name);
672  setColor(*polycone.logi, "#CC0000");
673  setVisibility(*polycone.logi, false);
674
675  //put volume
676  string phys_polycone_name = "phys_" + name + "_name";
677  new G4PVPlacement(polycone.transform, polycone.logi, phys_polycone_name, elements[motherVolume].logi, false, 0);
678
679  //to use it later in "intersect" and "subtract"
680  polycone.transform = polycone.transform * elements[motherVolume].transform;
681
682  elements[name] = polycone;
683  }
684
685  // RVC connection structure (simplified shape)
686  G4Tubs* geo_rvcR = new G4Tubs("geo_rvcR", 60, 60 + 60, (620 - 560) / 2., 0, 2 * M_PI);
687  G4LogicalVolume* logi_rvcR = new G4LogicalVolume(geo_rvcR, Materials::get("SUS316L"), "logi_rvcR_name");
688  new G4PVPlacement(0, G4ThreeVector(0, 0, (620 + 560) / 2.), logi_rvcR, "phys_rvcR_name", &topVolume, false, 0);
689
690  G4Tubs* geo_rvcL = new G4Tubs("geo_rvcL", 60, 60 + 60, (-560 - (-620)) / 2., 0, 2 * M_PI);
691  G4LogicalVolume* logi_rvcL = new G4LogicalVolume(geo_rvcL, Materials::get("SUS316L"), "logi_rvcL_name");
692  new G4PVPlacement(0, G4ThreeVector(0, 0, (-620 - 560) / 2.), logi_rvcL, "phys_rvcL_name", &topVolume, false, 0);
693
694  // Added 10 Nov 2018
695  // Elliptical inner surface around QC1LE
696  G4EllipticalTube* geo_elp_QC1LEx = new G4EllipticalTube("geo_elp_QC1LEx", 10.5, 13.5, (-675 - (-1225)) / 2.); //in mm
697  G4IntersectionSolid* geo_elp_QC1LE = new G4IntersectionSolid("geo_elp_QC1LE", elements["D2wal1"].geo, geo_elp_QC1LEx,
698  G4Translate3D(0, 0, (-675 - 1225) / 2.));
699  G4LogicalVolume* logi_elp_QC1LE = new G4LogicalVolume(geo_elp_QC1LE, Materials::get("Vacuum"), "logi_elp_QC1LE_name");
700  new G4PVPlacement(0, G4ThreeVector(0, 0, 0), logi_elp_QC1LE, "phys_elp_QC1LE_name", elements["D2wal1"].logi, false, 0);
701  // Elliptical inner surface around QC1LP
702  G4EllipticalTube* geo_elp_QC1LPx = new G4EllipticalTube("geo_elp_QC1LPx", 10.5, 13.5, (-675 - (-1225)) / 2.); //in mm
703  G4IntersectionSolid* geo_elp_QC1LP = new G4IntersectionSolid("geo_elp_QC1LP", elements["E2wal1"].geo, geo_elp_QC1LPx,
704  G4Translate3D(0, 0, (-675 - 1225) / 2.));
705  G4LogicalVolume* logi_elp_QC1LP = new G4LogicalVolume(geo_elp_QC1LP, Materials::get("Vacuum"), "logi_elp_QC1LP_name");
706  new G4PVPlacement(0, G4ThreeVector(0, 0, 0), logi_elp_QC1LP, "phys_elp_QC1LP_name", elements["E2wal1"].logi, false, 0);
707  // Elliptical inner surface around QC1RE
708  G4EllipticalTube* geo_elp_QC1REx = new G4EllipticalTube("geo_elp_QC1REx", 10.5, 13.5, (1225 - 675) / 2.); //in mm
709  G4IntersectionSolid* geo_elp_QC1RE = new G4IntersectionSolid("geo_elp_QC1RE", elements["A2wal1"].geo, geo_elp_QC1REx,
710  G4Translate3D(0, 0, (1225 + 675) / 2.));
711  G4LogicalVolume* logi_elp_QC1RE = new G4LogicalVolume(geo_elp_QC1RE, Materials::get("Vacuum"), "logi_elp_QC1RE_name");
712  new G4PVPlacement(0, G4ThreeVector(0, 0, 0), logi_elp_QC1RE, "phys_elp_QC1RE_name", elements["A2wal1"].logi, false, 0);
713  // Elliptical inner surface around QC1RP
714  G4EllipticalTube* geo_elp_QC1RPx = new G4EllipticalTube("geo_elp_QC1RPx", 10.5, 13.5, (1225 - 675) / 2.); //in mm
715  G4IntersectionSolid* geo_elp_QC1RP = new G4IntersectionSolid("geo_elp_QC1RP", elements["B2wal1"].geo, geo_elp_QC1RPx,
716  G4Translate3D(0, 0, (1225 + 675) / 2.));
717  G4LogicalVolume* logi_elp_QC1RP = new G4LogicalVolume(geo_elp_QC1RP, Materials::get("Vacuum"), "logi_elp_QC1RP_name");
718  new G4PVPlacement(0, G4ThreeVector(0, 0, 0), logi_elp_QC1RP, "phys_elp_QC1RP_name", elements["B2wal1"].logi, false, 0);
719
720
721  //---------------------------
722  // for dose simulation
723  //---------------------------
724
725  /*
726  logi_A1spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 101));
727  logi_A1spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 102));
728  logi_A2wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 103));
729  logi_A3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 104));
730  logi_A3wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 105));
731  logi_A4mag1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 106));
732  logi_A4mag2p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 107));
733  logi_A4mag2p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 108));
734  logi_A4mag2p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 109));
735  logi_A4mag2p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 110));
736  logi_A4mag3p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 111));
737  logi_A4mag3p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 112));
738  logi_A4mag4p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 113));
739  logi_A4mag4p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 114));
740  logi_A4mag4p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 115));
741  logi_A4mag4p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 116));
742  logi_A4mag4p5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 117));
743  logi_A4mag4p6 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 118));
744  logi_A4mag4p7 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 119));
745  logi_A4mag4p8 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 120));
746  logi_A4mag4p9 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 121));
747  logi_B1spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 122));
748  logi_B1spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 123));
749  logi_B2wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 124));
750  logi_B3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 125));
751  logi_B3wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 126));
752  logi_B4mag1p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 127));
753  logi_B4mag1p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 128));
754  logi_B4mag1p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 129));
755  logi_B4mag2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 130));
756  logi_B4mag3p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 131));
757  logi_B4mag3p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 132));
758  logi_B4mag3p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 133));
759  logi_B4mag3p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 134));
760  logi_B4mag3p5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 135));
761  logi_B4mag3p6 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 136));
762  logi_B4mag4p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 137));
763  logi_B4mag4p7 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 138));
764  logi_B4mag4p8 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 139));
765  logi_B4mag4p9 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 140));
766  logi_C1wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 141));
767  logi_C1wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 142));
768  logi_C2spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 143));
769  logi_C2spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 144));
770  logi_C2spc3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 145));
771  logi_C3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 146));
772  logi_C3wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 147));
773  logi_C4spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 148));
774  logi_C4spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 149));
775  logi_C5wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 150));
776  logi_C5wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 151));
777  logi_C5wal3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 152));
778  logi_C6spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 153));
779  logi_C6spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 154));
780  logi_C7wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 155));
781  logi_C7lyr1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 156));
782  logi_C7lyr2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 157));
783  logi_C7lyr3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 158));
784  logi_C7lyr4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 159));
785  logi_C7lyr5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 160));
786  logi_D1spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 161));
787  logi_D2wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 162));
788  logi_D3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 163));
789  logi_D3wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 164));
790  logi_D4mag1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 165));
791  logi_D4mag2p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 166));
792  logi_D4mag2p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 167));
793  logi_D4mag2p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 168));
794  logi_D4mag2p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 169));
795  logi_D4mag3p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 170));
796  logi_D4mag3p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 171));
797  logi_D4mag3p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 172));
798  logi_D4mag3p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 173));
799  logi_D4mag3p5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 174));
800  logi_D4mag3p6 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 175));
801  logi_E1spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 176));
802  logi_E2wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 177));
803  logi_E3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 178));
804  logi_E4mag1p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 179));
805  logi_E4mag1p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 180));
806  logi_E4mag1p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 181));
807  logi_E4mag2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 182));
808  logi_E4mag3p1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 183));
809  logi_E4mag3p2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 184));
810  logi_E4mag3p3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 185));
811  logi_E4mag3p4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 186));
812  logi_E4mag3p5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 187));
813  logi_F1wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 188));
814  logi_F1wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 189));
815  logi_F2spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 190));
816  logi_F2spc2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 191));
817  logi_F2spc3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 192));
818  logi_F3wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 193));
819  logi_F3wal2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 194));
820  logi_F3wal3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 195));
821  logi_F4spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 196));
822  logi_F5wal1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 197));
823  logi_F6spc1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 198));
824  logi_F7lyr1 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 199));
825  logi_F7lyr2 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 200));
826  logi_F7lyr3 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 201));
827  logi_F7lyr4 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 202));
828  logi_F7lyr5 ->SetSensitiveDetector(new BkgSensitiveDetector("IR", 203));
829  */
830
831  }
Belle2::IRGeoBase::getParameter
double getParameter(const std::string &name) const
Get parameter value.
Definition: IRGeoBase.h:41
Belle2::IRGeoBase::getParameterStr
const std::string & getParameterStr(const std::string &name) const
Get string parameter.
Definition: IRGeoBase.h:64
Belle2::Unit::mm
static const double mm
[millimeters]
Definition: Unit.h:70
Belle2::Unit::cm
static const double cm
Standard units with the value = 1.
Definition: Unit.h:47
Belle2::geometry::Materials::get
static G4Material * get(const std::string &name)
Find given material.
Definition: Materials.h:63
Belle2::intersect
int intersect(const TRGCDCLpar &lp1, const TRGCDCLpar &lp2, CLHEP::HepVector &v1, CLHEP::HepVector &v2)
intersection
Definition: Lpar.cc:249
Belle2::geometry::setVisibility
void setVisibility(G4LogicalVolume &volume, bool visible)
Helper function to quickly set the visibility of a given volume.
Definition: utilities.cc:105
Belle2::geometry::setColor
void setColor(G4LogicalVolume &volume, const std::string &color)
Set the color of a logical volume.
Definition: utilities.cc:97
The documentation for this class was generated from the following files:
