Example module of how to use MonitoringObject in DQMHistAnalysis module. More...

#include <DQMHistAnalysisARICHMonObj.h>

Inheritance diagram for DQMHistAnalysisARICHMonObjModule:

[legend]

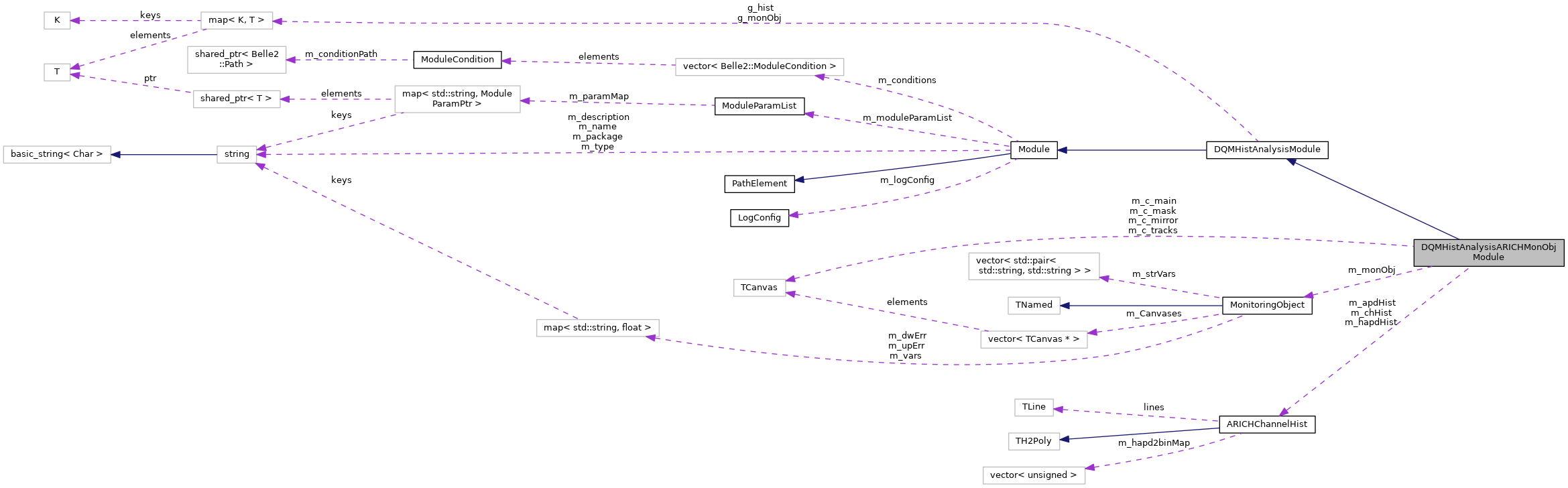

Collaboration diagram for DQMHistAnalysisARICHMonObjModule:

[legend]

Public Types
typedef std::map< std::string, TH1 * >	HistList
	The type of list of histograms.

typedef std::map< std::string, MonitoringObject * >	MonObjList
	The type of list of MonitoringObjects.

enum	EModulePropFlags { c_Input = 1 , c_Output = 2 , c_ParallelProcessingCertified = 4 , c_HistogramManager = 8 , c_InternalSerializer = 16 , c_TerminateInAllProcesses = 32 , c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...

typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	DQMHistAnalysisARICHMonObjModule ()
	Constructor.

virtual	~DQMHistAnalysisARICHMonObjModule ()
	Destructor.

virtual void	initialize () override
	Initialize the Module. More...

virtual void	beginRun () override
	Begin run function.

virtual void	event () override
	Event processor.

virtual void	endRun () override
	End-of-run action. More...

virtual void	terminate () override
	Termination action.

TCanvas *	findCanvas (TString cname)
	Find canvas by name. More...

virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules. More...

const std::string &	getName () const
	Returns the name of the module. More...

const std::string &	getType () const
	Returns the type of the module (i.e. More...

const std::string &	getPackage () const
	Returns the package this module is in.

const std::string &	getDescription () const
	Returns the description of the module.

void	setName (const std::string &name)
	Set the name of the module. More...

void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties. More...

LogConfig &	getLogConfig ()
	Returns the log system configuration.

void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.

void	setLogLevel (int logLevel)
	Configure the log level.

void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.

void	setAbortLevel (int abortLevel)
	Configure the abort log level.

void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level. More...

void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module. More...

void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module. More...

void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module. More...

bool	hasCondition () const
	Returns true if at least one condition was set for the module.

const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)

const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.

bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true. More...

std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer). More...

Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished. More...

std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).

bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module. More...

bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

const ModuleParamList &	getParamList () const
	Return module param list.

template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter. More...

bool	hasReturnValue () const
	Return true if this module has a valid return value set.

int	getReturnValue () const
	Return the return value set by this module. More...

std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module. More...

std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters. More...

Static Public Member Functions
static const HistList &	getHistList ()
	Get the list of the histograms. More...

static const MonObjList &	getMonObjList ()
	Get the list of MonitoringObjects. More...

static TH1 *	findHist (const std::string &histname)
	Find histogram. More...

static TH1 *	findHist (const std::string &dirname, const std::string &histname)
	Find histogram. More...

static TH1 *	findHist (const TDirectory *histdir, const TString &histname)
	Find histogram. More...

static MonitoringObject *	findMonitoringObject (const std::string &objName)
	Find MonitoringObject. More...

static void	addHist (const std::string &dirname, const std::string &histname, TH1 *h)
	Add histogram. More...

static MonitoringObject *	getMonitoringObject (const std::string &histname)
	Get MonitoringObject with given name (new object is created if non-existing) More...

static void	resetHist ()
	Clear and reset the list of histograms.

static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python. More...

virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side. More...

virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

void	setDescription (const std::string &description)
	Sets the description of the module. More...

void	setType (const std::string &type)
	Set the module type. More...

template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module. More...

template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module. More...

void	setReturnValue (int value)
	Sets the return value for this module as integer. More...

void	setReturnValue (bool value)
	Sets the return value for this module as bool. More...

void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Protected Attributes
TCanvas *	m_c_main = NULL
	Canvas with main run summary histograms.

TCanvas *	m_c_mask = NULL
	Canvas with histograms related to channel masking.

TCanvas *	m_c_mirror = NULL
	Canvas with histograms related to mirrors.

TCanvas *	m_c_tracks = NULL
	Canvas with histograms related to tracks.

TH2Poly *	pp1 = NULL
	2D hitmap of number of hits per APD per event

TH2Poly *	pp2 = NULL
	2D hitmap of number of hits per channel per event

TH2Poly *	pflash = NULL
	2D hitmap of number of flash (>40 hits) per event

Belle2::ARICHChannelHist *	m_apdHist = NULL
	ARICH TObject to draw hit map for each APD.

Belle2::ARICHChannelHist *	m_chHist = NULL
	ARICH TObject to draw flash map for each channel.

Belle2::ARICHChannelHist *	m_hapdHist = NULL
	ARICH TObject to draw flash map for each hapd.

MonitoringObject *	m_monObj = NULL
	MonitoringObject to be produced by this module.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list

std::string	getPathString () const override
	return the module name.

void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects. More...

void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary. More...

Private Attributes
std::string	m_name
	The name of the module, saved as a string (user-modifiable)

std::string	m_type
	The type of the module, saved as a string.

std::string	m_package
	Package this module is found in (may be empty).

std::string	m_description
	The description of the module.

unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with \|) of EModulePropFlags.

LogConfig	m_logConfig
	The log system configuration of the module.

ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.

bool	m_hasReturnValue
	True, if the return value is set.

int	m_returnValue
	The return value.

std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Static Private Attributes
static HistList	g_hist
	The list of Histograms.

static MonObjList	g_monObj
	The list of MonitoringObjects.

Detailed Description

Example module of how to use MonitoringObject in DQMHistAnalysis module.

Definition at line 27 of file DQMHistAnalysisARICHMonObj.h.

Member Enumeration Documentation

◆ EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

Member Function Documentation

◆ addHist()

void addHist	(	const std::string &	dirname,
		const std::string &	histname,
		TH1 *	h
	)

staticinherited

Add histogram.

Parameters

dirname	The name of the directory.
histname	The name of the histogram.
h	The TH1 pointer for the histogram.

Definition at line 46 of file DQMHistAnalysis.cc.

◆ clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

◆ def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

◆ def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

◆ endRun()

void endRun ( void )

overridevirtual

End-of-run action.

<The number of hits in each chip

Reimplemented from Module.

Definition at line 83 of file DQMHistAnalysisARICHMonObj.cc.

 {


   TGaxis::SetMaxDigits(3);
   gStyle->SetPalette(1);
   gStyle->SetOptStat(0);


   // get existing histograms produced by DQM modules
   TH1* chHit = findHist("ARICH/chHit");
   TH1* bits = findHist("ARICH/bits");
   TH1* hitsPerTrack = findHist("ARICH/hitsPerTrack");
   TH1* theta = findHist("ARICH/theta");
   TH2* tracks2D = (TH2*)findHist("ARICH/tracks2D");
   TH1* hitsPerEvent = findHist("ARICH/hitsPerEvent");
   TH2* hapdHitPerEvent = (TH2*)findHist("ARICH/hapdHitPerEvent");
   TH2* thetaPhi = (TH2*)findHist("ARICH/thetaPhi");
   TH3* mirrorThetaPhi = (TH3*)findHist("ARICH/mirrorThetaPhi");
   TH1* chDigit = findHist("ARICH/chDigit");
   TH1* hapdDigit = findHist("ARICH/hapdDigit");

   if (chHit == NULL) {m_monObj->setVariable("comment", "No arich histograms in file");  B2INFO("Histogram named chHit is not found.");  return;}
   if (chHit->GetEntries() == 0) {m_monObj->setVariable("comment", "No arich hits in histograms"); B2INFO("No arich hits in histograms.");  return;}

   // set the content of main canvas
   m_c_main->Clear(); // clear existing content
   m_c_main->Divide(3, 2);
   m_c_mirror->Clear(); // clear existing content
   m_c_mirror->Divide(3, 3);
   m_c_mask->Clear(); // clear existing content
   m_c_mask->Divide(2, 4);
   m_c_tracks->Clear(); // clear existing content

   //Draw 2D hit map of channels and APDs
   pp1 = new TH2Poly();
   pp1->SetTitle("Number of hits / APD / event");
   pp1->SetOption("colz");

   pp2 = new TH2Poly();
   pp2->SetMaximum(0.1 / 36.);
   pp2->SetMinimum(0.0001 / 36.);
   pp2->SetTitle("Number of hits / channel / event");

   pflash = new TH2Poly();
   pflash->SetTitle("Number of flash (>40 hits) / event");

   int nevt = 0;
   if (hitsPerEvent) nevt = hitsPerEvent->GetEntries();
   m_apdHist->fillFromTH1(chHit);
   //  m_chHist->fillFromTH1(chHit);
   if (nevt) {
     m_apdHist->Scale(1. / float(nevt));
     // m_chHist->Scale(1. / float(nevt));
   }

   pp1->SetMaximum(0.1);
   m_apdHist->setPoly(pp1);
   pp1->SetMinimum(0.0001);
   pp2->SetMaximum(0.1 / 36.);
   //  m_chHist->setPoly(pp2);
   // pp2->SetMinimum(0.0001 / 36.);


   //TCanvas main
   m_c_main->cd(1);
   pp1->Draw("colz");
   pp1->GetXaxis()->SetTickLength(0);
   pp1->GetYaxis()->SetTickLength(0);
   gPad->SetLogz();
   //m_c_main->Update();

   TH1F* flash = (TH1F*)hapdHitPerEvent->ProjectionX("flash", 40, 144);
   m_hapdHist->fillFromTH1(flash);
   if (nevt) m_hapdHist->Scale(1. / float(nevt));

   m_hapdHist->setPoly(pflash);
   // draw sector lines
   double rlin = 40;
   double rlout = 113;
   for (int isec = 0; isec < 6; isec++) {
     double x1 = rlin * cos(M_PI / 3.*isec);
     double x2 = rlout * cos(M_PI / 3.*isec);
     double y1 = rlin * sin(M_PI / 3.*isec);
     double y2 = rlout * sin(M_PI / 3.*isec);
     TLine* line = new TLine(x1, y1, x2, y2);
     line->Draw();
     x1 = rlin * cos(M_PI / 3.*isec + M_PI / 6.);
     y1 = rlin * sin(M_PI / 3.*isec + M_PI / 6.);
     TText* lab = new TText(x1, y1, TString::Format("S-%d", isec + 1));
     lab->SetTextAlign(22);
     lab->SetTextSize(0.03);
     lab->Draw();
   }


   //TCanvas tracks
   m_c_tracks->cd();
   tracks2D->RebinX(4);
   tracks2D->RebinY(4);
   double trkevt = nevt > 0 ? tracks2D->GetEntries() / nevt : 0;
   int ntracks = tracks2D->GetEntries();
   m_monObj->setVariable("ntracks", ntracks ? ntracks : 0);
   m_monObj->setVariable("ntracksPerEvent", trkevt ? trkevt : 0);
   string comment = "";
   if (ntracks == 0) comment = "No arich tracks in file.";
   if (theta->GetEntries() == 0) comment.append(" No cherenkov photons available");
   m_monObj->setVariable("comment", comment);

   tracks2D->SetTitle(TString::Format("Track distribution (avg %f trk/evt)", trkevt));
   tracks2D->Draw("colz");


   if (ntracks) {
     double sigbkg[8] = {0};
     //fit two gauses
     if (theta->GetEntries() == 0) return;
     TF1* f1 = new TF1("thcFit", "gaus(0)+gaus(3)", 0.2, 0.4);
     f1->SetParameters(0.8 * theta->GetMaximum(), 0.323, 0.016, 0.2 * theta->GetMaximum() , 0.323, 0.13);
     f1->FixParameter(5, 0.13);
     f1->SetParName(0, "C");
     f1->SetParName(1, "mean");
     f1->SetParName(2, "sigma");
     f1->SetParName(3, "p0");
     f1->SetParName(4, "p1");
     int status = theta->Fit(f1, "R");
     double xmin = f1->GetParameter(1) - 2.*f1->GetParameter(2);
     double xmax = f1->GetParameter(1) + 2.*f1->GetParameter(2);
     double tmp = f1->GetParameter(3);
     f1->SetParameter(3, 0);
     double nphot = f1->Integral(xmin, xmax);
     f1->SetParameter(3, tmp);
     tmp = f1->GetParameter(0);
     f1->SetParameter(0, 0);
     double nbkg = f1->Integral(xmin, xmax);
     f1->SetParameter(0, tmp);
     if (status) return;

     sigbkg[0] = nphot;
     sigbkg[1] = f1->GetParameter(0) > 0 ? nphot * f1->GetParError(0) / f1->GetParameter(0) : 0.;
     sigbkg[2] = nbkg;
     sigbkg[3] = f1->GetParameter(3) > 0 ? nbkg * f1->GetParError(3) / f1->GetParameter(3) : 0.;
     sigbkg[4] = f1->GetParameter(1);
     sigbkg[5] = f1->GetParError(1);
     sigbkg[6] = f1->GetParameter(2);
     sigbkg[7] = f1->GetParError(2);
     if (theta->GetBinWidth(1) == 0) return;
     m_monObj->setVariable("nsig", sigbkg[0] / float(ntracks) / theta->GetBinWidth(1),
                           sigbkg[1] / float(ntracks) / theta->GetBinWidth(1));
     m_monObj->setVariable("nbgr", sigbkg[2] / float(ntracks) / theta->GetBinWidth(1),
                           sigbkg[3] / float(ntracks) / theta->GetBinWidth(1));
     m_monObj->setVariable("theta", sigbkg[4], sigbkg[5]);
     m_monObj->setVariable("sigma", sigbkg[6], sigbkg[7]);
     std::cout << sigbkg[0]  << " " << sigbkg[1] / float(ntracks) / theta->GetBinWidth(1) << std::endl;
   }


   //TCanvas mirror
   TH1F* thetaCl = (TH1F*)theta->Clone("thetaCl");
   thetaCl->SetLineColor(16);
   thetaCl->SetLineWidth(2);
   thetaCl->SetTitle("");
   TLegend* leg[9];
   gStyle->SetOptTitle(0);

   if (mirrorThetaPhi) {
     for (int i = 1; i < 18 + 1; i++) {
       TH1F* hmir = (TH1F*)mirrorThetaPhi->ProjectionZ(TString::Format("hmir_%d", i), i, i, 1, 10000);
       hmir->SetTitle(TString::Format("mirror %d", i));
       if (hmir->GetEntries() > 0) hmir->Scale(theta->GetEntries() / hmir->GetEntries());
       hmir->Rebin(2);
       hmir->SetLineWidth(2);
       int iplot = (i - 1) / 2;
       if ((i - 1) % 2 == 0) { m_c_mirror->cd(iplot + 1); thetaCl->Draw("hist"); hmir->SetLineColor(1); hmir->Draw("sames hist");  leg[iplot] = new TLegend(0.1, 0.75, 0.4, 0.9);  leg[iplot]->AddEntry(hmir, TString::Format("mirror %d", i));}
       else {
         hmir->SetLineColor(2); hmir->Draw("sames hist");
         leg[iplot]->AddEntry(hmir, TString::Format("mirror %d", i));
         leg[iplot]->Draw();
       }
     }
   }

   gStyle->SetOptTitle(1);


   //chDigit
   if (chDigit != NULL && nevt) chDigit->Scale(1. / nevt);
   if (nevt) {
     chHit->Scale(1. / nevt);
     flash->Scale(1. / nevt);
   }
   int nhot = 0, ndead = 0;
   TH2F* hotCh = new TH2F("arich_hot", "Number of channels in APD with >0.5% occ.", 42, 0.5, 42.5, 40, 0.5, 40.5);
   TH2F* hotCh1 = new TH2F("arich_hot1", "Number of channels in APD with >0.5% occ. after mask", 42, 0.5, 42.5, 40, 0.5, 40.5);
   TH2F* deadCh = new TH2F("arich_dead", "Number of channels in APD with no hits", 42, 0.5, 42.5, 40, 0.5, 40.5);
   TH2F* falseCh = new TH2F("arich_false", "Number of wrongly masked channels in APD (masked but not dead/hot)", 42, 0.5, 42.5, 40,
                            0.5,
                            40.5);
   TH1F* occ = new TH1F("arich_occ", "nhits / nevt for all channels; nhits/nevt;# of chn", 500, 0, 0.005);

   int ndeadHapd = 0;
   if (chDigit != NULL) {
     double hotlim = 0.005;
     for (int i = 0; i < chDigit->GetNbinsX(); i++) {
       int hapd = i / 144 + 1; int chip = (i % 144) / 36 + 1;
       int binx = (hapd - 1) % 42 + 1; int biny = ((hapd - 1) / 42) * 4 + chip;
       if (chDigit->GetBinContent(i + 1) > hotlim) { hotCh->Fill(binx, biny); nhot++;}
       if (chDigit->GetBinContent(i + 1) == 0) {
         deadCh->Fill(binx, biny);
         if (hapdDigit->GetBinContent(hapd) != 0) ndead++;
       }
       if (chHit->GetBinContent(i + 1) == 0 && chDigit->GetBinContent(i + 1) < hotlim
           && chDigit->GetBinContent(i + 1) > 0.00002) falseCh->Fill(binx, biny);
       if (chHit->GetBinContent(i + 1) > hotlim) hotCh1->Fill(binx, biny);
       occ->Fill(chHit->GetBinContent(i + 1));
     }

     for (int i = 0; i < hapdDigit->GetNbinsX(); i++) {
       if (hapdDigit->GetBinContent(i + 1) == 0) ndeadHapd++;
     }
   }
   m_monObj->setVariable("nhot", nhot);
   m_monObj->setVariable("ndead", ndead);
   m_monObj->setVariable("ndeadHapd", ndeadHapd);


   // TCanvas mask
   m_c_mask->cd(1);
   occ->Draw();
   m_c_mask->cd(2);
   pflash->Draw("colz");
   m_c_mask->cd(3);
   // pp2->Draw("colz");
   //pp2->GetXaxis()->SetTickLength(0);
   //pp2->GetYaxis()->SetTickLength(0);
   gPad->SetLogz();
   m_c_mask->cd(4);
   hotCh->Draw("colz text");
   m_c_mask->cd(5);
   deadCh->Draw("colz text");
   m_c_mask->cd(6);
   hotCh1->Draw("colz text");
   m_c_mask->cd(7);
   falseCh->Draw("colz text");

   for (int i = 0; i < 42; i++) {
     double x1 = i + 0.5 + 1;
     TLine* line = new TLine(x1, 0.5, x1, 40.5);
     m_c_mask->cd(5); line->Draw();
     m_c_mask->cd(6); line->Draw();
     m_c_mask->cd(7); line->Draw();
     m_c_mask->cd(4); line->Draw();
   }
   for (int i = 0; i < 40; i++) {
     double y1 = i + 0.5 + 1;
     TLine* line = new TLine(0.5, y1, 42.5, y1);
     if ((i + 1) % 4 == 0) line->SetLineColor(2);
     else line->SetLineColor(15);
     m_c_mask->cd(5); line->Draw();
     m_c_mask->cd(6); line->Draw();
     m_c_mask->cd(7); line->Draw();
     m_c_mask->cd(4); line->Draw();
   }

   if (bits) {
     bits->SetLineWidth(2);
     bits->SetLineColor(2);
     bits->SetOption("hist");
     bits->SetFillStyle(3010);
     bits->SetFillColor(3);
   }

   if (hitsPerTrack) {
     hitsPerTrack->SetLineWidth(2);
     hitsPerTrack->SetLineColor(2);
     hitsPerTrack->SetOption("hist");
   }
   if (hitsPerEvent) {
     hitsPerEvent->SetLineWidth(2);
     hitsPerEvent->SetLineColor(2);
     hitsPerEvent->SetOption("hist");
   }
   //Tcanvas main
   m_c_main->cd(2);
   if (bits) { bits->Draw(); bits->GetYaxis()->SetTitleOffset(0.5); }
   m_c_main->cd(3);
   if (theta) theta->Draw();
   m_c_main->cd(4);
   if (hitsPerTrack) hitsPerTrack->Draw();
   m_c_main->cd(5);
   if (hitsPerEvent) hitsPerEvent->Draw();
   m_c_main->cd(6);
   if (thetaPhi != NULL) thetaPhi->Draw("colz");

   // set values of monitoring variables (if variable already exists this will change its value, otherwise it will insert new variable)
   // with error (also asymmetric error can be used as m_monObj->setVariable(name, value, upError, downError))
   m_monObj->setVariable("hitsPerEvent", hitsPerEvent ? hitsPerEvent->GetMean() : 0, hitsPerEvent ? hitsPerEvent->GetMeanError() : -1);
   // without error
   m_monObj->setVariable("bitsMean", bits ? bits->GetMean() : 0);
   B2DEBUG(20, "DQMHistAnalysisARICHMonObj : endRun called");
 }

◆ evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns: True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

◆ findCanvas()

TCanvas * findCanvas ( TString cname )

inherited

Find canvas by name.

Parameters

cname Name of the canvas

Returns: The pointer to the canvas, or nullptr if not found.

Definition at line 71 of file DQMHistAnalysis.cc.

◆ findHist() [1/3]

TH1 * findHist	(	const std::string &	dirname,
		const std::string &	histname
	)

staticinherited

Find histogram.

Parameters

dirname	The name of the directory.
histname	The name of the histogram.

Returns: The found histogram, or nullptr if not found.

Definition at line 132 of file DQMHistAnalysis.cc.

◆ findHist() [2/3]

TH1 * findHist ( const std::string & histname )

staticinherited

Find histogram.

Parameters

histname The name of the histogram.

Returns: The found histogram, or nullptr if not found.

Definition at line 85 of file DQMHistAnalysis.cc.

◆ findHist() [3/3]

TH1 * findHist	(	const TDirectory *	histdir,
		const TString &	histname
	)

staticinherited

Find histogram.

Parameters

histdir	The TDirectory of the directory.
histname	The name of the histogram.

Returns: The found histogram, or nullptr if not found.

Definition at line 140 of file DQMHistAnalysis.cc.

◆ findMonitoringObject()

MonitoringObject * findMonitoringObject ( const std::string & objName )

staticinherited

Find MonitoringObject.

Parameters

objName The name of the MonitoringObject.

Returns: The found MonitoringObject, or nullptr if not found.

Definition at line 154 of file DQMHistAnalysis.cc.

◆ getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

◆ getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

◆ getFileNames()

virtual std::vector<std::string> getFileNames ( bool outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootOutputModule, and RootInputModule.

Definition at line 134 of file Module.h.

◆ getHistList()

static const HistList& getHistList ( )

inlinestaticinherited

Get the list of the histograms.

Returns: The list of the histograms.

Definition at line 61 of file DQMHistAnalysis.h.

◆ getMonitoringObject()

MonitoringObject * getMonitoringObject ( const std::string & histname )

staticinherited

Get MonitoringObject with given name (new object is created if non-existing)

Parameters

histname name of MonitoringObject to get

Definition at line 55 of file DQMHistAnalysis.cc.

◆ getMonObjList()

static const MonObjList& getMonObjList ( )

inlinestaticinherited

Get the list of MonitoringObjects.

Returns: The list of the MonitoringObjects.

Definition at line 67 of file DQMHistAnalysis.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

◆ getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns: A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

◆ getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

◆ getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

◆ hasProperties()

bool hasProperties ( unsigned int propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

◆ if_false()

void if_false	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

◆ if_true()

void if_true	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

◆ if_value()

void if_value	(	const std::string &	expression,
		const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://confluence.desy.de/display/BI/Software+ModCondTut or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

◆ initialize()

void initialize ( void )

overridevirtual

Initialize the Module.

<ARICH TObject to draw hit map for each APD

<ARICH TObject to draw flash map for each HAPD

Reimplemented from Module.

Definition at line 49 of file DQMHistAnalysisARICHMonObj.cc.

◆ setDescription()

void setDescription ( const std::string & description )

protectedinherited

Sets the description of the module.

Parameters

description A description of the module.

Definition at line 214 of file Module.cc.

◆ setLogInfo()

void setLogInfo	(	int	logLevel,
		unsigned int	logInfo
	)

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Set the name of the module.

Note: The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

◆ setParamPython()

void setParamPython	(	const std::string &	name,
		const boost::python::object &	pyObj
	)

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

◆ setParamPythonDict()

void setParamPythonDict ( const boost::python::dict & dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

◆ setPropertyFlags()

void setPropertyFlags ( unsigned int propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

◆ setReturnValue() [1/2]

void setReturnValue ( bool value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 227 of file Module.cc.

◆ setReturnValue() [2/2]

void setReturnValue ( int value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 220 of file Module.cc.

◆ setType()

void setType ( const std::string & type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

The documentation for this class was generated from the following files:

dqm/analysis/modules/include/DQMHistAnalysisARICHMonObj.h
dqm/analysis/modules/src/DQMHistAnalysisARICHMonObj.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ EModulePropFlags

Member Function Documentation

◆ addHist()

◆ clone()

◆ def_endRun()

◆ def_initialize()

◆ endRun()

◆ evalCondition()

◆ findCanvas()

◆ findHist() [1/3]

◆ findHist() [2/3]

◆ findHist() [3/3]

◆ findMonitoringObject()

◆ getAfterConditionPath()

◆ getConditionPath()

◆ getFileNames()

◆ getHistList()

◆ getMonitoringObject()

◆ getMonObjList()

◆ getName()

◆ getParamInfoListPython()

◆ getReturnValue()

◆ getType()

◆ hasProperties()

◆ if_false()

◆ if_true()

◆ if_value()

◆ initialize()

◆ setDescription()

◆ setLogInfo()

◆ setName()

◆ setParamPython()

◆ setParamPythonDict()

◆ setPropertyFlags()

◆ setReturnValue() [1/2]

◆ setReturnValue() [2/2]

◆ setType()
