Geometry parameters of Cooling System - version2 (v2). More...

#include <ARICHGeoFEBCooling.h>

Inheritance diagram for ARICHGeoFEBCooling:

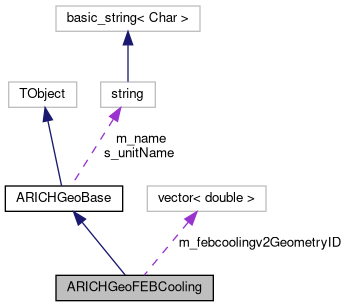

Collaboration diagram for ARICHGeoFEBCooling:

[legend]

Public Member Functions
	ARICHGeoFEBCooling ()
	Default constructor.

void	setSmallSquareSize (double value)
	Set size of the small square in mm. More...

void	setSmallSquareThickness (double value)
	Set thickness of the small square in mm. More...

void	setBigSquareSize (double value)
	Set size of the big square in mm. More...

void	setBigSquareThickness (double value)
	Set thickness of the big square in mm. More...

void	setRectangleL (double value)
	Set length of the rectangle in mm. More...

void	setRectangleW (double value)
	Set width of the rectangle in mm. More...

void	setRectangleThickness (double value)
	Set thickness of the rectangle in mm. More...

void	setRectangleDistanceFromCenter (double value)
	Set distance from center of the rectangle in mm. More...

void	setFebcoolingv2GeometryID (const std::vector< double > &febcoolingv2GeometryID)
	Set vector of feb cooling configuration/geometry ID. More...

double	getSmallSquareSize () const
	Returns size of the small square in mm. More...

double	getSmallSquareThickness () const
	Returns thickness of the small square in mm. More...

double	getBigSquareSize () const
	Returns size of the big square in mm. More...

double	getBigSquareThickness () const
	Returns thickness of the big square in mm. More...

double	getRectangleL () const
	Returns length of the rectangle in mm. More...

double	getRectangleW () const
	Returns width of the rectangle in mm. More...

double	getRectangleThickness () const
	Returns thickness of the rectangle in mm. More...

double	getRectangleDistanceFromCenter () const
	Returns distance from center of the rectangle in mm. More...

const std::vector< double > &	getFebcoolingv2GeometryID () const
	Returns vector of feb cooling configuration/geometry ID. More...

void	print (const std::string &title="Upgraded after phase two cooling system (v2) geometry parameters") const
	Print the content of the class. More...

void	checkCoolingSystemV2DataConsistency () const
	Check data consistency of the cooling system (v2) positions In case of failure print the basf2 ERROR message using B2ASSERT.

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual bool	isConsistent () const
	Check for consistency of data members. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters. More...

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDef (ARICHGeoFEBCooling, 1)
	ClassDef.

Private Attributes
double	m_smallSquareSize = 0.0
	Size of small the square in mm.

double	m_smallSquareThickness = 0.0
	Thickness of small the square in mm.

double	m_bigSquareSize = 0.0
	Size of big the square in mm.

double	m_bigSquareThickness = 0.0
	Thickness of big the square in mm.

double	m_rectangleL = 0.0
	Length of the rectangle in mm.

double	m_rectangleW = 0.0
	Width of the rectangle in mm.

double	m_rectangleThickness = 0.0
	Thickness of the rectangle in mm.

double	m_rectangleDistanceFromCenter = 0.0
	Distance from center of the rectangle. More...

std::vector< double >	m_febcoolingv2GeometryID

Detailed Description

Geometry parameters of Cooling System - version2 (v2).

Upgrade of the cooling system have been done after phase 2 (in september - november 2018). This data base object contains information about : FEB cooling bodies. https://kds.kek.jp/indico/event/28886/session/2/contribution/7/material/slides/0.pdf Merger cooling bodies. Cooling pipes.

Definition at line 32 of file ARICHGeoFEBCooling.h.

Member Function Documentation

◆ getBigSquareSize()

double getBigSquareSize ( ) const

inline

Returns size of the big square in mm.

Returns: size of big the square in mm

Definition at line 115 of file ARICHGeoFEBCooling.h.

115 { return m_bigSquareSize;}

Belle2::ARICHGeoFEBCooling::m_bigSquareSize

double m_bigSquareSize

Size of big the square in mm.

Definition: ARICHGeoFEBCooling.h:170

◆ getBigSquareThickness()

double getBigSquareThickness ( ) const

inline

Returns thickness of the big square in mm.

Returns: thickness of big the square in mm

Definition at line 121 of file ARICHGeoFEBCooling.h.

◆ getFebcoolingv2GeometryID()

const std::vector<double>& getFebcoolingv2GeometryID ( ) const

inline

Returns vector of feb cooling configuration/geometry ID.

Returns: vector of feb cooling configuration/geometry ID.

Definition at line 151 of file ARICHGeoFEBCooling.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

◆ getRectangleDistanceFromCenter()

double getRectangleDistanceFromCenter ( ) const

inline

Returns distance from center of the rectangle in mm.

Returns: distance from center of the rectangle in mm

Definition at line 145 of file ARICHGeoFEBCooling.h.

◆ getRectangleL()

double getRectangleL ( ) const

inline

Returns length of the rectangle in mm.

Returns: length of the rectangle in mm

Definition at line 127 of file ARICHGeoFEBCooling.h.

◆ getRectangleThickness()

double getRectangleThickness ( ) const

inline

Returns thickness of the rectangle in mm.

Returns: thickness of the rectangle in mm

Definition at line 139 of file ARICHGeoFEBCooling.h.

◆ getRectangleW()

double getRectangleW ( ) const

inline

Returns width of the rectangle in mm.

Returns: width of the rectangle in mm

Definition at line 133 of file ARICHGeoFEBCooling.h.

◆ getSmallSquareSize()

double getSmallSquareSize ( ) const

inline

Returns size of the small square in mm.

Returns: size of small the square in mm

Definition at line 103 of file ARICHGeoFEBCooling.h.

◆ getSmallSquareThickness()

double getSmallSquareThickness ( ) const

inline

Returns thickness of the small square in mm.

Returns: thickness of small the square in mm

Definition at line 109 of file ARICHGeoFEBCooling.h.

◆ isConsistent()

virtual bool isConsistent ( ) const

inlinevirtualinherited

Check for consistency of data members.

Returns: true if values consistent (valid)

Reimplemented in ARICHPositionElement, ARICHGeoSupport, ARICHGeoMirrors, ARICHGeoMasterVolume, ARICHGeoHAPD, ARICHGeoDetectorPlane, and ARICHGeoAerogelPlane.

Definition at line 55 of file ARICHGeoBase.h.

◆ print()

void print ( const std::string & title = "Upgraded after phase two cooling system (v2) geometry parameters" ) const

virtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 24 of file ARICHGeoFEBCooling.cc.

 {

   ARICHGeoBase::print(title);

   cout << " Size of the small square in mm              : " << getSmallSquareSize() << endl
        << " Thickness of the small square in mm         : " << getSmallSquareThickness() << endl
        << " Size of the big square in mm                : " << getBigSquareSize() << endl
        << " Thickness of the big square in mm           : " << getBigSquareThickness() << endl;
   cout << " Length of the rectangle in mm               : " << getRectangleL() << endl
        << " Width of the rectangle in mm                : " << getRectangleW() << endl
        << " Thickness of the rectangle in mm            : " << getRectangleThickness() << endl
        << " Distance from center of the rectangle in mm : " << getRectangleDistanceFromCenter() << endl;

   cout << setw(20) << "hapdID"
        << setw(25) << "FEB cooling GeometryID" << endl;
   for (unsigned i = 0; i < getFebcoolingv2GeometryID().size(); i++) {
     cout << setw(20) << i + 1
          << setw(25) << getFebcoolingv2GeometryID().at(i) << endl;
   }
 }

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

◆ setBigSquareSize()

void setBigSquareSize ( double value )

inline

Set size of the big square in mm.

Parameters

value size of big the square in mm

Definition at line 58 of file ARICHGeoFEBCooling.h.

◆ setBigSquareThickness()

void setBigSquareThickness ( double value )

inline

Set thickness of the big square in mm.

Parameters

value thickness of big the square in mm

Definition at line 64 of file ARICHGeoFEBCooling.h.

◆ setFebcoolingv2GeometryID()

void setFebcoolingv2GeometryID ( const std::vector< double > & febcoolingv2GeometryID )

inline

Set vector of feb cooling configuration/geometry ID.

0 -> Not installed 1 -> Default position 2 -> Rotated by 90 degree

Parameters

febcoolingv2GeometryID vector of feb cooling configuration/geometry ID.

Definition at line 97 of file ARICHGeoFEBCooling.h.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

◆ setRectangleDistanceFromCenter()

void setRectangleDistanceFromCenter ( double value )

inline

Set distance from center of the rectangle in mm.

Parameters

value distance from center of the rectangle in mm

Definition at line 88 of file ARICHGeoFEBCooling.h.

◆ setRectangleL()

void setRectangleL ( double value )

inline

Set length of the rectangle in mm.

Parameters

value length of the rectangle in mm

Definition at line 70 of file ARICHGeoFEBCooling.h.

◆ setRectangleThickness()

void setRectangleThickness ( double value )

inline

Set thickness of the rectangle in mm.

Parameters

value thickness of the rectangle in mm

Definition at line 82 of file ARICHGeoFEBCooling.h.

◆ setRectangleW()

void setRectangleW ( double value )

inline

Set width of the rectangle in mm.

Parameters

value width of the rectangle in mm

Definition at line 76 of file ARICHGeoFEBCooling.h.

◆ setSmallSquareSize()

void setSmallSquareSize ( double value )

inline

Set size of the small square in mm.

Parameters

value size of small the square in mm

Definition at line 46 of file ARICHGeoFEBCooling.h.

◆ setSmallSquareThickness()

void setSmallSquareThickness ( double value )

inline

Set thickness of the small square in mm.

Parameters

value thickness of small the square in mm

Definition at line 52 of file ARICHGeoFEBCooling.h.

Member Data Documentation

◆ m_rectangleDistanceFromCenter

double m_rectangleDistanceFromCenter = 0.0

private

Distance from center of the rectangle.

Feb cooling configuration/geometry ID. 0 -> Not installed, 1 -> Default position, 2 -> Rotated by 90 degree.

Definition at line 175 of file ARICHGeoFEBCooling.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoFEBCooling.h
arich/dbobjects/src/ARICHGeoFEBCooling.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ getBigSquareSize()

◆ getBigSquareThickness()

◆ getFebcoolingv2GeometryID()

◆ getName()

◆ getRectangleDistanceFromCenter()

◆ getRectangleL()

◆ getRectangleThickness()

◆ getRectangleW()

◆ getSmallSquareSize()

◆ getSmallSquareThickness()

◆ isConsistent()

◆ print()

◆ printPlacement()

◆ printSurface()

◆ setBigSquareSize()

◆ setBigSquareThickness()

◆ setFebcoolingv2GeometryID()

◆ setName()

◆ setRectangleDistanceFromCenter()

◆ setRectangleL()

◆ setRectangleThickness()

◆ setRectangleW()

◆ setSmallSquareSize()

◆ setSmallSquareThickness()

Member Data Documentation

◆ m_rectangleDistanceFromCenter
