ARICHHapdChipInfo Class Reference

Contains manufacturer data of one of the 4 photo sensors chips. More...

#include <ARICHHapdChipInfo.h>

Inheritance diagram for ARICHHapdChipInfo:

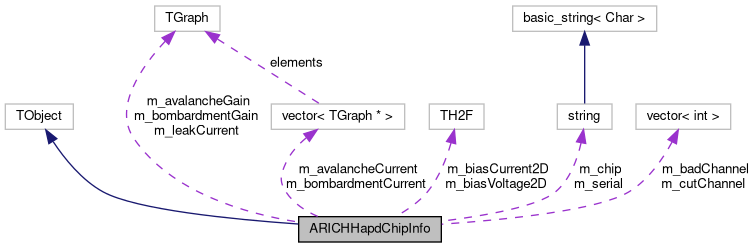

Collaboration diagram for ARICHHapdChipInfo:

Public Member Functions
	ARICHHapdChipInfo ()
	Default constructor.
	ARICHHapdChipInfo (const std::string &serial)
	Constructor.
	~ARICHHapdChipInfo ()
	Destructor.
std::string	getHapdSerial () const
	Return Hapd Serial number. More...
void	setHapdSerial (const std::string &serial)
	Set Hapd Serial number. More...
std::string	getChipLabel () const
	Return Chip label. More...
void	setChipLabel (const std::string &chip)
	Set Chip label. More...
int	getBiasVoltage () const
	Return Chip Bias Voltage. More...
void	setBiasVoltage (int voltage)
	set Chip Bias Voltage More...
int	getGain () const
	Return Chip Gain at Operational Voltage. More...
void	setGain (int gain)
	set Chip Gain at Operational Voltage More...
TGraph *	getLeakCurrent () const
	Return Leakeage Current as a function of bias voltage. More...
void	setLeakCurrent (TGraph *current)
	set Leakeage Current as a function of bias voltage More...
TGraph *	getBombardmentGain () const
	Return Bombardment Gain as a function of high voltage. More...
void	setBombardmentGain (TGraph *gain)
	Set Bombardment Gain as a function of high voltage. More...
TGraph *	getBombardmentCurrent (unsigned int i) const
	Return Bombardment Current as a function of high voltage. More...
void	setBombardmentCurrent (std::vector< TGraph * > bcurrent)
	set Bombardment Current as a function of high voltage More...
TGraph *	getAvalancheGain () const
	Return Avalanche Gain as a function of bias voltage. More...
void	setAvalancheGain (TGraph *gain)
	set Avalanche Gain as a function of bias voltage More...
TGraph *	getAvalancheCurrent (unsigned int i) const
	Return Avalanche Current as a function of bias voltage. More...
void	setAvalancheCurrent (std::vector< TGraph * > acurrent)
	set Avalanche Current as a function of bias voltage More...
TH2F *	getBiasVoltage2D () const
	Return Bias Voltage as a function of the channel. More...
void	setBiasVoltage2D (TH2F *h2d)
	Set Bias Voltage as a function of the channel. More...
TH2F *	getBiasCurrent2D () const
	Return Bias Current as a function of the channel. More...
void	setBiasCurrent2D (TH2F *h2d)
	set Bias Current as a function of the channel More...
int	getChannelNumber () const
	Return Channel Number for the Bombardment and Avalanche measurements information. More...
void	setChannelNumber (int channel)
	Set Channel Number for the Bombardment and Avalanche measurements information. More...
int	getCutChannel (unsigned int i) const
	Return a channel number from the list of cut channels. More...
void	appendCutChannel (int channel)
	Add a channel number to the list of cut channels. More...
void	setCutChannel (const std::vector< int > &channels)
	Set the list of cut channels. More...
int	getCutChannelsSize () const
	Return size of the list of cut channels. More...
int	getBadChannel (unsigned int i) const
	Return a channel number from the list of cut channels. More...
void	appendBadChannel (int ichannel)
	Add a channel number to the list of cut channels. More...
void	setBadChannel (const std::vector< int > &channels)
	Set the list of bad channels. More...
int	getBadChannelsSize () const
	Return size of the list of cut channels. More...

Private Member Functions
	ClassDef (ARICHHapdChipInfo, 3)
	ClassDef.

Private Attributes
std::string	m_serial
	serial number of the sensor
std::string	m_chip
	chip label
int	m_biasVoltage
	chip bias voltage
int	m_gain
	Total Gain at Operational Values.
TGraph *	m_leakCurrent
	Leakege Current as a function of bias voltage.
TGraph *	m_bombardmentGain
	Bombardment Gain as a function of high voltage.
std::vector< TGraph * >	m_bombardmentCurrent
	Bombardment Current as a function of high voltage.
TGraph *	m_avalancheGain
	Avalanche Gain as a function of bias voltage.
std::vector< TGraph * >	m_avalancheCurrent
	Avalanche Current as a function of bias voltage.
TH2F *	m_biasVoltage2D
	Bias Voltage as a function of the channel.
TH2F *	m_biasCurrent2D
	Bias Current as a function of the channel.
int	m_channelId
	Channel Number for the Bombardment and Avalanche measurements information.
std::vector< int >	m_cutChannel
	List of cut channels on the HAPD chip.
std::vector< int >	m_badChannel
	List of bad (cut and dead channels) on the HAPD chip.

Detailed Description

Contains manufacturer data of one of the 4 photo sensors chips.

Definition at line 25 of file ARICHHapdChipInfo.h.

Member Function Documentation

appendBadChannel()

void appendBadChannel ( int  ichannel )

inline

Add a channel number to the list of cut channels.

Parameters

channel

HAPD channel number

Definition at line 225 of file ARICHHapdChipInfo.h.

{ m_badChannel.push_back(ichannel); }

appendCutChannel()

void appendCutChannel ( int  channel )

inline

Add a channel number to the list of cut channels.

Parameters

channel

HAPD channel number

Definition at line 200 of file ARICHHapdChipInfo.h.

getAvalancheCurrent()

TGraph * getAvalancheCurrent

(

unsigned int

i

)

const

Return Avalanche Current as a function of bias voltage.

Returns

avalanche current

Definition at line 27 of file ARICHHapdChipInfo.cc.

{
  if (i < m_avalancheCurrent.size()) return m_avalancheCurrent[i];
  else return NULL;
}

getAvalancheGain()

TGraph* getAvalancheGain ( ) const

inline

Return Avalanche Gain as a function of bias voltage.

Returns

avalanche gain

Definition at line 132 of file ARICHHapdChipInfo.h.

getBadChannel()

int getBadChannel

(

unsigned int

i

)

const

Return a channel number from the list of cut channels.

Parameters

i	index of the element in the list

Returns

channel number

Definition at line 47 of file ARICHHapdChipInfo.cc.

getBadChannelsSize()

int getBadChannelsSize ( ) const

inline

Return size of the list of cut channels.

Returns

size

Definition at line 237 of file ARICHHapdChipInfo.h.

getBiasCurrent2D()

TH2F* getBiasCurrent2D ( ) const

inline

Return Bias Current as a function of the channel.

Returns

2D map of the current

Definition at line 169 of file ARICHHapdChipInfo.h.

getBiasVoltage()

int getBiasVoltage ( ) const

inline

Return Chip Bias Voltage.

Returns

bias voltage

Definition at line 72 of file ARICHHapdChipInfo.h.

getBiasVoltage2D()

TH2F* getBiasVoltage2D ( ) const

inline

Return Bias Voltage as a function of the channel.

Returns

2D map of the voltage

Definition at line 157 of file ARICHHapdChipInfo.h.

getBombardmentCurrent()

TGraph * getBombardmentCurrent

(

unsigned int

i

)

const

Return Bombardment Current as a function of high voltage.

Returns

current

Definition at line 14 of file ARICHHapdChipInfo.cc.

getBombardmentGain()

TGraph* getBombardmentGain ( ) const

inline

Return Bombardment Gain as a function of high voltage.

Returns

bombardment gain

Definition at line 108 of file ARICHHapdChipInfo.h.

getChannelNumber()

int getChannelNumber ( ) const

inline

Return Channel Number for the Bombardment and Avalanche measurements information.

Returns

channel number

Definition at line 181 of file ARICHHapdChipInfo.h.

getChipLabel()

std::string getChipLabel ( ) const

inline

Return Chip label.

Returns

Chip label

Definition at line 61 of file ARICHHapdChipInfo.h.

getCutChannel()

int getCutChannel

(

unsigned int

i

)

const

Return a channel number from the list of cut channels.

Parameters

i	index of the element in the list

Returns

channel number

Definition at line 40 of file ARICHHapdChipInfo.cc.

getCutChannelsSize()

int getCutChannelsSize ( ) const

inline

Return size of the list of cut channels.

Returns

size

Definition at line 212 of file ARICHHapdChipInfo.h.

getGain()

int getGain ( ) const

inline

Return Chip Gain at Operational Voltage.

Returns

chip gain

Definition at line 84 of file ARICHHapdChipInfo.h.

getHapdSerial()

std::string getHapdSerial ( ) const

inline

Return Hapd Serial number.

Returns

Hapd Serial number

Definition at line 51 of file ARICHHapdChipInfo.h.

getLeakCurrent()

TGraph* getLeakCurrent ( ) const

inline

Return Leakeage Current as a function of bias voltage.

Returns

chip gain

Definition at line 96 of file ARICHHapdChipInfo.h.

setAvalancheCurrent()

void setAvalancheCurrent

(

std::vector< TGraph * >

acurrent

)

set Avalanche Current as a function of bias voltage

Parameters

avalanche

current current vs bias

Definition at line 34 of file ARICHHapdChipInfo.cc.

setAvalancheGain()

void setAvalancheGain ( TGraph *  gain )

inline

set Avalanche Gain as a function of bias voltage

Parameters

gain	avalanche gain vs bias

Definition at line 138 of file ARICHHapdChipInfo.h.

setBadChannel()

void setBadChannel ( const std::vector< int > &  channels )

inline

Set the list of bad channels.

Parameters

channel

HAPD channel numbers

Definition at line 231 of file ARICHHapdChipInfo.h.

setBiasCurrent2D()

void setBiasCurrent2D ( TH2F *  h2d )

inline

set Bias Current as a function of the channel

Parameters

h2d	2D map of the current

Definition at line 175 of file ARICHHapdChipInfo.h.

setBiasVoltage()

void setBiasVoltage ( int  voltage )

inline

set Chip Bias Voltage

Parameters

voltage

bias voltage

Definition at line 78 of file ARICHHapdChipInfo.h.

setBiasVoltage2D()

void setBiasVoltage2D ( TH2F *  h2d )

inline

Set Bias Voltage as a function of the channel.

Parameters

h2d	2D map of the voltage

Definition at line 163 of file ARICHHapdChipInfo.h.

setBombardmentCurrent()

void setBombardmentCurrent

(

std::vector< TGraph * >

bcurrent

)

set Bombardment Current as a function of high voltage

Parameters

bombardment

current current vs high voltage

Definition at line 21 of file ARICHHapdChipInfo.cc.

setBombardmentGain()

void setBombardmentGain ( TGraph *  gain )

inline

Set Bombardment Gain as a function of high voltage.

Parameters

gain	bombardment gain

Definition at line 114 of file ARICHHapdChipInfo.h.

setChannelNumber()

void setChannelNumber ( int  channel )

inline

Set Channel Number for the Bombardment and Avalanche measurements information.

Parameters

channel

channel number

Definition at line 187 of file ARICHHapdChipInfo.h.

setChipLabel()

void setChipLabel ( const std::string &  chip )

inline

Set Chip label.

Parameters

Chip

label

Definition at line 66 of file ARICHHapdChipInfo.h.

setCutChannel()

void setCutChannel ( const std::vector< int > &  channels )

inline

Set the list of cut channels.

Parameters

channel

HAPD channel numbers

Definition at line 206 of file ARICHHapdChipInfo.h.

setGain()

void setGain ( int  gain )

inline

set Chip Gain at Operational Voltage

Parameters

gain

chip gain

Definition at line 90 of file ARICHHapdChipInfo.h.

setHapdSerial()

void setHapdSerial ( const std::string &  serial )

inline

Set Hapd Serial number.

Parameters

Hapd	Serial number

Definition at line 56 of file ARICHHapdChipInfo.h.

setLeakCurrent()

void setLeakCurrent ( TGraph *  current )

inline

set Leakeage Current as a function of bias voltage

Parameters

current

Leakeage current

Definition at line 102 of file ARICHHapdChipInfo.h.

---

The documentation for this class was generated from the following files:

• arich/dbobjects/include/ARICHHapdChipInfo.h
• arich/dbobjects/src/ARICHHapdChipInfo.cc
