ARICHHvCablesMapping Class Reference

The Class for ARICH mapping of bias cables to modules. More...

#include <ARICHHvCablesMapping.h>

Inheritance diagram for ARICHHvCablesMapping:

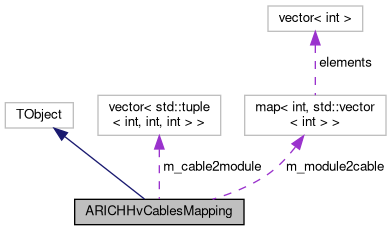

Collaboration diagram for ARICHHvCablesMapping:

Public Member Functions
	ARICHHvCablesMapping ()
	Default constructor.
int	getModuleID (int sectorID, int cableID, int innerID) const
	Get ID of module connected to cable in sector. More...
int	getSectorID (int moduleID) const
	Get ID of sector of a cable to which module is connected. More...
int	getCableID (int moduleID) const
	Get ID of cable to which module is connected. More...
int	getInnerID (int moduleID) const
	Get inner cable ID to which module is connected. More...
void	addMapping (int moduleID, int sectorID, int cableID, int innerID)
	Add mapping entry. More...
void	print () const
	Pring mapping.

Private Member Functions
	ClassDef (ARICHHvCablesMapping, 1)
	ClassDef, must be the last term before the closing {}.

Private Attributes
std::vector< std::tuple< int, int, int > >	m_cable2module
	map of cables to modules
std::map< int, std::vector< int > >	m_module2cable
	map of modules to cables

Detailed Description

The Class for ARICH mapping of bias cables to modules.

This class provides ARICH mapping of HAPD modules to bias cables. It is assumed sectorID going from 1:6, cableID goes from 1:8 and innerID goes from 1:9.

Definition at line 28 of file ARICHHvCablesMapping.h.

Member Function Documentation

addMapping()

void addMapping	(	int	moduleID,
		int	sectorID,
		int	cableID,
		int	innerID
	)

Add mapping entry.

Parameters

moduleID	module ID number
sectorID	sector ID
cableID	bias cable number
innerID	inner cable number

Definition at line 56 of file ARICHHvCablesMapping.cc.

{

  if (moduleID > 420 || moduleID < 1) { B2WARNING("ARICHHvCablesMapping::addMapping: Module number " << moduleID << " not valid!"); }
  if (sectorID > 6 || sectorID < 1) { B2WARNING("ARICHHvCablesMapping::addMapping: Sector number " << sectorID << " not valid!"); }
  if (cableID > 8 || cableID < 1) { B2WARNING("ARICHHvCablesMapping::addMapping: Cable number " << cableID << " not valid!"); }
  if (innerID > 20 || innerID < 2) { B2WARNING("ARICHHvCablesMapping::addMapping: Inner cable number " << innerID << " not valid!"); }

  std::vector<int> cableMap{sectorID, cableID, innerID};
  m_module2cable.insert(std::pair<int, std::vector<int>>(moduleID, cableMap));

}

getCableID()

int getCableID

(

int

moduleID

)

const

Get ID of cable to which module is connected.

Parameters

moduleID

module ID number

Returns

cableID cable ID number

Definition at line 42 of file ARICHHvCablesMapping.cc.

getInnerID()

int getInnerID

(

int

moduleID

)

const

Get inner cable ID to which module is connected.

Parameters

moduleID

module ID number

Returns

innerID inner ID number

Definition at line 49 of file ARICHHvCablesMapping.cc.

getModuleID()

int getModuleID	(	int	sectorID,
		int	cableID,
		int	innerID
	)		const

Get ID of module connected to cable in sector.

Parameters

sectorID	sector ID
cableID	bias cable number
innerID	inner cable number

Returns

moduleID module ID number

Definition at line 21 of file ARICHHvCablesMapping.cc.

getSectorID()

int getSectorID

(

int

moduleID

)

const

Get ID of sector of a cable to which module is connected.

Parameters

moduleID

module ID number

Returns

sectorID sector ID number

Definition at line 35 of file ARICHHvCablesMapping.cc.

---

The documentation for this class was generated from the following files:

• arich/dbobjects/include/ARICHHvCablesMapping.h
• arich/dbobjects/src/ARICHHvCablesMapping.cc
