Class to store EKLM geometry data in the database. More...

#include <EKLMGeometry.h>

Inheritance diagram for EKLMGeometry:

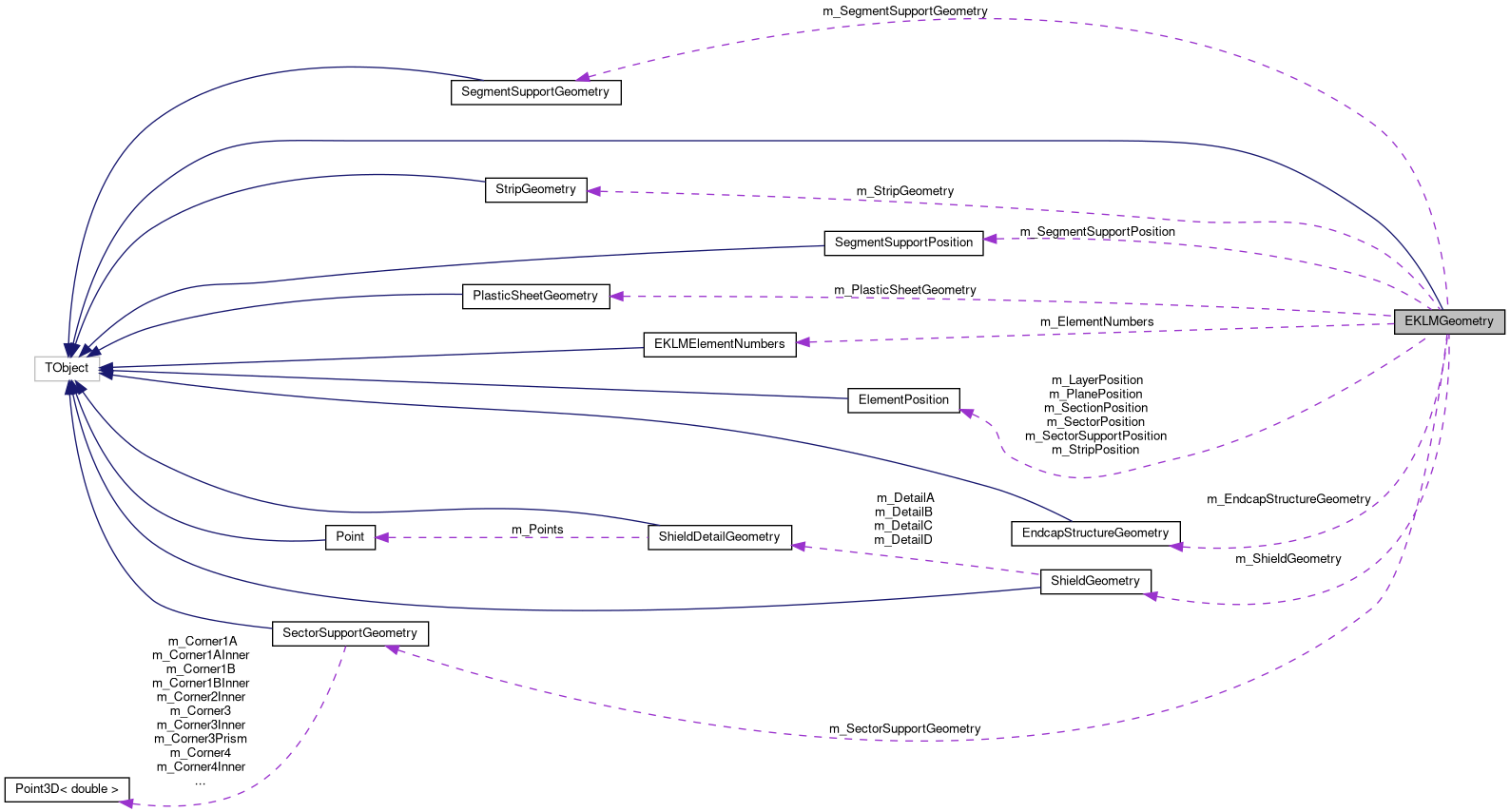

Collaboration diagram for EKLMGeometry:

[legend]

Classes
class	ElementPosition
	Position information for the elements of detector. More...

class	EndcapStructureGeometry
	Endcap srtucture geometry parameters. More...

class	PlasticSheetGeometry
	Plastic sheet geometry data. More...

class	Point
	2D point. More...

class	SectorSupportGeometry
	Sector support geometry data. More...

class	SegmentSupportGeometry
	Segment support geometry data. More...

class	SegmentSupportPosition
	Segment support position. More...

class	ShieldDetailGeometry
	Shield layer detail geometry data. More...

class	ShieldGeometry
	Shield layer geometry data. More...

class	StripGeometry
	Strip geometry data. More...

Public Member Functions
	EKLMGeometry ()
	Constructor.

	EKLMGeometry (const EKLMGeometry &geometry)
	Copy constructor.

	~EKLMGeometry ()
	Destructor.

EKLMGeometry &	operator= (const EKLMGeometry &geometry)
	Operator =.

bool	beamBackgroundStudy () const
	Whether to perform beam-background study.

int	getNSections () const
	Get number of sections.

int	getNLayers () const
	Get number of layers.

int	getNDetectorLayers (int section) const
	Get number of detector layers. More...

int	getNSectors () const
	Get number of sectors.

int	getNPlanes () const
	Get number of planes.

int	getNSegments () const
	Get number of segments.

int	getNSegmentSupportElementsSector () const
	Get number of segment support elements *in one sector).

int	getNStrips () const
	Get number of strips.

void	checkDetectorLayerNumber (int section, int layer) const
	Check if number of detector layers is correct (fatal error if not). More...

void	checkDetectorLayer (int section, int layer) const
	Check if detector layer number is correct (fatal error if not). More...

void	checkSegmentSupport (int support) const
	Check if segment support number is correct (fatal error if not). More...

void	checkStripSegment (int strip) const
	Check if number of strip in a segment is correct (fatal error if not). More...

double	getSolenoidZ () const
	Get solenoid center Z coordinate.

const EndcapStructureGeometry *	getEndcapStructureGeometry () const
	Get endcap structure geometry data.

const ElementPosition *	getSectionPosition () const
	Get position data for sections.

const ElementPosition *	getLayerPosition () const
	Get position data for layers.

double	getLayerShiftZ () const
	Get Z distance between two layers.

const ElementPosition *	getSectorPosition () const
	Get position data for sectors.

const ElementPosition *	getSectorSupportPosition () const
	Get position data for sector support structure.

const SectorSupportGeometry *	getSectorSupportGeometry () const
	Get sector support geometry data.

const ElementPosition *	getPlanePosition () const
	Get position data for planes.

const PlasticSheetGeometry *	getPlasticSheetGeometry () const
	Get plastic sheet geometry data.

const SegmentSupportGeometry *	getSegmentSupportGeometry () const
	Get segment support geometry data.

const SegmentSupportPosition *	getSegmentSupportPosition (int plane, int support) const
	Get position data for segment support structure. More...

const StripGeometry *	getStripGeometry () const
	Get strip geometry data.

const ElementPosition *	getStripPosition (int strip) const
	Get position data for strips. More...

const ShieldGeometry *	getShieldGeometry () const
	Get shield layer details geometry data.

Protected Member Functions
	ClassDef (Belle2::EKLMGeometry, 6)
	Class version.

Protected Attributes
const EKLMElementNumbers *	m_ElementNumbers
	Element numbers.

bool	m_BeamBackgroundStudy = false
	ROOT streamer. More...

int	m_NSections
	Number of sections.

int	m_NLayers
	Number of layers in one section.

int *	m_NDetectorLayers
	Number of detector layers.

int	m_NSectors
	Number of sectors in one layer.

int	m_NPlanes
	Number of planes in one sector.

int	m_NSegments
	Number of segments in one plane.

int	m_NSegmentSupportElementsSector
	Number of segment support elements in one sector.

int	m_NStrips
	Number of strips in one plane.

double	m_SolenoidZ
	Solenoid center Z coordinate.

EndcapStructureGeometry	m_EndcapStructureGeometry
	Section structure geometry data.

ElementPosition	m_SectionPosition
	Position data for sections.

ElementPosition	m_LayerPosition
	Position data for layers.

double	m_LayerShiftZ
	Z distance between two layers.

ElementPosition	m_SectorPosition
	Position data for sectors.

ElementPosition	m_SectorSupportPosition
	Position data for sector support structure.

SectorSupportGeometry	m_SectorSupportGeometry
	Sector support geometry data.

ElementPosition	m_PlanePosition
	Position data for planes.

PlasticSheetGeometry	m_PlasticSheetGeometry
	Plastic sheet geometry data.

SegmentSupportGeometry	m_SegmentSupportGeometry
	Segment support geometry data.

SegmentSupportPosition *	m_SegmentSupportPosition
	Position data for segment support structure.

StripGeometry	m_StripGeometry
	Strip geometry data.

ElementPosition *	m_StripPosition
	Position data for strips.

ShieldGeometry	m_ShieldGeometry
	Shield layer details geometry data.

Detailed Description

Class to store EKLM geometry data in the database.

Definition at line 29 of file EKLMGeometry.h.

Member Function Documentation

◆ checkDetectorLayer()

void checkDetectorLayer	(	int	section,
		int	layer
	)		const

Check if detector layer number is correct (fatal error if not).

Section number must be checked separately.

Parameters

[in]	section	Section number.
[in]	layer	Layer number.

Definition at line 312 of file EKLMGeometry.cc.

 {
   /* cppcheck-suppress variableScope */
   const char* sectionName[2] = {"backward", "forward"};
   if (layer < 0 || layer > m_NDetectorLayers[section - 1])
     B2FATAL("Number of layer must be less from 1 to the number of "
             "detector layers in the " << sectionName[section - 1] << " section ("
             << m_NDetectorLayers[section - 1] << ").");
 }

◆ checkDetectorLayerNumber()

void checkDetectorLayerNumber	(	int	section,
		int	layer
	)		const

Check if number of detector layers is correct (fatal error if not).

Section number must be checked separately.

Parameters

[in]	section	Section number.
[in]	layer	Layer number.

Definition at line 301 of file EKLMGeometry.cc.

◆ checkSegmentSupport()

void checkSegmentSupport ( int support ) const

Check if segment support number is correct (fatal error if not).

Parameters

[in] support Segment support element number.

Definition at line 322 of file EKLMGeometry.cc.

◆ checkStripSegment()

void checkStripSegment ( int strip ) const

Check if number of strip in a segment is correct (fatal error if not).

Parameters

[in] strip Strip number.

Definition at line 329 of file EKLMGeometry.cc.

◆ getNDetectorLayers()

int getNDetectorLayers ( int section ) const

Get number of detector layers.

Parameters

[in] section Section number (1 - backward, 2 - forward).

Definition at line 293 of file EKLMGeometry.cc.

◆ getSegmentSupportPosition()

const EKLMGeometry::SegmentSupportPosition * getSegmentSupportPosition	(	int	plane,
		int	support
	)		const

Get position data for segment support structure.

Parameters

[in]	plane	Plane number.
[in]	support	Segment support element number.

Definition at line 339 of file EKLMGeometry.cc.

◆ getStripPosition()

const EKLMGeometry::ElementPosition * getStripPosition ( int strip ) const

Get position data for strips.

Parameters

[in] strip Strip number.

Definition at line 348 of file EKLMGeometry.cc.

Member Data Documentation

◆ m_BeamBackgroundStudy

bool m_BeamBackgroundStudy = false

protected

ROOT streamer.

Whether to perform beam-background study.

Definition at line 1896 of file EKLMGeometry.h.

The documentation for this class was generated from the following files:

klm/dbobjects/eklm/include/EKLMGeometry.h
klm/dbobjects/eklm/src/EKLMGeometry.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ checkDetectorLayer()

◆ checkDetectorLayerNumber()

◆ checkSegmentSupport()

◆ checkStripSegment()

◆ getNDetectorLayers()

◆ getSegmentSupportPosition()

◆ getStripPosition()

Member Data Documentation

◆ m_BeamBackgroundStudy
