Root TGMainFrame that contains multiple widgets that display the ECLSimHit's w.r.t. More...

#include <EclFrame.h>

Inheritance diagram for EclFrame:

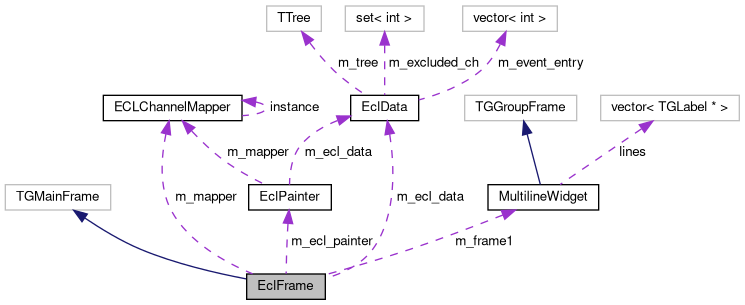

Collaboration diagram for EclFrame:

[legend]

Public Member Functions
	EclFrame (int painter_type, EclData data, bool auto_display, ECL::ECLChannelMapper mapper)

virtual	~EclFrame ()
	ECLFrame destructor. More...

void	loadNewData ()
	Update view of the data.

void	updateCanvas ()
	Redraw m_ecanvas.

void	handleMenu (int id)
	Apply action from menu.

void	updateEventRange ()
	Change event range and pass information to m_ecl_data.

void	showPrevEvents ()
	Show previous range of events.

void	showNextEvents ()
	Show next range of events.

void	excludeChannel ()
	Exclude channel specified in the GUI.

void	doDraw ()
	Get view parameters from GUI and call updateCanvas().

void	doDrawAll ()
	Draw all events on m_ecanvas.

void	updateInfo (int event, int px, int py, TObject *)
	Update information on the cursor position in the histogram.

void	changeRange (TGListTreeItem *entry, int btn)
	Opens shapers of specific crate/channels of specific shaper.

void	changeType (int type, bool redraw=true)
	Change EclPainter type when selected in drop-down menu. More...

Private Types
enum	EclFrameCommandIdentifiers { M_FILE_OPEN , M_FILE_SAVE , M_FILE_EXPORT_TREE , M_FILE_EXIT , M_VIEW_EVENTS , M_VIEW_ENERGY , M_VIEW_DET_FULL , M_VIEW_DET_FORW , M_VIEW_DET_BACK , M_VIEW_DET_BARR }
	Enum for menu commands. More...

Private Member Functions
void	initGUI (int w, int h)
	Initialize GUI.

void	initData ()
	Initialize data.

Private Attributes
TGVerticalFrame *	m_settings
	Main frame for settings; its subframes contain settings for different categories.

MultilineWidget *	m_frame1
	Information subframe.

TGGroupFrame *	m_frame2
	Event range subframe.

TGGroupFrame *	m_frame3
	Optional subframe, crate/shaper select.

TGListTree *	m_list_tree
	Tree GUI of crates/shapers.

TGGroupFrame *	m_frame4
	Channel exclusion subframe.

TGGroupFrame *	m_frame5
	Energy threshold subframe.

TGTextButton *	m_draw
	Button that initiates drawing of the data for selected events.

TGTextButton *	m_draw_all
	Button that initiates drawing of the data for all events.

TRootEmbeddedCanvas *	m_ecanvas
	Embedded canvas.

EclPainterType	m_painter_type
	Current painter type. More...

EclData *	m_ecl_data
	EclData, class containing data to display.

TGDoubleHSlider *	m_ev_slider
	Slider to set the time range. More...

TGNumberEntry *	m_events_min
	Min value for range of displayed events.

TGNumberEntry *	m_events_max
	Max value for range of displayed events.

TGNumberEntry *	m_channel_id
	Number field for channel exclusion.

EclData::EclSubsystem	m_subsys
	Current subsystem displayed.

TGNumberEntry *	m_min_en_threshold
	Min value for energy threshold.

TGNumberEntry *	m_max_en_threshold
	Max value for energy threshold.

TGCheckButton *	m_threshold_switch
	Check button to turn energy threshold on/off.

EclPainter *	m_ecl_painter
	Current EclPainter.

ECL::ECLChannelMapper *	m_mapper
	ECLChannelMapper, class for conversion from CellID to (crate, shaper, chn_id).

bool	m_auto_display
	This flag controls whether to display newly loaded events automatically.

int	m_last_event
	If m_auto_display is set, this is the evtn of last displayed event.

bool	m_open
	Default is true, m_open is set to false when EclFrame closes.

Static Private Attributes
static const char *	filetypes []
	Possible export filetypes for histograms. More...

Detailed Description

Root TGMainFrame that contains multiple widgets that display the ECLSimHit's w.r.t.

structure of ECL geometry and its data acquisition subsystem.

Definition at line 41 of file EclFrame.h.

Member Enumeration Documentation

◆ EclFrameCommandIdentifiers

enum EclFrameCommandIdentifiers

private

Enum for menu commands.

Enumerator
M_FILE_EXPORT_TREE	Export EclDisplay data into simple TTree.
M_VIEW_EVENTS	Display histograms for events.
M_VIEW_ENERGY	Display histograms for energy.
M_VIEW_DET_FULL	Use data from all ECL subsystems.
M_VIEW_DET_FORW	Use data from forward endcap only.
M_VIEW_DET_BACK	Use data from backward endcap only.
M_VIEW_DET_BARR	Use data from barrel only.

Definition at line 111 of file EclFrame.h.

                                     {
       M_FILE_OPEN,
       M_FILE_SAVE,
       M_FILE_EXPORT_TREE,
       M_FILE_EXIT,

       M_VIEW_EVENTS,
       M_VIEW_ENERGY,
       M_VIEW_DET_FULL,
       M_VIEW_DET_FORW,
       M_VIEW_DET_BACK,
       M_VIEW_DET_BARR
     };

Constructor & Destructor Documentation

◆ EclFrame()

EclFrame	(	int	painter_type,
		EclData *	data,
		bool	auto_display,
		ECL::ECLChannelMapper *	mapper
	)

Parameters

painter_type	painter type
data	ECL data
auto_display	Display new events as soon as they are loaded.
mapper	ECL channel mapper

Definition at line 55 of file EclFrame.cc.

 {
   m_open = true;
   m_subsys = EclData::ALL;
   m_ecl_data = data;
   m_mapper = mapper;
   m_painter_type = (EclPainterType)painter_type;
   m_ecl_painter = EclPainterFactory::createPainter(m_painter_type, data,
                                                    m_mapper, m_subsys);
   m_last_event = -1;

   for (int i = 1; i <= data->getCrystalCount(); i++) {
     int phi_id = data->getPhiId(i);//GetPhiId(i);
     int theta_id = data->getThetaId(i);//GetThetaId(i);

     if (phi_id == -1 || theta_id == -1)
       data->excludeChannel(i);
   }

   initGUI(1000, 700);

   m_auto_display = auto_display;

   gStyle->SetOptStat(0);

   doDraw();
 }

◆ ~EclFrame()

~EclFrame ( )

virtual

ECLFrame destructor.

Calls parent class Cleanup() method.

Definition at line 83 of file EclFrame.cc.

Member Function Documentation

◆ changeType()

void changeType	(	int	type,
		bool	redraw = `true`
	)

Change EclPainter type when selected in drop-down menu.

See EclPainterFactory.h, EclPainterType.

Definition at line 546 of file EclFrame.cc.

Member Data Documentation

◆ filetypes

const char * filetypes

staticprivate

Initial value:

= {
  "PDF",                        "*.pdf",
  "PostScript",                 "*.ps",
  "Encapsulated PostScript",    "*.eps",
  "SVG",                        "*.svg",
  "TeX",                        "*.tex",
  "GIF",                        "*.gif",
  "ROOT macros",                "*.C",
  "ROOT files",                 "*.root",
  "XML",                        "*.xml",
  "PNG",                        "*.png",
  "XPM",                        "*.xpm",
  "JPEG",                       "*.jpg",
  "TIFF",                       "*.tiff",
  "XCF",                        "*.xcf",
  0,                            0
}

Possible export filetypes for histograms.

Definition at line 125 of file EclFrame.h.

◆ m_ev_slider

TGDoubleHSlider* m_ev_slider

private

Slider to set the time range.

Slider for choosing events range.

Definition at line 78 of file EclFrame.h.

◆ m_painter_type

EclPainterType m_painter_type

private

Current painter type.

See EclPainterFactory for the list of all types.

Definition at line 70 of file EclFrame.h.

The documentation for this class was generated from the following files:

ecl/modules/eclDisplay/include/EclFrame.h
ecl/modules/eclDisplay/src/EclFrame.cc
