Geometry parameters of prism. More...

#include <TOPGeoPrism.h>

Inheritance diagram for TOPGeoPrism:

[legend]

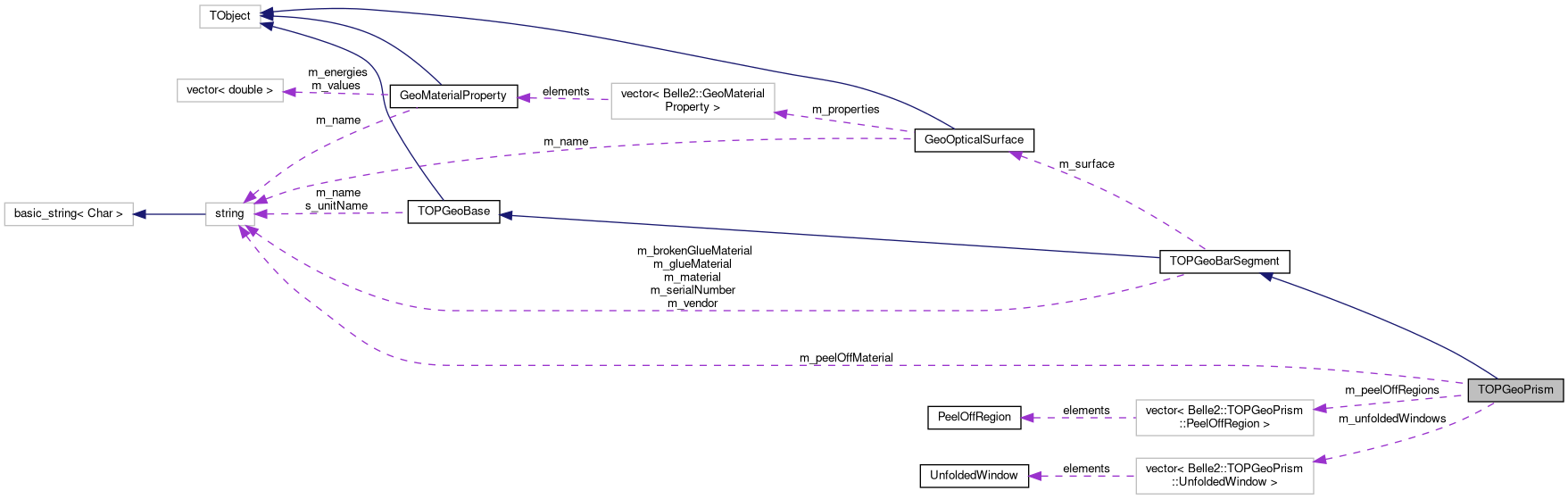

Collaboration diagram for TOPGeoPrism:

[legend]

Classes
struct	PeelOffRegion
	Parameters of peel-off cookie region (corresponds to 2x2 PMT's) More...

struct	UnfoldedWindow
	Unfolded prism exit window. More...

Public Member Functions
	TOPGeoPrism ()
	Default constructor.

	TOPGeoPrism (double width, double thickness, double length, double exitThickness, double flatLength, const std::string &material, const std::string &name="TOPPrism_")
	Useful constructor. More...

void	setAngle (double angle)
	Recalculates flatLength according to given prism angle. More...

void	setPeelOffRegions (double size, double offset, double thickness, const std::string &material)
	Sets parameters of the peel-off cookie volumes. More...

void	appendPeelOffRegion (unsigned ID, double fraction, double angle)
	Appends peel-off cookie region. More...

double	getExitThickness () const
	Returns prism thickness at PMT side. More...

double	getFlatLength () const
	Returns the length of a flat surface at prism bottom. More...

double	getFullFlatLength () const
	Returns the length of a flat surface at prism bottom including filter. More...

double	getAngle () const
	Returns prism angle. More...

double	getFilterThickness () const
	Returns wavelength filter thickness (filter on -z side). More...

const std::string &	getFilterMaterial () const
	Returns wavelength filter material name (filter on -z side) For backward compatibility, since now the filter is part of TOPGeoPMTArray. More...

double	getGlueThickness () const override
	Returns glue thickness (no glue on -z side) More...

double	getPeelOffSize () const
	Returns cookie size in x (corresponding to 2x2 PMT) More...

double	getPeelOffThickness () const
	Returns peel-off thickness. More...

const std::string &	getPeelOffMaterial () const
	Returns peel-off material. More...

const std::vector< PeelOffRegion > &	getPeelOffRegions () const
	Returns peel-off cookie regions. More...

double	getPeelOffCenter (const PeelOffRegion &region) const
	Returns peel-off offset in x of the given region. More...

std::vector< std::pair< double, double > >	getPeelOffContour (const PeelOffRegion &region) const
	Returns the x-y contour of the peel-off region. More...

const std::vector< UnfoldedWindow > &	getUnfoldedWindows () const
	Returns unfolded exit windows. More...

int	getK0 () const
	Returns index of true window in a vector of unfolded exit windows. More...

bool	isConsistent () const override
	Check for consistency of data members. More...

void	print (const std::string &title="Prism geometry parameters") const override
	Print the content of the class. More...

void	setSurface (const GeoOpticalSurface &surface, double sigmaAlpha)
	Sets optical surface. More...

void	setVendorData (const std::string &vendor, const std::string &serialNumber)
	Sets vendor's name and serial number. More...

double	getWidth () const
	Returns bar segment width. More...

double	getThickness () const
	Returns bar segment thickness. More...

double	getLength () const
	Returns bar segment length. More...

double	getFullLength () const
	Returns bar segment length including glue. More...

const std::string &	getMaterial () const
	Returns bar segment material name. More...

const std::string &	getGlueMaterial () const
	Returns glue material name (glue on -z side) More...

double	getBrokenGlueFraction () const
	Returns fraction of the delaminated surface. More...

double	getBrokenGlueAngle () const
	Returns angle of the delaminated surface. More...

const std::string &	getBrokenGlueMaterial () const
	Returns material name which represents broken glue. More...

std::vector< std::pair< double, double > >	getBrokenGlueContour () const
	Returns the x-y contour of broken glue.

const GeoOpticalSurface &	getSurface () const
	Returns optical surface. More...

double	getSurfaceReflectivity (double energy) const
	Returns surface reflectivity at given photon energy. More...

double	getSigmaAlpha () const
	Returns geant4 parameter describing surface roughness. More...

const std::string &	getVendor () const
	Returns vendor's name. More...

const std::string &	getSerialNumber () const
	Returns serial number. More...

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

double	getReflectivity (const GeoOpticalSurface &surface, double energy) const
	Returns reflectivity of optical surface at given photon energy. More...

Protected Member Functions
void	constructContour (double A, double B, double fraction, double angle, std::vector< std::pair< double, double > > &contour) const
	Construct a 2D contour. More...

	ClassDefOverride (TOPGeoBarSegment, 3)
	ClassDef.

void	printUnderlined (const std::string &title) const
	Print the content of the class. More...

	ClassDef (TOPGeoBase, 1)
	ClassDef.

Protected Attributes
float	m_width = 0
	bar segment width

float	m_thickness = 0
	bar segment thickness

float	m_length = 0
	bar segment length

std::string	m_material
	bar segment material name

float	m_glueThickness = 0
	glue thickness

std::string	m_glueMaterial
	glue material name

GeoOpticalSurface	m_surface
	optical surface

float	m_sigmaAlpha = 0
	geant4 parameter for surface roughness

float	m_brokenFraction = 0
	fraction of broken (delaminated) glue

float	m_brokenAngle = 0
	angle of broken (delaminated) glue

std::string	m_brokenGlueMaterial
	broken glue material name

std::string	m_vendor
	vendor's name

std::string	m_serialNumber
	serial number

std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
void	setGlue (double, const std::string &) override
	Disable setting the glue, since there is none.

void	setGlueDelamination (double, double, const std::string &) override
	Disable setting the glue delamination, since there is no glue.

void	unfold () const
	Unfold prism exit window.

void	reflect (const ROOT::Math::XYVector points, const ROOT::Math::XYVector normals, const ROOT::Math::XYVector &orig, const ROOT::Math::XYVector &surf, const ROOT::Math::XYVector &norm, const ROOT::Math::XYVector &slanted, int k, std::vector< UnfoldedWindow > &result) const
	Do unfolding. More...

	ClassDefOverride (TOPGeoPrism, 2)
	do not write out More...

Private Attributes
float	m_exitThickness = 0
	thickness at PMT side

float	m_flatLength = 0
	length of the flat part at the bottom

float	m_peelOffSize = 0
	size in x of peel-off volume

float	m_peelOffOffset = 0
	offset in x of the peel-off volume ID = 1

float	m_peelOffThickness = 0
	thickness of peel-off volume

std::string	m_peelOffMaterial
	material name of peel-off volume

std::vector< PeelOffRegion >	m_peelOffRegions
	peel-off regions

std::vector< UnfoldedWindow >	m_unfoldedWindows
	cache for unfolded prism exit windows

int	m_k0 = 0
	do not write out More...

Detailed Description

Geometry parameters of prism.

Definition at line 27 of file TOPGeoPrism.h.

Constructor & Destructor Documentation

◆ TOPGeoPrism()

TOPGeoPrism	(	double	width,
		double	thickness,
		double	length,
		double	exitThickness,
		double	flatLength,
		const std::string &	material,
		const std::string &	name = `"TOPPrism_"`
	)

inline

Useful constructor.

Parameters

width	prism width
thickness	thickness at bar side
length	prism length
exitThickness	thickness at PMT side
flatLength	length of the flat part at the bottom
material	prism material name
name	object name

Definition at line 81 of file TOPGeoPrism.h.

                                                     :
       TOPGeoBarSegment(width, thickness, length, material, name),
       m_exitThickness(exitThickness), m_flatLength(flatLength)
     {}

Member Function Documentation

◆ ClassDefOverride()

ClassDefOverride	(	TOPGeoPrism	,
		2
	)

private

do not write out

ClassDef

◆ getAngle()

double getAngle ( ) const

inline

Returns prism angle.

Returns: angle

Definition at line 144 of file TOPGeoPrism.h.

◆ getBrokenGlueAngle()

double getBrokenGlueAngle ( ) const

inlineinherited

Returns angle of the delaminated surface.

Returns: angle

Definition at line 149 of file TOPGeoBarSegment.h.

◆ getBrokenGlueFraction()

double getBrokenGlueFraction ( ) const

inlineinherited

Returns fraction of the delaminated surface.

Returns: fraction

Definition at line 143 of file TOPGeoBarSegment.h.

◆ getBrokenGlueMaterial()

const std::string& getBrokenGlueMaterial ( ) const

inlineinherited

Returns material name which represents broken glue.

Returns: material name

Definition at line 155 of file TOPGeoBarSegment.h.

◆ getExitThickness()

double getExitThickness ( ) const

inline

Returns prism thickness at PMT side.

Returns: thickness at PMT side

Definition at line 126 of file TOPGeoPrism.h.

◆ getFilterMaterial()

const std::string& getFilterMaterial ( ) const

inline

Returns wavelength filter material name (filter on -z side) For backward compatibility, since now the filter is part of TOPGeoPMTArray.

Returns: material name

Definition at line 161 of file TOPGeoPrism.h.

◆ getFilterThickness()

double getFilterThickness ( ) const

inline

Returns wavelength filter thickness (filter on -z side).

For backward compatibility, since now the filter is part of TOPGeoPMTArray

Returns: thickness

Definition at line 154 of file TOPGeoPrism.h.

◆ getFlatLength()

double getFlatLength ( ) const

inline

Returns the length of a flat surface at prism bottom.

Returns: bottom flat surface length

Definition at line 132 of file TOPGeoPrism.h.

◆ getFullFlatLength()

double getFullFlatLength ( ) const

inline

Returns the length of a flat surface at prism bottom including filter.

Returns: bottom flat surface full length

Definition at line 138 of file TOPGeoPrism.h.

◆ getFullLength()

double getFullLength ( ) const

inlineinherited

Returns bar segment length including glue.

Returns: full length

Definition at line 119 of file TOPGeoBarSegment.h.

◆ getGlueMaterial()

const std::string& getGlueMaterial ( ) const

inlineinherited

Returns glue material name (glue on -z side)

Returns: material name

Definition at line 137 of file TOPGeoBarSegment.h.

◆ getGlueThickness()

double getGlueThickness ( ) const

inlineoverridevirtual

Returns glue thickness (no glue on -z side)

Returns: thickness

Reimplemented from TOPGeoBarSegment.

Definition at line 167 of file TOPGeoPrism.h.

◆ getK0()

int getK0 ( ) const

inline

Returns index of true window in a vector of unfolded exit windows.

Returns: index

Definition at line 225 of file TOPGeoPrism.h.

◆ getLength()

double getLength ( ) const

inlineinherited

Returns bar segment length.

Returns: length

Definition at line 113 of file TOPGeoBarSegment.h.

◆ getMaterial()

const std::string& getMaterial ( void ) const

inlineinherited

Returns bar segment material name.

Returns: material name

Definition at line 125 of file TOPGeoBarSegment.h.

◆ getName()

const std::string& getName ( void ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 51 of file TOPGeoBase.h.

◆ getPeelOffCenter()

double getPeelOffCenter ( const PeelOffRegion & region ) const

inline

Returns peel-off offset in x of the given region.

Parameters

region peel-off region

Returns: offset in x

Definition at line 198 of file TOPGeoPrism.h.

◆ getPeelOffMaterial()

const std::string& getPeelOffMaterial ( ) const

inline

Returns peel-off material.

Returns: material name

Definition at line 185 of file TOPGeoPrism.h.

◆ getPeelOffRegions()

const std::vector<PeelOffRegion>& getPeelOffRegions ( ) const

inline

Returns peel-off cookie regions.

Returns: vector of regions

Definition at line 191 of file TOPGeoPrism.h.

◆ getPeelOffSize()

double getPeelOffSize ( ) const

inline

Returns cookie size in x (corresponding to 2x2 PMT)

Returns: size in x

Definition at line 173 of file TOPGeoPrism.h.

◆ getPeelOffThickness()

double getPeelOffThickness ( ) const

inline

Returns peel-off thickness.

Returns: thickness

Definition at line 179 of file TOPGeoPrism.h.

◆ getSerialNumber()

const std::string& getSerialNumber ( ) const

inlineinherited

Returns serial number.

Returns: serial number

Definition at line 194 of file TOPGeoBarSegment.h.

◆ getSigmaAlpha()

double getSigmaAlpha ( ) const

inlineinherited

Returns geant4 parameter describing surface roughness.

Returns: surface roughness

Definition at line 182 of file TOPGeoBarSegment.h.

◆ getSurface()

const GeoOpticalSurface& getSurface ( ) const

inlineinherited

Returns optical surface.

Returns: optical surface

Definition at line 166 of file TOPGeoBarSegment.h.

◆ getSurfaceReflectivity()

double getSurfaceReflectivity ( double energy ) const

inlineinherited

Returns surface reflectivity at given photon energy.

Parameters

energy photon energy in [eV]

Returns: reflectivity

Definition at line 173 of file TOPGeoBarSegment.h.

◆ getThickness()

double getThickness ( ) const

inlineinherited

Returns bar segment thickness.

Returns: thickness

Definition at line 107 of file TOPGeoBarSegment.h.

◆ getUnfoldedWindows()

const std::vector<UnfoldedWindow>& getUnfoldedWindows ( ) const

inline

Returns unfolded exit windows.

Exit window position is defined where the slanted surface is cutted off.

Returns: vector of unfolded exit windows

Definition at line 215 of file TOPGeoPrism.h.

◆ getVendor()

const std::string& getVendor ( ) const

inlineinherited

Returns vendor's name.

Returns: name

Definition at line 188 of file TOPGeoBarSegment.h.

◆ getWidth()

double getWidth ( ) const

inlineinherited

Returns bar segment width.

Returns: width

Definition at line 101 of file TOPGeoBarSegment.h.

◆ setAngle()

void setAngle ( double angle )

inline

Recalculates flatLength according to given prism angle.

Parameters

angle prism angle

Definition at line 93 of file TOPGeoPrism.h.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 45 of file TOPGeoBase.h.

◆ setPeelOffRegions()

void setPeelOffRegions	(	double	size,
		double	offset,
		double	thickness,
		const std::string &	material
	)

inline

Sets parameters of the peel-off cookie volumes.

Parameters

size	volume size in x
offset	offset in x of the center of volume ID = 1
thickness	volume thickness
material	material name

Definition at line 105 of file TOPGeoPrism.h.

◆ setSurface()

void setSurface	(	const GeoOpticalSurface &	surface,
		double	sigmaAlpha
	)

inlineinherited

Sets optical surface.

Parameters

surface	optical surface
sigmaAlpha	geant4 parameter for surface roughness

Definition at line 80 of file TOPGeoBarSegment.h.

◆ setVendorData()

void setVendorData	(	const std::string &	vendor,
		const std::string &	serialNumber
	)

inlineinherited

Sets vendor's name and serial number.

Parameters

vendor	vendor's name
serialNumber	serial number

Definition at line 91 of file TOPGeoBarSegment.h.

Member Data Documentation

◆ m_k0

int m_k0 = 0

mutableprivate

do not write out

cache for the index of true window in unfolded prism exit windows

Definition at line 289 of file TOPGeoPrism.h.

The documentation for this class was generated from the following files:

top/dbobjects/include/TOPGeoPrism.h
top/dbobjects/src/TOPGeoPrism.cc
