Geometry parameters of ARICH Master volume (envelope) More...

#include <ARICHGeoMasterVolume.h>

Inheritance diagram for ARICHGeoMasterVolume:

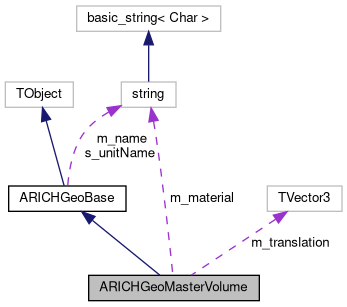

Collaboration diagram for ARICHGeoMasterVolume:

[legend]

Public Member Functions
	ARICHGeoMasterVolume ()
	Default constructor.

	~ARICHGeoMasterVolume ()
	Destructor.

bool	isConsistent () const override
	Check of geometry parameters consistency. More...

void	print (const std::string &title="ARICH Master Volume geometry parameters") const override
	Print the content of the class. More...

void	setPlacement (double x, double y, double z, double rx, double ry, double rz)
	Sets positioning of ARICH master volume in global Belle II coordinate system. More...

void	setVolume (double innerR, double outerR, double length, const std::string &material)
	Sets parameters of ARICH master volume. More...

TVector3	getPosition () const
	Get position of ARICH master volume center point in global Belle II coordinates. More...

TRotation	getRotation () const
	Get rotation matrix of ARICH master volume in global Belle II coordinates. More...

double	getRotationX () const
	Get angle of rotation around X axis. More...

double	getRotationY () const
	Get angle of rotation around Y axis. More...

double	getRotationZ () const
	Get angle of rotation around Z axis. More...

double	getInnerRadius () const
	Get ARICH master volume inner radius. More...

double	getOuterRadius () const
	Get ARICH master volume outer radius. More...

double	getLength () const
	Get ARICH master volume length. More...

const std::string &	getMaterial () const
	Get material of ARICH master volume. More...

TVector3	pointToGlobal (const TVector3 &point) const

TVector3	momentumToGlobal (const TVector3 &momentum) const

TVector3	pointToLocal (const TVector3 &point) const

TVector3	momentumToLocal (const TVector3 &momentum) const

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters. More...

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDefOverride (ARICHGeoMasterVolume, 1)
	ClassDef.

Private Attributes
double	m_x = 0
	x position

double	m_y = 0
	y position

double	m_z = 0
	z position

double	m_rx = 0
	rotation around x-axis

double	m_ry = 0
	rotation around y-axis

double	m_rz = 0
	rotation around z-axis

double	m_innerR = 0
	tube inner radius

double	m_outerR = 0
	tube outer radius

double	m_length = 0
	tube length

std::string	m_material

TRotation *	m_rotation = 0

TRotation *	m_rotationInverse = 0

TVector3 *	m_translation = 0

Detailed Description

Geometry parameters of ARICH Master volume (envelope)

Definition at line 28 of file ARICHGeoMasterVolume.h.

Member Function Documentation

◆ getInnerRadius()

double getInnerRadius ( ) const

inline

Get ARICH master volume inner radius.

Returns: master volume inner radius

Definition at line 120 of file ARICHGeoMasterVolume.h.

120 {return m_innerR / s_unit;};

Belle2::ARICHGeoBase::s_unit

static double s_unit

conversion unit for length

Definition: ARICHGeoBase.h:83

Belle2::ARICHGeoMasterVolume::m_innerR

double m_innerR

tube inner radius

Definition: ARICHGeoMasterVolume.h:157

◆ getLength()

double getLength ( ) const

inline

Get ARICH master volume length.

Returns: master volume length

Definition at line 132 of file ARICHGeoMasterVolume.h.

◆ getMaterial()

const std::string& getMaterial ( ) const

inline

Get material of ARICH master volume.

Returns: material of master volume

Definition at line 138 of file ARICHGeoMasterVolume.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

◆ getOuterRadius()

double getOuterRadius ( ) const

inline

Get ARICH master volume outer radius.

Returns: master volume outer radius

Definition at line 126 of file ARICHGeoMasterVolume.h.

◆ getPosition()

TVector3 getPosition ( ) const

inline

Get position of ARICH master volume center point in global Belle II coordinates.

Returns: center point of ARICH volume

Definition at line 85 of file ARICHGeoMasterVolume.h.

◆ getRotation()

TRotation getRotation ( ) const

inline

Get rotation matrix of ARICH master volume in global Belle II coordinates.

Returns: rotation matrix of ARICH master volume

Definition at line 91 of file ARICHGeoMasterVolume.h.

◆ getRotationX()

double getRotationX ( ) const

inline

Get angle of rotation around X axis.

Returns: rotation angle arounx X axis

Definition at line 102 of file ARICHGeoMasterVolume.h.

◆ getRotationY()

double getRotationY ( ) const

inline

Get angle of rotation around Y axis.

Returns: rotation angle arounx Y axis

Definition at line 108 of file ARICHGeoMasterVolume.h.

◆ getRotationZ()

double getRotationZ ( ) const

inline

Get angle of rotation around Z axis.

Returns: rotation angle arounx Z axis

Definition at line 114 of file ARICHGeoMasterVolume.h.

◆ isConsistent()

bool isConsistent ( ) const

overridevirtual

Check of geometry parameters consistency.

Returns: true if consistent

Reimplemented from ARICHGeoBase.

Definition at line 56 of file ARICHGeoMasterVolume.cc.

 {
   if (m_innerR > m_outerR) return false;
   if (m_length <= 0 || m_innerR < 0) return false;
   if (m_material.empty()) return false;
   return true;
 }

◆ print()

void print ( const std::string & title = "ARICH Master Volume geometry parameters" ) const

overridevirtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 65 of file ARICHGeoMasterVolume.cc.

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

◆ setPlacement()

void setPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)

Sets positioning of ARICH master volume in global Belle II coordinate system.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 37 of file ARICHGeoMasterVolume.cc.

◆ setVolume()

void setVolume	(	double	innerR,
		double	outerR,
		double	length,
		const std::string &	material
	)

inline

Sets parameters of ARICH master volume.

Parameters

innerR	inner radius of ARICH tube
outerR	outer radius of ARICH tube
length	length radius of ARICH tube
material	material

Definition at line 79 of file ARICHGeoMasterVolume.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoMasterVolume.h
arich/dbobjects/src/ARICHGeoMasterVolume.cc
