Geometry parameters of a quartz bar segment. More...

#include <TOPGeoBarSegment.h>

Inheritance diagram for TOPGeoBarSegment:

[legend]

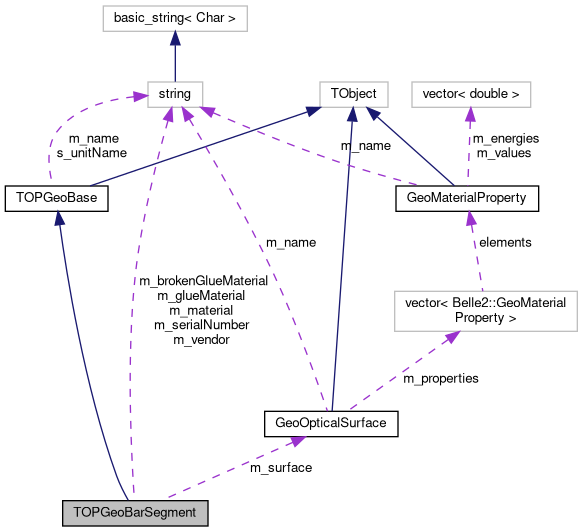

Collaboration diagram for TOPGeoBarSegment:

[legend]

Public Member Functions
	TOPGeoBarSegment ()
	Default constructor.

	TOPGeoBarSegment (double width, double thickness, double length, const std::string &material, const std::string &name="TOPBarSegment")
	Useful constructor. More...

virtual void	setGlue (double thickness, const std::string &material)
	Sets glue parameters (for glue on -z side) More...

virtual void	setGlueDelamination (double fraction, double angle, const std::string &material)
	Sets glue to be broken (delaminated) More...

void	setSurface (const GeoOpticalSurface &surface, double sigmaAlpha)
	Sets optical surface. More...

void	setVendorData (const std::string &vendor, const std::string &serialNumber)
	Sets vendor's name and serial number. More...

double	getWidth () const
	Returns bar segment width. More...

double	getThickness () const
	Returns bar segment thickness. More...

double	getLength () const
	Returns bar segment length. More...

double	getFullLength () const
	Returns bar segment length including glue. More...

const std::string &	getMaterial () const
	Returns bar segment material name. More...

virtual double	getGlueThickness () const
	Returns glue thickness (glue on -z side) More...

const std::string &	getGlueMaterial () const
	Returns glue material name (glue on -z side) More...

double	getBrokenGlueFraction () const
	Returns fraction of the delaminated surface. More...

double	getBrokenGlueAngle () const
	Returns angle of the delaminated surface. More...

const std::string &	getBrokenGlueMaterial () const
	Returns material name which represents broken glue. More...

std::vector< std::pair< double, double > >	getBrokenGlueContour () const
	Returns the x-y contour of broken glue.

const GeoOpticalSurface &	getSurface () const
	Returns optical surface. More...

double	getSurfaceReflectivity (double energy) const
	Returns surface reflectivity at given photon energy. More...

double	getSigmaAlpha () const
	Returns geant4 parameter describing surface roughness. More...

const std::string &	getVendor () const
	Returns vendor's name. More...

const std::string &	getSerialNumber () const
	Returns serial number. More...

virtual bool	isConsistent () const override
	Check for consistency of data members. More...

virtual void	print (const std::string &title="Bar segment geometry parameters") const override
	Print the content of the class. More...

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

double	getReflectivity (const GeoOpticalSurface &surface, double energy) const
	Returns reflectivity of optical surface at given photon energy. More...

Protected Member Functions
void	constructContour (double A, double B, double fraction, double angle, std::vector< std::pair< double, double > > &contour) const
	Construct a 2D contour. More...

	ClassDefOverride (TOPGeoBarSegment, 3)
	ClassDef.

void	printUnderlined (const std::string &title) const
	Print the content of the class. More...

	ClassDef (TOPGeoBase, 1)
	ClassDef.

Protected Attributes
float	m_width = 0
	bar segment width

float	m_thickness = 0
	bar segment thickness

float	m_length = 0
	bar segment length

std::string	m_material
	bar segment material name

float	m_glueThickness = 0
	glue thickness

std::string	m_glueMaterial
	glue material name

GeoOpticalSurface	m_surface
	optical surface

float	m_sigmaAlpha = 0
	geant4 parameter for surface roughness

float	m_brokenFraction = 0
	fraction of broken (delaminated) glue

float	m_brokenAngle = 0
	angle of broken (delaminated) glue

std::string	m_brokenGlueMaterial
	broken glue material name

std::string	m_vendor
	vendor's name

std::string	m_serialNumber
	serial number

std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Detailed Description

Geometry parameters of a quartz bar segment.

Definition at line 27 of file TOPGeoBarSegment.h.

Constructor & Destructor Documentation

◆ TOPGeoBarSegment()

TOPGeoBarSegment	(	double	width,
		double	thickness,
		double	length,
		const std::string &	material,
		const std::string &	name = `"TOPBarSegment"`
	)

inline

Useful constructor.

Parameters

width	bar segment width
thickness	bar segment thickness
length	bar segment length
material	bar segment material name
name	object name

Definition at line 44 of file TOPGeoBarSegment.h.

                                                              : TOPGeoBase(name),
       m_width(width), m_thickness(thickness), m_length(length), m_material(material)
     {}

Member Function Documentation

◆ getBrokenGlueAngle()

double getBrokenGlueAngle ( ) const

inline

Returns angle of the delaminated surface.

Returns: angle

Definition at line 149 of file TOPGeoBarSegment.h.

◆ getBrokenGlueFraction()

double getBrokenGlueFraction ( ) const

inline

Returns fraction of the delaminated surface.

Returns: fraction

Definition at line 143 of file TOPGeoBarSegment.h.

◆ getBrokenGlueMaterial()

const std::string& getBrokenGlueMaterial ( ) const

inline

Returns material name which represents broken glue.

Returns: material name

Definition at line 155 of file TOPGeoBarSegment.h.

◆ getFullLength()

double getFullLength ( ) const

inline

Returns bar segment length including glue.

Returns: full length

Definition at line 119 of file TOPGeoBarSegment.h.

◆ getGlueMaterial()

const std::string& getGlueMaterial ( ) const

inline

Returns glue material name (glue on -z side)

Returns: material name

Definition at line 137 of file TOPGeoBarSegment.h.

◆ getGlueThickness()

virtual double getGlueThickness ( ) const

inlinevirtual

Returns glue thickness (glue on -z side)

Returns: thickness

Reimplemented in TOPGeoPrism.

Definition at line 131 of file TOPGeoBarSegment.h.

◆ getLength()

double getLength ( ) const

inline

Returns bar segment length.

Returns: length

Definition at line 113 of file TOPGeoBarSegment.h.

◆ getMaterial()

const std::string& getMaterial ( void ) const

inline

Returns bar segment material name.

Returns: material name

Definition at line 125 of file TOPGeoBarSegment.h.

◆ getName()

const std::string& getName ( void ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 51 of file TOPGeoBase.h.

51 {return m_name;}

Belle2::TOPGeoBase::m_name

std::string m_name

geometry object name

Definition: TOPGeoBase.h:89

◆ getSerialNumber()

const std::string& getSerialNumber ( ) const

inline

Returns serial number.

Returns: serial number

Definition at line 194 of file TOPGeoBarSegment.h.

◆ getSigmaAlpha()

double getSigmaAlpha ( ) const

inline

Returns geant4 parameter describing surface roughness.

Returns: surface roughness

Definition at line 182 of file TOPGeoBarSegment.h.

◆ getSurface()

const GeoOpticalSurface& getSurface ( ) const

inline

Returns optical surface.

Returns: optical surface

Definition at line 166 of file TOPGeoBarSegment.h.

◆ getSurfaceReflectivity()

double getSurfaceReflectivity ( double energy ) const

inline

Returns surface reflectivity at given photon energy.

Parameters

energy photon energy in [eV]

Returns: reflectivity

Definition at line 173 of file TOPGeoBarSegment.h.

◆ getThickness()

double getThickness ( ) const

inline

Returns bar segment thickness.

Returns: thickness

Definition at line 107 of file TOPGeoBarSegment.h.

◆ getVendor()

const std::string& getVendor ( ) const

inline

Returns vendor's name.

Returns: name

Definition at line 188 of file TOPGeoBarSegment.h.

◆ getWidth()

double getWidth ( ) const

inline

Returns bar segment width.

Returns: width

Definition at line 101 of file TOPGeoBarSegment.h.

◆ setGlue()

virtual void setGlue	(	double	thickness,
		const std::string &	material
	)

inlinevirtual

Sets glue parameters (for glue on -z side)

Parameters

thickness	glue thickness
material	glue material name

Reimplemented in TOPGeoPrism.

Definition at line 55 of file TOPGeoBarSegment.h.

◆ setGlueDelamination()

virtual void setGlueDelamination	(	double	fraction,
		double	angle,
		const std::string &	material
	)

inlinevirtual

Sets glue to be broken (delaminated)

Parameters

fraction	fraction of the delaminated surface
angle	angle of the delaminated surface
material	material name to simulate the delaminated glue

Reimplemented in TOPGeoPrism.

Definition at line 67 of file TOPGeoBarSegment.h.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 45 of file TOPGeoBase.h.

◆ setSurface()

void setSurface	(	const GeoOpticalSurface &	surface,
		double	sigmaAlpha
	)

inline

Sets optical surface.

Parameters

surface	optical surface
sigmaAlpha	geant4 parameter for surface roughness

Definition at line 80 of file TOPGeoBarSegment.h.

◆ setVendorData()

void setVendorData	(	const std::string &	vendor,
		const std::string &	serialNumber
	)

inline

Sets vendor's name and serial number.

Parameters

vendor	vendor's name
serialNumber	serial number

Definition at line 91 of file TOPGeoBarSegment.h.

The documentation for this class was generated from the following files:

top/dbobjects/include/TOPGeoBarSegment.h
top/dbobjects/src/TOPGeoBarSegment.cc
