Neuro Struct Reference
Packages » trg | Modules » trg modules

unpacker for the Neuro More...

Inheritance diagram for Neuro:
Inheritance graph
[legend]

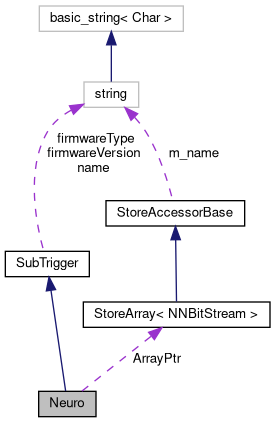

Collaboration diagram for Neuro:
Collaboration graph
[legend]

Public Member Functions

 Neuro (StoreArray< NNBitStream > *arrPtr, const std::string &inName, unsigned inEventWidth, unsigned inOffset, unsigned inHeaderSize, const std::vector< int > &inNodeID, const std::vector< int > &inNodeID_pcie40, int &inDelay, int &inCnttrg, int inDebugLevel)
 Constructor.

void reserve (int subDetectorId, std::array< int, nFinesse > nWords, bool pciedata) override
 Calculate the number of clocks in the data, reserve that much of clocks in the Bitstream(s) More...

void unpack (int subDetectorId, std::array< int *, nFinesse > data32tab, std::array< int, nFinesse > nWords, bool pciedata) override
 Unpack the Belle2Link data and fill the Bitstream. More...

virtual int getHeaders (int subDetectorId, std::array< int *, 48 > data32tab, std::array< int, 48 > nWords, bool pciedata)
 Get the Belle2Link header information. More...


Public Attributes

StoreArray< NNBitStream > * ArrayPtr
 Array pointer for NN.

unsigned iTracker
 Tracker board ID.

unsigned offsetBitWidth
 Offset bit width.

std::string name
 Name of the UT3.

unsigned eventWidth
 Size of an event in the Belle2Link data in 32-bit words.

unsigned offset
 The starting point of the data in an event.

int headerSize
 Size of the B2L header in words.

int iNode
 COPPER id of the board.

int iFinesse
 FINESSE (HSLB) id) of the board.

int iNode_pcie40
 PCIe40 id of the board.

int iFinesse_pcie40
 PCIe40 ch id of the board.

std::string firmwareType
 type of the FPGA firmware

std::string firmwareVersion
 version of the FPGA firmware

int & delay
 Reference to the variable of its Belle2Link delay.

int & cnttrg
 counter of trgger signal, total 32 bits, the 20 LSBs recorded in the event header

int debugLevel
 debug level in the steering file


Detailed Description

unpacker for the Neuro

Definition at line 442 of file CDCTriggerUnpackerModule.cc.

Member Function Documentation

◆ getHeaders()

virtual int getHeaders ( int  subDetectorId,
std::array< int *, 48 >  data32tab,
std::array< int, 48 >  nWords,
bool  pciedata
)
inlinevirtualinherited

Get the Belle2Link header information.

Parameters
subDetectorIdCOPPER id of the current data
data32tablist of pointers to the Belle2Link data buffers
nWordsNumber of words of each FINESSE in the COPPER
Returns
1 if there are data other than the header

Definition at line 136 of file CDCTriggerUnpackerModule.h.

◆ reserve()

void reserve ( int  ,
std::array< int, nFinesse >  ,
bool
)
inlineoverridevirtual

Calculate the number of clocks in the data, reserve that much of clocks in the Bitstream(s)

Parameters
subDetectorIdCOPPER id of the current data
nWordsNumber of words of each FINESSE in the COPPER

Reimplemented from SubTrigger.

Definition at line 462 of file CDCTriggerUnpackerModule.cc.

◆ unpack()

void unpack ( int  ,
std::array< int *, nFinesse >  ,
std::array< int, nFinesse >  ,
bool
)
inlineoverridevirtual

Unpack the Belle2Link data and fill the Bitstream.

Parameters
subDetectorIdCOPPER id of the current data
data32tablist of pointers to the Belle2Link data buffers
nWordsNumber of words of each FINESSE in the COPPER

Reimplemented from SubTrigger.

Definition at line 492 of file CDCTriggerUnpackerModule.cc.
