A calibration algorithm for CDC dE/dx electron: 1D enta cleanup correction. More...

#include <CDCDedx1DCellAlgorithm.h>

Inheritance diagram for CDCDedx1DCellAlgorithm:

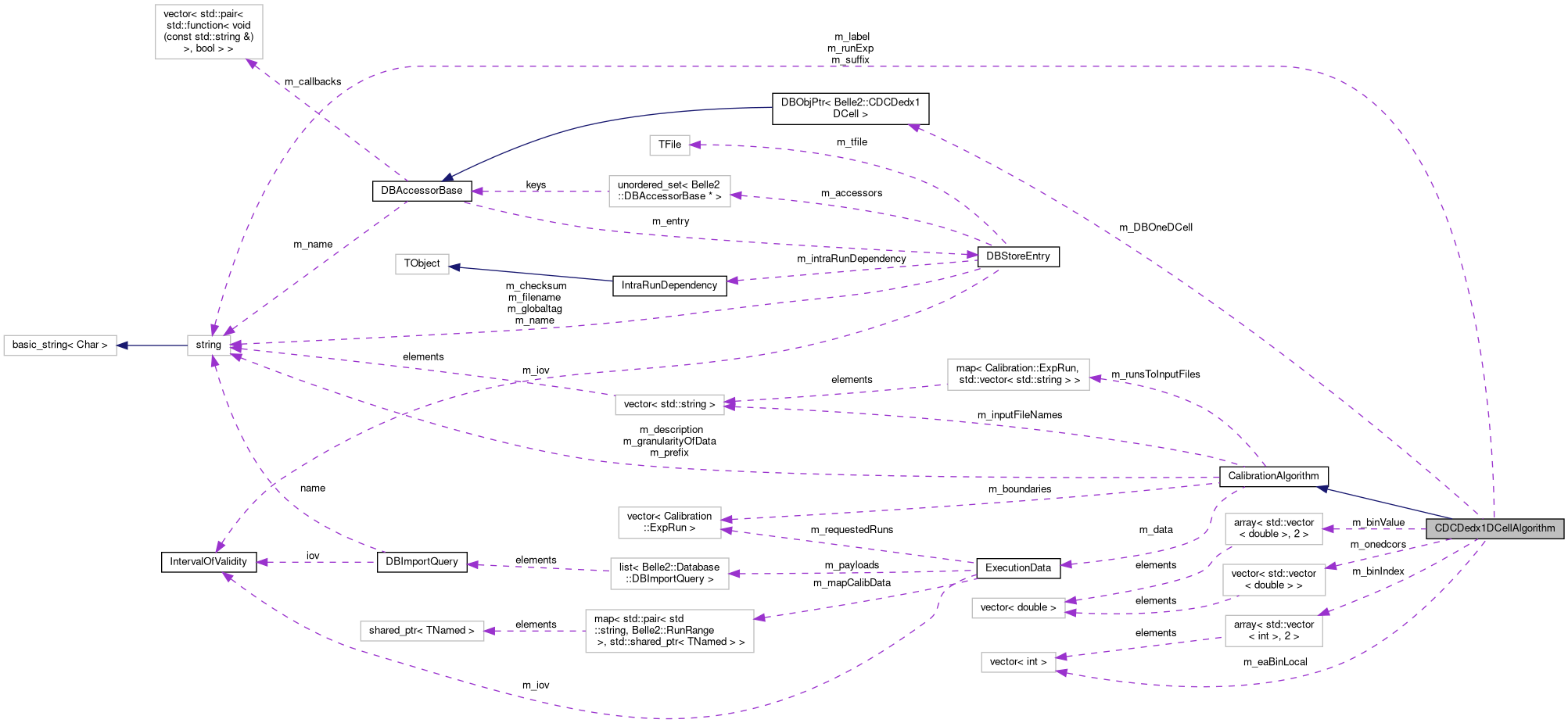

Collaboration diagram for CDCDedx1DCellAlgorithm:

[legend]

Public Types
enum	EResult { c_OK , c_Iterate , c_NotEnoughData , c_Failure , c_Undefined }
	The result of calibration. More...

Public Member Functions
	CDCDedx1DCellAlgorithm ()
	Constructor: Sets the description, the properties and the parameters of the algorithm.

virtual	~CDCDedx1DCellAlgorithm ()
	Destructor.

void	setSuffix (const std::string &value)
	adding suffix to control plots

void	setVariableBins (bool value)
	Set Var bins flag to on or off.

void	setLayerTrunc (bool value=false)
	funtion to set truncation method (local vs global)

void	setMergePayload (bool value)
	set false if generating absoulte (not relative) payload

void	setSplitFactor (int value)
	set bin split factor for all range

void	setRotSymmetry (bool value)
	set rotation sys to copy constants from one region to other

void	setTrucationBins (double lowedge, double upedge)
	function to set bins of trunction from histogram

void	enableExtraPlots (bool value=false)
	funtion to set flag active for plotting

void	setPtLimit (double value)
	funtion to set pt limit

void	setCosLimit (double value)
	funtion to set cos #theta limit

void	setBaselineFactor (double charge, double factor)
	adjust baseline based on charge or global overall works for only single charge or both

int	rotationalBin (int nbin, int ibin)
	class funtion to set rotation symmetry

void	getExpRunInfo ()
	function to get extract calibration run/exp

void	CreateBinMapping ()
	class function to create vectors for bin mappping (Var->symm)

void	defineHisto (std::vector< TH1D * > hdedxhit[2], TH1D hdedxlay[2], TH1D hentalay[2])
	function to define histograms

void	getTruncatedBins (TH1D *hist, int &binlow, int &binhigh)
	function to get bins of trunction from histogram

double	getTruncationMean (TH1D *hist, int binlow, int binhigh)
	function to get truncated mean

void	createPayload ()
	funtion to generate final constants

void	plotMergeFactor (std::map< int, std::vector< double >> bounds, const std::array< int, 2 > nDev, std::map< int, std::vector< int >> steps)
	funtion to plot merging factor

void	plotdedxHist (std::vector< TH1D * > hdedxhit[2])
	function to draw the dE/dx histrogram in enta bins

void	plotLayerDist (TH1D *hdedxL[2])
	funtion to draw dedx dist. More...

void	plotQaPars (TH1D hentalay[2], TH2D hptcosth)
	funtion to draw pt vs costh and entrance angle distribution for Inner/Outer layer

void	plotRelConst (std::vector< double >tempconst, std::vector< double >layerconst, int il)
	function to draw symm/Var layer constant

void	plotConstants ()
	function to draw the old/new final constants

void	plotEventStats ()
	function to draw the stats plots

std::string	getPrefix () const
	Get the prefix used for getting calibration data.

bool	checkPyExpRun (PyObject *pyObj)
	Checks that a PyObject can be successfully converted to an ExpRun type. More...

Calibration::ExpRun	convertPyExpRun (PyObject *pyObj)
	Performs the conversion of PyObject to ExpRun. More...

std::string	getCollectorName () const
	Alias for prefix. More...

void	setPrefix (const std::string &prefix)
	Set the prefix used to identify datastore objects.

void	setInputFileNames (PyObject *inputFileNames)
	Set the input file names used for this algorithm from a Python list. More...

PyObject *	getInputFileNames ()
	Get the input file names used for this algorithm and pass them out as a Python list of unicode strings.

std::vector< Calibration::ExpRun >	getRunListFromAllData () const
	Get the complete list of runs from inspection of collected data.

RunRange	getRunRangeFromAllData () const
	Get the complete RunRange from inspection of collected data.

IntervalOfValidity	getIovFromAllData () const
	Get the complete IoV from inspection of collected data.

void	fillRunToInputFilesMap ()
	Fill the mapping of ExpRun -> Files.

std::string	getGranularity () const
	Get the granularity of collected data.

EResult	execute (std::vector< Calibration::ExpRun > runs={}, int iteration=0, IntervalOfValidity iov=IntervalOfValidity())
	Runs calibration over vector of runs for a given iteration. More...

EResult	execute (PyObject *runs, int iteration=0, IntervalOfValidity iov=IntervalOfValidity())
	Runs calibration over Python list of runs. Converts to C++ and then calls the other execute() function.

std::list< Database::DBImportQuery > &	getPayloads ()
	Get constants (in TObjects) for database update from last execution.

std::list< Database::DBImportQuery >	getPayloadValues ()
	Get constants (in TObjects) for database update from last execution but passed by VALUE.

bool	commit ()
	Submit constants from last calibration into database.

bool	commit (std::list< Database::DBImportQuery > payloads)
	Submit constants from a (potentially previous) set of payloads.

const std::string &	getDescription () const
	Get the description of the algoithm (set by developers in constructor)

bool	loadInputJson (const std::string &jsonString)
	Load the m_inputJson variable from a string (useful from Python interface). The rturn bool indicates success or failure.

const std::string	dumpOutputJson () const
	Dump the JSON string of the output JSON object.

const std::vector< Calibration::ExpRun >	findPayloadBoundaries (std::vector< Calibration::ExpRun > runs, int iteration=0)
	Used to discover the ExpRun boundaries that you want the Python CAF to execute on. This is optional and only used in some.

template<>
std::shared_ptr< TTree >	getObjectPtr (const std::string &name, const std::vector< Calibration::ExpRun > &requestedRuns)
	Specialization of getObjectPtr<TTree>.

Protected Member Functions
virtual EResult	calibrate () override
	1D cell algorithm

void	setInputFileNames (std::vector< std::string > inputFileNames)
	Set the input file names used for this algorithm. More...

virtual bool	isBoundaryRequired (const Calibration::ExpRun &)
	Given the current collector data, make a decision about whether or not this run should be the start of a payload boundary.

virtual void	boundaryFindingSetup (std::vector< Calibration::ExpRun >, int)
	If you need to make some changes to your algorithm class before 'findPayloadBoundaries' is run, make them in this function.

virtual void	boundaryFindingTearDown ()
	Put your algorithm back into a state ready for normal execution if you need to.

const std::vector< Calibration::ExpRun > &	getRunList () const
	Get the list of runs for which calibration is called.

int	getIteration () const
	Get current iteration.

std::vector< std::string >	getVecInputFileNames () const
	Get the input file names used for this algorithm as a STL vector.

template<class T >
std::shared_ptr< T >	getObjectPtr (const std::string &name, const std::vector< Calibration::ExpRun > &requestedRuns)
	Get calibration data object by name and list of runs, the Merge function will be called to generate the overall object.

template<class T >
std::shared_ptr< T >	getObjectPtr (std::string name)
	Get calibration data object (for all runs the calibration is requested for) This function will only work during or after execute() has been called once.

template<>
shared_ptr< TTree >	getObjectPtr (const string &name, const vector< ExpRun > &requestedRuns)
	We cheekily cast the TChain to TTree for the returned pointer so that the user never knows Hopefully this doesn't cause issues if people do low level stuff to the tree...

std::string	getGranularityFromData () const
	Get the granularity of collected data.

void	saveCalibration (TClonesArray *data, const std::string &name)
	Store DBArray payload with given name with default IOV.

void	saveCalibration (TClonesArray *data, const std::string &name, const IntervalOfValidity &iov)
	Store DBArray with given name and custom IOV.

void	saveCalibration (TObject *data)
	Store DB payload with default name and default IOV.

void	saveCalibration (TObject *data, const IntervalOfValidity &iov)
	Store DB payload with default name and custom IOV.

void	saveCalibration (TObject *data, const std::string &name)
	Store DB payload with given name with default IOV.

void	saveCalibration (TObject *data, const std::string &name, const IntervalOfValidity &iov)
	Store DB payload with given name and custom IOV.

void	updateDBObjPtrs (const unsigned int event, const int run, const int experiment)
	Updates any DBObjPtrs by calling update(event) for DBStore.

void	setDescription (const std::string &description)
	Set algorithm description (in constructor)

void	clearCalibrationData ()
	Clear calibration data.

Calibration::ExpRun	getAllGranularityExpRun () const
	Returns the Exp,Run pair that means 'Everything'. Currently unused.

void	resetInputJson ()
	Clears the m_inputJson member variable.

void	resetOutputJson ()
	Clears the m_outputJson member variable.

template<class T >
void	setOutputJsonValue (const std::string &key, const T &value)
	Set a key:value pair for the outputJson object, expected to used interally during calibrate()

template<class T >
const T	getOutputJsonValue (const std::string &key) const
	Get a value using a key from the JSON output object, not sure why you would want to do this.

template<class T >
const T	getInputJsonValue (const std::string &key) const
	Get an input JSON value using a key. The normal exceptions are raised when the key doesn't exist.

const nlohmann::json &	getInputJsonObject () const
	Get the entire top level JSON object. We explicitly say this must be of object type so that we might pick.

bool	inputJsonKeyExists (const std::string &key) const
	Test for a key in the input JSON object.

Protected Attributes
std::vector< Calibration::ExpRun >	m_boundaries
	When using the boundaries functionality from isBoundaryRequired, this is used to store the boundaries. It is cleared when.

Private Member Functions
std::string	getExpRunString (Calibration::ExpRun &expRun) const
	Gets the "exp.run" string repr. of (exp,run)

std::string	getFullObjectPath (const std::string &name, Calibration::ExpRun expRun) const
	constructs the full TDirectory + Key name of an object in a TFile based on its name and exprun

Private Attributes
double	m_eaMin
	lower edge of enta angle

double	m_eaMax
	upper edge of enta angle

double	m_eaBW
	binwdith of enta angle bin

int	m_eaBin

double	m_dedxMin
	lower edge of dedxhit

double	m_dedxMax
	upper edge of dedxhit

int	m_dedxBin

double	m_ptMax
	a limit on transverse momentum

double	m_cosMax
	a limit on cos theta

double	m_truncMin
	lower thershold on truncation

double	m_truncMax
	uppr thershold on truncation

int	m_binSplit
	multiply nbins by this factor in full range

int	m_binMerge
	merge bins by this factor in (-pi/2 <-> -pi/4) and (pi/4 <-> pi/2) region

double	m_chargeType
	charge type for baseline adj

double	m_adjustFac
	faactor with that one what to adjust baseline

bool	isFixTrunc
	true = fix window for all out/inner layers

bool	isVarBins
	true: if variable bin size is requested

bool	isRotSymm
	if rotation symmtery requested

bool	isMakePlots
	produce plots for status

bool	isPrintLog
	print more debug information

bool	isMerge
	print more debug information

std::string	m_suffix
	add suffix to all plot name

std::string	m_runExp
	add suffix to all plot name

std::string	m_label [2] = {"IL", "OL"}
	add inner/outer layer label

std::vector< int >	m_eaBinLocal

std::array< std::vector< int >, 2 >	m_binIndex
	symm/Var bin numebrs

std::array< std::vector< double >, 2 >	m_binValue
	etna Var bin values

std::vector< std::vector< double > >	m_onedcors
	final vectors of calibration

DBObjPtr< CDCDedx1DCell >	m_DBOneDCell
	One cell correction DB object.

std::vector< std::string >	m_inputFileNames
	List of input files to the Algorithm, will initially be user defined but then gets the wildcards expanded during execute()

std::map< Calibration::ExpRun, std::vector< std::string > >	m_runsToInputFiles
	Map of Runs to input files. Gets filled when you call getRunRangeFromAllData, gets cleared when setting input files again.

std::string	m_granularityOfData
	Granularity of input data. This only changes when the input files change so it isn't specific to an execution.

ExecutionData	m_data
	Data specific to a SINGLE execution of the algorithm. Gets reset at the beginning of execution.

std::string	m_description {""}
	Description of the algorithm.

std::string	m_prefix {""}
	The name of the TDirectory the collector objects are contained within.

nlohmann::json	m_jsonExecutionInput = nlohmann::json::object()
	Optional input JSON object used to make decisions about how to execute the algorithm code.

nlohmann::json	m_jsonExecutionOutput = nlohmann::json::object()
	Optional output JSON object that can be set during the execution by the underlying algorithm code.

Static Private Attributes
static const Calibration::ExpRun	m_allExpRun = make_pair(-1, -1)
	allExpRun

Detailed Description

A calibration algorithm for CDC dE/dx electron: 1D enta cleanup correction.

Definition at line 39 of file CDCDedx1DCellAlgorithm.h.

Member Enumeration Documentation

◆ EResult

enum EResult

inherited

The result of calibration.

Enumerator
c_OK	Finished successfuly =0 in Python.
c_Iterate	Needs iteration =1 in Python.
c_NotEnoughData	Needs more data =2 in Python.
c_Failure	Failed =3 in Python.
c_Undefined	Not yet known (before execution) =4 in Python.

Definition at line 40 of file CalibrationAlgorithm.h.

Member Function Documentation

◆ checkPyExpRun()

bool checkPyExpRun ( PyObject * pyObj )

inherited

Checks that a PyObject can be successfully converted to an ExpRun type.

Checks if the PyObject can be converted to ExpRun.

Definition at line 28 of file CalibrationAlgorithm.cc.

◆ convertPyExpRun()

ExpRun convertPyExpRun ( PyObject * pyObj )

inherited

Performs the conversion of PyObject to ExpRun.

Converts the PyObject to an ExpRun. We've preoviously checked the object so this assumes a lot about the PyObject.

Definition at line 70 of file CalibrationAlgorithm.cc.

◆ execute()

CalibrationAlgorithm::EResult execute	(	std::vector< Calibration::ExpRun >	runs = `{}`,
		int	iteration = `0`,
		IntervalOfValidity	iov = `IntervalOfValidity()`
	)

inherited

Runs calibration over vector of runs for a given iteration.

You can also specify the IoV to save the database payload as. By default the Algorithm will create an IoV from your requested ExpRuns, or from the overall ExpRuns of the input data if you haven't specified ExpRuns in this function.

No checks are performed to make sure that a IoV you specify matches the data you ran over, it simply labels the IoV to commit to the database later.

Definition at line 114 of file CalibrationAlgorithm.cc.

◆ getCollectorName()

std::string getCollectorName ( ) const

inlineinherited

Alias for prefix.

For convenience and less writing, we say developers to set this to default collector module name in constructor of base class. One can however use the dublets of collector+algorithm multiple times with different settings. To bind these together correctly, the prefix has to be set the same for algo and collector. So we call the setter setPrefix rather than setModuleName or whatever. This getter will work out of the box for default cases -> return the name of module you have to add to your path to collect data for this algorihtm.

Definition at line 164 of file CalibrationAlgorithm.h.

◆ plotLayerDist()

void plotLayerDist ( TH1D * hdedxL[2] )

funtion to draw dedx dist.

for Inner/outer layer

Definition at line 470 of file CDCDedx1DCellAlgorithm.cc.

 {

   TCanvas cdedxlayer("layerdedxhit", "Inner and Outer Layer dedxhit dist", 900, 400);
   cdedxlayer.Divide(2, 1);

   for (int il = 0; il < 2; il++) {
     int minlay = 0, maxlay = 0;
     if (isFixTrunc) {
       minlay = std::stoi(hdedxlay[il]->GetXaxis()->GetTitle());
       maxlay = std::stoi(hdedxlay[il]->GetYaxis()->GetTitle());
       double lowedge = hdedxlay[il]->GetXaxis()->GetBinLowEdge(minlay);
       double upedge = hdedxlay[il]->GetXaxis()->GetBinUpEdge(maxlay);
       hdedxlay[il]->SetTitle(Form("%s, trunc #rightarrow: %0.02f - %0.02f;dedxhit;entries", hdedxlay[il]->GetTitle(), lowedge, upedge));
     }

     cdedxlayer.cd(il + 1);
     hdedxlay[il]->SetFillColor(kYellow);
     hdedxlay[il]->Draw("histo");

     if (isFixTrunc) {
       TH1D* hdedxlayC = (TH1D*)hdedxlay[il]->Clone(Form("hdedxlayC%d", il));
       hdedxlayC->GetXaxis()->SetRange(minlay, maxlay);
       hdedxlayC->SetFillColor(kAzure + 1);
       hdedxlayC->Draw("same histo");
     }
   }

   cdedxlayer.SaveAs(Form("cdcdedx_1dcell_dedxlay%s.pdf", m_suffix.data()));
   cdedxlayer.SaveAs(Form("cdcdedx_1dcell_dedxlay%s.root", m_suffix.data()));
 }

◆ setInputFileNames() [1/2]

void setInputFileNames ( PyObject * inputFileNames )

inherited

Set the input file names used for this algorithm from a Python list.

Set the input file names used for this algorithm and resolve the wildcards.

Definition at line 166 of file CalibrationAlgorithm.cc.

◆ setInputFileNames() [2/2]

void setInputFileNames ( std::vector< std::string > inputFileNames )

protectedinherited

Set the input file names used for this algorithm.

Set the input file names used for this algorithm and resolve the wildcards.

Definition at line 194 of file CalibrationAlgorithm.cc.

Member Data Documentation

◆ m_dedxBin

int m_dedxBin

private

of bins for dedxhit range

Definition at line 216 of file CDCDedx1DCellAlgorithm.h.

◆ m_eaBin

int m_eaBin

private

of bins for etna angle

Definition at line 212 of file CDCDedx1DCellAlgorithm.h.

◆ m_eaBinLocal

std::vector<int> m_eaBinLocal

private

of var bins for etna angle

Definition at line 241 of file CDCDedx1DCellAlgorithm.h.

The documentation for this class was generated from the following files:

reconstruction/calibration/include/CDCDedx1DCellAlgorithm.h
reconstruction/calibration/src/CDCDedx1DCellAlgorithm.cc

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ EResult

Member Function Documentation

◆ checkPyExpRun()

◆ convertPyExpRun()

◆ execute()

◆ getCollectorName()

◆ plotLayerDist()

◆ setInputFileNames() [1/2]

◆ setInputFileNames() [2/2]

Member Data Documentation

◆ m_dedxBin

of bins for dedxhit range

◆ m_eaBin

of bins for etna angle

◆ m_eaBinLocal

of var bins for etna angle
