RelationsInterface< BASE > Class Template Reference

Defines interface for accessing relations of objects in StoreArray. More...

#include <RelationsObject.h>

Inherits BASE.

Inherited by FBDTClassifier< 9 >, PXD2TrackBase< Belle2::PXD::Track_t >, ARICHAeroHit, ARICHHit, ARICHInfo, ARICHLikelihood, ARICHPhoton, ARICHTrack, AWESOMESimHit, BKLMHit1d, BKLMTrack, BelleTrkExtra, BremHit, Btube, CDCDedxHit, CDCDedxLikelihood, CDCDedxTrack, CDCRawHit, CDCRawHitWaveForm, CDCTrigger3DFinderInfo, CDCTriggerFinderClone, CDCTriggerHoughCluster, CDCTriggerSegmentHit, Cluster, ContinuumSuppression, CsiDigiHit, DigitBase, DirectedNodeNetworkContainer, ECLCNNPid, ECLCalDigit, ECLCluster, ECLConnectedRegion, ECLDebugHit, ECLDigit, ECLDsp, ECLEnergyCloseToTrack, ECLHitAssignment, ECLLocalMaximum, ECLPidLikelihood, ECLPureCsIInfo, ECLShower, ECLTrig, ECLTriggerCell, EKLMAlignmentHit, EventKinematics, EventShapeContainer, ExtHit, FBDTClassifier< Ndims >, FlavorTaggerInfo, FlavorTaggerInfoMap, Helix, KLMCluster, KLMClusterShape, KLMDigitEventInfo, KLMDigitRaw, KLMHit2d, KLMMuidHit, KLMMuidLikelihood, KLMMuonIDDNNInputVariable, KLMScintillatorFirmwareFitResult, KLMTrgFittedTrack, KLMTrgSummary, KLMTriggerHit, KLMTriggerTrack, Kink, KlId, MCParticle, MCParticleTrajectory, OverlapNetwork, PIDLikelihood, PXD2TrackBase< T >, PXDCluster, PXDEnergyDepositionEvent, PXDNeutronFluxEvent, PXDOccupancyEvent, PXDRawAdc, PXDRawHit, PXDRawROIs, Particle, ROIid, RecoHitInformation, RecoTrack, RestOfEvent, SVDCluster, SVDDAQDiagnostic, SVDEnergyDepositionEvent, SVDNeutronFluxEvent, SVDOccupancyEvent, SVDRecoDigit, SVDRecoTimeBase, SVDTransparentDigit, Sector, SectorFriendship, SimClockState, SimHitBase, SoftwareTriggerResult, SpacePoint, SpacePointTrackCand, StringWrapper, TOPAsicMask, TOPAssociatedPDF, TOPBarHit, TOPInterimFEInfo, TOPLikelihood, TOPLikelihoodScanResult, TOPPDFCollection, TOPPixelLikelihood, TOPProductionEventDebug, TOPProductionHitDebug, TOPPull, TOPRawDigit, TOPRawWaveform, TOPRecBunch, TOPSimCalPulse, TOPSimPhoton, TOPSlowData, TOPTemplateFitResult, TOPTimeZero, TOPTriggerDigit, TRGECLCluster, TRGGRLInnerTrack, TRGGRLMATCH, TRGGRLMATCHKLM, TRGGRLPHOTON, TRGGRLShortTrack, TRGSummary, TRGTOPCombinedT0Decision, TRGTOPSlotTiming, TRGTOPTimeStamp, TRGTOPTimeStampsSlot, TRGTOPTimingISim, TRGTOPTimingISimSlot, TRGTOPUnpackerStore, TRGTOPWaveFormTimeStamp, TRGTOPWaveFormTimeStampsSlot, TRGTiming, TagVertex, TauPairDecay, Track, TrackClusterSeparation, StoreWrapper< T >, TrackFitResult, V0, VXDDedxLikelihood, VXDDedxTrack, VXDIntercept, and VXDTrueHit.

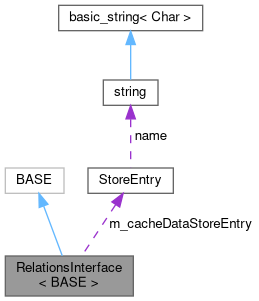

Collaboration diagram for RelationsInterface< BASE >:

Public Member Functions
	RelationsInterface ()
	template class cannot be removed without breaking ROOT I/O, so just disable it.
template<class ... Args>
	RelationsInterface (Args &&... params)
	Constructor, forwards all arguments to BASE constructor.
	RelationsInterface (const RelationsInterface &relationsInterface)
	Copy constructor.
RelationsInterface &	operator= (const RelationsInterface &relationsInterface)
	Assignment operator.
void	addRelationTo (const RelationsInterface< BASE > *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (with caching).
void	addRelationTo (const TObject *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (no caching, can be quite slow).
void	copyRelations (const RelationsInterface< BASE > *sourceObj)
	Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights).
template<class TO >
RelationVector< TO >	getRelationsTo (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from this object to another store array.
template<class FROM >
RelationVector< FROM >	getRelationsFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from another store array to this object.
template<class T >
RelationVector< T >	getRelationsWith (const std::string &name="", const std::string &namedRelation="") const
	Get the relations between this object and another store array.
template<class TO >
TO *	getRelatedTo (const std::string &name="", const std::string &namedRelation="") const
	Get the object to which this object has a relation.
template<class FROM >
FROM *	getRelatedFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the object from which this object has a relation.
template<class T >
T *	getRelated (const std::string &name="", const std::string &namedRelation="") const
	Get the object to or from which this object has a relation.
template<class TO >
std::pair< TO *, float >	getRelatedToWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing to an array.
template<class FROM >
std::pair< FROM *, float >	getRelatedFromWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from an array.
template<class T >
std::pair< T *, float >	getRelatedWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from/to an array.
virtual std::string	getName () const
	Return a short name that describes this object, e.g.
virtual std::string	getInfoHTML () const
	Return a short summary of this object's contents in HTML format.
std::string	getInfo () const
	Return a short summary of this object's contents in raw text format.
std::string	getArrayName () const
	Get name of array this object is stored in, or "" if not found.
int	getArrayIndex () const
	Returns this object's array index (in StoreArray), or -1 if not found.

Protected Member Functions
TClonesArray *	getArrayPointer () const
	Returns the pointer to the raw DataStore array holding this object (protected since these arrays are easy to misuse).

Private Member Functions
	ClassDef (RelationsInterface, 0)
	defines interface for accessing relations of objects in StoreArray.

Private Attributes
DataStore::StoreEntry *	m_cacheDataStoreEntry
	Cache of the data store entry to which this object belongs.
int	m_cacheArrayIndex
	Cache of the index in the TClonesArray to which this object belongs.

Friends
class	DataStore

Detailed Description

template<class BASE>
class Belle2::RelationsInterface< BASE >

Defines interface for accessing relations of objects in StoreArray.

Note

Please use the RelationsObject typedef instead of this class.

Your class then provides methods like addRelationTo or getRelationsTo for an easy handling of relations to and from objects of this class. Retrieving relations this way is handled using auto-generated indices, and so should not introduce a large overhead.

Retrieving relations

Note

Remember to use references or pointers when iterating over a StoreArray. Accessing relations through a copied object will not work.

You can either retrieve a vector of relations using getRelations...(),

//retrieve all CDCSimHits for given particle
const MCParticle* particle = particles[i];

//range-based for loop over RelationVector<CDCSimHit>
for (const CDCSimHit& simhit : particle->getRelationsTo<CDCSimHit>()) {
  //...
}

or, for 1:1 relations, the first related object (or NULL) using getRelated...():

//retrieve MCParticle (should be only one) for given simhit
const CDCSimHit* simhit = cdcsimhits[i];
const MCParticle* mcpart = simhit->getRelatedFrom<MCParticle>()
if (!mcpart) {
  //nothing found, do some error handling here
}

Weigths are available when looping over the RelationVector returned by getRelations(), as in this example:

//retrieve all CDCSimHits for given particle
const MCParticle* particle = particles[i];
RelationVector<CDCSimHit> cdcRelations = particle->getRelationsTo<CDCSimHit>();
for (unsigned int iHit = 0; iHit < cdcRelations.size(); iHit++) {
  const CDCSimHit *simhit = cdcRelations[iHit];
  float weight = cdcRelations.weight(iHit);
  //...
}

or for at most one relation, using getRelatedWithWeight(), getRelatedFromWithWeight(), and getRelatedToWithWeight().

Adding relations

Creating new relations is also fairly straightforward:

//given an MCParticle* particle:
particle->addRelationTo(someOtherObject)

Note that you'll have to register the relation in your module's initialize() function:

StoreArray<MCParticle> mcparticles;
StoreArray<SomethingOtherClass> otherArray;
mcparticles.registerRelationTo(otherArray);

Definition at line 100 of file RelationsObject.h.

Constructor & Destructor Documentation

RelationsInterface() [1/3]

RelationsInterface ( )

inline

template class cannot be removed without breaking ROOT I/O, so just disable it.

Default constructor.

Definition at line 107 of file RelationsObject.h.

: m_cacheDataStoreEntry(nullptr), m_cacheArrayIndex(-1) {}

RelationsInterface() [2/3]

RelationsInterface ( Args &&...  params )

inlineexplicit

Constructor, forwards all arguments to BASE constructor.

Definition at line 110 of file RelationsObject.h.

                                                                          :
      BASE(std::forward<Args>(params)...),
      m_cacheDataStoreEntry(nullptr), m_cacheArrayIndex(-1) { }

RelationsInterface() [3/3]

RelationsInterface ( const RelationsInterface< BASE > &  relationsInterface )

inline

Copy constructor.

Cached values are cleared.

Parameters

relationsInterface

The object that should be copied.

Definition at line 119 of file RelationsObject.h.

                                                                    :
      BASE(relationsInterface),
      m_cacheDataStoreEntry(nullptr), m_cacheArrayIndex(-1) { }

Member Function Documentation

addRelationTo() [1/2]

void addRelationTo ( const RelationsInterface< BASE > *  object, float  weight = 1.0, const std::string &  namedRelation = ""  ) const

inline

Add a relation from this object to another object (with caching).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 142 of file RelationsObject.h.

    {
      if (object)
        DataStore::Instance().addRelation(this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                                          object, object->m_cacheDataStoreEntry, object->m_cacheArrayIndex, weight, namedRelation);
    }

addRelationTo() [2/2]

void addRelationTo ( const TObject *  object, float  weight = 1.0, const std::string &  namedRelation = ""  ) const

inline

Add a relation from this object to another object (no caching, can be quite slow).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 155 of file RelationsObject.h.

    {
      StoreEntry* toEntry = nullptr;
      int toIndex = -1;
      DataStore::Instance().addRelation(this, m_cacheDataStoreEntry, m_cacheArrayIndex, object, toEntry, toIndex, weight, namedRelation);
    }

copyRelations()

void copyRelations ( const RelationsInterface< BASE > *  sourceObj )

inline

Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights).

Useful if you want to make a complete copy of a StoreArray object to make modifications to it, but retain all information on linked objects.

Note: this only works if sourceObj inherits from the same base (e.g. RelationsObject), and only for related objects that also inherit from the same base.

Definition at line 170 of file RelationsObject.h.

    {
      if (!sourceObj)
        return;
      auto fromRels = sourceObj->getRelationsFrom<RelationsInterface<BASE>>("ALL");
      for (unsigned int iRel = 0; iRel < fromRels.size(); iRel++) {
        fromRels.object(iRel)->addRelationTo(this, fromRels.weight(iRel));
      }

      auto toRels = sourceObj->getRelationsTo<RelationsInterface<BASE>>("ALL");
      for (unsigned int iRel = 0; iRel < toRels.size(); iRel++) {
        this->addRelationTo(toRels.object(iRel), toRels.weight(iRel));
      }
    }

getArrayIndex()

int getArrayIndex ( ) const

inline

Returns this object's array index (in StoreArray), or -1 if not found.

Definition at line 385 of file RelationsObject.h.

    {
      DataStore::Instance().findStoreEntry(this, m_cacheDataStoreEntry, m_cacheArrayIndex);
      return m_cacheArrayIndex;
    }

getArrayName()

std::string getArrayName ( ) const

inline

Get name of array this object is stored in, or "" if not found.

Definition at line 377 of file RelationsObject.h.

    {
      DataStore::Instance().findStoreEntry(this, m_cacheDataStoreEntry, m_cacheArrayIndex);
      return m_cacheDataStoreEntry ? m_cacheDataStoreEntry->name : "";
    }

getArrayPointer()

TClonesArray * getArrayPointer ( ) const

inlineprotected

Returns the pointer to the raw DataStore array holding this object (protected since these arrays are easy to misuse).

Definition at line 418 of file RelationsObject.h.

    {
      DataStore::Instance().findStoreEntry(this, m_cacheDataStoreEntry, m_cacheArrayIndex);
      if (!m_cacheDataStoreEntry)
        return nullptr;
      return m_cacheDataStoreEntry->getPtrAsArray();
    }

getInfo()

std::string getInfo ( ) const

inline

Return a short summary of this object's contents in raw text format.

Returns the contents of getInfoHTML() while translating line-breaks etc.

Note

: You don't need to implement this function (it's not virtual), getInfoHTML() is enough.

Definition at line 370 of file RelationsObject.h.

    {
      return _RelationsInterfaceImpl::htmlToPlainText(getInfoHTML());
    }

getInfoHTML()

virtual std::string getInfoHTML ( ) const

inlinevirtual

Return a short summary of this object's contents in HTML format.

Reimplement this in your own class to provide useful output for display or debugging purposes. For example, you might do something like:

std::stringstream out;
out << "<b>PDG</b>: " << m_pdg << "<br>";
out << "<b>Covariance Matrix</b>: " << HTML::getString(getCovariance5()) << "<br>";
return out.str();

See also

Particle::getInfoHTML() for a more complex example.

HTML for some utility functions.

Use getInfo() to get a raw text version of this output.

Reimplemented in Particle, Cluster, MCParticle, PIDLikelihood, SoftwareTriggerResult, Track, TrackFitResult, TRGSummary, and RecoTrack.

Definition at line 362 of file RelationsObject.h.

{ return ""; }

getName()

virtual std::string getName ( ) const

inlinevirtual

Return a short name that describes this object, e.g.

pi+ for an MCParticle.

Reimplemented in Particle, MCParticle, and SpacePoint.

Definition at line 344 of file RelationsObject.h.

{ return ""; }

getRelated()

T * getRelated ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the object to or from which this object has a relation.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

The first related object or a null pointer.

Definition at line 278 of file RelationsObject.h.

    {
      return static_cast<T*>(DataStore::Instance().getRelationWith(DataStore::c_BothSides, this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                             T::Class(), name, namedRelation).object);
    }

getRelatedFrom()

FROM * getRelatedFrom ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the object from which this object has a relation.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

The first related object or a null pointer.

Definition at line 263 of file RelationsObject.h.

    {
      return static_cast<FROM*>(DataStore::Instance().getRelationWith(DataStore::c_FromSide, this, m_cacheDataStoreEntry,
                                m_cacheArrayIndex, FROM::Class(), name, namedRelation).object);
    }

getRelatedFromWithWeight()

std::pair< FROM *, float > getRelatedFromWithWeight ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get first related object & weight of relation pointing from an array.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 314 of file RelationsObject.h.

    {
      RelationEntry entry = DataStore::Instance().getRelationWith(DataStore::c_FromSide, this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                                                                  FROM::Class(), name, namedRelation);
      return std::make_pair(static_cast<FROM*>(entry.object), entry.weight);
    }

getRelatedTo()

TO * getRelatedTo ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the object to which this object has a relation.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

The first related object or a null pointer.

Definition at line 248 of file RelationsObject.h.

    {
      return static_cast<TO*>(DataStore::Instance().getRelationWith(DataStore::c_ToSide, this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                              TO::Class(), name, namedRelation).object);
    }

getRelatedToWithWeight()

std::pair< TO *, float > getRelatedToWithWeight ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get first related object & weight of relation pointing to an array.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 297 of file RelationsObject.h.

    {
      RelationEntry entry = DataStore::Instance().getRelationWith(DataStore::c_ToSide, this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                                                                  TO::Class(), name, namedRelation);
      return std::make_pair(static_cast<TO*>(entry.object), entry.weight);
    }

getRelatedWithWeight()

std::pair< T *, float > getRelatedWithWeight ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get first related object & weight of relation pointing from/to an array.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 331 of file RelationsObject.h.

    {
      RelationEntry entry = DataStore::Instance().getRelationWith(DataStore::c_BothSides, this, m_cacheDataStoreEntry, m_cacheArrayIndex,
                                                                  T::Class(), name, namedRelation);
      return std::make_pair(static_cast<T*>(entry.object), entry.weight);
    }

getRelationsFrom()

RelationVector< FROM > getRelationsFrom ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the relations that point from another store array to this object.

Template Parameters

FROM	The class of objects from which the relations point.

Parameters

name	The name of the store array from which the relations point. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

A vector of relations.

Definition at line 212 of file RelationsObject.h.

    {
      return RelationVector<FROM>(DataStore::Instance().getRelationsWith(DataStore::c_FromSide, this, m_cacheDataStoreEntry,
                                  m_cacheArrayIndex, FROM::Class(), name, namedRelation));
    }

getRelationsTo()

RelationVector< TO > getRelationsTo ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the relations that point from this object to another store array.

Template Parameters

TO	The class of objects to which the relations point.

Parameters

name	The name of the store array to which the relations point. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

A vector of relations.

Definition at line 197 of file RelationsObject.h.

    {
      return RelationVector<TO>(DataStore::Instance().getRelationsWith(DataStore::c_ToSide, this, m_cacheDataStoreEntry,
                                m_cacheArrayIndex, TO::Class(), name, namedRelation));
    }

getRelationsWith()

RelationVector< T > getRelationsWith ( const std::string &  name = "", const std::string &  namedRelation = ""  ) const

inline

Get the relations between this object and another store array.

Relations in both directions are returned.

Template Parameters

T	The class of objects to or from which the relations point.

Parameters

name	The name of the store array to or from which the relations point. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns

A vector of relations.

Definition at line 230 of file RelationsObject.h.

    {
      return RelationVector<T>(DataStore::Instance().getRelationsWith(DataStore::c_BothSides, this, m_cacheDataStoreEntry,
                               m_cacheArrayIndex, T::Class(), name, namedRelation));
    }

operator=()

RelationsInterface & operator= ( const RelationsInterface< BASE > &  relationsInterface )

inline

Assignment operator.

cached values of 'this' are not touched, since position does not change.

Parameters

relationsInterface

The object that should be assigned.

Definition at line 128 of file RelationsObject.h.

    {
      if (this != &relationsInterface)
        this->BASE::operator=(relationsInterface);
      return *this;
    }

Friends And Related Function Documentation

DataStore

friend class DataStore

friend

Definition at line 434 of file RelationsObject.h.

Member Data Documentation

m_cacheArrayIndex

int m_cacheArrayIndex

mutableprivate

Cache of the index in the TClonesArray to which this object belongs.

Definition at line 432 of file RelationsObject.h.

m_cacheDataStoreEntry

DataStore::StoreEntry* m_cacheDataStoreEntry

mutableprivate

Cache of the data store entry to which this object belongs.

Definition at line 429 of file RelationsObject.h.

---

The documentation for this class was generated from the following file:

• framework/datastore/include/RelationsObject.h
