SVDDQMExpressRecoModule Class Reference

SVD DQM Module for Express Reco. More...

#include <SVDDQMExpressRecoModule.h>

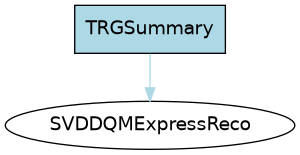

Inheritance diagram for SVDDQMExpressRecoModule:

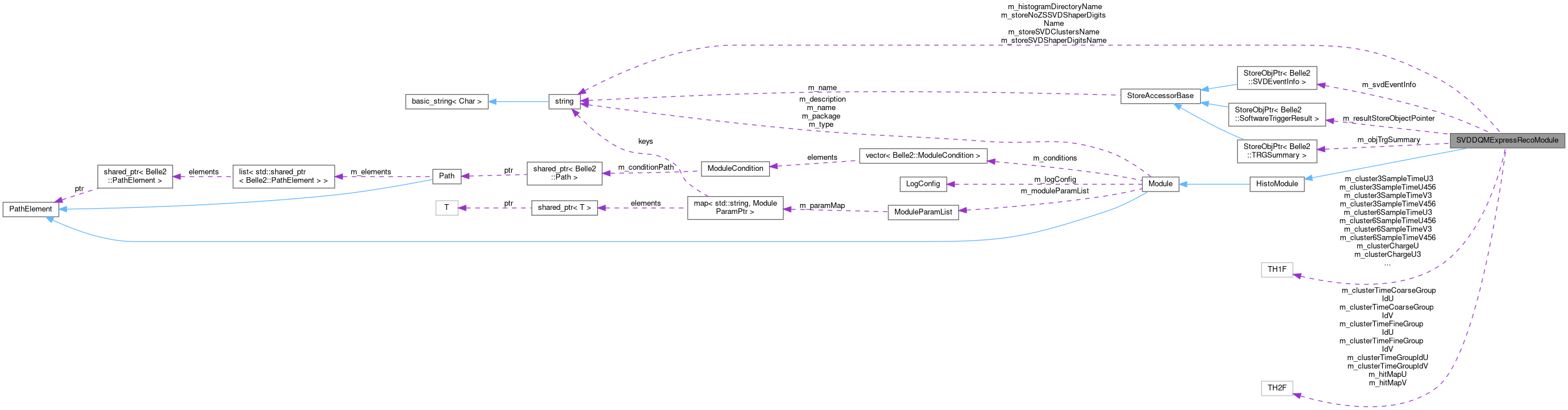

Collaboration diagram for SVDDQMExpressRecoModule:

Public Types
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	SVDDQMExpressRecoModule ()
	Constructor.
	SVDDQMExpressRecoModule (const SVDDQMExpressRecoModule &)=delete
	Copy constructor (disabled)
SVDDQMExpressRecoModule &	operator= (const SVDDQMExpressRecoModule &)=delete
	Operator = (disabled)
void	initialize () override final
	Module function initialize.
void	terminate () override final
	Module function terminate.
void	beginRun () override final
	Module function beginRun.
void	event () override final
	Module function event.
void	defineHisto () override final
	Histogram definitions such as TH1(), TH2(), TNtuple(), TTree()....
virtual void	endRun () override
	Function to process end_run record.
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.
const std::string &	getName () const
	Returns the name of the module.
const std::string &	getType () const
	Returns the type of the module (i.e.
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module.
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module.
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module.
void	setType (const std::string &type)
	Set the module type.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.
void	setReturnValue (int value)
	Sets the return value for this module as integer.
void	setReturnValue (bool value)
	Sets the return value for this module as bool.
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
StoreObjPtr< TRGSummary >	m_objTrgSummary
	Trigger Summary data object.
StoreObjPtr< SVDEventInfo >	m_svdEventInfo
	SVDEventInfo data object.
bool	m_desynchSVDTime = false
	if TRUE: svdTime back in SVD time reference
StoreObjPtr< SoftwareTriggerResult >	m_resultStoreObjectPointer
	Store Object for reading the trigger decision.
bool	m_skipRejectedEvents = true
	if true skip events rejected by HLT (default)
bool	m_additionalPlots = false
	additional plots flag
bool	m_3Samples = false
	if true enable 3 samples histograms analysis
TList *	m_histoList = nullptr
	list of cumulative histograms
int	m_expNumber = 0
	experiment number
int	m_runNumber = 0
	run number
int	m_ShowAllHistos = 0
	Flag to show all histos in DQM, default = 0 (do not show)
float	m_CutSVDCharge = 0.0
	cut for accepting strips to hitmap histogram default = 0 ADU
float	m_CutSVDClusterCharge = 0.0
	cut for accepting clusters to hitmap histogram, default = 0 ke-
std::string	m_histogramDirectoryName
	Name of the histogram directory in ROOT file.
std::string	m_storeNoZSSVDShaperDigitsName
	not zero-suppressed SVDShaperDigits StoreArray name
std::string	m_storeSVDShaperDigitsName
	SVDShaperDigits StoreArray name.
std::string	m_storeSVDClustersName
	SVDClusters StoreArray name.
TH1F *	m_nEvents = nullptr
	number of events
TH1F *	m_hitMapCountsU = nullptr
	Hitmaps u of Digits.
TH1F *	m_hitMapCountsV = nullptr
	Hitmaps v of Digits.
TH1F *	m_hitMapClCountsU = nullptr
	Hitmaps u of Clusters.
TH1F *	m_hitMapClCountsV = nullptr
	Hitmaps v of Clusters.
TH1F *	m_hitMapCountsChip = nullptr
	Hitmaps of digits on chips.
TH1F *	m_hitMapClCountsChip = nullptr
	Hitmaps of clusters on chips.
TH1F **	m_firedU = nullptr
	Fired u strips per event.
TH1F **	m_firedV = nullptr
	Fired v strips per event.
TH1F **	m_clustersU = nullptr
	number of u clusters per event
TH1F **	m_clustersV = nullptr
	number of v clusters per event
TH1F **	m_clusterChargeU = nullptr
	u charge of clusters
TH1F **	m_clusterChargeV = nullptr
	v charge of clusters
TH1F *	m_clusterChargeUAll = nullptr
	u charge of clusters for all sensors
TH1F *	m_clusterChargeVAll = nullptr
	v charge of clusters for all sensors
TH1F *	m_clusterChargeU3 = nullptr
	u charge of clusters for layer 3 sensors
TH1F *	m_clusterChargeV3 = nullptr
	v charge of clusters for layer 3 sensors
TH1F *	m_clusterChargeU456 = nullptr
	u charge of clusters for layer 4,5,6 sensors
TH1F *	m_clusterChargeV456 = nullptr
	v charge of clusters for layer 4,5,6 sensors
TH1F **	m_clusterSNRU = nullptr
	u SNR of clusters per sensor
TH1F **	m_clusterSNRV = nullptr
	v SNR of clusters per sensor
TH1F *	m_clusterSNRUAll = nullptr
	u SNR of clusters for all sensors
TH1F *	m_clusterSNRVAll = nullptr
	v SNR of clusters for all sensors
TH1F *	m_clusterSNRU3 = nullptr
	u SNR of clusters for layer 3 sensors
TH1F *	m_clusterSNRV3 = nullptr
	v SNR of clusters for layer 3 sensors
TH1F *	m_clusterSNRU456 = nullptr
	u SNR of clusters for layer 4,5,6 sensors
TH1F *	m_clusterSNRV456 = nullptr
	v SNR of clusters for layer 4,5,6 sensors
TH1F *	m_stripMaxBinUAll = nullptr
	u MaxBin of strips for all sensors (offline Zero Suppression)
TH1F *	m_stripMaxBinVAll = nullptr
	v MaxBin of strips for all sensors (offline Zero Suppression)
TH1F *	m_stripMaxBinU3 = nullptr
	u MaxBin of strips for layer 3 sensors (offline Zero Suppression)
TH1F *	m_stripMaxBinV3 = nullptr
	v MaxBin of strips for layer 3 sensors (offline Zero Suppression)
TH1F *	m_stripMaxBinU6 = nullptr
	u MaxBin of strips for layer 6 sensors (offline Zero Suppression)
TH1F *	m_stripMaxBinV6 = nullptr
	v MaxBin of strips for layer 6 sensors (offline Zero Suppression)
TH1F **	m_stripSignalU = nullptr
	u charge of strips
TH1F **	m_stripSignalV = nullptr
	v charge of strips
TH1F **	m_stripCountU = nullptr
	u strip count
TH1F **	m_stripCountV = nullptr
	v strip count
TH1F **	m_onlineZSstripCountU = nullptr
	u strip count (online Zero Suppression)
TH1F **	m_onlineZSstripCountV = nullptr
	v strip count (online Zero Suppression
TH1F **	m_stripCountGroupId0U = nullptr
	U strip count for cluster time group Id = 0.
TH1F **	m_stripCountGroupId0V = nullptr
	V strip count for cluster time group Id = 0.
TH1F **	m_strip3SampleCountU = nullptr
	u strip count for 3 samples
TH1F **	m_strip3SampleCountV = nullptr
	v strip count for 3 samples
TH1F **	m_onlineZSstrip3SampleCountU = nullptr
	u strip count (online Zero Suppression) for 3 samples
TH1F **	m_onlineZSstrip3SampleCountV = nullptr
	v strip count (online Zero Suppression for 3 samples
TH1F **	m_strip6SampleCountU = nullptr
	u strip count for 6 samples
TH1F **	m_strip6SampleCountV = nullptr
	v strip count for 3 samples
TH1F **	m_onlineZSstrip6sampleCountU = nullptr
	u strip count (online Zero Suppression) for 6 samples
TH1F **	m_onlineZSstrip6sampleCountV = nullptr
	v strip count (online Zero Suppression for 6 samples
TH1F **	m_clusterSizeU = nullptr
	u size
TH1F **	m_clusterSizeV = nullptr
	v size
TH2F *	m_clusterTimeGroupIdU = nullptr
	time group id for U side
TH2F *	m_clusterTimeGroupIdV = nullptr
	time group id for V side
TH2F *	m_clusterTimeFineGroupIdU = nullptr
	time group id for U side for fine trigger
TH2F *	m_clusterTimeFineGroupIdV = nullptr
	time group id for V side for fine trigger
TH2F *	m_clusterTimeCoarseGroupIdU = nullptr
	time group id for U side for coarse trigger
TH2F *	m_clusterTimeCoarseGroupIdV = nullptr
	time group id for V side for coarse trigger
TH1F **	m_clusterTimeU = nullptr
	u time
TH1F **	m_clusterTimeV = nullptr
	v time
TH1F *	m_clusterTimeUAll = nullptr
	u time of clusters for all sensors
TH1F *	m_clusterTimeVAll = nullptr
	v time of clusters for all sensors
TH1F *	m_clusterTimeU3 = nullptr
	u Time of clusters for layer 3 sensors
TH1F *	m_clusterTimeV3 = nullptr
	v Time of clusters for layer 3 sensors
TH1F *	m_clusterTimeU456 = nullptr
	u Time of clusters for layer 4,5,6 sensors
TH1F *	m_clusterTimeV456 = nullptr
	v Time of clusters for layer 4,5,6 sensors
TH1F *	m_cluster3SampleTimeU3 = nullptr
	u Time of clusters for layer 3 sensors for 3 samples
TH1F *	m_cluster3SampleTimeV3 = nullptr
	v Time of clusters for layer 3 sensors for 3 samples
TH1F *	m_cluster3SampleTimeU456 = nullptr
	u Time of clusters for layer 4,5,6 sensors for 3 samples
TH1F *	m_cluster3SampleTimeV456 = nullptr
	v Time of clusters for layer 4,5,6 sensors for 3 samples
TH1F *	m_cluster6SampleTimeU3 = nullptr
	u Time of clusters for layer 3 sensors for 6 samples
TH1F *	m_cluster6SampleTimeV3 = nullptr
	v Time of clusters for layer 3 sensors for 6 samples
TH1F *	m_cluster6SampleTimeU456 = nullptr
	u Time of clusters for layer 4,5,6 sensors for 6 samples
TH1F *	m_cluster6SampleTimeV456 = nullptr
	v Time of clusters for layer 4,5,6 sensors for 6 samples
TH2F **	m_hitMapU = nullptr
	Hitmaps pixels for u.
TH2F **	m_hitMapV = nullptr
	Hitmaps pixels for v.
TH1F **	m_hitMapUCl = nullptr
	Hitmaps clusters for u.
TH1F **	m_hitMapVCl = nullptr
	Hitmaps clusters for v.
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

SVD DQM Module for Express Reco.

Definition at line 34 of file SVDDQMExpressRecoModule.h.

Member Typedef Documentation

EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

SVDDQMExpressRecoModule()

SVDDQMExpressRecoModule

(

)

Constructor.

Definition at line 42 of file SVDDQMExpressRecoModule.cc.

                                                 : HistoModule()
{
  //Set module properties
  setDescription("Original SVD DQM module for ExpressReco.");

  setPropertyFlags(c_ParallelProcessingCertified);  // specify this flag if you need parallel processing
  addParam("offlineZSShaperDigits", m_storeSVDShaperDigitsName, "ShaperDigits StoreArray name - usually ZS5 strips.",
           std::string("SVDShaperDigitsZS5"));
  addParam("ShaperDigits", m_storeNoZSSVDShaperDigitsName, "not zero-suppressed ShaperDigits StoreArray name.",
           std::string("SVDShaperDigits"));
  addParam("Clusters", m_storeSVDClustersName, "Cluster StoreArray name.",
           std::string("SVDClusters"));
  addParam("skipHLTRejectedEvents", m_skipRejectedEvents, "If True, skip events rejected by HLT.", bool(true));
  addParam("ShowAllHistos", m_ShowAllHistos, "Flag to show all histos in DQM, default = 0.", int(0));
  addParam("desynchronizeSVDTime", m_desynchSVDTime,
           "if True, svd time back in SVD time reference.", bool(false));
  addParam("CutSVDCharge", m_CutSVDCharge,
           "minimum charge (ADC) to fill the strip-hitmap histogram.", float(0));
  addParam("CutSVDClusterCharge", m_CutSVDClusterCharge,
           "minimum charge (in e-) to fill the cluster-hitmap histogram.", float(0));
  addParam("histogramDirectoryName", m_histogramDirectoryName, "Name of the directory where histograms will be placed.",
           std::string("SVDExpReco"));
  addParam("additionalPlots", m_additionalPlots, "Flag to produce additional plots",
           bool(false));
  addParam("samples3", m_3Samples, "if True 3 samples histograms analysis is performed", bool(false));

  m_histoList = new TList();
}

~SVDDQMExpressRecoModule()

~SVDDQMExpressRecoModule ( )

virtual

Definition at line 72 of file SVDDQMExpressRecoModule.cc.

{
}

Member Function Documentation

beginRun()

void beginRun ( void  )

finaloverridevirtual

Module function beginRun.

Reimplemented from HistoModule.

Definition at line 832 of file SVDDQMExpressRecoModule.cc.

{
  auto gTools = VXD::GeoCache::getInstance().getGeoTools();
  if (gTools->getNumberOfSVDLayers() == 0) return;


  StoreObjPtr<EventMetaData> evtMetaData;
  m_expNumber = evtMetaData->getExperiment();
  m_runNumber = evtMetaData->getRun();

  // Add experiment and run number to the title of selected histograms (CR shifter plots)
  TString runID = TString::Format(" ~ Exp%d Run%d", m_expNumber, m_runNumber);
  TObject* obj;
  TIter nextH(m_histoList);
  while ((obj = nextH()))
    if (obj->InheritsFrom("TH1")) {

      TString tmp = (TString)obj->GetTitle();
      Int_t pos = tmp.Last('~');
      if (pos == -1) pos = tmp.Length() + 2;

      TString title = tmp(0, pos - 2);
      ((TH1F*)obj)->SetTitle(title + runID);
      ((TH1F*)obj)->Reset();
    }
}

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 426 of file Module.h.

{ beginRun(); }

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

{ endRun(); }

def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 432 of file Module.h.

{ event(); }

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

{ initialize(); }

def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 445 of file Module.h.

{ terminate(); }

defineHisto()

void defineHisto ( )

finaloverridevirtual

Histogram definitions such as TH1(), TH2(), TNtuple(), TTree()....

are supposed to be placed in this function.

Reimplemented from HistoModule.

Definition at line 80 of file SVDDQMExpressRecoModule.cc.

{
  auto gTools = VXD::GeoCache::getInstance().getGeoTools();
  if (gTools->getNumberOfLayers() == 0) {
    B2FATAL("Missing geometry for VXD, check steering file.");
  }
  if (gTools->getNumberOfSVDLayers() == 0) {
    B2WARNING("Missing geometry for SVD, SVD-DQM is skipped.");
    return;
  }

  // Create a separate histogram directories and cd into it.
  TDirectory* oldDir = gDirectory;
  if (m_histogramDirectoryName != "") {
    oldDir->mkdir(m_histogramDirectoryName.c_str());// do not use return value with ->cd(), its ZERO if dir already exists
    oldDir->cd(m_histogramDirectoryName.c_str());
  }

  // basic constants presets:
  int nSVDSensors = gTools->getNumberOfSVDSensors();
  int nSVDChips = gTools->getTotalSVDChips();

  // number of events counter
  m_nEvents = new TH1F("SVDDQM_nEvents", "SVD Number of Events", 1, -0.5, 0.5);
  m_nEvents->GetYaxis()->SetTitle("N events");
  m_histoList->Add(m_nEvents);

  // Create basic histograms:
  // basic counters per sensor:
  m_hitMapCountsU = new TH1F("SVDDQM_StripCountsU", "SVD Integrated Number of ZS5 Fired U-Strips per sensor",
                             nSVDSensors, 0, nSVDSensors);
  m_hitMapCountsU->GetXaxis()->SetTitle("Sensor ID");
  m_hitMapCountsU->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapCountsU);
  m_hitMapCountsV = new TH1F("SVDDQM_StripCountsV", "SVD Integrated Number of ZS5 Fired V-Strips per sensor",
                             nSVDSensors, 0, nSVDSensors);
  m_hitMapCountsV->GetXaxis()->SetTitle("Sensor ID");
  m_hitMapCountsV->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapCountsV);
  m_hitMapClCountsU = new TH1F("SVDDQM_ClusterCountsU", "SVD Integrated Number of U-Clusters per sensor",
                               nSVDSensors, 0, nSVDSensors);
  m_hitMapClCountsU->GetXaxis()->SetTitle("Sensor ID");
  m_hitMapClCountsU->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapClCountsU);
  m_hitMapClCountsV = new TH1F("SVDDQM_ClusterCountsV", "SVD Integrated Number of V-Clusters per sensor",
                               nSVDSensors, 0, nSVDSensors);
  m_hitMapClCountsV->GetXaxis()->SetTitle("Sensor ID");
  m_hitMapClCountsV->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapClCountsV);
  for (int i = 0; i < nSVDSensors; i++) {
    VxdID id = gTools->getSensorIDFromSVDIndex(i);
    int iLayer = id.getLayerNumber();
    int iLadder = id.getLadderNumber();
    int iSensor = id.getSensorNumber();
    TString AxisTicks = Form("%i_%i_%i", iLayer, iLadder, iSensor);
    m_hitMapCountsU->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
    m_hitMapCountsV->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
    m_hitMapClCountsU->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
    m_hitMapClCountsV->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
  }

  // basic counters per chip:
  m_hitMapCountsChip = new TH1F("SVDDQM_StripCountsChip", "SVD Integrated Number of ZS5 Fired Strips per chip",
                                nSVDChips, 0, nSVDChips);
  m_hitMapCountsChip->GetXaxis()->SetTitle("Chip ID");
  m_hitMapCountsChip->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapCountsChip);
  m_hitMapClCountsChip = new TH1F("SVDDQM_ClusterCountsChip", "SVD Integrated Number of Clusters per chip",
                                  nSVDChips, 0, nSVDChips);
  m_hitMapClCountsChip->GetXaxis()->SetTitle("Chip ID");
  m_hitMapClCountsChip->GetYaxis()->SetTitle("counts");
  m_histoList->Add(m_hitMapClCountsChip);

  if (m_additionalPlots) {
    m_firedU = new TH1F*[nSVDSensors];
    m_firedV = new TH1F*[nSVDSensors];
    m_clustersU = new TH1F*[nSVDSensors];
    m_clustersV = new TH1F*[nSVDSensors];
    m_stripSignalU = new TH1F*[nSVDSensors];
    m_stripSignalV = new TH1F*[nSVDSensors];
  }

  m_clusterChargeU = new TH1F*[nSVDSensors];
  m_clusterChargeV = new TH1F*[nSVDSensors];
  m_clusterSNRU = new TH1F*[nSVDSensors];
  m_clusterSNRV = new TH1F*[nSVDSensors];

  m_stripCountU = new TH1F*[nSVDSensors];
  m_stripCountV = new TH1F*[nSVDSensors];
  m_strip3SampleCountU = new TH1F*[nSVDSensors];
  m_strip3SampleCountV = new TH1F*[nSVDSensors];
  m_strip6SampleCountU = new TH1F*[nSVDSensors];
  m_strip6SampleCountV = new TH1F*[nSVDSensors];

  m_stripCountGroupId0U = new TH1F*[nSVDSensors];
  m_stripCountGroupId0V = new TH1F*[nSVDSensors];

  m_onlineZSstripCountU = new TH1F*[nSVDSensors];
  m_onlineZSstripCountV = new TH1F*[nSVDSensors];

  if (m_3Samples) {
    m_onlineZSstrip3SampleCountU = new TH1F*[nSVDSensors];
    m_onlineZSstrip3SampleCountV = new TH1F*[nSVDSensors];
    m_onlineZSstrip6sampleCountU = new TH1F*[nSVDSensors];
    m_onlineZSstrip6sampleCountV = new TH1F*[nSVDSensors];
  }

  m_clusterSizeU = new TH1F*[nSVDSensors];
  m_clusterSizeV = new TH1F*[nSVDSensors];
  m_clusterTimeU = new TH1F*[nSVDSensors];
  m_clusterTimeV = new TH1F*[nSVDSensors];

  int ChargeBins = 80;
  float ChargeMax = 80;
  int SNRBins = 50;
  float SNRMax = 100;
  int TimeBins = 300;
  float TimeMin = -150;
  float TimeMax = 150;

  int GroupIdBins = 21;
  float GroupIdMin = -1.5;
  float GroupIdMax = 19.5;

  int MaxBinBins = 6;
  int MaxBinMax = 6;

  TString refFrame = "in FTSW reference";
  if (m_desynchSVDTime)
    refFrame = "in SVD reference";


  //----------------------------------------------------------------
  // Charge of clusters for all sensors
  //----------------------------------------------------------------
  string name = str(format("SVDDQM_ClusterChargeUAll"));
  string title = str(format("SVD U-Cluster Charge for all sensors"));
  m_clusterChargeUAll = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeUAll->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeUAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeUAll);
  name = str(format("SVDDQM_ClusterChargeVAll"));
  title = str(format("SVD V-Cluster Charge for all sensors"));
  m_clusterChargeVAll = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeVAll->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeVAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeVAll);
  //----------------------------------------------------------------
  // Charge of clusters for L3/L456 sensors
  //----------------------------------------------------------------
  name = str(format("SVDDQM_ClusterChargeU3"));
  title = str(format("SVD U-Cluster Charge for layer 3 sensors"));
  m_clusterChargeU3 = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeU3->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeU3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeU3);
  name = str(format("SVDDQM_ClusterChargeV3"));
  title = str(format("SVD V-Cluster Charge for layer 3 sensors"));
  m_clusterChargeV3 = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeV3->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeV3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeV3);

  name = str(format("SVDDQM_ClusterChargeU456"));
  title = str(format("SVD U-Cluster Charge for layers 4,5,6 sensors"));
  m_clusterChargeU456 = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeU456->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeU456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeU456);

  name = str(format("SVDDQM_ClusterChargeV456"));
  title = str(format("SVD V-Cluster Charge for layers 4,5,6 sensors"));
  m_clusterChargeV456 = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
  m_clusterChargeV456->GetXaxis()->SetTitle("cluster charge [ke-]");
  m_clusterChargeV456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterChargeV456);

  //----------------------------------------------------------------
  // SNR of clusters for all sensors
  //----------------------------------------------------------------
  name = str(format("SVDDQM_ClusterSNRUAll"));
  title = str(format("SVD U-Cluster SNR for all sensors"));
  m_clusterSNRUAll = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);  // max = ~ 60
  m_clusterSNRUAll->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRUAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRUAll);
  name = str(format("SVDDQM_ClusterSNRVAll"));
  title = str(format("SVD V-Cluster SNR for all sensors"));
  m_clusterSNRVAll = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
  m_clusterSNRVAll->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRVAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRVAll);
  //----------------------------------------------------------------
  // SNR of clusters for L3/L456 sensors
  //----------------------------------------------------------------
  name = str(format("SVDDQM_ClusterSNRU3"));
  title = str(format("SVD U-Cluster SNR for layer 3 sensors"));
  m_clusterSNRU3 = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
  m_clusterSNRU3->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRU3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRU3);
  name = str(format("SVDDQM_ClusterSNRV3"));
  title = str(format("SVD V-Cluster SNR for layer 3 sensors"));
  m_clusterSNRV3 = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
  m_clusterSNRV3->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRV3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRV3);

  name = str(format("SVDDQM_ClusterSNRU456"));
  title = str(format("SVD U-Cluster SNR for layers 4,5,6 sensors"));
  m_clusterSNRU456 = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
  m_clusterSNRU456->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRU456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRU456);
  name = str(format("SVDDQM_ClusterSNRV456"));
  title = str(format("SVD V-Cluster SNR for layers 4,5,6 sensors"));
  m_clusterSNRV456 = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
  m_clusterSNRV456->GetXaxis()->SetTitle("cluster SNR");
  m_clusterSNRV456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterSNRV456);
  //----------------------------------------------------------------
  // Cluster time distribution for all sensors
  //----------------------------------------------------------------
  TString Name = "SVDDQM_ClusterTimeUAll";
  TString Title = Form("SVD U-Cluster Time %s for all sensors", refFrame.Data());
  m_clusterTimeUAll = new TH1F(Name.Data(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeUAll->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeUAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeUAll);
  Name = "SVDDQM_ClusterTimeVAll";
  Title = Form("SVD V-Cluster Time %s for all sensors", refFrame.Data());
  m_clusterTimeVAll = new TH1F(Name.Data(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeVAll->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeVAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeVAll);
  //----------------------------------------------------------------
  // Time of clusters for L3/L456 sensors
  //----------------------------------------------------------------
  Name = "SVDDQM_ClusterTimeU3";
  Title = Form("SVD U-Cluster Time %s for layer 3 sensors", refFrame.Data());
  m_clusterTimeU3 = new TH1F(Name.Data(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeU3->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeU3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeU3);
  name = str(format("SVDDQM_ClusterTimeV3"));
  Title = Form("SVD V-Cluster Time %s for layer 3 sensors", refFrame.Data());
  m_clusterTimeV3 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeV3->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeV3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeV3);

  name = str(format("SVDDQM_ClusterTimeU456"));
  Title = Form("SVD U-Cluster Time %s for layers 4,5,6 sensors", refFrame.Data());
  m_clusterTimeU456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeU456->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeU456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeU456);
  name = str(format("SVDDQM_ClusterTimeV456"));
  Title = Form("SVD V-Cluster Time %s for layers 4,5,6 sensors", refFrame.Data());
  m_clusterTimeV456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
  m_clusterTimeV456->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeV456->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_clusterTimeV456);

  //----------------------------------------------------------------
  // Time of clusters for L3/L456 sensors for 3 samples
  //----------------------------------------------------------------
  if (m_3Samples) {
    Name = "SVDDQM_Cluster3TimeU3";
    Title = Form("SVD U-Cluster Time %s for layer 3 sensors for 3 samples", refFrame.Data());
    m_cluster3SampleTimeU3 = new TH1F(Name.Data(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster3SampleTimeU3->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster3SampleTimeU3->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster3SampleTimeU3);
    name = str(format("SVDDQM_Cluster3TimeV3"));
    Title = Form("SVD V-Cluster Time %s for layer 3 sensors for 3 samples", refFrame.Data());
    m_cluster3SampleTimeV3 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster3SampleTimeV3->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster3SampleTimeV3->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster3SampleTimeV3);
    name = str(format("SVDDQM_Cluster3TimeU456"));
    Title = Form("SVD U-Cluster Time %s for layers 4,5,6 sensors for 3 samples", refFrame.Data());
    m_cluster3SampleTimeU456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster3SampleTimeU456->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster3SampleTimeU456->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster3SampleTimeU456);
    name = str(format("SVDDQM_Cluster3TimeV456"));
    Title = Form("SVD V-Cluster Time %s for layers 4,5,6 sensors for 3 samples", refFrame.Data());
    m_cluster3SampleTimeV456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster3SampleTimeV456->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster3SampleTimeV456->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster3SampleTimeV456);

    //----------------------------------------------------------------
    // Time of clusters for L3/L456 sensors for 6 samples
    //----------------------------------------------------------------
    Name = "SVDDQM_Cluster6TimeU3";
    Title = Form("SVD U-Cluster Time %s for layer 3 sensors for 6 samples", refFrame.Data());
    m_cluster6SampleTimeU3 = new TH1F(Name.Data(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster6SampleTimeU3->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster6SampleTimeU3->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster6SampleTimeU3);
    name = str(format("SVDDQM_Cluster6TimeV3"));
    Title = Form("SVD V-Cluster Time %s for layer 3 sensors for 6 samples", refFrame.Data());
    m_cluster6SampleTimeV3 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster6SampleTimeV3->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster6SampleTimeV3->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster6SampleTimeV3);

    name = str(format("SVDDQM_Cluster6TimeU456"));
    Title = Form("SVD U-Cluster Time %s for layers 4,5,6 sensors for 6 samples", refFrame.Data());
    m_cluster6SampleTimeU456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster6SampleTimeU456->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster6SampleTimeU456->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster6SampleTimeU456);
    name = str(format("SVDDQM_Cluster6TimeV456"));
    Title = Form("SVD V-Cluster Time %s for layers 4,5,6 sensors for 6 samples", refFrame.Data());
    m_cluster6SampleTimeV456 = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_cluster6SampleTimeV456->GetXaxis()->SetTitle("cluster time (ns)");
    m_cluster6SampleTimeV456->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_cluster6SampleTimeV456);
  }

  //----------------------------------------------------------------
  // Cluster time group Id vs cluster time for U/V sensors
  //----------------------------------------------------------------
  Name = "SVDDQM_ClusterTimeGroupIdU";
  Title = Form("SVD cluster Time Group Id %s vs cluster time for U/P Side", refFrame.Data());
  m_clusterTimeGroupIdU = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin, GroupIdMax);
  m_clusterTimeGroupIdU->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeGroupIdU->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeGroupIdU);
  Name = "SVDDQM_ClusterTimeGroupIdV";
  Title =  Form("SVD cluster Time Group Id %s vs cluster time for V/N Side", refFrame.Data());
  m_clusterTimeGroupIdV = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin, GroupIdMax);
  m_clusterTimeGroupIdV->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeGroupIdV->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeGroupIdV);

  //----------------------------------------------------------------
  // Cluster time group Id vs cluster time for U/V sensors for coarse and fine trigger
  //----------------------------------------------------------------
  Name = "SVDDQM_cluster6TimeGroupIdU";
  Title = Form("SVD cluster Time Group Id %s vs cluster time for U/P Side for coarse trigger", refFrame.Data());
  m_clusterTimeCoarseGroupIdU = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin,
                                         GroupIdMax);
  m_clusterTimeCoarseGroupIdU->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeCoarseGroupIdU->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeCoarseGroupIdU);
  Name = "SVDDQM_cluster6TimeGroupIdV";
  Title =  Form("SVD cluster Time Group Id %s vs cluster time for V/N Side for coarse trigger", refFrame.Data());
  m_clusterTimeCoarseGroupIdV = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin,
                                         GroupIdMax);
  m_clusterTimeCoarseGroupIdV->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeCoarseGroupIdV->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeCoarseGroupIdV);

  Name = "SVDDQM_cluster3TimeGroupIdU";
  Title = Form("SVD cluster Time Group Id %s vs cluster time for U/P Side for fine trigger", refFrame.Data());
  m_clusterTimeFineGroupIdU = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin,
                                       GroupIdMax);
  m_clusterTimeFineGroupIdU->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeFineGroupIdU->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeFineGroupIdU);
  Name = "SVDDQM_cluster3TimeGroupIdV";
  Title =  Form("SVD cluster Time Group Id %s vs cluster time for V/N Side for fine trigger", refFrame.Data());
  m_clusterTimeFineGroupIdV = new TH2F(Name.Data(), Title.Data(), TimeBins / 2, TimeMin, TimeMax, GroupIdBins, GroupIdMin,
                                       GroupIdMax);
  m_clusterTimeFineGroupIdV->GetXaxis()->SetTitle("cluster time (ns)");
  m_clusterTimeFineGroupIdV->GetYaxis()->SetTitle("cluster group id");
  m_histoList->Add(m_clusterTimeFineGroupIdV);

  //----------------------------------------------------------------
  // MaxBin of strips for all sensors (offline ZS)
  //----------------------------------------------------------------
  name = str(format("SVDDQM_StripMaxBinUAll"));
  title = str(format("SVD U-Strip MaxBin for all sensors"));
  m_stripMaxBinUAll = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinUAll->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinUAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinUAll);
  name = str(format("SVDDQM_StripMaxBinVAll"));
  title = str(format("SVD V-Strip MaxBin for all sensors"));
  m_stripMaxBinVAll = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinVAll->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinVAll->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinVAll);

  name = str(format("SVDDQM_StripMaxBinU3"));
  title = str(format("SVD U-Strip MaxBin for layer 3 sensors"));
  m_stripMaxBinU3 = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinU3->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinU3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinU3);
  name = str(format("SVDDQM_StripMaxBinV3"));
  title = str(format("SVD V-Strip MaxBin for layer 3 sensors"));
  m_stripMaxBinV3 = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinV3->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinV3->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinV3);

  name = str(format("SVDDQM_StripMaxBinU6"));
  title = str(format("SVD U-Strip MaxBin for layer 6 sensors"));
  m_stripMaxBinU6 = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinU6->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinU6->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinU6);
  name = str(format("SVDDQM_StripMaxBinV6"));
  title = str(format("SVD V-Strip MaxBin for layer 6 sensors"));
  m_stripMaxBinV6 = new TH1F(name.c_str(), title.c_str(), MaxBinBins, 0, MaxBinMax);
  m_stripMaxBinV6->GetXaxis()->SetTitle("max bin");
  m_stripMaxBinV6->GetYaxis()->SetTitle("count");
  m_histoList->Add(m_stripMaxBinV6);

  for (int i = 0; i < nSVDSensors; i++) {
    VxdID id = gTools->getSensorIDFromSVDIndex(i);
    int iLayer = id.getLayerNumber();
    int iLadder = id.getLadderNumber();
    int iSensor = id.getSensorNumber();
    VxdID sensorID(iLayer, iLadder, iSensor);
    SVD::SensorInfo SensorInfo = dynamic_cast<const SVD::SensorInfo&>(VXD::GeoCache::getInstance().getSensorInfo(sensorID));
    string sensorDescr = str(format("%1%_%2%_%3%") % iLayer % iLadder % iSensor);

    if (m_additionalPlots) {
      //----------------------------------------------------------------
      // Number of fired strips per sensor
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_FiredU") % sensorDescr);
      title = str(format("SVD Sensor %1% Number of Fired U-Strips") % sensorDescr);
      m_firedU[i] = new TH1F(name.c_str(), title.c_str(), 50, 0, 50);
      m_firedU[i]->GetXaxis()->SetTitle("# fired strips");
      m_firedU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_firedU[i]);
      name = str(format("SVDDQM_%1%_FiredV") % sensorDescr);
      title = str(format("SVD Sensor %1% Number of Fired V-Strips") % sensorDescr);
      m_firedV[i] = new TH1F(name.c_str(), title.c_str(), 50, 0, 50);
      m_firedV[i]->GetXaxis()->SetTitle("# fired strips");
      m_firedV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_firedV[i]);
      //----------------------------------------------------------------
      // Number of clusters per sensor
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_ClustersU") % sensorDescr);
      title = str(format("SVD Sensor %1% Number of U-Clusters") % sensorDescr);
      m_clustersU[i] = new TH1F(name.c_str(), title.c_str(), 20, 0, 20);
      m_clustersU[i]->GetXaxis()->SetTitle("# clusters");
      m_clustersU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_clustersU[i]);
      name = str(format("SVDDQM_%1%_ClustersV") % sensorDescr);
      title = str(format("SVD Sensor %1% Number of V-Clusters") % sensorDescr);
      m_clustersV[i] = new TH1F(name.c_str(), title.c_str(), 20, 0, 20);
      m_clustersV[i]->GetXaxis()->SetTitle("# clusters");
      m_clustersV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_clustersV[i]);
      //----------------------------------------------------------------
      // Charge of strips
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_ADCStripU") % sensorDescr);
      title = str(format("SVD Sensor %1% U-Strip signal in ADC Counts, all 6 APV samples") % sensorDescr);
      m_stripSignalU[i] = new TH1F(name.c_str(), title.c_str(), 256, -0.5, 255.5);
      m_stripSignalU[i]->GetXaxis()->SetTitle("signal ADC");
      m_stripSignalU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_stripSignalU[i]);
      name = str(format("SVDDQM_%1%_ADCStripV") % sensorDescr);
      title = str(format("SVD Sensor %1% V-Strip signal in ADC Counts, all 6 APV samples") % sensorDescr);
      m_stripSignalV[i] = new TH1F(name.c_str(), title.c_str(), 256, -0.5, 255.5);
      m_stripSignalV[i]->GetXaxis()->SetTitle("signal ADC");
      m_stripSignalV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_stripSignalV[i]);
    }

    //----------------------------------------------------------------
    // Charge of clusters
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_ClusterChargeU") % sensorDescr);
    title = str(format("SVD Sensor %1% U-Cluster Charge") % sensorDescr);
    m_clusterChargeU[i] = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
    m_clusterChargeU[i]->GetXaxis()->SetTitle("cluster charge [ke-]");
    m_clusterChargeU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterChargeU[i]);
    name = str(format("SVDDQM_%1%_ClusterChargeV") % sensorDescr);
    title = str(format("SVD Sensor %1% V-Cluster Charge") % sensorDescr);
    m_clusterChargeV[i] = new TH1F(name.c_str(), title.c_str(), ChargeBins, 0, ChargeMax);
    m_clusterChargeV[i]->GetXaxis()->SetTitle("cluster charge [ke-]");
    m_clusterChargeV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterChargeV[i]);
    //----------------------------------------------------------------
    // SNR of clusters
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_ClusterSNRU") % sensorDescr);
    title = str(format("SVD Sensor %1% U-Cluster SNR") % sensorDescr);
    m_clusterSNRU[i] = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
    m_clusterSNRU[i]->GetXaxis()->SetTitle("cluster SNR");
    m_clusterSNRU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterSNRU[i]);
    name = str(format("SVDDQM_%1%_ClusterSNRV") % sensorDescr);
    title = str(format("SVD Sensor %1% V-Cluster SNR") % sensorDescr);
    m_clusterSNRV[i] = new TH1F(name.c_str(), title.c_str(), SNRBins, 0, SNRMax);
    m_clusterSNRV[i]->GetXaxis()->SetTitle("cluster SNR");
    m_clusterSNRV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterSNRV[i]);

    //----------------------------------------------------------------
    // Strips Counts
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_StripCountU") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired U-Strip vs Strip Number") % sensorDescr);
    m_stripCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_stripCountU[i]->GetXaxis()->SetTitle("cellID");
    m_stripCountU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_stripCountU[i]);
    name = str(format("SVDDQM_%1%_StripCountV") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired V-Strip vs Strip Number") % sensorDescr);
    m_stripCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_stripCountV[i]->GetXaxis()->SetTitle("cellID");
    m_stripCountV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_stripCountV[i]);
    //----------------------------------------------------------------
    // Strips Counts with online ZS
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_OnlineZSStripCountU") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired U-Strip vs Strip Number") % sensorDescr);
    m_onlineZSstripCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_onlineZSstripCountU[i]->GetXaxis()->SetTitle("cellID");
    m_onlineZSstripCountU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_onlineZSstripCountU[i]);
    name = str(format("SVDDQM_%1%_OnlineZSStripCountV") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired V-Strip vs Strip Number") % sensorDescr);
    m_onlineZSstripCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_onlineZSstripCountV[i]->GetXaxis()->SetTitle("cellID");
    m_onlineZSstripCountV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_onlineZSstripCountV[i]);

    //----------------------------------------------------------------
    // Strips Counts for 3 samples
    //----------------------------------------------------------------
    if (m_3Samples) {
      name = str(format("SVDDQM_%1%_Strip3CountU") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired U-Strip vs Strip Number for 3 samples") % sensorDescr);
      m_strip3SampleCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_strip3SampleCountU[i]->GetXaxis()->SetTitle("cellID");
      m_strip3SampleCountU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_strip3SampleCountU[i]);
      name = str(format("SVDDQM_%1%_Strip3CountV") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired V-Strip vs Strip Number for 3 samples") % sensorDescr);
      m_strip3SampleCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_strip3SampleCountV[i]->GetXaxis()->SetTitle("cellID");
      m_strip3SampleCountV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_strip3SampleCountV[i]);

      //----------------------------------------------------------------
      // Strips Counts with online ZS for 3 samples
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_OnlineZSStrip3CountU") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired U-Strip vs Strip Number for 3 samples") % sensorDescr);
      m_onlineZSstrip3SampleCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_onlineZSstrip3SampleCountU[i]->GetXaxis()->SetTitle("cellID");
      m_onlineZSstrip3SampleCountU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_onlineZSstrip3SampleCountU[i]);
      name = str(format("SVDDQM_%1%_OnlineZSStrip3CountV") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired V-Strip vs Strip Number for 3 samples") % sensorDescr);
      m_onlineZSstrip3SampleCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_onlineZSstrip3SampleCountV[i]->GetXaxis()->SetTitle("cellID");
      m_onlineZSstrip3SampleCountV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_onlineZSstrip3SampleCountV[i]);

      //----------------------------------------------------------------
      // Strips Counts for 6 samples
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_Strip6CountU") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired U-Strip vs Strip Number for 6 samples") % sensorDescr);
      m_strip6SampleCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_strip6SampleCountU[i]->GetXaxis()->SetTitle("cellID");
      m_strip6SampleCountU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_strip6SampleCountU[i]);
      name = str(format("SVDDQM_%1%_strip6CountV") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of ZS5 Fired V-Strip vs Strip Number for 6 samples") % sensorDescr);
      m_strip6SampleCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_strip6SampleCountV[i]->GetXaxis()->SetTitle("cellID");
      m_strip6SampleCountV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_strip6SampleCountV[i]);
      //----------------------------------------------------------------
      // Strips Counts with online ZS for 6 samples
      //----------------------------------------------------------------
      name = str(format("SVDDQM_%1%_OnlineZSStrip6CountU") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired U-Strip vs Strip Number for 6 samples") % sensorDescr);
      m_onlineZSstrip6sampleCountU[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_onlineZSstrip6sampleCountU[i]->GetXaxis()->SetTitle("cellID");
      m_onlineZSstrip6sampleCountU[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_onlineZSstrip6sampleCountU[i]);
      name = str(format("SVDDQM_%1%_OnlineZSStrip6CountV") % sensorDescr);
      title = str(format("SVD Sensor %1% Integrated Number of online-ZS Fired V-Strip vs Strip Number for 6 samples") % sensorDescr);
      m_onlineZSstrip6sampleCountV[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
      m_onlineZSstrip6sampleCountV[i]->GetXaxis()->SetTitle("cellID");
      m_onlineZSstrip6sampleCountV[i]->GetYaxis()->SetTitle("count");
      m_histoList->Add(m_onlineZSstrip6sampleCountV[i]);
    }

    //----------------------------------------------------------------
    // Strips Counts for cluster time group id = 0
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_StripCountGroupId0U") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated NumberFired U-Strip for group Id = 0 vs Strip Number") % sensorDescr);
    m_stripCountGroupId0U[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_stripCountGroupId0U[i]->GetXaxis()->SetTitle("cellID");
    m_stripCountGroupId0U[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_stripCountGroupId0U[i]);
    name = str(format("SVDDQM_%1%_StripCountGroupId0V") % sensorDescr);
    title = str(format("SVD Sensor %1% Integrated Number of Fired V-Strip for group Id = 0 vs Strip Number") % sensorDescr);
    m_stripCountGroupId0V[i] = new TH1F(name.c_str(), title.c_str(), 768, -0.5, 767.5);
    m_stripCountGroupId0V[i]->GetXaxis()->SetTitle("cellID");
    m_stripCountGroupId0V[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_stripCountGroupId0V[i]);

    //----------------------------------------------------------------
    // Cluster size distribution
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_ClusterSizeU") % sensorDescr);
    title = str(format("SVD Sensor %1% U-Cluster Size") % sensorDescr);
    m_clusterSizeU[i] = new TH1F(name.c_str(), title.c_str(), 9, 1, 10);
    m_clusterSizeU[i]->GetXaxis()->SetTitle("cluster size");
    m_clusterSizeU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterSizeU[i]);
    name = str(format("SVDDQM_%1%_ClusterSizeV") % sensorDescr);
    title = str(format("SVD Sensor %1% V-Cluster Size") % sensorDescr);
    m_clusterSizeV[i] = new TH1F(name.c_str(), title.c_str(), 9, 1, 10);
    m_clusterSizeV[i]->GetXaxis()->SetTitle("cluster size");
    m_clusterSizeV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterSizeV[i]);
    //----------------------------------------------------------------
    // Cluster time distribution
    //----------------------------------------------------------------
    name = str(format("SVDDQM_%1%_ClusterTimeU") % sensorDescr);
    Title = Form("SVD Sensor %s U-Cluster Time %s", sensorDescr.c_str(), refFrame.Data());
    m_clusterTimeU[i] = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_clusterTimeU[i]->GetXaxis()->SetTitle("cluster time (ns)");
    m_clusterTimeU[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterTimeU[i]);
    name = str(format("SVDDQM_%1%_ClusterTimeV") % sensorDescr);
    Title = Form("SVD Sensor %s V-Cluster Time %s", sensorDescr.c_str(), refFrame.Data());
    m_clusterTimeV[i] = new TH1F(name.c_str(), Title.Data(), TimeBins, TimeMin, TimeMax);
    m_clusterTimeV[i]->GetXaxis()->SetTitle("cluster time (ns)");
    m_clusterTimeV[i]->GetYaxis()->SetTitle("count");
    m_histoList->Add(m_clusterTimeV[i]);
  }

  for (int i = 0; i < nSVDChips; i++) {
    VxdID id = gTools->getChipIDFromSVDIndex(i);
    int iLayer = id.getLayerNumber();
    int iLadder = id.getLadderNumber();
    int iSensor = id.getSensorNumber();
    int iChip = gTools->getSVDChipNumber(id);
    int IsU = gTools->isSVDSideU(id);
    TString AxisTicks = Form("%i_%i_%i_u%i", iLayer, iLadder, iSensor, iChip);
    if (!IsU)
      AxisTicks = Form("%i_%i_%i_v%i", iLayer, iLadder, iSensor, iChip);
    m_hitMapCountsChip->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
    m_hitMapClCountsChip->GetXaxis()->SetBinLabel(i + 1, AxisTicks.Data());
  }



  //----------------------------------------------------------------
  // Additional histograms for out of ExpressReco
  //----------------------------------------------------------------

  if (m_ShowAllHistos == 1) {
    TDirectory* dirShowAll = nullptr;
    dirShowAll = oldDir->mkdir("SVDDQMAll");
    dirShowAll->cd();

    m_hitMapU = new TH2F*[nSVDSensors];
    m_hitMapV = new TH2F*[nSVDSensors];
    m_hitMapUCl = new TH1F*[nSVDSensors];
    m_hitMapVCl = new TH1F*[nSVDSensors];
    for (int i = 0; i < nSVDSensors; i++) {
      VxdID id = gTools->getSensorIDFromSVDIndex(i);
      int iLayer = id.getLayerNumber();
      int iLadder = id.getLadderNumber();
      int iSensor = id.getSensorNumber();
      VxdID sensorID(iLayer, iLadder, iSensor);
      SVD::SensorInfo SensorInfo = dynamic_cast<const SVD::SensorInfo&>(VXD::GeoCache::getInstance().getSensorInfo(sensorID));
      string sensorDescr = str(format("%1%_%2%_%3%") % iLayer % iLadder % iSensor);
      //----------------------------------------------------------------
      // Hitmaps: Number of strips by coordinate
      //----------------------------------------------------------------
      name = str(format("SVD_%1%_StripHitmapU") % sensorDescr);
      title = str(format("SVD Sensor %1% Strip Hitmap in U") % sensorDescr);
      int nStrips = SensorInfo.getUCells();
      m_hitMapU[i] = new TH2F(name.c_str(), title.c_str(), nStrips, 0, nStrips, SVDShaperDigit::c_nAPVSamples, 0,
                              SVDShaperDigit::c_nAPVSamples);
      m_hitMapU[i]->GetXaxis()->SetTitle("u position [pitch units]");
      m_hitMapU[i]->GetYaxis()->SetTitle("timebin [time units]");
      m_hitMapU[i]->GetZaxis()->SetTitle("hits");
      m_histoList->Add(m_hitMapU[i]);
      name = str(format("SVD_%1%_StripHitmapV") % sensorDescr);
      title = str(format("SVD Sensor %1% Strip Hitmap in V") % sensorDescr);
      nStrips = SensorInfo.getVCells();
      m_hitMapV[i] = new TH2F(name.c_str(), title.c_str(), nStrips, 0, nStrips, SVDShaperDigit::c_nAPVSamples, 0,
                              SVDShaperDigit::c_nAPVSamples);
      m_hitMapV[i]->GetXaxis()->SetTitle("v position [pitch units]");
      m_hitMapV[i]->GetYaxis()->SetTitle("timebin [time units]");
      m_hitMapV[i]->GetZaxis()->SetTitle("hits");
      m_histoList->Add(m_hitMapV[i]);
      //----------------------------------------------------------------
      // Hitmaps: Number of clusters by coordinate
      //----------------------------------------------------------------
      name = str(format("SVD_%1%_HitmapClstU") % sensorDescr);
      title = str(format("SVD Sensor %1% Hitmap Clusters in U") % sensorDescr);
      nStrips = SensorInfo.getUCells();
      m_hitMapUCl[i] = new TH1F(name.c_str(), title.c_str(), nStrips, 0, nStrips);
      m_hitMapUCl[i]->GetXaxis()->SetTitle("u position [pitch units]");
      m_hitMapUCl[i]->GetYaxis()->SetTitle("hits");
      m_histoList->Add(m_hitMapUCl[i]);
      name = str(format("SVD_%1%_HitmapClstV") % sensorDescr);
      title = str(format("SVD Sensor %1% Hitmap Clusters in V") % sensorDescr);
      nStrips = SensorInfo.getVCells();
      m_hitMapVCl[i] = new TH1F(name.c_str(), title.c_str(), nStrips, 0, nStrips);
      m_hitMapVCl[i]->GetXaxis()->SetTitle("v position [pitch units]");
      m_hitMapVCl[i]->GetYaxis()->SetTitle("hits");
      m_histoList->Add(m_hitMapVCl[i]);
    }
  }

  oldDir->cd();
}

endRun()

virtual void endRun ( void  )

inlineoverridevirtualinherited

Function to process end_run record.

Reimplemented from Module.

Reimplemented in CalibrationCollectorModule, AlignDQMModule, ARICHDQMModule, B2BIIMCParticlesMonitorModule, AnalysisPhase1StudyModule, BeamabortStudyModule, BgoStudyModule, ClawStudyModule, ClawsStudyModule, CsiStudy_v2Module, CsIStudyModule, DosiStudyModule, FANGSStudyModule, He3tubeStudyModule, MicrotpcStudyModule, TPCStudyModule, PindiodeStudyModule, QcsmonitorStudyModule, CDCCRTestModule, CDCDedxDQMModule, CDCDedxValidationModule, cdcDQM7Module, CDCDQMModule, MonitorDataModule, TrackAnaModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLDQMModule, ECLDQMEXTENDEDModule, KLMDQMModule, KLMDQM2Module, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPTBCComparatorModule, TOPWaveformQualityPlotterModule, SVDROIDQMModule, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, TRGCDCT2DDQMModule, TRGCDCT3DDQMModule, TRGCDCTSFDQMModule, TRGECLDQMModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGRLDQMModule, TRGTOPDQMModule, TRGRAWDATAModule, SVDUnpackerDQMModule, and vxdDigitMaskingModule.

Definition at line 44 of file HistoModule.h.

{};

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

event()

void event ( void  )

finaloverridevirtual

Module function event.

Reimplemented from HistoModule.

Definition at line 859 of file SVDDQMExpressRecoModule.cc.

{


  //check HLT decision and increase number of events only if the event has been accepted

  if (m_skipRejectedEvents && (m_resultStoreObjectPointer.isValid())) {
    const bool eventAccepted = FinalTriggerDecisionCalculator::getFinalTriggerDecision(*m_resultStoreObjectPointer);
    if (!eventAccepted) return;
  }
  m_nEvents->Fill(0);

  int nSamples = 0;
  if (m_svdEventInfo.isValid())
    nSamples = m_svdEventInfo->getNSamples();
  else
    return;

  auto gTools = VXD::GeoCache::getInstance().getGeoTools();
  if (gTools->getNumberOfSVDLayers() == 0) return;


  const StoreArray<SVDShaperDigit> storeNoZSSVDShaperDigits(m_storeNoZSSVDShaperDigitsName);
  const StoreArray<SVDShaperDigit> storeSVDShaperDigits(m_storeSVDShaperDigitsName);
  const StoreArray<SVDCluster> storeSVDClusters(m_storeSVDClustersName);

  if (!storeSVDShaperDigits.isValid() || !storeSVDShaperDigits.getEntries()) {
    return;
  }

  int firstSVDLayer = gTools->getFirstSVDLayer();
  int lastSVDLayer = gTools->getLastSVDLayer();
  int nSVDSensors = gTools->getNumberOfSVDSensors();

  // Fired strips offline ZS
  vector< set<int> > uStrips(nSVDSensors); // sets to eliminate multiple samples per strip
  vector< set<int> > vStrips(nSVDSensors);
  for (const SVDShaperDigit& digitIn : storeSVDShaperDigits) {
    int iLayer = digitIn.getSensorID().getLayerNumber();
    if ((iLayer < firstSVDLayer) || (iLayer > lastSVDLayer)) continue;
    int iLadder = digitIn.getSensorID().getLadderNumber();
    int iSensor = digitIn.getSensorID().getSensorNumber();
    VxdID sensorID(iLayer, iLadder, iSensor);
    int index = gTools->getSVDSensorIndex(sensorID);
    SVD::SensorInfo SensorInfo = dynamic_cast<const SVD::SensorInfo&>(VXD::GeoCache::getInstance().getSensorInfo(sensorID));
    if (digitIn.isUStrip()) {

      //fill strip count first
      if (m_stripCountU[index] != nullptr) m_stripCountU[index]->Fill(digitIn.getCellID());

      if (m_3Samples) {
        if (nSamples == 3) {
          if (m_strip3SampleCountU[index] != nullptr) m_strip3SampleCountU[index]->Fill(digitIn.getCellID());
        } else {
          if (m_strip6SampleCountU[index] != nullptr) m_strip6SampleCountU[index]->Fill(digitIn.getCellID());
        }
      }
      //fill max bin
      if (m_stripMaxBinUAll != nullptr) m_stripMaxBinUAll->Fill(digitIn.getMaxTimeBin());
      if (iLayer == 3)
        if (m_stripMaxBinU3 != nullptr) m_stripMaxBinU3->Fill(digitIn.getMaxTimeBin());
      if (iLayer == 6)
        if (m_stripMaxBinU6 != nullptr) m_stripMaxBinU6->Fill(digitIn.getMaxTimeBin());

      uStrips.at(index).insert(digitIn.getCellID());
      int Chip = (int)(digitIn.getCellID() / gTools->getSVDChannelsPerChip()) + 1;
      int indexChip = gTools->getSVDChipIndex(sensorID, kTRUE, Chip);
      // 6-to-1 relation weights are equal to digit signals, modulo rounding error
      SVDShaperDigit::APVFloatSamples samples = digitIn.getSamples();
      int isSample = 0;
      for (size_t i = 0; i < SVDShaperDigit::c_nAPVSamples; ++i) {
        if (m_additionalPlots)
          if (m_stripSignalU[index] != nullptr) m_stripSignalU[index]->Fill(samples[i]);
        if (samples[i] > m_CutSVDCharge) {
          isSample = 1;
          if (m_ShowAllHistos == 1) {
            if (m_hitMapU[index] != nullptr) m_hitMapU[index]->Fill(digitIn.getCellID(), i);
          }
        }
      }
      if (isSample) {
        if (m_hitMapCountsU != nullptr) m_hitMapCountsU->Fill(index);
        if (m_hitMapCountsChip != nullptr) m_hitMapCountsChip->Fill(indexChip);
      }
    } else {
      //fill strip count first
      if (m_stripCountV[index] != nullptr) m_stripCountV[index]->Fill(digitIn.getCellID());

      if (m_3Samples) {
        if (nSamples == 3) {
          if (m_strip3SampleCountV[index] != nullptr) m_strip3SampleCountV[index]->Fill(digitIn.getCellID());
        } else {
          if (m_strip6SampleCountV[index] != nullptr) m_strip6SampleCountV[index]->Fill(digitIn.getCellID());
        }
      }

      //fill max bin
      if (m_stripMaxBinVAll != nullptr) m_stripMaxBinVAll->Fill(digitIn.getMaxTimeBin());

      if (iLayer == 3)
        if (m_stripMaxBinV3 != nullptr) m_stripMaxBinV3->Fill(digitIn.getMaxTimeBin());
      if (iLayer == 6)
        if (m_stripMaxBinV6 != nullptr) m_stripMaxBinV6->Fill(digitIn.getMaxTimeBin());

      vStrips.at(index).insert(digitIn.getCellID());
      int Chip = (int)(digitIn.getCellID() / gTools->getSVDChannelsPerChip()) + 1;
      int indexChip = gTools->getSVDChipIndex(sensorID, kFALSE, Chip);
      // 6-to-1 relation weights are equal to digit signals, modulo rounding error
      SVDShaperDigit::APVFloatSamples samples = digitIn.getSamples();
      int isSample = 0;
      for (size_t i = 0; i < SVDShaperDigit::c_nAPVSamples; ++i) {
        if (m_additionalPlots)
          if (m_stripSignalV[index] != nullptr) m_stripSignalV[index]->Fill(samples[i]);
        if (samples[i] > m_CutSVDCharge) {
          isSample = 1;
          if (m_ShowAllHistos == 1) {
            if (m_hitMapV[index] != nullptr) m_hitMapV[index]->Fill(digitIn.getCellID(), i);
          }
        }
      }
      if (isSample) {
        if (m_hitMapCountsV != nullptr) m_hitMapCountsV->Fill(index);
        if (m_hitMapCountsChip != nullptr) m_hitMapCountsChip->Fill(indexChip);
      }
    }
  }
  if (m_additionalPlots) {
    for (int i = 0; i < nSVDSensors; i++) {
      if ((m_firedU[i] != nullptr) && (uStrips[i].size() > 0))
        m_firedU[i]->Fill(uStrips[i].size());
      if ((m_firedV[i] != nullptr) && (vStrips[i].size() > 0))
        m_firedV[i]->Fill(vStrips[i].size());
    }
  }

  // Fired strips ONLINE ZS
  if (storeNoZSSVDShaperDigits.isValid())
    for (const SVDShaperDigit& digitIn : storeNoZSSVDShaperDigits) {
      int iLayer = digitIn.getSensorID().getLayerNumber();
      if ((iLayer < firstSVDLayer) || (iLayer > lastSVDLayer)) continue;
      int iLadder = digitIn.getSensorID().getLadderNumber();
      int iSensor = digitIn.getSensorID().getSensorNumber();
      VxdID sensorID(iLayer, iLadder, iSensor);
      int index = gTools->getSVDSensorIndex(sensorID);
      SVD::SensorInfo SensorInfo = dynamic_cast<const SVD::SensorInfo&>(VXD::GeoCache::getInstance().getSensorInfo(sensorID));
      if (digitIn.isUStrip()) {
        if (m_onlineZSstripCountU[index] != nullptr) m_onlineZSstripCountU[index]->Fill(digitIn.getCellID());
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_onlineZSstrip3SampleCountU[index] != nullptr) m_onlineZSstrip3SampleCountU[index]->Fill(digitIn.getCellID());
          } else {
            if (m_onlineZSstrip6sampleCountU[index] != nullptr) m_onlineZSstrip6sampleCountU[index]->Fill(digitIn.getCellID());
          }
        }
      } else {
        if (m_onlineZSstripCountV[index] != nullptr) m_onlineZSstripCountV[index]->Fill(digitIn.getCellID());
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_onlineZSstrip3SampleCountV[index] != nullptr) m_onlineZSstrip3SampleCountV[index]->Fill(digitIn.getCellID());
          } else {
            if (m_onlineZSstrip6sampleCountV[index] != nullptr) m_onlineZSstrip6sampleCountV[index]->Fill(digitIn.getCellID());
          }
        }
      }
    }

  vector< set<int> > countsU(nSVDSensors); // sets to eliminate multiple samples per strip
  vector< set<int> > countsV(nSVDSensors);
  // Hitmaps, Charge, Seed, Size, Time, ...
  for (const SVDCluster& cluster : storeSVDClusters) {
    if (cluster.getCharge() < m_CutSVDClusterCharge) continue;
    int iLayer = cluster.getSensorID().getLayerNumber();
    if ((iLayer < firstSVDLayer) || (iLayer > lastSVDLayer)) continue;
    int iLadder = cluster.getSensorID().getLadderNumber();
    int iSensor = cluster.getSensorID().getSensorNumber();
    VxdID sensorID(iLayer, iLadder, iSensor);
    int index = gTools->getSVDSensorIndex(sensorID);
    SVD::SensorInfo SensorInfo = dynamic_cast<const SVD::SensorInfo&>(VXD::GeoCache::getInstance().getSensorInfo(sensorID));

    float time = cluster.getClsTime();
    if (m_desynchSVDTime && m_svdEventInfo.isValid())
      time = time - m_svdEventInfo->getSVD2FTSWTimeShift(cluster.getFirstFrame());

    vector<int> vec = cluster.getTimeGroupId();
    auto minElement = min_element(vec.begin(), vec.end());
    int groupId  = -1;
    if (vec.size() > 0) {
      groupId = *minElement;

      if (cluster.isUCluster()) {
        if (m_clusterTimeGroupIdU != nullptr) m_clusterTimeGroupIdU->Fill(time, groupId);
        if (m_objTrgSummary.isValid()) {
          int trgQuality = m_objTrgSummary->getTimQuality();
          if (trgQuality == 1)
            if (m_clusterTimeCoarseGroupIdU != nullptr) m_clusterTimeCoarseGroupIdU->Fill(time, groupId);
          if (trgQuality == 2)
            if (m_clusterTimeFineGroupIdU != nullptr) m_clusterTimeFineGroupIdU->Fill(time, groupId);
        }

      } else {
        if (m_clusterTimeGroupIdV != nullptr) m_clusterTimeGroupIdV->Fill(time, groupId);
        if (m_objTrgSummary.isValid()) {
          int trgQuality = m_objTrgSummary->getTimQuality();
          if (trgQuality == 1)
            if (m_clusterTimeCoarseGroupIdV != nullptr) m_clusterTimeCoarseGroupIdV->Fill(time, groupId);
          if (trgQuality == 2)
            if (m_clusterTimeFineGroupIdV != nullptr) m_clusterTimeFineGroupIdV->Fill(time, groupId);
        }
      }
    }

    if (cluster.isUCluster()) {
      countsU.at(index).insert(SensorInfo.getUCellID(cluster.getPosition()));
      int indexChip = gTools->getSVDChipIndex(sensorID, kTRUE,
                                              (int)(SensorInfo.getUCellID(cluster.getPosition()) / gTools->getSVDChannelsPerChip()) + 1);
      if (m_hitMapClCountsU != nullptr) m_hitMapClCountsU->Fill(index);
      if (m_hitMapClCountsChip != nullptr) m_hitMapClCountsChip->Fill(indexChip);
      if (m_clusterChargeU[index] != nullptr) m_clusterChargeU[index]->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
      if (m_clusterSNRU[index] != nullptr) m_clusterSNRU[index]->Fill(cluster.getSNR());
      if (m_clusterChargeUAll != nullptr) m_clusterChargeUAll->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
      if (m_clusterSNRUAll != nullptr) m_clusterSNRUAll->Fill(cluster.getSNR());
      if (m_clusterSizeU[index] != nullptr) m_clusterSizeU[index]->Fill(cluster.getSize());
      if (m_clusterTimeU[index] != nullptr) m_clusterTimeU[index]->Fill(time);
      if (m_clusterTimeUAll != nullptr) m_clusterTimeUAll->Fill(time);
      if (iLayer == 3) {
        if (m_clusterChargeU3 != nullptr) m_clusterChargeU3->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
        if (m_clusterSNRU3 != nullptr) m_clusterSNRU3->Fill(cluster.getSNR());
        if (m_clusterTimeU3 != nullptr) m_clusterTimeU3->Fill(time);
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_cluster3SampleTimeU3 != nullptr) m_cluster3SampleTimeU3->Fill(time);
          } else {
            if (m_cluster6SampleTimeU3 != nullptr) m_cluster6SampleTimeU3->Fill(time);
          }
        }
      } else {
        if (m_clusterChargeU456 != nullptr) m_clusterChargeU456->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
        if (m_clusterSNRU456 != nullptr) m_clusterSNRU456->Fill(cluster.getSNR());
        if (m_clusterTimeU456 != nullptr) m_clusterTimeU456->Fill(time);
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_cluster3SampleTimeU456 != nullptr) m_cluster3SampleTimeU456->Fill(time);
          } else {
            if (m_cluster6SampleTimeU456 != nullptr) m_cluster6SampleTimeU456->Fill(time);
          }
        }
      }

      if (m_ShowAllHistos == 1)
        if (m_hitMapUCl[index] != nullptr) m_hitMapUCl[index]->Fill(SensorInfo.getUCellID(cluster.getPosition()));

      // groupId for U side
      if (groupId == 0) {
        for (const SVDShaperDigit& digitIn : cluster.getRelationsTo<SVDShaperDigit>(m_storeSVDShaperDigitsName)) {
          if (m_stripCountGroupId0U != nullptr) m_stripCountGroupId0U[index]->Fill(digitIn.getCellID());
        }
      }
    } else {
      countsV.at(index).insert(SensorInfo.getVCellID(cluster.getPosition()));
      int indexChip = gTools->getSVDChipIndex(sensorID, kFALSE,
                                              (int)(SensorInfo.getVCellID(cluster.getPosition()) / gTools->getSVDChannelsPerChip()) + 1);
      if (m_hitMapClCountsV != nullptr) m_hitMapClCountsV->Fill(index);
      if (m_hitMapClCountsChip != nullptr) m_hitMapClCountsChip->Fill(indexChip);
      if (m_clusterChargeV[index] != nullptr) m_clusterChargeV[index]->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
      if (m_clusterSNRV[index] != nullptr) m_clusterSNRV[index]->Fill(cluster.getSNR());
      if (m_clusterChargeVAll != nullptr) m_clusterChargeVAll->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
      if (m_clusterSNRVAll != nullptr) m_clusterSNRVAll->Fill(cluster.getSNR());
      if (m_clusterSizeV[index] != nullptr) m_clusterSizeV[index]->Fill(cluster.getSize());
      if (m_clusterTimeV[index] != nullptr) m_clusterTimeV[index]->Fill(time);
      if (m_clusterTimeVAll != nullptr) m_clusterTimeVAll->Fill(time);
      if (iLayer == 3) {
        if (m_clusterChargeV3 != nullptr) m_clusterChargeV3->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
        if (m_clusterSNRV3 != nullptr) m_clusterSNRV3->Fill(cluster.getSNR());
        if (m_clusterTimeV3 != nullptr) m_clusterTimeV3->Fill(time);
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_cluster3SampleTimeV3 != nullptr) m_cluster3SampleTimeV3->Fill(time);
          } else {
            if (m_cluster6SampleTimeV3 != nullptr) m_cluster6SampleTimeV3->Fill(time);
          }
        }
      } else {
        if (m_clusterChargeV456 != nullptr) m_clusterChargeV456->Fill(cluster.getCharge() / 1000.0);  // in kelectrons
        if (m_clusterSNRV456 != nullptr) m_clusterSNRV456->Fill(cluster.getSNR());
        if (m_clusterTimeV456 != nullptr) m_clusterTimeV456->Fill(time);
        if (m_3Samples) {
          if (nSamples == 3) {
            if (m_cluster3SampleTimeV456 != nullptr) m_cluster3SampleTimeV456->Fill(time);
          } else {
            if (m_cluster6SampleTimeV456 != nullptr) m_cluster6SampleTimeV456->Fill(time);
          }
        }
      }
      if (m_ShowAllHistos == 1)
        if (m_hitMapVCl[index] != nullptr) m_hitMapVCl[index]->Fill(SensorInfo.getVCellID(cluster.getPosition()));

      // groupId for V side
      if (groupId == 0) {
        for (const SVDShaperDigit& digitIn : cluster.getRelationsTo<SVDShaperDigit>(m_storeSVDShaperDigitsName)) {
          if (m_stripCountGroupId0V != nullptr) m_stripCountGroupId0V[index]->Fill(digitIn.getCellID());
        }
      }
    }
  }
  if (m_additionalPlots) {
    for (int i = 0; i < nSVDSensors; i++) {
      if ((m_clustersU[i] != nullptr) && (countsU[i].size() > 0))
        m_clustersU[i]->Fill(countsU[i].size());
      if ((m_clustersV[i] != nullptr) && (countsV[i].size() > 0))
        m_clustersV[i]->Fill(countsV[i].size());
    }
  }
}

exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional pathes */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 324 of file Module.h.

    {
      return m_conditions;
    }

getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 314 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 202 of file Module.h.

{return m_description;}

getFileNames()

virtual std::vector< std::string > getFileNames ( bool  outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, StorageRootOutputModule, and RootOutputModule.

Definition at line 134 of file Module.h.

    {
      return std::vector<std::string>();
    }

getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 225 of file Module.h.

{return m_logConfig;}

getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 506 of file Module.h.

{ return std::list<ModulePtr>(); }

getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

{return m_name;}

getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 197 of file Module.h.

{return m_package;}

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 363 of file Module.h.

{ return m_moduleParamList; }

getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

{ return m_returnValue; }

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 311 of file Module.h.

{ return not m_conditions.empty(); };

hasProperties()

bool hasProperties ( unsigned int  propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 378 of file Module.h.

{ return m_hasReturnValue; }

hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

if_false()

void if_false ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

if_true()

void if_true ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

if_value()

void if_value ( const std::string &  expression, const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

initialize()

void initialize ( void  )

finaloverridevirtual

Module function initialize.

Reimplemented from HistoModule.

Definition at line 808 of file SVDDQMExpressRecoModule.cc.

{
  // Register histograms (calls back defineHisto)
  REG_HISTOGRAM

  auto gTools = VXD::GeoCache::getInstance().getGeoTools();
  if (gTools->getNumberOfSVDLayers() != 0) {
    //Register collections
    StoreArray<SVDShaperDigit> storeNoZSSVDShaperDigits(m_storeNoZSSVDShaperDigitsName);
    StoreArray<SVDShaperDigit> storeSVDShaperDigits(m_storeSVDShaperDigitsName);
    StoreArray<SVDCluster> storeSVDClusters(m_storeSVDClustersName);

    storeSVDClusters.isOptional();
    storeSVDShaperDigits.isOptional();
    m_svdEventInfo.isOptional();
    storeNoZSSVDShaperDigits.isOptional();

    //Store names to speed up creation later
    m_storeSVDShaperDigitsName = storeSVDShaperDigits.getName();
  }

  m_objTrgSummary.isOptional();
}

setAbortLevel()

void setAbortLevel ( int  abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

setDebugLevel()

void setDebugLevel ( int  debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

setDescription()

void setDescription ( const std::string &  description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

setLogConfig()

void setLogConfig ( const LogConfig &  logConfig )

inlineinherited

Set the log system configuration.

Definition at line 230 of file Module.h.

{m_logConfig = logConfig;}

setLogInfo()

void setLogInfo ( int  logLevel, unsigned int  logInfo  )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

setLogLevel()

void setLogLevel ( int  logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

setName()

void setName ( const std::string &  name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

{ m_name = name; };

setParamList()

void setParamList ( const ModuleParamList &  params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 501 of file Module.h.

{ m_moduleParamList = params; }

setParamPython()

void setParamPython ( const std::string &  name, const boost::python::object &  pyObj  )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

setReturnValue() [1/2]

void setReturnValue ( bool  value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setReturnValue() [2/2]

void setReturnValue ( int  value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setType()

void setType ( const std::string &  type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

terminate()

void terminate ( void  )

finaloverridevirtual

Module function terminate.

Reimplemented from HistoModule.

Definition at line 1174 of file SVDDQMExpressRecoModule.cc.

{
  //  m_histoList->Delete();
  delete m_histoList;

}

Member Data Documentation

m_3Samples

bool m_3Samples = false

private

if true enable 3 samples histograms analysis

Definition at line 80 of file SVDDQMExpressRecoModule.h.

m_additionalPlots

bool m_additionalPlots = false

private

additional plots flag

Definition at line 77 of file SVDDQMExpressRecoModule.h.

m_cluster3SampleTimeU3

TH1F* m_cluster3SampleTimeU3 = nullptr

private

u Time of clusters for layer 3 sensors for 3 samples

Definition at line 257 of file SVDDQMExpressRecoModule.h.

m_cluster3SampleTimeU456

TH1F* m_cluster3SampleTimeU456 = nullptr

private

u Time of clusters for layer 4,5,6 sensors for 3 samples

Definition at line 261 of file SVDDQMExpressRecoModule.h.

m_cluster3SampleTimeV3

TH1F* m_cluster3SampleTimeV3 = nullptr

private

v Time of clusters for layer 3 sensors for 3 samples

Definition at line 259 of file SVDDQMExpressRecoModule.h.

m_cluster3SampleTimeV456

TH1F* m_cluster3SampleTimeV456 = nullptr

private

v Time of clusters for layer 4,5,6 sensors for 3 samples

Definition at line 263 of file SVDDQMExpressRecoModule.h.

m_cluster6SampleTimeU3

TH1F* m_cluster6SampleTimeU3 = nullptr

private

u Time of clusters for layer 3 sensors for 6 samples

Definition at line 266 of file SVDDQMExpressRecoModule.h.

m_cluster6SampleTimeU456

TH1F* m_cluster6SampleTimeU456 = nullptr

private

u Time of clusters for layer 4,5,6 sensors for 6 samples

Definition at line 270 of file SVDDQMExpressRecoModule.h.

m_cluster6SampleTimeV3

TH1F* m_cluster6SampleTimeV3 = nullptr

private

v Time of clusters for layer 3 sensors for 6 samples

Definition at line 268 of file SVDDQMExpressRecoModule.h.

m_cluster6SampleTimeV456

TH1F* m_cluster6SampleTimeV456 = nullptr

private

v Time of clusters for layer 4,5,6 sensors for 6 samples

Definition at line 272 of file SVDDQMExpressRecoModule.h.

m_clusterChargeU

TH1F** m_clusterChargeU = nullptr

private

u charge of clusters

Definition at line 134 of file SVDDQMExpressRecoModule.h.

m_clusterChargeU3

TH1F* m_clusterChargeU3 = nullptr

private

u charge of clusters for layer 3 sensors

Definition at line 142 of file SVDDQMExpressRecoModule.h.

m_clusterChargeU456

TH1F* m_clusterChargeU456 = nullptr

private

u charge of clusters for layer 4,5,6 sensors

Definition at line 146 of file SVDDQMExpressRecoModule.h.

m_clusterChargeUAll

TH1F* m_clusterChargeUAll = nullptr

private

u charge of clusters for all sensors

Definition at line 138 of file SVDDQMExpressRecoModule.h.

m_clusterChargeV

TH1F** m_clusterChargeV = nullptr

private

v charge of clusters

Definition at line 136 of file SVDDQMExpressRecoModule.h.

m_clusterChargeV3

TH1F* m_clusterChargeV3 = nullptr

private

v charge of clusters for layer 3 sensors

Definition at line 144 of file SVDDQMExpressRecoModule.h.

m_clusterChargeV456

TH1F* m_clusterChargeV456 = nullptr

private

v charge of clusters for layer 4,5,6 sensors

Definition at line 148 of file SVDDQMExpressRecoModule.h.

m_clusterChargeVAll

TH1F* m_clusterChargeVAll = nullptr

private

v charge of clusters for all sensors

Definition at line 140 of file SVDDQMExpressRecoModule.h.

m_clusterSizeU

TH1F** m_clusterSizeU = nullptr

private

u size

Definition at line 219 of file SVDDQMExpressRecoModule.h.

m_clusterSizeV

TH1F** m_clusterSizeV = nullptr

private

v size

Definition at line 221 of file SVDDQMExpressRecoModule.h.

m_clusterSNRU

TH1F** m_clusterSNRU = nullptr

private

u SNR of clusters per sensor

Definition at line 151 of file SVDDQMExpressRecoModule.h.

m_clusterSNRU3

TH1F* m_clusterSNRU3 = nullptr

private

u SNR of clusters for layer 3 sensors

Definition at line 159 of file SVDDQMExpressRecoModule.h.

m_clusterSNRU456

TH1F* m_clusterSNRU456 = nullptr

private

u SNR of clusters for layer 4,5,6 sensors

Definition at line 163 of file SVDDQMExpressRecoModule.h.

m_clusterSNRUAll

TH1F* m_clusterSNRUAll = nullptr

private

u SNR of clusters for all sensors

Definition at line 155 of file SVDDQMExpressRecoModule.h.

m_clusterSNRV

TH1F** m_clusterSNRV = nullptr

private

v SNR of clusters per sensor

Definition at line 153 of file SVDDQMExpressRecoModule.h.

m_clusterSNRV3

TH1F* m_clusterSNRV3 = nullptr

private

v SNR of clusters for layer 3 sensors

Definition at line 161 of file SVDDQMExpressRecoModule.h.

m_clusterSNRV456

TH1F* m_clusterSNRV456 = nullptr

private

v SNR of clusters for layer 4,5,6 sensors

Definition at line 165 of file SVDDQMExpressRecoModule.h.

m_clusterSNRVAll

TH1F* m_clusterSNRVAll = nullptr

private

v SNR of clusters for all sensors

Definition at line 157 of file SVDDQMExpressRecoModule.h.

m_clustersU

TH1F** m_clustersU = nullptr

private

number of u clusters per event

Definition at line 129 of file SVDDQMExpressRecoModule.h.

m_clustersV

TH1F** m_clustersV = nullptr

private

number of v clusters per event

Definition at line 131 of file SVDDQMExpressRecoModule.h.

m_clusterTimeCoarseGroupIdU

TH2F* m_clusterTimeCoarseGroupIdU = nullptr

private

time group id for U side for coarse trigger

Definition at line 235 of file SVDDQMExpressRecoModule.h.

m_clusterTimeCoarseGroupIdV

TH2F* m_clusterTimeCoarseGroupIdV = nullptr

private

time group id for V side for coarse trigger

Definition at line 237 of file SVDDQMExpressRecoModule.h.

m_clusterTimeFineGroupIdU

TH2F* m_clusterTimeFineGroupIdU = nullptr

private

time group id for U side for fine trigger

Definition at line 230 of file SVDDQMExpressRecoModule.h.

m_clusterTimeFineGroupIdV

TH2F* m_clusterTimeFineGroupIdV = nullptr

private

time group id for V side for fine trigger

Definition at line 232 of file SVDDQMExpressRecoModule.h.

m_clusterTimeGroupIdU

TH2F* m_clusterTimeGroupIdU = nullptr

private

time group id for U side

Definition at line 224 of file SVDDQMExpressRecoModule.h.

m_clusterTimeGroupIdV

TH2F* m_clusterTimeGroupIdV = nullptr

private

time group id for V side

Definition at line 226 of file SVDDQMExpressRecoModule.h.

m_clusterTimeU

TH1F** m_clusterTimeU = nullptr

private

u time

Definition at line 240 of file SVDDQMExpressRecoModule.h.

m_clusterTimeU3

TH1F* m_clusterTimeU3 = nullptr

private

u Time of clusters for layer 3 sensors

Definition at line 248 of file SVDDQMExpressRecoModule.h.

m_clusterTimeU456

TH1F* m_clusterTimeU456 = nullptr

private

u Time of clusters for layer 4,5,6 sensors

Definition at line 252 of file SVDDQMExpressRecoModule.h.

m_clusterTimeUAll

TH1F* m_clusterTimeUAll = nullptr

private

u time of clusters for all sensors

Definition at line 244 of file SVDDQMExpressRecoModule.h.

m_clusterTimeV

TH1F** m_clusterTimeV = nullptr

private

v time

Definition at line 242 of file SVDDQMExpressRecoModule.h.

m_clusterTimeV3

TH1F* m_clusterTimeV3 = nullptr

private

v Time of clusters for layer 3 sensors

Definition at line 250 of file SVDDQMExpressRecoModule.h.

m_clusterTimeV456

TH1F* m_clusterTimeV456 = nullptr

private

v Time of clusters for layer 4,5,6 sensors

Definition at line 254 of file SVDDQMExpressRecoModule.h.

m_clusterTimeVAll

TH1F* m_clusterTimeVAll = nullptr

private

v time of clusters for all sensors

Definition at line 246 of file SVDDQMExpressRecoModule.h.

m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 521 of file Module.h.

m_CutSVDCharge

float m_CutSVDCharge = 0.0

private

cut for accepting strips to hitmap histogram default = 0 ADU

Definition at line 94 of file SVDDQMExpressRecoModule.h.

m_CutSVDClusterCharge

float m_CutSVDClusterCharge = 0.0

private

cut for accepting clusters to hitmap histogram, default = 0 ke-

Definition at line 97 of file SVDDQMExpressRecoModule.h.

m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 511 of file Module.h.

m_desynchSVDTime

bool m_desynchSVDTime = false

private

if TRUE: svdTime back in SVD time reference

Definition at line 69 of file SVDDQMExpressRecoModule.h.

m_expNumber

int m_expNumber = 0

private

experiment number

Definition at line 86 of file SVDDQMExpressRecoModule.h.

m_firedU

TH1F** m_firedU = nullptr

private

Fired u strips per event.

Definition at line 125 of file SVDDQMExpressRecoModule.h.

m_firedV

TH1F** m_firedV = nullptr

private

Fired v strips per event.

Definition at line 127 of file SVDDQMExpressRecoModule.h.

m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 518 of file Module.h.

m_histogramDirectoryName

std::string m_histogramDirectoryName

private

Name of the histogram directory in ROOT file.

Definition at line 100 of file SVDDQMExpressRecoModule.h.

m_histoList

TList* m_histoList = nullptr

private

list of cumulative histograms

Definition at line 83 of file SVDDQMExpressRecoModule.h.

m_hitMapClCountsChip

TH1F* m_hitMapClCountsChip = nullptr

private

Hitmaps of clusters on chips.

Definition at line 123 of file SVDDQMExpressRecoModule.h.

m_hitMapClCountsU

TH1F* m_hitMapClCountsU = nullptr

private

Hitmaps u of Clusters.

Definition at line 117 of file SVDDQMExpressRecoModule.h.

m_hitMapClCountsV

TH1F* m_hitMapClCountsV = nullptr

private

Hitmaps v of Clusters.

Definition at line 119 of file SVDDQMExpressRecoModule.h.

m_hitMapCountsChip

TH1F* m_hitMapCountsChip = nullptr

private

Hitmaps of digits on chips.

Definition at line 121 of file SVDDQMExpressRecoModule.h.

m_hitMapCountsU

TH1F* m_hitMapCountsU = nullptr

private

Hitmaps u of Digits.

Definition at line 113 of file SVDDQMExpressRecoModule.h.

m_hitMapCountsV

TH1F* m_hitMapCountsV = nullptr

private

Hitmaps v of Digits.

Definition at line 115 of file SVDDQMExpressRecoModule.h.

m_hitMapU

TH2F** m_hitMapU = nullptr

private

Hitmaps pixels for u.

Definition at line 279 of file SVDDQMExpressRecoModule.h.

m_hitMapUCl

TH1F** m_hitMapUCl = nullptr

private

Hitmaps clusters for u.

Definition at line 283 of file SVDDQMExpressRecoModule.h.

m_hitMapV

TH2F** m_hitMapV = nullptr

private

Hitmaps pixels for v.

Definition at line 281 of file SVDDQMExpressRecoModule.h.

m_hitMapVCl

TH1F** m_hitMapVCl = nullptr

private

Hitmaps clusters for v.

Definition at line 285 of file SVDDQMExpressRecoModule.h.

m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 514 of file Module.h.

m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 516 of file Module.h.

m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 508 of file Module.h.

m_nEvents

TH1F* m_nEvents = nullptr

private

number of events

Definition at line 110 of file SVDDQMExpressRecoModule.h.

m_objTrgSummary

StoreObjPtr<TRGSummary> m_objTrgSummary

private

Trigger Summary data object.

Definition at line 65 of file SVDDQMExpressRecoModule.h.

m_onlineZSstrip3SampleCountU

TH1F** m_onlineZSstrip3SampleCountU = nullptr

private

u strip count (online Zero Suppression) for 3 samples

Definition at line 204 of file SVDDQMExpressRecoModule.h.

m_onlineZSstrip3SampleCountV

TH1F** m_onlineZSstrip3SampleCountV = nullptr

private

v strip count (online Zero Suppression for 3 samples

Definition at line 206 of file SVDDQMExpressRecoModule.h.

m_onlineZSstrip6sampleCountU

TH1F** m_onlineZSstrip6sampleCountU = nullptr

private

u strip count (online Zero Suppression) for 6 samples

Definition at line 214 of file SVDDQMExpressRecoModule.h.

m_onlineZSstrip6sampleCountV

TH1F** m_onlineZSstrip6sampleCountV = nullptr

private

v strip count (online Zero Suppression for 6 samples

Definition at line 216 of file SVDDQMExpressRecoModule.h.

m_onlineZSstripCountU

TH1F** m_onlineZSstripCountU = nullptr

private

u strip count (online Zero Suppression)

Definition at line 189 of file SVDDQMExpressRecoModule.h.

m_onlineZSstripCountV

TH1F** m_onlineZSstripCountV = nullptr

private

v strip count (online Zero Suppression

Definition at line 191 of file SVDDQMExpressRecoModule.h.

m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 510 of file Module.h.

m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 512 of file Module.h.

m_resultStoreObjectPointer

StoreObjPtr<SoftwareTriggerResult> m_resultStoreObjectPointer

private

Store Object for reading the trigger decision.

Definition at line 72 of file SVDDQMExpressRecoModule.h.

m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 519 of file Module.h.

m_runNumber

int m_runNumber = 0

private

run number

Definition at line 88 of file SVDDQMExpressRecoModule.h.

m_ShowAllHistos

int m_ShowAllHistos = 0

private

Flag to show all histos in DQM, default = 0 (do not show)

Definition at line 91 of file SVDDQMExpressRecoModule.h.

m_skipRejectedEvents

bool m_skipRejectedEvents = true

private

if true skip events rejected by HLT (default)

Definition at line 74 of file SVDDQMExpressRecoModule.h.

m_storeNoZSSVDShaperDigitsName

std::string m_storeNoZSSVDShaperDigitsName

private

not zero-suppressed SVDShaperDigits StoreArray name

Definition at line 103 of file SVDDQMExpressRecoModule.h.

m_storeSVDClustersName

std::string m_storeSVDClustersName

private

SVDClusters StoreArray name.

Definition at line 107 of file SVDDQMExpressRecoModule.h.

m_storeSVDShaperDigitsName

std::string m_storeSVDShaperDigitsName

private

SVDShaperDigits StoreArray name.

Definition at line 105 of file SVDDQMExpressRecoModule.h.

m_strip3SampleCountU

TH1F** m_strip3SampleCountU = nullptr

private

u strip count for 3 samples

Definition at line 200 of file SVDDQMExpressRecoModule.h.

m_strip3SampleCountV

TH1F** m_strip3SampleCountV = nullptr

private

v strip count for 3 samples

Definition at line 202 of file SVDDQMExpressRecoModule.h.

m_strip6SampleCountU

TH1F** m_strip6SampleCountU = nullptr

private

u strip count for 6 samples

Definition at line 210 of file SVDDQMExpressRecoModule.h.

m_strip6SampleCountV

TH1F** m_strip6SampleCountV = nullptr

private

v strip count for 3 samples

Definition at line 212 of file SVDDQMExpressRecoModule.h.

m_stripCountGroupId0U

TH1F** m_stripCountGroupId0U = nullptr

private

U strip count for cluster time group Id = 0.

Definition at line 194 of file SVDDQMExpressRecoModule.h.

m_stripCountGroupId0V

TH1F** m_stripCountGroupId0V = nullptr

private

V strip count for cluster time group Id = 0.

Definition at line 197 of file SVDDQMExpressRecoModule.h.

m_stripCountU

TH1F** m_stripCountU = nullptr

private

u strip count

Definition at line 185 of file SVDDQMExpressRecoModule.h.

m_stripCountV

TH1F** m_stripCountV = nullptr

private

v strip count

Definition at line 187 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinU3

TH1F* m_stripMaxBinU3 = nullptr

private

u MaxBin of strips for layer 3 sensors (offline Zero Suppression)

Definition at line 172 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinU6

TH1F* m_stripMaxBinU6 = nullptr

private

u MaxBin of strips for layer 6 sensors (offline Zero Suppression)

Definition at line 176 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinUAll

TH1F* m_stripMaxBinUAll = nullptr

private

u MaxBin of strips for all sensors (offline Zero Suppression)

Definition at line 168 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinV3

TH1F* m_stripMaxBinV3 = nullptr

private

v MaxBin of strips for layer 3 sensors (offline Zero Suppression)

Definition at line 174 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinV6

TH1F* m_stripMaxBinV6 = nullptr

private

v MaxBin of strips for layer 6 sensors (offline Zero Suppression)

Definition at line 178 of file SVDDQMExpressRecoModule.h.

m_stripMaxBinVAll

TH1F* m_stripMaxBinVAll = nullptr

private

v MaxBin of strips for all sensors (offline Zero Suppression)

Definition at line 170 of file SVDDQMExpressRecoModule.h.

m_stripSignalU

TH1F** m_stripSignalU = nullptr

private

u charge of strips

Definition at line 181 of file SVDDQMExpressRecoModule.h.

m_stripSignalV

TH1F** m_stripSignalV = nullptr

private

v charge of strips

Definition at line 183 of file SVDDQMExpressRecoModule.h.

m_svdEventInfo

StoreObjPtr<SVDEventInfo> m_svdEventInfo

private

SVDEventInfo data object.

Definition at line 67 of file SVDDQMExpressRecoModule.h.

m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 509 of file Module.h.

---

The documentation for this class was generated from the following files:

• svd/modules/svdDQM/include/SVDDQMExpressRecoModule.h
• svd/modules/svdDQM/src/SVDDQMExpressRecoModule.cc
