This class defines the dbobject and the methods to access the SVD calibrations from the local runs providing the constants needed to calibrate the SVDShaperDigit: the charge, the ADC counts, the peaking time and the width. More...

#include <SVDPulseShapeCalibrations.h>

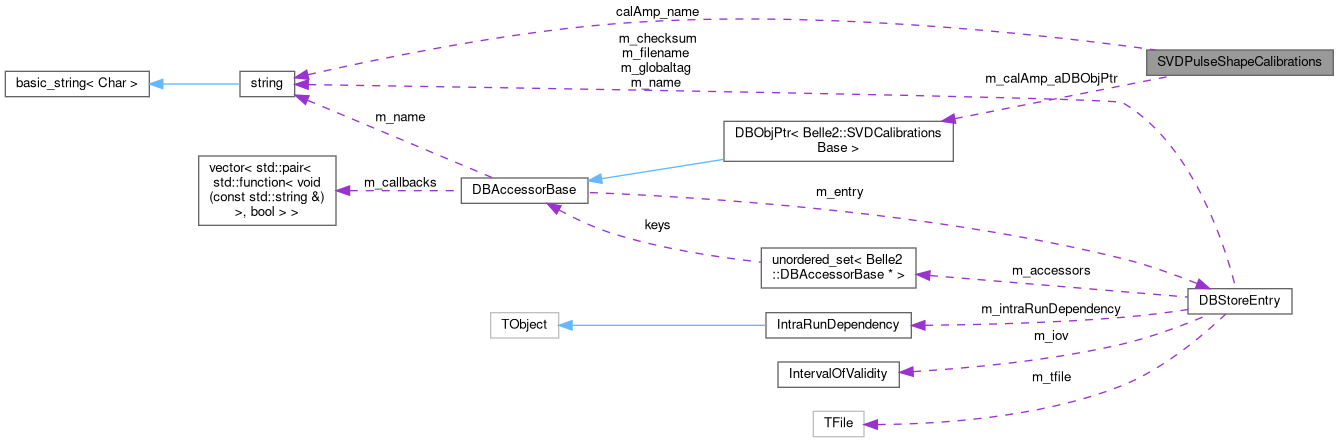

Collaboration diagram for SVDPulseShapeCalibrations:

[legend]

Public Types
typedef SVDCalibrationsBase< SVDCalibrationsVector< SVDStripCalAmp > >	t_calAmp_payload
	typedef of the SVDStripCalAmp payload of all SVD strips

Public Member Functions
	SVDPulseShapeCalibrations ()
	Constructor, no input argument is required.

double	getChargeFromADC (const Belle2::VxdID &sensorID, const bool &isU, const unsigned short &strip, const double &pulseADC) const
	Return the charge (number of electrons/holes) collected on a specific strip, given the number of ADC counts.

long int	getADCFromCharge (const Belle2::VxdID &sensorID, const bool &isU, const unsigned short &strip, const double &charge) const
	Return a signed long integer corresponding to the ADC pulse height per strip, provided the charge [e] collected on that strip.

unsigned char	getCappedADCFromCharge (const Belle2::VxdID &sensorID, const bool &isU, const unsigned short &strip, const double &charge) const
	Return an unsigned 8 bit integer corresponding to the ADC pulse height per strip, provided the charge [e] collected on that strip.

float	getPeakTime (const VxdID &sensorID, const bool &isU, const unsigned short &strip) const
	Return the peaking time of the strip.

float	getWidth (const VxdID &sensorID, const bool &isU, const unsigned short &strip) const
	Return the width of the pulse shape for a given strip.

TString	getUniqueID ()
	returns the unique ID of the payload

bool	isValid ()
	returns true if the m_aDBObtPtr is valid in the requested IoV

Static Public Attributes
static std::string	calAmp_name = std::string("SVDPulseShapeCalibrations")
	name of the SVDStripCalAmp payload

Private Member Functions
float	getGain (const VxdID &sensorID, const bool &isU, const unsigned short &strip) const
	Return the channel gain.

Private Attributes
DBObjPtr< t_calAmp_payload >	m_calAmp_aDBObjPtr
	SVDStripCalAmp payload.

Detailed Description

This class defines the dbobject and the methods to access the SVD calibrations from the local runs providing the constants needed to calibrate the SVDShaperDigit: the charge, the ADC counts, the peaking time and the width.

Definition at line 34 of file SVDPulseShapeCalibrations.h.

Member Typedef Documentation

◆ t_calAmp_payload

typedef SVDCalibrationsBase< SVDCalibrationsVector< SVDStripCalAmp > > t_calAmp_payload

typedef of the SVDStripCalAmp payload of all SVD strips

Definition at line 38 of file SVDPulseShapeCalibrations.h.

Constructor & Destructor Documentation

◆ SVDPulseShapeCalibrations()

SVDPulseShapeCalibrations ( )

inline

Constructor, no input argument is required.

Definition at line 41 of file SVDPulseShapeCalibrations.h.

      : m_calAmp_aDBObjPtr(calAmp_name)
    {
      m_calAmp_aDBObjPtr.addCallback([ this ](const std::string&) -> void {
        B2DEBUG(20, "SVDPulseShapeCalibrations: from now on we are using " <<
                this->m_calAmp_aDBObjPtr -> get_uniqueID()); });
    }

Member Function Documentation

◆ getADCFromCharge()

long int getADCFromCharge	(	const Belle2::VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip,
		const double &	charge
	)		const

inline

Return a signed long integer corresponding to the ADC pulse height per strip, provided the charge [e] collected on that strip.

Input:

Parameters

sensorID	identity of the sensor for which the calibration is required
isU	sensor side, true for p side, false for n side
strip	strip number
charge	the charge in units [e] is also required as input argument

Output: an integer number representing the ADC pulse height for the correponding input charge, on the given strip. The output is capped at 255.

Definition at line 85 of file SVDPulseShapeCalibrations.h.

    {
      return roundl(charge * getGain(sensorID, isU, strip));
    }

◆ getCappedADCFromCharge()

unsigned char getCappedADCFromCharge	(	const Belle2::VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip,
		const double &	charge
	)		const

inline

Return an unsigned 8 bit integer corresponding to the ADC pulse height per strip, provided the charge [e] collected on that strip.

Input:

Parameters

sensorID	identity of the sensor for which the calibration is required
isU	sensor side, true for p side, false for n side
strip	strip number
charge	the charge in units [e] is also required as input argument

Output: an integer number representing the ADC pulse height for the correponding input charge, on the given strip. The output is capped at 255.

Definition at line 109 of file SVDPulseShapeCalibrations.h.

    {
      auto chargeLongInt = getADCFromCharge(sensorID, isU, strip, charge);
      if (chargeLongInt < 0)
        return 0;
      return chargeLongInt > 255 ? 255 : chargeLongInt;
    }

◆ getChargeFromADC()

double getChargeFromADC	(	const Belle2::VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip,
		const double &	pulseADC
	)		const

inline

Return the charge (number of electrons/holes) collected on a specific strip, given the number of ADC counts.

Input:

Parameters

sensorID	identity of the sensor for which the calibration is required
isU	sensor side, true for p side, false for n side
strip	strip number
pulseADC	: The ADC-pulse height, a double between 0 and 255 (included)

Output: float corresponding to the charge [e] converted from the read ADC pulse.

Definition at line 61 of file SVDPulseShapeCalibrations.h.

    {
      return  pulseADC / getGain(sensorID, isU, strip);
    }

◆ getGain()

float getGain	(	const VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip
	)		const

inlineprivate

Return the channel gain.

the gain is expressed in ADC counts / # electrons injected in the channel That is: pulseADC / gain = charge [e] charge * gain = pulse height [ADC counts]

Definition at line 180 of file SVDPulseShapeCalibrations.h.

    {
      return m_calAmp_aDBObjPtr->getReference(sensorID.getLayerNumber(), sensorID.getLadderNumber(), sensorID.getSensorNumber(),
                                              m_calAmp_aDBObjPtr->sideIndex(isU), strip).gain ;

    }

◆ getPeakTime()

float getPeakTime	(	const VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip
	)		const

inline

Return the peaking time of the strip.

Input:

Parameters

sensorID	identity of the sensor for which the calibration is required
isU	sensor side, true for p side, false for n side
strip	strip number

Output: a float number corresponding to the peaking time

Definition at line 130 of file SVDPulseShapeCalibrations.h.

    {
      return m_calAmp_aDBObjPtr->getReference(sensorID.getLayerNumber(), sensorID.getLadderNumber(),
                                              sensorID.getSensorNumber(), m_calAmp_aDBObjPtr->sideIndex(isU),
                                              strip).peakTime;
    }

◆ getUniqueID()

TString getUniqueID ( )

inline

returns the unique ID of the payload

Definition at line 163 of file SVDPulseShapeCalibrations.h.

163{ return m_calAmp_aDBObjPtr->get_uniqueID(); }

◆ getWidth()

float getWidth	(	const VxdID &	sensorID,
		const bool &	isU,
		const unsigned short &	strip
	)		const

inline

Return the width of the pulse shape for a given strip.

Since it is provided from local run measurements in [APV clock/8] units, the correct value to be uploaded on the central DB for the width in [ns], the conversion factor [31.44ns/8] must be applied. The payload already retrieves the converted width in [ns].

Input:

Parameters

sensorID	identity of the sensor for which the calibration is required
isU	sensor side, true for p side, false for n side
strip	strip number

Output: a float number corresponding to the pulse width in ns.

Definition at line 154 of file SVDPulseShapeCalibrations.h.

    {
      return m_calAmp_aDBObjPtr->getReference(sensorID.getLayerNumber(), sensorID.getLadderNumber(), sensorID.getSensorNumber(),
                                              m_calAmp_aDBObjPtr->sideIndex(isU), strip).pulseWidth;

    }

◆ isValid()

bool isValid ( )

inline

returns true if the m_aDBObtPtr is valid in the requested IoV

Definition at line 166 of file SVDPulseShapeCalibrations.h.

    {
      return m_calAmp_aDBObjPtr.isValid();
    }

Member Data Documentation

◆ calAmp_name

std::string calAmp_name = std::string("SVDPulseShapeCalibrations")

static

name of the SVDStripCalAmp payload

Definition at line 36 of file SVDPulseShapeCalibrations.h.

◆ m_calAmp_aDBObjPtr

DBObjPtr< t_calAmp_payload > m_calAmp_aDBObjPtr

private

SVDStripCalAmp payload.

Definition at line 189 of file SVDPulseShapeCalibrations.h.

The documentation for this class was generated from the following files:

svd/calibration/include/SVDPulseShapeCalibrations.h
svd/calibration/src/SVDPulseShapeCalibrations.cc
