FixedStyling< AObject > Class Template Reference

Implementation of a styling from fixed attribute map. More...

#include <Styling.h>

Inheritance diagram for FixedStyling< AObject >:

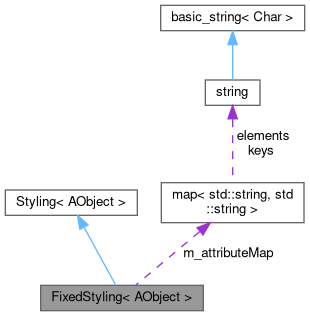

Collaboration diagram for FixedStyling< AObject >:

Public Member Functions
AttributeMap	map (int index, AObject &object) override
	Return the fixed attributes on each invocation.
std::string	info () override
	Informal string summarizing the translation from the object to the styling attributes.
void	set (const std::string &key, const std::string &value)
	Sets the given attribute to the fixed value.
void	setStroke (const std::string &value)
	Legacy - Sets the stroke color to the fixed value.
void	setStrokeWidth (const std::string &value)
	Legacy - Sets the stroke width to the fixed value.

Private Attributes
AttributeMap	m_attributeMap
	Memory for the fixed attribute values.

Detailed Description

template<class AObject>
class Belle2::TrackFindingCDC::FixedStyling< AObject >

Implementation of a styling from fixed attribute map.

Definition at line 54 of file Styling.h.

Member Function Documentation

info()

std::string info ( )

inlineoverridevirtual

Informal string summarizing the translation from the object to the styling attributes.

Reimplemented from Styling< AObject >.

Definition at line 65 of file Styling.h.

      {
        std::ostringstream oss;
        for (const auto& keyValue : m_attributeMap) {
          oss << keyValue.first << ": " << keyValue.second << '\n';
        }
        return oss.str();
      }

map()

AttributeMap map ( int  index, AObject &  object  )

inlineoverridevirtual

Return the fixed attributes on each invocation.

Reimplemented from Styling< AObject >.

Definition at line 58 of file Styling.h.

      {
        return m_attributeMap;
      }

set()

void set ( const std::string &  key, const std::string &  value  )

inline

Sets the given attribute to the fixed value.

Definition at line 75 of file Styling.h.

      {
        m_attributeMap.emplace(key, value);
      }

setStroke()

void setStroke ( const std::string &  value )

inline

Legacy - Sets the stroke color to the fixed value.

Definition at line 81 of file Styling.h.

      {
        set("stroke", value);
      }

setStrokeWidth()

void setStrokeWidth ( const std::string &  value )

inline

Legacy - Sets the stroke width to the fixed value.

Definition at line 87 of file Styling.h.

      {
        set("stroke-width", value);
      }

Member Data Documentation

m_attributeMap

AttributeMap m_attributeMap

private

Memory for the fixed attribute values.

Definition at line 94 of file Styling.h.

---

The documentation for this class was generated from the following file:

• tracking/trackFindingCDC/display/include/Styling.h
