Tested ASIC chips. More...

#include <ARICHAsicInfo.h>

Inheritance diagram for ARICHAsicInfo:

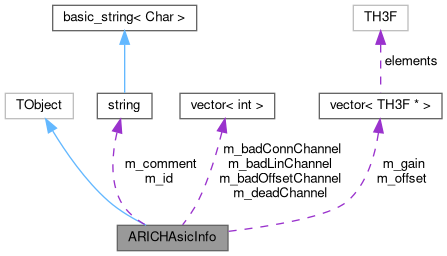

Collaboration diagram for ARICHAsicInfo:

[legend]

Public Member Functions
	ARICHAsicInfo ()
	Default constructor.

	ARICHAsicInfo (const std::string &id, TTimeStamp timeFinishGain, TTimeStamp timeFinishOffset, std::vector< int > &deadChannel, std::vector< int > &badConnChannel, std::vector< int > &badOffsetChannel, std::vector< int > &badLinChannel, int numProbCh, std::vector< TH3F * > &gain, std::vector< TH3F * > &offset, const std::string &comment)
	Constructor.

	~ARICHAsicInfo ()
	Destructor.

std::string	getAsicID () const
	Get ASIC identifier.

void	setAsicID (const std::string &id)
	Set ASIC identifier.

TTimeStamp	getTimeFinishGain () const
	Get test date gain - finish.

void	setTimeFinishGain (TTimeStamp timeFinishGain)
	Set test date gain - finish.

TTimeStamp	getTimeFinishOffset () const
	Get test date offset - finish.

void	setTimeFinishOffset (TTimeStamp timeFinishOffset)
	Set Test date offset - finish.

int	getDeadChannel (unsigned int i) const
	Get a channel number from the list of dead channels.

void	appendDeadChannel (int channel)
	Add a channel number to the list of dead channels.

void	setDeadChannels (const std::vector< int > &deadChannels)
	Set vector of dead channel numbers.

int	getDeadChannelsSize () const
	Get size of the list of dead channels.

int	getBadConnChannel (unsigned int i) const
	Get a channel number from the list of channels with bad connections.

void	appendBadConnChannel (int channel)
	Add a channel number to the list of channels with bad connections.

void	setBadConnChannels (const std::vector< int > &badConnChannels)
	Set vector of bad connection channel numbers.

int	getBadConnChannelsSize () const
	Get size of the list of channels with bad connections.

int	getBadOffsetChannel (unsigned int i) const
	Get a channel number from the list of channels with bad offset adjustment.

void	appendBadOffsetChannel (int channel)
	Add a channel number to the list of channels with bad offset adjustment.

void	setBadOffsetChannels (const std::vector< int > &badOffsetChannels)
	Set vector of bad offset channel numbers.

int	getBadOffsetChannelsSize () const
	Get size of the list of channels with bad offset adjustment.

int	getBadLinChannel (unsigned int i) const
	Get a channel number from the list of channels with bad linearity.

void	appendBadLinChannel (int channel)
	Add a channel number to the list of channels with bad linearity.

void	setBadLinChannels (const std::vector< int > &badLinChannels)
	Set vector of bad linearity channel numbers.

int	getBadLinChannelsSize () const
	Get size of the list of channels with bad linearity.

float	getNumOfProblematicChannels () const
	Get number of problematic channels.

void	setNumOfProblematicChannels (int numProbCh)
	Set number of problematic channels.

TH3F *	getGainMeasurement (unsigned int i) const
	Get measurements with different gain settings.

void	setGainMeasurement (std::vector< TH3F * > gain)
	Set measurements with different gain settings.

TH3F *	getOffsetMeasurement (unsigned int i) const
	Get measurements with different offset settings.

void	setOffsetMeasurement (std::vector< TH3F * > offset)
	Set measurements with different offset settings.

std::string	getComment () const
	Get comment.

void	setComment (const std::string &comment)
	Set comment.

Private Member Functions
	ClassDef (ARICHAsicInfo, 3)
	ClassDef.

Private Attributes
std::string	m_id
	Asic Identifier.

TTimeStamp	m_timeFinishGain
	Test Date of gain measurements - finish.

TTimeStamp	m_timeFinishOffset
	Test Date of offset measurements - finish.

std::vector< int >	m_deadChannel
	List of dead channels on the ASIC chip.

std::vector< int >	m_badConnChannel
	List of channels with bad connections during the measurement.

std::vector< int >	m_badOffsetChannel
	List of channels with bad offset adjustment.

std::vector< int >	m_badLinChannel
	List of channels with bad linearity.

int	m_numProblematicChannels
	Number of channels with problems.

std::vector< TH3F * >	m_gain
	Threshold scans with different gain settings.

std::vector< TH3F * >	m_offset
	Threshold scans with different offset settings (course & fine offset)

std::string	m_comment
	Comment.

Detailed Description

Tested ASIC chips.

Definition at line 25 of file ARICHAsicInfo.h.

Constructor & Destructor Documentation

◆ ARICHAsicInfo() [1/2]

ARICHAsicInfo ( )

inline

Default constructor.

Definition at line 32 of file ARICHAsicInfo.h.

32 : m_id(""), m_timeFinishGain(), m_timeFinishOffset(), m_deadChannel(),

33 m_badConnChannel(), m_badOffsetChannel(), m_badLinChannel(), m_numProblematicChannels(0), m_gain(), m_offset(), m_comment("") {};

Belle2::ARICHAsicInfo::m_comment

std::string m_comment

Comment.

Definition: ARICHAsicInfo.h:247

Belle2::ARICHAsicInfo::m_gain

std::vector< TH3F * > m_gain

Threshold scans with different gain settings.

Definition: ARICHAsicInfo.h:245

Belle2::ARICHAsicInfo::m_deadChannel

std::vector< int > m_deadChannel

List of dead channels on the ASIC chip.

Definition: ARICHAsicInfo.h:240

Belle2::ARICHAsicInfo::m_badConnChannel

std::vector< int > m_badConnChannel

List of channels with bad connections during the measurement.

Definition: ARICHAsicInfo.h:241

Belle2::ARICHAsicInfo::m_id

std::string m_id

Asic Identifier.

Definition: ARICHAsicInfo.h:237

Belle2::ARICHAsicInfo::m_timeFinishGain

TTimeStamp m_timeFinishGain

Test Date of gain measurements - finish.

Definition: ARICHAsicInfo.h:238

Belle2::ARICHAsicInfo::m_timeFinishOffset

TTimeStamp m_timeFinishOffset

Test Date of offset measurements - finish.

Definition: ARICHAsicInfo.h:239

Belle2::ARICHAsicInfo::m_numProblematicChannels

int m_numProblematicChannels

Number of channels with problems.

Definition: ARICHAsicInfo.h:244

Belle2::ARICHAsicInfo::m_badLinChannel

std::vector< int > m_badLinChannel

List of channels with bad linearity.

Definition: ARICHAsicInfo.h:243

Belle2::ARICHAsicInfo::m_offset

std::vector< TH3F * > m_offset

Threshold scans with different offset settings (course & fine offset)

Definition: ARICHAsicInfo.h:246

Belle2::ARICHAsicInfo::m_badOffsetChannel

std::vector< int > m_badOffsetChannel

List of channels with bad offset adjustment.

Definition: ARICHAsicInfo.h:242

◆ ARICHAsicInfo() [2/2]

ARICHAsicInfo	(	const std::string &	id,
		TTimeStamp	timeFinishGain,
		TTimeStamp	timeFinishOffset,
		std::vector< int > &	deadChannel,
		std::vector< int > &	badConnChannel,
		std::vector< int > &	badOffsetChannel,
		std::vector< int > &	badLinChannel,
		int	numProbCh,
		std::vector< TH3F * > &	gain,
		std::vector< TH3F * > &	offset,
		const std::string &	comment
	)

inline

Constructor.

Definition at line 38 of file ARICHAsicInfo.h.

                                                                                             : m_id(id),  m_timeFinishGain(timeFinishGain),
      m_timeFinishOffset(timeFinishOffset), m_deadChannel(deadChannel), m_badConnChannel(badConnChannel),
      m_badOffsetChannel(badOffsetChannel), m_badLinChannel(badLinChannel), m_numProblematicChannels(numProbCh), m_gain(gain),
      m_offset(offset), m_comment(comment) {};

◆ ~ARICHAsicInfo()

~ARICHAsicInfo ( )

inline

Destructor.

Definition at line 48 of file ARICHAsicInfo.h.

48{};

Member Function Documentation

◆ appendBadConnChannel()

void appendBadConnChannel ( int channel )

inline

Add a channel number to the list of channels with bad connections.

Parameters

[in] channel ASIC channel id.

Definition at line 122 of file ARICHAsicInfo.h.

122{ m_badConnChannel.push_back(channel); }

◆ appendBadLinChannel()

void appendBadLinChannel ( int channel )

inline

Add a channel number to the list of channels with bad linearity.

Parameters

[in] channel ASIC channel id.

Definition at line 173 of file ARICHAsicInfo.h.

173{ m_badLinChannel.push_back(channel); }

◆ appendBadOffsetChannel()

void appendBadOffsetChannel ( int channel )

inline

Add a channel number to the list of channels with bad offset adjustment.

Parameters

[in] channel ASIC channel id.

Definition at line 148 of file ARICHAsicInfo.h.

148{ m_badOffsetChannel.push_back(channel); }

◆ appendDeadChannel()

void appendDeadChannel ( int channel )

inline

Add a channel number to the list of dead channels.

Parameters

[in] channel ASIC channel id

Definition at line 97 of file ARICHAsicInfo.h.

97{m_deadChannel.push_back(channel); }

◆ getAsicID()

std::string getAsicID ( ) const

inline

Get ASIC identifier.

Returns: ASIC identifier.

Definition at line 54 of file ARICHAsicInfo.h.

54{return m_id; }

◆ getBadConnChannel()

int getBadConnChannel ( unsigned int i ) const

Get a channel number from the list of channels with bad connections.

Parameters

[in] i Index of the element in the list.

Returns: Channel id.

Definition at line 21 of file ARICHAsicInfo.cc.

{
  if (i < m_badConnChannel.size()) return m_badConnChannel[i];
  else return -1;
}

◆ getBadConnChannelsSize()

int getBadConnChannelsSize ( ) const

inline

Get size of the list of channels with bad connections.

Returns: Size.

Definition at line 134 of file ARICHAsicInfo.h.

134{return m_badConnChannel.size();}

◆ getBadLinChannel()

int getBadLinChannel ( unsigned int i ) const

Get a channel number from the list of channels with bad linearity.

Parameters

[in] i Index of the element in the list.

Returns: channel id

Definition at line 35 of file ARICHAsicInfo.cc.

{
  if (i < m_badLinChannel.size()) return m_badLinChannel[i];
  else return -1;
}

◆ getBadLinChannelsSize()

int getBadLinChannelsSize ( ) const

inline

Get size of the list of channels with bad linearity.

Returns: Size.

Definition at line 185 of file ARICHAsicInfo.h.

185{return m_badLinChannel.size();}

◆ getBadOffsetChannel()

int getBadOffsetChannel ( unsigned int i ) const

Get a channel number from the list of channels with bad offset adjustment.

Parameters

[in] i Index of the element in the list.

Returns: Channel id.

Definition at line 28 of file ARICHAsicInfo.cc.

{
  if (i < m_badOffsetChannel.size()) return m_badOffsetChannel[i];
  else return -1;
}

◆ getBadOffsetChannelsSize()

int getBadOffsetChannelsSize ( ) const

inline

Get size of the list of channels with bad offset adjustment.

Returns: Size.

Definition at line 160 of file ARICHAsicInfo.h.

160{return m_badOffsetChannel.size();}

◆ getComment()

std::string getComment ( ) const

inline

Get comment.

Returns: Comment.

Definition at line 227 of file ARICHAsicInfo.h.

227{return m_comment; }

◆ getDeadChannel()

int getDeadChannel ( unsigned int i ) const

Get a channel number from the list of dead channels.

Parameters

[in] i Index of the element in the list.

Returns: Channel id.

Definition at line 14 of file ARICHAsicInfo.cc.

{
  if (i < m_deadChannel.size()) return m_deadChannel[i];
  else return -1;
}

◆ getDeadChannelsSize()

int getDeadChannelsSize ( ) const

inline

Get size of the list of dead channels.

Returns: Size.

Definition at line 109 of file ARICHAsicInfo.h.

109{return m_deadChannel.size();}

◆ getGainMeasurement()

TH3F * getGainMeasurement ( unsigned int i ) const

Get measurements with different gain settings.

Returns: Measurements with different gain settings.

Definition at line 42 of file ARICHAsicInfo.cc.

{
  if (i < m_gain.size()) return m_gain[i];
  else return NULL;
}

◆ getNumOfProblematicChannels()

float getNumOfProblematicChannels ( ) const

inline

Get number of problematic channels.

Returns: Number of problematic channels.

Definition at line 191 of file ARICHAsicInfo.h.

191{return m_numProblematicChannels; }

◆ getOffsetMeasurement()

TH3F * getOffsetMeasurement ( unsigned int i ) const

Get measurements with different offset settings.

Returns: Measurements with different offset settings.

Definition at line 55 of file ARICHAsicInfo.cc.

{
  if (i < m_offset.size()) return m_offset[i];
  else return NULL;
}

◆ getTimeFinishGain()

TTimeStamp getTimeFinishGain ( ) const

inline

Get test date gain - finish.

Returns: Test date gain - finish.

Definition at line 66 of file ARICHAsicInfo.h.

66{return m_timeFinishGain; }

◆ getTimeFinishOffset()

TTimeStamp getTimeFinishOffset ( ) const

inline

Get test date offset - finish.

Returns: Test date offset - finish.

Definition at line 78 of file ARICHAsicInfo.h.

78{return m_timeFinishOffset; }

◆ setAsicID()

void setAsicID ( const std::string & id )

inline

Set ASIC identifier.

Parameters

[in] id ASIC identifier.

Definition at line 60 of file ARICHAsicInfo.h.

60{m_id = id; }

◆ setBadConnChannels()

void setBadConnChannels ( const std::vector< int > & badConnChannels )

inline

Set vector of bad connection channel numbers.

Parameters

[in] badConnChannels ASIC channel id.

Definition at line 128 of file ARICHAsicInfo.h.

128{m_badConnChannel = badConnChannels; }

◆ setBadLinChannels()

void setBadLinChannels ( const std::vector< int > & badLinChannels )

inline

Set vector of bad linearity channel numbers.

Parameters

[in] badLinChannels ASIC channel id.

Definition at line 179 of file ARICHAsicInfo.h.

179{m_badLinChannel = badLinChannels; }

◆ setBadOffsetChannels()

void setBadOffsetChannels ( const std::vector< int > & badOffsetChannels )

inline

Set vector of bad offset channel numbers.

Parameters

[in] badOffsetChannels ASIC channel id.

Definition at line 154 of file ARICHAsicInfo.h.

154{m_badOffsetChannel = badOffsetChannels; }

◆ setComment()

void setComment ( const std::string & comment )

inline

Set comment.

Parameters

[in] comment Comment.

Definition at line 233 of file ARICHAsicInfo.h.

233{m_comment = comment; }

◆ setDeadChannels()

void setDeadChannels ( const std::vector< int > & deadChannels )

inline

Set vector of dead channel numbers.

Parameters

[in] deadChannels ASIC channel id.

Definition at line 103 of file ARICHAsicInfo.h.

103{m_deadChannel = deadChannels; }

◆ setGainMeasurement()

void setGainMeasurement ( std::vector< TH3F * > gain )

Set measurements with different gain settings.

Parameters

[in] gain Measurements with different gain settings.

Definition at line 49 of file ARICHAsicInfo.cc.

{
  for (unsigned int i = 0; i < gain.size(); i++) m_gain.push_back(gain[i]);
}

◆ setNumOfProblematicChannels()

void setNumOfProblematicChannels ( int numProbCh )

inline

Set number of problematic channels.

Parameters

[in] numProbCh Number of problematic channels.

Definition at line 197 of file ARICHAsicInfo.h.

197{m_numProblematicChannels = numProbCh; }

◆ setOffsetMeasurement()

void setOffsetMeasurement ( std::vector< TH3F * > offset )

Set measurements with different offset settings.

Parameters

[in] offset Measurements with different offset settings.

Definition at line 62 of file ARICHAsicInfo.cc.

{
  for (unsigned int i = 0; i < offset.size(); i++) m_offset.push_back(offset[i]);
}

◆ setTimeFinishGain()

void setTimeFinishGain ( TTimeStamp timeFinishGain )

inline

Set test date gain - finish.

Parameters

[in] timeFinishGain Test date gain - finish.

Definition at line 72 of file ARICHAsicInfo.h.

72{m_timeFinishGain = timeFinishGain; }

◆ setTimeFinishOffset()

void setTimeFinishOffset ( TTimeStamp timeFinishOffset )

inline

Set Test date offset - finish.

Parameters

[in] timeFinishOffset Test date offset - finish.

Definition at line 84 of file ARICHAsicInfo.h.

84{m_timeFinishOffset = timeFinishOffset; }

Member Data Documentation

◆ m_badConnChannel

std::vector<int> m_badConnChannel

private

List of channels with bad connections during the measurement.

Definition at line 241 of file ARICHAsicInfo.h.

◆ m_badLinChannel

std::vector<int> m_badLinChannel

private

List of channels with bad linearity.

Definition at line 243 of file ARICHAsicInfo.h.

◆ m_badOffsetChannel

std::vector<int> m_badOffsetChannel

private

List of channels with bad offset adjustment.

Definition at line 242 of file ARICHAsicInfo.h.

◆ m_comment

std::string m_comment

private

Comment.

Definition at line 247 of file ARICHAsicInfo.h.

◆ m_deadChannel

std::vector<int> m_deadChannel

private

List of dead channels on the ASIC chip.

Definition at line 240 of file ARICHAsicInfo.h.

◆ m_gain

std::vector<TH3F*> m_gain

private

Threshold scans with different gain settings.

Definition at line 245 of file ARICHAsicInfo.h.

◆ m_id

std::string m_id

private

Asic Identifier.

Definition at line 237 of file ARICHAsicInfo.h.

◆ m_numProblematicChannels

int m_numProblematicChannels

private

Number of channels with problems.

Definition at line 244 of file ARICHAsicInfo.h.

◆ m_offset

std::vector<TH3F*> m_offset

private

Threshold scans with different offset settings (course & fine offset)

Definition at line 246 of file ARICHAsicInfo.h.

◆ m_timeFinishGain

TTimeStamp m_timeFinishGain

private

Test Date of gain measurements - finish.

Definition at line 238 of file ARICHAsicInfo.h.

◆ m_timeFinishOffset

TTimeStamp m_timeFinishOffset

private

Test Date of offset measurements - finish.

Definition at line 239 of file ARICHAsicInfo.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHAsicInfo.h
arich/dbobjects/src/ARICHAsicInfo.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ARICHAsicInfo() [1/2]

◆ ARICHAsicInfo() [2/2]

◆ ~ARICHAsicInfo()

Member Function Documentation

◆ appendBadConnChannel()

◆ appendBadLinChannel()

◆ appendBadOffsetChannel()

◆ appendDeadChannel()

◆ getAsicID()

◆ getBadConnChannel()

◆ getBadConnChannelsSize()

◆ getBadLinChannel()

◆ getBadLinChannelsSize()

◆ getBadOffsetChannel()

◆ getBadOffsetChannelsSize()

◆ getComment()

◆ getDeadChannel()

◆ getDeadChannelsSize()

◆ getGainMeasurement()

◆ getNumOfProblematicChannels()

◆ getOffsetMeasurement()

◆ getTimeFinishGain()

◆ getTimeFinishOffset()

◆ setAsicID()

◆ setBadConnChannels()

◆ setBadLinChannels()

◆ setBadOffsetChannels()

◆ setComment()

◆ setDeadChannels()

◆ setGainMeasurement()

◆ setNumOfProblematicChannels()

◆ setOffsetMeasurement()

◆ setTimeFinishGain()

◆ setTimeFinishOffset()

Member Data Documentation

◆ m_badConnChannel

◆ m_badLinChannel

◆ m_badOffsetChannel

◆ m_comment

◆ m_deadChannel

◆ m_gain

◆ m_id

◆ m_numProblematicChannels

◆ m_offset

◆ m_timeFinishGain

◆ m_timeFinishOffset
