Geometry parameters of ARICH photon detector plane. More...

#include <ARICHGeoDetectorPlane.h>

Inheritance diagram for ARICHGeoDetectorPlane:

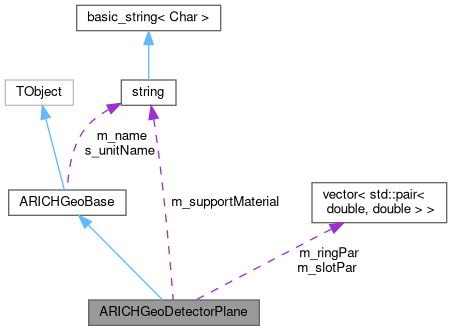

Collaboration diagram for ARICHGeoDetectorPlane:

[legend]

Public Member Functions
	ARICHGeoDetectorPlane ()
	Default constructor.

bool	isConsistent () const override
	Check if parameters are consistent.

void	print (const std::string &title="Detector plane parameters") const override
	Print the content of the class.

void	setPlacement (double x, double y, double z, double rx, double ry, double rz)
	Set detector plane positioning within ARICH local volume.

void	addSupportPlate (double inR, double outR, double thick, const std::string &material)
	Set parameters of the support plate.

void	setModuleHoleSize (double hsize)
	Set size of module hole in support plate.

void	setSupportBackWallHeight (double h)
	Set height of the aluminum walls between modules on the electronics side of aluminum support plate.

void	setSupportBackWallThickness (double d)
	Set thickness of the aluminum walls between modules on the electronics side of the aluminum support plate.

void	setSupportZPosition (double zPosition)
	Set Z position of the aluminum support plate (start Z).

void	setRingPar (const std::vector< std::pair< double, double > > &ringPar)
	Set parameters of module slot rings (r of center of slots in ring, phi (angle) distance between module slots).

ROOT::Math::XYZVector	getPosition () const
	Get center point.

ROOT::Math::Rotation3D	getRotation () const
	Get rotation matrix.

double	getRotationX () const
	Get angle of rotation around X axis.

double	getRotationY () const
	Get angle of rotation around Y axis.

double	getRotationZ () const
	Get angle of rotation around Z axis.

double	getSupportInnerR () const
	Get support plate inner radius.

double	getSupportOuterR () const
	Get support plate outer radius.

double	getSupportThickness () const
	Get support plate thickness.

double	getSupportZPosition () const
	Get Z position of support plate (start point in Z).

double	getModuleHoleSize () const
	Get size of module hole in support plate.

double	getSupportBackWallHeight () const
	Get height of the aluminum walls between modules on the electronics side of aluminum support plate.

double	getSupportBackWallThickness () const
	Get thickness of aluminum walls between modules on the electronics side of aluminum support plate.

const std::string &	getSupportMaterial () const
	Get material of support plate.

double	getRingR (unsigned iRing) const
	Get radius of i-th module slot ring (radius of center point).

double	getRingDPhi (unsigned iRing) const
	Get phi (angle) distance between module slots in i-th ring.

double	getSlotR (unsigned modID) const
	Get radial position of module with given module ID number.

double	getSlotPhi (unsigned modID) const
	Get phi (angle) position of module with given module ID number.

unsigned	getNSlots () const
	Get total number of module slots.

unsigned	getNRings () const
	Get number of module slot rings.

unsigned	getSlotRing (unsigned slotID) const
	Get ring number of slot with slot ID.

unsigned	pointSlotID (double x, double y) const
	Get slot ID based on x-y coordinates.

unsigned	getSlotIDFromSRF (unsigned sector, unsigned ring, unsigned azimuth) const
	Get slot ID based on sector, ring, and azimuth.

void	setName (const std::string &name)
	Sets object name.

const std::string &	getName () const
	Returns object name.

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface.

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters.

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDefOverride (ARICHGeoDetectorPlane, 1)
	ClassDef.

Private Attributes
std::vector< std::pair< double, double > >	m_ringPar
	parameters of module rings (radius, dPhi)

std::vector< std::pair< double, double > >	m_slotPar
	parameters of all module slots (radius, phi)

double	m_x = 0
	x position in local ARICH volume

double	m_y = 0
	y position in local ARICH volume

double	m_z
	z position in local ARICH volume (position of center of detector plane tube, with Z length of: module height)

double	m_rx = 0
	rotation around x axis

double	m_ry = 0
	rotation around y axis

double	m_rz = 0
	rotation around z axis

std::string	m_supportMaterial
	support structure material

double	m_innerR = 0
	inner radius of support plate

double	m_outerR = 0
	outer radius of support plate

double	m_thickness = 0
	thickness of support plate

double	m_moduleHoleSize = 0
	size of module hole in support plate

double	m_supportBackWallHeight = 0
	height of aluminum walls on the back side (electronics side) of support plate

double	m_supportBackWallThickness = 0
	< thickness of aluminum walls on the back side (electronics side) of support plate

double	m_supportZPosition
	Z position of support plate (position of center of support tube, with Z length of: support plate thickness + support back wall height)

unsigned	m_nRings = 0
	number of HAPD module rings

unsigned	m_nSlots = 0
	number of HAPD module slots

Detailed Description

Geometry parameters of ARICH photon detector plane.

Definition at line 30 of file ARICHGeoDetectorPlane.h.

Constructor & Destructor Documentation

◆ ARICHGeoDetectorPlane()

ARICHGeoDetectorPlane ( )

inline

Default constructor.

Definition at line 37 of file ARICHGeoDetectorPlane.h.

38 {};

Member Function Documentation

◆ addSupportPlate()

void addSupportPlate	(	double	inR,
		double	outR,
		double	thick,
		const std::string &	material
	)

inline

Set parameters of the support plate.

Parameters

[in]	inR	Tube inner radius.
[in]	outR	Tube outer radius.
[in]	thick	Tube length.
[in]	material	Tube material.

Definition at line 71 of file ARICHGeoDetectorPlane.h.

    {
      m_innerR = inR;
      m_outerR = outR;
      m_thickness = thick;
      m_supportMaterial = material;
    };

◆ getModuleHoleSize()

double getModuleHoleSize ( ) const

inline

Get size of module hole in support plate.

Returns: Module hole size.

Definition at line 181 of file ARICHGeoDetectorPlane.h.

181{return m_moduleHoleSize / s_unit;};

Belle2::ARICHGeoBase::s_unit

static double s_unit

conversion unit for length

Definition: ARICHGeoBase.h:83

Belle2::ARICHGeoDetectorPlane::m_moduleHoleSize

double m_moduleHoleSize

size of module hole in support plate

Definition: ARICHGeoDetectorPlane.h:289

◆ getName()

const std::string & getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

49{return m_name;}

Belle2::ARICHGeoBase::m_name

std::string m_name

geometry object name

Definition: ARICHGeoBase.h:82

◆ getNRings()

unsigned getNRings ( ) const

inline

Get number of module slot rings.

Returns: Number of module slot rings

Definition at line 241 of file ARICHGeoDetectorPlane.h.

241{return m_nRings;}

Belle2::ARICHGeoDetectorPlane::m_nRings

unsigned m_nRings

number of HAPD module rings

Definition: ARICHGeoDetectorPlane.h:296

◆ getNSlots()

unsigned getNSlots ( ) const

inline

Get total number of module slots.

Returns: Total number of module slots.

Definition at line 235 of file ARICHGeoDetectorPlane.h.

235{return m_nSlots;}

Belle2::ARICHGeoDetectorPlane::m_nSlots

unsigned m_nSlots

number of HAPD module slots

Definition: ARICHGeoDetectorPlane.h:297

◆ getPosition()

ROOT::Math::XYZVector getPosition ( ) const

inline

Get center point.

Returns: Center point (ROOT::Math::XYZVector)

Definition at line 119 of file ARICHGeoDetectorPlane.h.

119{return ROOT::Math::XYZVector(m_x / s_unit, m_y / s_unit, m_z / s_unit);}

Belle2::ARICHGeoDetectorPlane::m_x

double m_x

x position in local ARICH volume

Definition: ARICHGeoDetectorPlane.h:274

Belle2::ARICHGeoDetectorPlane::m_z

double m_z

z position in local ARICH volume (position of center of detector plane tube, with Z length of: module...

Definition: ARICHGeoDetectorPlane.h:276

Belle2::ARICHGeoDetectorPlane::m_y

double m_y

y position in local ARICH volume

Definition: ARICHGeoDetectorPlane.h:275

◆ getRingDPhi()

double getRingDPhi ( unsigned iRing ) const

inline

Get phi (angle) distance between module slots in i-th ring.

Parameters

[in] iRing Module slot ring number.

Returns: Phi (angle) distance between module slots.

Definition at line 215 of file ARICHGeoDetectorPlane.h.

215{ if (iRing == 0 || iRing > m_nRings) B2ERROR("ARICHGeoDetectorPlane: invalid module ring number!"); return m_ringPar[iRing - 1].second;}

Belle2::ARICHGeoDetectorPlane::m_ringPar

std::vector< std::pair< double, double > > m_ringPar

parameters of module rings (radius, dPhi)

Definition: ARICHGeoDetectorPlane.h:269

◆ getRingR()

double getRingR ( unsigned iRing ) const

inline

Get radius of i-th module slot ring (radius of center point).

Parameters

[in] iRing Module slot ring number.

Returns: Radius of module slot ring.

Definition at line 208 of file ARICHGeoDetectorPlane.h.

208{ if (iRing == 0 || iRing > m_nRings) B2ERROR("ARICHGeoDetectorPlane: invalid module ring number!"); return m_ringPar[iRing - 1].first / s_unit;}

◆ getRotation()

ROOT::Math::Rotation3D getRotation ( ) const

inline

Get rotation matrix.

Returns: Rotation matrix (ROOT::Math::Rotation3D)

Definition at line 125 of file ARICHGeoDetectorPlane.h.

    {
      ROOT::Math::Rotation3D rot;
      ROOT::Math::RotationX rotX(m_rx);
      ROOT::Math::RotationY rotY(m_ry);
      ROOT::Math::RotationZ rotZ(m_rz);
      rot *= rotZ * rotY * rotX;
      return rot;
    }

◆ getRotationX()

double getRotationX ( ) const

inline

Get angle of rotation around X axis.

Returns: Rotation angle arounx X axis.

Definition at line 139 of file ARICHGeoDetectorPlane.h.

139{return m_rx;}

◆ getRotationY()

double getRotationY ( ) const

inline

Get angle of rotation around Y axis.

Returns: Rotation angle arounx Y axis.

Definition at line 145 of file ARICHGeoDetectorPlane.h.

145{return m_ry;}

◆ getRotationZ()

double getRotationZ ( ) const

inline

Get angle of rotation around Z axis.

Returns: Rotation angle arounx Z axis.

Definition at line 151 of file ARICHGeoDetectorPlane.h.

151{return m_rz;}

◆ getSlotIDFromSRF()

unsigned getSlotIDFromSRF	(	unsigned	sector,
		unsigned	ring,
		unsigned	azimuth
	)		const

Get slot ID based on sector, ring, and azimuth.

Parameters

sector	sector
ring	ring
azimuth	azimuth

Returns: slot ID matching sector, ring, and azimuth

Definition at line 81 of file ARICHGeoDetectorPlane.cc.

{

  if (azimuth > static_cast<unsigned>(2 * M_PI / m_ringPar[ring - 1].second + 0.5) / 6 || ring > getNRings() || sector > 6)
  { B2ERROR("ARICHGeoDetectorPlane::getSlotIDFromSRF: invalid slot position parameters!"); return 0;}

  unsigned moduleID = 0;
  for (unsigned i = 1; i < ring; i++) {
    moduleID += static_cast<int>(2 * M_PI / m_ringPar[i - 1].second + 0.5);
  }
  moduleID += (sector - 1) * static_cast<int>(2 * M_PI / m_ringPar[ring - 1].second + 0.5) / 6 + (azimuth - 1);
  if (moduleID + 1 > m_nSlots) {B2ERROR("ARICHGeoDetectorPlane::getSlotIDFromSRF: invalid slot position parameters!"); return 0;}
  return moduleID + 1;
}

◆ getSlotPhi()

double getSlotPhi ( unsigned modID ) const

inline

Get phi (angle) position of module with given module ID number.

Parameters

[in] modID Module ID number.

Returns: Phi (angle) position of module.

Definition at line 229 of file ARICHGeoDetectorPlane.h.

229{ if (modID == 0 || modID > m_nSlots) B2ERROR("ARICHGeoDetectorPlane: invalid module ID number!"); return m_slotPar[modID - 1].second;};

Belle2::ARICHGeoDetectorPlane::m_slotPar

std::vector< std::pair< double, double > > m_slotPar

parameters of all module slots (radius, phi)

Definition: ARICHGeoDetectorPlane.h:271

◆ getSlotR()

double getSlotR ( unsigned modID ) const

inline

Get radial position of module with given module ID number.

Parameters

[in] modID Module ID number.

Returns: Radial position of module.

Definition at line 222 of file ARICHGeoDetectorPlane.h.

222{ if (modID == 0 || modID > m_nSlots) B2ERROR("ARICHGeoDetectorPlane: invalid module ID number!"); return m_slotPar[modID - 1].first / s_unit;};

◆ getSlotRing()

unsigned getSlotRing ( unsigned slotID ) const

Get ring number of slot with slot ID.

Parameters

[in] slotID slot ID.

Returns: Ring number of slot.

Definition at line 33 of file ARICHGeoDetectorPlane.cc.

{

  if (slotID > m_nSlots) B2ERROR("ARICHGeoDetectorPlane: invalid module slot ID number!");
  unsigned iRing = 1;
  unsigned nSlots = 0;
  for (auto dphi : m_ringPar) {
    nSlots += static_cast<int>(2 * M_PI / dphi.second + 0.5);
    if (slotID < nSlots + 1) return iRing;
    iRing++;
  }
  return 0;
}

◆ getSupportBackWallHeight()

double getSupportBackWallHeight ( ) const

inline

Get height of the aluminum walls between modules on the electronics side of aluminum support plate.

Returns: Support-plate back wall height.

Definition at line 188 of file ARICHGeoDetectorPlane.h.

188{return m_supportBackWallHeight / s_unit;};

Belle2::ARICHGeoDetectorPlane::m_supportBackWallHeight

double m_supportBackWallHeight

height of aluminum walls on the back side (electronics side) of support plate

Definition: ARICHGeoDetectorPlane.h:290

◆ getSupportBackWallThickness()

double getSupportBackWallThickness ( ) const

inline

Get thickness of aluminum walls between modules on the electronics side of aluminum support plate.

Returns: Support-plate back wall thickness.

Definition at line 195 of file ARICHGeoDetectorPlane.h.

195{return m_supportBackWallThickness / s_unit;};

Belle2::ARICHGeoDetectorPlane::m_supportBackWallThickness

double m_supportBackWallThickness

< thickness of aluminum walls on the back side (electronics side) of support plate

Definition: ARICHGeoDetectorPlane.h:291

◆ getSupportInnerR()

double getSupportInnerR ( ) const

inline

Get support plate inner radius.

Returns: Support-plate inner radius.

Definition at line 157 of file ARICHGeoDetectorPlane.h.

157{return m_innerR / s_unit;};

◆ getSupportMaterial()

const std::string & getSupportMaterial ( ) const

inline

Get material of support plate.

Returns: material of support plate.

Definition at line 201 of file ARICHGeoDetectorPlane.h.

201{return m_supportMaterial;}

◆ getSupportOuterR()

double getSupportOuterR ( ) const

inline

Get support plate outer radius.

Returns: Support-plate outer radius.

Definition at line 163 of file ARICHGeoDetectorPlane.h.

163{return m_outerR / s_unit;};

◆ getSupportThickness()

double getSupportThickness ( ) const

inline

Get support plate thickness.

Returns: Support-plate thickness.

Definition at line 169 of file ARICHGeoDetectorPlane.h.

169{return m_thickness / s_unit;};

◆ getSupportZPosition()

double getSupportZPosition ( ) const

inline

Get Z position of support plate (start point in Z).

Returns: Support-plate Z position (start point in Z).

Definition at line 175 of file ARICHGeoDetectorPlane.h.

175{return m_supportZPosition / s_unit;};

Belle2::ARICHGeoDetectorPlane::m_supportZPosition

double m_supportZPosition

Z position of support plate (position of center of support tube, with Z length of: support plate thic...

Definition: ARICHGeoDetectorPlane.h:293

◆ isConsistent()

bool isConsistent ( ) const

overridevirtual

Check if parameters are consistent.

Returns: Returns true if true.

Reimplemented from ARICHGeoBase.

Definition at line 69 of file ARICHGeoDetectorPlane.cc.

{
  if (m_outerR < m_innerR) return false;
  if (m_thickness <= 0) return false;
  if (m_moduleHoleSize < 0) return false;
  if (m_supportBackWallHeight < 0) return false;
  if (m_supportBackWallThickness < 0) return false;
  if (m_supportZPosition < 0) return false;
  if (m_ringPar.size() == 0 || m_slotPar.size() == 0) return false;
  return true;
}

◆ pointSlotID()

unsigned pointSlotID	(	double	x,
		double	y
	)		const

Get slot ID based on x-y coordinates.

Parameters

x	x-coordinate of point
y	y-coordinate of point

Returns: slot ID matching x-y coordinates

Definition at line 48 of file ARICHGeoDetectorPlane.cc.

{
  double r = sqrt(x * x + y * y);
  double phi = atan2(y, x);
  if (phi < 0) phi += 2 * M_PI;
  if (r < (m_ringPar[0].first - (m_ringPar[1].first - m_ringPar[0].first) / 2.)) return 0;

  if (r > (m_ringPar[m_nRings - 1].first + (m_ringPar[m_nRings - 1].first - m_ringPar[m_nRings - 2].first) / 2.)) return 0;

  unsigned nslot = 0;
  for (unsigned i = 1; i < m_nRings; i++) {
    if (r < (m_ringPar[i - 1].first + m_ringPar[i].first) / 2.) {
      nslot += phi / m_ringPar[i - 1].second;
      return nslot + 1;
    }
    nslot += static_cast<int>(2 * M_PI / m_ringPar[i - 1].second + 0.5);
  }
  nslot += phi / m_ringPar[m_nRings - 1].second;
  return nslot + 1;
}

◆ print()

void print ( const std::string & title = "Detector plane parameters" ) const

overridevirtual

Print the content of the class.

Parameters

[in] title Title to be printed.

Reimplemented from ARICHGeoBase.

Definition at line 97 of file ARICHGeoDetectorPlane.cc.

{
  ARICHGeoBase::print(title);
  cout << "Configuration of module slots:" << endl;
  int i = 0;
  cout << " There are " << getNRings() << " module rings." << endl;
  for (auto ring : m_ringPar) {
    cout << " ring: " << i + 1 << " has " <<  static_cast<int>(2 * M_PI / ring.second + 0.5) << " module slots, at radius: " <<
         ring.first << " cm" << endl;
    i++;
  }

  cout << " Support plate inner radius:       " << getSupportInnerR() << " " << s_unitName << endl;
  cout << " Support plate outer radius:       " << getSupportOuterR() << " " << s_unitName << endl;
  cout << " Support plate thickness:          " << getSupportThickness() << " " << s_unitName << endl;
  cout << " Support plate Z position:         " << getSupportZPosition() << " " << s_unitName << endl;
  cout << " Support plate backwalls height:   " << getSupportBackWallHeight() << " " << s_unitName << endl;
  cout << " Support plate backwall thickness: " << getSupportBackWallThickness() << " " << s_unitName << endl;
  cout << " Support plate module hole size:   " << getModuleHoleSize() << " X " << getModuleHoleSize()  << " " << s_unitName << endl;
  cout << " Support plate material:           " << getSupportMaterial() << endl;

  cout << "Positioning parameters (in local ARICH frame)" << endl;
  ARICHGeoBase::printPlacement(m_x, m_y, m_z, m_rx, m_ry, m_rz);

}

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

{
//  cout << "Volume positioning information (inside local ARICH frame)" << endl;
  cout << " Center position; x: " << x << " " << s_unitName << ", y: " << y << " " << s_unitName << ", z: " << z << " " << s_unitName
       << endl;
  cout << " Rotations; x-axis: " << rx << " y-axis: " << ry << " z-axis: " << rz << " (in rad)"  << endl;
}

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

{
  cout << " Optical surface: ";
  if (surface.getName().empty() and !surface.hasProperties()) {
    cout << "not defined" << endl;
    return;
  }
  cout << surface.getName();
  cout << ", model: " << surface.getModel();
  cout << ", finish: " << surface.getFinish();
  cout << ", type: " << surface.getType();
  cout << ", value: " << surface.getValue();
  cout << endl;
  if (surface.hasProperties()) {
    for (const auto& property : surface.getProperties()) {
      cout << "  - property: ";
      cout << property.getName() << " [";
      for (const auto& value : property.getValues()) cout << value << ", ";
      cout << "], @[";
      for (const auto& value : property.getEnergies()) cout << value / Unit::eV << ", ";
      cout << "] eV" << endl;
    }
  } else {
    cout << "  - properties: None" << endl;
  }

}

◆ setModuleHoleSize()

void setModuleHoleSize ( double hsize )

inline

Set size of module hole in support plate.

Parameters

[in] hsize Hole size.

Definition at line 83 of file ARICHGeoDetectorPlane.h.

83{m_moduleHoleSize = hsize;}

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

43{m_name = name;}

◆ setPlacement()

void setPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)

inline

Set detector plane positioning within ARICH local volume.

Parameters

[in]	x	X position.
[in]	y	Y position.
[in]	z	Z position.
[in]	rx	Rotation around x-axis.
[in]	ry	Rotation around y-axis.
[in]	rz	Rotation around z-axis.

Definition at line 62 of file ARICHGeoDetectorPlane.h.

62{m_x = x; m_y = y; m_z = z; m_rx = rx; m_ry = ry; m_rz = rz;}

◆ setRingPar()

void setRingPar ( const std::vector< std::pair< double, double > > & ringPar )

Set parameters of module slot rings (r of center of slots in ring, phi (angle) distance between module slots).

Parameters

[in] ringPar Vector of module slot ring radiuses and phi (angle) distance between module slots in ring.

Definition at line 16 of file ARICHGeoDetectorPlane.cc.

{
  m_ringPar = ringPar;

  for (auto ring : m_ringPar) {
    double iPhi = ring.second / 2.;
    while (iPhi < 2 * M_PI) {
      m_slotPar.push_back({ring.first, iPhi});
      iPhi += ring.second;
    }
  }

  m_nRings = m_ringPar.size();
  m_nSlots = m_slotPar.size();

}

◆ setSupportBackWallHeight()

void setSupportBackWallHeight ( double h )

inline

Set height of the aluminum walls between modules on the electronics side of aluminum support plate.

Parameters

[in] h Wall height.

Definition at line 90 of file ARICHGeoDetectorPlane.h.

90{m_supportBackWallHeight = h;}

◆ setSupportBackWallThickness()

void setSupportBackWallThickness ( double d )

inline

Set thickness of the aluminum walls between modules on the electronics side of the aluminum support plate.

Parameters

[in] d Wall thickness.

Definition at line 97 of file ARICHGeoDetectorPlane.h.

97{m_supportBackWallThickness = d;}

◆ setSupportZPosition()

void setSupportZPosition ( double zPosition )

inline

Set Z position of the aluminum support plate (start Z).

Parameters

[in] zPosition Z position of support plate.

Definition at line 103 of file ARICHGeoDetectorPlane.h.

103{ m_supportZPosition = zPosition; }

Member Data Documentation

◆ m_innerR

double m_innerR = 0

private

inner radius of support plate

Definition at line 286 of file ARICHGeoDetectorPlane.h.

◆ m_moduleHoleSize

double m_moduleHoleSize = 0

private

size of module hole in support plate

Definition at line 289 of file ARICHGeoDetectorPlane.h.

◆ m_name

std::string m_name

protectedinherited

geometry object name

Definition at line 82 of file ARICHGeoBase.h.

◆ m_nRings

unsigned m_nRings = 0

private

number of HAPD module rings

Definition at line 296 of file ARICHGeoDetectorPlane.h.

◆ m_nSlots

unsigned m_nSlots = 0

private

number of HAPD module slots

Definition at line 297 of file ARICHGeoDetectorPlane.h.

◆ m_outerR

double m_outerR = 0

private

outer radius of support plate

Definition at line 287 of file ARICHGeoDetectorPlane.h.

◆ m_ringPar

std::vector<std::pair<double, double> > m_ringPar

private

parameters of module rings (radius, dPhi)

Definition at line 269 of file ARICHGeoDetectorPlane.h.

◆ m_rx

double m_rx = 0

private

rotation around x axis

Definition at line 280 of file ARICHGeoDetectorPlane.h.

◆ m_ry

double m_ry = 0

private

rotation around y axis

Definition at line 281 of file ARICHGeoDetectorPlane.h.

◆ m_rz

double m_rz = 0

private

rotation around z axis

Definition at line 282 of file ARICHGeoDetectorPlane.h.

◆ m_slotPar

std::vector<std::pair<double, double> > m_slotPar

private

parameters of all module slots (radius, phi)

Definition at line 271 of file ARICHGeoDetectorPlane.h.

◆ m_supportBackWallHeight

double m_supportBackWallHeight = 0

private

height of aluminum walls on the back side (electronics side) of support plate

Definition at line 290 of file ARICHGeoDetectorPlane.h.

◆ m_supportBackWallThickness

double m_supportBackWallThickness = 0

private

< thickness of aluminum walls on the back side (electronics side) of support plate

Definition at line 291 of file ARICHGeoDetectorPlane.h.

◆ m_supportMaterial

std::string m_supportMaterial

private

support structure material

Definition at line 285 of file ARICHGeoDetectorPlane.h.

◆ m_supportZPosition

double m_supportZPosition

private

Initial value:

=

0

Z position of support plate (position of center of support tube, with Z length of: support plate thickness + support back wall height)

Definition at line 293 of file ARICHGeoDetectorPlane.h.

◆ m_thickness

double m_thickness = 0

private

thickness of support plate

Definition at line 288 of file ARICHGeoDetectorPlane.h.

◆ m_x

double m_x = 0

private

x position in local ARICH volume

Definition at line 274 of file ARICHGeoDetectorPlane.h.

◆ m_y

double m_y = 0

private

y position in local ARICH volume

Definition at line 275 of file ARICHGeoDetectorPlane.h.

◆ m_z

double m_z

private

Initial value:

=

0

z position in local ARICH volume (position of center of detector plane tube, with Z length of: module height)

Definition at line 276 of file ARICHGeoDetectorPlane.h.

◆ s_unit

double s_unit = Unit::cm

staticprotectedinherited

conversion unit for length

Definition at line 83 of file ARICHGeoBase.h.

◆ s_unitName

std::string s_unitName

staticprotectedinherited

conversion unit name

Definition at line 84 of file ARICHGeoBase.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoDetectorPlane.h
arich/dbobjects/src/ARICHGeoDetectorPlane.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ARICHGeoDetectorPlane()

Member Function Documentation

◆ addSupportPlate()

◆ getModuleHoleSize()

◆ getName()

◆ getNRings()

◆ getNSlots()

◆ getPosition()

◆ getRingDPhi()

◆ getRingR()

◆ getRotation()

◆ getRotationX()

◆ getRotationY()

◆ getRotationZ()

◆ getSlotIDFromSRF()

◆ getSlotPhi()

◆ getSlotR()

◆ getSlotRing()

◆ getSupportBackWallHeight()

◆ getSupportBackWallThickness()

◆ getSupportInnerR()

◆ getSupportMaterial()

◆ getSupportOuterR()

◆ getSupportThickness()

◆ getSupportZPosition()

◆ isConsistent()

◆ pointSlotID()

◆ print()

◆ printPlacement()

◆ printSurface()

◆ setModuleHoleSize()

◆ setName()

◆ setPlacement()

◆ setRingPar()

◆ setSupportBackWallHeight()

◆ setSupportBackWallThickness()

◆ setSupportZPosition()

Member Data Documentation

◆ m_innerR

◆ m_moduleHoleSize

◆ m_name

◆ m_nRings

◆ m_nSlots

◆ m_outerR

◆ m_ringPar

◆ m_rx

◆ m_ry

◆ m_rz

◆ m_slotPar

◆ m_supportBackWallHeight

◆ m_supportBackWallThickness

◆ m_supportMaterial

◆ m_supportZPosition

◆ m_thickness

◆ m_x

◆ m_y

◆ m_z

◆ s_unit

◆ s_unitName
