Geometry parameters of HAPD. More...

#include <ARICHGeoHAPD.h>

Inheritance diagram for ARICHGeoHAPD:

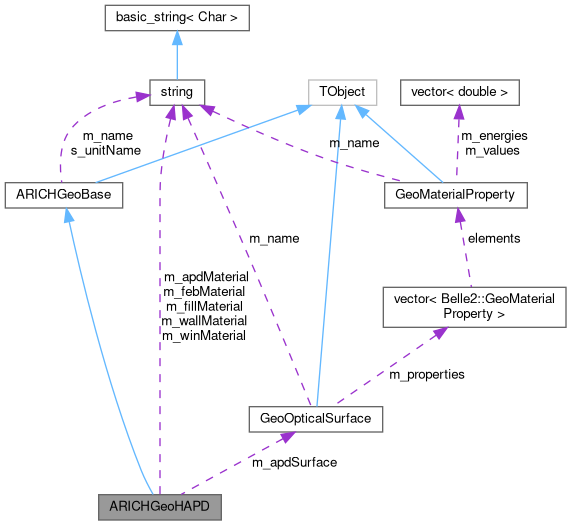

Collaboration diagram for ARICHGeoHAPD:

[legend]

Public Member Functions
	ARICHGeoHAPD ()
	Default constructor.

void	setWallThickness (double thickness)
	Set wall thickness.

void	setWinThickness (double thickness)
	Set window thickness.

void	setPadSize (double padSize)
	Set pad size.

void	setChipGap (double chipGap)
	Set gap between APD chips.

void	setNPads (int nx, int ny)
	Set number of pads in x and y direction.

void	setWinRefIndex (double refInd)
	Set refractive index of HAPD window.

void	setModuleSizeZ (double modZ)
	Set module size in Z (height of HAPD + FEB)

void	setWallMaterial (const std::string &material)
	Sets casing material.

void	setWinMaterial (const std::string &material)
	Set window material.

void	setAPDMaterial (const std::string &material)
	Sets APD material.

void	setFEBMaterial (const std::string &material)
	Sets FEB material.

void	setFillMaterial (const std::string &material)
	Sets material inside of HAPD (vacuum with set ref.

void	setFEBVolume (double sizeX, double sizeY, double sizeZ, const std::string &material)
	Sets FEB volume.

void	setAPDVolume (double sizeX, double sizeY, double sizeZ, const std::string &material, const GeoOpticalSurface &surf)
	Sets APD volume (single volume for all 4 chips)

void	setHAPDVolume (double sizeX, double sizeY, double sizeZ, const std::string &material)
	Sets HAPD volume.

double	getSizeX () const
	Returns HAPD size in x.

double	getSizeY () const
	Returns HAPD size in y.

double	getSizeZ () const
	Returns HAPD size in z.

double	getWallThickness () const
	Returns wall thickness.

double	getWinThickness () const
	Returns window thickness.

double	getAPDSizeX () const
	Returns APD size in x.

double	getAPDSizeY () const
	Returns APD size in y.

double	getAPDSizeZ () const
	Returns APD size in z.

double	getFEBSizeX () const
	Returns FEB size in x.

double	getFEBSizeY () const
	Returns FEB size in y.

double	getFEBSizeZ () const
	Returns FEB size in z.

double	getModuleSizeZ () const
	Returns module size in z (HAPD + FEB height)

double	getWinRefIndex () const
	Returns window refractive index.

double	getPadSize () const
	Returns APD pad size.

double	getChipGap () const
	Returns gap between APD chips.

unsigned	getNumPadsX () const
	Returns number of X pads.

unsigned	getNumPadsY () const
	Returns number of Y pads.

const std::string &	getWallMaterial () const
	Returns wall (casing) material name.

const std::string &	getFillMaterial () const
	Returns fill (inside) material name.

const std::string &	getWinMaterial () const
	Returns window material name.

const std::string &	getAPDMaterial () const
	Returns APD material name.

const std::string &	getFEBMaterial () const
	Returns FEB material name.

const GeoOpticalSurface &	getAPDSurface () const
	Returns APD reflective optical surface.

void	getXYChannel (double x, double y, int &chX, int &chY) const
	Returns X and Y channel number from local x,y position.

unsigned	getChipID (double x, double y) const
	Returns APD chip ID from from local x,y position.

void	getXYChannelPos (int chX, int chY, double &x, double &y) const
	Returns local x,y position from channel X,Y numbers.

double	getPhotocathodeApdDistance () const
	Returns distance between photocathode and APD.

bool	isConsistent () const override
	Check consistency of geometry parameters.

void	print (const std::string &title="HAPD module geometry parameters") const override
	Print the content of the class.

void	setName (const std::string &name)
	Sets object name.

const std::string &	getName () const
	Returns object name.

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface.

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters.

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDefOverride (ARICHGeoHAPD, 1)
	ClassDef.

Private Attributes
std::string	m_wallMaterial
	material of HAPD side walls

std::string	m_winMaterial
	material of HAPD window

std::string	m_apdMaterial
	material of APD chips

std::string	m_febMaterial
	material of FEB

std::string	m_fillMaterial
	material that fills the HAPD

double	m_HAPDSizeX = 0
	HAPD X size.

double	m_HAPDSizeY = 0
	HAPD Y size.

double	m_HAPDSizeZ = 0
	HAPD Z size.

double	m_wallThickness = 0
	HAPD side wall thickness.

double	m_winThickness = 0
	HAPD window thickness.

double	m_padSize = 0
	pad size

double	m_chipGap = 0
	gap between APD chips

unsigned	m_nPadX = 0
	number of pads in X

unsigned	m_nPadY = 0
	number of pads in Y

double	m_winRefIndex = 0
	window refractive index

double	m_APDSizeX = 0
	APD X size.

double	m_APDSizeY = 0
	APD Y size.

double	m_APDSizeZ = 0
	APD Z size.

double	m_FEBSizeX = 0
	FEB X size.

double	m_FEBSizeY = 0
	FEB Y size.

double	m_FEBSizeZ = 0
	FEB Z size.

double	m_moduleSizeZ = 0
	HAPD module Z size (HAPD + FEB height)

GeoOpticalSurface	m_apdSurface
	optical surface of APD (for reflectivity)

Detailed Description

Geometry parameters of HAPD.

Definition at line 24 of file ARICHGeoHAPD.h.

Constructor & Destructor Documentation

◆ ARICHGeoHAPD()

ARICHGeoHAPD ( )

inline

Default constructor.

Definition at line 31 of file ARICHGeoHAPD.h.

32 {}

Member Function Documentation

◆ getAPDMaterial()

const std::string & getAPDMaterial ( ) const

inline

Returns APD material name.

Returns: material name

Definition at line 283 of file ARICHGeoHAPD.h.

283{return m_apdMaterial;}

Belle2::ARICHGeoHAPD::m_apdMaterial

std::string m_apdMaterial

material of APD chips

Definition: ARICHGeoHAPD.h:350

◆ getAPDSizeX()

double getAPDSizeX ( ) const

inline

Returns APD size in x.

Returns: APD size in x

Definition at line 192 of file ARICHGeoHAPD.h.

192{return m_APDSizeX / s_unit;}

Belle2::ARICHGeoBase::s_unit

static double s_unit

conversion unit for length

Definition: ARICHGeoBase.h:83

Belle2::ARICHGeoHAPD::m_APDSizeX

double m_APDSizeX

APD X size.

Definition: ARICHGeoHAPD.h:363

◆ getAPDSizeY()

double getAPDSizeY ( ) const

inline

Returns APD size in y.

Returns: APD size in y

Definition at line 198 of file ARICHGeoHAPD.h.

198{return m_APDSizeY / s_unit;}

Belle2::ARICHGeoHAPD::m_APDSizeY

double m_APDSizeY

APD Y size.

Definition: ARICHGeoHAPD.h:364

◆ getAPDSizeZ()

double getAPDSizeZ ( ) const

inline

Returns APD size in z.

Returns: size in z

Definition at line 204 of file ARICHGeoHAPD.h.

204{return m_APDSizeZ / s_unit;}

Belle2::ARICHGeoHAPD::m_APDSizeZ

double m_APDSizeZ

APD Z size.

Definition: ARICHGeoHAPD.h:365

◆ getAPDSurface()

const GeoOpticalSurface & getAPDSurface ( ) const

inline

Returns APD reflective optical surface.

Returns: optical surface

Definition at line 295 of file ARICHGeoHAPD.h.

295{return m_apdSurface;}

Belle2::ARICHGeoHAPD::m_apdSurface

GeoOpticalSurface m_apdSurface

optical surface of APD (for reflectivity)

Definition: ARICHGeoHAPD.h:370

◆ getChipGap()

double getChipGap ( ) const

inline

Returns gap between APD chips.

Returns: chip gap size

Definition at line 246 of file ARICHGeoHAPD.h.

246{return m_chipGap / s_unit;}

Belle2::ARICHGeoHAPD::m_chipGap

double m_chipGap

gap between APD chips

Definition: ARICHGeoHAPD.h:359

◆ getChipID()

unsigned getChipID	(	double	x,
		double	y
	)		const

Returns APD chip ID from from local x,y position.

Parameters

x	local x position
y	local y position

Returns: APD chip ID

Definition at line 45 of file ARICHGeoHAPD.cc.

{
  if (x > 0) {
    if (y > 0) return 0;
    return 1;
  }
  if (y > 0) return 2;
  return 3;
}

◆ getFEBMaterial()

const std::string & getFEBMaterial ( ) const

inline

Returns FEB material name.

Returns: material name

Definition at line 289 of file ARICHGeoHAPD.h.

289{return m_febMaterial;}

Belle2::ARICHGeoHAPD::m_febMaterial

std::string m_febMaterial

material of FEB

Definition: ARICHGeoHAPD.h:351

◆ getFEBSizeX()

double getFEBSizeX ( ) const

inline

Returns FEB size in x.

Returns: size in x

Definition at line 210 of file ARICHGeoHAPD.h.

210{return m_FEBSizeX / s_unit;}

Belle2::ARICHGeoHAPD::m_FEBSizeX

double m_FEBSizeX

FEB X size.

Definition: ARICHGeoHAPD.h:366

◆ getFEBSizeY()

double getFEBSizeY ( ) const

inline

Returns FEB size in y.

Returns: size in y

Definition at line 216 of file ARICHGeoHAPD.h.

216{return m_FEBSizeY / s_unit;}

Belle2::ARICHGeoHAPD::m_FEBSizeY

double m_FEBSizeY

FEB Y size.

Definition: ARICHGeoHAPD.h:367

◆ getFEBSizeZ()

double getFEBSizeZ ( ) const

inline

Returns FEB size in z.

Returns: size in z

Definition at line 222 of file ARICHGeoHAPD.h.

222{return m_FEBSizeZ / s_unit;}

Belle2::ARICHGeoHAPD::m_FEBSizeZ

double m_FEBSizeZ

FEB Z size.

Definition: ARICHGeoHAPD.h:368

◆ getFillMaterial()

const std::string & getFillMaterial ( ) const

inline

Returns fill (inside) material name.

Returns: material name

Definition at line 271 of file ARICHGeoHAPD.h.

271{return m_fillMaterial;}

Belle2::ARICHGeoHAPD::m_fillMaterial

std::string m_fillMaterial

material that fills the HAPD

Definition: ARICHGeoHAPD.h:352

◆ getModuleSizeZ()

double getModuleSizeZ ( ) const

inline

Returns module size in z (HAPD + FEB height)

Returns: size in z

Definition at line 228 of file ARICHGeoHAPD.h.

228{return m_moduleSizeZ / s_unit;}

Belle2::ARICHGeoHAPD::m_moduleSizeZ

double m_moduleSizeZ

HAPD module Z size (HAPD + FEB height)

Definition: ARICHGeoHAPD.h:369

◆ getName()

const std::string & getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

49{return m_name;}

Belle2::ARICHGeoBase::m_name

std::string m_name

geometry object name

Definition: ARICHGeoBase.h:82

◆ getNumPadsX()

unsigned getNumPadsX ( ) const

inline

Returns number of X pads.

Returns: num x pads

Definition at line 252 of file ARICHGeoHAPD.h.

252{return m_nPadX;}

Belle2::ARICHGeoHAPD::m_nPadX

unsigned m_nPadX

number of pads in X

Definition: ARICHGeoHAPD.h:360

◆ getNumPadsY()

unsigned getNumPadsY ( ) const

inline

Returns number of Y pads.

Returns: num y pads

Definition at line 258 of file ARICHGeoHAPD.h.

258{return m_nPadY;}

Belle2::ARICHGeoHAPD::m_nPadY

unsigned m_nPadY

number of pads in Y

Definition: ARICHGeoHAPD.h:361

◆ getPadSize()

double getPadSize ( ) const

inline

Returns APD pad size.

Returns: APD pad size

Definition at line 240 of file ARICHGeoHAPD.h.

240{return m_padSize / s_unit;}

Belle2::ARICHGeoHAPD::m_padSize

double m_padSize

pad size

Definition: ARICHGeoHAPD.h:358

◆ getPhotocathodeApdDistance()

double getPhotocathodeApdDistance ( ) const

inline

Returns distance between photocathode and APD.

Returns: photacathod APD distance

Definition at line 328 of file ARICHGeoHAPD.h.

    {
      return (m_HAPDSizeZ - m_winThickness - m_wallThickness - m_APDSizeZ) / s_unit;
    }

◆ getSizeX()

double getSizeX ( ) const

inline

Returns HAPD size in x.

Returns: HAPD size in x

Definition at line 162 of file ARICHGeoHAPD.h.

162{return m_HAPDSizeX / s_unit;}

Belle2::ARICHGeoHAPD::m_HAPDSizeX

double m_HAPDSizeX

HAPD X size.

Definition: ARICHGeoHAPD.h:353

◆ getSizeY()

double getSizeY ( ) const

inline

Returns HAPD size in y.

Returns: HAPD size in y

Definition at line 168 of file ARICHGeoHAPD.h.

168{return m_HAPDSizeY / s_unit;}

Belle2::ARICHGeoHAPD::m_HAPDSizeY

double m_HAPDSizeY

HAPD Y size.

Definition: ARICHGeoHAPD.h:354

◆ getSizeZ()

double getSizeZ ( ) const

inline

Returns HAPD size in z.

Returns: size in z

Definition at line 174 of file ARICHGeoHAPD.h.

174{return m_HAPDSizeZ / s_unit;}

◆ getWallMaterial()

const std::string & getWallMaterial ( ) const

inline

Returns wall (casing) material name.

Returns: material name

Definition at line 265 of file ARICHGeoHAPD.h.

265{return m_wallMaterial;}

Belle2::ARICHGeoHAPD::m_wallMaterial

std::string m_wallMaterial

material of HAPD side walls

Definition: ARICHGeoHAPD.h:348

◆ getWallThickness()

double getWallThickness ( ) const

inline

Returns wall thickness.

Returns: wall thickness

Definition at line 180 of file ARICHGeoHAPD.h.

180{return m_wallThickness / s_unit;}

◆ getWinMaterial()

const std::string & getWinMaterial ( ) const

inline

Returns window material name.

Returns: material name

Definition at line 277 of file ARICHGeoHAPD.h.

277{return m_winMaterial;}

Belle2::ARICHGeoHAPD::m_winMaterial

std::string m_winMaterial

material of HAPD window

Definition: ARICHGeoHAPD.h:349

◆ getWinRefIndex()

double getWinRefIndex ( ) const

inline

Returns window refractive index.

Returns: refractive index

Definition at line 234 of file ARICHGeoHAPD.h.

234{return m_winRefIndex;}

Belle2::ARICHGeoHAPD::m_winRefIndex

double m_winRefIndex

window refractive index

Definition: ARICHGeoHAPD.h:362

◆ getWinThickness()

double getWinThickness ( ) const

inline

Returns window thickness.

Returns: window thickness

Definition at line 186 of file ARICHGeoHAPD.h.

186{return m_winThickness / s_unit;}

◆ getXYChannel()

void getXYChannel	(	double	x,
		double	y,
		int &	chX,
		int &	chY
	)		const

Returns X and Y channel number from local x,y position.

Parameters

x	local x position
y	local y position
chX	X channel
chY	Y channel

Definition at line 27 of file ARICHGeoHAPD.cc.

{

  if (x < - m_chipGap / 2.) chX = int((x + m_chipGap / 2.) / m_padSize) + m_nPadX / 2. - 1;
  else if (x > m_chipGap / 2.) chX = (x - m_chipGap / 2.) / m_padSize + m_nPadX / 2.;
  else {chX = -1; chY = -1; return;}

  if (y < - m_chipGap / 2.) chY = int((y + m_chipGap / 2.) / m_padSize) + m_nPadY / 2. - 1;
  else if (y > m_chipGap / 2.) chY = (y - m_chipGap / 2.) / m_padSize + m_nPadY / 2.;
  else {chX = -1; chY = -1; return;}

  if (chX + 1 > int(m_nPadX) || chY + 1 > int(m_nPadY) || chX < 0 || chY < 0) {
    chX = -1; chY = -1;
  }

}

◆ getXYChannelPos()

void getXYChannelPos	(	int	chX,
		int	chY,
		double &	x,
		double &	y
	)		const

Returns local x,y position from channel X,Y numbers.

Parameters

chX	channel X number
chY	channel Y number
x	channel local x position
y	channel local y position

Definition at line 15 of file ARICHGeoHAPD.cc.

{

  if (chX < m_nPadX / 2.) x = -m_chipGap / 2. + (chX - m_nPadX / 2.) * m_padSize + m_padSize / 2.;
  else x = m_chipGap / 2. + (chX - m_nPadX / 2.) * m_padSize + m_padSize / 2.;

  if (chY < m_nPadY / 2.) y = -m_chipGap / 2. + (chY - m_nPadY / 2.) * m_padSize + m_padSize / 2.;
  else y = m_chipGap / 2. + (chY - m_nPadY / 2.) * m_padSize + m_padSize / 2.;

}

◆ isConsistent()

bool isConsistent ( ) const

overridevirtual

Check consistency of geometry parameters.

Returns: true if consistent

Reimplemented from ARICHGeoBase.

Definition at line 56 of file ARICHGeoHAPD.cc.

{
  if (m_HAPDSizeX <= 0) return false;
  if (m_HAPDSizeY <= 0) return false;
  if (m_HAPDSizeZ <= 0) return false;
  if (m_wallThickness <= 0) return false;
  if (m_winThickness <= 0) return false;
  if (m_padSize <= 0) return false;
  if (m_nPadX == 0) return false;
  if (m_nPadY == 0) return false;
  if (m_APDSizeZ <= 0) return false;
  if (m_APDSizeX <= 0) return false;
  if (m_APDSizeY <= 0) return false;
  if (m_FEBSizeX <= 0) return false;
  if (m_FEBSizeY <= 0) return false;
  if (m_FEBSizeZ <= 0) return false;
  if (m_moduleSizeZ <= 0) return false;
  if (m_winRefIndex < 1.) return false;

  if (m_wallMaterial.empty()) return false;
  if (m_winMaterial.empty()) return false;
  if (m_apdMaterial.empty()) return false;
  if (m_febMaterial.empty()) return false;
  if (m_fillMaterial.empty()) return false;

  return true;
}

◆ print()

void print ( const std::string & title = "HAPD module geometry parameters" ) const

overridevirtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 85 of file ARICHGeoHAPD.cc.

{
  ARICHGeoBase::print(title);

  cout << " outer HAPD dimensions: " << getSizeX() << " X " << getSizeY() << " X " << getSizeZ() << " " << s_unitName << endl;
  cout << " wall thickness:        " << getWallThickness() << " " << s_unitName << endl;
  cout << " window thickness:      " << getWinThickness() << " " << s_unitName << endl;
  cout << " pad size:              " << getPadSize() << " " << s_unitName << endl;
  cout << " number of pixels:      " << getNumPadsX() << " X " << getNumPadsY() << endl;
  cout << " gap between APD chips: " << getChipGap() << " " << s_unitName << endl;
  cout << " APD dimensions:        " << getAPDSizeX() << " X " << getAPDSizeY() << " X " << getAPDSizeZ() << " " << s_unitName <<
       endl;
  cout << " FEB dimensions:        " << getFEBSizeX() << " X " << getFEBSizeY()  << " X " << getFEBSizeZ() << " " << s_unitName <<
       endl;
  cout << " window ref. index:     " << getWinRefIndex() << endl;
  cout << " module height (Z):     " << getModuleSizeZ() << " " << s_unitName << endl;
  cout << " wall material:         " << getWallMaterial() << endl;
  cout << " window material:       " << getWinMaterial() << endl;
  cout << " HAPD fill material:    " << getFillMaterial() << endl;
  cout << " FEB material:          " << getFEBMaterial() << endl;
  cout << " APD material:          " << getAPDMaterial() << endl;

  // add material names!
  printSurface(m_apdSurface);
}

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

{
//  cout << "Volume positioning information (inside local ARICH frame)" << endl;
  cout << " Center position; x: " << x << " " << s_unitName << ", y: " << y << " " << s_unitName << ", z: " << z << " " << s_unitName
       << endl;
  cout << " Rotations; x-axis: " << rx << " y-axis: " << ry << " z-axis: " << rz << " (in rad)"  << endl;
}

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

{
  cout << " Optical surface: ";
  if (surface.getName().empty() and !surface.hasProperties()) {
    cout << "not defined" << endl;
    return;
  }
  cout << surface.getName();
  cout << ", model: " << surface.getModel();
  cout << ", finish: " << surface.getFinish();
  cout << ", type: " << surface.getType();
  cout << ", value: " << surface.getValue();
  cout << endl;
  if (surface.hasProperties()) {
    for (const auto& property : surface.getProperties()) {
      cout << "  - property: ";
      cout << property.getName() << " [";
      for (const auto& value : property.getValues()) cout << value << ", ";
      cout << "], @[";
      for (const auto& value : property.getEnergies()) cout << value / Unit::eV << ", ";
      cout << "] eV" << endl;
    }
  } else {
    cout << "  - properties: None" << endl;
  }

}

◆ setAPDMaterial()

void setAPDMaterial ( const std::string & material )

inline

Sets APD material.

Parameters

material APD material name

Definition at line 93 of file ARICHGeoHAPD.h.

93{m_apdMaterial = material;}

◆ setAPDVolume()

void setAPDVolume	(	double	sizeX,
		double	sizeY,
		double	sizeZ,
		const std::string &	material,
		const GeoOpticalSurface &	surf
	)

inline

Sets APD volume (single volume for all 4 chips)

Parameters

sizeX	size in x
sizeY	size in y
sizeZ	size in z
material	APD material name
surf	APD optical surface properties

Definition at line 131 of file ARICHGeoHAPD.h.

    {
      m_APDSizeX = sizeX;
      m_APDSizeY = sizeY;
      m_APDSizeZ = sizeZ;
      m_apdMaterial = material;
      m_apdSurface = surf;
    }

◆ setChipGap()

void setChipGap ( double chipGap )

inline

Set gap between APD chips.

Parameters

chipGap gap between APD chips

Definition at line 56 of file ARICHGeoHAPD.h.

56{m_chipGap = chipGap;}

◆ setFEBMaterial()

void setFEBMaterial ( const std::string & material )

inline

Sets FEB material.

Parameters

material FEB material name

Definition at line 99 of file ARICHGeoHAPD.h.

99{m_febMaterial = material;}

◆ setFEBVolume()

void setFEBVolume	(	double	sizeX,
		double	sizeY,
		double	sizeZ,
		const std::string &	material
	)

inline

Sets FEB volume.

Parameters

sizeX	size in x
sizeY	size in y
sizeZ	size in z
material	FEB material

Definition at line 114 of file ARICHGeoHAPD.h.

    {
      m_FEBSizeX = sizeX;
      m_FEBSizeY = sizeY;
      m_FEBSizeZ = sizeZ;
      m_febMaterial = material;
    }

◆ setFillMaterial()

void setFillMaterial ( const std::string & material )

inline

Sets material inside of HAPD (vacuum with set ref.

index)

Parameters

material fill material name

Definition at line 105 of file ARICHGeoHAPD.h.

105{m_fillMaterial = material;}

◆ setHAPDVolume()

void setHAPDVolume	(	double	sizeX,
		double	sizeY,
		double	sizeZ,
		const std::string &	material
	)

inline

Sets HAPD volume.

Parameters

sizeX	size in x
sizeY	size in y
sizeZ	size in z
material	fill material

Definition at line 148 of file ARICHGeoHAPD.h.

    {
      m_HAPDSizeX = sizeX;
      m_HAPDSizeY = sizeY;
      m_HAPDSizeZ = sizeZ;
      m_fillMaterial = material;
    }

◆ setModuleSizeZ()

void setModuleSizeZ ( double modZ )

inline

Set module size in Z (height of HAPD + FEB)

Parameters

modZ	HAPD module height

Definition at line 75 of file ARICHGeoHAPD.h.

75{m_moduleSizeZ = modZ;}

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

43{m_name = name;}

◆ setNPads()

void setNPads	(	int	nx,
		int	ny
	)

inline

Set number of pads in x and y direction.

Parameters

nx	number of pads in x
ny	number of pads in y

Definition at line 63 of file ARICHGeoHAPD.h.

63{m_nPadX = nx; m_nPadY = ny; }

◆ setPadSize()

void setPadSize ( double padSize )

inline

Set pad size.

Parameters

padSize pad size

Definition at line 50 of file ARICHGeoHAPD.h.

50{m_padSize = padSize;}

◆ setWallMaterial()

void setWallMaterial ( const std::string & material )

inline

Sets casing material.

Parameters

material casing material name

Definition at line 81 of file ARICHGeoHAPD.h.

81{m_wallMaterial = material;}

◆ setWallThickness()

void setWallThickness ( double thickness )

inline

Set wall thickness.

Parameters

thickness wall thickness

Definition at line 38 of file ARICHGeoHAPD.h.

38{m_wallThickness = thickness;}

◆ setWinMaterial()

void setWinMaterial ( const std::string & material )

inline

Set window material.

Parameters

material window material name

Definition at line 87 of file ARICHGeoHAPD.h.

87{m_winMaterial = material;}

◆ setWinRefIndex()

void setWinRefIndex ( double refInd )

inline

Set refractive index of HAPD window.

Parameters

refInd window refractive index

Definition at line 69 of file ARICHGeoHAPD.h.

69{m_winRefIndex = refInd;}

◆ setWinThickness()

void setWinThickness ( double thickness )

inline

Set window thickness.

Parameters

thickness window thickness

Definition at line 44 of file ARICHGeoHAPD.h.

44{m_winThickness = thickness;}

Member Data Documentation

◆ m_apdMaterial

std::string m_apdMaterial

private

material of APD chips

Definition at line 350 of file ARICHGeoHAPD.h.

◆ m_APDSizeX

double m_APDSizeX = 0

private

APD X size.

Definition at line 363 of file ARICHGeoHAPD.h.

◆ m_APDSizeY

double m_APDSizeY = 0

private

APD Y size.

Definition at line 364 of file ARICHGeoHAPD.h.

◆ m_APDSizeZ

double m_APDSizeZ = 0

private

APD Z size.

Definition at line 365 of file ARICHGeoHAPD.h.

◆ m_apdSurface

GeoOpticalSurface m_apdSurface

private

optical surface of APD (for reflectivity)

Definition at line 370 of file ARICHGeoHAPD.h.

◆ m_chipGap

double m_chipGap = 0

private

gap between APD chips

Definition at line 359 of file ARICHGeoHAPD.h.

◆ m_febMaterial

std::string m_febMaterial

private

material of FEB

Definition at line 351 of file ARICHGeoHAPD.h.

◆ m_FEBSizeX

double m_FEBSizeX = 0

private

FEB X size.

Definition at line 366 of file ARICHGeoHAPD.h.

◆ m_FEBSizeY

double m_FEBSizeY = 0

private

FEB Y size.

Definition at line 367 of file ARICHGeoHAPD.h.

◆ m_FEBSizeZ

double m_FEBSizeZ = 0

private

FEB Z size.

Definition at line 368 of file ARICHGeoHAPD.h.

◆ m_fillMaterial

std::string m_fillMaterial

private

material that fills the HAPD

Definition at line 352 of file ARICHGeoHAPD.h.

◆ m_HAPDSizeX

double m_HAPDSizeX = 0

private

HAPD X size.

Definition at line 353 of file ARICHGeoHAPD.h.

◆ m_HAPDSizeY

double m_HAPDSizeY = 0

private

HAPD Y size.

Definition at line 354 of file ARICHGeoHAPD.h.

◆ m_HAPDSizeZ

double m_HAPDSizeZ = 0

private

HAPD Z size.

Definition at line 355 of file ARICHGeoHAPD.h.

◆ m_moduleSizeZ

double m_moduleSizeZ = 0

private

HAPD module Z size (HAPD + FEB height)

Definition at line 369 of file ARICHGeoHAPD.h.

◆ m_name

std::string m_name

protectedinherited

geometry object name

Definition at line 82 of file ARICHGeoBase.h.

◆ m_nPadX

unsigned m_nPadX = 0

private

number of pads in X

Definition at line 360 of file ARICHGeoHAPD.h.

◆ m_nPadY

unsigned m_nPadY = 0

private

number of pads in Y

Definition at line 361 of file ARICHGeoHAPD.h.

◆ m_padSize

double m_padSize = 0

private

pad size

Definition at line 358 of file ARICHGeoHAPD.h.

◆ m_wallMaterial

std::string m_wallMaterial

private

material of HAPD side walls

Definition at line 348 of file ARICHGeoHAPD.h.

◆ m_wallThickness

double m_wallThickness = 0

private

HAPD side wall thickness.

Definition at line 356 of file ARICHGeoHAPD.h.

◆ m_winMaterial

std::string m_winMaterial

private

material of HAPD window

Definition at line 349 of file ARICHGeoHAPD.h.

◆ m_winRefIndex

double m_winRefIndex = 0

private

window refractive index

Definition at line 362 of file ARICHGeoHAPD.h.

◆ m_winThickness

double m_winThickness = 0

private

HAPD window thickness.

Definition at line 357 of file ARICHGeoHAPD.h.

◆ s_unit

double s_unit = Unit::cm

staticprotectedinherited

conversion unit for length

Definition at line 83 of file ARICHGeoBase.h.

◆ s_unitName

std::string s_unitName

staticprotectedinherited

conversion unit name

Definition at line 84 of file ARICHGeoBase.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoHAPD.h
arich/dbobjects/src/ARICHGeoHAPD.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ARICHGeoHAPD()

Member Function Documentation

◆ getAPDMaterial()

◆ getAPDSizeX()

◆ getAPDSizeY()

◆ getAPDSizeZ()

◆ getAPDSurface()

◆ getChipGap()

◆ getChipID()

◆ getFEBMaterial()

◆ getFEBSizeX()

◆ getFEBSizeY()

◆ getFEBSizeZ()

◆ getFillMaterial()

◆ getModuleSizeZ()

◆ getName()

◆ getNumPadsX()

◆ getNumPadsY()

◆ getPadSize()

◆ getPhotocathodeApdDistance()

◆ getSizeX()

◆ getSizeY()

◆ getSizeZ()

◆ getWallMaterial()

◆ getWallThickness()

◆ getWinMaterial()

◆ getWinRefIndex()

◆ getWinThickness()

◆ getXYChannel()

◆ getXYChannelPos()

◆ isConsistent()

◆ print()

◆ printPlacement()

◆ printSurface()

◆ setAPDMaterial()

◆ setAPDVolume()

◆ setChipGap()

◆ setFEBMaterial()

◆ setFEBVolume()

◆ setFillMaterial()

◆ setHAPDVolume()

◆ setModuleSizeZ()

◆ setName()

◆ setNPads()

◆ setPadSize()

◆ setWallMaterial()

◆ setWallThickness()

◆ setWinMaterial()

◆ setWinRefIndex()

◆ setWinThickness()

Member Data Documentation

◆ m_apdMaterial

◆ m_APDSizeX

◆ m_APDSizeY

◆ m_APDSizeZ

◆ m_apdSurface

◆ m_chipGap

◆ m_febMaterial

◆ m_FEBSizeX

◆ m_FEBSizeY

◆ m_FEBSizeZ

◆ m_fillMaterial

◆ m_HAPDSizeX

◆ m_HAPDSizeY

◆ m_HAPDSizeZ

◆ m_moduleSizeZ

◆ m_name

◆ m_nPadX

◆ m_nPadY

◆ m_padSize

◆ m_wallMaterial

◆ m_wallThickness
