BrowsableWrapper Class Reference

A wrapper for browsable objects to enable automatic redrawing. More...

#include <BrowsableWrapper.h>

Inheritance diagram for BrowsableWrapper:

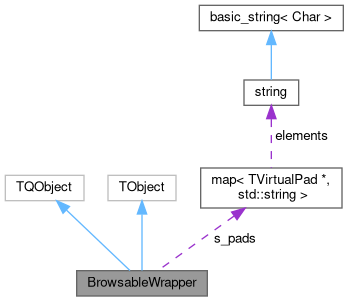

Collaboration diagram for BrowsableWrapper:

Public Member Functions
	BrowsableWrapper (TObject *wrapped)
	Wrap the given object, does NOT take ownership.
virtual void	Browse (TBrowser *b)
	Reimplementation to store additional info on current state.
virtual const char *	GetIconName () const
	Wrap.
virtual const char *	GetName () const
	Wrap.
void	padClosed ()
	Slot to remove associated pad from central map.
void	setWrapped (TObject *wrapped)
	Wrap the given object, does NOT take ownership.

Static Public Member Functions
static const std::map< TVirtualPad *, std::string > &	getPads ()
	Get list of pads (static).

Private Member Functions
	ClassDef (BrowsableWrapper, 0)
	A wrapper for browsable objects to enable automatic redrawing.

Private Attributes
TObject *	m_wrapped
	wrapped object.

Static Private Attributes
static std::map< TVirtualPad *, std::string >	s_pads
	TPad -> name of drawn object.

Detailed Description

A wrapper for browsable objects to enable automatic redrawing.

Definition at line 25 of file BrowsableWrapper.h.

Constructor & Destructor Documentation

BrowsableWrapper()

BrowsableWrapper ( TObject *  wrapped )

inlineexplicit

Wrap the given object, does NOT take ownership.

Definition at line 28 of file BrowsableWrapper.h.

: m_wrapped(wrapped) { }

~BrowsableWrapper()

virtual ~BrowsableWrapper ( )

inlinevirtual

Definition at line 29 of file BrowsableWrapper.h.

{ }

Member Function Documentation

Browse()

void Browse ( TBrowser *  b )

virtual

Reimplementation to store additional info on current state.

Definition at line 18 of file BrowsableWrapper.cc.

{
  if (!m_wrapped) {
    B2ERROR("Trying to browse invalid object!");
    return;
  }
  std::string name(m_wrapped->GetName());
  s_pads[gPad] = name;
  gPad->Connect("Closed()", "Belle2::BrowsableWrapper", this, "padClosed()");

  m_wrapped->Browse(b);
}

GetIconName()

virtual const char * GetIconName ( ) const

inlinevirtual

Wrap.

Definition at line 35 of file BrowsableWrapper.h.

{ return m_wrapped ? m_wrapped->GetIconName() : ""; }

GetName()

virtual const char * GetName ( ) const

inlinevirtual

Wrap.

Definition at line 37 of file BrowsableWrapper.h.

{ return m_wrapped ? m_wrapped->GetName() : ""; }

getPads()

static const std::map< TVirtualPad *, std::string > & getPads ( )

inlinestatic

Get list of pads (static).

Definition at line 50 of file BrowsableWrapper.h.

{ return s_pads; }

padClosed()

void padClosed

(

)

Slot to remove associated pad from central map.

Definition at line 31 of file BrowsableWrapper.cc.

{
  TVirtualPad* pad = dynamic_cast<TVirtualPad*>(static_cast<TQObject*>(gTQSender));
  if (!pad) {
    B2ERROR("Sender is not a pad?");
    return;
  }

  B2WARNING("TODO remove - deleting pad");
  s_pads.erase(pad);
}

setWrapped()

void setWrapped ( TObject *  wrapped )

inline

Wrap the given object, does NOT take ownership.

Definition at line 47 of file BrowsableWrapper.h.

{ m_wrapped = wrapped; }

Member Data Documentation

m_wrapped

TObject* m_wrapped

private

wrapped object.

Definition at line 53 of file BrowsableWrapper.h.

s_pads

std::map< TVirtualPad *, std::string > s_pads

staticprivate

TPad -> name of drawn object.

Definition at line 54 of file BrowsableWrapper.h.

---

The documentation for this class was generated from the following files:

• display/include/BrowsableWrapper.h
• display/src/BrowsableWrapper.cc
