CDCTriggerTrack Class Reference
Packages » trg | Data objects » trg data objects

Track created by the CDC trigger. More...

#include <CDCTriggerTrack.h>

Inheritance diagram for CDCTriggerTrack:
Inheritance graph
[legend]

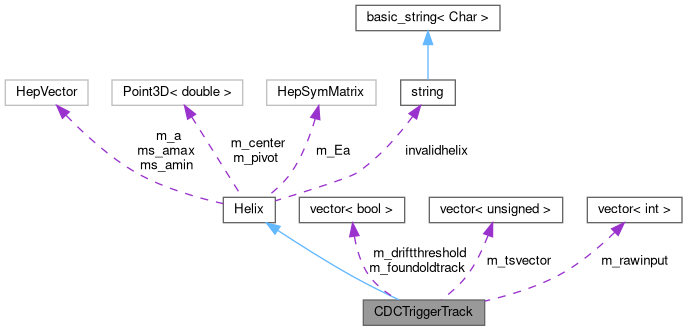

Collaboration diagram for CDCTriggerTrack:
Collaboration graph
[legend]

Public Member Functions

 CDCTriggerTrack ()
 default constructor, initializing everything to 0.

 CDCTriggerTrack (double phi0, double omega, double chi2, const std::vector< bool > &foundoldtrack, const std::vector< bool > &driftthreshold, bool valstereobit=false, int expert=-1, short time=0, short quadrant=-1)
 2D constructor, initializing 3D values to 0.

 CDCTriggerTrack (double phi0, double omega, double chi2, short time=0, short quadrant=-1)

 CDCTriggerTrack (double phi0, double omega, double chi2D, double z0, double cotTheta, double chi3D, const std::vector< bool > &foundoldtrack=std::vector< bool >(6, false), const std::vector< bool > &driftthreshold=std::vector< bool >(9, false), bool valstereobit=false, int expert=-1, const std::vector< unsigned > &tsvector=std::vector< unsigned >(9, 0), short time=0, short quadrant=-1, unsigned qualityvector=0)
 3D constructor

 ~CDCTriggerTrack ()
 destructor, empty because we don't allocate memory anywhere.

float getChi2D () const
 get chi2 value of 2D fitter

float getChi3D () const
 get chi2 value of 3D fitter

float getTime () const
 get the track found time

double getPt () const
 get the absolute value of the transverse momentum at the perigee assuming d0 = 0

short getQuadrant () const
 get the quadrant

std::vector< bool > getFoundOldTrack () const
 returns true, if old 2dtrack was found

bool getValidStereoBit () const
 returns true, if at least 3 stereo ts were found

std::vector< bool > getDriftThreshold () const
 returns true, if the drift time was fitted into the time window

int getExpert () const
 return sl pattern of neurotrack

std::vector< unsigned > getTSVector () const
 return the vector of used Track Segments.

void setQualityVector (const unsigned newbits)
 setter and getter for the quality vector.

unsigned getQualityVector () const

void setHasETFTime (bool x)

bool getHasETFTime () const

int getETF_unpacked () const
 getter and setter functions for etf timing

int getETF_recalced () const

void setETF_unpacked (int x)

void setETF_recalced (int x)

void setRawPhi0 (const int phi0)
 setter and getter functions for raw track values

void setRawOmega (const int omega)

void setRawZ (const int z)

void setRawTheta (const int theta)

void setRawInput (const std::vector< int > input)

void setNNTToGDL (const bool nntgdl)

void setSTTToGDL (const bool sttgdl)

int getRawPhi0 () const

int getRawOmega () const

int getRawZ () const

int getRawTheta () const

std::vector< int > getRawInput () const

bool getNNTToGDL () const

bool getSTTToGDL () const

const HepPoint3D & center (void) const
 returns position of helix center(z = 0.);

const HepPoint3D & pivot (void) const
 returns pivot position.

const HepPoint3D & pivot (const HepPoint3D &newPivot)
 Sets pivot position.

double radius (void) const
 returns radious of helix.

HepPoint3D x (double dPhi=0.) const
 returns position after rotating angle dPhi in phi direction.

double * x (double dPhi, double p[3]) const
 returns position after rotating angle dPhi in phi direction.

HepPoint3D x (double dPhi, HepSymMatrix &Ex) const
 returns position and convariance matrix(Ex) after rotation.

Hep3Vector direction (double dPhi=0.) const
 returns direction vector after rotating angle dPhi in phi direction.

Hep3Vector momentum (double dPhi=0.) const
 returns momentum vector after rotating angle dPhi in phi direction.

Hep3Vector momentum (double dPhi, HepSymMatrix &Em) const
 returns momentum vector after rotating angle dPhi in phi direction.

HepLorentzVector momentum (double dPhi, double mass) const
 returns 4momentum vector after rotating angle dPhi in phi direction.

HepLorentzVector momentum (double dPhi, double mass, HepSymMatrix &Em) const
 returns 4momentum vector after rotating angle dPhi in phi direction.

HepLorentzVector momentum (double dPhi, double mass, HepPoint3D &x, HepSymMatrix &Emx) const
 returns 4momentum vector after rotating angle dPhi in phi direction.

double dr (void) const
 Return helix parameter dr.

double phi0 (void) const
 Return helix parameter phi0.

double kappa (void) const
 Return helix parameter kappa.

double dz (void) const
 Return helix parameter dz.

double tanl (void) const
 Return helix parameter tangent lambda.

double curv (void) const
 Return curvature of helix.

double sinPhi0 (void) const
 Return sin phi0.

double cosPhi0 (void) const
 Return cos phi0.

const HepVector & a (void) const
 Returns helix parameters.

const HepVector & a (const HepVector &newA)
 Sets helix parameters.

const HepSymMatrix & Ea (void) const
 Returns error matrix.

const HepSymMatrix & Ea (const HepSymMatrix &newdA)
 Sets helix paramters and error matrix.

void set (const HepPoint3D &pivot, const HepVector &a, const HepSymMatrix &Ea)
 Sets helix pivot position, parameters, and error matrix.

void ignoreErrorMatrix (void)
 Unsets error matrix.

double bFieldZ (double bz)
 Sets/returns z componet of the magnetic field.

double bFieldZ (void) const
 Returns z componet of the magnetic field.

HepMatrix delApDelA (const HepVector &ap) const
 DAp/DA.

HepMatrix delXDelA (double phi) const
 DX/DA.

HepMatrix delMDelA (double phi) const
 DM/DA.

HepMatrix del4MDelA (double phi, double mass) const
 DM4/DA.

HepMatrix del4MXDelA (double phi, double mass) const
 DMX4/DA.


Static Public Member Functions

static void set_limits (const HepVector &a_min, const HepVector &a_max)
 set limit for parameter "a"

static bool set_exception (bool)
 set exception

static bool set_print (bool)
 Set print option for debugging.


Static Public Attributes

static const double ConstantAlpha = 222.376063
 Constant alpha for uniform field.


Protected Member Functions

 ClassDef (CDCTriggerTrack, 14)
 Needed to make the ROOT object storable.


Protected Attributes

float m_chi2D

float m_chi3D
 chi2 value from 3D fitter

short m_time
 number of trigger clocks of (the track output - L1 trigger)

short m_quadrant
 iTracker of the unpacked quadrant

std::vector< bool > m_foundoldtrack
 array to store whether an old 2dtrack was found

std::vector< bool > m_driftthreshold
 store if drift time was within the timing window

bool m_valstereobit
 store if at least 3 valid stereo ts were found in the NNInput

int m_expert
 store value for used expert network

std::vector< unsigned > m_tsvector
 store which track segments were used.

unsigned m_qualityvector
 store bits for different quality flags.

int m_etf_unpacked {0}
 unpacked etf time from the unpacker

int m_etf_recalced {0}
 etf time recalculated from the hw input

bool m_hasETFTime {0}
 chi2 value from 2D fitter

int m_rawphi0 {0}
 values to store the raw network and 2dfinder output

int m_rawomega {0}

int m_rawz {0}

int m_rawtheta {0}

std::vector< int > m_rawinput

bool m_nntgdl {0}
 nnt decision that the firmware passed to gdl

bool m_sttgdl {0}
 stt decision that the firmware passed to gdl


Private Member Functions

void updateCache (void)
 updateCache

void checkValid (void)
 Check whether helix parameters is valid or not.

void debugPrint (void) const
 Print the helix parameters to stdout.

void debugHelix (void) const
 Debug Helix.


Private Attributes

bool m_matrixValid
 True: matrix valid, False: matrix not valid.

bool m_helixValid
 True: helix valid, False: helix not valid.

double m_bField
 Magnetic field, assuming uniform Bz in the unit of kG.

double m_alpha
 10000.0/(speed of light)/B.

HepPoint3D m_pivot
 Pivot.

HepVector m_a
 Helix parameter.

HepSymMatrix m_Ea
 Error of the helix parameter.

HepPoint3D m_center
 Cache of the center position of Helix.

double m_cp
 Cache of the cos phi0.

double m_sp
 Cache of the sin phi0.

double m_pt
 Cache of the pt.

double m_r
 Cache of the r.

double m_ac [5]
 Cache of the helix parameter.


Static Private Attributes

static HepVector ms_amin
 minimum limit of Helix parameter a

static HepVector ms_amax
 maxiimum limit of Helix parameter a

static bool ms_check_range
 Check the helix parameter's range.

static bool ms_print_debug
 Debug option flag.

static bool ms_throw_exception
 Throw exception flag.

static const std::string invalidhelix
 String "Invalid Helix".


Detailed Description

Track created by the CDC trigger.

Definition at line 21 of file CDCTriggerTrack.h.

Constructor & Destructor Documentation

◆ CDCTriggerTrack() [1/4]

CDCTriggerTrack ( )
inline

default constructor, initializing everything to 0.

Definition at line 24 of file CDCTriggerTrack.h.

24 : Helix(), m_chi2D(0.), m_chi3D(0.), m_time(0), m_quadrant(-1), m_foundoldtrack(6, false), m_driftthreshold(9,
25 false), m_valstereobit(false), m_expert(-1), m_tsvector(9, 0), m_qualityvector(0) { }
Belle2::CDCTriggerTrack::m_valstereobit
bool m_valstereobit
store if at least 3 valid stereo ts were found in the NNInput
Definition: CDCTriggerTrack.h:209
Belle2::CDCTriggerTrack::m_quadrant
short m_quadrant
iTracker of the unpacked quadrant
Definition: CDCTriggerTrack.h:203
Belle2::CDCTriggerTrack::m_expert
int m_expert
store value for used expert network
Definition: CDCTriggerTrack.h:211
Belle2::CDCTriggerTrack::m_qualityvector
unsigned m_qualityvector
store bits for different quality flags.
Definition: CDCTriggerTrack.h:226
Belle2::CDCTriggerTrack::m_chi3D
float m_chi3D
chi2 value from 3D fitter
Definition: CDCTriggerTrack.h:199
Belle2::CDCTriggerTrack::m_driftthreshold
std::vector< bool > m_driftthreshold
store if drift time was within the timing window
Definition: CDCTriggerTrack.h:207
Belle2::CDCTriggerTrack::m_tsvector
std::vector< unsigned > m_tsvector
store which track segments were used.
Definition: CDCTriggerTrack.h:214
Belle2::CDCTriggerTrack::m_foundoldtrack
std::vector< bool > m_foundoldtrack
array to store whether an old 2dtrack was found
Definition: CDCTriggerTrack.h:205
Belle2::CDCTriggerTrack::m_time
short m_time
number of trigger clocks of (the track output - L1 trigger)
Definition: CDCTriggerTrack.h:201
Belle2::CDC::Helix::Helix
Helix(const HepPoint3D &pivot, const HepVector &a, const HepSymMatrix &Ea)
Constructor with pivot, helix parameter a, and its error matrix.
Definition: Helix.cc:132

◆ CDCTriggerTrack() [2/4]

CDCTriggerTrack ( double  phi0,
double  omega,
double  chi2,
const std::vector< bool > &  foundoldtrack,
const std::vector< bool > &  driftthreshold,
bool  valstereobit = false,
int  expert = -1,
short  time = 0,
short  quadrant = -1
)
inline

2D constructor, initializing 3D values to 0.

Parameters
phi0The angle between the transverse momentum and the x axis and in [-pi, pi].
omegaThe signed curvature of the track where the sign is given by the charge of the particle.
chi2Chi2 value of the 2D fit.
foundoldtrackvector with boolean information whether an old 2dtrack was found
driftthresholdvector with boolean information whether drift time was within the timing window
valstereobitswitch whether at least 3 valid stereo ts found in the NNInput
expertwhether to use expert network
timefound time for firmware tracks.
quadrantiTracker of the unpacked quadrant.

Definition at line 41 of file CDCTriggerTrack.h.

47 :
48 Helix(0., phi0, omega, 0., 0.), m_chi2D(chi2), m_chi3D(0.),
49 m_time(time),
50 m_quadrant(quadrant),
51 m_foundoldtrack(foundoldtrack),
52 m_driftthreshold(driftthreshold),
53 m_valstereobit(valstereobit),
54 m_expert(expert),
55 m_tsvector(9, 0),
56 m_qualityvector(0) { }
Belle2::CDC::Helix::phi0
double phi0(void) const
Return helix parameter phi0.
Definition: Helix.h:388

◆ CDCTriggerTrack() [3/4]

CDCTriggerTrack ( double  phi0,
double  omega,
double  chi2,
short  time = 0,
short  quadrant = -1
)
inline

Definition at line 58 of file CDCTriggerTrack.h.

60 :
61 Helix(0., phi0, omega, 0., 0.), m_chi2D(chi2), m_chi3D(0.),
62 m_time(time),
63 m_quadrant(quadrant),
64 m_foundoldtrack(6, false),
65 m_driftthreshold(9, false),
66 m_valstereobit(false),
67 m_expert(-1),
68 m_tsvector(9, 0),
69 m_qualityvector(0) { }

◆ CDCTriggerTrack() [4/4]

CDCTriggerTrack ( double  phi0,
double  omega,
double  chi2D,
double  z0,
double  cotTheta,
double  chi3D,
const std::vector< bool > &  foundoldtrack = std::vector<bool>(6, false),
const std::vector< bool > &  driftthreshold = std::vector<bool>(9, false),
bool  valstereobit = false,
int  expert = -1,
const std::vector< unsigned > &  tsvector = std::vector<unsigned>(9, 0),
short  time = 0,
short  quadrant = -1,
unsigned  qualityvector = 0
)
inline

3D constructor

Parameters
phi0The angle between the transverse momentum and the x axis and in [-pi, pi].
omegaThe signed curvature of the track where the sign is given by the charge of the particle.
chi2DChi2 value of the 2D fit.
z0The z coordinate of the perigee.
cotThetaThe slope of the track in the sz plane (dz/ds).
chi3DChi2 value of the 3D fit.
foundoldtrackvector with boolean information whether an old 2dtrack was found
driftthresholdvector with boolean information whether drift time was within the timing window
valstereobitswitch whether at least 3 valid stereo ts found in the NNInput
expertwhether to use expert network
tsvectorvector of which track segments were used
timefound time for firmware tracks.
quadrantiTracker of the unpacked quadrant.
qualityvectorquality flag bit

Definition at line 87 of file CDCTriggerTrack.h.

95 :
96 Helix(0., phi0, omega, z0, cotTheta), m_chi2D(chi2D), m_chi3D(chi3D), m_time(time), m_quadrant(quadrant),
97 m_foundoldtrack(foundoldtrack),
98 m_driftthreshold(driftthreshold),
99 m_valstereobit(valstereobit),
100 m_expert(expert),
101 m_tsvector(tsvector),
102 m_qualityvector(qualityvector),
103 m_etf_unpacked(0),
104 m_etf_recalced(0) { }
Belle2::CDCTriggerTrack::m_etf_unpacked
int m_etf_unpacked
unpacked etf time from the unpacker
Definition: CDCTriggerTrack.h:228
Belle2::CDCTriggerTrack::m_etf_recalced
int m_etf_recalced
etf time recalculated from the hw input
Definition: CDCTriggerTrack.h:230

◆ ~CDCTriggerTrack()

~CDCTriggerTrack ( )
inline

destructor, empty because we don't allocate memory anywhere.

Definition at line 106 of file CDCTriggerTrack.h.

106{ }

Member Function Documentation

◆ a() [1/2]

const HepVector & a ( const HepVector &  newA)
inlineinherited

Sets helix parameters.

Definition at line 444 of file Helix.h.

445 {
446 if (i.num_row() == 5) {
447 m_a = i;
448 m_helixValid = false;
449 updateCache();
450#if defined(BELLE_DEBUG)
451 DEBUG_HELIX;
452 } else {
453 {
454 std::cout << "Helix::input vector's num_row is not 5" << std::endl;
455 DEBUG_PRINT;
456 if (ms_throw_exception) throw invalidhelix;
457 }
458#endif
459 }
460 return m_a;
461 }
Belle2::CDC::Helix::updateCache
void updateCache(void)
updateCache
Definition: Helix.cc:508
Belle2::CDC::Helix::m_helixValid
bool m_helixValid
True: helix valid, False: helix not valid.
Definition: Helix.h:290
Belle2::CDC::Helix::ms_throw_exception
static bool ms_throw_exception
Throw exception flag.
Definition: Helix.h:239
Belle2::CDC::Helix::m_a
HepVector m_a
Helix parameter.
Definition: Helix.h:298
Belle2::CDC::Helix::invalidhelix
static const std::string invalidhelix
String "Invalid Helix".
Definition: Helix.h:318

◆ a() [2/2]

const HepVector & a ( void  ) const
inlineinherited

Returns helix parameters.

Definition at line 428 of file Helix.h.

429 {
430 DEBUG_HELIX;
431 return m_a;
432 }

◆ bFieldZ() [1/2]

double bFieldZ ( double  bz)
inlineinherited

Sets/returns z componet of the magnetic field.

Parameters
[in]bzz-component of the magnetic field.
Attention
Helix param. alpha is also stored.

Definition at line 473 of file Helix.h.

474 {
475 DEBUG_HELIX;
476 m_bField = a;
477 m_alpha = 10000. / 2.99792458 / m_bField;
478 updateCache();
479 return m_bField;
480 }
Belle2::CDC::Helix::a
const HepVector & a(void) const
Returns helix parameters.
Definition: Helix.h:428
Belle2::CDC::Helix::m_alpha
double m_alpha
10000.0/(speed of light)/B.
Definition: Helix.h:294
Belle2::CDC::Helix::m_bField
double m_bField
Magnetic field, assuming uniform Bz in the unit of kG.
Definition: Helix.h:292

◆ bFieldZ() [2/2]

double bFieldZ ( void  ) const
inlineinherited

Returns z componet of the magnetic field.

Definition at line 484 of file Helix.h.

485 {
486 DEBUG_HELIX;
487 return m_bField;
488 }

◆ center()

const HepPoint3D & center ( void  ) const
inlineinherited

returns position of helix center(z = 0.);

Definition at line 343 of file Helix.h.

344 {
345#if defined(BELLE_DEBUG)
346 if (!m_helixValid) {
347 DEBUG_PRINT;
348 if (msthrow_exception) throw invalidhelix;
349 }
350#endif
351 return m_center;
352 }
Belle2::CDC::Helix::m_center
HepPoint3D m_center
Cache of the center position of Helix.
Definition: Helix.h:305

◆ checkValid()

void checkValid ( void  )
privateinherited

Check whether helix parameters is valid or not.

Sets m_helixValid.

Definition at line 895 of file Helix.cc.

896{
897
898 if (!ms_check_range) return;
899 const double adr = fabs(m_a[0]);
900 const double acpa = fabs(m_a[2]);
901 if (!(adr >= ms_amin[0] && adr <= ms_amax[0])) {
902 m_helixValid = false;
903 } else if (!(acpa >= ms_amin[2] && acpa <= ms_amax[2])) {
904 m_helixValid = false;
905 } else {
906 m_helixValid = true;
907 }
908 if (!m_helixValid) {
909 if (m_a[0] != 0.0 || m_a[1] != 0.0 || m_a[2] != 0.0 ||
910 m_a[3] != 0.0 || m_a[4] != 0.0) {
911 DEBUG_PRINT;
912 }
913 }
914
915}
Belle2::CDC::Helix::ms_check_range
static bool ms_check_range
Check the helix parameter's range.
Definition: Helix.h:235
Belle2::CDC::Helix::ms_amin
static HepVector ms_amin
minimum limit of Helix parameter a
Definition: Helix.h:231
Belle2::CDC::Helix::ms_amax
static HepVector ms_amax
maxiimum limit of Helix parameter a
Definition: Helix.h:233

◆ cosPhi0()

double cosPhi0 ( void  ) const
inlineinherited

Return cos phi0.

Definition at line 500 of file Helix.h.

501 {
502 DEBUG_HELIX;
503 return m_cp;
504 }
Belle2::CDC::Helix::m_cp
double m_cp
Cache of the cos phi0.
Definition: Helix.h:307

◆ curv()

double curv ( void  ) const
inlineinherited

Return curvature of helix.

Definition at line 420 of file Helix.h.

421 {
422 DEBUG_HELIX;
423 return m_r;
424 }
Belle2::CDC::Helix::m_r
double m_r
Cache of the r.
Definition: Helix.h:313

◆ debugHelix()

void debugHelix ( void  ) const
privateinherited

Debug Helix.

Definition at line 917 of file Helix.cc.

918{
919 if (!m_helixValid) {
920 if (ms_check_range) {DEBUG_PRINT;}
921 if (ms_throw_exception) { throw invalidhelix;}
922 }
923}

◆ debugPrint()

void debugPrint ( void  ) const
privateinherited

Print the helix parameters to stdout.

Definition at line 879 of file Helix.cc.

880{
881
882 const double dr = m_a[0];
883 const double phi0 = m_a[1];
884 const double cpa = m_a[2];
885 const double dz = m_a[3];
886 const double tnl = m_a[4];
887 if (ms_print_debug) {
888 std::cout << "Helix::dr = " << dr << " phi0 = " << phi0 << " cpa = " << cpa
889 << " dz = " << dz << " tnl = " << tnl << std::endl;
890 std::cout << " pivot = " << m_pivot << std::endl;
891 }
892}
Belle2::CDC::Helix::ms_print_debug
static bool ms_print_debug
Debug option flag.
Definition: Helix.h:237
Belle2::CDC::Helix::dr
double dr(void) const
Return helix parameter dr.
Definition: Helix.h:380
Belle2::CDC::Helix::dz
double dz(void) const
Return helix parameter dz.
Definition: Helix.h:404
Belle2::CDC::Helix::m_pivot
HepPoint3D m_pivot
Pivot.
Definition: Helix.h:296

◆ del4MDelA()

HepMatrix del4MDelA ( double  phi,
double  mass
) const
inherited

DM4/DA.

Definition at line 749 of file Helix.cc.

750{
751 DEBUG_HELIX;
752
753 //
754 // Calculate Jacobian (@4m/@a)
755 // Vector a is helix parameters and phi is internal parameter.
756 // Vector 4m is 4 momentum.
757 //
758
759 HepMatrix d4MDA(4, 5, 0);
760
761 double phi0 = m_ac[1];
762 double cpa = m_ac[2];
763 double tnl = m_ac[4];
764
765 double cosf0phi = cos(phi0 + phi);
766 double sinf0phi = sin(phi0 + phi);
767
768 double rho;
769 if (cpa != 0.)rho = 1. / cpa;
770 else rho = (DBL_MAX);
771
772 double charge = 1.;
773 if (cpa < 0.)charge = -1.;
774
775 double E = sqrt(rho * rho * (1. + tnl * tnl) + mass * mass);
776
777 d4MDA[0][1] = -fabs(rho) * cosf0phi;
778 d4MDA[0][2] = charge * rho * rho * sinf0phi;
779
780 d4MDA[1][1] = -fabs(rho) * sinf0phi;
781 d4MDA[1][2] = -charge * rho * rho * cosf0phi;
782
783 d4MDA[2][2] = -charge * rho * rho * tnl;
784 d4MDA[2][4] = fabs(rho);
785
786 if (cpa != 0.0 && E != 0.0) {
787 d4MDA[3][2] = (-1. - tnl * tnl) / (cpa * cpa * cpa * E);
788 d4MDA[3][4] = tnl / (cpa * cpa * E);
789 } else {
790 d4MDA[3][2] = (DBL_MAX);
791 d4MDA[3][4] = (DBL_MAX);
792 }
793 return d4MDA;
794}
E
R E
internal precision of FFTW codelets
Definition: DiscreteCosineTransform_31points.cc:36
Belle2::CDC::Helix::m_ac
double m_ac[5]
Cache of the helix parameter.
Definition: Helix.h:315
Belle2::sqrt
double sqrt(double a)
sqrt for double
Definition: beamHelpers.h:28
Belle2::EvtPDLUtil::charge
double charge(int pdgCode)
Returns electric charge of a particle with given pdg code.
Definition: EvtPDLUtil.cc:44

◆ del4MXDelA()

HepMatrix del4MXDelA ( double  phi,
double  mass
) const
inherited

DMX4/DA.

Definition at line 798 of file Helix.cc.

799{
800 DEBUG_HELIX;
801
802 //
803 // Calculate Jacobian (@4mx/@a)
804 // Vector a is helix parameters and phi is internal parameter.
805 // Vector 4xm is 4 momentum and position.
806 //
807
808 HepMatrix d4MXDA(7, 5, 0);
809
810 const double& dr = m_ac[0];
811 const double& phi0 = m_ac[1];
812 const double& cpa = m_ac[2];
813 //const double & dz = m_ac[3];
814 const double& tnl = m_ac[4];
815
816 double cosf0phi = cos(phi0 + phi);
817 double sinf0phi = sin(phi0 + phi);
818
819 double rho;
820 if (cpa != 0.)rho = 1. / cpa;
821 else rho = (DBL_MAX);
822
823 double charge = 1.;
824 if (cpa < 0.)charge = -1.;
825
826 double E = sqrt(rho * rho * (1. + tnl * tnl) + mass * mass);
827
828 d4MXDA[0][1] = - fabs(rho) * cosf0phi;
829 d4MXDA[0][2] = charge * rho * rho * sinf0phi;
830
831 d4MXDA[1][1] = - fabs(rho) * sinf0phi;
832 d4MXDA[1][2] = - charge * rho * rho * cosf0phi;
833
834 d4MXDA[2][2] = - charge * rho * rho * tnl;
835 d4MXDA[2][4] = fabs(rho);
836
837 if (cpa != 0.0 && E != 0.0) {
838 d4MXDA[3][2] = (- 1. - tnl * tnl) / (cpa * cpa * cpa * E);
839 d4MXDA[3][4] = tnl / (cpa * cpa * E);
840 } else {
841 d4MXDA[3][2] = (DBL_MAX);
842 d4MXDA[3][4] = (DBL_MAX);
843 }
844
845 d4MXDA[4][0] = m_cp;
846 d4MXDA[4][1] = - dr * m_sp + m_r * (- m_sp + sinf0phi);
847 if (cpa != 0.0) {
848 d4MXDA[4][2] = - (m_r / cpa) * (m_cp - cosf0phi);
849 } else {
850 d4MXDA[4][2] = (DBL_MAX);
851 }
852
853 d4MXDA[5][0] = m_sp;
854 d4MXDA[5][1] = dr * m_cp + m_r * (m_cp - cosf0phi);
855 if (cpa != 0.0) {
856 d4MXDA[5][2] = - (m_r / cpa) * (m_sp - sinf0phi);
857
858 d4MXDA[6][2] = (m_r / cpa) * tnl * phi;
859 } else {
860 d4MXDA[5][2] = (DBL_MAX);
861
862 d4MXDA[6][2] = (DBL_MAX);
863 }
864
865 d4MXDA[6][3] = 1.;
866 d4MXDA[6][4] = - m_r * phi;
867
868 return d4MXDA;
869}
Belle2::CDC::Helix::m_sp
double m_sp
Cache of the sin phi0.
Definition: Helix.h:309

◆ delApDelA()

HepMatrix delApDelA ( const HepVector &  ap) const
inherited

DAp/DA.

Definition at line 584 of file Helix.cc.

585{
586 DEBUG_HELIX;
587 //
588 // Calculate Jacobian (@ap/@a)
589 // Vector ap is new helix parameters and a is old helix parameters.
590 //
591
592 HepMatrix dApDA(5, 5, 0);
593
594 const double& dr = m_ac[0];
595 const double& phi0 = m_ac[1];
596 const double& cpa = m_ac[2];
597 //const double & dz = m_ac[3];
598 const double& tnl = m_ac[4];
599
600 double drp = ap[0];
601 double phi0p = ap[1];
602 //double cpap = ap[2];
603 //double dzp = ap[3];
604 //double tnlp = ap[4];
605
606 double rdr = m_r + dr;
607 double rdrpr;
608 if ((m_r + drp) != 0.0) {
609 rdrpr = 1. / (m_r + drp);
610 } else {
611 rdrpr = (DBL_MAX);
612 }
613 // double csfd = cos(phi0)*cos(phi0p) + sin(phi0)*sin(phi0p);
614 // double snfd = cos(phi0)*sin(phi0p) - sin(phi0)*cos(phi0p);
615 double csfd = cos(phi0p - phi0);
616 double snfd = sin(phi0p - phi0);
617 double phid = fmod(phi0p - phi0 + M_PI8, M_PI2);
618 if (phid > M_PI) phid = phid - M_PI2;
619
620 dApDA[0][0] = csfd;
621 dApDA[0][1] = rdr * snfd;
622 if (cpa != 0.0) {
623 dApDA[0][2] = (m_r / cpa) * (1.0 - csfd);
624 } else {
625 dApDA[0][2] = (DBL_MAX);
626 }
627
628 dApDA[1][0] = - rdrpr * snfd;
629 dApDA[1][1] = rdr * rdrpr * csfd;
630 if (cpa != 0.0) {
631 dApDA[1][2] = (m_r / cpa) * rdrpr * snfd;
632 } else {
633 dApDA[1][2] = (DBL_MAX);
634 }
635
636 dApDA[2][2] = 1.0;
637
638 dApDA[3][0] = m_r * rdrpr * tnl * snfd;
639 dApDA[3][1] = m_r * tnl * (1.0 - rdr * rdrpr * csfd);
640 if (cpa != 0.0) {
641 dApDA[3][2] = (m_r / cpa) * tnl * (phid - m_r * rdrpr * snfd);
642 } else {
643 dApDA[3][2] = (DBL_MAX);
644 }
645 dApDA[3][3] = 1.0;
646 dApDA[3][4] = - m_r * phid;
647
648 dApDA[4][4] = 1.0;
649
650 return dApDA;
651}
Belle2::M_PI8
const double M_PI8
8*PI
Definition: Helix.cc:39
Belle2::M_PI2
const double M_PI2
2*PI
Definition: Helix.cc:31

◆ delMDelA()

HepMatrix delMDelA ( double  phi) const
inherited

DM/DA.

Definition at line 710 of file Helix.cc.

711{
712 DEBUG_HELIX;
713 //
714 // Calculate Jacobian (@m/@a)
715 // Vector a is helix parameters and phi is internal parameter.
716 // Vector m is momentum.
717 //
718
719 HepMatrix dMDA(3, 5, 0);
720
721 const double& phi0 = m_ac[1];
722 const double& cpa = m_ac[2];
723 const double& tnl = m_ac[4];
724
725 double cosf0phi = cos(phi0 + phi);
726 double sinf0phi = sin(phi0 + phi);
727
728 double rho;
729 if (cpa != 0.)rho = 1. / cpa;
730 else rho = (DBL_MAX);
731
732 double charge = 1.;
733 if (cpa < 0.)charge = -1.;
734
735 dMDA[0][1] = -fabs(rho) * cosf0phi;
736 dMDA[0][2] = charge * rho * rho * sinf0phi;
737
738 dMDA[1][1] = -fabs(rho) * sinf0phi;
739 dMDA[1][2] = -charge * rho * rho * cosf0phi;
740
741 dMDA[2][2] = -charge * rho * rho * tnl;
742 dMDA[2][4] = fabs(rho);
743
744 return dMDA;
745}

◆ delXDelA()

HepMatrix delXDelA ( double  phi) const
inherited

DX/DA.

Definition at line 654 of file Helix.cc.

655{
656 DEBUG_HELIX;
657 //
658 // Calculate Jacobian (@x/@a)
659 // Vector a is helix parameters and phi is internal parameter
660 // which specifys the point to be calculated for Ex(phi).
661 //
662
663 HepMatrix dXDA(3, 5, 0);
664
665 const double& dr = m_ac[0];
666 const double& phi0 = m_ac[1];
667 const double& cpa = m_ac[2];
668 //const double & dz = m_ac[3];
669 const double& tnl = m_ac[4];
670
671 double cosf0phi = cos(phi0 + phi);
672 double sinf0phi = sin(phi0 + phi);
673
674 dXDA[0][0] = m_cp;
675 dXDA[0][1] = - dr * m_sp + m_r * (- m_sp + sinf0phi);
676 if (cpa != 0.0) {
677 dXDA[0][2] = - (m_r / cpa) * (m_cp - cosf0phi);
678 } else {
679 dXDA[0][2] = (DBL_MAX);
680 }
681 // dXDA[0][3] = 0.0;
682 // dXDA[0][4] = 0.0;
683
684 dXDA[1][0] = m_sp;
685 dXDA[1][1] = dr * m_cp + m_r * (m_cp - cosf0phi);
686 if (cpa != 0.0) {
687 dXDA[1][2] = - (m_r / cpa) * (m_sp - sinf0phi);
688 } else {
689 dXDA[1][2] = (DBL_MAX);
690 }
691 // dXDA[1][3] = 0.0;
692 // dXDA[1][4] = 0.0;
693
694 // dXDA[2][0] = 0.0;
695 // dXDA[2][1] = 0.0;
696 if (cpa != 0.0) {
697 dXDA[2][2] = (m_r / cpa) * tnl * phi;
698 } else {
699 dXDA[2][2] = (DBL_MAX);
700 }
701 dXDA[2][3] = 1.0;
702 dXDA[2][4] = - m_r * phi;
703
704 return dXDA;
705}

◆ direction()

Hep3Vector direction ( double  dPhi = 0.) const
inlineinherited

returns direction vector after rotating angle dPhi in phi direction.

Definition at line 372 of file Helix.h.

373 {
374 DEBUG_HELIX;
375 return momentum(phi).unit();
376 }
Belle2::CDC::Helix::momentum
Hep3Vector momentum(double dPhi=0.) const
returns momentum vector after rotating angle dPhi in phi direction.
Definition: Helix.cc:259

◆ dr()

double dr ( void  ) const
inlineinherited

Return helix parameter dr.

Definition at line 380 of file Helix.h.

381 {
382 DEBUG_HELIX;
383 return m_ac[0];
384 }

◆ dz()

double dz ( void  ) const
inlineinherited

Return helix parameter dz.

Definition at line 404 of file Helix.h.

405 {
406 DEBUG_HELIX;
407 return m_ac[3];
408 }

◆ Ea() [1/2]

const HepSymMatrix & Ea ( const HepSymMatrix &  newdA)
inlineinherited

Sets helix paramters and error matrix.

Definition at line 465 of file Helix.h.

466 {
467 DEBUG_HELIX;
468 return m_Ea = i;
469 }
Belle2::CDC::Helix::m_Ea
HepSymMatrix m_Ea
Error of the helix parameter.
Definition: Helix.h:300

◆ Ea() [2/2]

const HepSymMatrix & Ea ( void  ) const
inlineinherited

Returns error matrix.

Definition at line 436 of file Helix.h.

437 {
438 DEBUG_HELIX;
439 return m_Ea;
440 }

◆ getChi2D()

float getChi2D ( ) const
inline

get chi2 value of 2D fitter

Definition at line 110 of file CDCTriggerTrack.h.

110{ return m_chi2D; }

◆ getChi3D()

float getChi3D ( ) const
inline

get chi2 value of 3D fitter

Definition at line 112 of file CDCTriggerTrack.h.

112{ return m_chi3D; }

◆ getDriftThreshold()

std::vector< bool > getDriftThreshold ( ) const
inline

returns true, if the drift time was fitted into the time window

Definition at line 135 of file CDCTriggerTrack.h.

135{return m_driftthreshold;}

◆ getETF_recalced()

int getETF_recalced ( ) const
inline

Definition at line 156 of file CDCTriggerTrack.h.

156{return m_etf_recalced;}

◆ getETF_unpacked()

int getETF_unpacked ( ) const
inline

getter and setter functions for etf timing

Definition at line 155 of file CDCTriggerTrack.h.

155{return m_etf_unpacked;}

◆ getExpert()

int getExpert ( ) const
inline

return sl pattern of neurotrack

Definition at line 138 of file CDCTriggerTrack.h.

138{return m_expert;}

◆ getFoundOldTrack()

std::vector< bool > getFoundOldTrack ( ) const
inline

returns true, if old 2dtrack was found

Definition at line 129 of file CDCTriggerTrack.h.

129{return m_foundoldtrack;}

◆ getHasETFTime()

bool getHasETFTime ( ) const
inline

Definition at line 153 of file CDCTriggerTrack.h.

153{return m_hasETFTime;}
Belle2::CDCTriggerTrack::m_hasETFTime
bool m_hasETFTime
chi2 value from 2D fitter
Definition: CDCTriggerTrack.h:232

◆ getNNTToGDL()

bool getNNTToGDL ( ) const
inline

Definition at line 193 of file CDCTriggerTrack.h.

193{return m_nntgdl;}
Belle2::CDCTriggerTrack::m_nntgdl
bool m_nntgdl
nnt decision that the firmware passed to gdl
Definition: CDCTriggerTrack.h:240

◆ getPt()

double getPt ( ) const
inline

get the absolute value of the transverse momentum at the perigee assuming d0 = 0

Definition at line 118 of file CDCTriggerTrack.h.

119 {
120 const double bField = BFieldManager::getField(0, 0, getZ0()).Z() / Unit::T;
121 return getTransverseMomentum(bField);
122 }
Belle2::Unit::T
static const double T
[tesla]
Definition: Unit.h:120
Belle2::BFieldManager::getField
static void getField(const double *pos, double *field)
return the magnetic field at a given position.
Definition: BFieldManager.h:91

◆ getQuadrant()

short getQuadrant ( ) const
inline

get the quadrant

Definition at line 124 of file CDCTriggerTrack.h.

125 {
126 return m_quadrant;
127 }

◆ getQualityVector()

unsigned getQualityVector ( ) const
inline

Definition at line 151 of file CDCTriggerTrack.h.

151{return m_qualityvector;}

◆ getRawInput()

std::vector< int > getRawInput ( ) const
inline

Definition at line 192 of file CDCTriggerTrack.h.

192{return m_rawinput;}

◆ getRawOmega()

int getRawOmega ( ) const
inline

Definition at line 189 of file CDCTriggerTrack.h.

189{return m_rawomega;}

◆ getRawPhi0()

int getRawPhi0 ( ) const
inline

Definition at line 188 of file CDCTriggerTrack.h.

188{return m_rawphi0;}
Belle2::CDCTriggerTrack::m_rawphi0
int m_rawphi0
values to store the raw network and 2dfinder output
Definition: CDCTriggerTrack.h:234

◆ getRawTheta()

int getRawTheta ( ) const
inline

Definition at line 191 of file CDCTriggerTrack.h.

191{return m_rawtheta;}

◆ getRawZ()

int getRawZ ( ) const
inline

Definition at line 190 of file CDCTriggerTrack.h.

190{return m_rawz;}

◆ getSTTToGDL()

bool getSTTToGDL ( ) const
inline

Definition at line 194 of file CDCTriggerTrack.h.

194{return m_sttgdl;}
Belle2::CDCTriggerTrack::m_sttgdl
bool m_sttgdl
stt decision that the firmware passed to gdl
Definition: CDCTriggerTrack.h:242

◆ getTime()

float getTime ( ) const
inline

get the track found time

Definition at line 114 of file CDCTriggerTrack.h.

114{ return m_time; }

◆ getTSVector()

std::vector< unsigned > getTSVector ( ) const
inline

return the vector of used Track Segments.

The First bit is the innermost TS, the last bit the outermost.

Definition at line 142 of file CDCTriggerTrack.h.

142{return m_tsvector;}

◆ getValidStereoBit()

bool getValidStereoBit ( ) const
inline

returns true, if at least 3 stereo ts were found

Definition at line 132 of file CDCTriggerTrack.h.

132{return m_valstereobit;}

◆ ignoreErrorMatrix()

void ignoreErrorMatrix ( void  )
inherited

Unsets error matrix.

Error calculations will be ignored after this function call until an error matrix be set again. 0 matrix will be return as a return value for error matrix when you call functions which returns an error matrix.

Definition at line 872 of file Helix.cc.

873{
874 m_matrixValid = false;
875 m_Ea *= 0.;
876}
Belle2::CDC::Helix::m_matrixValid
bool m_matrixValid
True: matrix valid, False: matrix not valid.
Definition: Helix.h:288

◆ kappa()

double kappa ( void  ) const
inlineinherited

Return helix parameter kappa.

Definition at line 396 of file Helix.h.

397 {
398 DEBUG_HELIX;
399 return m_ac[2];
400 }

◆ momentum() [1/5]

HepLorentzVector momentum ( double  dPhi,
double  mass
) const
inherited

returns 4momentum vector after rotating angle dPhi in phi direction.

Definition at line 306 of file Helix.cc.

307{
308 DEBUG_HELIX;
309 //
310 // Calculate momentum.
311 //
312 // Pt = | 1/kappa | (GeV/c)
313 //
314 // Px = -Pt * sin(phi0 + phi)
315 // Py = Pt * cos(phi0 + phi)
316 // Pz = Pt * tan(lambda)
317 //
318 // E = sqrt( 1/kappa/kappa * (1+tan(lambda)*tan(lambda)) + mass*mass )
319
320 double pt = fabs(m_pt);
321 double px = - pt * sin(m_ac[1] + phi);
322 double py = pt * cos(m_ac[1] + phi);
323 double pz = pt * m_ac[4];
324 double E = sqrt(pt * pt * (1. + m_ac[4] * m_ac[4]) + mass * mass);
325
326 return HepLorentzVector(px, py, pz, E);
327}
Belle2::CDC::Helix::m_pt
double m_pt
Cache of the pt.
Definition: Helix.h:311

◆ momentum() [2/5]

HepLorentzVector momentum ( double  dPhi,
double  mass,
HepPoint3D &  x,
HepSymMatrix &  Emx
) const
inherited

returns 4momentum vector after rotating angle dPhi in phi direction.

Definition at line 358 of file Helix.cc.

362{
363 DEBUG_HELIX;
364 //
365 // Calculate momentum.
366 //
367 // Pt = | 1/kappa | (GeV/c)
368 //
369 // Px = -Pt * sin(phi0 + phi)
370 // Py = Pt * cos(phi0 + phi)
371 // Pz = Pt * tan(lambda)
372 //
373 // E = sqrt( 1/kappa/kappa * (1+tan(lambda)*tan(lambda)) + mass*mass )
374
375 double pt = fabs(m_pt);
376 double px = - pt * sin(m_ac[1] + phi);
377 double py = pt * cos(m_ac[1] + phi);
378 double pz = pt * m_ac[4];
379 double E = sqrt(pt * pt * (1. + m_ac[4] * m_ac[4]) + mass * mass);
380
381 x.setX(m_pivot.x() + m_ac[0] * m_cp + m_r * (m_cp - cos(m_ac[1] + phi)));
382 x.setY(m_pivot.y() + m_ac[0] * m_sp + m_r * (m_sp - sin(m_ac[1] + phi)));
383 x.setZ(m_pivot.z() + m_ac[3] - m_r * m_ac[4] * phi);
384
385 if (m_matrixValid) Emx = m_Ea.similarity(del4MXDelA(phi, mass));
386 else Emx = m_Ea;
387
388 return HepLorentzVector(px, py, pz, E);
389}
Belle2::CDC::Helix::del4MXDelA
HepMatrix del4MXDelA(double phi, double mass) const
DMX4/DA.
Definition: Helix.cc:798
Belle2::CDC::Helix::x
HepPoint3D x(double dPhi=0.) const
returns position after rotating angle dPhi in phi direction.
Definition: Helix.cc:197

◆ momentum() [3/5]

HepLorentzVector momentum ( double  dPhi,
double  mass,
HepSymMatrix &  Em
) const
inherited

returns 4momentum vector after rotating angle dPhi in phi direction.

Definition at line 331 of file Helix.cc.

332{
333 DEBUG_HELIX;
334 //
335 // Calculate momentum.
336 //
337 // Pt = | 1/kappa | (GeV/c)
338 //
339 // Px = -Pt * sin(phi0 + phi)
340 // Py = Pt * cos(phi0 + phi)
341 // Pz = Pt * tan(lambda)
342 //
343 // E = sqrt( 1/kappa/kappa * (1+tan(lambda)*tan(lambda)) + mass*mass )
344
345 double pt = fabs(m_pt);
346 double px = - pt * sin(m_ac[1] + phi);
347 double py = pt * cos(m_ac[1] + phi);
348 double pz = pt * m_ac[4];
349 double E = sqrt(pt * pt * (1. + m_ac[4] * m_ac[4]) + mass * mass);
350
351 if (m_matrixValid) Em = m_Ea.similarity(del4MDelA(phi, mass));
352 else Em = m_Ea;
353
354 return HepLorentzVector(px, py, pz, E);
355}
Belle2::CDC::Helix::del4MDelA
HepMatrix del4MDelA(double phi, double mass) const
DM4/DA.
Definition: Helix.cc:749

◆ momentum() [4/5]

Hep3Vector momentum ( double  dPhi,
HepSymMatrix &  Em
) const
inherited

returns momentum vector after rotating angle dPhi in phi direction.

Definition at line 281 of file Helix.cc.

282{
283 DEBUG_HELIX;
284 //
285 // Calculate momentum.
286 //
287 // Pt = | 1/kappa | (GeV/c)
288 //
289 // Px = -Pt * sin(phi0 + phi)
290 // Py = Pt * cos(phi0 + phi)
291 // Pz = Pt * tan(lambda)
292 //
293
294 double pt = fabs(m_pt);
295 double px = - pt * sin(m_ac[1] + phi);
296 double py = pt * cos(m_ac[1] + phi);
297 double pz = pt * m_ac[4];
298
299 if (m_matrixValid) Em = m_Ea.similarity(delMDelA(phi));
300 else Em = m_Ea;
301
302 return Hep3Vector(px, py, pz);
303}
Belle2::CDC::Helix::delMDelA
HepMatrix delMDelA(double phi) const
DM/DA.
Definition: Helix.cc:710

◆ momentum() [5/5]

Hep3Vector momentum ( double  dPhi = 0.) const
inherited

returns momentum vector after rotating angle dPhi in phi direction.

Definition at line 259 of file Helix.cc.

260{
261 DEBUG_HELIX;
262 //
263 // Calculate momentum.
264 //
265 // Pt = | 1/kappa | (GeV/c)
266 //
267 // Px = -Pt * sin(phi0 + phi)
268 // Py = Pt * cos(phi0 + phi)
269 // Pz = Pt * tan(lambda)
270 //
271
272 double pt = fabs(m_pt);
273 double px = - pt * sin(m_ac[1] + phi);
274 double py = pt * cos(m_ac[1] + phi);
275 double pz = pt * m_ac[4];
276
277 return Hep3Vector(px, py, pz);
278}

◆ phi0()

double phi0 ( void  ) const
inlineinherited

Return helix parameter phi0.

Definition at line 388 of file Helix.h.

389 {
390 DEBUG_HELIX;
391 return m_ac[1];
392 }

◆ pivot() [1/2]

const HepPoint3D & pivot ( const HepPoint3D &  newPivot)
inherited

Sets pivot position.

Definition at line 393 of file Helix.cc.

394{
395 DEBUG_HELIX;
396#if defined(BELLE_DEBUG)
397 try {
398#endif
399 const double& dr = m_ac[0];
400 const double& phi0 = m_ac[1];
401 const double& kappa = m_ac[2];
402 const double& dz = m_ac[3];
403 const double& tanl = m_ac[4];
404
405 double rdr = dr + m_r;
406 double phi = fmod(phi0 + M_PI4, M_PI2);
407 double csf0 = cos(phi);
408 double snf0 = (1. - csf0) * (1. + csf0);
409 snf0 = sqrt((snf0 > 0.) ? snf0 : 0.);
410 if (phi > M_PI) snf0 = - snf0;
411
412 double xc = m_pivot.x() + rdr * csf0;
413 double yc = m_pivot.y() + rdr * snf0;
414 double csf, snf;
415 if (m_r != 0.0) {
416 csf = (xc - newPivot.x()) / m_r;
417 snf = (yc - newPivot.y()) / m_r;
418 double anrm = sqrt(csf * csf + snf * snf);
419 if (anrm != 0.0) {
420 csf /= anrm;
421 snf /= anrm;
422 phi = atan2(snf, csf);
423 } else {
424 csf = 1.0;
425 snf = 0.0;
426 phi = 0.0;
427 }
428 } else {
429 csf = 1.0;
430 snf = 0.0;
431 phi = 0.0;
432 }
433 double phid = fmod(phi - phi0 + M_PI8, M_PI2);
434 if (phid > M_PI) phid = phid - M_PI2;
435 double drp = (m_pivot.x() + dr * csf0 + m_r * (csf0 - csf) - newPivot.x())
436 * csf
437 + (m_pivot.y() + dr * snf0 + m_r * (snf0 - snf) - newPivot.y()) * snf;
438 double dzp = m_pivot.z() + dz - m_r * tanl * phid - newPivot.z();
439
440 HepVector ap(5);
441 ap[0] = drp;
442 ap[1] = fmod(phi + M_PI4, M_PI2);
443 ap[2] = kappa;
444 ap[3] = dzp;
445 ap[4] = tanl;
446
447 // if (m_matrixValid) m_Ea.assign(delApDelA(ap) * m_Ea * delApDelA(ap).T());
448 if (m_matrixValid) m_Ea = m_Ea.similarity(delApDelA(ap));
449
450 m_a = ap;
451 m_pivot = newPivot;
452
453 //...Are these needed?...iw...
454 updateCache();
455 return m_pivot;
456#if defined(BELLE_DEBUG)
457 } catch (...) {
458 m_helixValid = false;
459 DEBUG_PRINT;
460 if (ms_throw_exception) throw invalidhelix;
461 }
462#endif
463 return m_pivot;
464}
Belle2::CDC::Helix::tanl
double tanl(void) const
Return helix parameter tangent lambda.
Definition: Helix.h:412
Belle2::CDC::Helix::delApDelA
HepMatrix delApDelA(const HepVector &ap) const
DAp/DA.
Definition: Helix.cc:584
Belle2::CDC::Helix::kappa
double kappa(void) const
Return helix parameter kappa.
Definition: Helix.h:396
Belle2::M_PI4
const double M_PI4
4*PI
Definition: Helix.cc:35

◆ pivot() [2/2]

const HepPoint3D & pivot ( void  ) const
inlineinherited

returns pivot position.

Definition at line 356 of file Helix.h.

357 {
358 DEBUG_HELIX;
359 return m_pivot;
360 }

◆ radius()

double radius ( void  ) const
inlineinherited

returns radious of helix.

Definition at line 364 of file Helix.h.

365 {
366 DEBUG_HELIX;
367 return m_r;
368 }

◆ set()

void set ( const HepPoint3D &  pivot,
const HepVector &  a,
const HepSymMatrix &  Ea
)
inherited

Sets helix pivot position, parameters, and error matrix.

Definition at line 467 of file Helix.cc.

470{
471 m_pivot = pivot;
472 m_a = a;
473 m_Ea = Ea;
474 m_matrixValid = true;
475 m_helixValid = false;
476 updateCache();
477 DEBUG_HELIX;
478}
Belle2::CDC::Helix::pivot
const HepPoint3D & pivot(void) const
returns pivot position.
Definition: Helix.h:356
Belle2::CDC::Helix::Ea
const HepSymMatrix & Ea(void) const
Returns error matrix.
Definition: Helix.h:436

◆ set_exception()

bool set_exception ( bool  t)
staticinherited

set exception

Definition at line 112 of file Helix.cc.

113{
114 return ms_throw_exception = t;
115}

◆ set_limits()

void set_limits ( const HepVector &  a_min,
const HepVector &  a_max
)
staticinherited

set limit for parameter "a"

Definition at line 123 of file Helix.cc.

124{
125 if (a_min.num_row() != 5 || a_max.num_row() != 5) return;
126 ms_amin = a_min;
127 ms_amax = a_max;
128 ms_check_range = true;
129}

◆ set_print()

bool set_print ( bool  t)
staticinherited

Set print option for debugging.

Definition at line 117 of file Helix.cc.

118{
119 return ms_print_debug = t;
120}

◆ setETF_recalced()

void setETF_recalced ( int  x)
inline

Definition at line 158 of file CDCTriggerTrack.h.

158{m_etf_recalced = x;}

◆ setETF_unpacked()

void setETF_unpacked ( int  x)
inline

Definition at line 157 of file CDCTriggerTrack.h.

157{m_etf_unpacked = x;}

◆ setHasETFTime()

void setHasETFTime ( bool  x)
inline

Definition at line 152 of file CDCTriggerTrack.h.

152{m_hasETFTime = x;}

◆ setNNTToGDL()

void setNNTToGDL ( const bool  nntgdl)
inline

Definition at line 180 of file CDCTriggerTrack.h.

181 {
182 m_nntgdl = nntgdl;
183 }

◆ setQualityVector()

void setQualityVector ( const unsigned  newbits)
inline

setter and getter for the quality vector.

For the setter, the given uint is xored with the current qualityvector, thus all bits with a 1 are changed.

Definition at line 147 of file CDCTriggerTrack.h.

148 {
149 m_qualityvector = m_qualityvector ^ newbits;
150 }

◆ setRawInput()

void setRawInput ( const std::vector< int >  input)
inline

Definition at line 176 of file CDCTriggerTrack.h.

177 {
178 m_rawinput = input;
179 }

◆ setRawOmega()

void setRawOmega ( const int  omega)
inline

Definition at line 164 of file CDCTriggerTrack.h.

165 {
166 m_rawomega = omega;
167 }

◆ setRawPhi0()

void setRawPhi0 ( const int  phi0)
inline

setter and getter functions for raw track values

Definition at line 160 of file CDCTriggerTrack.h.

161 {
162 m_rawphi0 = phi0;
163 }

◆ setRawTheta()

void setRawTheta ( const int  theta)
inline

Definition at line 172 of file CDCTriggerTrack.h.

173 {
174 m_rawtheta = theta;
175 }

◆ setRawZ()

void setRawZ ( const int  z)
inline

Definition at line 168 of file CDCTriggerTrack.h.

169 {
170 m_rawz = z;
171 }

◆ setSTTToGDL()

void setSTTToGDL ( const bool  sttgdl)
inline

Definition at line 184 of file CDCTriggerTrack.h.

185 {
186 m_sttgdl = sttgdl;
187 }

◆ sinPhi0()

double sinPhi0 ( void  ) const
inlineinherited

Return sin phi0.

Definition at line 492 of file Helix.h.

493 {
494 DEBUG_HELIX;
495 return m_sp;
496 }

◆ tanl()

double tanl ( void  ) const
inlineinherited

Return helix parameter tangent lambda.

Definition at line 412 of file Helix.h.

413 {
414 DEBUG_HELIX;
415 return m_ac[4];
416 }

◆ updateCache()

void updateCache ( void  )
privateinherited

updateCache

Definition at line 508 of file Helix.cc.

509{
510
511#if defined(BELLE_DEBUG)
512 checkValid();
513 if (m_helixValid) {
514#endif
515
516 //
517 // Calculate Helix center( xc, yc ).
518 //
519 // xc = x0 + (dr + (alpha / kappa)) * cos(phi0) (cm)
520 // yc = y0 + (dr + (alpha / kappa)) * sin(phi0) (cm)
521 //
522
523 m_ac[0] = m_a[0];
524 m_ac[1] = m_a[1];
525 m_ac[2] = m_a[2];
526 m_ac[3] = m_a[3];
527 m_ac[4] = m_a[4];
528
529 m_cp = cos(m_ac[1]);
530 m_sp = sin(m_ac[1]);
531 if (m_ac[2] != 0.0) {
532 if (m_ac[2] == DBL_MAX || m_ac[2] == (-DBL_MAX)) {
533 m_pt = m_r = 0;
534 return;
535 } else {
536 m_pt = 1. / m_ac[2];
537 m_r = m_alpha / m_ac[2];
538 }
539 } else {
540 m_pt = (DBL_MAX);
541 m_r = (DBL_MAX);
542 return;
543 }
544
545 double x = m_pivot.x() + (m_ac[0] + m_r) * m_cp;
546 double y = m_pivot.y() + (m_ac[0] + m_r) * m_sp;
547 m_center.setX(x);
548 m_center.setY(y);
549 m_center.setZ(0.);
550#if defined(BELLE_DEBUG)
551 } else {
552 m_ac[0] = m_a[0];
553 m_ac[1] = m_a[1];
554 m_ac[2] = m_a[2];
555 m_ac[3] = m_a[3];
556 m_ac[4] = m_a[4];
557
558 m_cp = cos(m_ac[1]);
559 m_sp = sin(m_ac[1]);
560 if (m_ac[2] != 0.0) {
561 if (m_ac[2] == DBL_MAX || m_ac[2] == (-DBL_MAX)) {
562 m_pt = m_r = 0;
563 return;
564 } else {
565 m_pt = 1. / m_ac[2];
566 m_r = m_alpha / m_ac[2];
567 }
568 } else {
569 m_pt = (DBL_MAX);
570 m_r = (DBL_MAX);
571 return;
572 }
573
574 double x = m_pivot.x() + (m_ac[0] + m_r) * m_cp;
575 double y = m_pivot.y() + (m_ac[0] + m_r) * m_sp;
576 m_center.setX(x);
577 m_center.setY(y);
578 m_center.setZ(0.);
579 }
580#endif
581}
Belle2::CDC::Helix::checkValid
void checkValid(void)
Check whether helix parameters is valid or not.
Definition: Helix.cc:895

◆ x() [1/3]

double * x ( double  dPhi,
double  p[3]
) const
inherited

returns position after rotating angle dPhi in phi direction.

x = x0 + dr * cos(phi0) + (alpha / kappa) * (cos(phi0) - cos(phi0+phi)) y = y0 + dr * sin(phi0) + (alpha / kappa) * (sin(phi0) - sin(phi0+phi)) z = z0 + dz - (alpha / kappa) * tan(lambda) * phi

Returns
double[3]

Definition at line 216 of file Helix.cc.

217{
218 DEBUG_HELIX;
219 //
220 // Calculate position (x,y,z) along helix.
221 //
222 // x = x0 + dr * cos(phi0) + (alpha / kappa) * (cos(phi0) - cos(phi0+phi))
223 // y = y0 + dr * sin(phi0) + (alpha / kappa) * (sin(phi0) - sin(phi0+phi))
224 // z = z0 + dz - (alpha / kappa) * tan(lambda) * phi
225 //
226
227 p[0] = m_pivot.x() + m_ac[0] * m_cp + m_r * (m_cp - cos(m_ac[1] + phi));
228 p[1] = m_pivot.y() + m_ac[0] * m_sp + m_r * (m_sp - sin(m_ac[1] + phi));
229 p[2] = m_pivot.z() + m_ac[3] - m_r * m_ac[4] * phi;
230
231 return p;
232}

◆ x() [2/3]

HepPoint3D x ( double  dPhi,
HepSymMatrix &  Ex
) const
inherited

returns position and convariance matrix(Ex) after rotation.

Definition at line 235 of file Helix.cc.

236{
237 DEBUG_HELIX;
238
239 double x = m_pivot.x() + m_ac[0] * m_cp + m_r * (m_cp - cos(m_ac[1] + phi));
240 double y = m_pivot.y() + m_ac[0] * m_sp + m_r * (m_sp - sin(m_ac[1] + phi));
241 double z = m_pivot.z() + m_ac[3] - m_r * m_ac[4] * phi;
242
243 //
244 // Calculate position error matrix.
245 // Ex(phi) = (@x/@a)(Ea)(@x/@a)^T, phi is deflection angle to specify the
246 // point to be calcualted.
247 //
248 // HepMatrix dXDA(3, 5, 0);
249 // dXDA = delXDelA(phi);
250 // Ex.assign(dXDA * m_Ea * dXDA.T());
251
252 if (m_matrixValid) Ex = m_Ea.similarity(delXDelA(phi));
253 else Ex = m_Ea;
254
255 return HepPoint3D(x, y, z);
256}
Belle2::CDC::Helix::delXDelA
HepMatrix delXDelA(double phi) const
DX/DA.
Definition: Helix.cc:654

◆ x() [3/3]

HepPoint3D x ( double  dPhi = 0.) const
inherited

returns position after rotating angle dPhi in phi direction.

x = x0 + dr * cos(phi0) + (alpha / kappa) * (cos(phi0) - cos(phi0+phi)) y = y0 + dr * sin(phi0) + (alpha / kappa) * (sin(phi0) - sin(phi0+phi)) z = z0 + dz - (alpha / kappa) * tan(lambda) * phi

Returns
HepPoint3D

Definition at line 197 of file Helix.cc.

198{
199 DEBUG_HELIX;
200 //
201 // Calculate position (x,y,z) along helix.
202 //
203 // x = x0 + dr * cos(phi0) + (alpha / kappa) * (cos(phi0) - cos(phi0+phi))
204 // y = y0 + dr * sin(phi0) + (alpha / kappa) * (sin(phi0) - sin(phi0+phi))
205 // z = z0 + dz - (alpha / kappa) * tan(lambda) * phi
206 //
207
208 double x = m_pivot.x() + m_ac[0] * m_cp + m_r * (m_cp - cos(m_ac[1] + phi));
209 double y = m_pivot.y() + m_ac[0] * m_sp + m_r * (m_sp - sin(m_ac[1] + phi));
210 double z = m_pivot.z() + m_ac[3] - m_r * m_ac[4] * phi;
211
212 return HepPoint3D(x, y, z);
213}

Member Data Documentation

◆ ConstantAlpha

const double ConstantAlpha = 222.376063
staticinherited

Constant alpha for uniform field.

Definition at line 283 of file Helix.h.

◆ invalidhelix

const std::string invalidhelix
staticprivateinherited

String "Invalid Helix".

Definition at line 318 of file Helix.h.

◆ m_a

HepVector m_a
privateinherited

Helix parameter.

Definition at line 298 of file Helix.h.

◆ m_ac

double m_ac[5]
privateinherited

Cache of the helix parameter.

Definition at line 315 of file Helix.h.

◆ m_alpha

double m_alpha
privateinherited

10000.0/(speed of light)/B.

Definition at line 294 of file Helix.h.

◆ m_bField

double m_bField
privateinherited

Magnetic field, assuming uniform Bz in the unit of kG.

Definition at line 292 of file Helix.h.

◆ m_center

HepPoint3D m_center
privateinherited

Cache of the center position of Helix.

Definition at line 305 of file Helix.h.

◆ m_chi2D

float m_chi2D
protected

Definition at line 197 of file CDCTriggerTrack.h.

◆ m_chi3D

float m_chi3D
protected

chi2 value from 3D fitter

Definition at line 199 of file CDCTriggerTrack.h.

◆ m_cp

double m_cp
privateinherited

Cache of the cos phi0.

Definition at line 307 of file Helix.h.

◆ m_driftthreshold

std::vector<bool> m_driftthreshold
protected

store if drift time was within the timing window

Definition at line 207 of file CDCTriggerTrack.h.

◆ m_Ea

HepSymMatrix m_Ea
privateinherited

Error of the helix parameter.

Definition at line 300 of file Helix.h.

◆ m_etf_recalced

int m_etf_recalced {0}
protected

etf time recalculated from the hw input

Definition at line 230 of file CDCTriggerTrack.h.

◆ m_etf_unpacked

int m_etf_unpacked {0}
protected

unpacked etf time from the unpacker

Definition at line 228 of file CDCTriggerTrack.h.

◆ m_expert

int m_expert
protected

store value for used expert network

Definition at line 211 of file CDCTriggerTrack.h.

◆ m_foundoldtrack

std::vector<bool> m_foundoldtrack
protected

array to store whether an old 2dtrack was found

Definition at line 205 of file CDCTriggerTrack.h.

◆ m_hasETFTime

bool m_hasETFTime {0}
protected

chi2 value from 2D fitter

Definition at line 232 of file CDCTriggerTrack.h.

◆ m_helixValid

bool m_helixValid
privateinherited

True: helix valid, False: helix not valid.

Definition at line 290 of file Helix.h.

◆ m_matrixValid

bool m_matrixValid
privateinherited

True: matrix valid, False: matrix not valid.

Definition at line 288 of file Helix.h.

◆ m_nntgdl

bool m_nntgdl {0}
protected

nnt decision that the firmware passed to gdl

Definition at line 240 of file CDCTriggerTrack.h.

◆ m_pivot

HepPoint3D m_pivot
privateinherited

Pivot.

Definition at line 296 of file Helix.h.

◆ m_pt

double m_pt
privateinherited

Cache of the pt.

Definition at line 311 of file Helix.h.

◆ m_quadrant

short m_quadrant
protected

iTracker of the unpacked quadrant

Definition at line 203 of file CDCTriggerTrack.h.

◆ m_qualityvector

unsigned m_qualityvector
protected

store bits for different quality flags.

2^0 : 0 if all axial ts are contained in the related 2dfindertrack; 1 otherwise. 2^1 : 0 if hwsim nntrack is less than 1cm in z away from hwtrack; 1 otherwise. 2^2 : 0 if all input values for the ID are exactly the same in hw and hwsim; 1 otherwise. 2^3 : 0 if all input values for alpa are exactly the same in hw and hwsim; 1 otherwise. 2^4 : 1 if dt in hw/hwsim is 0 and in hwsim/hw is 1; 0 otherwise. 2^5 : 1 if all inputs in hw are 0 but at least 1 is filled in hwsim; 0 otherwise. 2^6 : 1 if all inputs in hwsim are 0 but at least 1 is filled in hw; 0 otherwise. 2^7 : 1 if more than 1 etf time was recalculated from hw. this indicates, that an old input from a previous track was used in the network.

Definition at line 226 of file CDCTriggerTrack.h.

◆ m_r

double m_r
privateinherited

Cache of the r.

Definition at line 313 of file Helix.h.

◆ m_rawinput

std::vector<int> m_rawinput
protected

Definition at line 238 of file CDCTriggerTrack.h.

◆ m_rawomega

int m_rawomega {0}
protected

Definition at line 235 of file CDCTriggerTrack.h.

◆ m_rawphi0

int m_rawphi0 {0}
protected

values to store the raw network and 2dfinder output

Definition at line 234 of file CDCTriggerTrack.h.

◆ m_rawtheta

int m_rawtheta {0}
protected

Definition at line 237 of file CDCTriggerTrack.h.

◆ m_rawz

int m_rawz {0}
protected

Definition at line 236 of file CDCTriggerTrack.h.

◆ m_sp

double m_sp
privateinherited

Cache of the sin phi0.

Definition at line 309 of file Helix.h.

◆ m_sttgdl

bool m_sttgdl {0}
protected

stt decision that the firmware passed to gdl

Definition at line 242 of file CDCTriggerTrack.h.

◆ m_time

short m_time
protected

number of trigger clocks of (the track output - L1 trigger)

Definition at line 201 of file CDCTriggerTrack.h.

◆ m_tsvector

std::vector<unsigned> m_tsvector
protected

store which track segments were used.

The First bit is the innermost TS, the last bit the outermost.

Definition at line 214 of file CDCTriggerTrack.h.

◆ m_valstereobit

bool m_valstereobit
protected

store if at least 3 valid stereo ts were found in the NNInput

Definition at line 209 of file CDCTriggerTrack.h.

◆ ms_amax

HepVector ms_amax
staticprivateinherited

maxiimum limit of Helix parameter a

Definition at line 233 of file Helix.h.

◆ ms_amin

HepVector ms_amin
staticprivateinherited

minimum limit of Helix parameter a

Definition at line 231 of file Helix.h.

◆ ms_check_range

bool ms_check_range
staticprivateinherited

Check the helix parameter's range.

Definition at line 235 of file Helix.h.

◆ ms_print_debug

bool ms_print_debug
staticprivateinherited

Debug option flag.

Definition at line 237 of file Helix.h.

◆ ms_throw_exception

bool ms_throw_exception
staticprivateinherited

Throw exception flag.

Definition at line 239 of file Helix.h.

The documentation for this class was generated from the following file:
