XTCalibration Class Reference

Class to perform xt calibration for drift chamber. More...

#include <XTCalibration.h>

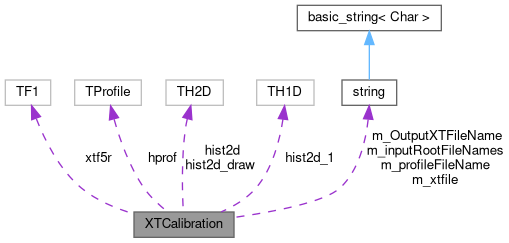

Collaboration diagram for XTCalibration:

Public Member Functions
	XTCalibration ()
	Constructor.
virtual	~XTCalibration ()
	Destructor.
virtual void	BField (bool bfield)
	set to use BField
virtual void	setDebug (bool debug=false)
	Run in debug or silent.
virtual void	setUseDB (bool useDB=false)
	Set to run with database mode or text mode.
virtual void	setMinimumNDF (double minndf)
	set minimum number of degree of freedom requirement
virtual void	setMinimumPval (double minPval)
	set minimum Prob(Chi2) requirement
virtual void	inputFileNames (std::string inputname)
	Input root file name, output of collector.
virtual void	profileFileNames (std::string profileFileName)
	Profile file name incase you want to change the xt binning.
virtual void	useProfileFromInputXT (bool useProfileXTFromInputXT)
	if you want to change xt bining, you have to set this to true
virtual void	setXTFileName (std::string name)
	input xt file name incase text mode is used.
virtual void	setMode (unsigned short mode=1)
	set xt mode, 0 is polynimial, 1 is Chebshev polynomial
virtual void	setStoreHisto (bool storeHist=false)
	set to store histogram or not.
void	setLRSeparate (bool lr=true)
	Set LR separate mode (default is true).
void	execute ()
	Run calibration.

Protected Member Functions
virtual bool	calibrate ()
	Run algo on data.
virtual void	readXTFromDB ()
	Read old xt parameter from database.
virtual void	readXTFromText ()
	Read old xt parameter from text file, incase text mode is used.
virtual void	CreateHisto ()
	Create histogram for calibration.
virtual void	readProfile ()
	Read profile xt file.
virtual void	readXT ()
	read xt paramter (wrap text mode and database mode)
virtual void	Write ()
	Store calibrated constand.
virtual void	storeHisto ()
	Store histogram to file.

Private Attributes
double	m_ndfmin = 5
	minimum ndf required
double	m_Pvalmin = 0.
	minimum pvalue required
bool	m_debug = false
	run in debug or silent
bool	m_storeHisto = false
	Store histogram or not.
bool	m_useDB = false
	Use Database or text mode.
bool	m_useProfileXTFromInputXT = true
	use profile from text file or default in input xt
bool	m_LRseparate = true
	Separate LR in calibration or mix.
bool	m_useSliceFit = false
	Use slice fit or profile.
bool	m_BField = true
	with b field or none
double	xtold [56][2][18][7][8]
	Old paremeter.
int	fitflag [56][2][20][10]
	Fit flag.
TF1 *	xtf5r [56][2][20][10]
	XTFunction.
TProfile *	hprof [56][2][20][10]
	Profile xt histo.
TH2D *	hist2d [56][2][20][10]
	2D histo of xt
TH2D *	hist2d_draw [56][20][10]
	2d histo for draw
TH1D *	hist2d_1 [56][2][20][10]
	1D xt histo, results of slice fit
std::string	m_OutputXTFileName = "xt_new.dat"
	Out put xt filename.
std::string	m_inputRootFileNames = "rootfile/output*"
	input root filename
std::string	m_profileFileName = "xt_profile"
	profile file name
std::string	m_xtfile = "cdc/data/xt.dat"
	Input xt file name, incase text mode.
int	m_nalpha
	number of alpha bins
int	m_ntheta
	number of theta bins
double	l_alpha [18]
	Lower boundays of alpha bins.
double	u_alpha [18]
	Upper boundays of alpha bins.
double	ialpha [18]
	represented alphas of alpha bins.
double	l_theta [7]
	Lower boundays of theta bins.
double	u_theta [7]
	Upper boundays of theta bins.
double	itheta [7]
	represented alphas of theta bins.
int	nalpha_old
	number of alpha bins from input
int	ntheta_old
	number of theta bins from input
double	l_alpha_old [18]
	Lower boundays of alpha bins from input.
double	u_alpha_old [18]
	Upper boundays of alpha bins from input.
double	ialpha_old [18]
	represented alphas of alpha bins from input.
double	l_theta_old [7]
	Lower boundays of theta bins from input.
double	u_theta_old [7]
	Upper boundays of theta bins from input.
double	itheta_old [7]
	represented alphas of theta bins from input.
unsigned short	xtmode_old
	XT mode old, 0-polynomial, 1 Cheb.
int	m_MAXalpha = 18
	max alpha bin
int	m_MAXtheta = 7
	max theta bin
unsigned short	m_xtmode = 1
	Mode of xt; 0 is polynomial;1 is Chebyshev.
int	m_smallestEntryRequire = 1000
	minimum number of hit per hitosgram.
double	m_par6 [56]
	boundary parameter for fitting, semi-experiment number

Detailed Description

Class to perform xt calibration for drift chamber.

Definition at line 21 of file XTCalibration.h.

Constructor & Destructor Documentation

XTCalibration()

XTCalibration

(

)

Constructor.

Definition at line 37 of file XTCalibration.cc.

{
  /*
   setDescription(
    " -------------------------- Test Calibration Algoritm -------------------------\n"
    "                                                                               \n"
    "  Testing algorithm which just gets mean of a test histogram collected by      \n"
  0    "  CaTest module and provides a DB object with another histogram with one       \n"
    "  entry at calibrated value.                                                   \n"
    " ------------------------------------------------------------------------------\n"
    );
  */
}

~XTCalibration()

virtual ~XTCalibration ( )

inlinevirtual

Destructor.

Definition at line 26 of file XTCalibration.h.

{}

Member Function Documentation

BField()

virtual void BField ( bool  bfield )

inlinevirtual

set to use BField

Definition at line 28 of file XTCalibration.h.

{m_BField = bfield;}

calibrate()

bool calibrate ( )

protectedvirtual

Run algo on data.

Definition at line 200 of file XTCalibration.cc.

{
  gROOT->SetBatch(1);
  gErrorIgnoreLevel = 3001;

  CreateHisto();
  B2INFO("Start Fitting");
  for (int l = 0; l < 56; ++l) {
    for (int lr = 0; lr < 2; ++lr) {
      for (int al = 0; al < m_nalpha; ++al) {
        for (int th = 0; th < m_ntheta; ++th) {

          if (hist2d[l][lr][al][th]->GetEntries() < m_smallestEntryRequire) {
            fitflag[l][lr][al][th] = -1;
            continue;
          }
          double p0, p1, tmin;
          TF1* fpol1;
          if (m_useSliceFit) {
            hist2d[l][lr][al][th]->FitSlicesY(0, 0, -1, 5);
            hist2d_1[l][lr][al][th] = (TH1D*)gDirectory->Get(Form("h%d_%d_%d_%d_1", l, lr, al, th));
            if (!hist2d_1[l][lr][al][th]) {
              fitflag[l][lr][al][th] = -1;
              B2WARNING("error, not found results of slices fit");
              continue;
            }
            hist2d_1[l][lr][al][th]->Fit("pol1", "Q", "", 30, 60);
            fpol1 = (TF1*)hprof[l][lr][al][th]->GetFunction("pol1");
          } else {
            /*Set Error for low statistic bin*/
            for (int n = 0; n < hprof[l][lr][al][th]->GetNbinsX(); ++n) {
              if (hprof[l][lr][al][th]->GetBinEntries(n) < 5 && hprof[l][lr][al][th]->GetBinEntries(n) > 1) {
                hprof[l][lr][al][th]->SetBinError(n, 0.3 / hprof[l][lr][al][th]->GetBinEntries(n));
              }
            }
            hprof[l][lr][al][th]->Fit("pol1", "Q", "", 30, 60);
            fpol1 = (TF1*)hprof[l][lr][al][th]->GetFunction("pol1");
          }
          if (fpol1) {
            //determine tmin in fitting
            p0 = fpol1->GetParameter(0);
            p1 = fpol1->GetParameter(1);
            tmin = -1 * p0 / p1 + 15;
          } else {
            p0 = 0; p1 = 0.005;
            tmin = 12;
          }
          XT* xt(nullptr);
          if (m_useSliceFit) {
            xt = new XT(hist2d_1[l][lr][al][th], m_xtmode);
          } else {
            xt = new XT(hprof[l][lr][al][th], m_xtmode);
          }
          //    xt->setSmallestEntryRequired(m_smallestEntryRequire);
          if (m_BField) {
            int ial_old = 0;
            int ith_old = 0;
            for (int k = 0; k < nalpha_old; ++k) {
              if (ialpha[al] < u_alpha_old[k]) {ial_old = k; break;}
            }
            for (int j = 0; j < ntheta_old; ++j) {
              if (itheta[th] < u_theta_old[j]) {ith_old = j; break;}
            }
            double p6 =  xtold[l][lr][ial_old][ith_old][6];
            if (p6 > 400)
              p6 = 400;
            if (m_xtmode == xtmode_old) {
              xt->setXTParams(xtold[l][lr][ial_old][ith_old]);
              xt->setP6(p6);
            } else {
              xt->setXTParams(p0, p1, 0., 0., 0., 0., p6, xtold[l][lr][ial_old][ith_old][7]);
            }
            xt->setFitRange(tmin, p6 + 100);
          } else {
            xt->setXTParams(p0, p1, 0., 0., 0., 0., m_par6[l], 0.0001);
            xt->setFitRange(tmin, m_par6[l] + 100);
          }
          xt->setDebug(m_debug);
          xt->BField(m_BField);
          xt->FitXT(m_xtmode);
          /*get result*/
          fitflag[l][lr][al][th] = xt->getFitStatus();
          xtf5r[l][lr][al][th] = (TF1*)xt->getXTFunction();
          if (m_useSliceFit) {
            hist2d_1[l][lr][al][th] = (TH1D*)xt->getFittedHisto();
          } else {
            hprof[l][lr][al][th] = (TProfile*)xt->getFittedHisto();
          }
          delete xt;
        }
      }
    }
  }
  Write();
  storeHisto();
  return true;
}

CreateHisto()

void CreateHisto ( )

protectedvirtual

Create histogram for calibration.

Definition at line 52 of file XTCalibration.cc.

{
  readXT();
  readProfile();
  /* read data from tree, make histo for fit*/
  TChain* tree = new TChain("tree");
  tree->Add(m_inputRootFileNames.c_str());
  B2INFO("Open Files: " << m_inputRootFileNames);
  if (!tree->GetBranch("ndf")) {
    cout << "input data do not exits, please check!" << endl;
    B2FATAL("echo rootfile do not exits or something wrong");
    gSystem->Exec("echo rootfile do not exits or something wrong >> error");
    return;
  }
  int lay;
  double dt;
  double dx;
  double Pval, alpha, theta;
  double ndf;

  tree->SetBranchAddress("lay", &lay);
  tree->SetBranchAddress("t", &dt);
  tree->SetBranchAddress("x_u", &dx);
  tree->SetBranchAddress("alpha", &alpha);
  tree->SetBranchAddress("theta", &theta);
  tree->SetBranchAddress("Pval", &Pval);
  tree->SetBranchAddress("ndf", &ndf);

  /* Disable unused branch */
  std::vector<TString> list_vars = {"lay", "t", "x_u", "alpha", "theta", "Pval", "ndf"};
  tree->SetBranchStatus("*", 0);

  for (TString brname : list_vars) {
    tree->SetBranchStatus(brname, 1);
  }


  /*Create histogram*/
  for (int i = 0; i < 56; ++i) {
    for (int lr = 0; lr < 2; ++lr) {
      for (int al = 0; al < m_nalpha; ++al) {
        for (int th = 0; th < m_ntheta; ++th) {
          hprof[i][lr][al][th] = new TProfile(Form("hprof%d_%d_%d_%d", i, lr, al, th),
                                              Form("(L=%d)-(lr=%d)-(#alpha=%3.0f)-(#theta=%3.0f); Drift time (ns);Drift Length (cm)",
                                                   i, lr, ialpha[al], itheta[th]), 210, -20, 600, 0, 1.2, "i");
          hist2d[i][lr][al][th] = new TH2D(Form("h%d_%d_%d_%d", i, lr, al, th),
                                           Form("(L=%d)-(lr=%d)-(#alpha=%3.0f)-(#theta=%3.0f); Drift time (ns);Drift Length (cm)",
                                                i, lr, ialpha[al], itheta[th]), 210, -20, 600, 110, 0, 1.2);
          if (lr == 1)
            hist2d_draw[i][al][th] = new TH2D(Form("h_draw%d_%d_%d", i, al, th),
                                              Form("(L=%d)-(#alpha=%3.0f)-(#theta=%3.0f); Drift time (ns);Drift Length (cm)",
                                                   i, ialpha[al], itheta[th]), 210, -20, 600, 2200, -1.2, 1.2);
        }
      }
    }
  }

  /*Now read data and make histo*/
  int al = 0;
  int th = 0;
  int lr = 0;
  int nEntries = tree->GetEntries();
  cout << "Number of Hit: " << nEntries << endl;

  for (int i = 0; i < nEntries; ++i) {
    tree->GetEntry(i);
    /* protect in case |alpha|>90*/
    if (fabs(alpha) > 90) {
      if (alpha < 0) alpha += 180;
      if (alpha > 0) alpha -= 180;
    }

    if (Pval < m_Pvalmin) continue;
    if (ndf < m_ndfmin) continue;

    for (int k = 0; k < m_nalpha; ++k) {
      if (alpha < u_alpha[k]) {al = k; break;}
    }
    for (int j = 0; j < m_ntheta; ++j) {
      if (theta < u_theta[j]) {th = j; break;}
    }
    if (dx > 0)
      lr = 1;
    else
      lr = 0;
    if (m_LRseparate) {
      hprof[lay][lr][al][th]->Fill(dt, abs(dx));
      hist2d[lay][lr][al][th]->Fill(dt, abs(dx));
    } else {
      hprof[lay][0][al][th]->Fill(dt, abs(dx));
      hist2d[lay][0][al][th]->Fill(dt, abs(dx));
      hprof[lay][1][al][th]->Fill(dt, abs(dx));
      hist2d[lay][1][al][th]->Fill(dt, abs(dx));
    }
    hist2d_draw[lay][al][th]->Fill(dt, dx);
  }
}

execute()

void execute ( )

inline

Run calibration.

Definition at line 54 of file XTCalibration.h.

      {
        calibrate();
      }

inputFileNames()

virtual void inputFileNames ( std::string  inputname )

inlinevirtual

Input root file name, output of collector.

Definition at line 38 of file XTCalibration.h.

{m_inputRootFileNames.assign(inputname);}

profileFileNames()

virtual void profileFileNames ( std::string  profileFileName )

inlinevirtual

Profile file name incase you want to change the xt binning.

Definition at line 40 of file XTCalibration.h.

{m_profileFileName.assign(profileFileName);}

readProfile()

void readProfile ( )

protectedvirtual

Read profile xt file.

Definition at line 149 of file XTCalibration.cc.

{
  /*Read profile for xt*/
  if (m_useProfileXTFromInputXT) {
    B2INFO("use XT bining from input XT");
    m_nalpha = nalpha_old;
    m_ntheta = ntheta_old;
    B2INFO("Nalpha: " << m_nalpha << "\n Ntheta: " << m_ntheta);
    for (int i = 0; i < m_nalpha; ++i) {
      l_alpha[i] = l_alpha_old[i];
      u_alpha[i] = u_alpha_old[i];
      ialpha[i] = ialpha_old[i];
      B2INFO("-" << l_alpha[i] << " " << u_alpha[i] << " " << ialpha[i]);
    }
    for (int i = 0; i < m_ntheta; ++i) {
      l_theta[i] = l_theta_old[i];
      u_theta[i] = u_theta_old[i];
      itheta[i] = itheta_old[i];
      B2INFO("-" << l_theta[i] << " " << u_theta[i] << " " << itheta[i]);
    }
  } else {
    B2INFO("use XT bining from profile file");
    ifstream proxt(m_profileFileName.c_str());
    if (!proxt) {
      B2FATAL("file not found: " << m_profileFileName);
    }
    double dumy1, dumy2, dumy3;
    proxt >> m_nalpha;
    B2DEBUG(99, "Number of alpha bin" << m_nalpha);
    if (m_nalpha > m_MAXalpha) {
      B2FATAL("number of  alpha bin excess limit; please increse uplimit: " << m_nalpha << " > " << m_MAXalpha);
    }
    for (int i = 0; i < m_nalpha; ++i) {
      proxt >> dumy1 >> dumy2 >> dumy3;
      l_alpha[i] = dumy1;
      u_alpha[i] = dumy2;
      ialpha[i] = dumy3;
    }
    proxt >> m_ntheta;
    B2DEBUG(99, "Number of theta bin" << m_nalpha);
    if (m_ntheta > m_MAXtheta) {B2FATAL("number of  theta bin excess limit; please increse uplimit: " << m_ntheta << " > " << m_MAXtheta);}
    for (int i = 0; i < m_ntheta; ++i) {
      proxt >> dumy1 >> dumy2 >> dumy3;
      l_theta[i] = dumy1;
      u_theta[i] = dumy2;
      itheta[i] = dumy3;
    }
  }
  B2INFO("Finish asssign XT bining");
}

readXT()

void readXT ( )

protectedvirtual

read xt paramter (wrap text mode and database mode)

B2FATAL("Error reading xt from DB");return;}

Definition at line 409 of file XTCalibration.cc.

{
  if (m_useDB) {
    B2INFO("reading xt from DB");

    /*
    ReadXT:readXTFromDB(&xtold,dbXT_old,
       &nalpha_old,l_alpha_old,u_alpha_old,ialpha_old,
       &ntheta_old,l_theta_old,u_theta_old, itheta_old);
    */
    readXTFromDB();
    B2INFO("Number of theta bin from xt: " << ntheta_old);
    B2INFO("Theta 0: " << itheta_old[0]);
    //    if(!a){
  } else {
    B2INFO("Read Xt from text");
    /*
    ReadXT::readXTFromText(xtold,m_xtfile,
            nalpha_old,l_alpha_old,u_alpha_old,ialpha_old,
            ntheta_old,l_theta_old,u_theta_old, itheta_old);
    */
    readXTFromText();
    B2INFO("nalpha: " << nalpha_old);
    // if(!a)
    // {B2FATAL("Error reading xt from text");return;}
  }
}

readXTFromDB()

void readXTFromDB ( )

protectedvirtual

Read old xt parameter from database.

Definition at line 538 of file XTCalibration.cc.

{
  DBObjPtr<CDCXtRelations> dbXT_old;
  nalpha_old = dbXT_old->getNoOfAlphaBins();
  B2INFO("Number of alpha" << nalpha_old);
  double rad2deg = 180 / M_PI;
  for (unsigned short i = 0; i < nalpha_old; ++i) {
    array3 alpha = dbXT_old->getAlphaBin(i);
    l_alpha_old[i] = alpha[0] * rad2deg;
    u_alpha_old[i] = alpha[1] * rad2deg;
    ialpha_old[i] = alpha[2] * rad2deg;
    //    std::cout << m_alphaPoints[i]*180./M_PI << std::endl;
  }

  ntheta_old = dbXT_old->getNoOfThetaBins();
  B2INFO("Ntheta: " << ntheta_old);
  for (unsigned short i = 0; i < ntheta_old; ++i) {
    //    m_thetaPoints[i] = (*dbXT_old).getThetaPoint(i);
    array3 theta = dbXT_old->getThetaBin(i);
    l_theta_old[i] = theta[0] * rad2deg;
    u_theta_old[i] = theta[1] * rad2deg;
    itheta_old[i] = theta[2] * rad2deg;


    //    std::cout << m_thetaPoints[i]*180./M_PI << std::endl;
  }

  xtmode_old = dbXT_old->getXtParamMode();

  for (unsigned short iCL = 0; iCL < 56; ++iCL) {
    for (unsigned short iLR = 0; iLR < 2; ++iLR) {
      for (unsigned short iA = 0; iA < nalpha_old; ++iA) {
        for (unsigned short iT = 0; iT < ntheta_old; ++iT) {
          const std::vector<float> params = dbXT_old->getXtParams(iCL, iLR, iA, iT);
          unsigned short np = params.size();
          //    std::cout <<"np4xt= " << np << std::endl;
          for (unsigned short i = 0; i < np; ++i) {
            xtold[iCL][iLR][iA][iT][i] = params[i];
          }
        }
      }
    }
  }
  //  return true;
}

readXTFromText()

void readXTFromText ( )

protectedvirtual

Read old xt parameter from text file, incase text mode is used.

Definition at line 438 of file XTCalibration.cc.

{
  std::string fileName1 = "/data/cdc" + m_xtfile;
  std::string fileName = FileSystem::findFile(fileName1);
  boost::iostreams::filtering_istream ifs;
  if (fileName == "") {
    fileName = FileSystem::findFile(m_xtfile);
  }
  if (fileName == "") {
    B2FATAL("CDCGeometryPar: " << fileName1 << " not exist!");
  } else {
    B2INFO("CDCGeometryPar: open " << fileName1);
    if ((fileName.rfind(".gz") != string::npos) && (fileName.length() - fileName.rfind(".gz") == 3)) {
      ifs.push(boost::iostreams::gzip_decompressor());
    }
    ifs.push(boost::iostreams::file_source(fileName));
    if (!ifs) B2FATAL("CDCGeometryPar: cannot open " << fileName1 << " !");


  }
  const int npar = 8;
  //read alpha bin info.
  //  unsigned short nAlphaBins = 0;
  ifs >> nalpha_old;

  for (unsigned short i = 0; i < nalpha_old; ++i) {
    ifs >> l_alpha_old[i] >> u_alpha_old[i] >> ialpha_old[i];
    // ifs >> alpha0 >> alpha1 >> alpha2;
    //m_alphaPoints[i] = alpha2;
  }

  //read theta bin info.
  //  unsigned short nThetaBins = 0;
  ifs >> ntheta_old;

  for (unsigned short i = 0; i < ntheta_old; ++i) {
    ifs >> l_theta_old[i] >> u_theta_old[i] >> itheta_old[i];
    //ifs >> theta0 >> theta1 >> theta2;
    //m_thetaPoints[i] = theta2;
  }

  B2INFO("number of alpha - theta bin" << nalpha_old << " - " << ntheta_old);
  short np = 0;
  unsigned short iCL, iLR;
  //  const unsigned short npx = nXTParams - 1;
  double xtc[npar]; // cppcheck-suppress constVariable
  double theta, alpha, dummy1;
  //  unsigned m_xtParamMode_old;
  ifs >> xtmode_old >> np;

  const double epsi = 0.1;

  while (ifs >> iCL) {
    ifs >> theta >> alpha >> dummy1 >> iLR;
    for (int i = 0; i < np; ++i) {
      ifs >> xtc[i];
    }

    int ith = -99;
    for (unsigned short i = 0; i < ntheta_old; ++i) {
      if (fabs(theta - itheta_old[i]) < epsi) {
        ith = i;
        break;
      }
    }
    if (ith < 0) {
      gSystem->Exec("echo xt_theta error binning>> error");
      return;
    }

    int ial = -99;
    for (unsigned short i = 0; i < nalpha_old; ++i) {
      if (fabs(alpha - ialpha_old[i]) < epsi) {
        ial = i;
        break;
      }
    }
    if (ial < 0) {
      gSystem->Exec("echo xt_alpha error binning>> error");
      return;
    }

    for (int i = 0; i < np; ++i) {
      xtold[iCL][iLR][ial][ith][i] = xtc[i];
    }

  }  //end of while loop

  //convert unit
  /*
  const double degrad = M_PI / 180.;
  for (unsigned i = 0; i < nAlphaBins; ++i) {
    m_alphaPoints[i] *= degrad;
  }
  for (unsigned i = 0; i < nThetaBins; ++i) {
    m_thetaPoints[i] *= degrad;
  }
  */
  //  return true;
}

setDebug()

virtual void setDebug ( bool  debug = false )

inlinevirtual

Run in debug or silent.

Definition at line 30 of file XTCalibration.h.

{m_debug = debug; }

setLRSeparate()

void setLRSeparate ( bool  lr = true )

inline

Set LR separate mode (default is true).

Definition at line 50 of file XTCalibration.h.

{m_LRseparate = lr;}

setMinimumNDF()

virtual void setMinimumNDF ( double  minndf )

inlinevirtual

set minimum number of degree of freedom requirement

Definition at line 34 of file XTCalibration.h.

{m_ndfmin = minndf;}

setMinimumPval()

virtual void setMinimumPval ( double  minPval )

inlinevirtual

set minimum Prob(Chi2) requirement

Definition at line 36 of file XTCalibration.h.

{m_Pvalmin = minPval;}

setMode()

virtual void setMode ( unsigned short  mode = 1 )

inlinevirtual

set xt mode, 0 is polynimial, 1 is Chebshev polynomial

Definition at line 46 of file XTCalibration.h.

{m_xtmode = mode;}

setStoreHisto()

virtual void setStoreHisto ( bool  storeHist = false )

inlinevirtual

set to store histogram or not.

Definition at line 48 of file XTCalibration.h.

{m_storeHisto = storeHist;}

setUseDB()

virtual void setUseDB ( bool  useDB = false )

inlinevirtual

Set to run with database mode or text mode.

Definition at line 32 of file XTCalibration.h.

{m_useDB = useDB; }

setXTFileName()

virtual void setXTFileName ( std::string  name )

inlinevirtual

input xt file name incase text mode is used.

Definition at line 44 of file XTCalibration.h.

{m_xtfile.assign(name);}

storeHisto()

void storeHisto ( )

protectedvirtual

Store histogram to file.

Definition at line 375 of file XTCalibration.cc.

{
  B2INFO("start store histogram");
  TFile* fout = new TFile("XTFIT.root", "RECREATE");
  TDirectory* top = gDirectory;
  TDirectory* Direct[56];
  int nhisto = 0;
  for (int l = 0; l < 56; ++l) {
    top->cd();
    Direct[l] = gDirectory->mkdir(Form("lay_%d", l));
    Direct[l]->cd();
    for (int th = 0; th < m_ntheta; ++th) {
      for (int al = 0; al < m_nalpha; ++al) {
        hist2d_draw[l][al][th]->Write();
        for (int lr = 0; lr < 2; ++lr) {
          hist2d[l][lr][al][th]->Write();
          if (fitflag[l][lr][al][th] != 1) continue;
          if (m_useSliceFit) {
            if (hist2d_1[l][lr][al][th]) {
              hist2d_1[l][lr][al][th]->Write();
              nhisto += 1;
            }
          } else {
            hprof[l][lr][al][th]->Write();
            nhisto += 1;
          }
        }
      }
    }
  }
  fout->Close();
  B2RESULT("  " << nhisto << " histograms was stored.");
}

useProfileFromInputXT()

virtual void useProfileFromInputXT ( bool  useProfileXTFromInputXT )

inlinevirtual

if you want to change xt bining, you have to set this to true

Definition at line 42 of file XTCalibration.h.

{m_useProfileXTFromInputXT = useProfileXTFromInputXT;}

Write()

void Write ( )

protectedvirtual

Store calibrated constand.

Definition at line 297 of file XTCalibration.cc.

{
  /*Set parameter for layer that fit do not success*/
  /* and then write output file*/
  double par[8];
  ofstream xtout(m_OutputXTFileName.c_str());
  xtout << m_nalpha << endl;
  for (int i = 0; i < m_nalpha; ++i) {
    xtout << std::setprecision(3) << l_alpha[i] << "  "
          << std::setprecision(3) << u_alpha[i] << "  "
          << std::setprecision(3) << ialpha[i] << endl;
  }
  xtout << m_ntheta << endl;
  for (int i = 0; i < m_ntheta; ++i) {
    xtout << std::setprecision(3) << l_theta[i] << "  "
          << std::setprecision(3) << u_theta[i] << "  "
          << std::setprecision(3) << itheta[i]  << endl;
  }
  xtout << m_xtmode << "  " << 8 << endl;

  int nfitted = 0;
  int nfailure = 0;

  for (int th = 0; th < m_ntheta; ++th) {
    for (int al = 0; al < m_nalpha; ++al) {
      for (int l = 0; l < 56; ++l) {
        for (int lr = 0; lr < 2; ++lr) {
          /*Set Parameter for bad fit*/
          if (fitflag[l][lr][al][th] != 1) {
            nfailure += 1;
            printf("fit failure status = %d \n", fitflag[l][lr][al][th]);
            printf("layer %d, r %d, alpha %3.1f, theta %3.1f \n", l, lr, ialpha[al], itheta[th]);
            printf("number of event: %3.2f", hprof[l][lr][al][th]->GetEntries());
            if (fitflag[l][lr][al][th] != -1) {
              printf("Probability of fit: %3.4f", xtf5r[l][lr][al][th]->GetProb());
            }
            if (m_xtmode == xtmode_old) {
              int ial_old = 0;
              int ith_old = 0;
              for (int k = 0; k < nalpha_old; ++k) {
                if (ialpha[al] < u_alpha_old[k]) {ial_old = k; break;}
              }
              for (int j = 0; j < ntheta_old; ++j) {
                if (itheta[th] < u_theta_old[j]) {ith_old = j; break;}
              }
              for (int p = 0; p < 8; ++p) {
                par[p] = xtold[l][lr][ial_old][ith_old][p];
              }
            } else {
              //if mode of input xt is different from output, simple xt is used.
              par[0] = 0; par[1] = 0.004; par[2] = 0; par[3] = 0; par[4] = 0; par[5] = 0; par[6] = m_par6[l]; par[7] = 0.00001;
            }
          } else {
            xtf5r[l][lr][al][th]->GetParameters(par);
            nfitted += 1;
          }
          /*Write params*/
          xtout << l << std::setw(5) << itheta[th] << std::setw(5) << ialpha[al] << std::setw(5) << "0.0" << std::setw(4) << lr << std::setw(
                  15);
          for (int p = 0; p < 8; ++p) {
            if (p != 7) { xtout << std::setprecision(7) << par[p] << std::setw(15);}
            if (p == 7) { xtout << std::setprecision(7) << par[p] << std::endl;}
          }
        }//lr
      }//th
    }//al
  }//lay
  xtout.close();
  B2RESULT(" Total number of xt fit: " << m_nalpha * m_ntheta * 2 * 56);
  B2RESULT(" Successfully Fitted: " << nfitted);
  B2RESULT(" Failure Fit: " << nfailure);
  B2RESULT("Finish export xt to text file");
  if (m_useDB) {
    CDCDatabaseImporter import(0, 0, -1, -1);
    import.importXT(m_OutputXTFileName.c_str());
  }
}

Member Data Documentation

fitflag

int fitflag[56][2][20][10]

private

Fit flag.

Definition at line 90 of file XTCalibration.h.

hist2d

TH2D* hist2d[56][2][20][10]

private

2D histo of xt

Definition at line 94 of file XTCalibration.h.

hist2d_1

TH1D* hist2d_1[56][2][20][10]

private

1D xt histo, results of slice fit

Definition at line 96 of file XTCalibration.h.

hist2d_draw

TH2D* hist2d_draw[56][20][10]

private

2d histo for draw

Definition at line 95 of file XTCalibration.h.

hprof

TProfile* hprof[56][2][20][10]

private

Profile xt histo.

Definition at line 93 of file XTCalibration.h.

ialpha

double ialpha[18]

private

represented alphas of alpha bins.

Definition at line 124 of file XTCalibration.h.

ialpha_old

double ialpha_old[18]

private

represented alphas of alpha bins from input.

Definition at line 133 of file XTCalibration.h.

itheta

double itheta[7]

private

represented alphas of theta bins.

Definition at line 127 of file XTCalibration.h.

itheta_old

double itheta_old[7]

private

represented alphas of theta bins from input.

Definition at line 136 of file XTCalibration.h.

l_alpha

double l_alpha[18]

private

Lower boundays of alpha bins.

Definition at line 122 of file XTCalibration.h.

l_alpha_old

double l_alpha_old[18]

private

Lower boundays of alpha bins from input.

Definition at line 131 of file XTCalibration.h.

l_theta

double l_theta[7]

private

Lower boundays of theta bins.

Definition at line 125 of file XTCalibration.h.

l_theta_old

double l_theta_old[7]

private

Lower boundays of theta bins from input.

Definition at line 134 of file XTCalibration.h.

m_BField

bool m_BField = true

private

with b field or none

Definition at line 86 of file XTCalibration.h.

m_debug

bool m_debug = false

private

run in debug or silent

Definition at line 80 of file XTCalibration.h.

m_inputRootFileNames

std::string m_inputRootFileNames = "rootfile/output*"

private

input root filename

Definition at line 107 of file XTCalibration.h.

m_LRseparate

bool m_LRseparate = true

private

Separate LR in calibration or mix.

Definition at line 84 of file XTCalibration.h.

m_MAXalpha

int m_MAXalpha = 18

private

max alpha bin

Definition at line 139 of file XTCalibration.h.

m_MAXtheta

int m_MAXtheta = 7

private

max theta bin

Definition at line 140 of file XTCalibration.h.

m_nalpha

int m_nalpha

private

number of alpha bins

Definition at line 120 of file XTCalibration.h.

m_ndfmin

double m_ndfmin = 5

private

minimum ndf required

Definition at line 78 of file XTCalibration.h.

m_ntheta

int m_ntheta

private

number of theta bins

Definition at line 121 of file XTCalibration.h.

m_OutputXTFileName

std::string m_OutputXTFileName = "xt_new.dat"

private

Out put xt filename.

Definition at line 106 of file XTCalibration.h.

m_par6

double m_par6[56]

private

Initial value:

= {89,   91,  94,  99,  104, 107, 110, 117,
                           126, 144, 150, 157, 170, 180,
                           160, 167, 183, 205, 200, 194,
                           177, 189, 192, 206, 224, 234,
                           193, 206, 209, 215, 222, 239,
                           204, 212, 217, 227, 235, 240,
                           215, 222, 230, 239, 246, 253,
                           227, 232, 239, 243, 253, 258,
                           231, 243, 246, 256, 263, 300
                          }

boundary parameter for fitting, semi-experiment number

Definition at line 144 of file XTCalibration.h.

m_profileFileName

std::string m_profileFileName = "xt_profile"

private

profile file name

Definition at line 108 of file XTCalibration.h.

m_Pvalmin

double m_Pvalmin = 0.

private

minimum pvalue required

Definition at line 79 of file XTCalibration.h.

m_smallestEntryRequire

int m_smallestEntryRequire = 1000

private

minimum number of hit per hitosgram.

Definition at line 142 of file XTCalibration.h.

m_storeHisto

bool m_storeHisto = false

private

Store histogram or not.

Definition at line 81 of file XTCalibration.h.

m_useDB

bool m_useDB = false

private

Use Database or text mode.

Definition at line 82 of file XTCalibration.h.

m_useProfileXTFromInputXT

bool m_useProfileXTFromInputXT = true

private

use profile from text file or default in input xt

Definition at line 83 of file XTCalibration.h.

m_useSliceFit

bool m_useSliceFit = false

private

Use slice fit or profile.

Definition at line 85 of file XTCalibration.h.

m_xtfile

std::string m_xtfile = "cdc/data/xt.dat"

private

Input xt file name, incase text mode.

Definition at line 109 of file XTCalibration.h.

m_xtmode

unsigned short m_xtmode = 1

private

Mode of xt; 0 is polynomial;1 is Chebyshev.

Definition at line 141 of file XTCalibration.h.

nalpha_old

int nalpha_old

private

number of alpha bins from input

Definition at line 129 of file XTCalibration.h.

ntheta_old

int ntheta_old

private

number of theta bins from input

Definition at line 130 of file XTCalibration.h.

u_alpha

double u_alpha[18]

private

Upper boundays of alpha bins.

Definition at line 123 of file XTCalibration.h.

u_alpha_old

double u_alpha_old[18]

private

Upper boundays of alpha bins from input.

Definition at line 132 of file XTCalibration.h.

u_theta

double u_theta[7]

private

Upper boundays of theta bins.

Definition at line 126 of file XTCalibration.h.

u_theta_old

double u_theta_old[7]

private

Upper boundays of theta bins from input.

Definition at line 135 of file XTCalibration.h.

xtf5r

TF1* xtf5r[56][2][20][10]

private

XTFunction.

Definition at line 91 of file XTCalibration.h.

xtmode_old

unsigned short xtmode_old

private

XT mode old, 0-polynomial, 1 Cheb.

Definition at line 138 of file XTCalibration.h.

xtold

double xtold[56][2][18][7][8]

private

Old paremeter.

Definition at line 89 of file XTCalibration.h.

---

The documentation for this class was generated from the following files:

• cdc/calibration/include/XTCalibration.h
• cdc/calibration/src/XTCalibration.cc
