Specific implementaion of MaterialScan to scan parallel to a given plane. More...

#include <MaterialScan.h>

Inheritance diagram for MaterialScanPlanar:

[legend]

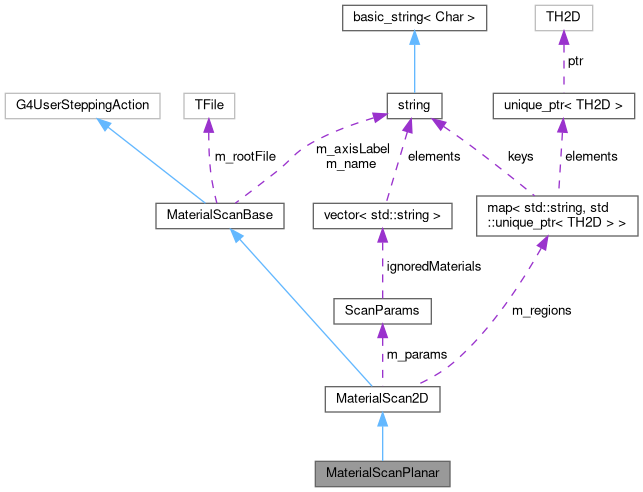

Collaboration diagram for MaterialScanPlanar:

[legend]

Public Member Functions
	MaterialScanPlanar (TFile *rootFile, const G4ThreeVector &origin, const G4ThreeVector &dirU, const G4ThreeVector &dirV, const ScanParams &params)
	Create a Planar Scan object with the given parameters.

bool	createNext (G4ThreeVector &origin, G4ThreeVector &direction) override
	Get the origin and direction for the next scan particle.

int	getNRays () const override
	Return the number of rays in this scan.

void	UserSteppingAction (const G4Step *step) override
	Record the material budget for each step of the particles.

std::string	getName () const
	Return the name of the scan.

Protected Member Functions
void	getRay (G4ThreeVector &origin, G4ThreeVector &direction) override
	Create a ray with the current parameter values according to a planar distribution.

TH2D *	getHistogram (const std::string &name)
	get histogram for a given name, create if needed.

void	fillValue (const std::string &name, double value)
	Fill the recorded material budget into the corresponding histogram.

bool	checkStep (const G4Step *step)
	check for stuck tracks by looking at the step length

Protected Attributes
G4ThreeVector	m_origin
	Origin of the scan plane.

G4ThreeVector	m_dirU
	u direction of the scan plane

G4ThreeVector	m_dirV
	v direction of the scan plane

G4ThreeVector	m_dirW
	direction perpendicluar to u and v

ScanParams	m_params
	Parameters for the scan.

double	m_curU
	Current value of the parametetr u.

double	m_stepU
	Stepsize for the parameter u.

double	m_curV
	Current value of the parametetr v.

double	m_stepV
	Stepsize for the parameter v.

double	m_curDepth
	Tracklength of the current Ray.

std::map< std::string, std::unique_ptr< TH2D > >	m_regions
	Map holding pointers to all created histograms.

TFile *	m_rootFile
	Pointer to the root file for the histograms.

std::string	m_name
	Name of the scan, will be prefixed to all histogram names.

std::string	m_axisLabel
	Labels for the coordinate axes.

Private Attributes
int	m_zeroSteps {0}
	Count the number of steps with (almost) zero length.

Static Private Attributes
static constexpr double	c_zeroTolerance = 1e-6
	maximum Step length to be considered zero

static constexpr int	c_maxZeroStepsNudge = 10
	maximum number of consecutive zero steps before nudging the track along

static constexpr int	c_maxZeroStepsKill = 20
	maximum number of consecutive zero steps before killing the track

Detailed Description

Specific implementaion of MaterialScan to scan parallel to a given plane.

Particles will be created in a grid on the given plane and will be traced perpendicluar to that plane The plane is defined by one origin and the directions of the grid coordinates u and v. The flight direction is determined by the cross product between the u and v axis.

Definition at line 202 of file MaterialScan.h.

Constructor & Destructor Documentation

◆ MaterialScanPlanar()

MaterialScanPlanar	(	TFile *	rootFile,
		const G4ThreeVector &	origin,
		const G4ThreeVector &	dirU,
		const G4ThreeVector &	dirV,
		const ScanParams &	params
	)

inline

Create a Planar Scan object with the given parameters.

Parameters

rootFile	pointer to the ROOT File containing the histograms
origin	Origin of the plane to shoot rays from
dirU	Direction of the u coordinate
dirV	Direction of the v coordinate
params	Parameters of the scan

Definition at line 211 of file MaterialScan.h.

                                                :
      MaterialScan2D(rootFile, "Planar", "u [cm];v [cm]", params), m_origin(origin), m_dirU(dirU.unit()), m_dirV(dirV.unit()),
      m_dirW(m_dirU.cross(m_dirV))
    {
    }

Member Function Documentation

◆ checkStep()

bool checkStep ( const G4Step * step )

protectedinherited

check for stuck tracks by looking at the step length

Definition at line 44 of file MaterialScan.cc.

{
  double stlen = step->GetStepLength();
  G4StepPoint* preStepPoint = step->GetPreStepPoint();
  G4Region* region = preStepPoint->GetPhysicalVolume()->GetLogicalVolume()->GetRegion();
  if (stlen < c_zeroTolerance) {
    ++m_zeroSteps;
  } else {
    m_zeroSteps = 0;
  }
  if (m_zeroSteps > c_maxZeroStepsNudge) {
    if (m_zeroSteps > c_maxZeroStepsKill) {
      B2ERROR("Track is stuck at " << preStepPoint->GetPosition() << " in volume '"
              << preStepPoint->GetPhysicalVolume()->GetLogicalVolume()->GetName()
              << " (" << region->GetName() << "): "
              << m_zeroSteps << " consecutive steps with length less then "
              << c_zeroTolerance << " mm, killing it");
      step->GetTrack()->SetTrackStatus(fStopAndKill);
    } else {
      B2WARNING("Track is stuck at " << preStepPoint->GetPosition() << " in volume '"
                << preStepPoint->GetPhysicalVolume()->GetLogicalVolume()->GetName()
                << " (" << region->GetName() << "): "
                << m_zeroSteps << " consecutive steps with length less then "
                << c_zeroTolerance << " mm, nudging it along");
      G4ThreeVector pos = step->GetTrack()->GetPosition();
      G4ThreeVector dir = step->GetTrack()->GetMomentumDirection();
      step->GetTrack()->SetPosition(pos + c_zeroTolerance * dir);
    }
    return false;
  }
  return true;
}

◆ createNext()

bool createNext	(	G4ThreeVector &	origin,
		G4ThreeVector &	direction
	)

overridevirtualinherited

Get the origin and direction for the next scan particle.

Parameters

[out]	origin	Origin of the next scan particle
[out]	direction	Direction of the next scan particle

Returns: false if the scan is finished

Implements MaterialScanBase.

Definition at line 97 of file MaterialScan.cc.

{
  if (m_regions.empty()) {
    // create summary histogram right now, not on demand, to make sure it is in the file
    if (m_params.splitByMaterials) {
      getHistogram("All_Materials_x0");
      getHistogram("All_Materials_lambda");
    } else {
      getHistogram("All_Regions_x0");
      getHistogram("All_Regions_lambda");
    }
  }
  //Increase the internal coordinates
  m_curU += m_stepU;
  if (m_curU >= m_params.maxU) {
    m_curU  = m_params.minU + m_stepU / 2.;
    m_curV += m_stepV;
  }
  //Reset depth counter
  m_curDepth = 0;

  //Get the origin and direction of the ray
  getRay(origin, direction);

  //Check wether we are finished
  return (m_curV <= m_params.maxV);
}

◆ fillValue()

void fillValue	(	const std::string &	name,
		double	value
	)

protectedinherited

Fill the recorded material budget into the corresponding histogram.

Parameters

name	Name of the histogram
value	Value to store

Definition at line 138 of file MaterialScan.cc.

{
  TH2D* hist = getHistogram(name);
  hist->Fill(m_curU, m_curV, value);
}

◆ getHistogram()

TH2D * getHistogram ( const std::string & name )

protectedinherited

get histogram for a given name, create if needed.

Parameters

name	Name of the histogram

Definition at line 125 of file MaterialScan.cc.

{
  std::unique_ptr<TH2D>& hist = m_regions[name];
  if (!hist) {
    //Create new histogram
    m_rootFile->cd(m_name.c_str());
    hist.reset(new TH2D(name.c_str(), (name + ";" + m_axisLabel).c_str(),
                        m_params.nU, m_params.minU, m_params.maxU,
                        m_params.nV, m_params.minV, m_params.maxV));
  }
  return hist.get();
}

◆ getName()

std::string getName ( ) const

inlineinherited

Return the name of the scan.

Definition at line 43 of file MaterialScan.h.

43{ return m_name; }

◆ getNRays()

int getNRays ( ) const

inlineoverridevirtualinherited

Return the number of rays in this scan.

Implements MaterialScanBase.

Definition at line 122 of file MaterialScan.h.

122{ return m_params.nU * m_params.nV; }

◆ getRay()

void getRay	(	G4ThreeVector &	origin,
		G4ThreeVector &	direction
	)

overrideprotectedvirtual

Create a ray with the current parameter values according to a planar distribution.

Implements MaterialScan2D.

Definition at line 208 of file MaterialScan.cc.

{
  //We shoot perpendicular to the plane, so direction is always the same but the position varies.
  origin = m_origin + m_curU / Unit::mm * m_dirU + m_curV / Unit::mm * m_dirV;
  direction = m_dirW;
}

◆ UserSteppingAction()

void UserSteppingAction ( const G4Step * step )

overrideinherited

Record the material budget for each step of the particles.

Definition at line 144 of file MaterialScan.cc.

{
  //Get information about radiation and interaction length
  G4StepPoint* preStepPoint = step->GetPreStepPoint();
  G4Region* region = preStepPoint->GetPhysicalVolume()->GetLogicalVolume()->GetRegion();
  G4Material* material = preStepPoint->GetMaterial();
  double stlen = step->GetStepLength();
  double x0 = stlen / (material->GetRadlen());
  double lambda = stlen / (material->GetNuclearInterLength());
  B2DEBUG(20, "Step in at " << preStepPoint->GetPosition() << " in volume '"
          << preStepPoint->GetPhysicalVolume()->GetLogicalVolume()->GetName()
          << " (" << region->GetName() << ")"
          << " with length=" << stlen << " mm");
  checkStep(step);

  //check if the depth is limited
  if (m_params.maxDepth > 0) {
    m_curDepth += stlen;
    if (m_curDepth > m_params.maxDepth) {
      //Depth reached, kill track and add remaining part of the material budget
      G4Track* track = step->GetTrack();
      track->SetTrackStatus(fStopAndKill);
      double remaining = stlen - m_curDepth + m_params.maxDepth;
      x0 *= remaining / stlen;
      lambda *= remaining / stlen;
    }
  }

  if (std::binary_search(m_params.ignoredMaterials.begin(), m_params.ignoredMaterials.end(), material->GetName())) {
    return;
  }

  //Fill x0 and lambda in a histogram for each region
  string x0_total = "All_Regions_x0";
  string lambda_total = "All_Regions_lambda";
  string x0_name = region->GetName() + "_x0";
  string lambda_name = region->GetName() + "_lambda";
  //or for each Material
  if (m_params.splitByMaterials) {
    x0_total = "All_Materials_x0";
    lambda_total = "All_Materials_lambda";
    x0_name = material->GetName() + "_x0";
    lambda_name = material->GetName() + "_lambda";
  }
  fillValue(x0_total, x0);
  fillValue(lambda_total, lambda);
  fillValue(x0_name, x0);
  fillValue(lambda_name, lambda);
}

Member Data Documentation

◆ c_maxZeroStepsKill

constexpr int c_maxZeroStepsKill = 20

staticconstexprprivateinherited

maximum number of consecutive zero steps before killing the track

Definition at line 71 of file MaterialScan.h.

◆ c_maxZeroStepsNudge

constexpr int c_maxZeroStepsNudge = 10

staticconstexprprivateinherited

maximum number of consecutive zero steps before nudging the track along

Definition at line 69 of file MaterialScan.h.

◆ c_zeroTolerance

constexpr double c_zeroTolerance = 1e-6

staticconstexprprivateinherited

maximum Step length to be considered zero

Definition at line 67 of file MaterialScan.h.

◆ m_axisLabel

std::string m_axisLabel

protectedinherited

Labels for the coordinate axes.

Definition at line 64 of file MaterialScan.h.

◆ m_curDepth

double m_curDepth

protectedinherited

Tracklength of the current Ray.

Definition at line 156 of file MaterialScan.h.

◆ m_curU

double m_curU

protectedinherited

Current value of the parametetr u.

Definition at line 148 of file MaterialScan.h.

◆ m_curV

double m_curV

protectedinherited

Current value of the parametetr v.

Definition at line 152 of file MaterialScan.h.

◆ m_dirU

G4ThreeVector m_dirU

protected

u direction of the scan plane

Definition at line 224 of file MaterialScan.h.

◆ m_dirV

G4ThreeVector m_dirV

protected

v direction of the scan plane

Definition at line 226 of file MaterialScan.h.

◆ m_dirW

G4ThreeVector m_dirW

protected

direction perpendicluar to u and v

Definition at line 228 of file MaterialScan.h.

◆ m_name

std::string m_name

protectedinherited

Name of the scan, will be prefixed to all histogram names.

Definition at line 62 of file MaterialScan.h.

◆ m_origin

G4ThreeVector m_origin

protected

Origin of the scan plane.

Definition at line 222 of file MaterialScan.h.

◆ m_params

ScanParams m_params

protectedinherited

Parameters for the scan.

Definition at line 146 of file MaterialScan.h.

◆ m_regions

std::map<std::string, std::unique_ptr<TH2D> > m_regions

protectedinherited

Map holding pointers to all created histograms.

Definition at line 158 of file MaterialScan.h.

◆ m_rootFile

TFile* m_rootFile

protectedinherited

Pointer to the root file for the histograms.

Definition at line 60 of file MaterialScan.h.

◆ m_stepU

double m_stepU

protectedinherited

Stepsize for the parameter u.

Definition at line 150 of file MaterialScan.h.

◆ m_stepV

double m_stepV

protectedinherited

Stepsize for the parameter v.

Definition at line 154 of file MaterialScan.h.

◆ m_zeroSteps

int m_zeroSteps {0}

privateinherited

Count the number of steps with (almost) zero length.

Definition at line 73 of file MaterialScan.h.

The documentation for this class was generated from the following files:

simulation/modules/include/MaterialScan.h
simulation/modules/src/MaterialScan.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MaterialScanPlanar()

Member Function Documentation

◆ checkStep()

◆ createNext()

◆ fillValue()

◆ getHistogram()

◆ getName()

◆ getNRays()

◆ getRay()

◆ UserSteppingAction()

Member Data Documentation

◆ c_maxZeroStepsKill

◆ c_maxZeroStepsNudge

◆ c_zeroTolerance

◆ m_axisLabel

◆ m_curDepth

◆ m_curU

◆ m_curV

◆ m_dirU

◆ m_dirV

◆ m_dirW

◆ m_name

◆ m_origin

◆ m_params

◆ m_regions

◆ m_rootFile

◆ m_stepU

◆ m_stepV

◆ m_zeroSteps
